How To Choose The Number of Claws for A Plastic Pipe Haul-Off Machine?

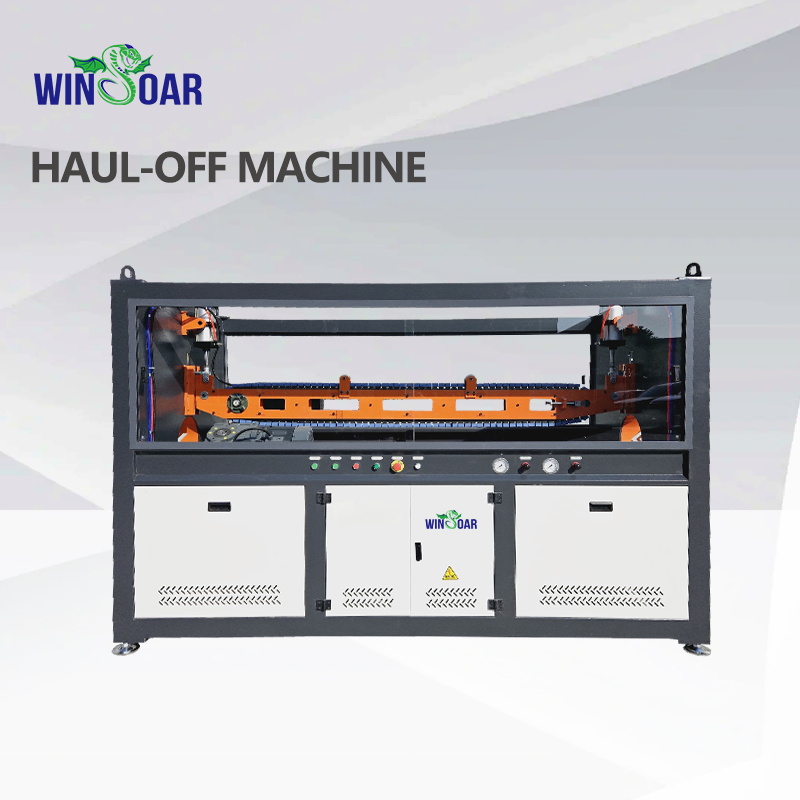

Selecting the appropriate number of claws for a plastic pipe haul-off machine is a decision-making process that requires comprehensive consideration of multiple factors. There is no absolute "best" number of claws; the key lies in finding the optimal balance point that best suits your specific production process and pipe requirements. Here are the key factors to consider when choosing the number of claws:

1.    Pipe Dimensions (Diameter and Wall Thickness):

        o    Small Diameter/Thin-Wall Pipe: Typically requires fewer claws (e.g., 2, 3, or 4 claws). Too many claws can cause:

                §  Excessive Clamping Pressure: Risk of crushing or damaging soft thin-wall pipes.

                §  Space Constraints: Limited space around small pipes makes fitting more claws difficult.

                §  Unnecessary Cost Increase.

        o    Large Diameter/Thick-Wall Pipe: Typically requires more claws (e.g., 4, 6, 8, or even more). The reasons are:

                §  Disperse Clamping Pressure: Avoid excessive localized pressure causing pipe deformation (e.g., crushing or ovalization) or surface damage (indentations). More claws allow lower pressure per claw while increasing total pulling force.

                §  Improve Haul-Off Stability: Multi-point, uniform clamping better resists pipe twisting and oscillation during haul-off, ensuring straightness and roundness.

                §  Increase Effective Contact Area: Provides greater total friction to overcome higher pipe weight and production resistance (e.g., melt pressure, cooling shrinkage resistance).

2.    Pipe Type and Material Properties:

        o    Soft/Easily Deformable Materials: Such as soft PVC, certain PE types, or thin-wall pipes. Need more claws to disperse pressure and prevent damage or deformation. Claw face design (e.g., soft rubber pads) is also crucial.

        o    Hard/Rigid Materials: Such as rigid PVC, PP-R, ABS, or thick-wall pipes. Less sensitive to crushing damage, so relatively fewer claws can be used (though diameter must still be considered).

        o    Pipes with High Surface Finish Requirements: Such as transparent pipes, glossy pipes, or printed pipes. Require more claws combined with suitable claw face materials (e.g., soft rubber, flocking) to minimize visible marks.

3.    Haul-Off Force Requirements:

        o    High Haul-Off Force Needed: Large diameter pipes, high line speeds, high melt pressure (e.g., large diameter pressure pipes), or low material friction coefficient necessitate greater pulling force. Increasing the number of claws is an effective way to boost total pulling force (increasing friction contact area).

        o    Low Haul-Off Force Needed: Small diameter pipes, low-speed production, or high material friction coefficient mean fewer claws are usually sufficient.

4.    Production Speed (Line Speed):

        o    High-Speed Production: Requires extremely stable haul-off to avoid pipe vibration or snaking. More claws provide longer continuous contact time per clamp cycle, improving stability and smoothness at high speeds.

        o    Low-Speed Production: Lower requirements for continuous clamping stability; fewer claws are generally adequate.

5.    Pipe Shape:

        o    Round Pipe: Claw number selection is relatively flexible, primarily based on the factors above.

        o    Profile Pipe (Shaped Pipe): May require more claws or specially designed claws to ensure uniform force application on critical areas (e.g., corners, ribs) and prevent deformation. Claw shape needs to match the profile contour.

6.    Equipment Cost and Complexity:

        o    More Claws: Equipment structure becomes more complex, increasing manufacturing and maintenance costs. Adjustment may also be more cumbersome (requiring setting each claw's position and pressure).

        o    Fewer Claws: Equipment is relatively simpler, lower cost, and easier to adjust.

7.    Flexibility and Versatility:

        o    If one haul-off machine needs to produce pipes across a wide size range, choosing equipment with a wide range of claw adjustability or more claws (e.g., 6 or 8 claws) offers greater versatility. Deactivating some claws or adjusting their position allows adaptation to smaller diameters (though potentially not optimal efficiency).

        o    If dedicated to a specific pipe size range, selecting the number of claws best matched to that range is more cost-effective.

Selection Recommendations and Steps:

1.    Define Primary Production Range: Determine the minimum and maximum diameters, typical wall thicknesses, and primary material types of the pipes you mainly produce.

2.    Assess Key Requirements:

        o    Is the pipe prone to crushing/deformation? (Soft material? Thin wall? High surface finish?) → Lean towards more claws.

        o    Is high haul-off force needed? (Large diameter? High speed? Slippery material?) → Lean towards more claws.

        o    Is the production speed very high? → Lean towards more claws for stability.

        o    Is the budget limited? → Consider fewer claws if basic requirements are met.

3.    Consult Equipment Manufacturers: Provide your specific production parameters (pipe specs, material, target speed, output requirements) to consult reputable haul-off machine manufacturers for recommended configurations. They typically have extensive application experience databases.

4.    Consider Adjustability: If producing a wide diameter range, choose equipment with a wide claw spacing adjustment range, or choose a machine with more claws where some can be deactivated (e.g., using an 8-claw machine for medium pipes by disabling 2 claws).

5.    Consider Claw Type: Pneumatic claws are usually faster and easier to adjust than mechanical types. Claw face material (rubber hardness, pattern) is crucial for protecting the pipe surface and should be considered alongside claw count.

6.    Sample Testing (If Possible): For critical applications or special pipes, if feasible, conduct actual haul-off tests with samples on the target machine configuration to observe clamping results (indentations, deformation?) and running stability.

Summary:

·         Prioritize Pipe Quality: Preventing crushing and deformation is paramount. For delicate pipes or high surface finish requirements, err on the side of more claws.

·         Meet Haul-Off Force Demand: Ensuring sufficient pulling force is essential for continuous, stable production. Large diameter/high-speed production necessitates enough claws.

·         Pursue Stability: More claws provide smoother haul-off at high speeds.

·         Balance Cost: Select the most cost-effective solution that meets the first three points.

Ultimately, detailing your specific production requirements and communicating them with reliable equipment suppliers, combined with their expert advice, is the most effective way to make the best claw count selection.
