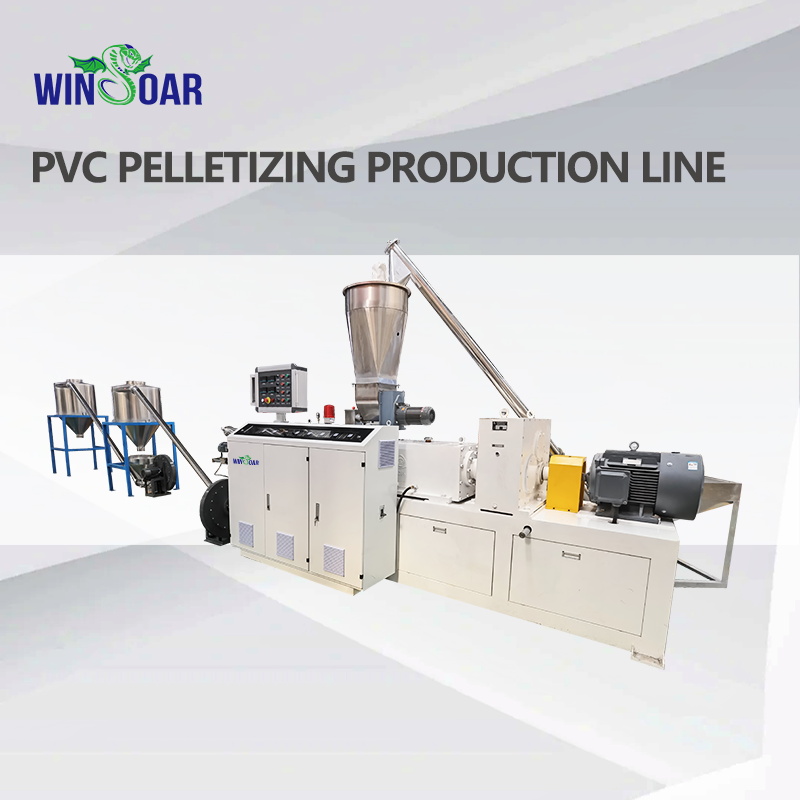

PVC Pelletizing Production Line

A PVC pelletizing production line is a specialized equipment system designed to uniformly mix polyvinyl chloride (PVC) resin powder, plasticizers, stabilizers, fillers, pigments, and various other additives. This mixture is then melted, plasticized, extruded, and finally cut into uniform granular pellets. These pellets are convenient for subsequent processing such as extrusion, injection molding, and calendering.

A typical PVC pelletizing production line consists of the following core sections and processes:

1.    Raw Material Pre-treatment & Storage System:

    o    Resin Silos: For storing the main PVC resin.

    o    Additive Silos/Dosing System: For storing various additives (stabilizers, plasticizers, fillers, pigments, lubricants, etc.), equipped with high-precision automatic weighing systems (e.g., Loss-in-Weight Feeders) to ensure accurate formulation.

    o    Dryer: (Optional) Pre-dries raw materials (especially fillers) if moisture content is high.

2.    High-Speed Hot Mixer :

    o    Pre-weighed PVC resin powder and solid additives (e.g., stabilizers, fillers, pigments) are added to the hot mixing bowl.

    o    Under high-speed agitation and jacket heating (usually steam or thermal oil), the material rapidly heats up (typically to 100-120°C).

    o    Purpose: To achieve preliminary dispersion of additives into the resin powder and remove some low-boiling volatiles and moisture. Uniform mixing and temperature control are critical.

3.    Low-Speed Cool Mixer:

    o    The hot-mixed material is quickly transferred to the cool mixing bowl.

    o    Under low-speed agitation and jacket cooling (water or chilled water), the material is rapidly cooled (typically to 40-60°C).

    o    Cooling Purpose:

          §  Prevents agglomeration of the hot material.

          §  Removes more volatiles and moisture.

          §  Provides a free-flowing, non-bridging material for consistent feeding into the extruder.

    o    The Hot Mixer and Cool Mixer typically form a "High-Speed Mixing Unit."

4.    Extrusion System (Core):

    o    Feeding Device:

          §  Force Feeder: Ensures uniform, stable, and controlled feeding of the cooled powder/fluffy blend into the extruder inlet. Essential for powder processing to prevent bridging or inconsistent feeding.

          §  Liquid Additive Metering Pumps: (e.g., for high plasticizer content like DOA/DOP) Precisely meter and inject liquid plasticizers into specific zones of the extruder barrel (usually in the melting section).

    o    Extruder Main Unit:

          §  Type: Twin-screw Extruders are most commonly used for PVC pelletizing due to their excellent mixing, dispersion, self-cleaning capabilities, and adaptability to formulation changes. Single-screw Extruders (lower cost) are sometimes used for flexible PVC or less demanding applications.

          §  Structure: Comprises barrel, screws, heating/cooling system, drive system.

          §  Function: Material is conveyed, sheared, and mixed by the screws, leading to further plasticization, melting, and homogenization. Barrel zone temperatures require precise control (typically increasing from feed zone to die).

          §  Venting: Extruders usually feature a Vacuum Vent Port connected to a vacuum pump to remove volatiles, moisture, and air from the melt, improving product quality and reducing bubbles.

5.    Die Head:

    o    Mounted at the extruder outlet.

    o    Distribute the plasticized and homogenized PVC melt directly to multiple small holes.

    o    Design must ensure uniform melt flow, pressure balance, and avoid dead spots that could cause material degradation.

6.    Pelletizing System:

    o    Die-Face Hot Cutting (Air Cooling):

          §  Melt is extruded directly through a die plate with multiple small holes at the front.

          §  High-speed rotating knives, pressed against the die face, instantly cut the emerging molten strands into pellets.

          §  Hot pellets are blown away from the die by high-velocity cooling air (typically from a blower), rapidly solidifying while being conveyed to a vibratory screen or cyclone separator.

          §  Advantages: High output, suitable for mass production; uniform pellet shape (typically lentil/hemispherical or spherical); no water contact, eliminating drying step.

          §  Disadvantages: Higher equipment investment; requires tighter formulation and process control (to prevent sticking, stringing).

7.    Cooling, Drying & Screening System:

    o    Cooling: For air-cooled hot cutting, it mainly relies on air flow cooling.

    o    Drying: Air-cooled hot-cut pellets usually require no additional drying.

    o    Screening: Pellets pass through a Vibratory Screen/Sifter to separate oversized pellets, undersized fines, dust, and tails, ensuring uniform pellet size.

8.    Pellet Conveying & Packaging System:

    o    Qualified pellets are conveyed via Pneumatic Conveying System to a Product Silo for temporary storage.

9.    Auxiliary Systems:

    o    Control System: Modern lines typically use PLC or DCS for centralized control, enabling precise setting, monitoring, recording, and alarming of parameters (temperatures, speeds, pressures, feed rates, vacuum levels). Crucial for product consistency and operational safety.

    o    Heating/Cooling System: Provides stable heating (electric, thermal oil, steam) and cooling (cooling towers, chillers) for extruder, die, cool mixer, etc.

    o    Vacuum System: Provides stable vacuum for extruder venting.

    o    Compressed Air System: Powers pneumatic components and some conveying.

    o    Dust Collection System: Collects dust from material handling, feeding, screening, etc., ensuring a clean and safe work environment.

    o    Exhaust Gas Treatment System: (Increasingly important) Treats exhaust gases containing VOCs, dust, HCl from hot mixing and extruder venting to meet environmental regulations.

Key Considerations for PVC Pelletizing Lines:

·         Output: Determines equipment size (screw diameter, motor power).

·         Raw Material Properties: Rigid PVC, Flexible PVC, Semi-rigid PVC, filler content, plasticizer content, etc., directly impact equipment selection (especially screw configuration) and process settings.

·         Pellet Requirements: Shape (cylindrical, lentil), size, density, visual appearance.

·         Formulation Complexity: Need for frequent recipe changes demands higher equipment flexibility and cleanability.

·         Energy Consumption: Selecting energy-efficient equipment (e.g., high-efficiency motors, optimized screw design) is key.

·         Automation Level: Impacts labor costs and production stability.

·         Environmental Compliance: Effective dust collection and exhaust gas treatment are mandatory.

·         Safety: PVC processing carries thermal decomposition risks (generating HCl gas), requiring good ventilation, safety interlocks, and protective measures.

Summary:

A PVC pelletizing production line is a complex, integrated system encompassing material handling, mixing, plasticization, extrusion, shaping, cutting, cooling, drying, screening, and packaging. Its core objective is to efficiently, consistently, and safely produce high-quality PVC pellets that meet customer specifications. Selecting the right equipment configuration (especially the extruder and pelletizing method) and implementing precise process control are critical for successful operation. Automation, intelligence, energy efficiency, and environmental protection are key trends in modern PVC pelletizing line development.
