Detailed Product Description

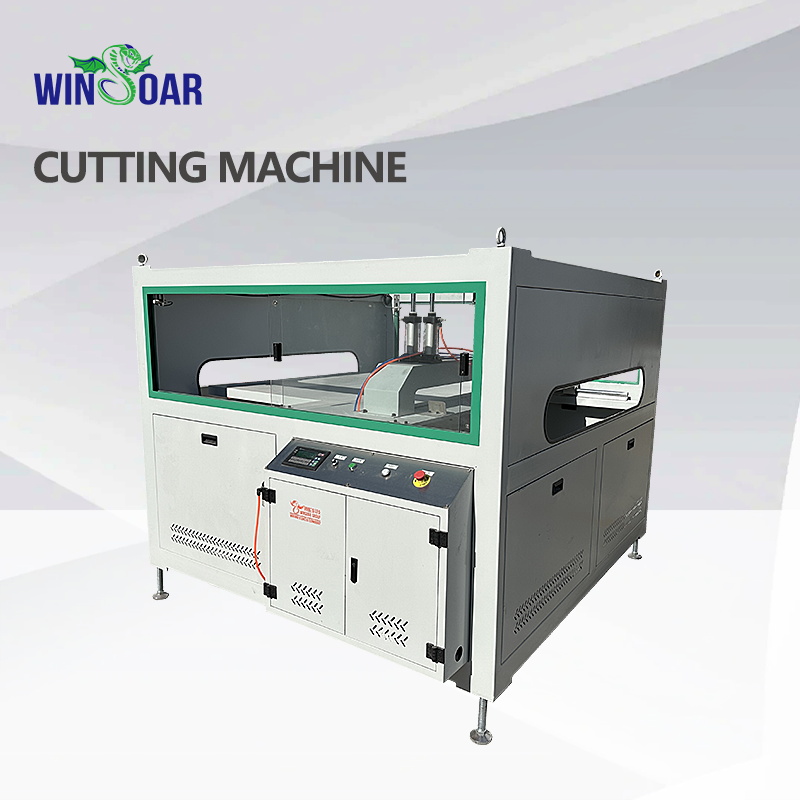

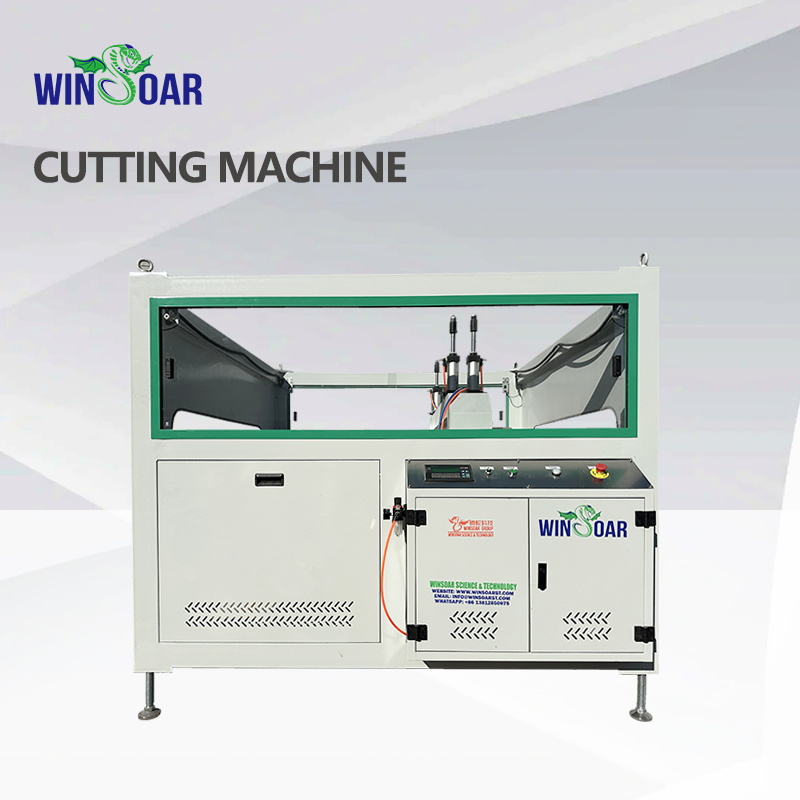

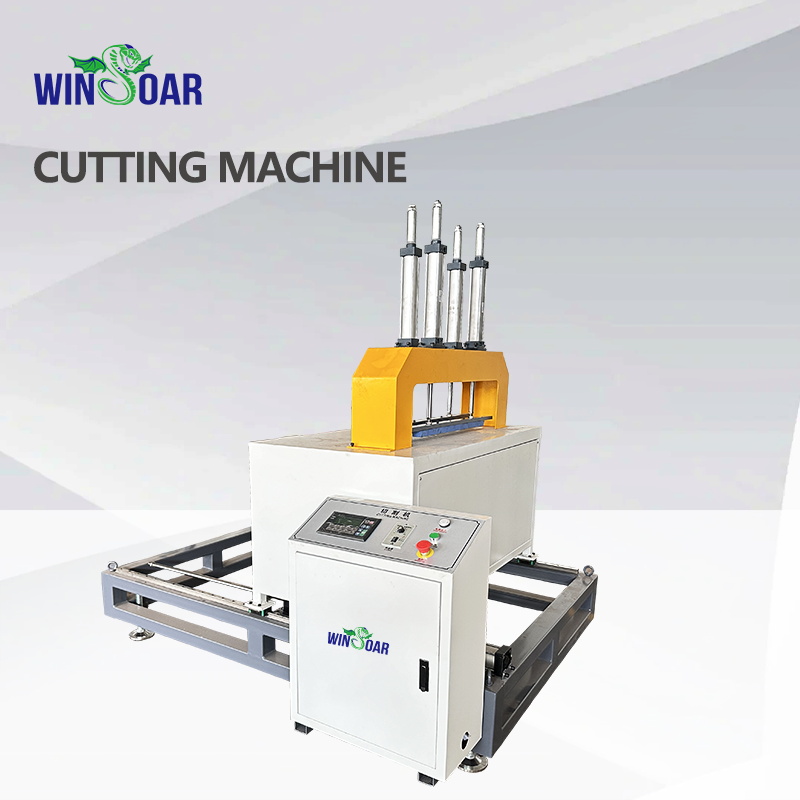

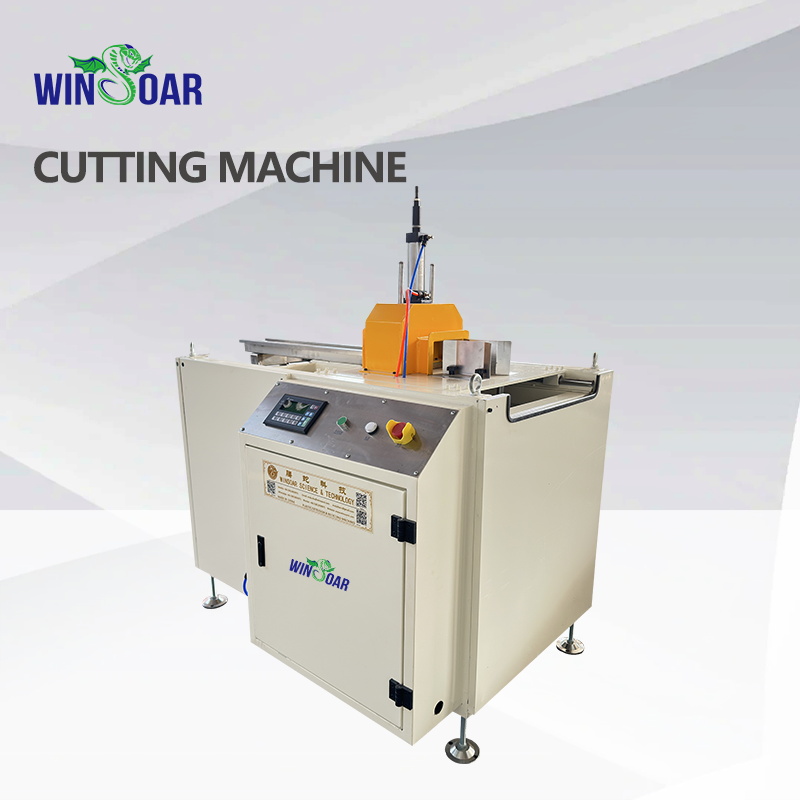

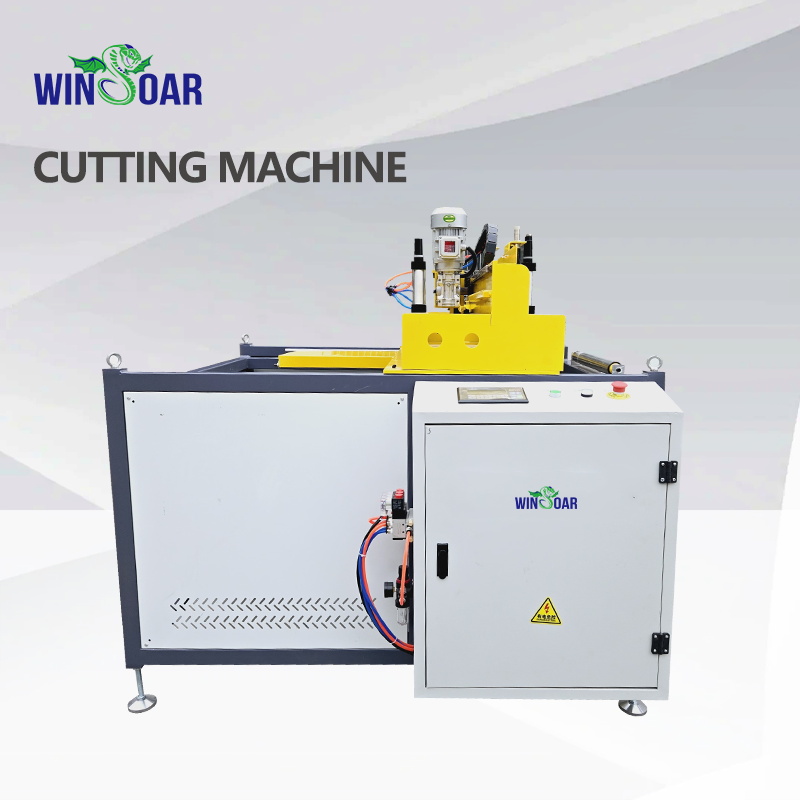

The Cutting Machine is mainly used for cutting plastic panels and plastic profiles.
Equipped with PLC computer control, the cutting machine adopts servo motor automatic cutting.
Technical Parameters of Cutting Unit
Model | 63 | 125 | 250 | 450 | ||||
Cutting range(mm) | 16-63 | 32-125 | 63-250 | 110-450 | ||||
Cutting method | Fly saw in high speed | Planetary &non-scrap | Liftable saw blade | Planetary &non-scrap | Planetary saw blade | Planetary &non-scrap | Planetary saw blade | |
Cutting power(kw) | 6.9 | - | 2.2 | 2.2 | 2.2 | 2.2 | 4 | 3 |
Surrounding power(kw) | - | 1.5 | 1.5 | 2.2 | 1.5 | 4 | 2.2 | |
Model | 630 | 800 | 1200 | 1600 | 2000 | |
Cutting range(mm) | 315-630 | 450-800 | 630-1200 | 800-1600 | 1000-2000 | |
Cutting method | Planetary &non-scrap | Planetary saw blade | ||||
Cutting power(kw) | - | 4 | 4 | 4 | 4 | 4 |
Surrounding power(kw) | 4 | 4 | 4 | 2.2 | 2.2 | 2.2 |
