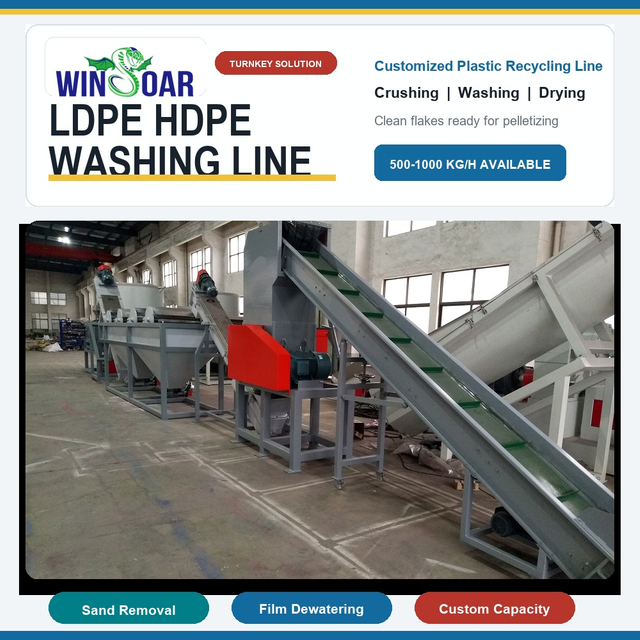

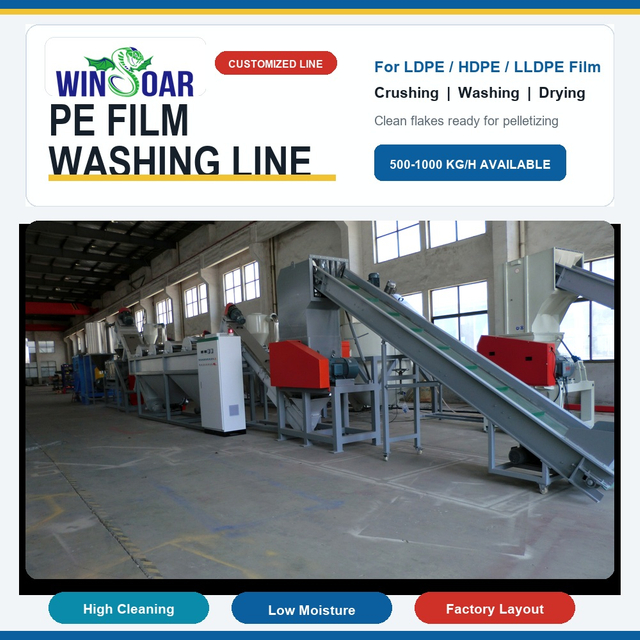

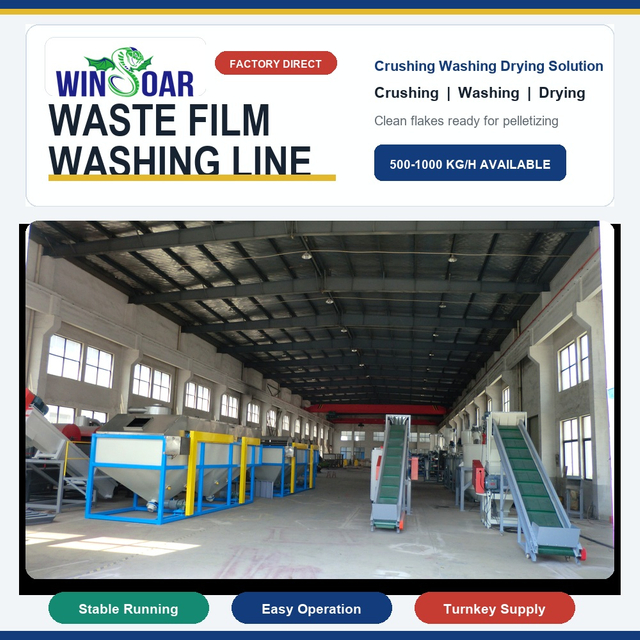

Plastic Washing and Recycling Line for Film, Bottles and Clean Flakes
Direct answer: A plastic washing and recycling line is a complete recycling system for cleaning waste PE film, PP woven bags, HDPE bottles, PET bottles and mixed plastic flakes before pelletizing or reuse. The line normally combines crushing or shredding, friction washing, floating separation, hot washing when needed, dewatering and drying. Winsoar configures the washing process according to raw material type, contamination level, output capacity, final moisture target and available workshop layout.
PE PP Film Washing Line Applications
For buyers searching for a plastic film washing line, the main target is usually post-consumer PE agricultural film, packaging film, PP woven bags, jumbo bags, HDPE bottles or mixed soft plastic. A PE PP film washing line focuses on opening and reducing the material size, removing sand and labels, separating floating polyolefin flakes from sinking impurities, controlling water circulation and drying the flakes before pelletizing.
- PE film washing line for agricultural film, greenhouse film, packaging film and stretch film.
- PP woven bag washing line for cement bags, jumbo bags and raffia materials.
- HDPE bottle and rigid plastic washing line for drums, containers and injection-molded scrap.
- Combined washing and pelletizing projects when clean flakes need to be converted into recycled granules.
PET Bottle Washing Line Applications
A PET bottle washing line is selected when the raw material contains beverage bottles, labels, caps and glue contamination. Compared with PE PP film, PET recycling usually requires stronger label removal, hot washing, floating cap separation and flake drying. The final flake quality depends on bottle source, bale condition, label ratio, PVC impurity control and the washing recipe.
Typical Plastic Washing Process
| Process Step | Purpose | Buyer Check |
|---|
| Feeding and crushing | Open bales and reduce plastic size for stable washing. | Raw material form, bale density and required crusher or shredder power. |
| Pre-washing | Remove heavy dirt, sand and loose contaminants before fine washing. | Dirt level, water quality and drainage plan. |
| Friction and floating washing | Clean flakes and separate floating plastics from sinking impurities. | Material density, label content and cap or metal contamination. |
| Hot washing | Improve oil, glue and label residue removal when required. | Needed mainly for PET bottle flakes or heavily contaminated film. |
| Dewatering and drying | Reduce final moisture before storage, extrusion or pelletizing. | Target moisture, dryer type, floor space and energy use. |
How to Choose a Plastic Recycling Washing Line
The best washing line is not selected only by capacity. Buyers should confirm the waste source, plastic type, contamination level, target output, final flake use, local water and power conditions, and whether pelletizing will be added after washing. A 300 kg/h film washing line and a 1000 kg/h PET bottle washing line require different machines, water circulation design, heating system and drying arrangement.
- Raw material: PE film, PP bag, HDPE bottle, PET bottle, rigid plastic or mixed plastic waste.
- Contamination: sand, oil, mud, labels, caps, glue, metal or mixed polymer impurities.
- Output target: hourly capacity, final flake size and downstream pelletizing or extrusion plan.
- Final moisture: different buyers need different drying results before storage or granulation.
- Factory layout: available length, water tanks, drainage, power standard and operator access.
Related Recycling Machine Categories
For material-specific options, compare the PE PP Film and Bottle Washing Line, PET Bottle Washing Line, Plastic Pelletizing and Granulating Line, PE PP Water Ring Granulating Line and Plastic Recycling Machines categories.
FAQ
What is a plastic film washing line?
A plastic film washing line cleans waste PE film, PP bags and soft plastic materials through size reduction, washing, floating separation, dewatering and drying. Clean flakes can be sold, stored or sent to a pelletizing line.
What is the difference between PE PP film washing and PET bottle washing?
PE and PP materials normally float in water, while PET sinks. PET bottle washing also needs stronger label, cap, glue and PVC impurity control. The washing tanks, hot washer, separation and drying design should match the material.
What information is needed for a quotation?
Please send the plastic material, photos or video of the waste, contamination level, expected capacity, final flake use, moisture requirement, power standard, water condition and workshop size. These details help Winsoar prepare a practical washing line layout and machine configuration.
