Features
PVC foam board, also known as skinned foam board, has the advantages of being non-toxic, odorless, corrosion-resistant, moisture-proof, moldy resistant, heat insulated, non absorbent, sawable, nailable, lightweight, and easy to process. Widely used in advertising, decoration and decoration industries.
The PVC advertising board production equipment produced by our company has the advantages of stability, efficiency, and simple operation. It can produce various specifications of PVC advertising boards.
Application scope
PVC wood plastic skinning foam board is widely used. It can be used for building formwork, all kinds of stationery boards, furniture, cabinet boards, molds for making bricks, all kinds of packaging boards, turnover boxes, simple shelves, advertising boards, display boards, commercial shelves, car ceilings, train carriages, ship interiors, etc. The amount used in various fields is huge. Especially in the field of construction, the amount is immeasurable. Characteristics of PVC wood plastic skinning foam board. It can be placed in the open air (with strong weather resistance), has strong antibacterial, anti fogging, anti-corrosion, moisture-proof (especially suitable for use in high-rise, underground projects and humid environments), anti termite, anti moth, anti rat bite, fire protection, anti ultraviolet, insulation, electricity protection, thermal insulation, low water absorption, durable and reusable, easy to peel off from the concrete, and does not need to use release agent when demoulding.
Equipment characteristics
The unit adopts specially designed SJZ80 conical twin-screw extruder, DC speed regulation drive, imported brand temperature control instrument, which has the advantages of wide speed regulation range, high temperature control accuracy, convenient and reliable operation, etc.
The auxiliary machine is composed of vacuum shaping table, traction machine, cutting machine and pusher.
Large forced cooling device is equipped to ensure the shaping effect of the sheet.
The crawler tractor adopts precision reduction motor and frequency converter, which has the advantages of reasonable structure, large traction force, stable traction, etc.
The cutting machine has the advantages of reliable and accurate operation and high cutting accuracy.
The pusher frame is attached with a movable pusher car and a specially made rubber protective layer, which has the advantages of no material damage and simple use.
The auxiliary machine unit adopts programmable computer control or domestic famous brand control system, and the whole machine control is reliable and stable.
Main technical parameters
ITEM | SJSZ80/156 | SJSZ92/188 | SJSZ92/188 |
Width(mm) | 1220 | 1600 | 1600-2050 |
Thickness(mm) | 3-20 | 5-30 | 3-20 |
Capacity(kg/h) | 350 | 500 | 600 |
Power(kw) | 75 | 110 | 120 |

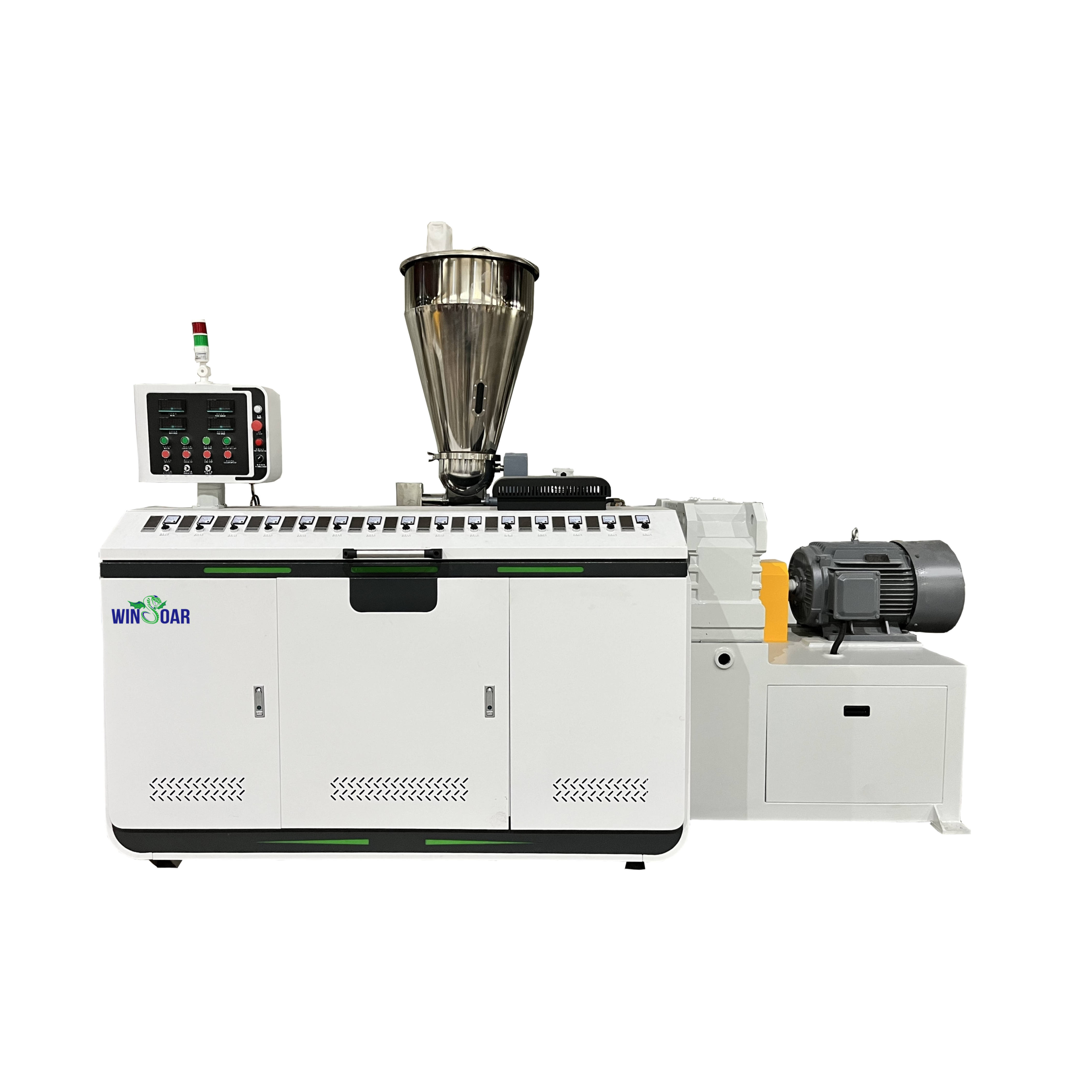

Extruder
The unit adopts specially designed SJZ80 conical twin-screw extruder, DC speed regulation drive, imported brand temperature control instrument, which has the advantages of wide speed regulation range, high temperature control accuracy, convenient and reliable operation, etc.

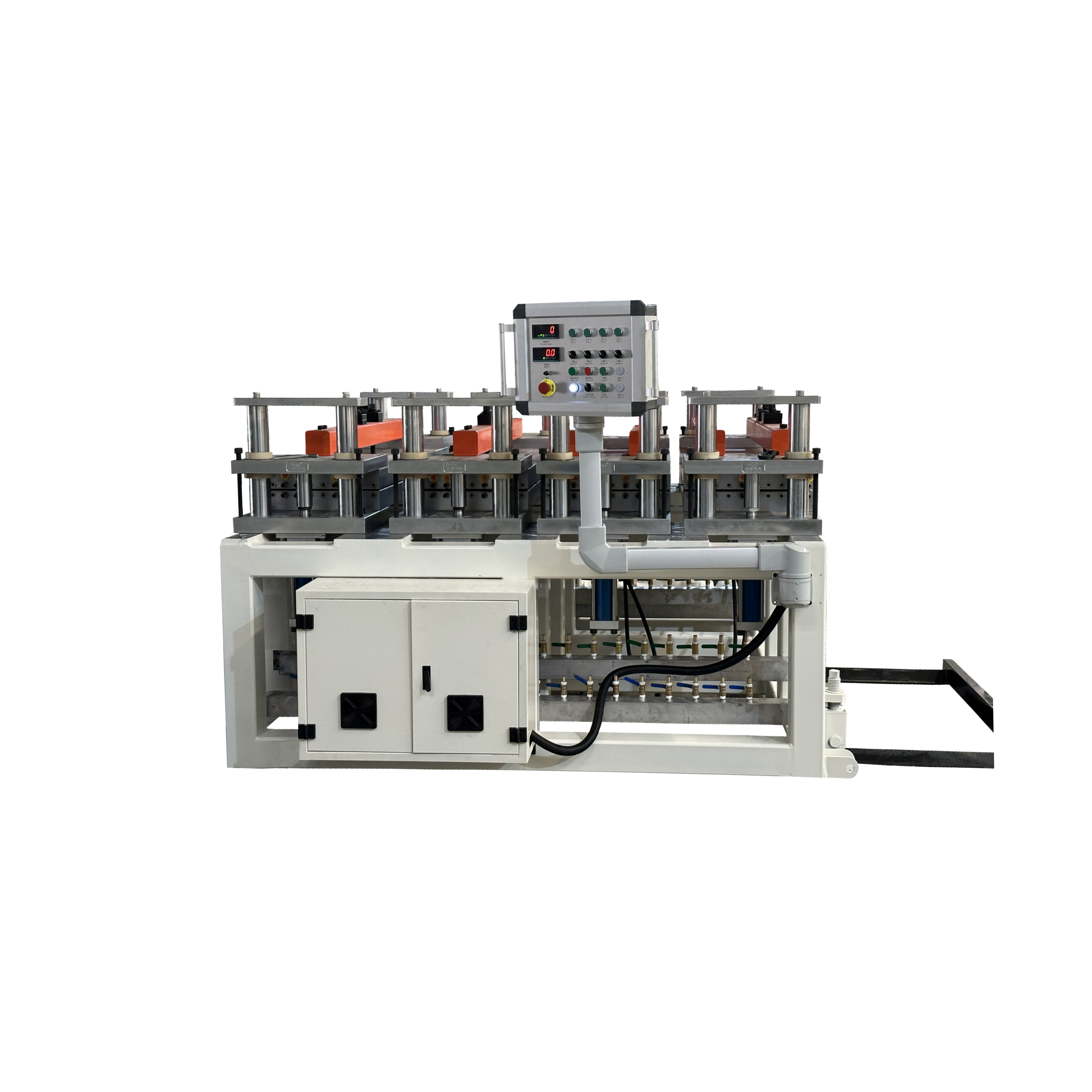

Vacuum shaping table
Large forced cooling device is equipped to ensure the shaping effect of the sheet.

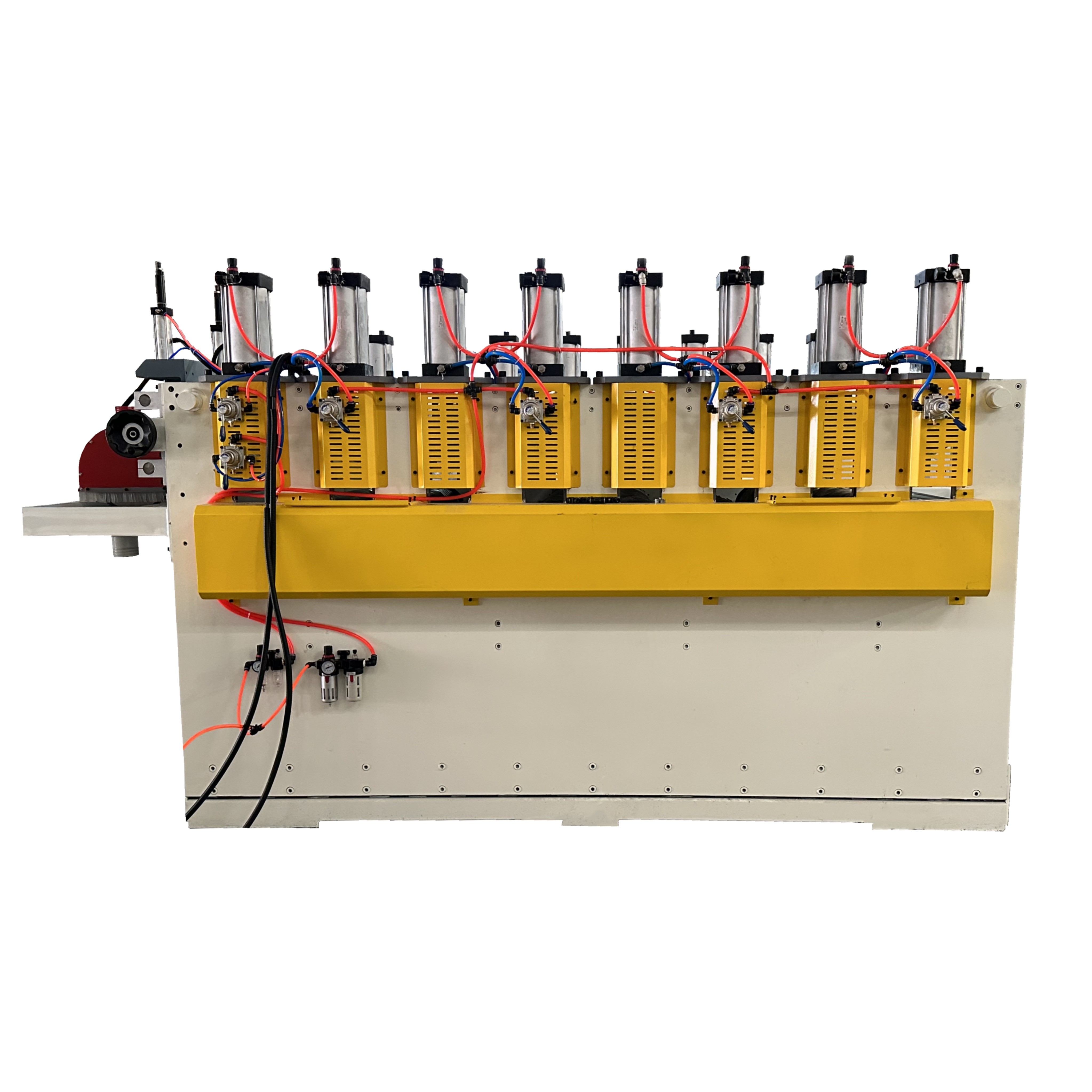

Traction machine
The crawler tractor adopts precision reduction motor and frequency converter, which has the advantages of reasonable structure, large traction force, stable traction, etc.

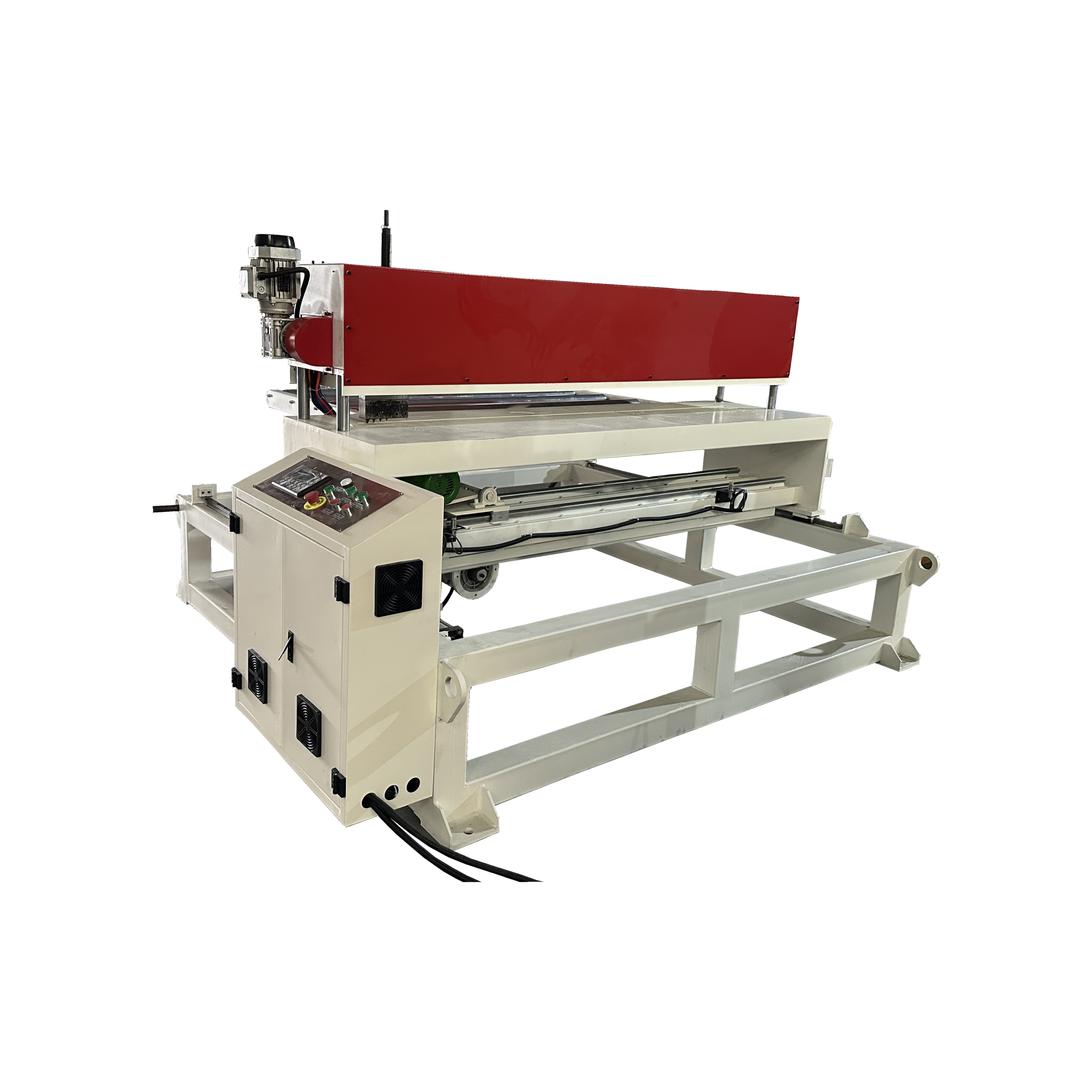

Cutting machine
The cutting machine has the advantages of reliable and accurate operation and high cutting accuracy.

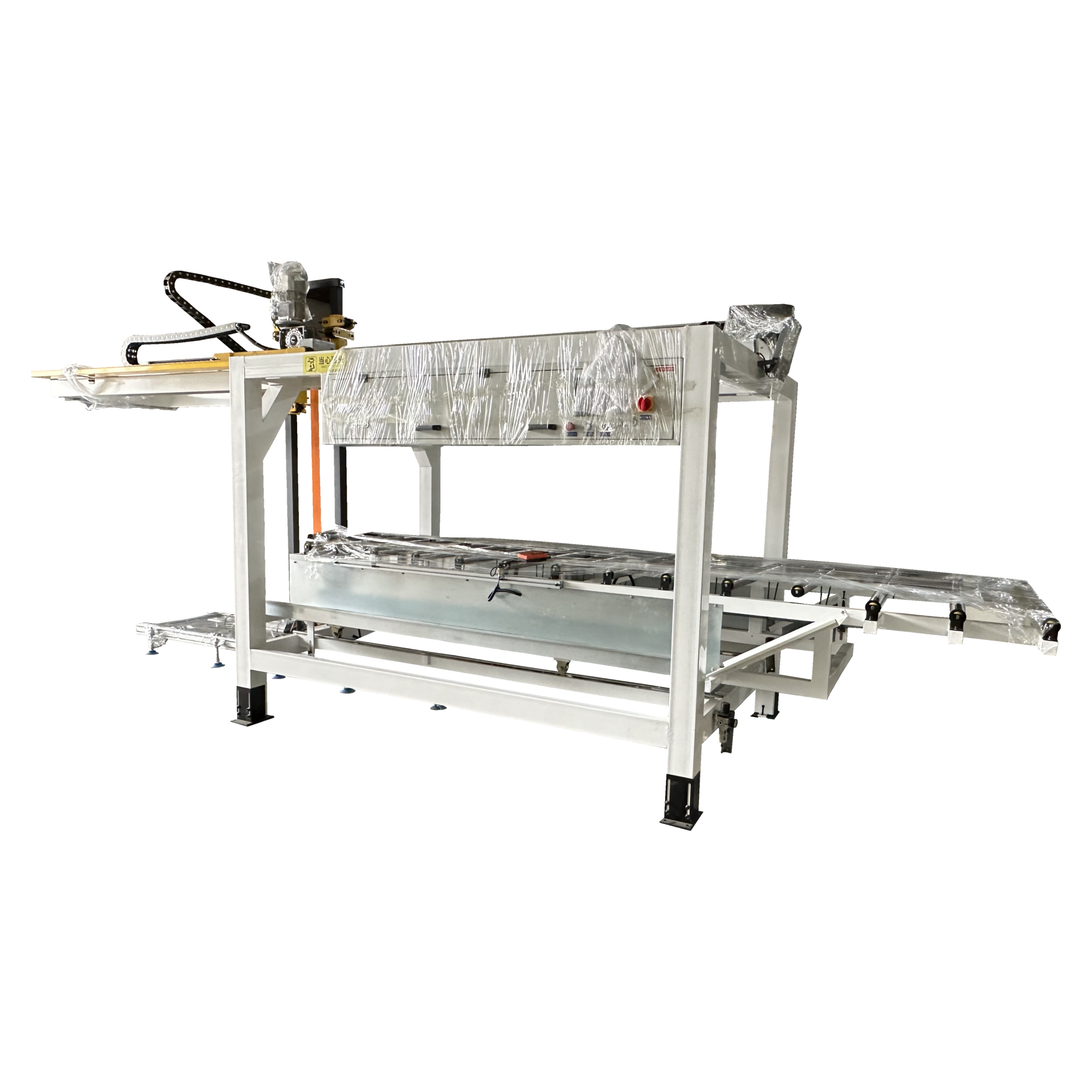

Pusher
The pusher frame is attached with a movable pusher car and a specially made rubber protective layer, which has the advantages of no material damage and simple use.
