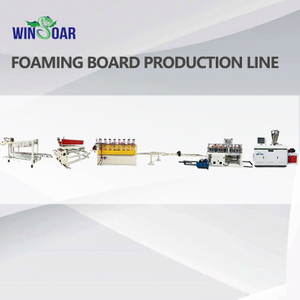

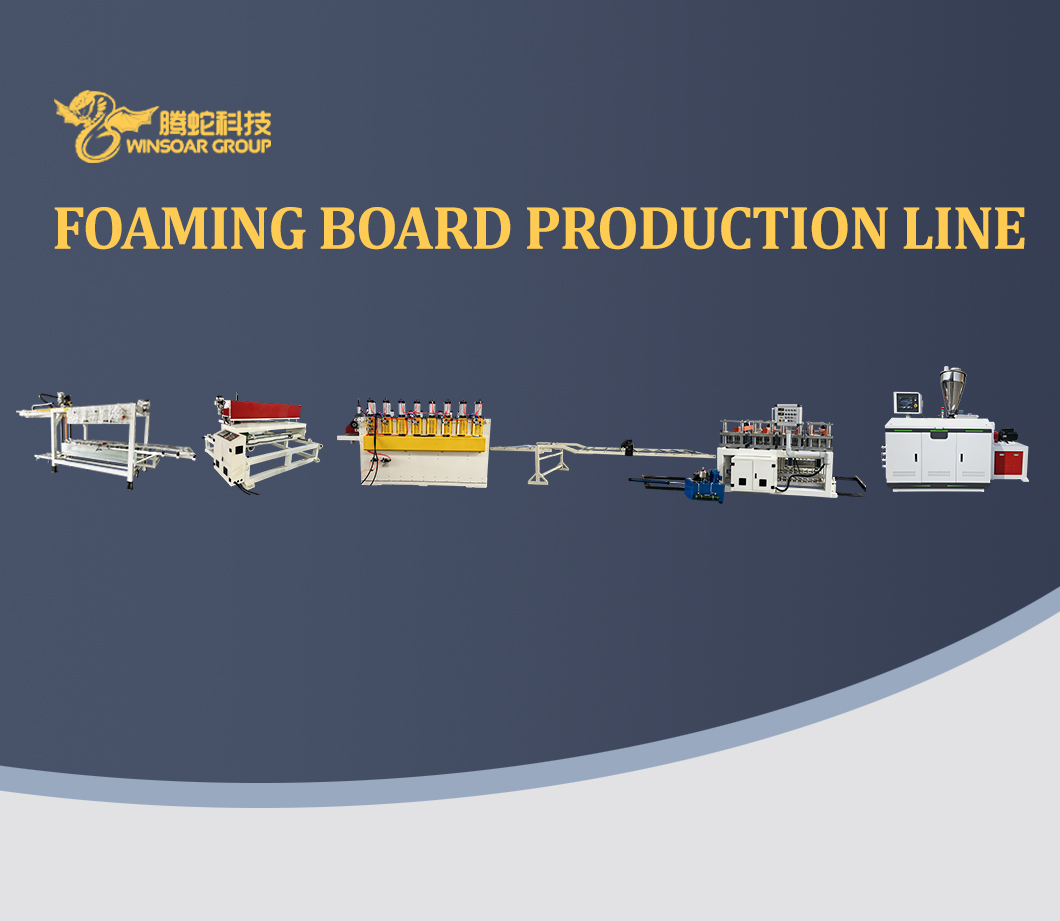

Foaming Board Production Line

5 0 Reviews
Availability:
Quantity:

Features

The production line of PVC wood plastic skinning foam board (building formwork, wood plastic board) is a new type of formwork production equipment developed by our company according to the needs of the current market, with the purpose of saving energy, recycling waste, turning waste into treasure and beautifying the environment. This production line uses PVC raw materials and waste materials, wood flour, calcium carbonate and other fillers to produce building formwork, which is a new type of formwork to replace steel formwork and bamboo wood plywood. Its advantages are: green environmental protection, anti-corrosion, moisture-proof, mothproof, not easy to deform, the same processing conditions as wood, recyclable and so on, and its application prospect is very broad. It has many advantages, such as low cost, light weight, continuous use up to 30 times, and waste can be crushed and reused. The biggest feature of PVC wood plastic skinning foam board is its low price and high quality, and its raw materials come from a wide range of sources. Wood flour made from waste miscellaneous wood can beautify the environment and turn waste into treasure.


Application scope

PVC wood plastic skinning foam board is widely used. It can be used for building formwork, all kinds of stationery boards, furniture, cabinet boards, molds for making bricks, all kinds of packaging boards, turnover boxes, simple shelves, advertising boards, display boards, commercial shelves, car ceilings, train carriages, ship interiors, etc. The amount used in various fields is huge. Especially in the field of construction, the amount is immeasurable. Characteristics of PVC wood plastic skinning foam board. It can be placed in the open air (with strong weather resistance), has strong antibacterial, anti fogging, anti-corrosion, moisture-proof (especially suitable for use in high-rise, underground projects and humid environments), anti termite, anti moth, anti rat bite, fire protection, anti ultraviolet, insulation, electricity protection, thermal insulation, low water absorption, durable and reusable, easy to peel off from the concrete, and does not need to use release agent when demoulding.


Equipment characteristics

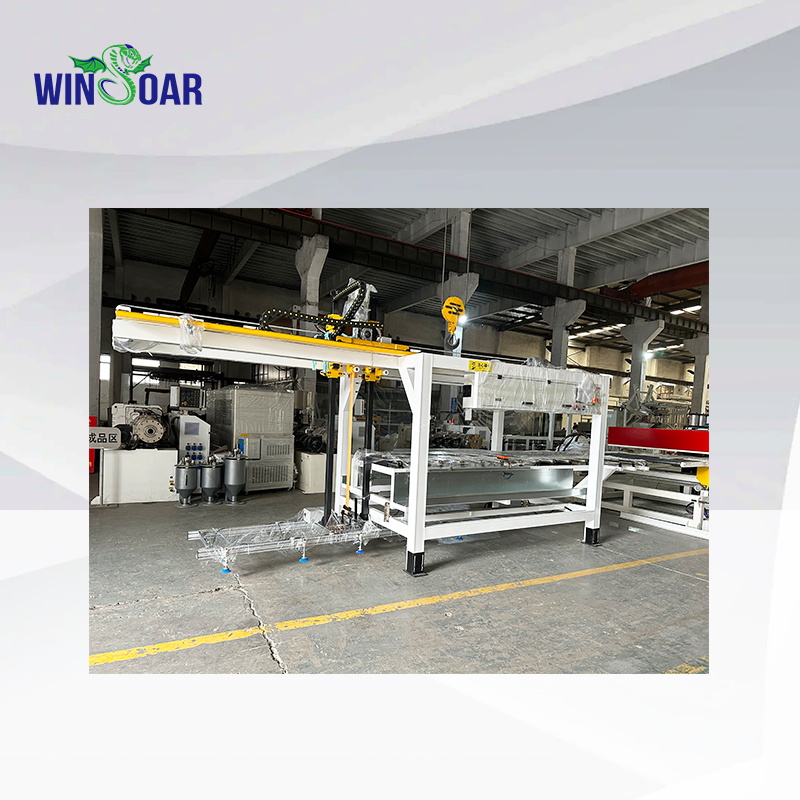

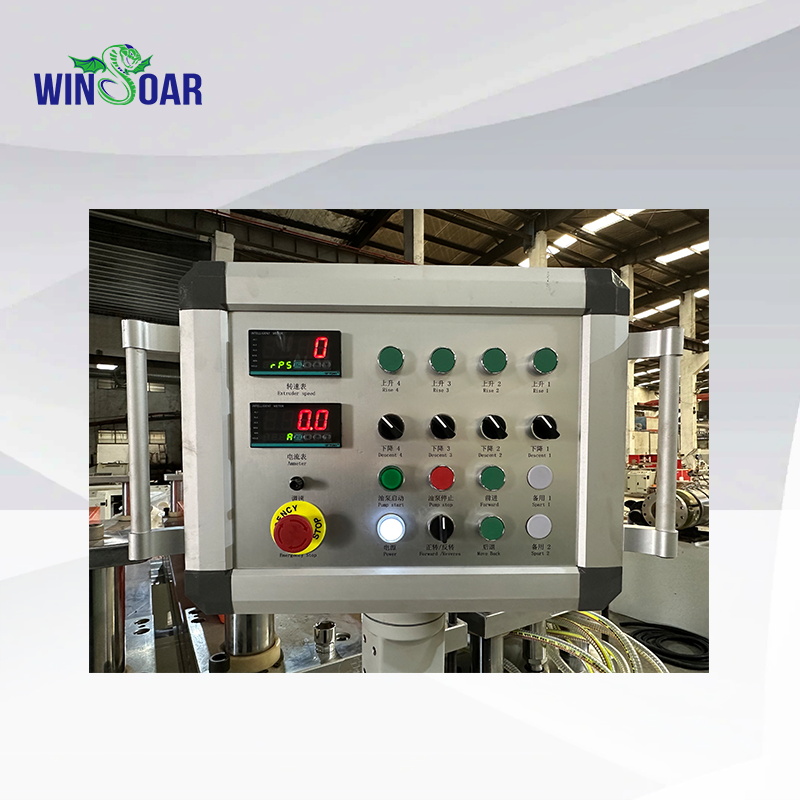

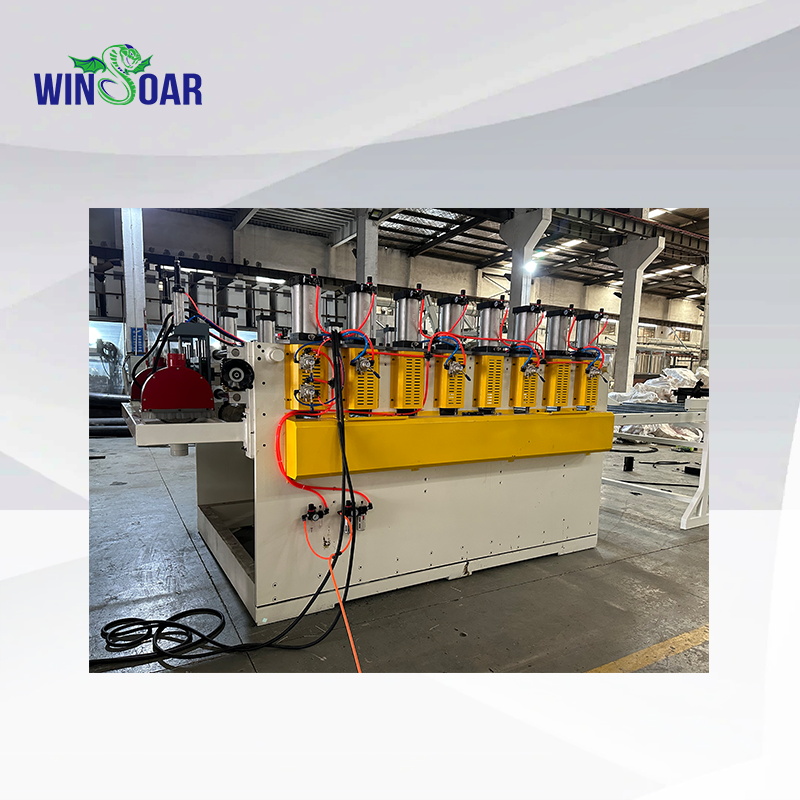

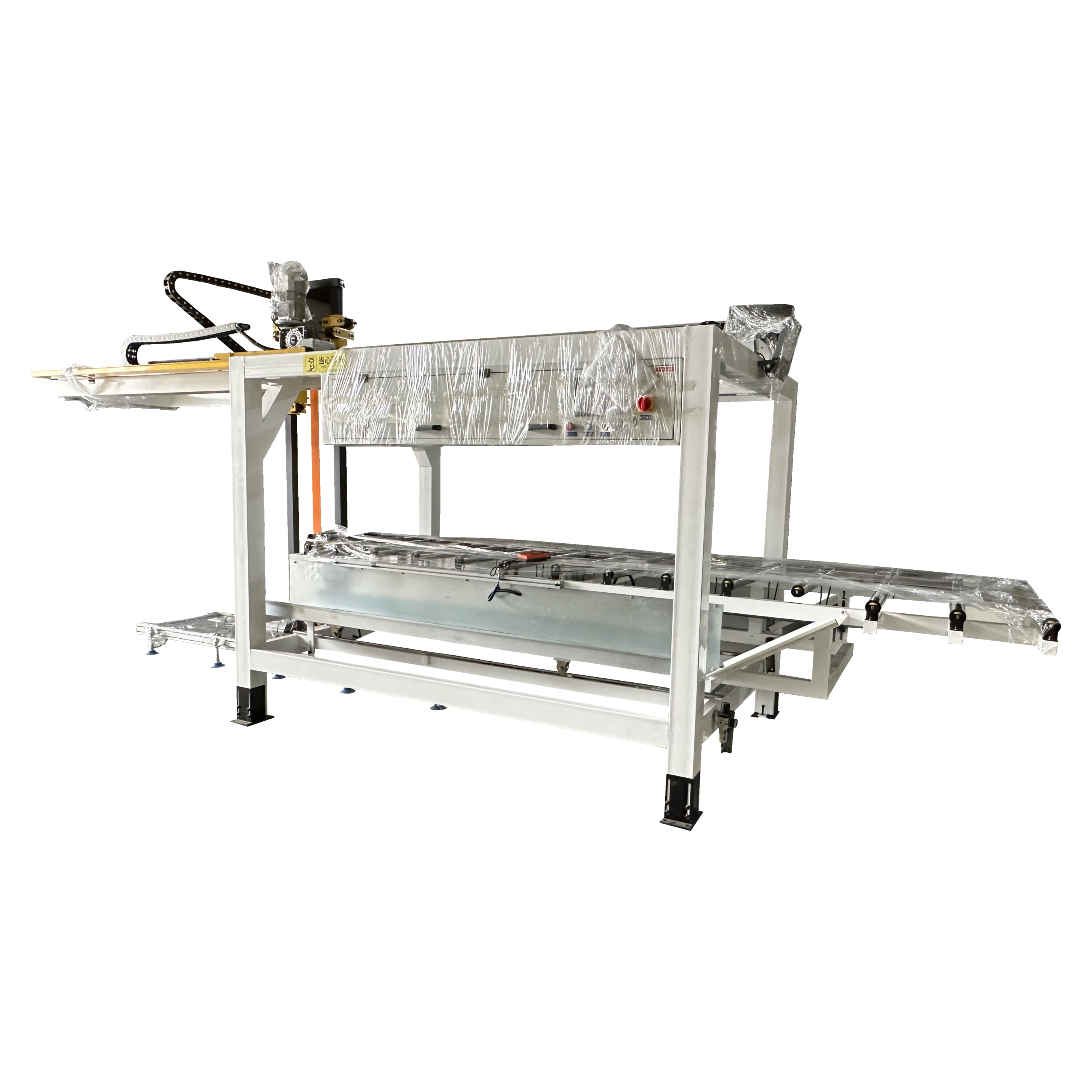

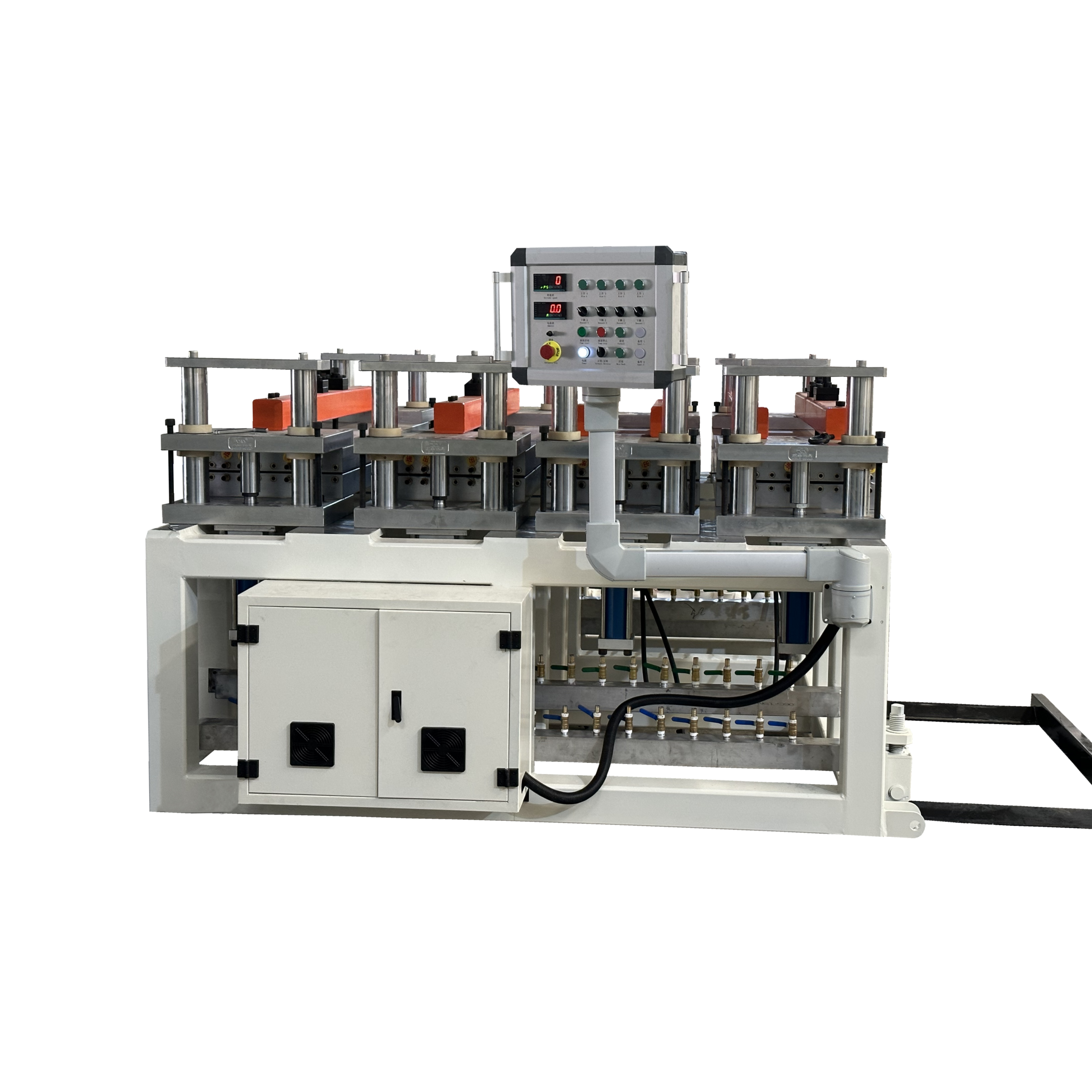

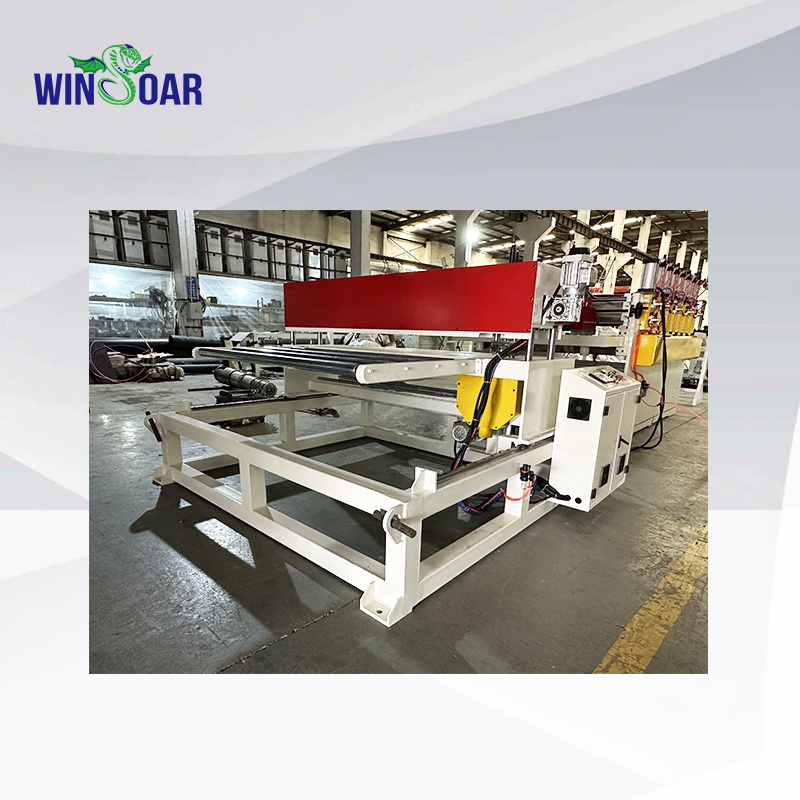

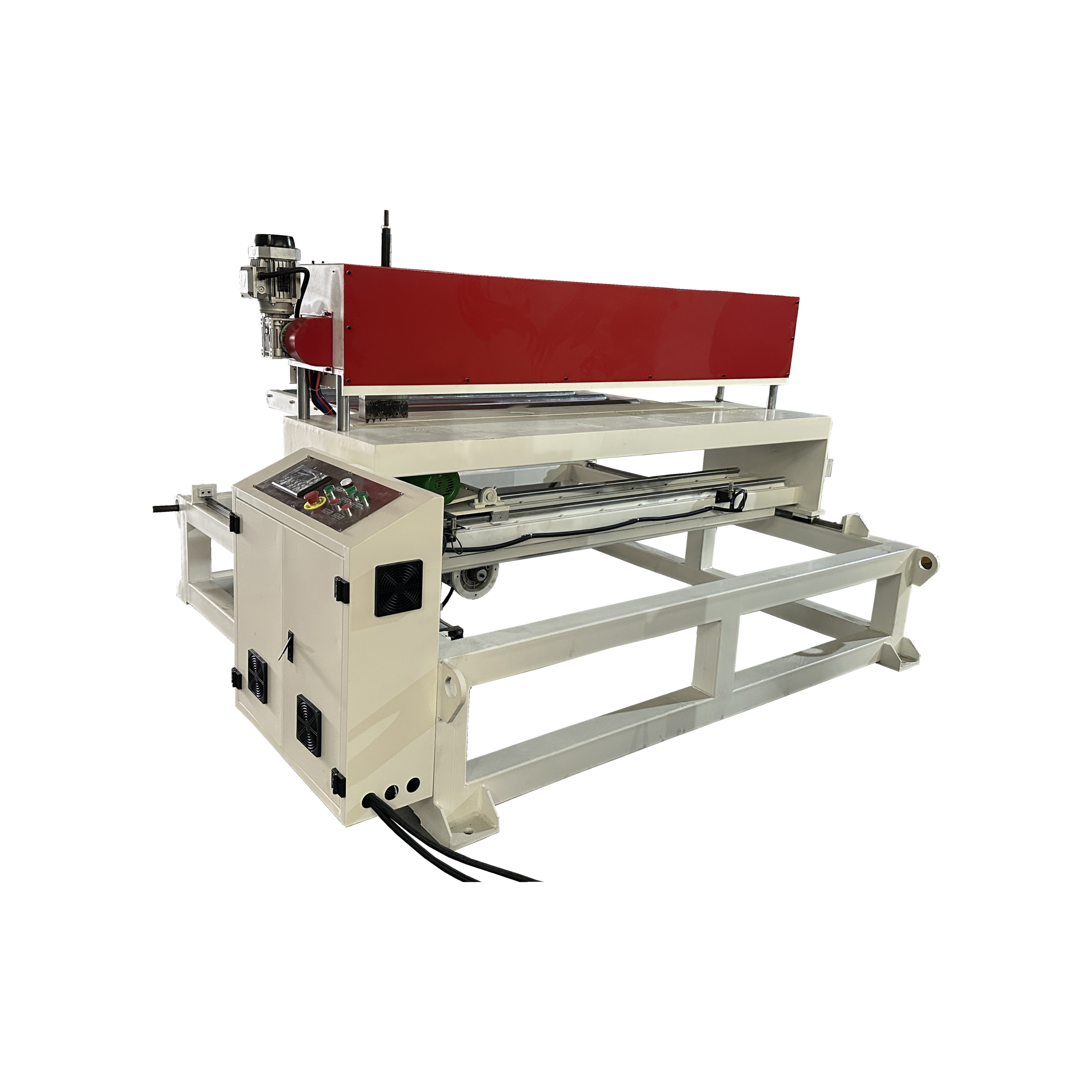

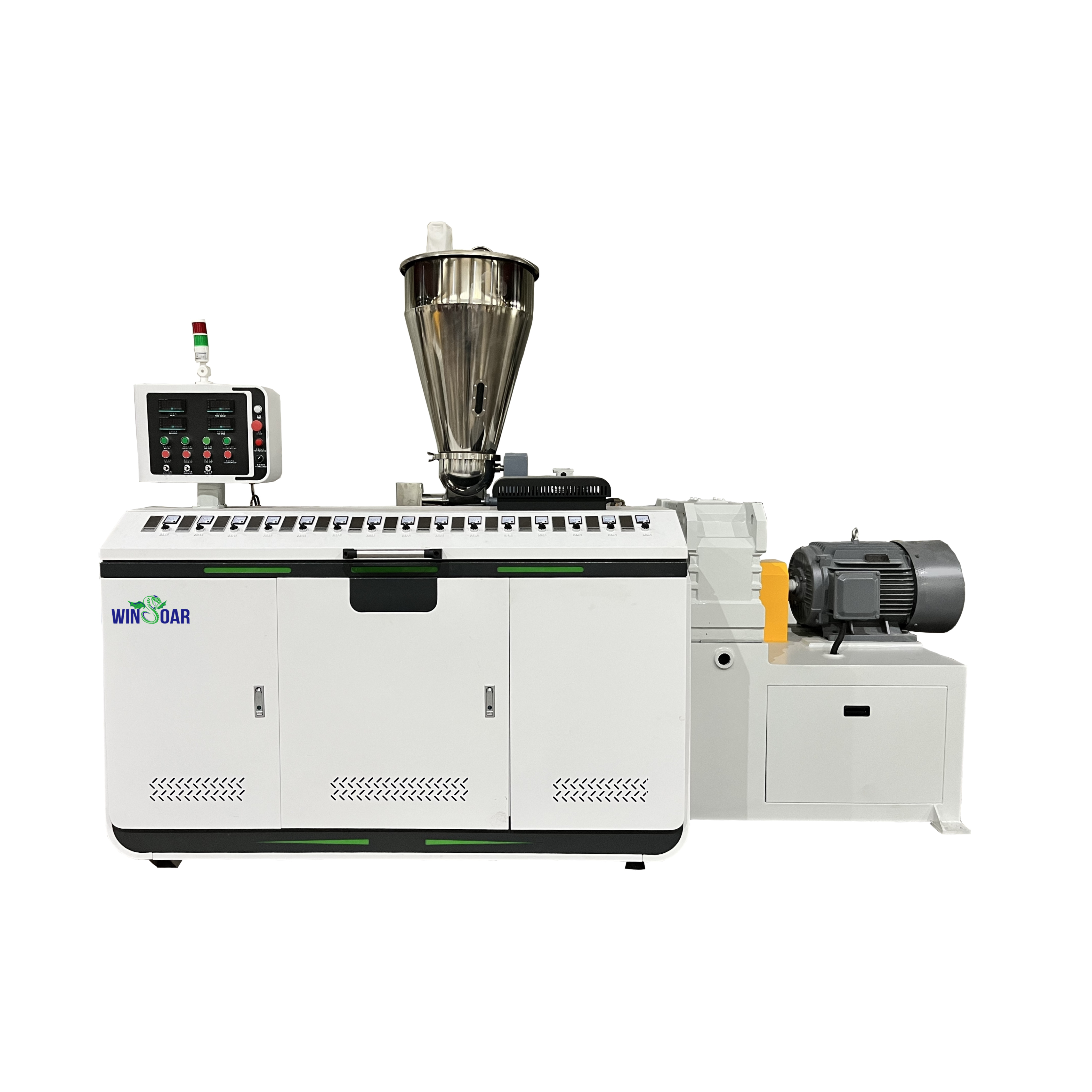

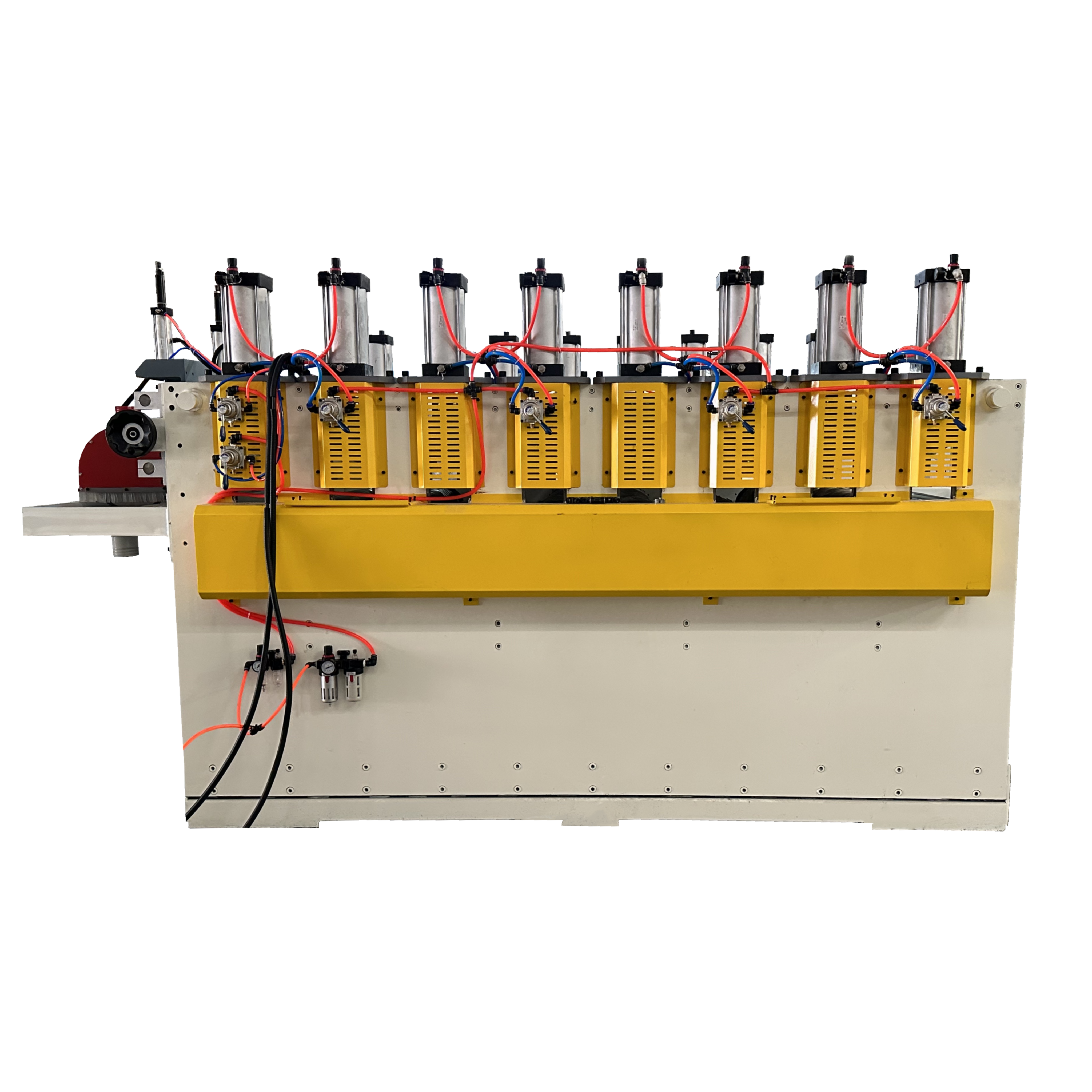

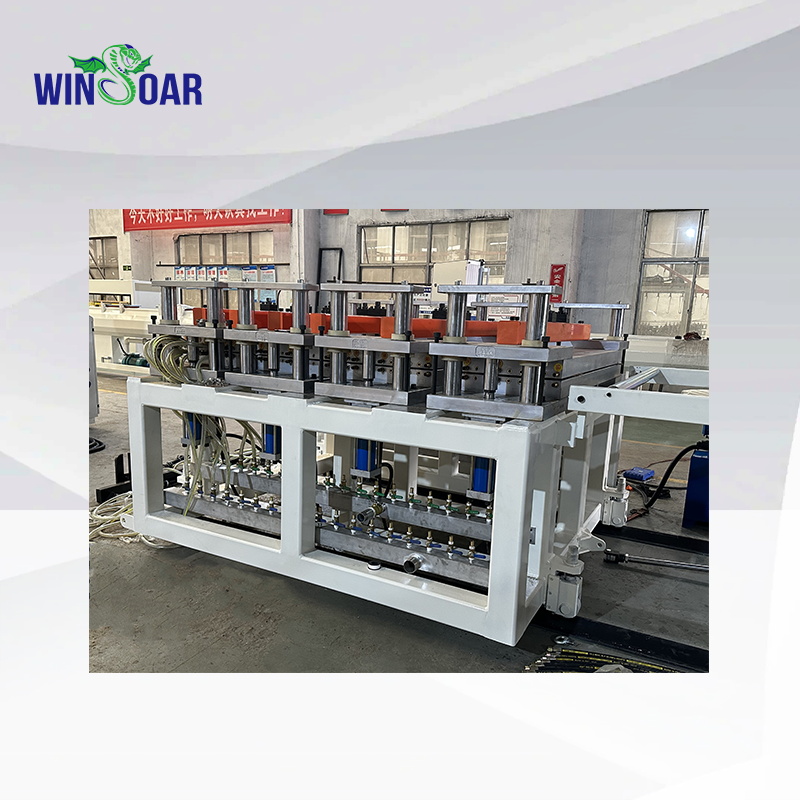

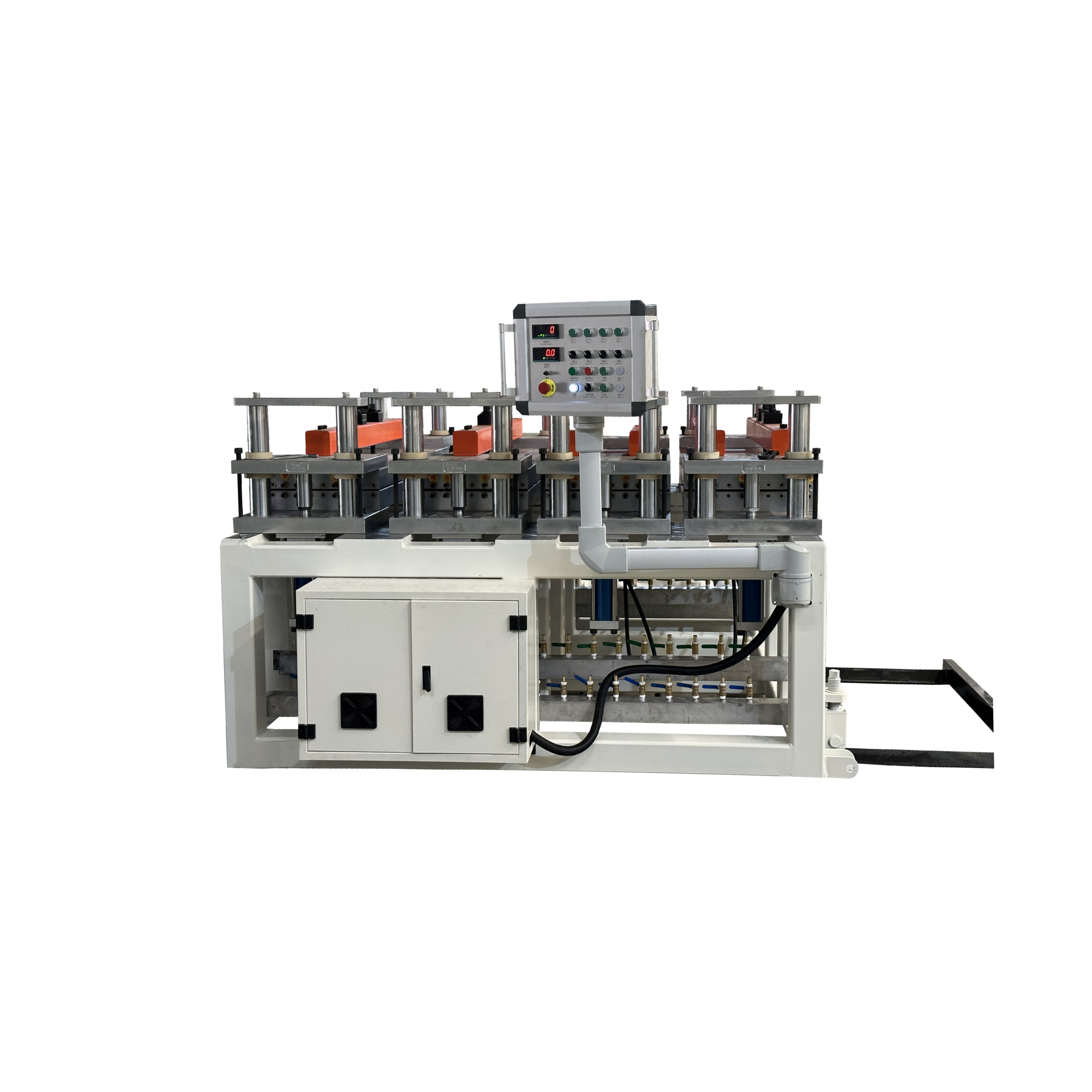

The unit adopts specially designed SJZ80 conical twin-screw extruder, DC speed regulation drive, imported brand temperature control instrument, which has the advantages of wide speed regulation range, high temperature control accuracy, convenient and reliable operation, etc. The auxiliary machine is composed of vacuum shaping table, traction machine, cutting machine and pusher. Large forced cooling device is equipped to ensure the shaping effect of the sheet. The crawler tractor adopts precision reduction motor and frequency converter, which has the advantages of reasonable structure, large traction force, stable traction, etc. The cutting machine has the advantages of reliable and accurate operation and high cutting accuracy. The pusher frame is attached with a movable pusher car and a specially made rubber protective layer, which has the advantages of no material damage and simple use. The auxiliary machine unit adopts programmable computer control or domestic famous brand control system, and the whole machine control is reliable and stable.


Main technical parameters

ITEM

SJSZ80/156

SJSZ92/188

SJSZ92/188

Width(mm)

1220

1600

1600-2050

Thickness(mm)

3-20

5-30

3-20

Capacity(kg/h)

350

500

600

Power(kw)

75

110

120
