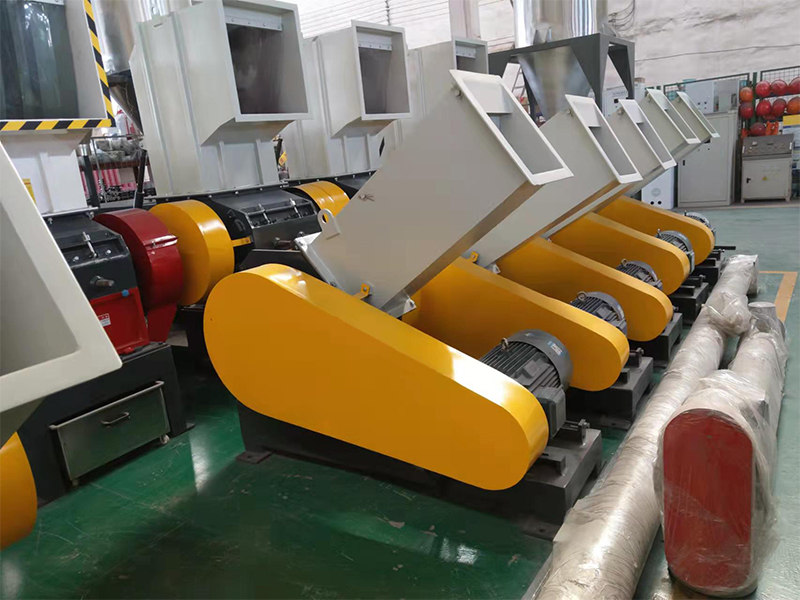

Brief Introduction
It is mainly used for crushing various kinds of plastic pipes and profiles. The long pipe/profile can be fed into the machine one-time. It can crush plastic doors, window profiles, plastic pipes, plates, etc.
The crusher can feed the wastes automatically, with fan scrap conveying device and opening device.
Features
- Specially designed feeding gate, increase the feeding quantity;
- V shape and multistep blades structure design will increase different plastic crushing capacity
- SKD-II blades material will offer long working period for the customer
- Inverter AC motor and heavy duty bearings will bring the crusher more long working period
- Every moving or rotating part of the crusher all with safety devices to protecting the operators’ safety
Technical Specifications
Model | Motor power | Rotating blade | Fixed blade | Output |
SWP-400 | 15kw | 5pcs | 2pcs | 150-200kg/h |
SWP-500 | 18.5kw | 5pcs | 2pcs | 200-300kg/h |
SWP-600 | 22/30kw | 5pcs | 4pcs | 300-500kg/h |
SWP-800 | 37/45kw | 10pcs | 4pcs | 400-600kg/h |
