Main Description

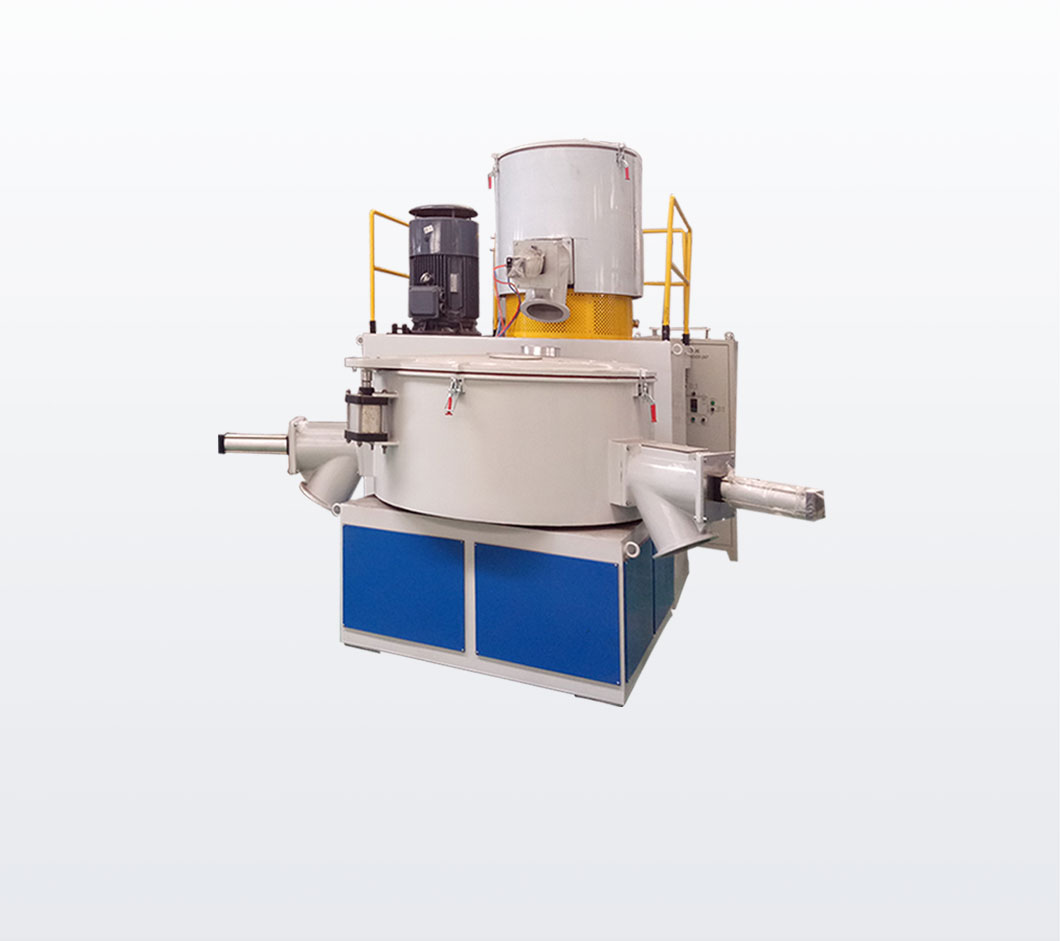

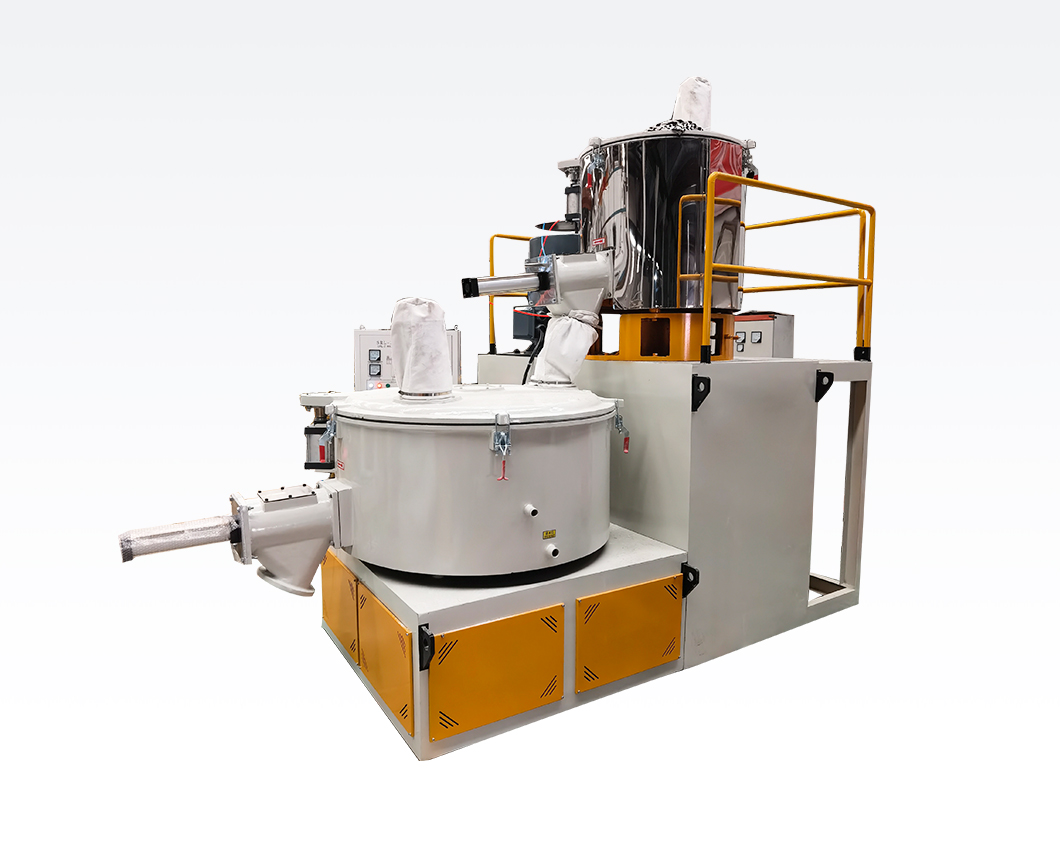

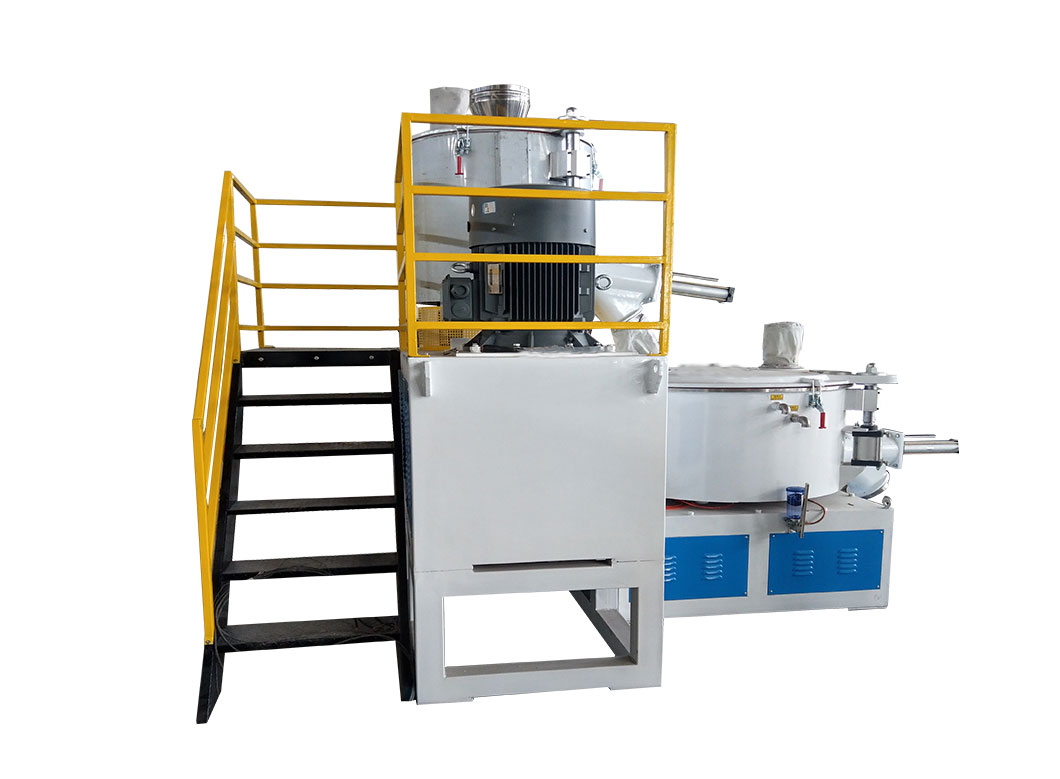

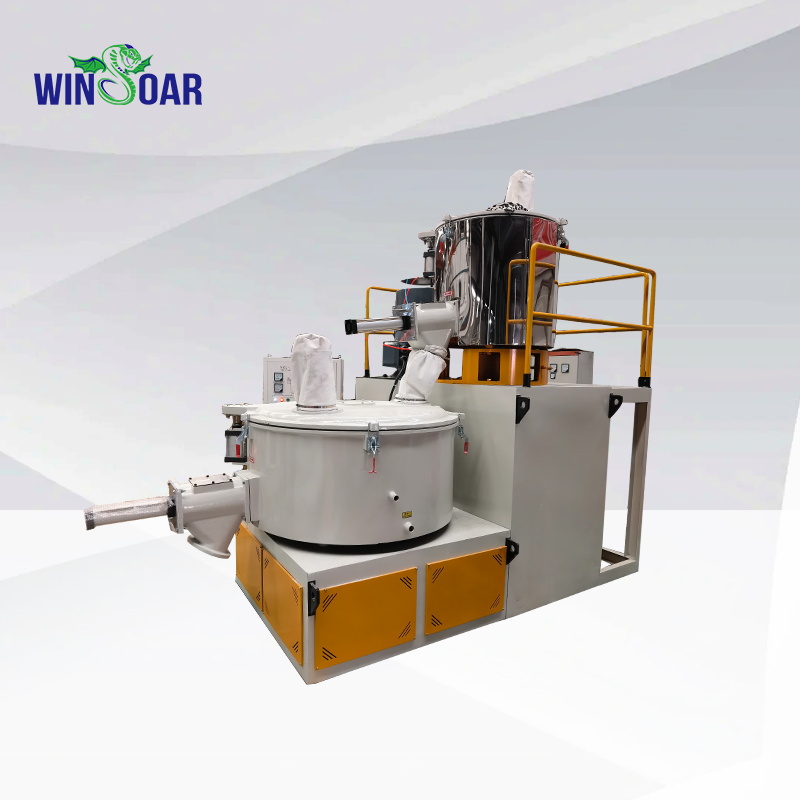

SRL-Z series plastic mixer unit is mainly used for formulating, mixing, coloring and drying of all kinds of resins, e.g. PE, PP, PVC, etc. Meanwhile it is suitable for drying and degassing of engineer plastic before shaping processing, e.g. ABS and PC. This unit is composed of heating mixer and cooling mixer.
Feature
1. Excellent manufacture skill (Welding, polishing, sealing), material will not stick on vessel wall and be discharged easily and quickly.
2. Ideal operation state: stable, no noise, high capacity
Main Technical Parameter
SRL-Z | heat/cool | heat/cool | heat/cool | heat/cool | heat/cool |
Total volume(L) | 100/200 | 200/500 | 300/600 | 500/1250 | 800/1600 |
Effective capacity(L) | 65/130 | 150/320 | 225/380 | 330/750 | 600/1050 |
Speed(rpm) | 650 /1300/200 | 475/950/130 | 475/950/100 | 430/860/70 | 370/740/50 |
Mixing time(min) | 8-12 | 8-12 | 8-12 | 8-15 | 8-15 |
Motor power(KW) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
Overall dimension(mm) | 1950*1600 *1800 | 4580*2240 *2470 | 4800*2640 *2480 | 5600*3000 *3100 | 5170*3200 *4480 |
Weight(kg) | 2200 | 3400 | 3600 | 6500 | 9800 |
Mainly used for polyethylene resin, ABS and other hygroscopic resin mixing, coloring and other processes, the material after mixing into cooling, and then stirring, to prevent degradation, agglomerate, remove residual gas, and can store hot mixed materials, has the characteristics of fast cooling speed.
