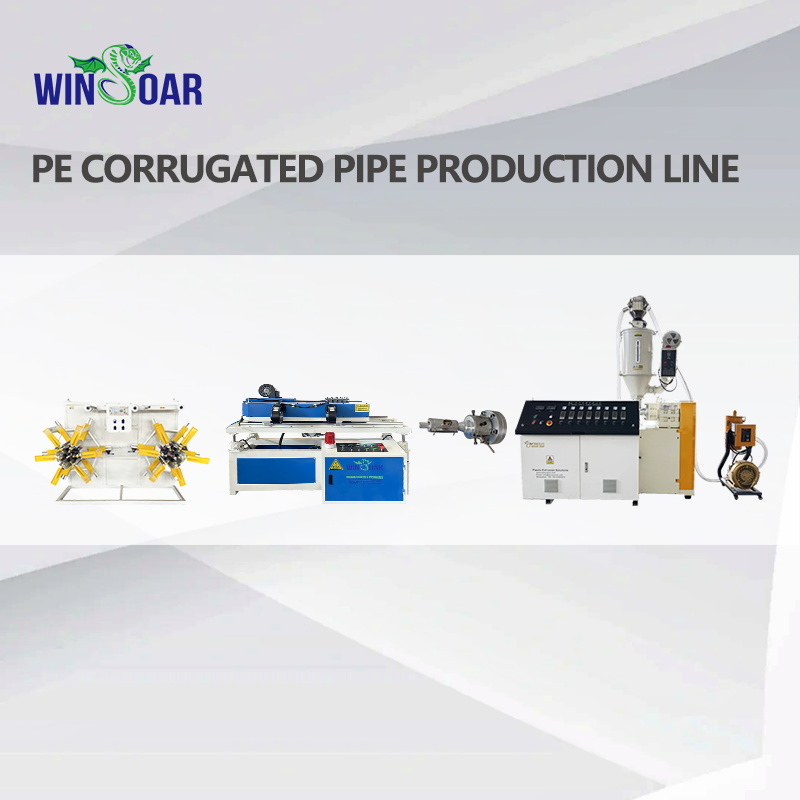

Guide to Selecting PE Corrugated Pipe Production Lines

I. Clarify Production Requirements: Define Core Objectives

1. Product Specifications and Applications

• Diameter Range: Determine the required diameter of the corrugated pipe (e.g., DN20-DN200), wall thickness, and corrugation type (single-wall/double-wall), as different specifications correspond to different mold and extruder configurations. For example, single-wall corrugated pipes are commonly used for wiring and drainage, while double-wall corrugated pipes are more suitable for municipal drainage.

• Application Scenarios: For municipal engineering, focus on the pipe's ring stiffness (e.g., above 8kN/m²) and corrosion resistance; for home wiring, prioritize inner wall smoothness and flexibility.

2. Capacity Planning

• Estimate daily/monthly output and calculate the required equipment capacity based on the production line speed (e.g., conventional single-wall line speed is 10-15 m/min, double-wall line speed is 5-8 m/min). Small-scale production lines (e.g., 5-10 tons per single shift) can use single-screw extruders + simple molding modules,  while large-scale lines require double-screw extruders + automatic winding systems.

3. Material Compatibility

• Confirm the raw material type: PE (HDPE/LDPE), PP, or other modified materials. Some production lines need customized screw structures (e.g., PE-specific screws with a length-diameter ratio of 30-33:1) to ensure plasticization.

II. Core Equipment Parameters: Determine Product Quality

1. Extruder Performance

• Screw Specifications: The screw diameter (e.g., Φ45mm, Φ65mm) and length-diameter ratio (L/D) affect the extrusion volume and plasticization uniformity. For small-scale lines, select Φ45-Φ55mm screws with an L/D ratio ≥30:1 to ensure sufficient melting of PE raw materials.

• Heating System: Use electromagnetic or resistance heating with a temperature control accuracy of ≤±2℃ to avoid raw material decomposition or poor plasticization.

2. Molding and Cooling Systems

• Molding Machine Structure: Single-wall corrugated pipes commonly use crawler-type molding machines with copper or stainless-steel modules, whose surfaces are chrome-plated for rust resistance; double-wall corrugated pipes require ring molds + vacuum shaping devices, and the module closure precision affects the pipe's roundness.

• Cooling Efficiency: The water cooling system should be equipped with a constant-temperature water tank (water temperature controlled at 15-25℃), and the air cooling system should be matched with adjustable fan airflow to ensure the pipe's dimensional stability after cooling (deformation ≤1%).

3. Traction and Cutting Devices

• Traction Machine Precision: Driven by a servo motor, the traction speed fluctuation should be ≤0.5% to prevent pipe stretching deformation; dual-station tractors can improve winding efficiency.

• Cutting Method: Automatic planetary cutting machines ensure cut perpendicularity (≤1°), suitable for high-precision pipes; winding machines need tension control to prevent loose coils.

III. Supplier Screening: Prioritize Technology and Service

1. Technical Support and After-Sales Service

• Require the manufacturer to provide equipment installation, debugging, operation training (e.g., 3-5 days of on-site teaching), and lifetime maintenance services, with a warranty period of ≥1 year for key components (screws, molds).

• Inquire about the supply cycle of spare parts (e.g., molding modules, heating coils) to ensure timely replacement of vulnerable parts and avoid production losses.

2. Cost-Effectiveness Comparison

• Compare the energy consumption (e.g., power consumption ≤50kW per hour) and automation level (e.g., PLC intelligent control, remote monitoring system) of equipment with the same specifications.

• Be cautious of low-priced equipment: If a manufacturer's quotation is 30% lower than the industry average, confirm whether there are issues such as screw material cutting or control system simplification.

IV. Other Key Factors

1. Environmental Protection and Safety

• The equipment operation noise should be ≤85dB (in line with industrial noise standards), and the heating system should be equipped with exhaust gas collection devices to avoid odor pollution from PE melting.

• The electrical system must have overload protection and leakage protection, and safety barriers should be set around the molding machine to prevent operators from contacting high-temperature components.

2. Upgradability and Expandability

• If planning to expand product specifications in the future, choose a production line compatible with multiple molds (e.g., capable of producing DN50-DN160 pipes after mold replacement) or reserve interfaces for double-screw extruders.

• Production lines with high automation (e.g.,  equipped with intelligent diagnostic systems) can reduce future upgrade and renovation costs.
