High Speed Plastic PVC PE PP ABS Powder Milling Machine / Pulverizer Machine

5 0 Reviews
Availability:
Quantity:

Main Introduction

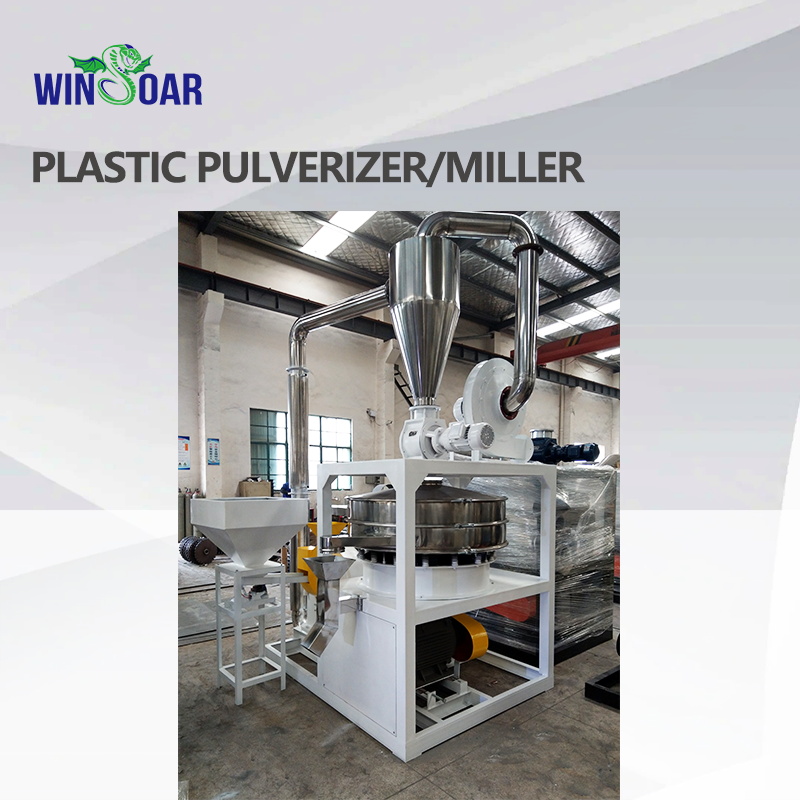

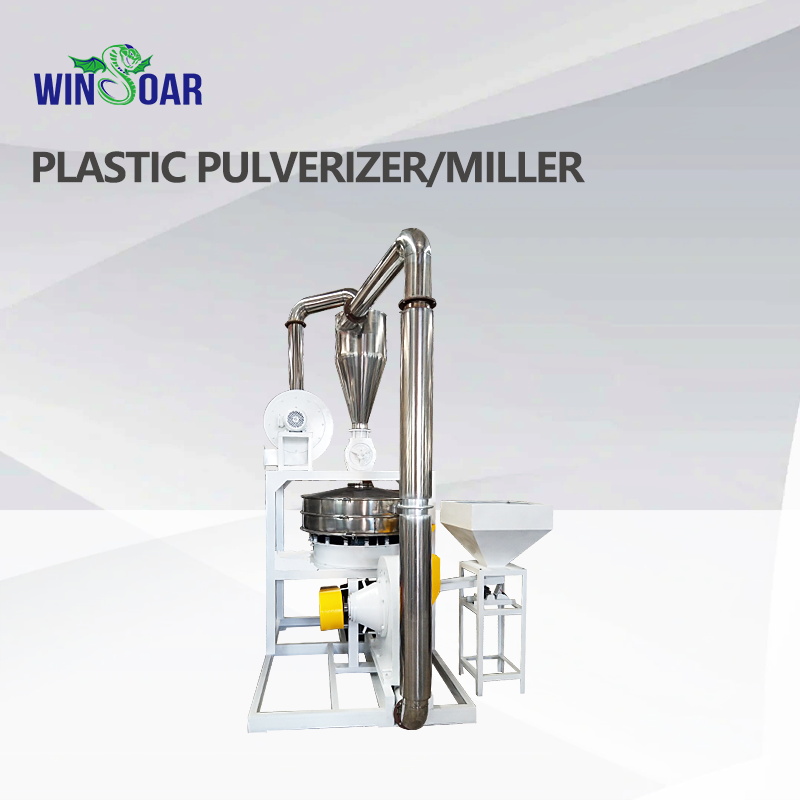

Milling Machine / Plastic Pulverizer

PVC pulverizer machine is mainly used in producing plastic powder from plastic granules, scraps. This pvc pulverizer has features of good-designed structure, high capacity, low noise.

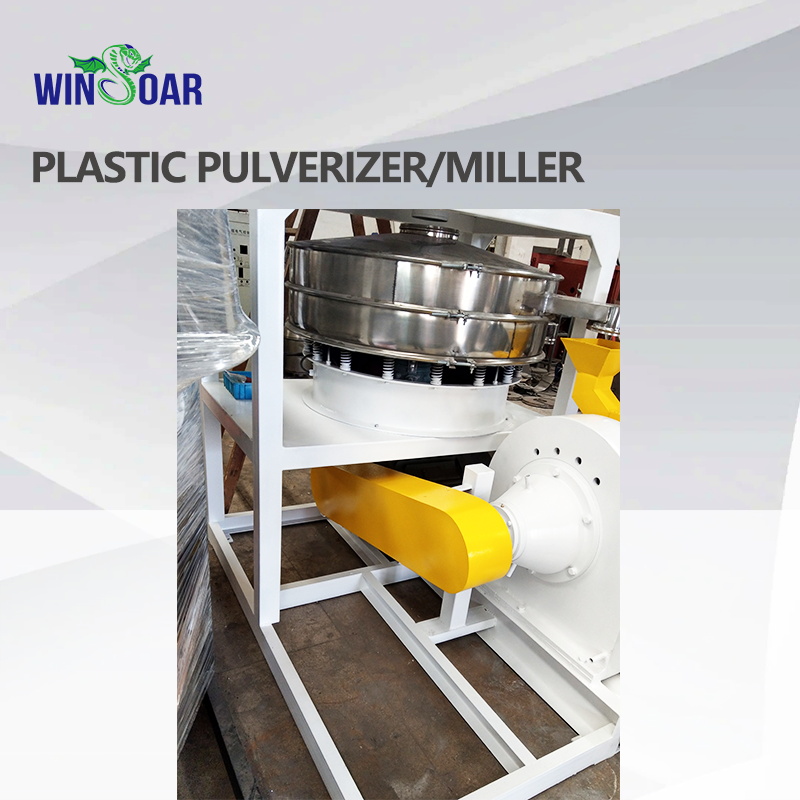

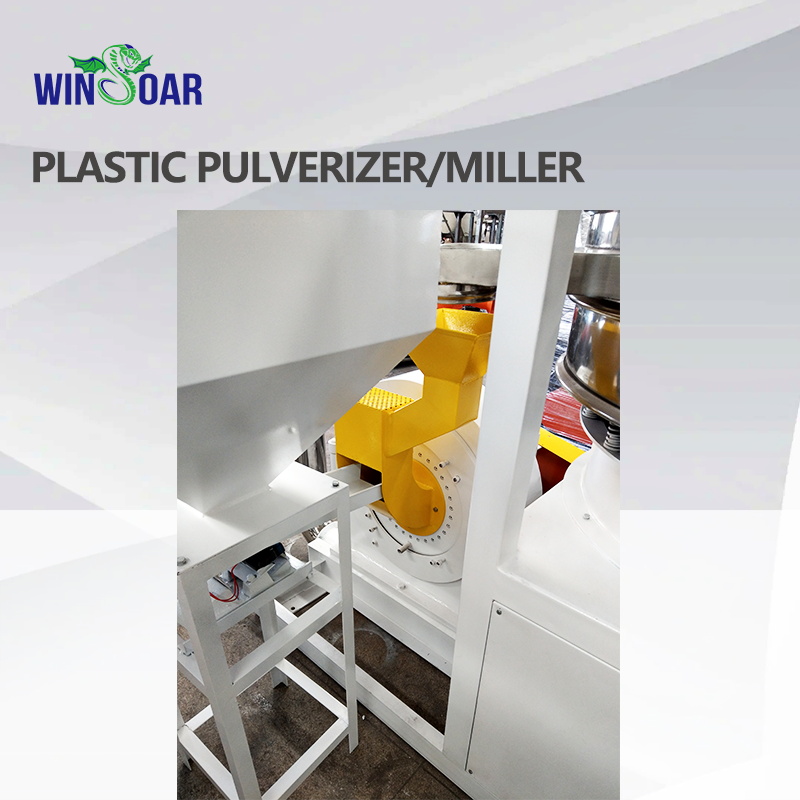

The whole set of plastic pulverizer miller include feeding hopper, grinding chamber, vetex hopper, vibrating sieve, regrinding system, dust-cleaner. The blade for this plastic pulverizer could be rotor type blade and disk type blade. With cooling system, our plastic pulverizer can be applied to PP, PE, EVA, ABS, PVC materials.


Features

1. Compared with same type pulverizer machine, the capacity of this mode is higher

 2. Equipped with dust collection device to reduce dust pollution.

 3. Close blower for discharge can reduce labor intensity of worker

 4. the cover of main machine can be opened for maintenance.

 5. the cooling system of this pulverizer machine have wind cooling and water cooling, it can cool the machine body very good.


Technical Parameter

Model

SMF-400

SMF-500

SMF-600

SMF-800

Motor power (kw)

30kw

37kw

55kw

75kw

Blow power (kw)

2.2kw

3kw

5.5kw

11kw

Blade Dia.

400mm

500mm

600mm

800mm

Feeding material size

Below 10mm

Below 10mm

Below 10mm

Below 10mm

Output size

40-80mesh

40-80mesh

40-80mesh

40-80mesh

Vibration model


ZDS-800

ZDS-800

ZDS-800

Capacity

50-120kg/h

200-300kg/h

300-500kg/h

500-600kg/h

Machine size(mm)

2200*800*2100(mm)

2500*2000*3000mm

3200*2600*3200mm

3500*2400*4000mm



miller_01miller_02miller_03miller_04miller_05miller_07
