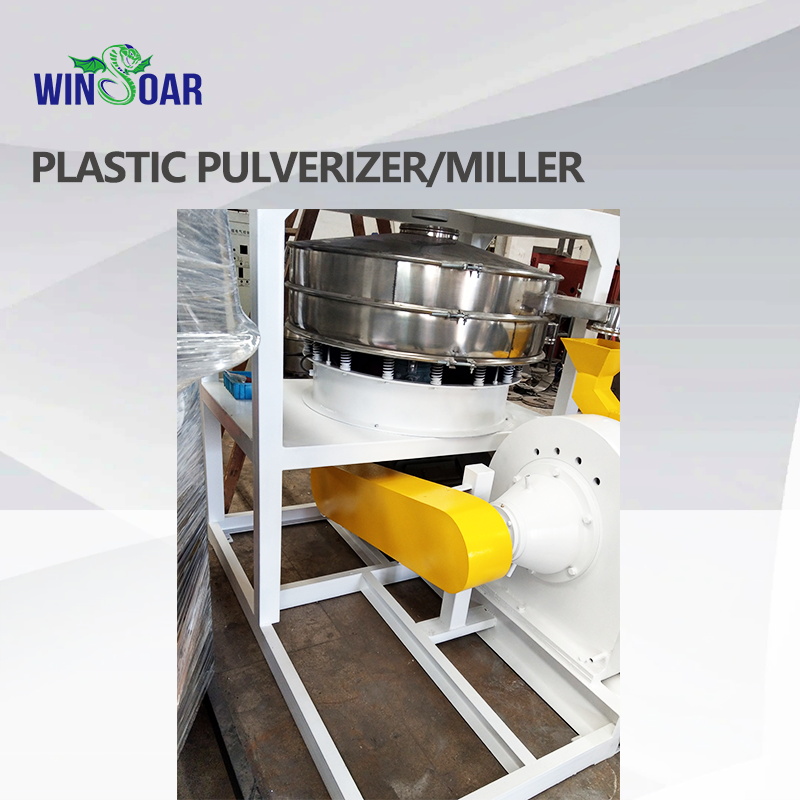

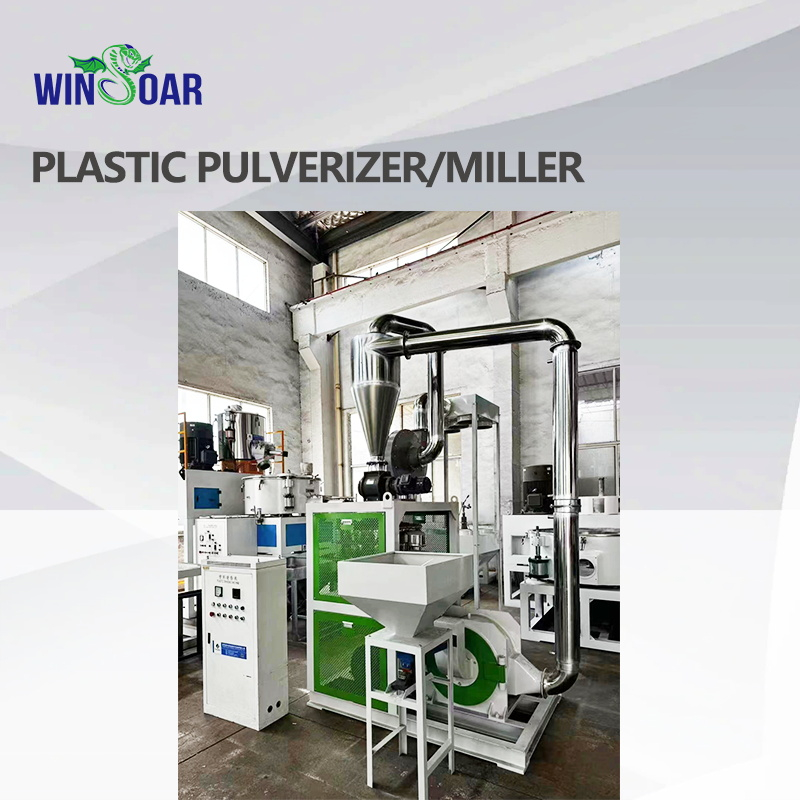

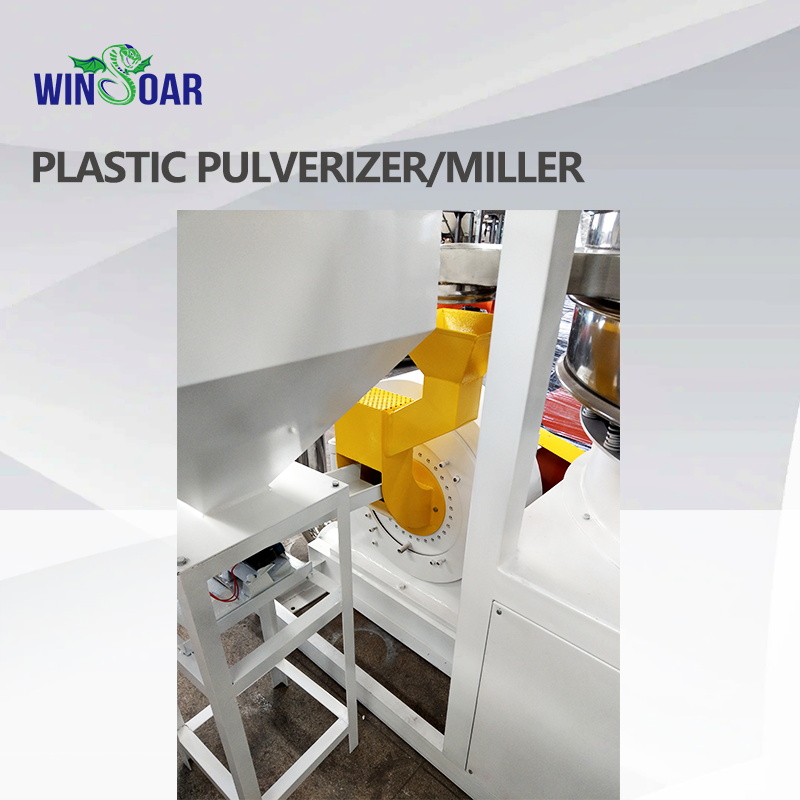

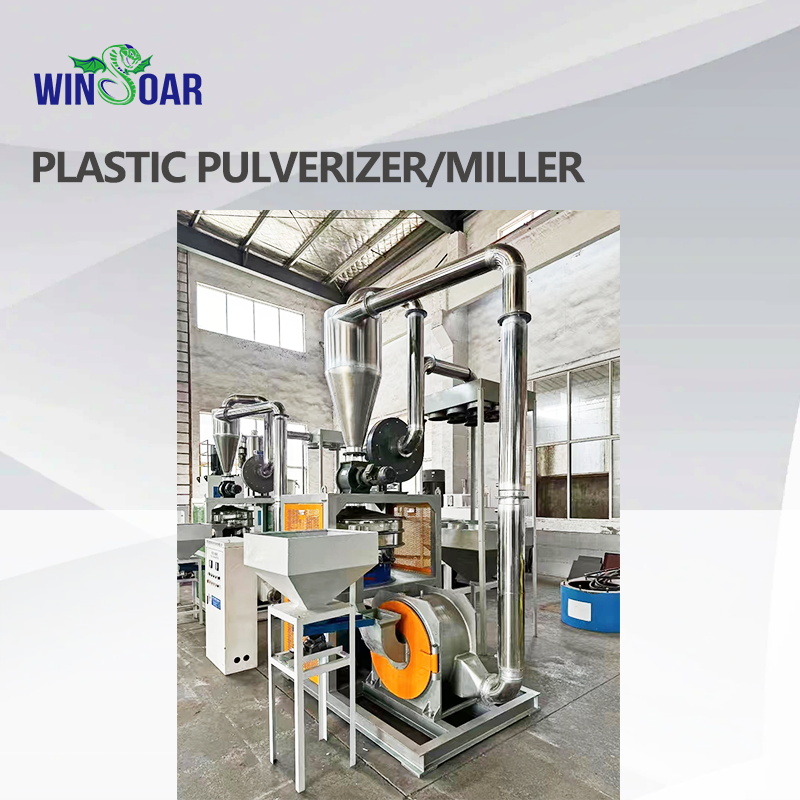

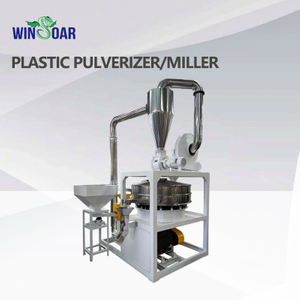

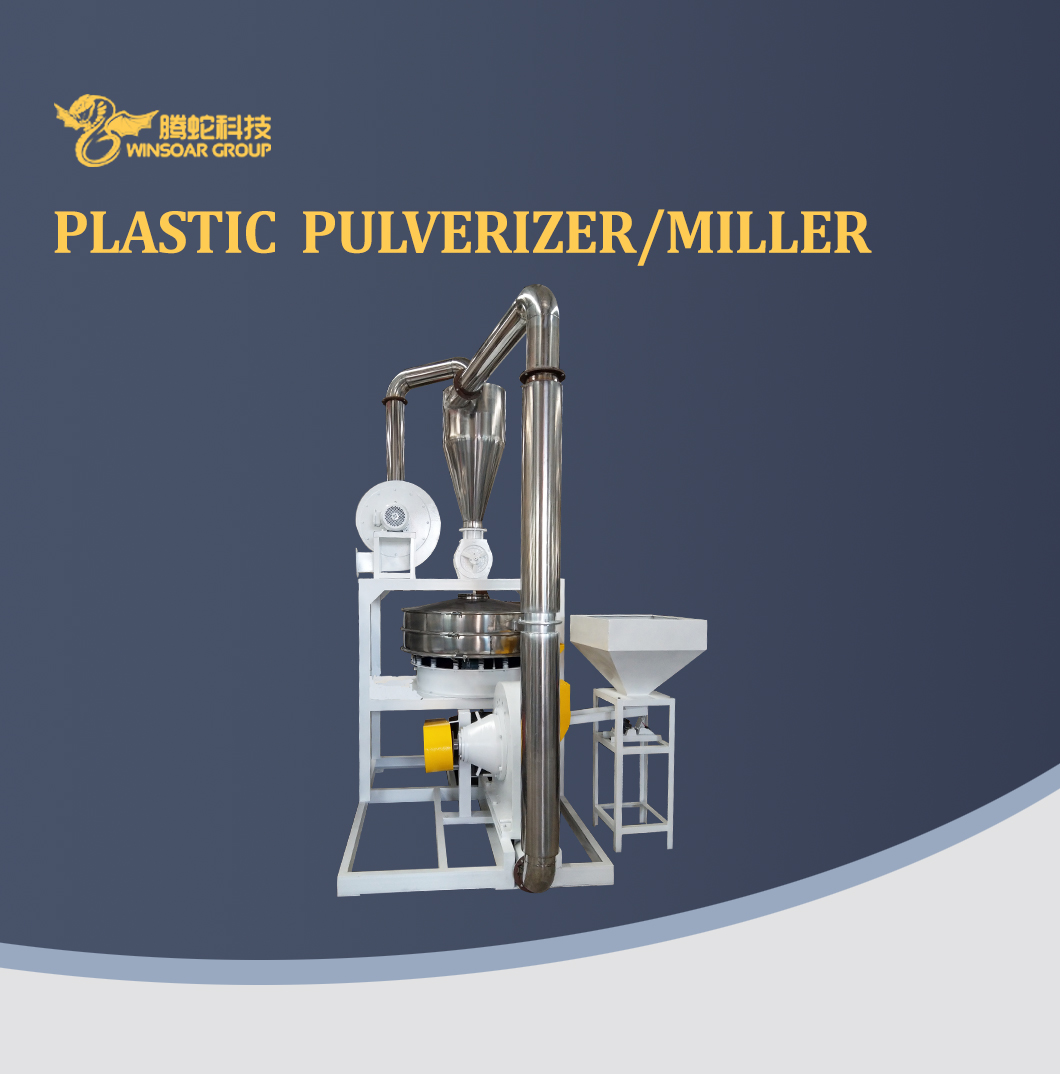

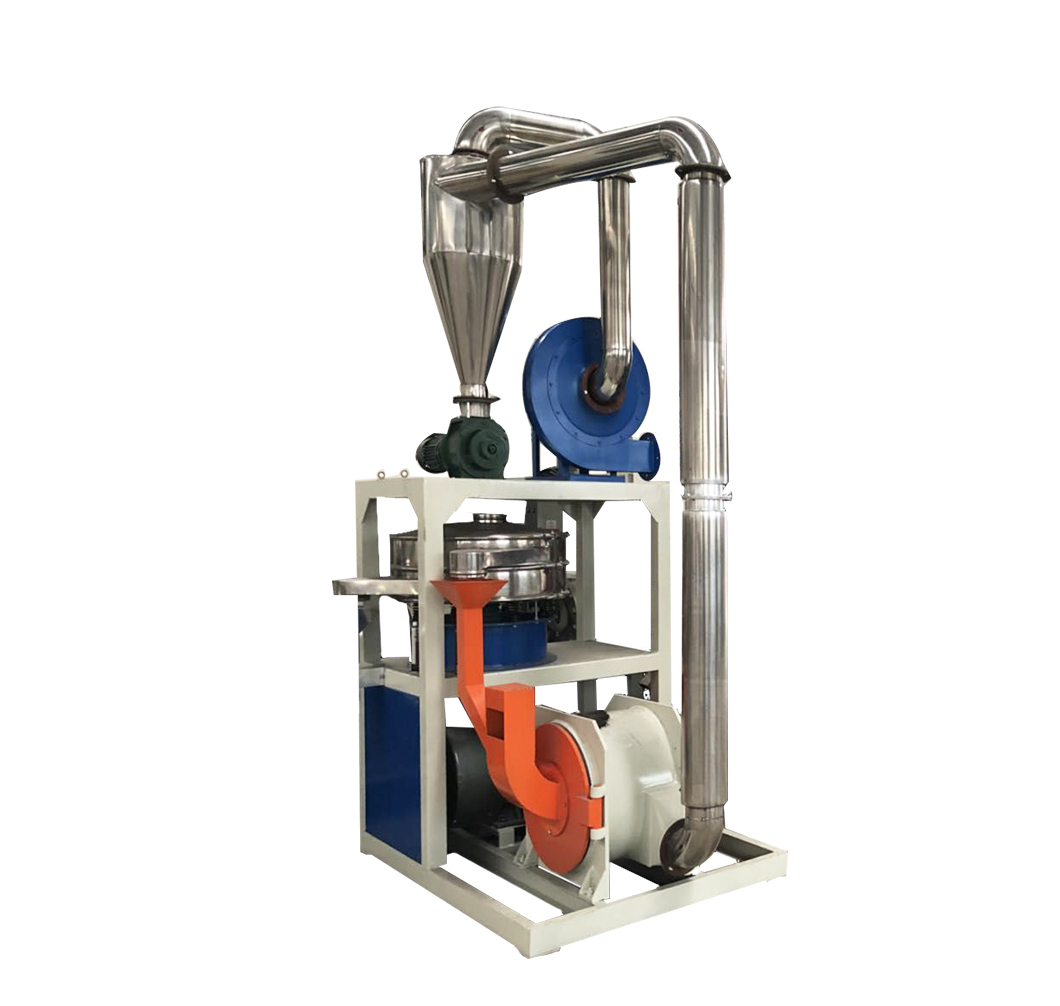

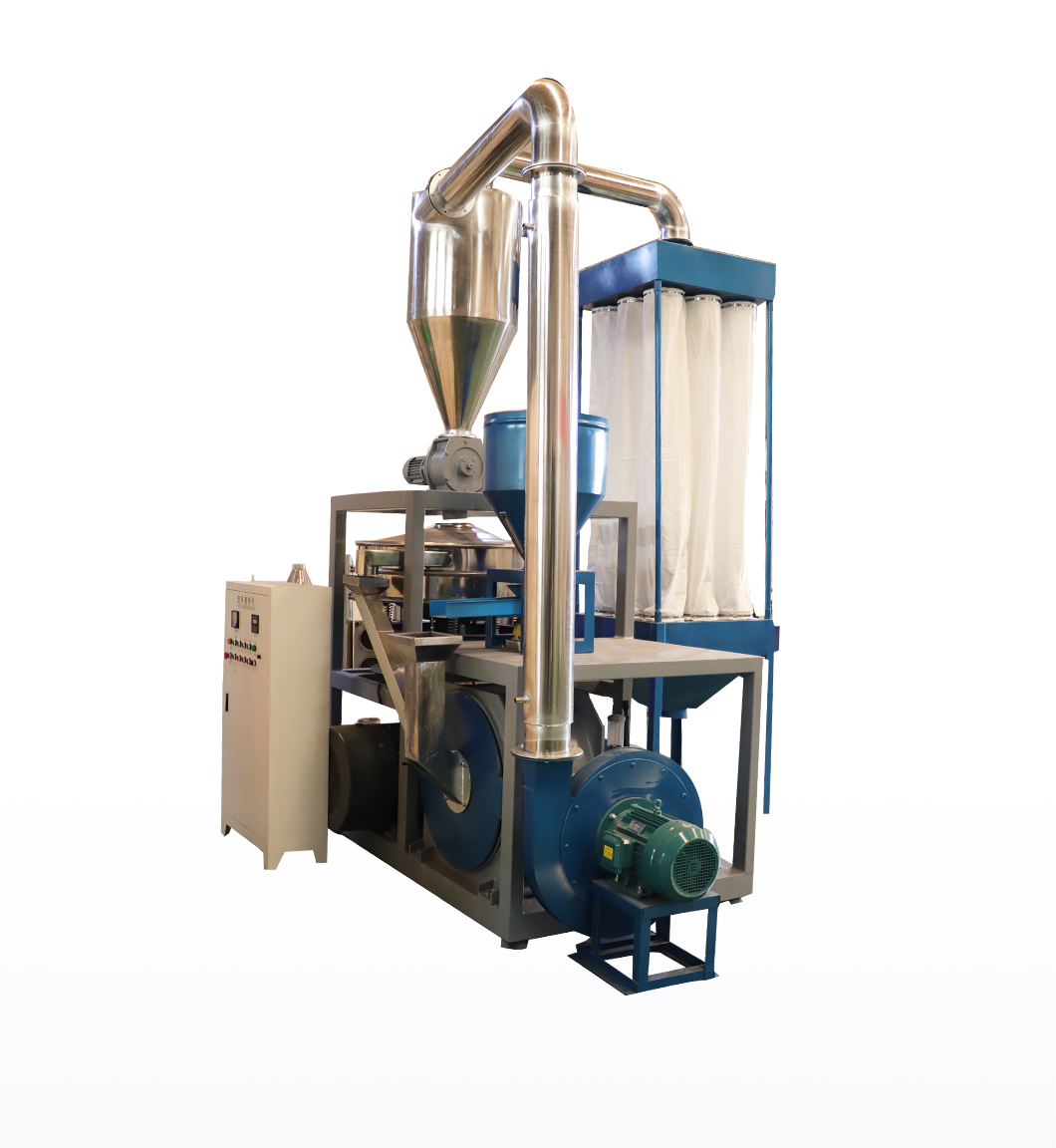

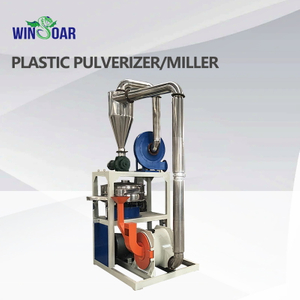

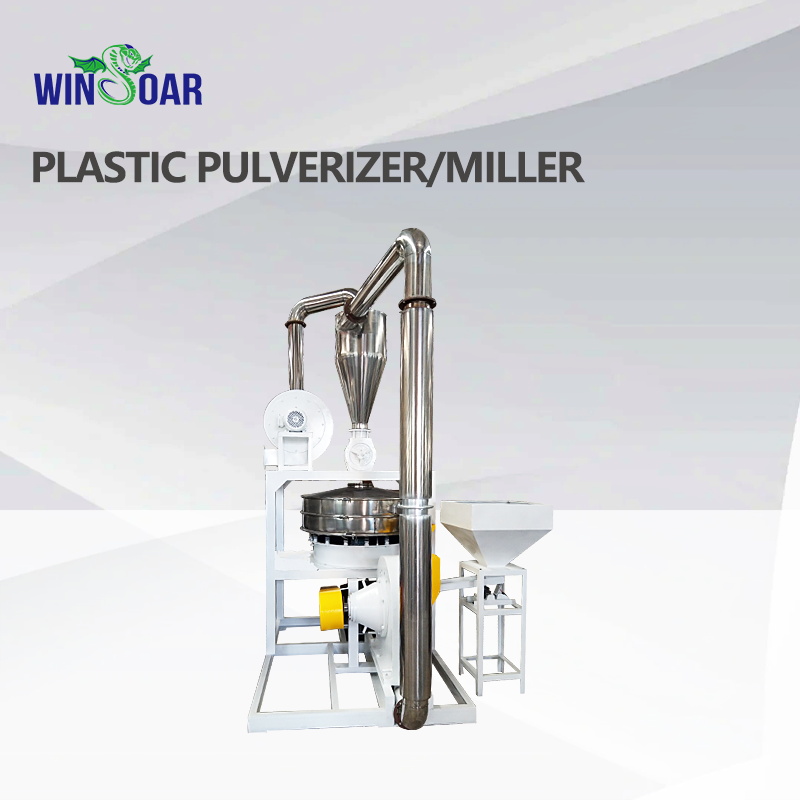

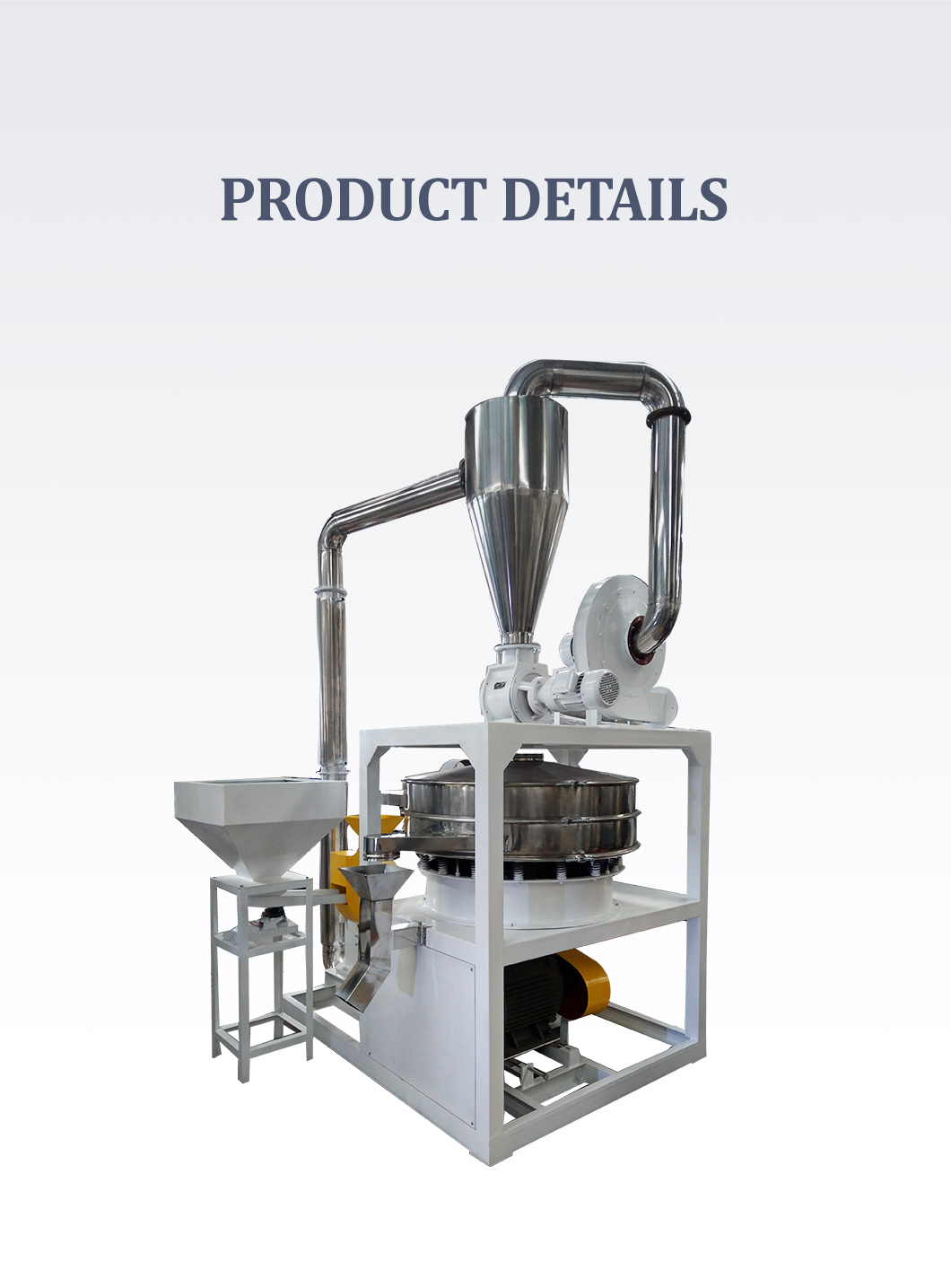

Main Introduction
This machine can be used for powder processing of polyethlene (PE), polyvinylchloride (PVC), polypropylene (PP), polystyrene (PS), ABS, nylon and other materials.
Installation and maintenance easy, open the door to cover clean-up.
Milling process of the whole seal, without dust leakage.
Full automated ,automatic feeding ,the materials and sorting.
Features
1.Safe and simple adjustment of cutting gap
2.Low energy consumption and high throughput
3.Innovative and energy efficient design
4.Easy to maintain and control
5.Wide range of accessories
6.Regrinding coarse powder automatically
7.Dual cooling system
Technical Parameter
Model | SMF-400 | SMF-500 | SMF-600 | SMF-800 |
Motor power (kw) | 30kw | 37kw | 55kw | 75kw |
Blow power (kw) | 2.2kw | 3kw | 5.5kw | 11kw |
Blade Dia. | 400mm | 500mm | 600mm | 800mm |
Feeding material size | Below 10mm | Below 10mm | Below 10mm | Below 10mm |
Output size | 40-80mesh | 40-80mesh | 40-80mesh | 40-80mesh |
Vibration model | ZDS-800 | ZDS-800 | ZDS-800 | |
Capacity | 50-120kg/h | 200-300kg/h | 300-500kg/h | 500-600kg/h |
Machine size(mm) | 2200*800*2100(mm) | 2500*2000*3000mm | 3200*2600*3200mm | 3500*2400*4000mm |
