PET Bottle Crushing Washing Line

5 0 Reviews
Availability:
Quantity:

Main Description

1. High automation, Less man power, low energy consumption, high output

2. Provide whole solution for by-products during production, for example: variegated bottles, non-PET material, sewage water, labels, caps, metal and etc.

3. With a materials pre-treatment system such as Pre-washer, Label processing module, highly improve quality of end products

4. Through multiple cold flotation, hot washing and friction washing, fully remove the impurities, such as glue, organic and inorganic residue

5. The reasonable process design, reduce maintenance cost and bring convenient operation


Main Technical Parameter

Model

Capacity
(kg/h)

Consumption
(kw/h)

Steam
(kg/h)

Detergent
(kg/h)

Water

(ton/h)

Total Power

Space
(m2)

Man Power
(persons/shift)

PET500

500

110

500

10

0.7

220

700

6

PET1000

1000

170

600

14

1.5

395

800

6

PET2000

2000

340

1000

18

3

430

1200

8

PET3000

3000

460

1200

28

4.5

590

1500

8

PET6000

6000

680

1500

50

8

850

2000

12



p1p2p3

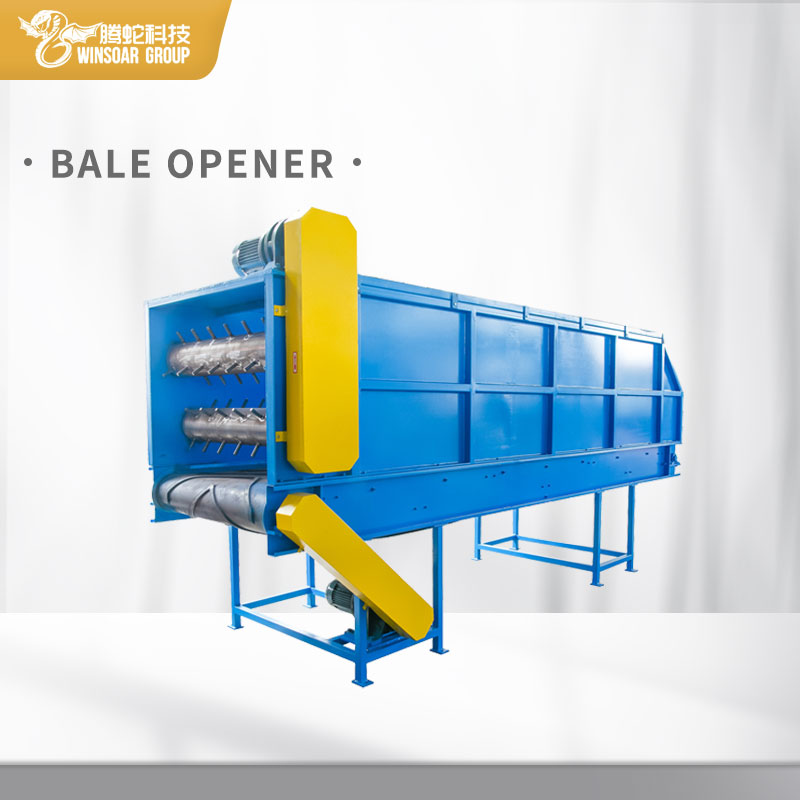

BALE OPENER

Used for compressed bottle brick unpacking and scattering pretreatment.


p4

LABEL REMOVER

Remove the label from bottles.


p5

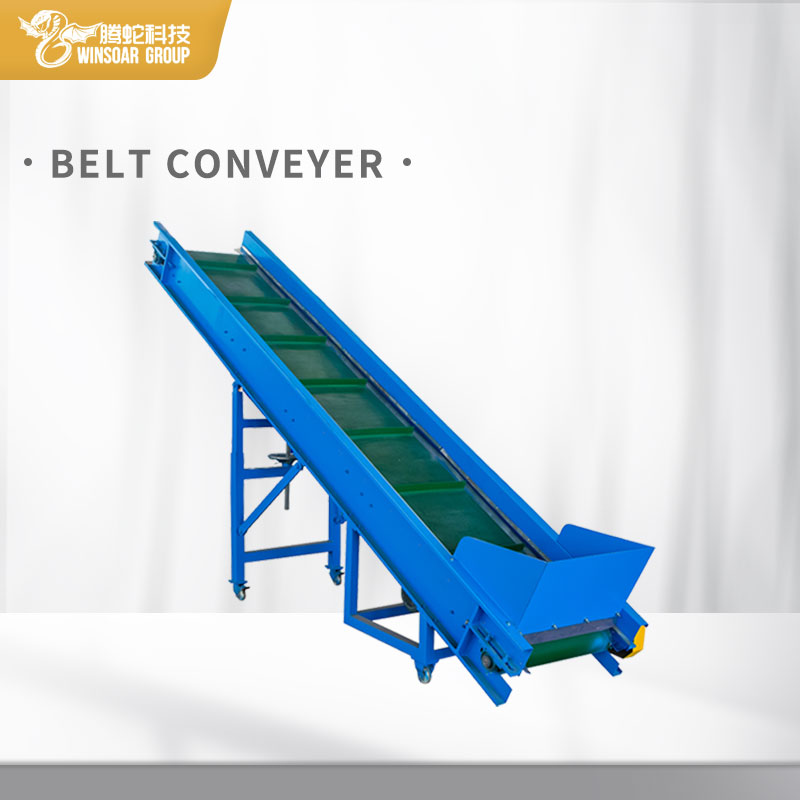

BELT CONVEYER

Convey bottles into label separating machine/crusher.


p6

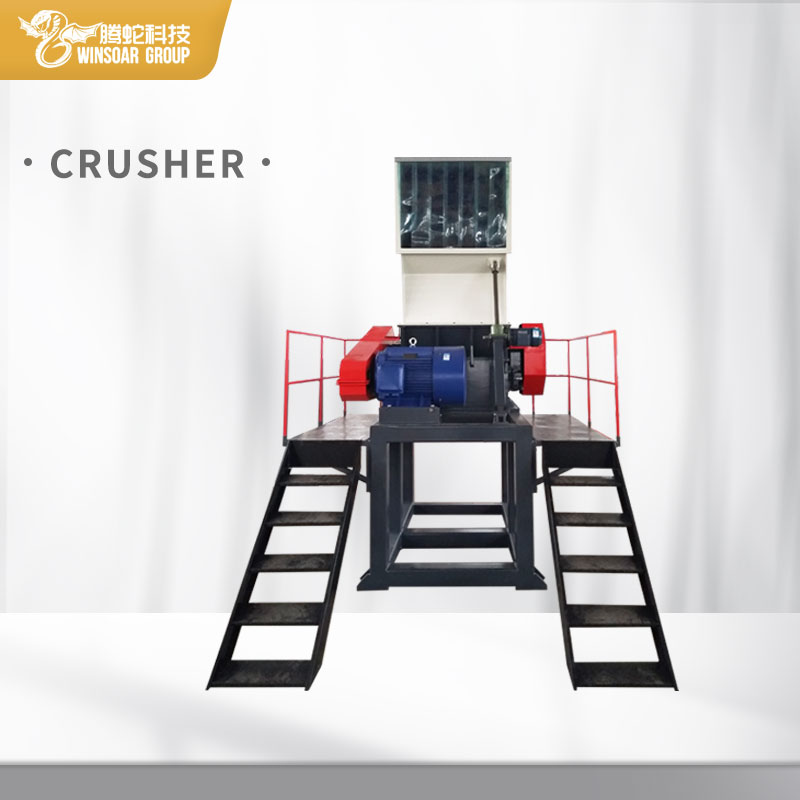

CRUSHER

Crush the plastic into flakes.


p7

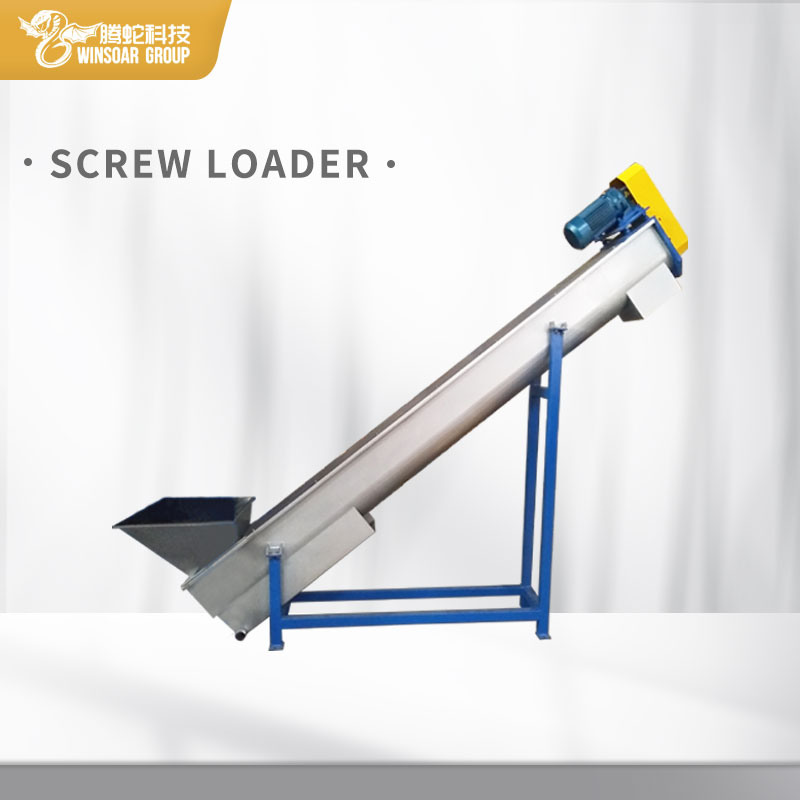

SCREW LOADER

Convey flakes to washing tank.

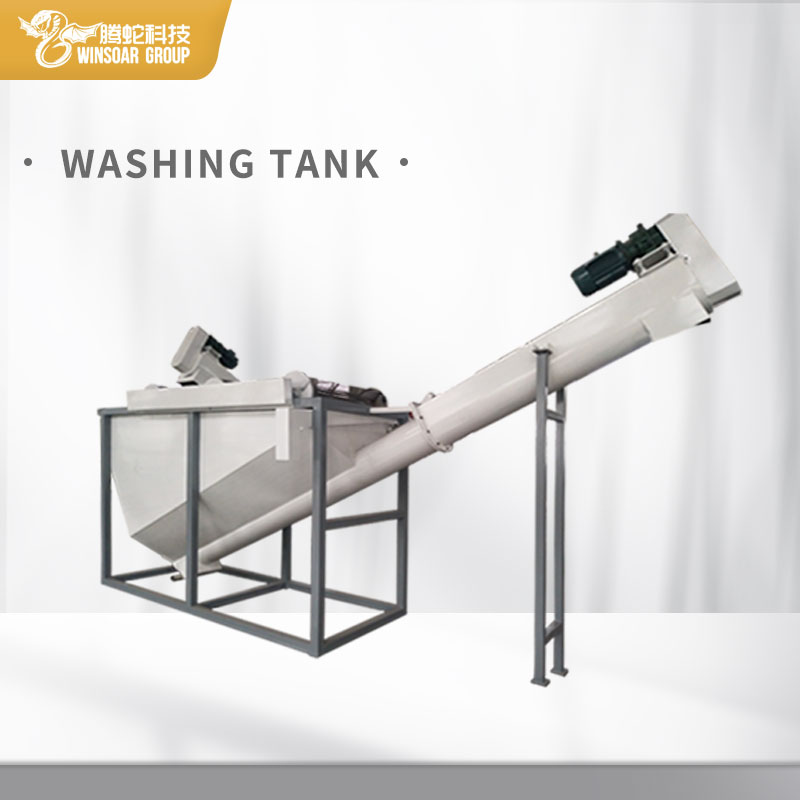

WASHING TANK

To wash PE flakes.


p8

HOT WASHING POT

Remove impurities from the flakes.


p9

FRICTION WASHER

Make flakes be rubbed with each other in high speed to remove dust.


p10

DEWATER MACHINE

To remove water from flakes in high speed.


p11

HOT AIR DRYER

To remove moisture from film flakes with hot wind.


p12

LABEL SEPARATING

Spare the label from flakes.


p12p13p14
