Main Description

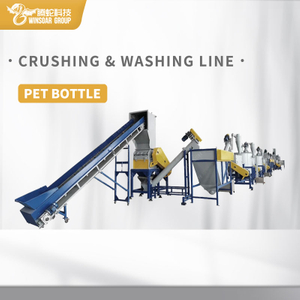

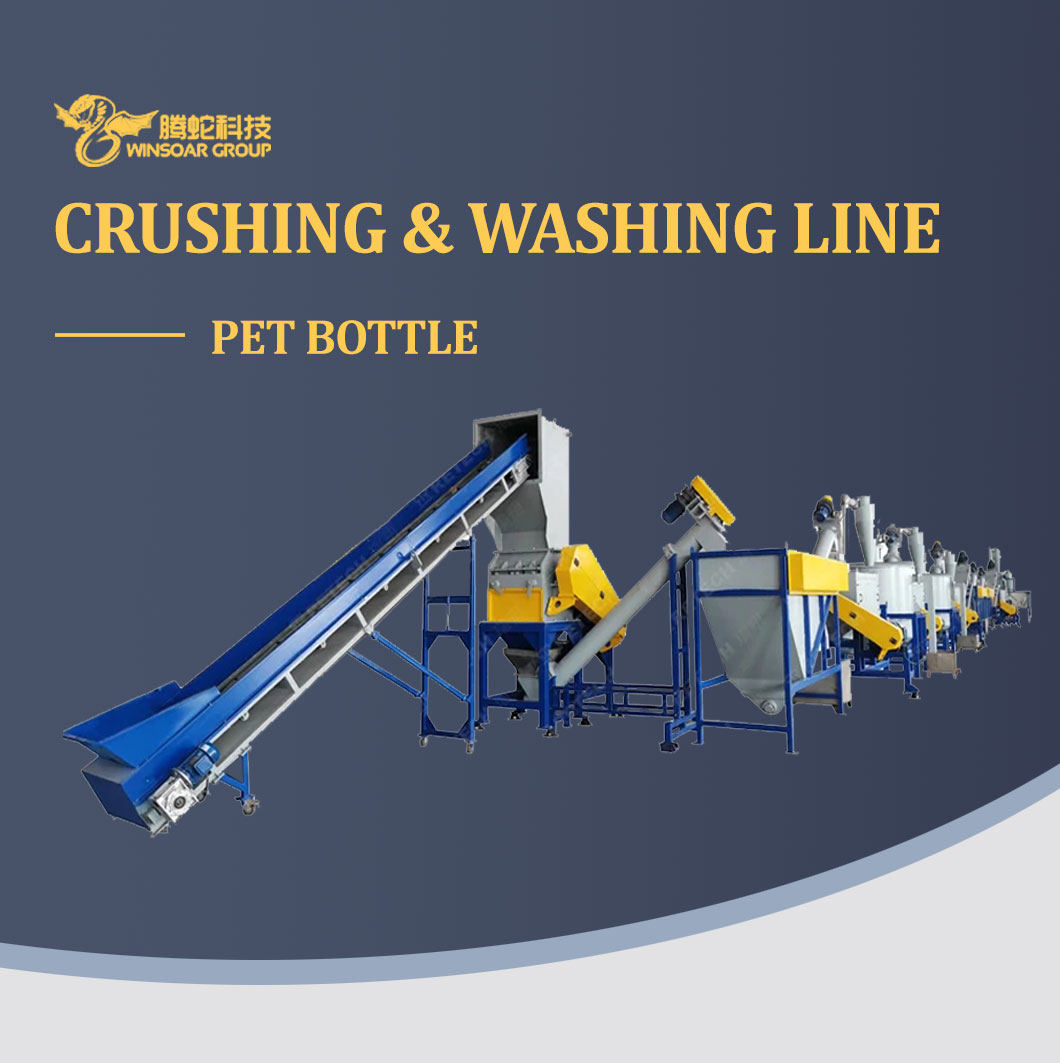

PET bottle crushing washing line:
This line is mainly used for recycling the waste PET bottle, PET container etc.
To separate PET bottles to flakes from label, cap, oil, garbage.
This line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
Easy to operate, Full automatic.
Production capacity: 500KG/H, 1000KG/H, 1500KG/H, 2000KG/H, 3000KG/H, 6000KG/H.
1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.
2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.
Main Technical Parameter
Model | Capacity | Consumption | Steam | Detergent | Water （ton/h） | Total Power | Space | Man Power |
PET500 | 500 | 110 | 500 | 10 | 0.7 | 220 | 700 | 6 |
PET1000 | 1000 | 170 | 600 | 14 | 1.5 | 395 | 800 | 6 |
PET2000 | 2000 | 340 | 1000 | 18 | 3 | 430 | 1200 | 8 |
PET3000 | 3000 | 460 | 1200 | 28 | 4.5 | 590 | 1500 | 8 |
PET6000 | 6000 | 680 | 1500 | 50 | 8 | 850 | 2000 | 12 |
BALE OPENER
Used for compressed bottle brick unpacking and scattering pretreatment.
LABEL REMOVER
Remove the label from bottles.
BELT CONVEYER
Convey bottles into label separating machine/crusher.
CRUSHER
Crush the plastic into flakes.
SCREW LOADER
Convey flakes to washing tank.

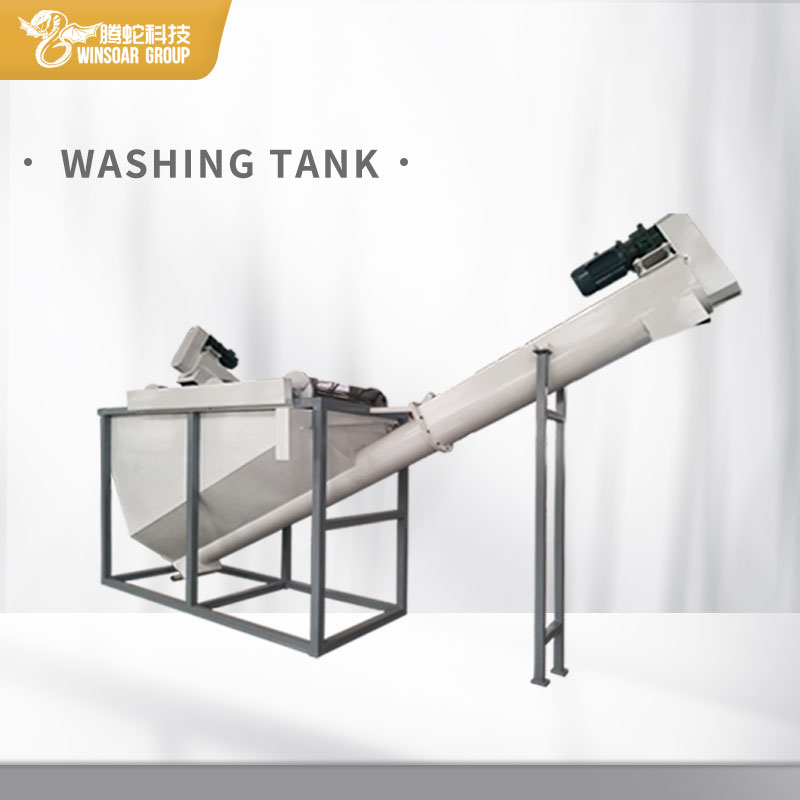

WASHING TANK
To wash PE flakes.
HOT WASHING POT
Remove impurities from the flakes.
FRICTION WASHER
Make flakes be rubbed with each other in high speed to remove dust.

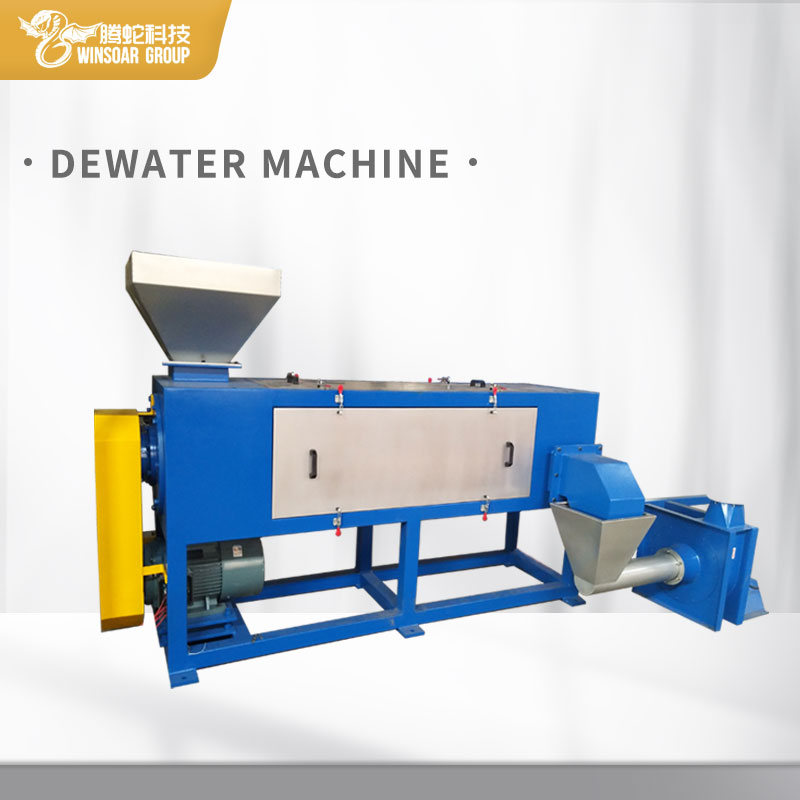

DEWATER MACHINE
To remove water from flakes in high speed.

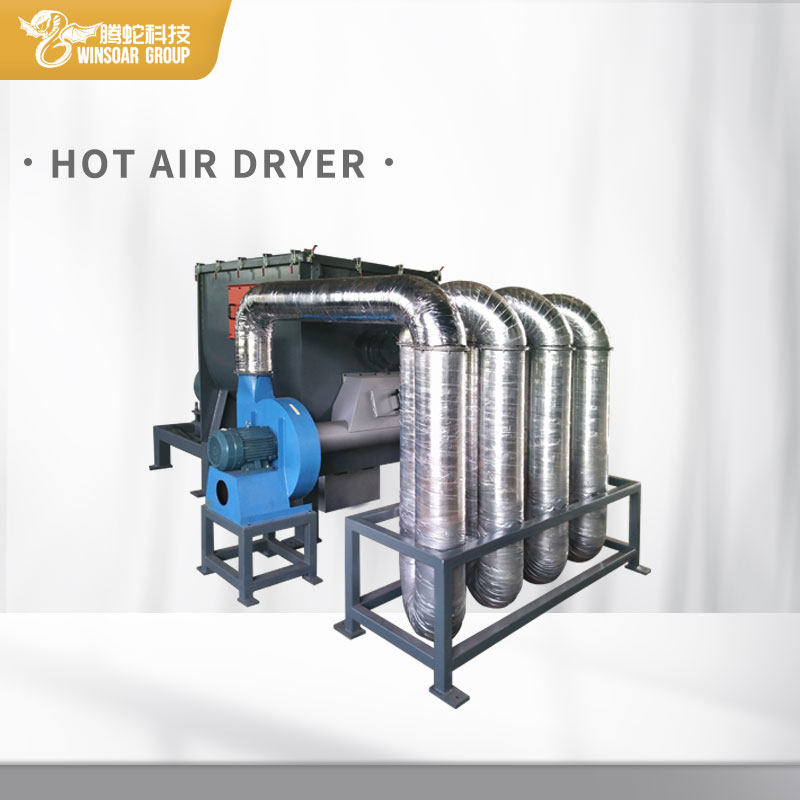

HOT AIR DRYER
To remove moisture from film flakes with hot wind.
LABEL SEPARATING
Spare the label from flakes.
