Main Description

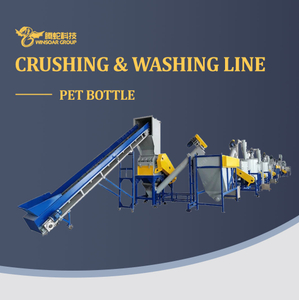

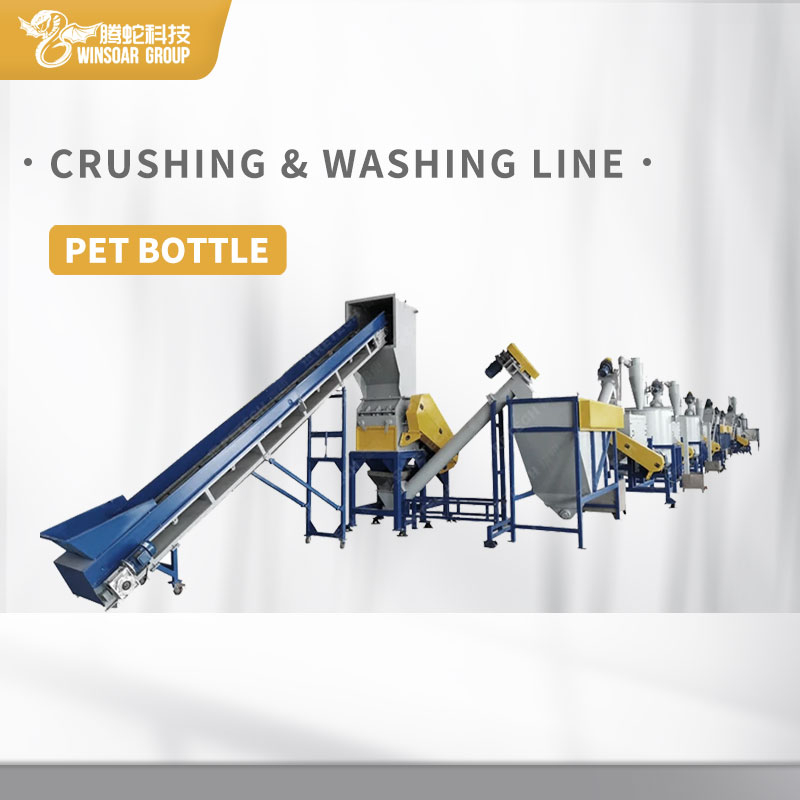

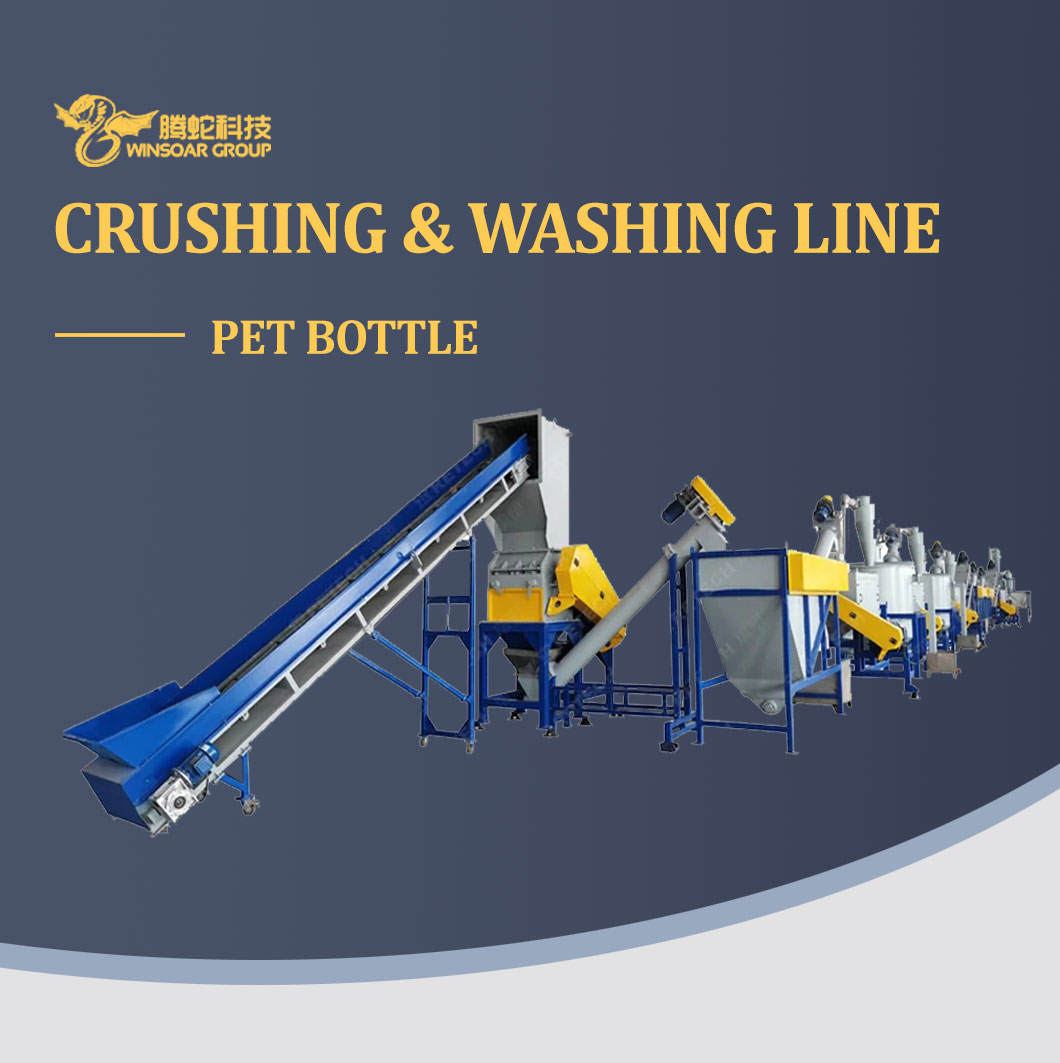

PET bottle crushing washing line is a full automatic crushing washing dewatering and drying production line, it is the ideal equipment to waste mineral water bottles, cola bottle, PET bottle sorting, label removing, crushing, washing, dewatering and drying machines.
Main Technical Parameter
Model | Capacity | Consumption | Steam | Detergent | Water （ton/h） | Total Power | Space | Man Power |
PET500 | 500 | 110 | 500 | 10 | 0.7 | 220 | 700 | 6 |
PET1000 | 1000 | 170 | 600 | 14 | 1.5 | 395 | 800 | 6 |
PET2000 | 2000 | 340 | 1000 | 18 | 3 | 430 | 1200 | 8 |
PET3000 | 3000 | 460 | 1200 | 28 | 4.5 | 590 | 1500 | 8 |
PET6000 | 6000 | 680 | 1500 | 50 | 8 | 850 | 2000 | 12 |

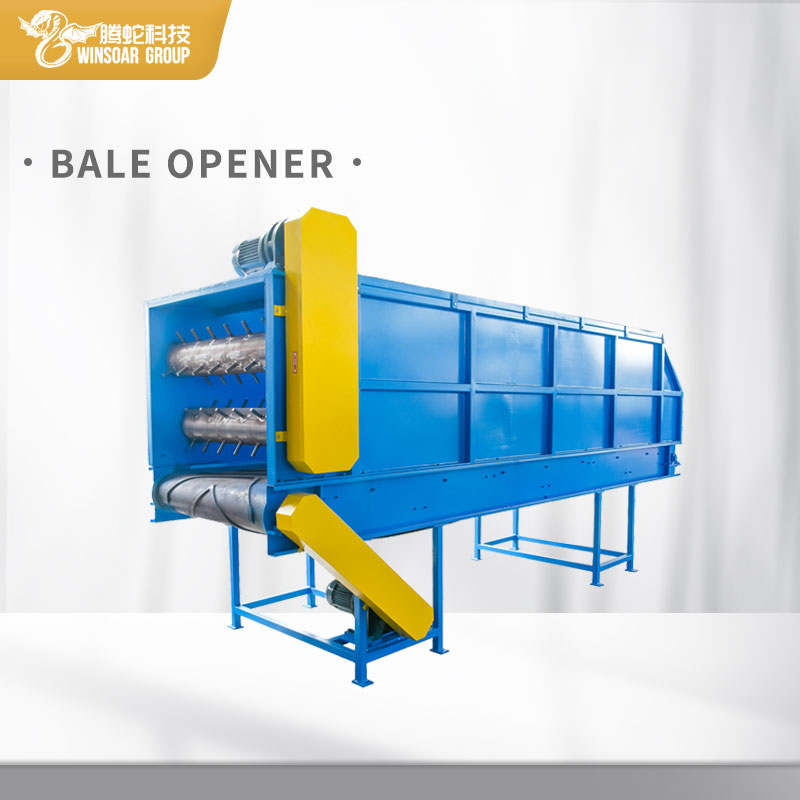

BALE OPENER
Used for compressed bottle brick unpacking and scattering pretreatment.

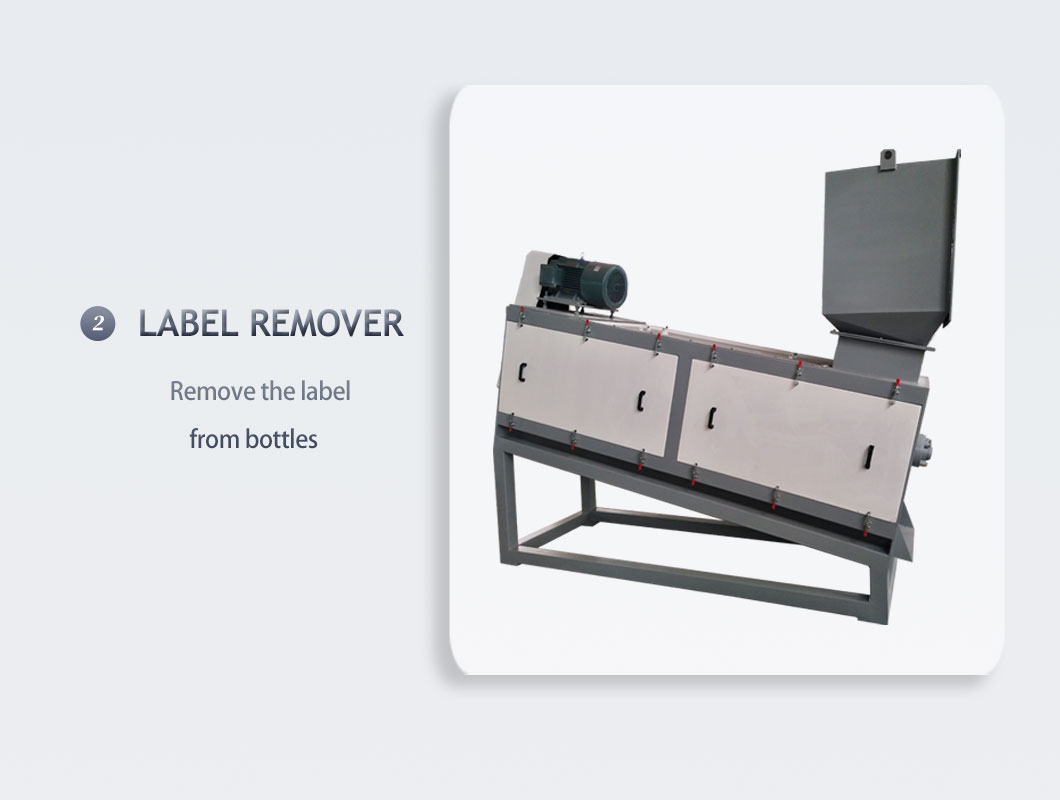

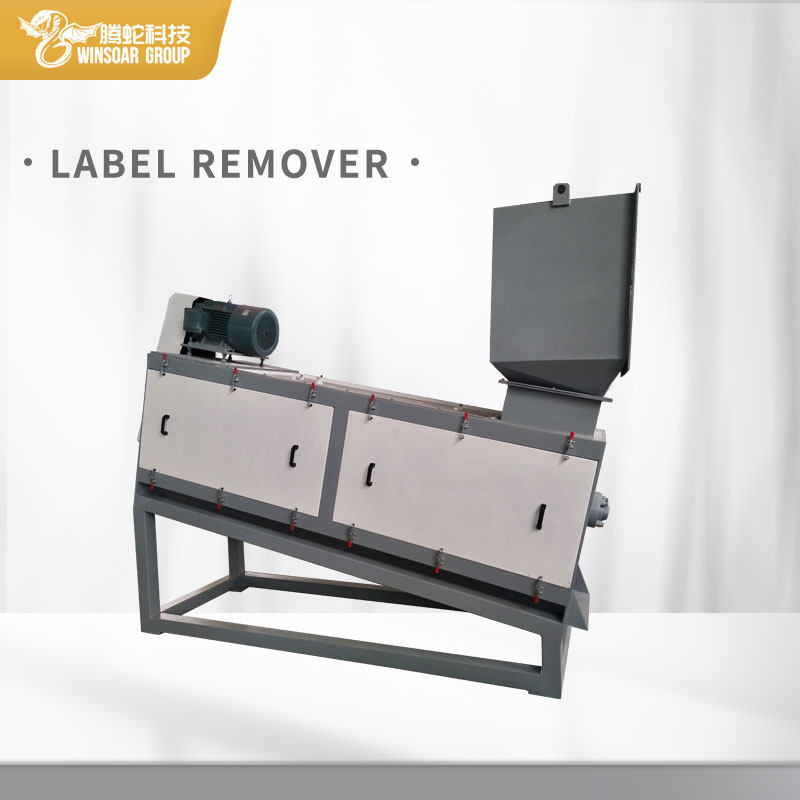

LABEL REMOVER
Remove the label from bottles.

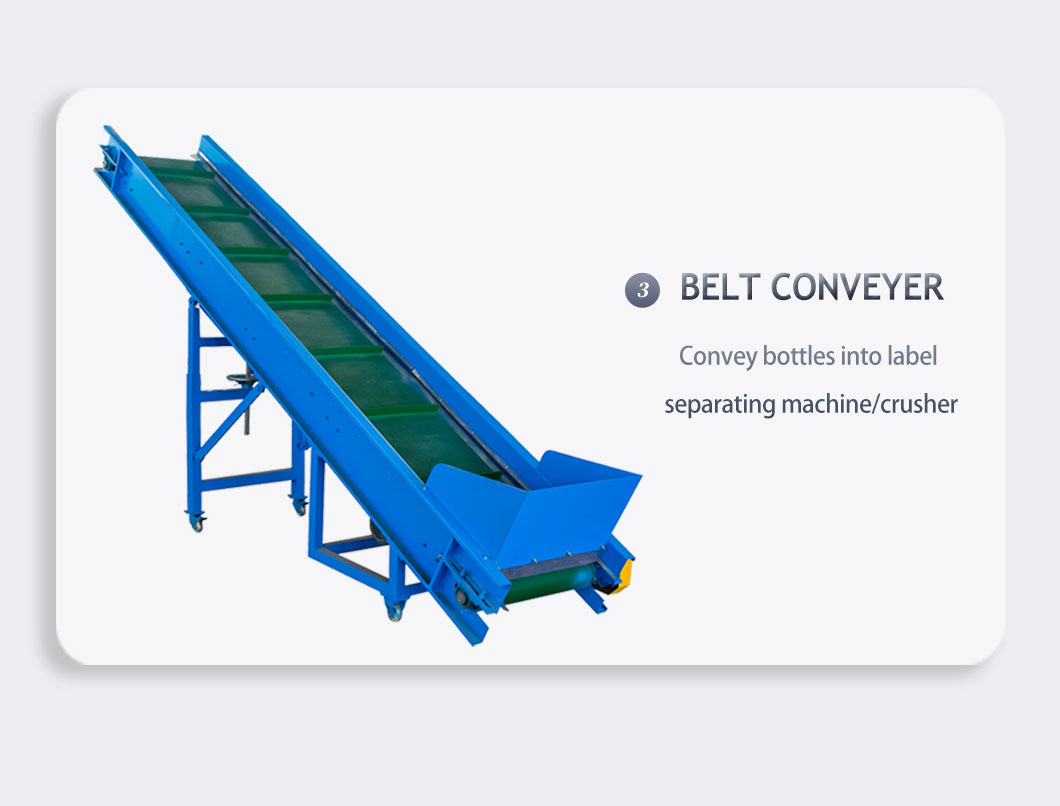

BELT CONVEYER
Convey bottles into label separating machine/crusher.

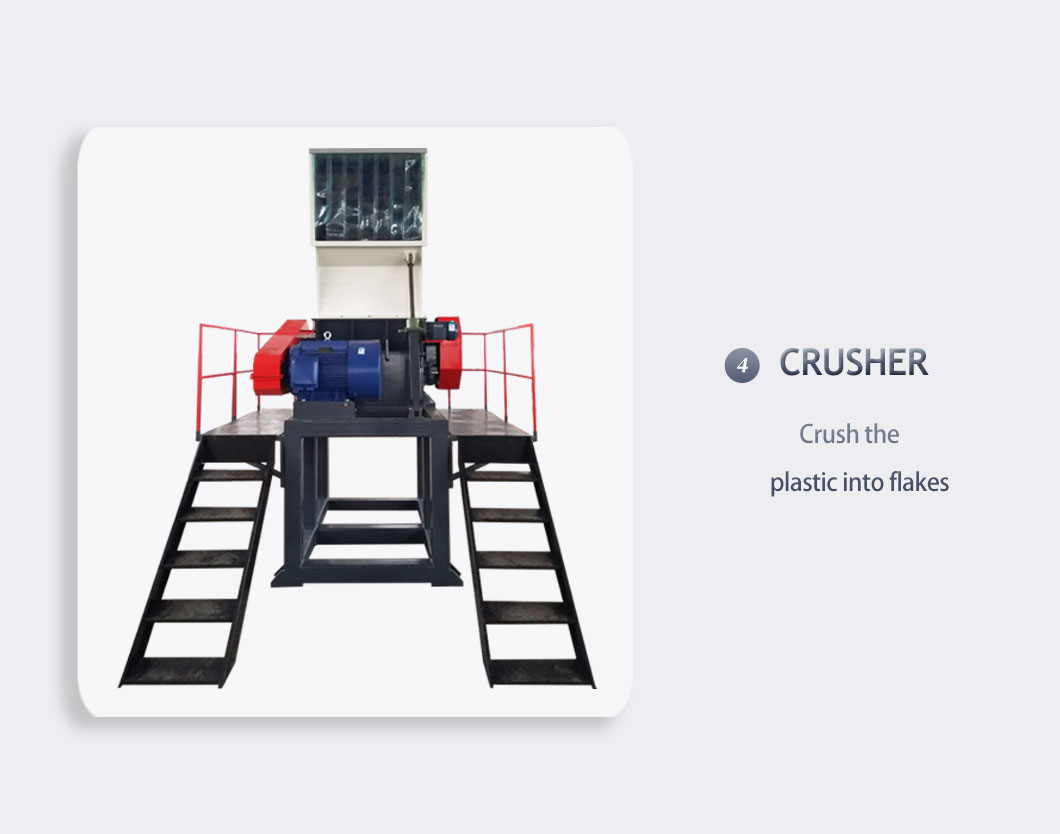

CRUSHER
Crush the plastic into flakes.

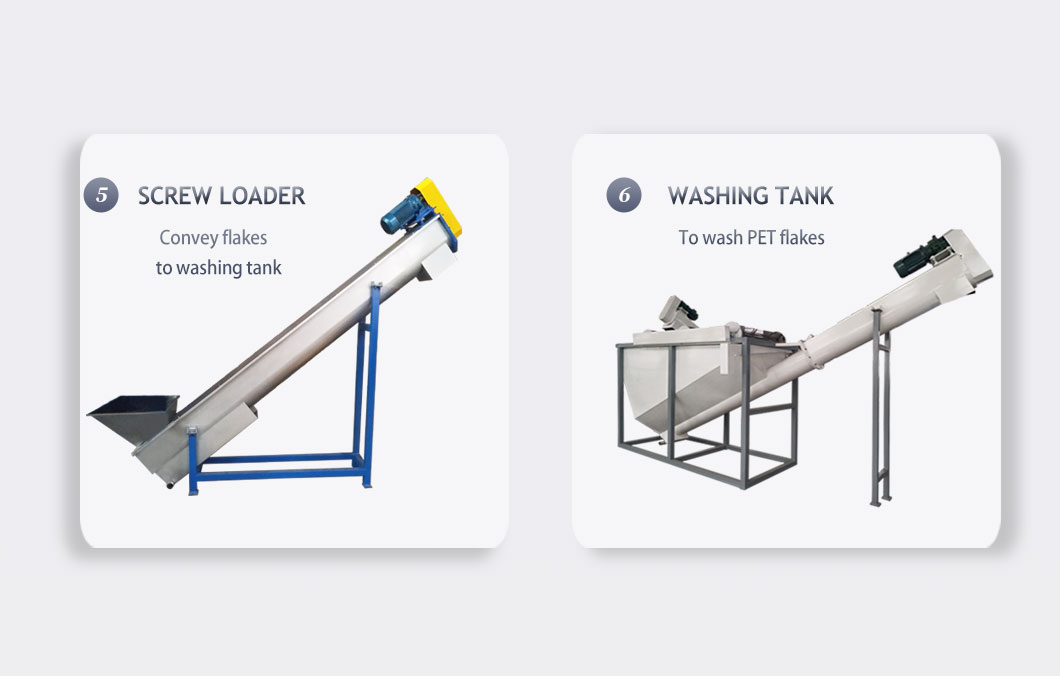

SCREW LOADER
Convey flakes to washing tank.
WASHING TANK
To wash PE flakes.

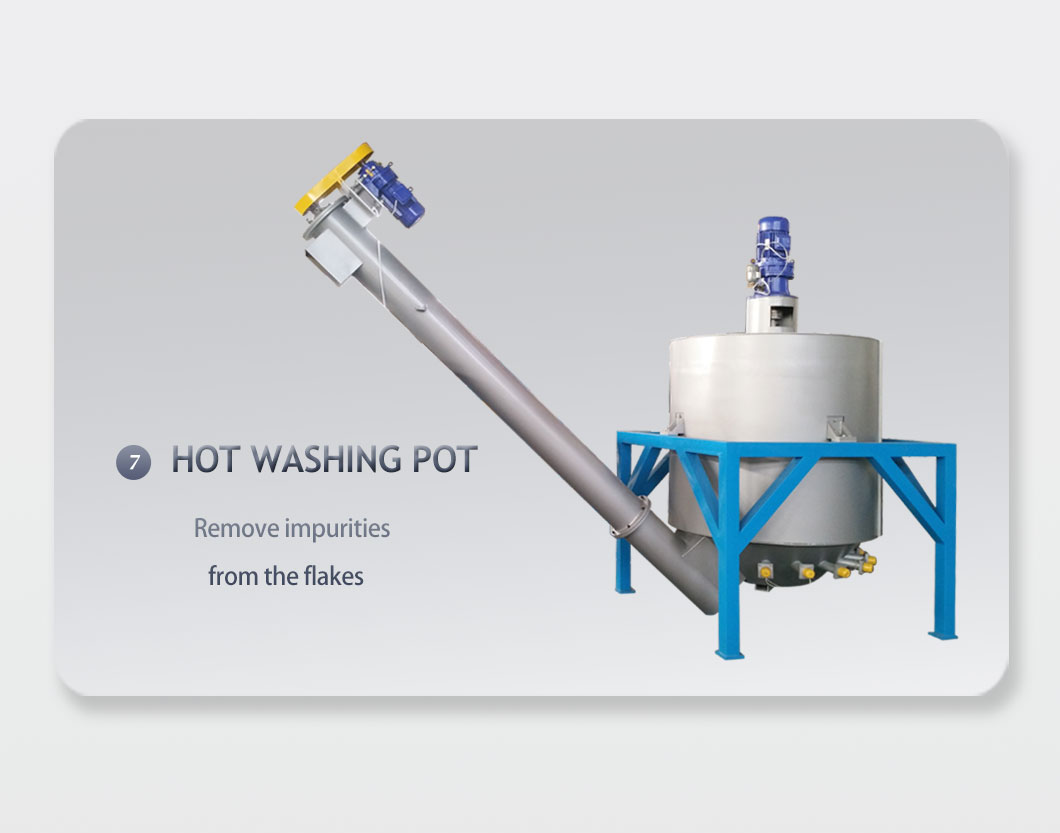

HOT WASHING POT
Remove impurities from the flakes.

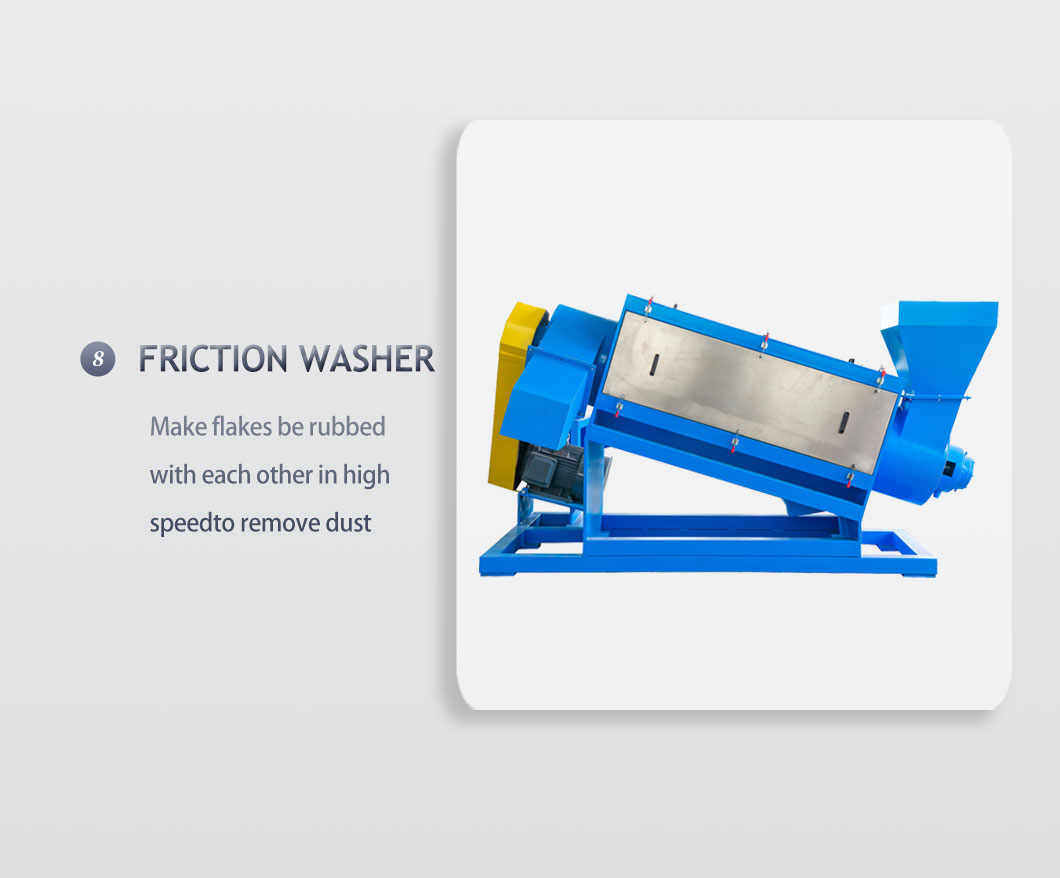

FRICTION WASHER
Make flakes be rubbed with each other in high speed to remove dust.

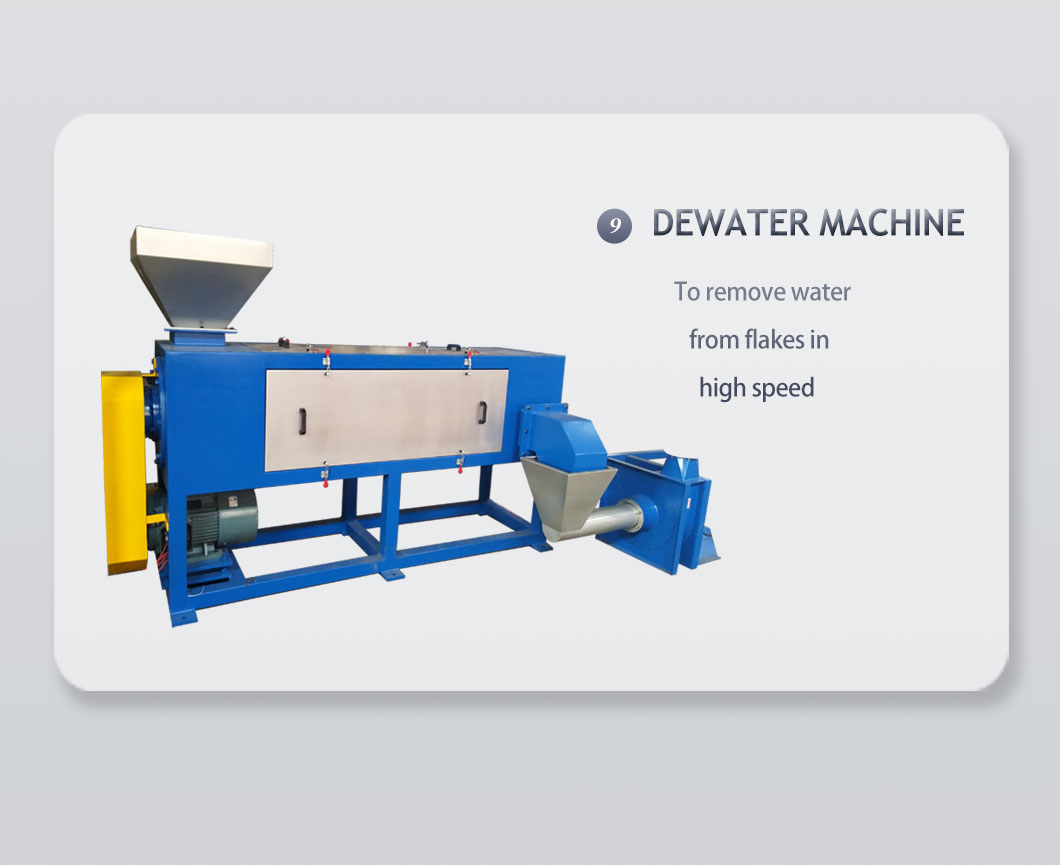

DEWATER MACHINE
To remove water from flakes in high speed.

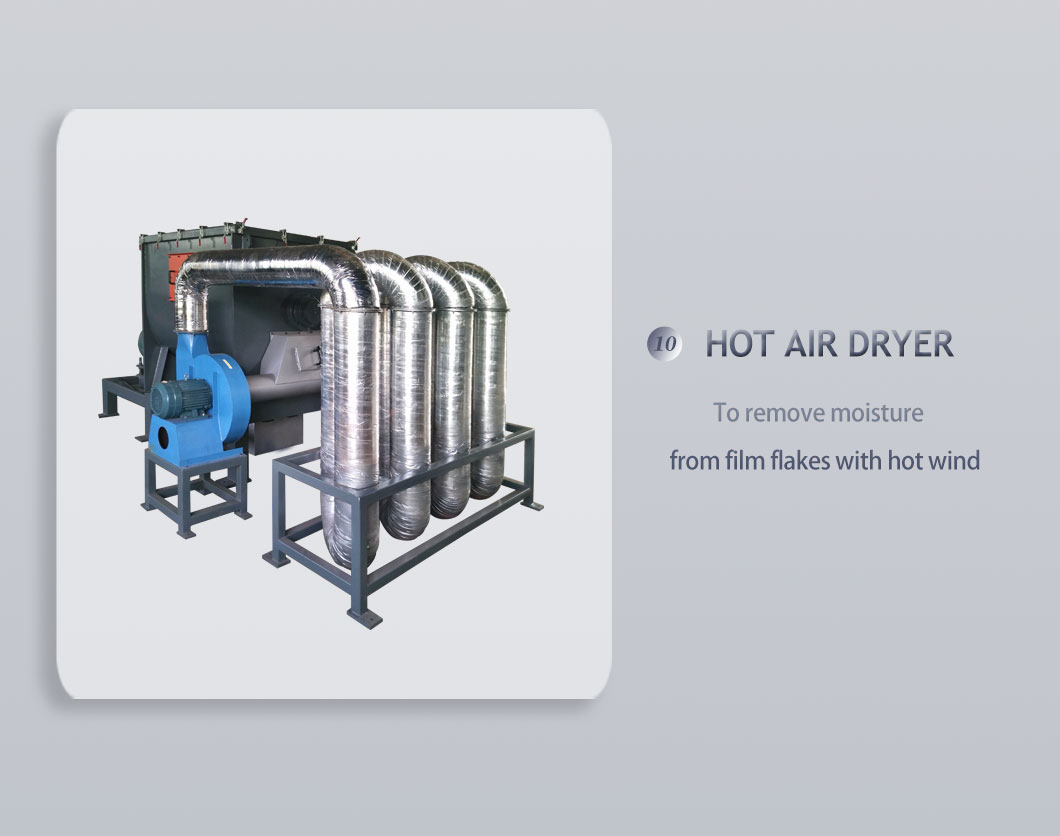

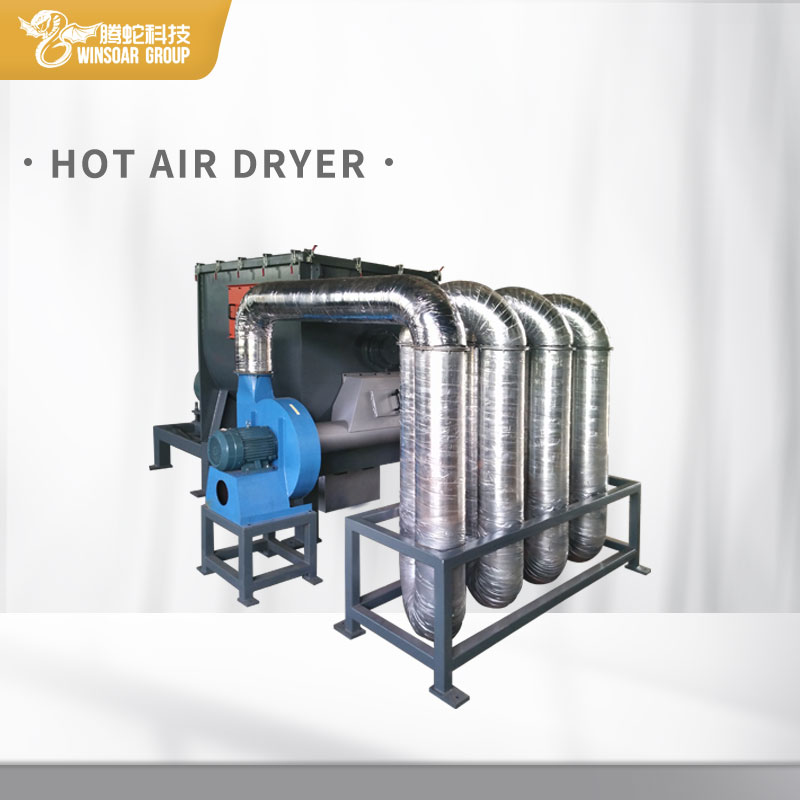

HOT AIR DRYER
To remove moisture from film flakes with hot wind.

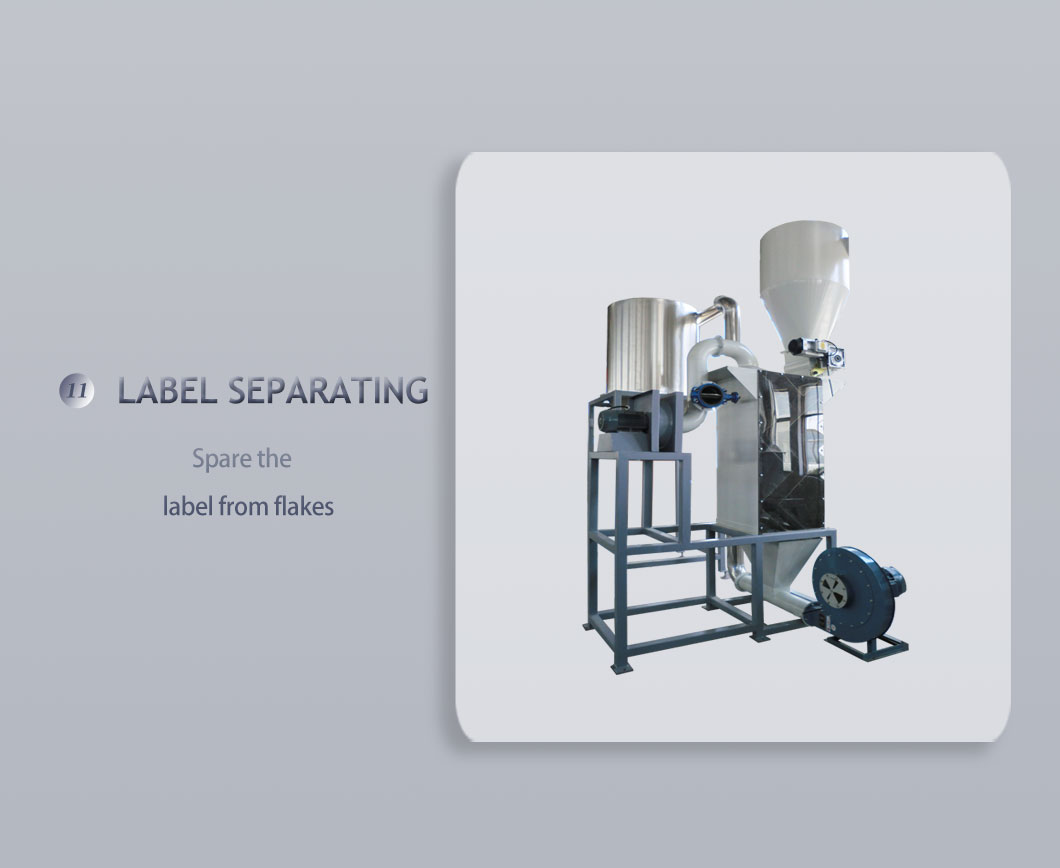

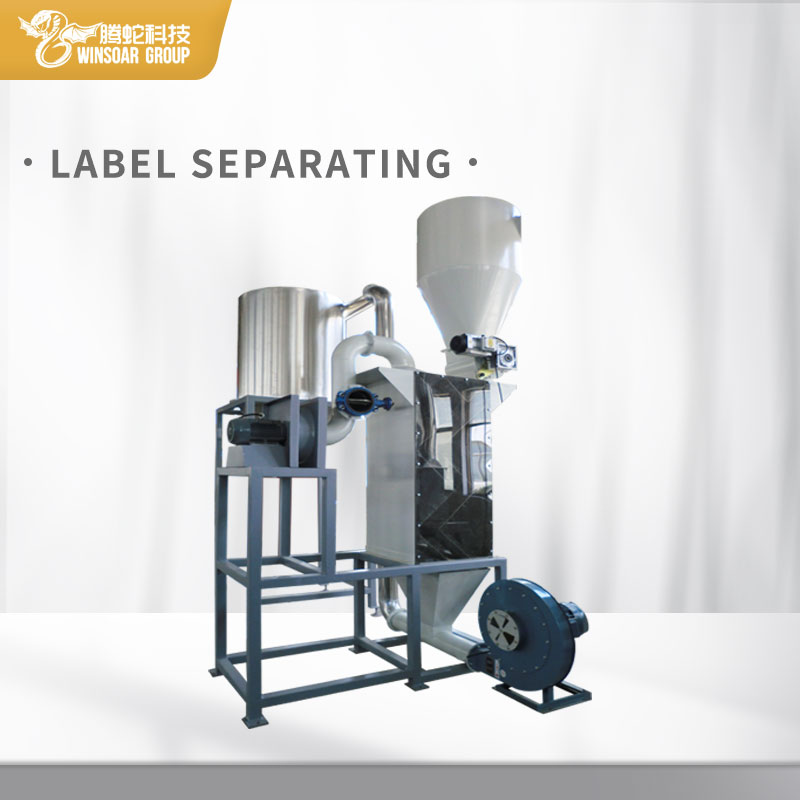

LABEL SEPARATING
Spare the label from flakes.
