PVC profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different mould, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on.
And by changing screw barrel and mould, it can also produce PVC based WPC products, such as: WPC wall panel, WPC window.
It can be used in hot or cold, dry or wet area, which can bear long period irradiation of ultraviolet radiation and bad weather such as gale and rainstorm, long life and easily to operate. And it also has the advantages of good fireproofing, high capacity, easy installation, low price and long using life.
Features:
1) Extruder screw and barrel with vacuum degassing system can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Vacuum calibrating and cooling Table: the table is made by #304 stainless steel, good strength and performance,long life time.
6) Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.
Main Parameter:
Model | Profile Width | Extruder model | Motor power | Max.extrusion capacity | Calibrating platform length |
WS-200 | 200mm | 51/105 | 22kw | 100-120kg/h | 4000mm |
WS-300 | 300mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
WS-400 | 400mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
WS-300 | 600mm | 65/132 | 37kw | 150-180kg/h | 8000mm |
WS-600 | 600mm | 65/13 or 80/156 | 37 or 75kw | 150-350kg/h | 6000mm |
Pictures for reference:

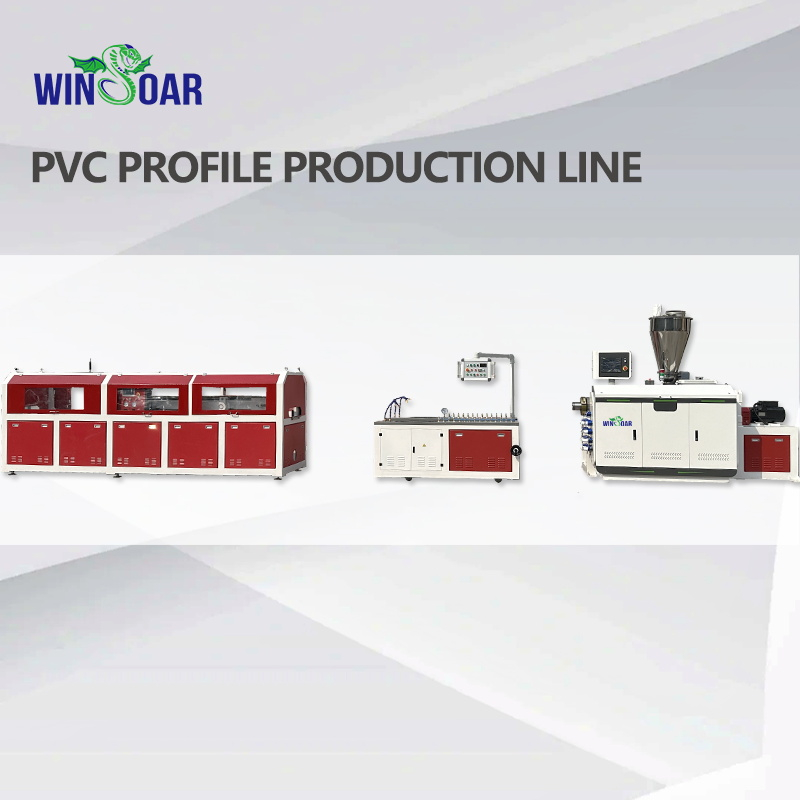

PVC PROFILE PRODUCTION LINE
PVC profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different mould, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on.

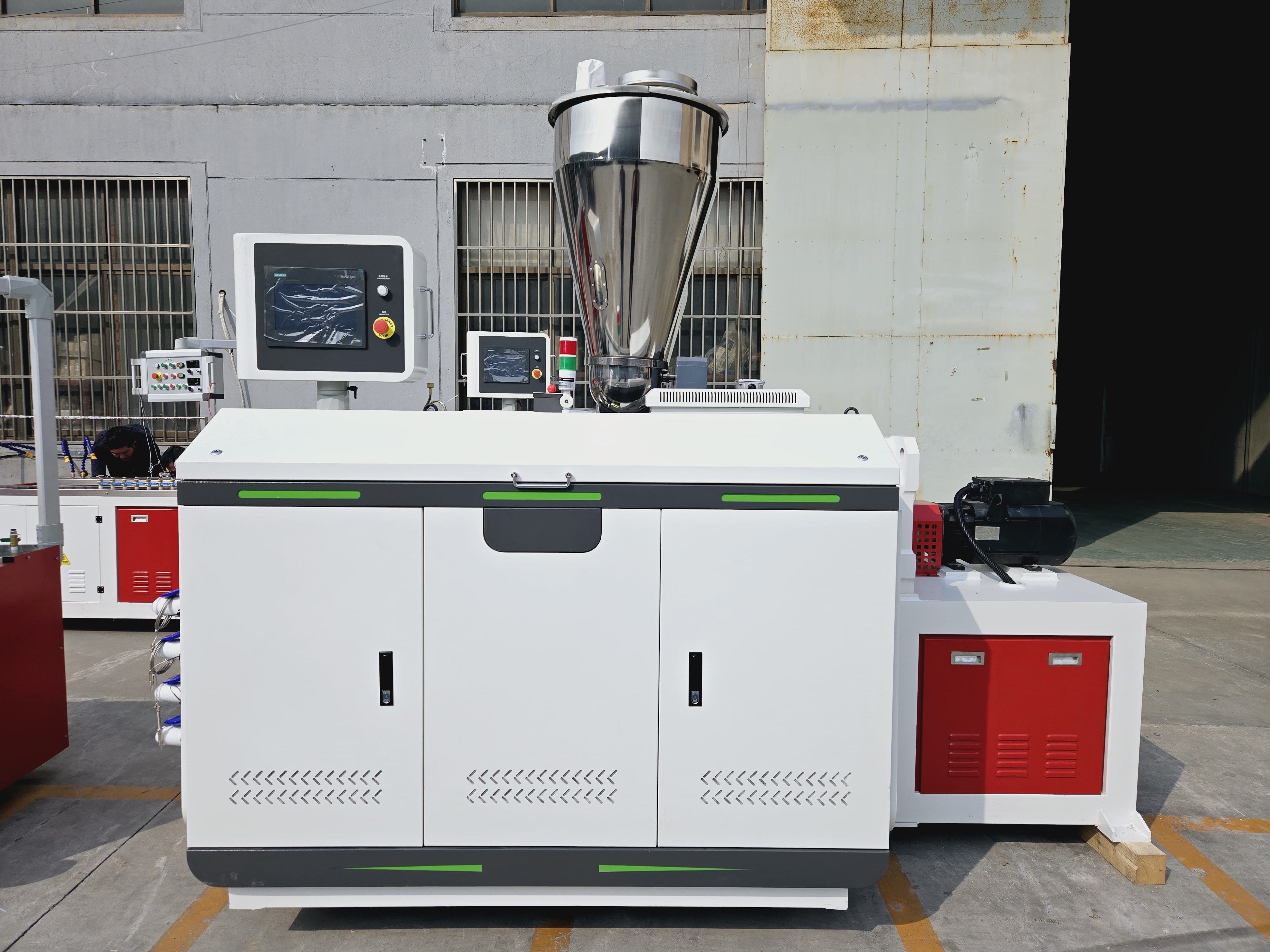

CONICAL TWIN SCREW EXTRUDER
This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.
EXTRUSION DIE
After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.

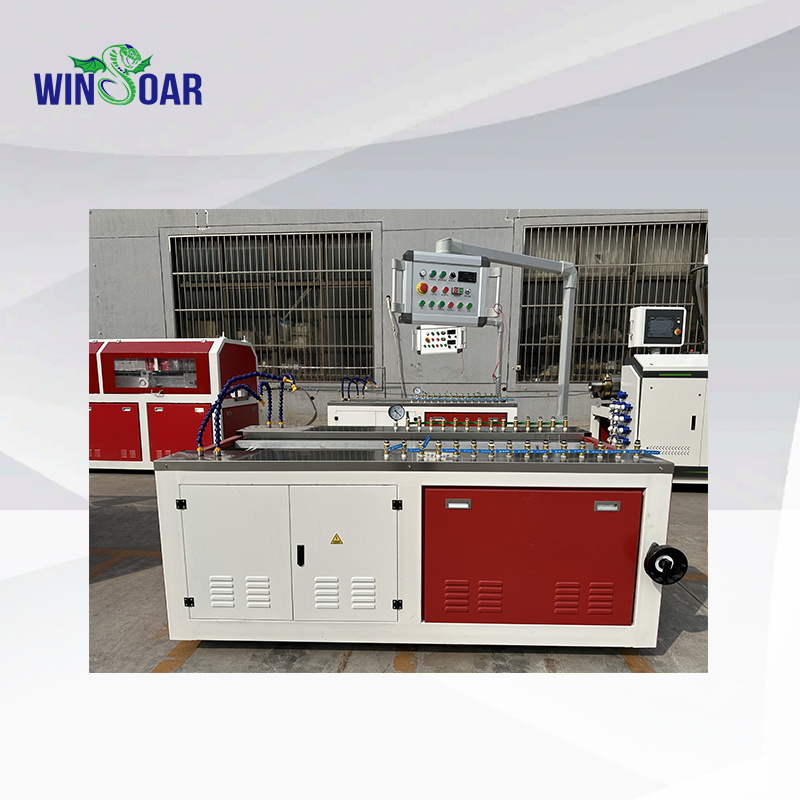

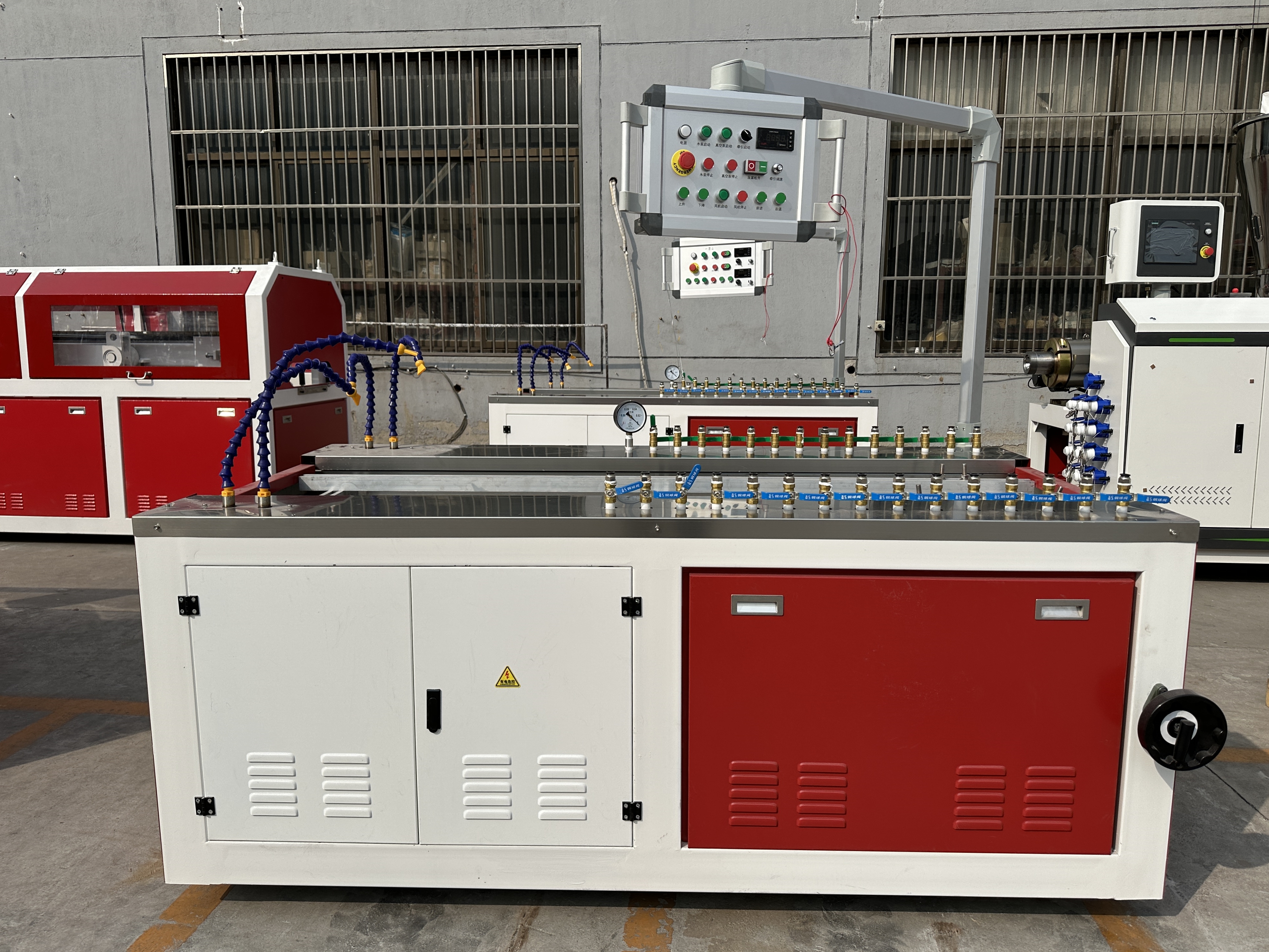

VACUUM CALIBRATION TABLE
Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.

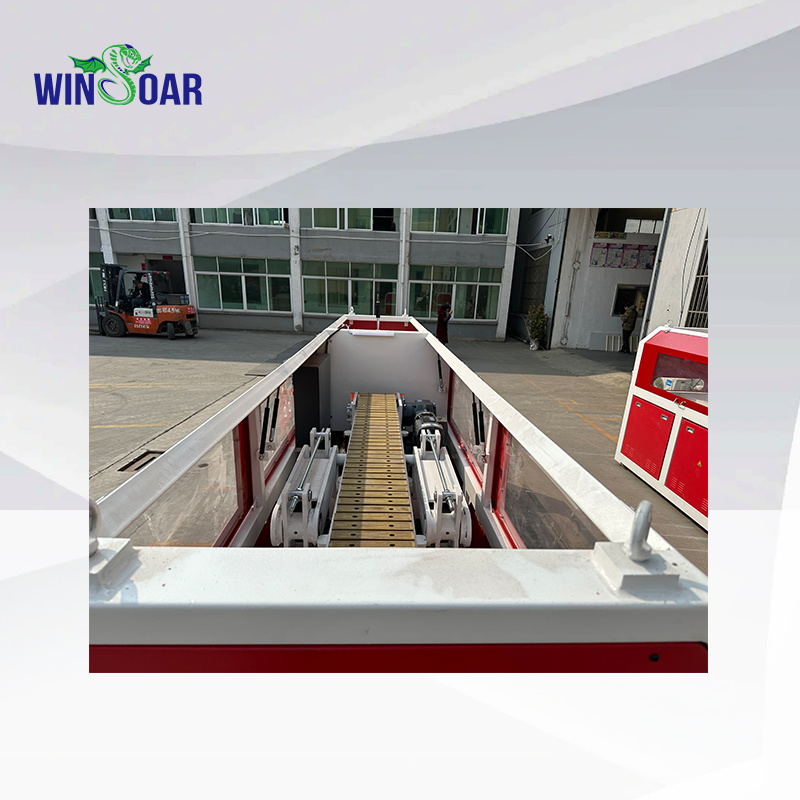

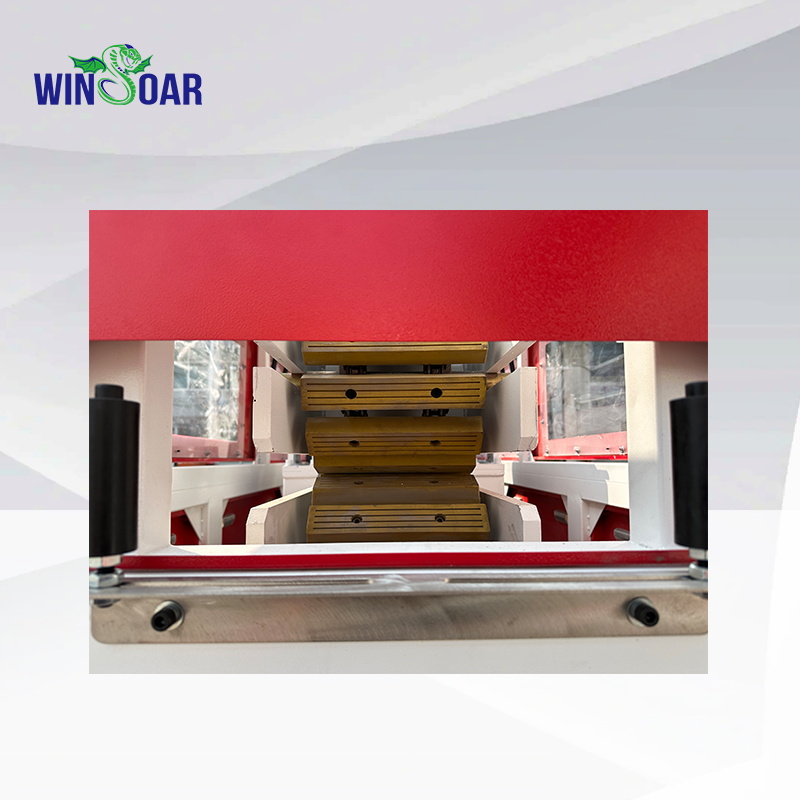

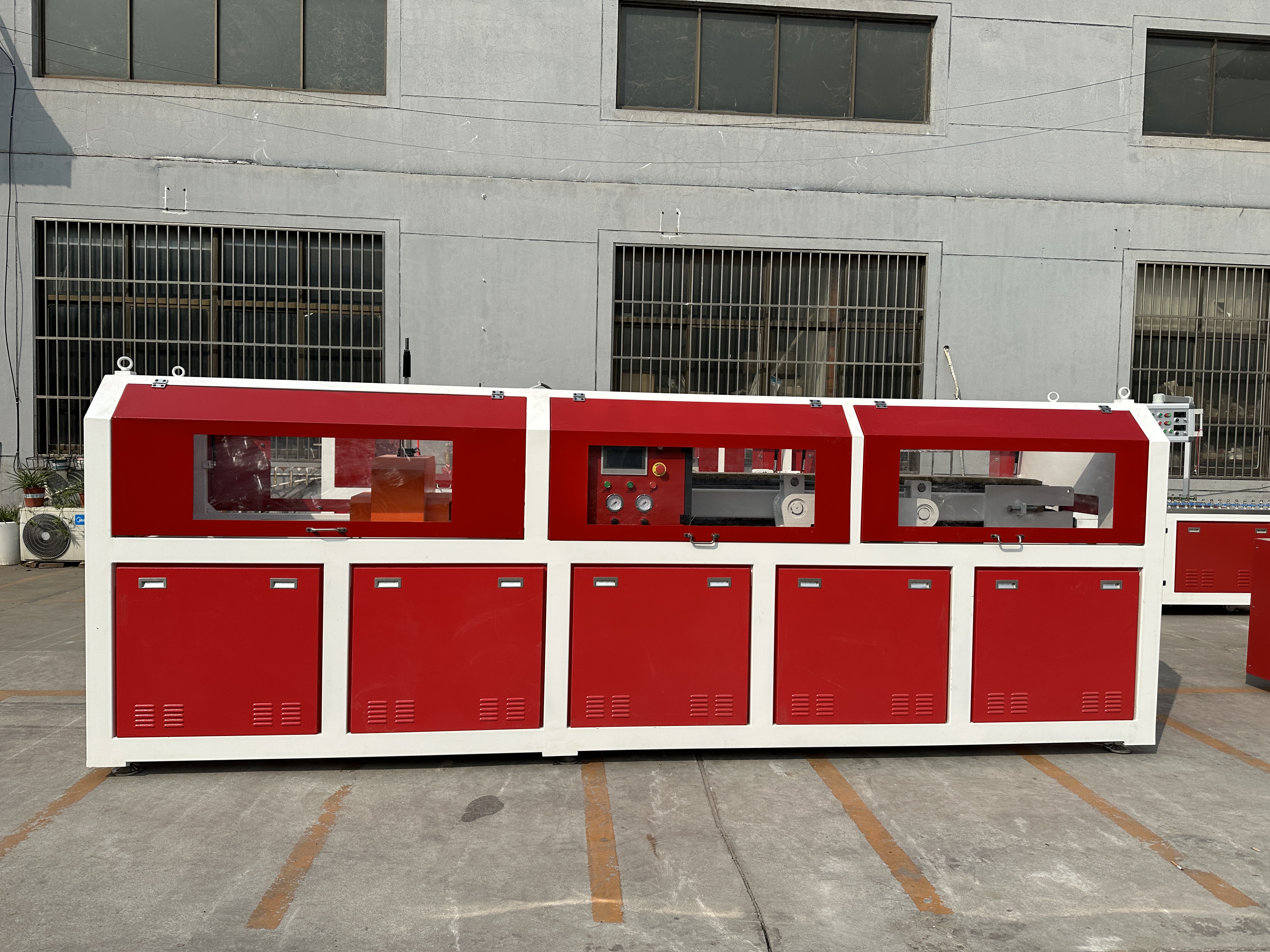

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.

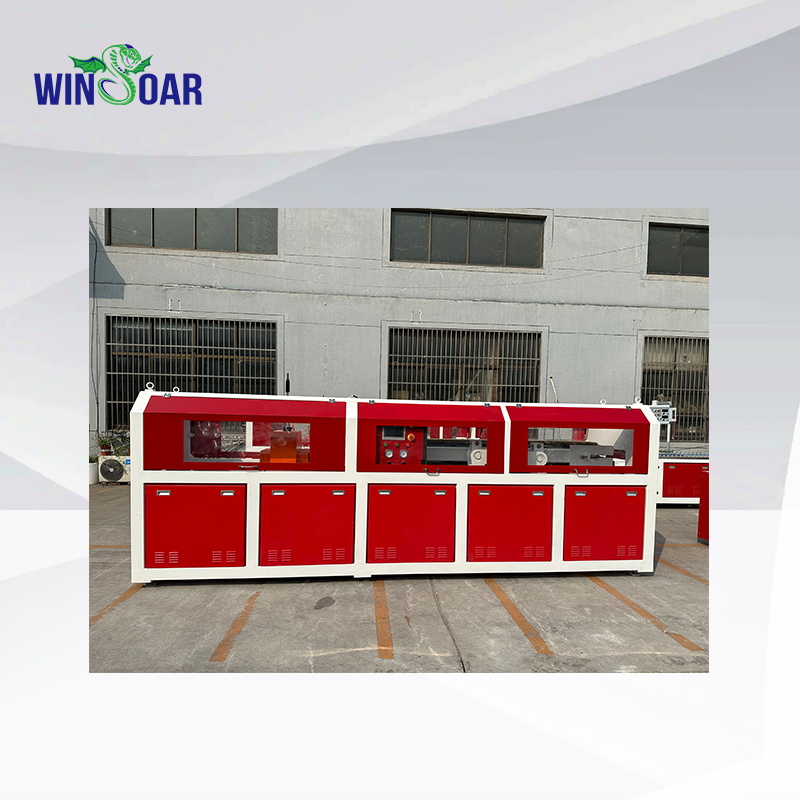

CUTTING MACHINE
After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.
Accept finished products and automatically turn over.
