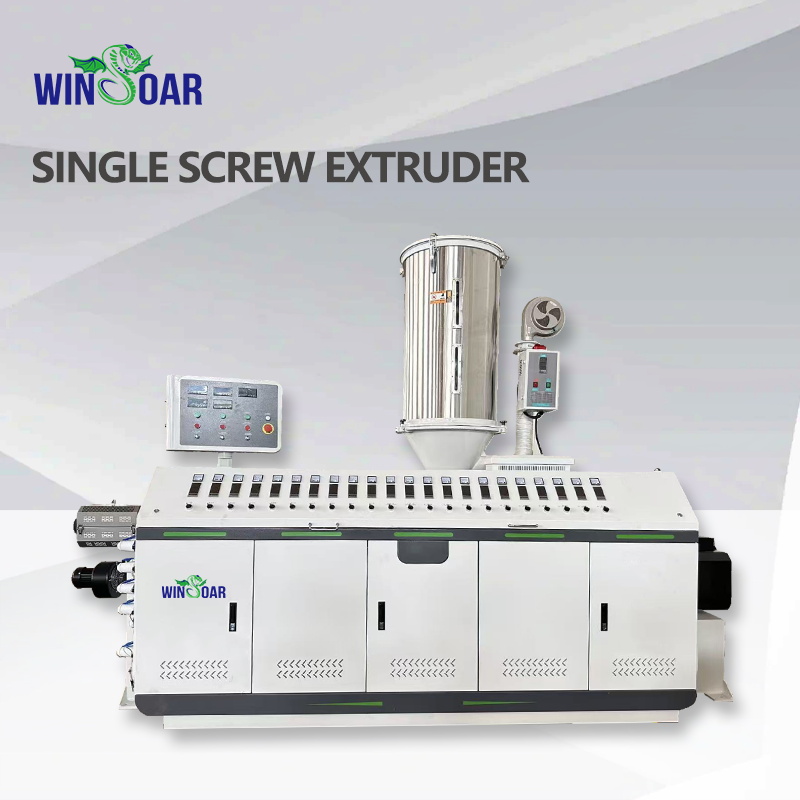

Model Energy-Saving Industrial High-Efficiency Single Screw Extruder

5 0 Reviews

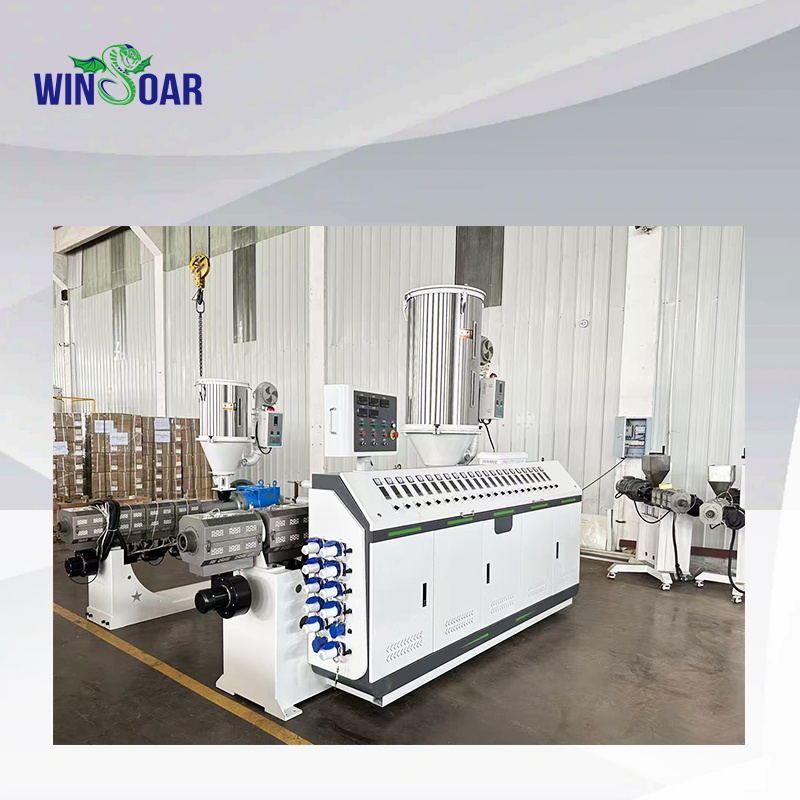

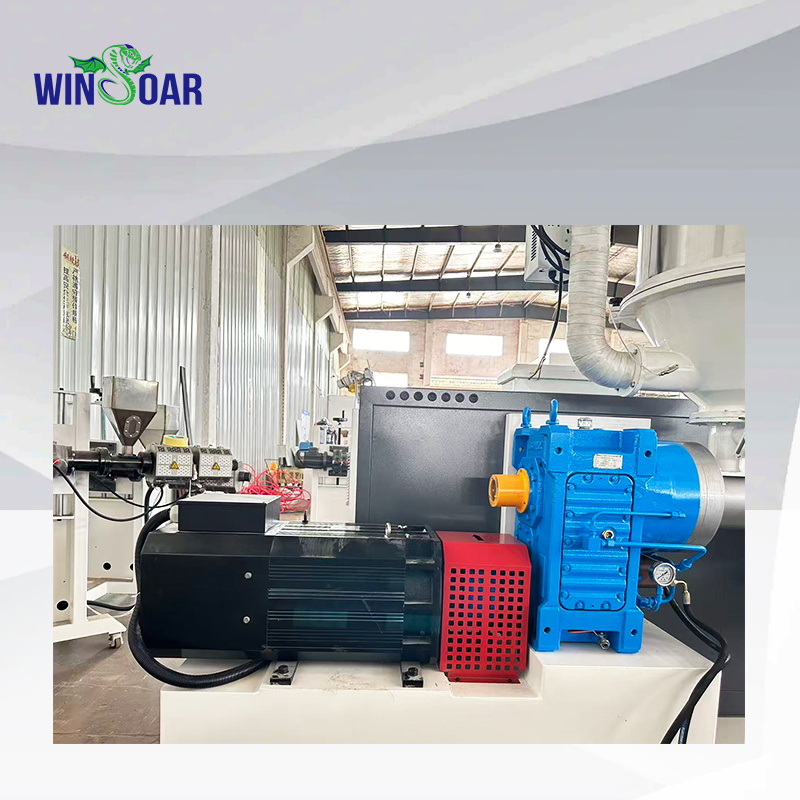

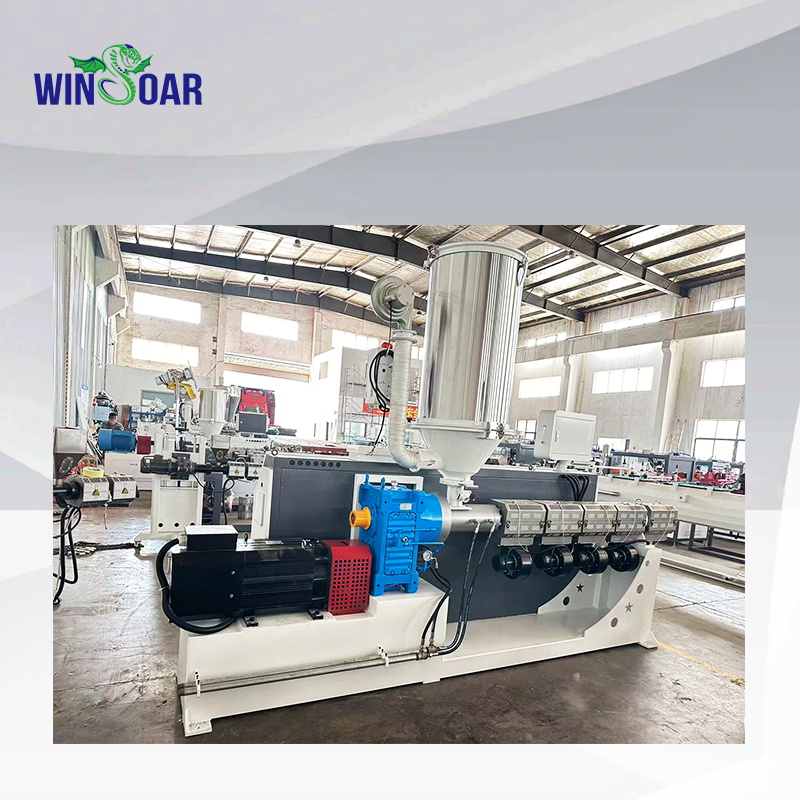

The single screw extruder is a new generation of high-efficiency extrusion equipment developed by our company combining years of production experience and advanced technology. It is widely used in the production of plastic pipes, plates, profiles, sheets and other products. The equipment adopts high-strength alloy screw, equipped with precision reducer and efficient drive system, ensuring stable and reliable extrusion process with high production efficiency.

Availability:

Quantity:



Inquire Add to Basket

Main Description

Features and Advantages

1、High Efficiency & Energy Saving

Adopts advanced frequency conversion speed control system, saving 15-20% energy compared with traditional equipment, and increasing production efficiency by more than 25%.

2、Precise Control

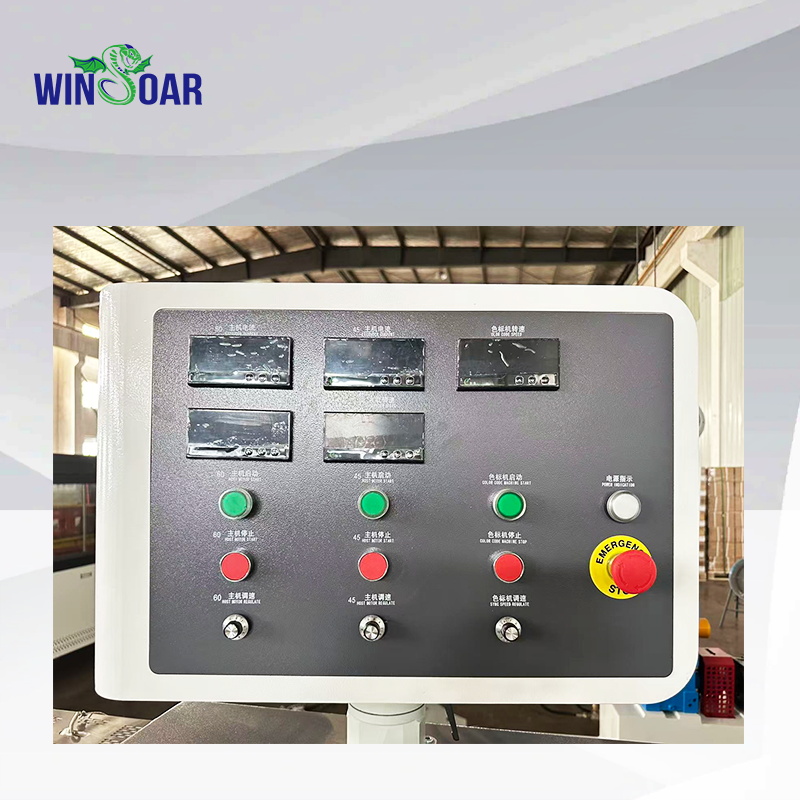

PLC intelligent control system precisely controls temperature, pressure and rotation speed to ensure stable product quality.

3、Reasonable Structure

Modular design, compact structure, small footprint, easy installation and maintenance, simple operation.

4、Accurate Temperature Control

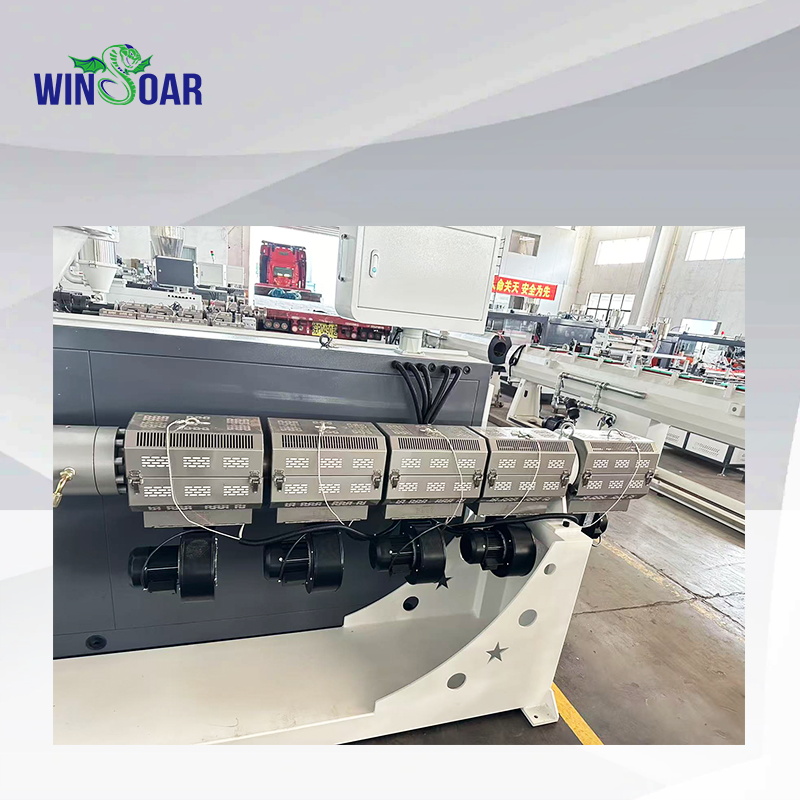

Multi-stage intelligent temperature control system with temperature control accuracy up to ±1℃, meeting different material processing needs.

5、Safe and Reliable

Multiple safety protection devices ensure safe operation of equipment, reduce failure rate and extend service life.

6、Flexible Adjustment

Screw speed, temperature and other parameters can be flexibly adjusted according to different production needs, with wide application range.

Working Principle

Feeding – Raw material mix (powder/pellets + additives) is fed into the hopper.
Plasticizing – The screw conveys, compresses, and melts the material via shear heating.
Metering – Molten PVC is pushed through the die head for shaping.
Cooling & Sizing – The extruded pipe enters vacuum calibration and cooling tanks.

Main Technical Parameter

Model	WS-45-33	WS-65-33	WS-75-33	WS-90-33	WS-120-33	WS-150-33
Power of drive (kw)	37	75	110	160	280	400
Screw diameter (mm)	45	65	75	90	120	150
L/D ratio	33	33	33	33	33	33
Torsional moment of screw (Nm)	1600	3600	6300	11200	25000	45000
Capacity HDPE(kg/h) PP	150 110	300 200	450 320	600 450	1000 750	1300 900
Dimentions	2200x1440x1950	3000x1440x2000	3660x1550x2200	4230x1675x2200	5370x1860x2400	6630x1920x2450
