Main Description

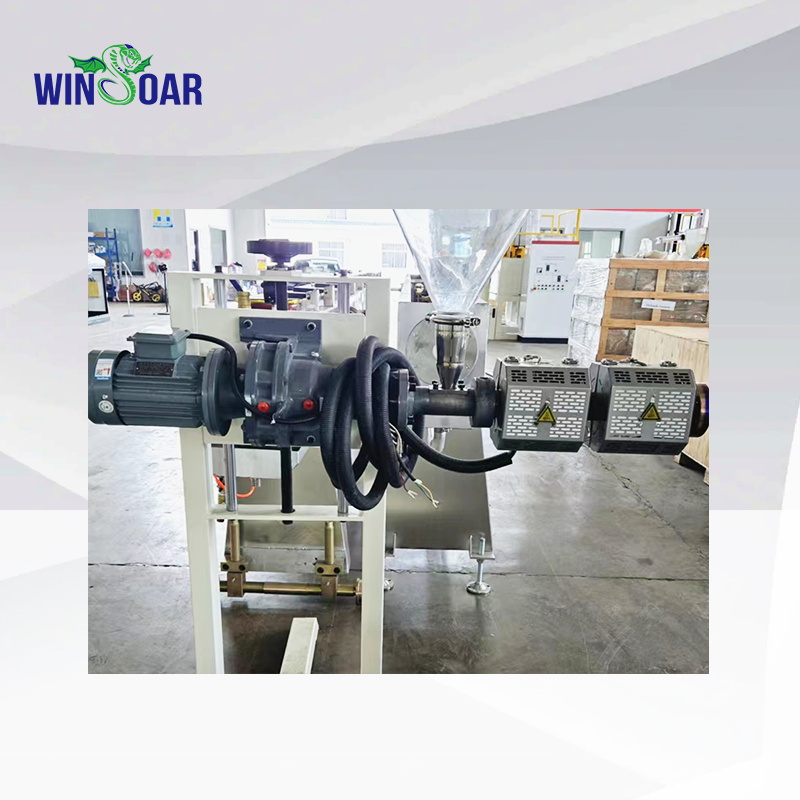

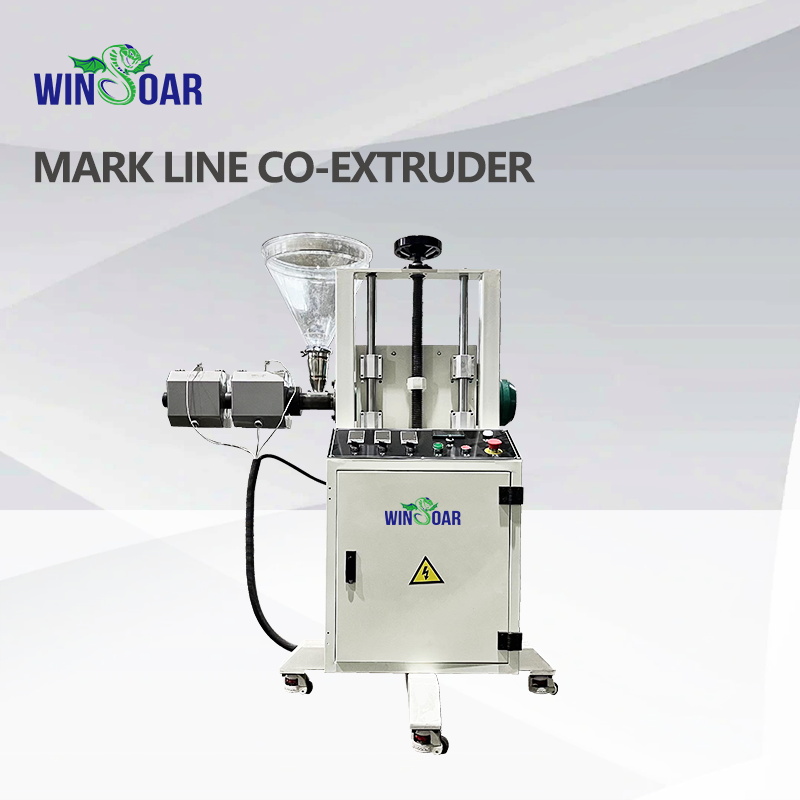

The 25mm Single-Screw extruder is also known as a small single-screw extruder, laboratory single-screw extruder, marking line extruder, and pipe marking line co-extruder.
The main machine classified among various plastic extrusion equipment can extrude and process all kinds of plastic particles. It can work in conjunction with pipe production lines or profile production lines and is most commonly used for marking lines of plastic pipes and sealing strips or colored PMMA extrusion of plastic profiles.
Typical Applications
R&D Labs: Polymer blending, color masterbatch trials, biodegradables prototyping.
Small-Scale Production: Medical tubing, micro profiles, filament for 3D printing.
Recycling: Reprocessing post-industrial scraps (e.g., LDPE film, PET flakes).
Main Technical Parameter
Model | WS-25-25 |
Power of drive (kw) | 1.5 |
Screw diameter (mm) | 25 |
L/D ratio | 25 |
Torsional moment of screw (Nm) | 1600 |
| Capacity HDPE(kg/h) | 1-3 |

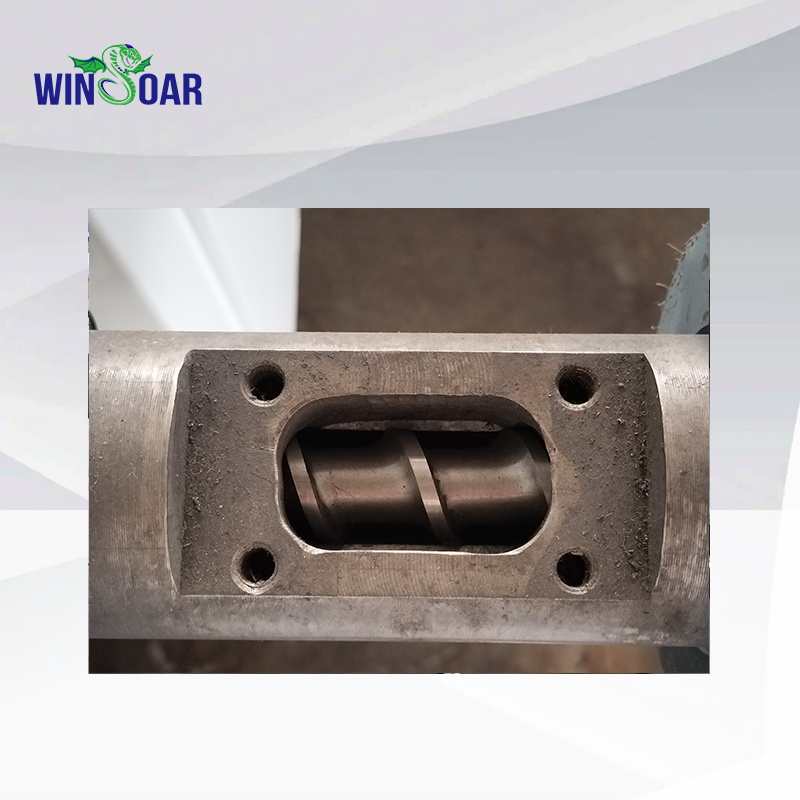

The single-screw extruder adopts a slotted barrel and a new type of BM screw, which has high screw speed, output and plasticizing capacity.
