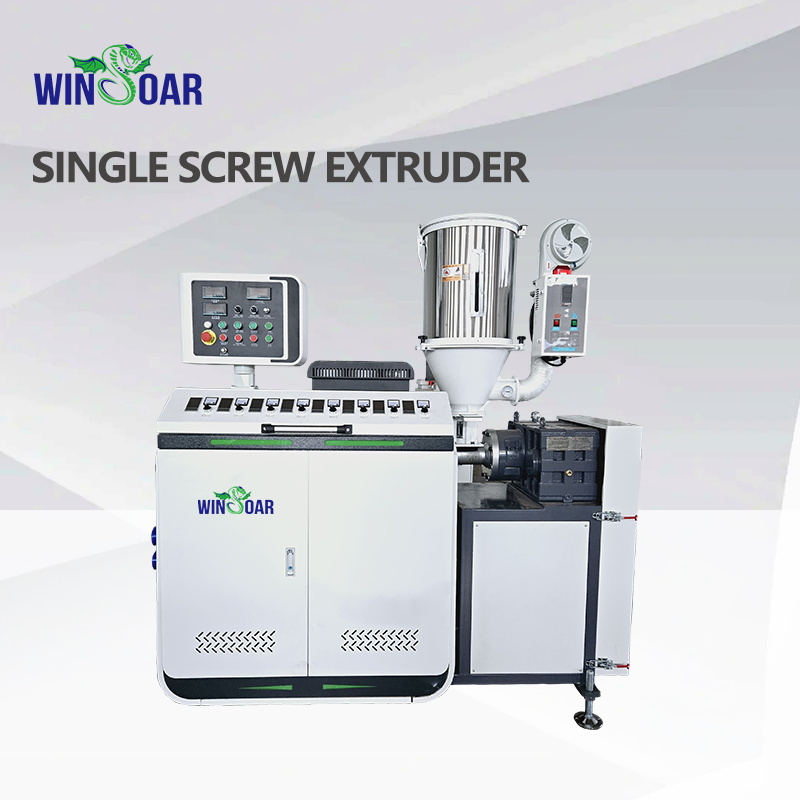

PP PE ABS Making Machine/High Dispersion Plastic Polymer Compounding Single Screw Extruder

5 0 Reviews

Availability:

Quantity:



Inquire Add to Basket

Main Description

The single screw extruder can process all kind of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread ,ribbon, insulating layer of cable, hollow products and so on .It is also used in graining.

The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.

Main Technical Parameter

Model	WS-45-33	WS-65-33	WS-75-33	WS-90-33	WS-120-33	WS-150-33
Power of drive (kw)	37	75	110	160	280	400
Screw diameter (mm)	45	65	75	90	120	150
L/D ratio	33	33	33	33	33	33
Torsional moment of screw (Nm)	1600	3600	6300	11200	25000	45000
Capacity HDPE(kg/h) PP	150 110	300 200	450 320	600 450	1000 750	1300 900
Dimentions	2200x1440x1950	3000x1440x2000	3660x1550x2200	4230x1675x2200	5370x1860x2400	6630x1920x2450
