Main Description

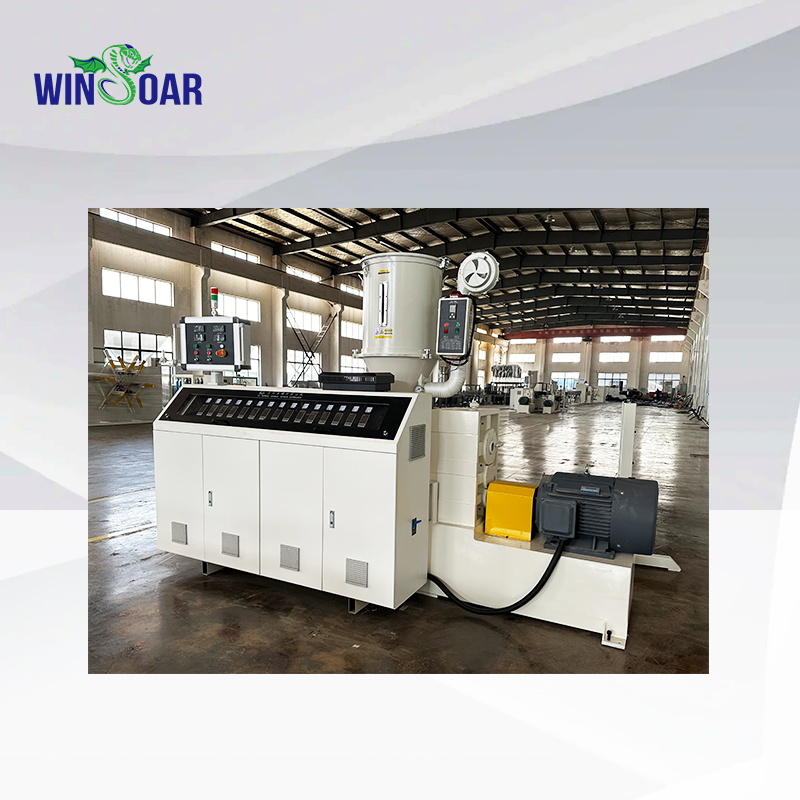

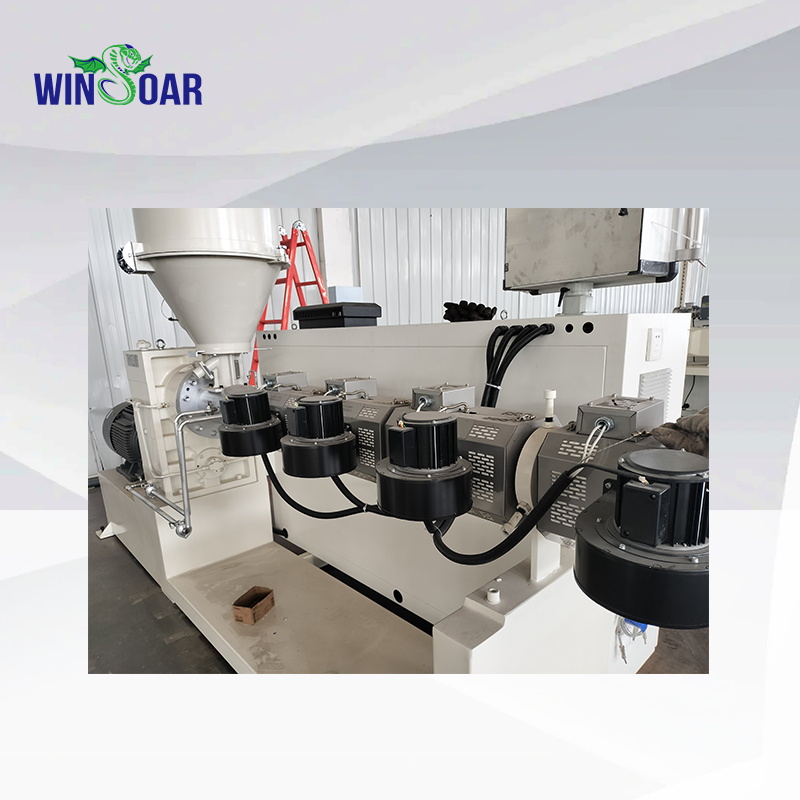

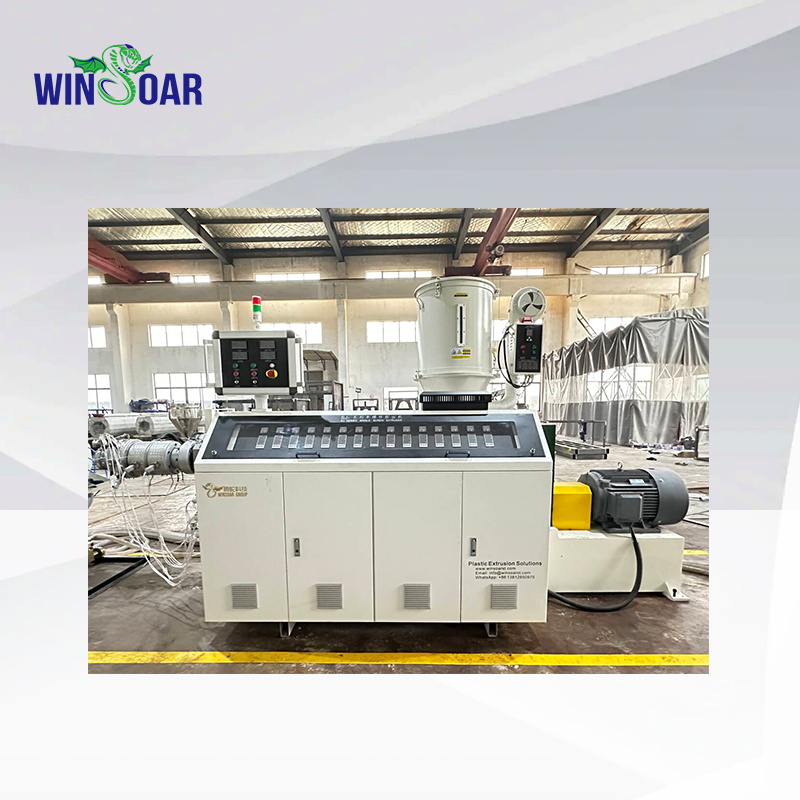

The 65 single-screw extruder refers to an extruder with a screw diameter of 65mm.
It is suitable for processing pellets into pipes, profiles, and other extruded products.
Main Technical Parameter
Model | WS-45-33 | WS-65-33 | WS-75-33 | WS-90-33 | WS-120-33 | WS-150-33 |
Power of drive | 37 | 75 | 110 | 160 | 280 | 400 |
Screw diameter | 45 | 65 | 75 | 90 | 120 | 150 |
L/D ratio | 33 | 33 | 33 | 33 | 33 | 33 |
Torsional moment | 1600 | 3600 | 6300 | 11200 | 25000 | 45000 |
Capacity | 150 110 | 300 200 | 450 320 | 600 450 | 1000 750 | 1300 900 |
Dimentions | 2200x1440x1950 | 3000x1440x2000 | 3660x1550x2200 | 4230x1675x2200 | 5370x1860x2400 | 6630x1920x2450 |
The single-screw extruder adopts a slotted barrel and a new type of BM screw, which has high screw speed, output and plasticizing capacity.
