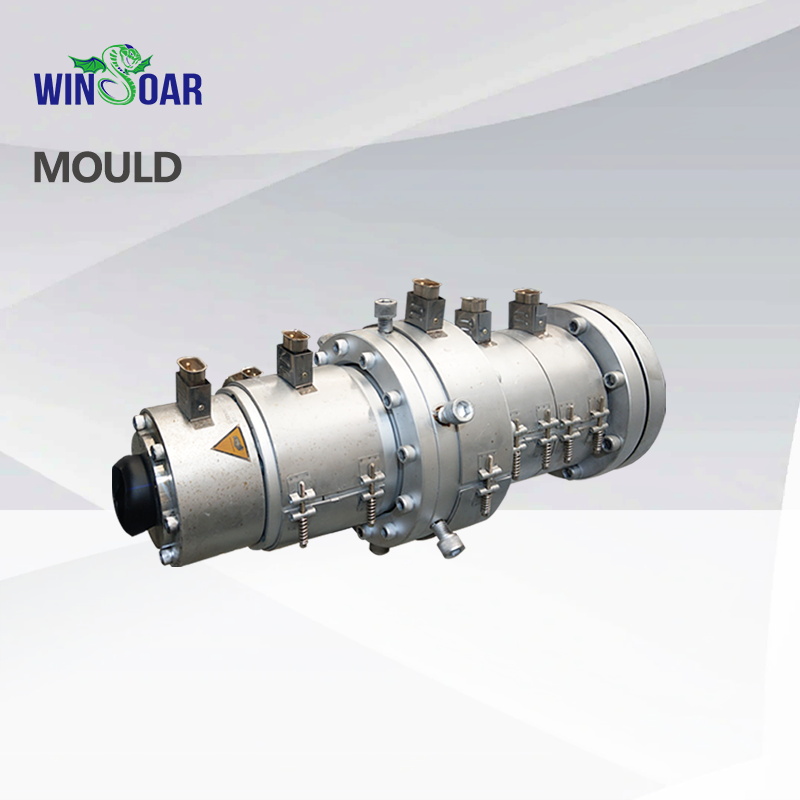

PPR pipe production/extrusion line / PPR pipe making machinery is used to produce PPR pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.
This plastic PPR pipe extrusion machinery adopts high efficiency single screw extruder, equipped with the PLC controlling system. It can ensure the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PP-R, PE-RT, PB pipe.
Features
1. The optimum spiral bush highly improves the output of the pipe extruder
2. Accurate temperature control system ensures material melting performance
3. Unique screw design achieves better plasticizing and high-quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. H sharp frame to decrease vibrating of an extruder
6. Advanced PLC operation system realizes synchronization and high-quality products
7. Adopt automatic water temperature &level control and special independent filters on both vacuum and cooling tanks
Technical Parameter
Classical Seriers:
Production Line | Diameter Range (mm) | Extruder Type | Max. Capacity(kg/h) | Max. Haul Off Speed (m/min) | Extrusion Power(KW) |
WS-63（single） | Ф20-63 | SJ65/33 | 180 | 10 | 55 |
WS-110（single） | Ф20-110 | SJ65/33 | 180 | 10 | 55 |
WS-160（single） | Ф50-160 | SJ75/33 | 300 | 6 | 110 |
WS-250（single） | Ф90-250 | SJ75/33 | 300 | 4 | 110 |
High Speed Seriers:
Production Line | Diameter Range (mm) | Extruder Type | Max. Capacity (kg/h) | Max. Haul Off Speed(m/min) | Extrusion Power (KW) |
WS-63（single） | Ф20-63 | WSD60/38 | 280 | 20 | 90 |
WS-63（dual） | Ф20-63 | WSD60/38 | 360 | 18X2 | 110 |
WS-110（single） | Ф20-110 | WSD60/38 | 280 | 20 | 90 |
WS-110（dual） | Ф20-110 | WSD75/38 | 450 | 18X2 | 160 |
WS-160（single） | Ф40-160 | WSD60/38 | 360 | 12 | 110 |
WS-250（single） | Ф50-250 | WSD75/38 | 450 | 10 | 160 |
Pictures for Reference

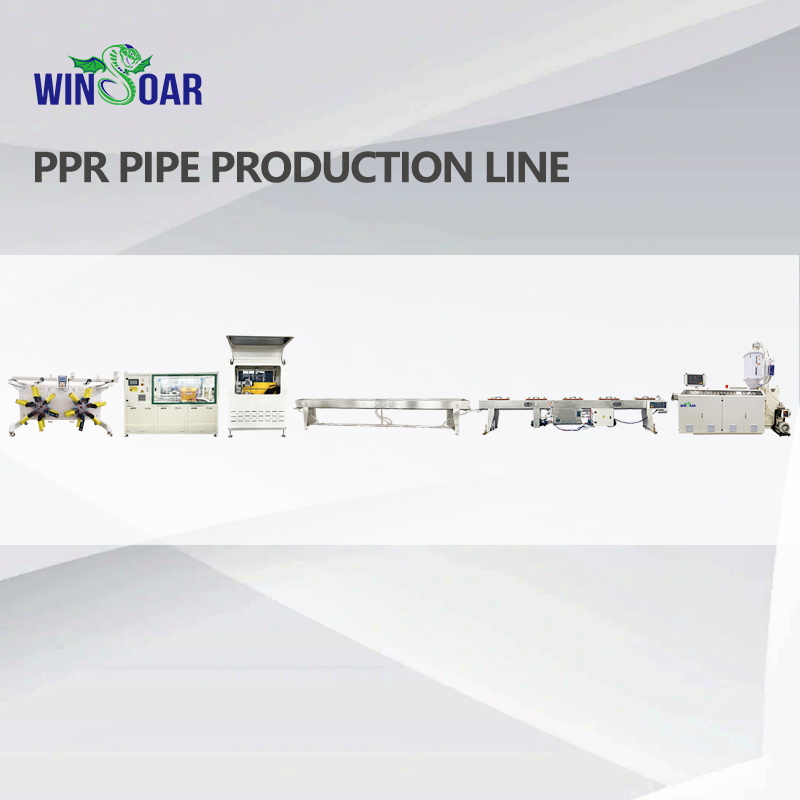

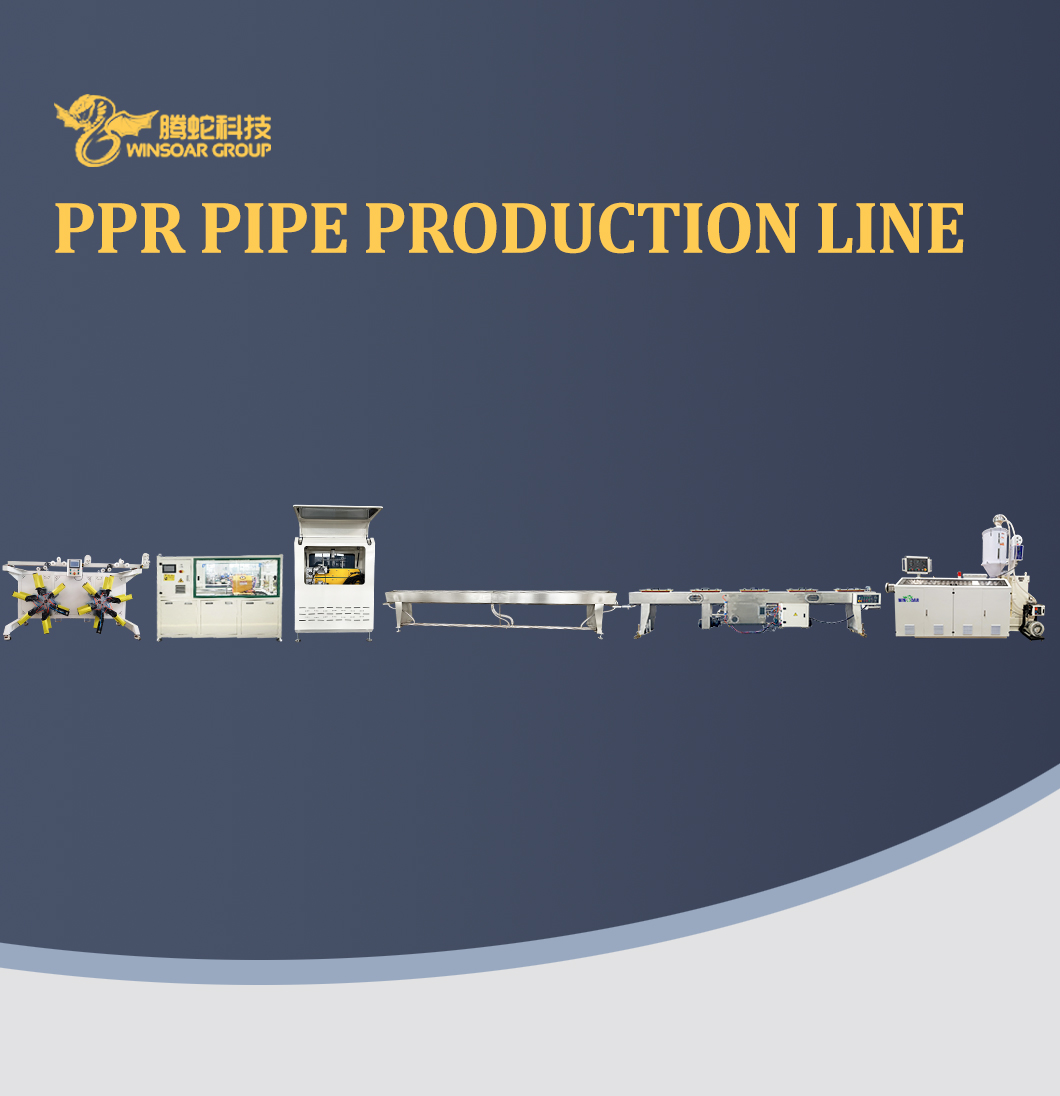

PPR PIPE PRODUCTION LINE
It is mainly used to produce PPR pipes for hot and cold water. It adopts PLC control system and HMI for whole extrusion line.

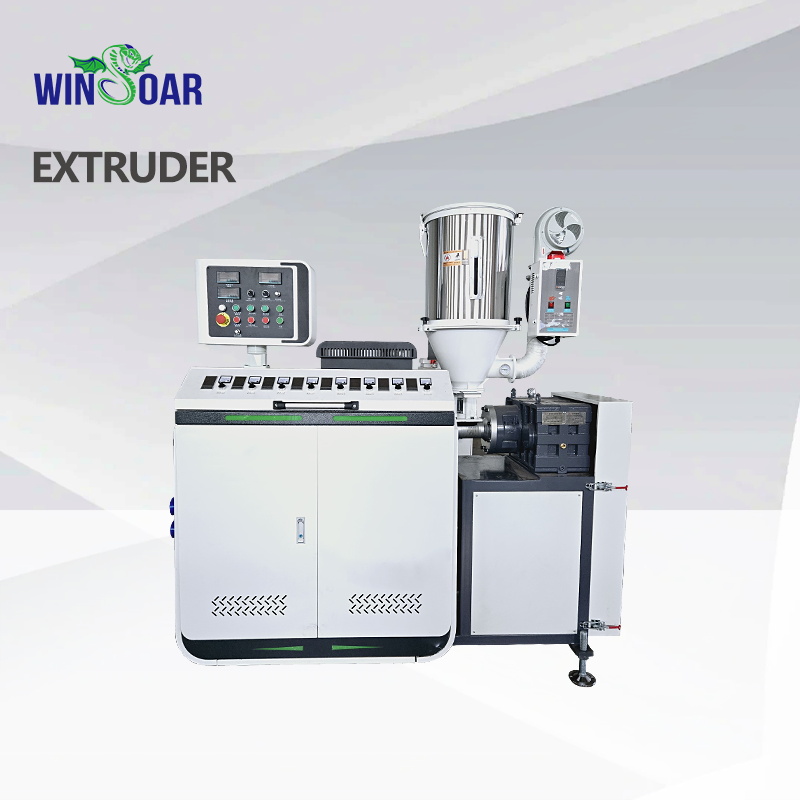

SINGLE SCREW EXTRUDER
The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.

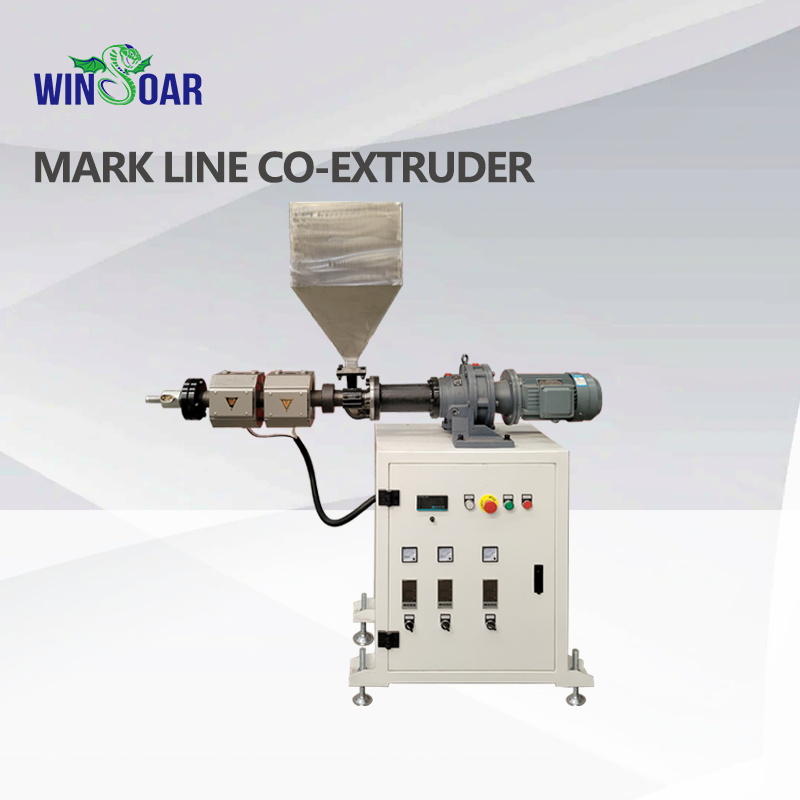

MARK LINE CO-EXTRUDER
The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.

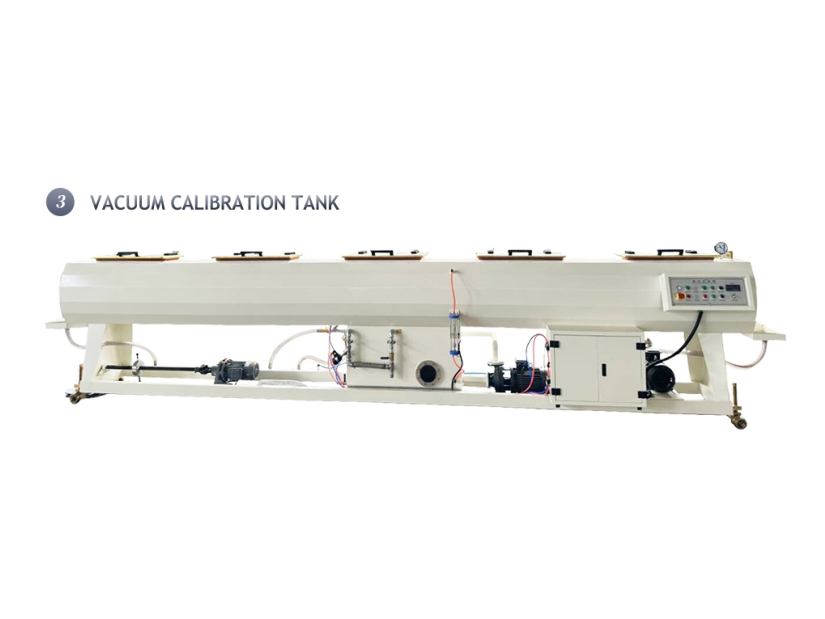

VACUUM CALIBRATION TANK
Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

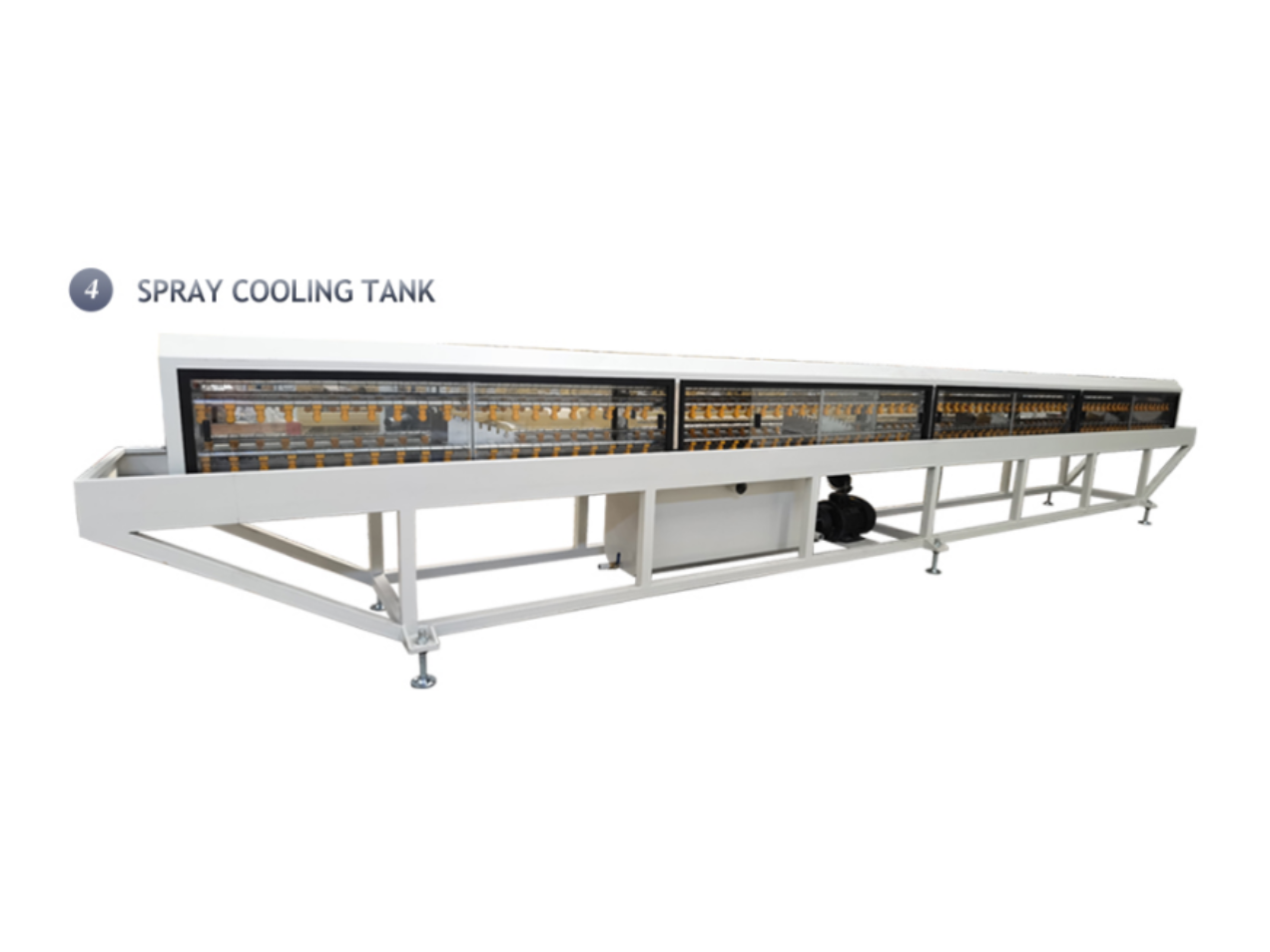

SPRAY COOLING TANK
The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.

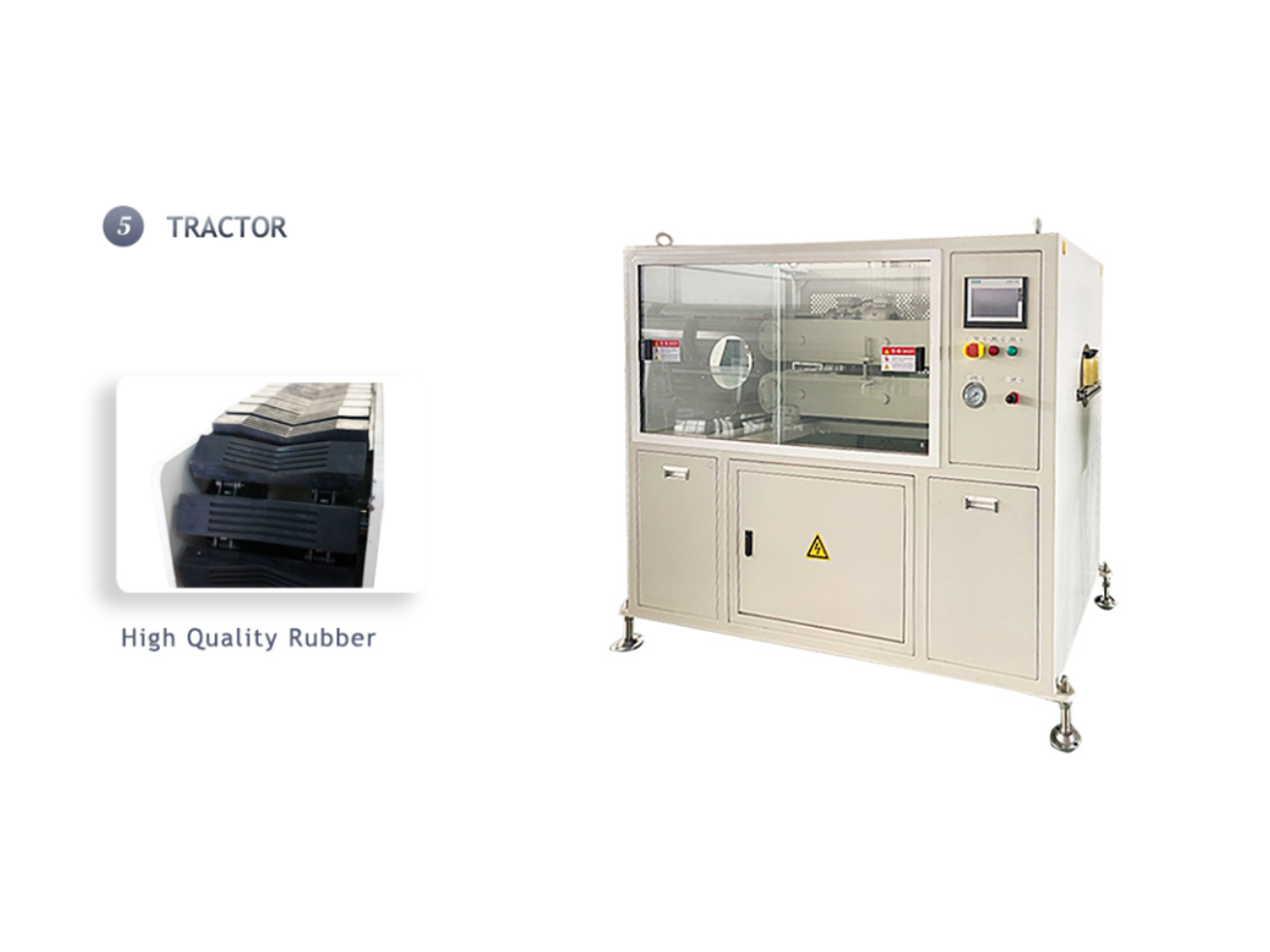

TRACTOR
It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.

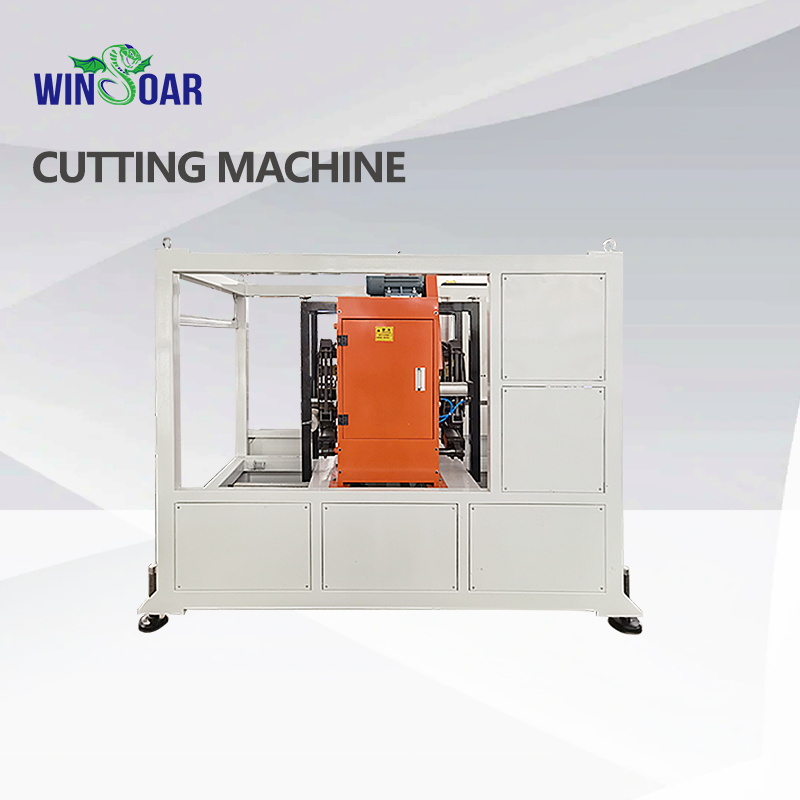

CUTTING MACHINE
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

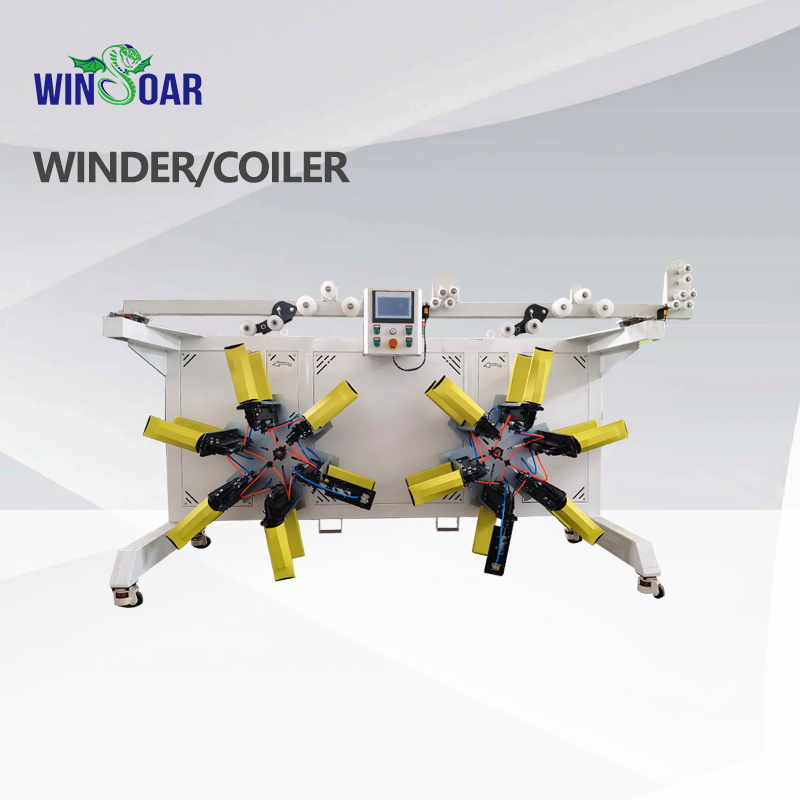

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)
This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging,automatic rewinding, and easy operation.
TURNOVER RACK (OPTIONAL ON REQUEST)
Accept finished products and automatically turn over.
