20-1600mm HDPE/PP Large Diameter Water/Gas/Irrigation Pipe Extrusion Production Line

This Large diameter HDPE/MDPE fuel gas/water supply pipe extrusion line is mainly used for producing large diameter HDPE/MDPE pipe. The pipe has some excellent features such as heating resistant, aging resistant, high mechanical strength, environmental stress cracks resistant, good creep resistant, etc. It is a preferred gas conduit for ductwork systems between city and its suburb, water supply in city.

Application:

Water supplying and transportation pipe

Gas distribution and transportation pipe

PE pipe extrusion line is developed by Winsoar based on European advanced technology and R&D experience of the plastic machinery for many years. Advanced design, reasonable structure, high reliability, high degree automation of the complete line.

Extruder with special barrel feeding structure can largely improve extrusion capacity.

Accurate temperature control, good plasticization, stable operation.

The complete line adopts PLC control system, realizing synchronization and automation.

Human-computer interface is easy to operate, convenient and reliable.

Spiral and lattice basket type die head for choice.

Dust-free knife cutter and saw cutter for choice.

The optimum spiral structure-feeding throat highly improves the output of extruder;

Accurate temperature control system ensures materials melting performance;

Unique screw design achieves better plasticizing and high-quality products;

Precisely designed gearbox with a high torsion guarantees stable running;

"H" shape frame to decrease vibrating of extruder;

Advanced PLC operation system realizes synchronization and automation;

Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks;

Offer stable haul-off unit with 2-12 caterpillars;

Provide saw & chip-free cutting options;

Low energy consumption, excellent performance, and easy maintenance.

33D Series Classical Production Line：

38D Series High Efficient Production Line：

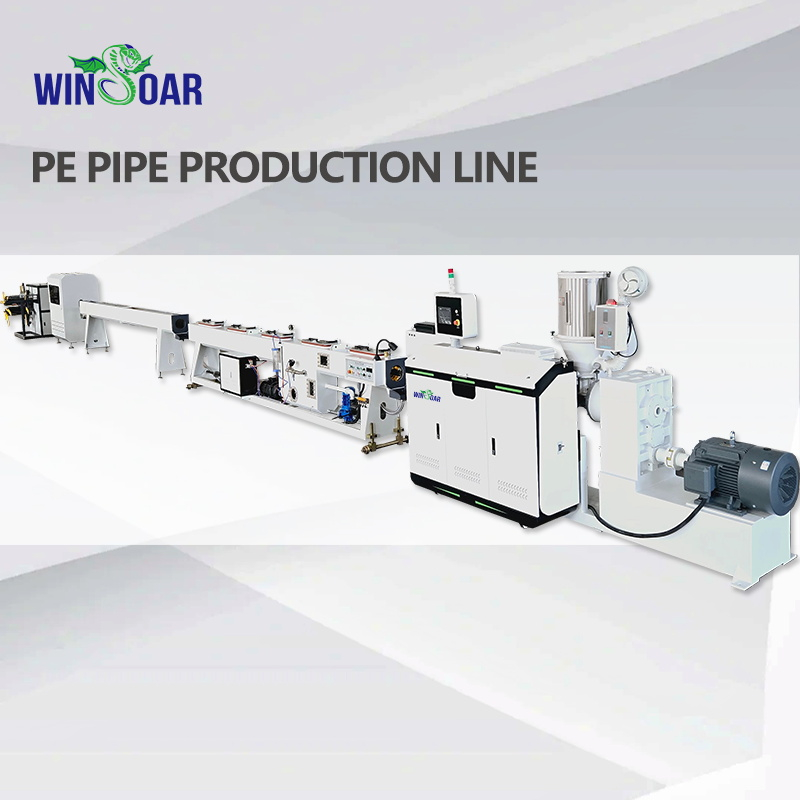

PE PIPE PRODUCTIONLINE

It consists of extruder, mould, vacuum calibration tank, cooling tank, haul-off machine, cutting machine, stacker, etc.

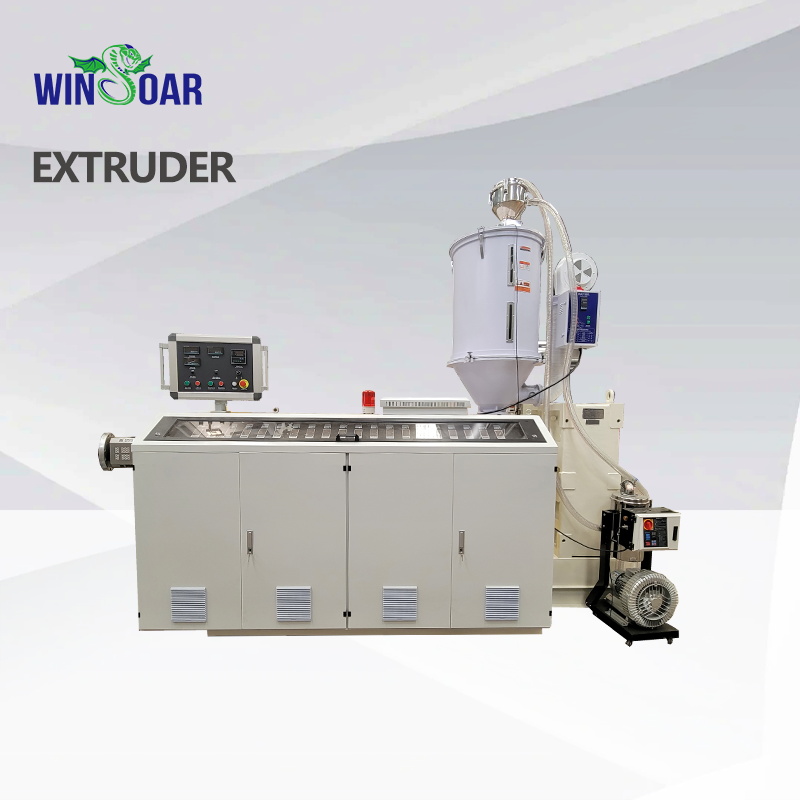

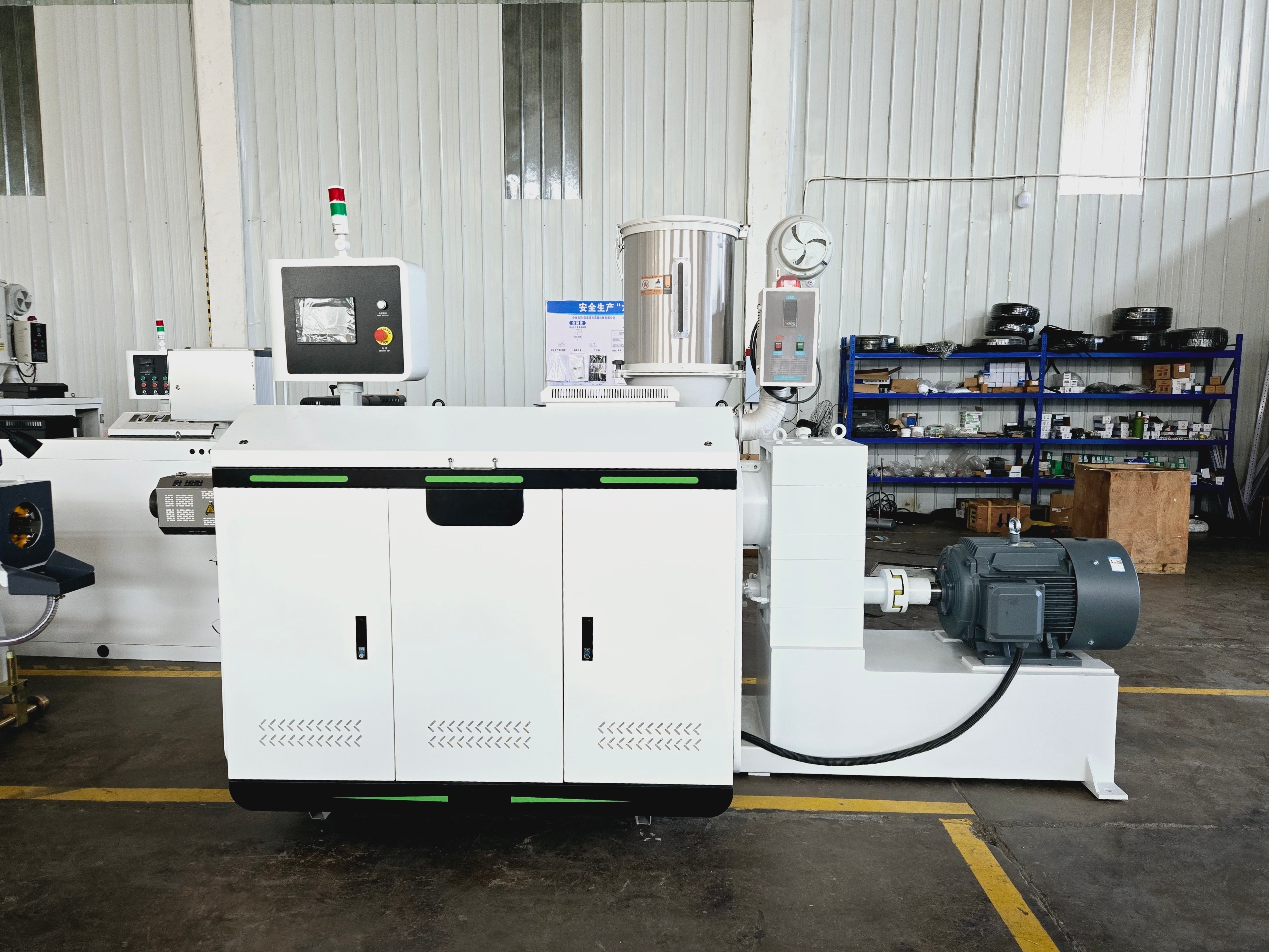

SINGLE SCREW EXTRUDER

The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.

MARK LINE CO-EXTRUDER

The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.

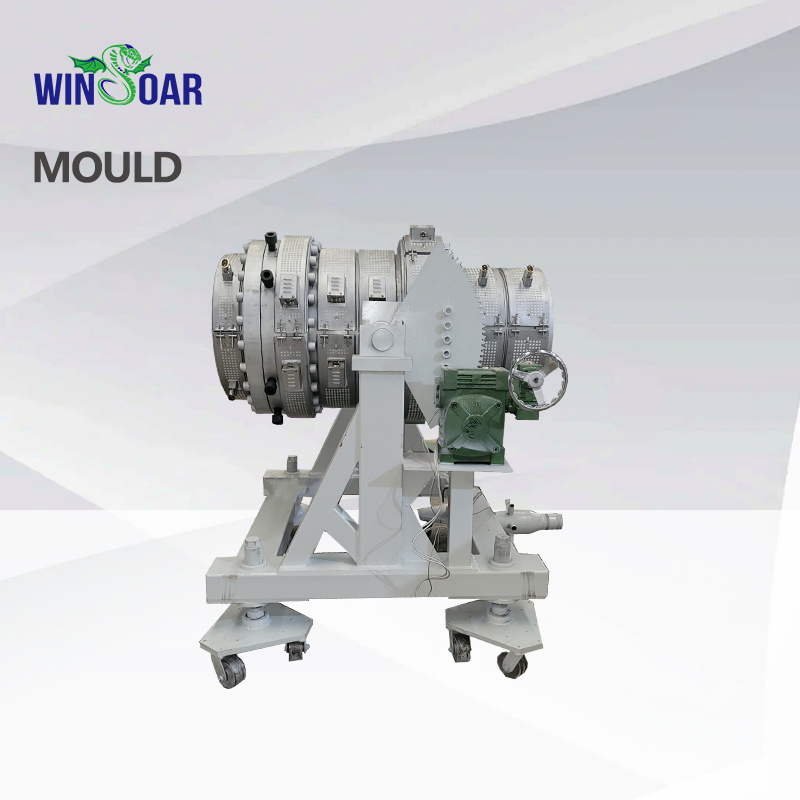

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PP the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of tube forming.

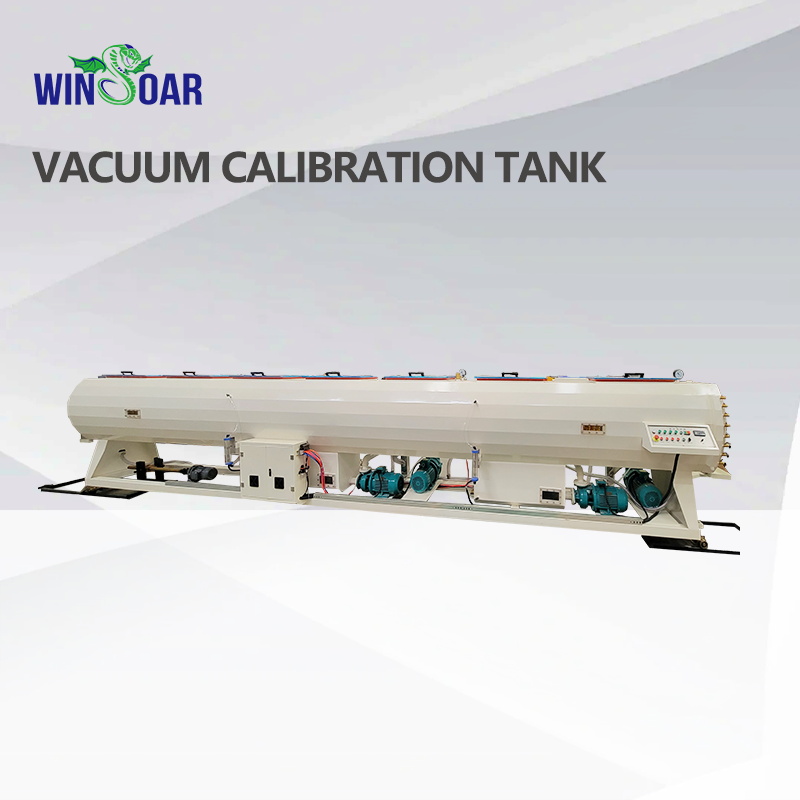

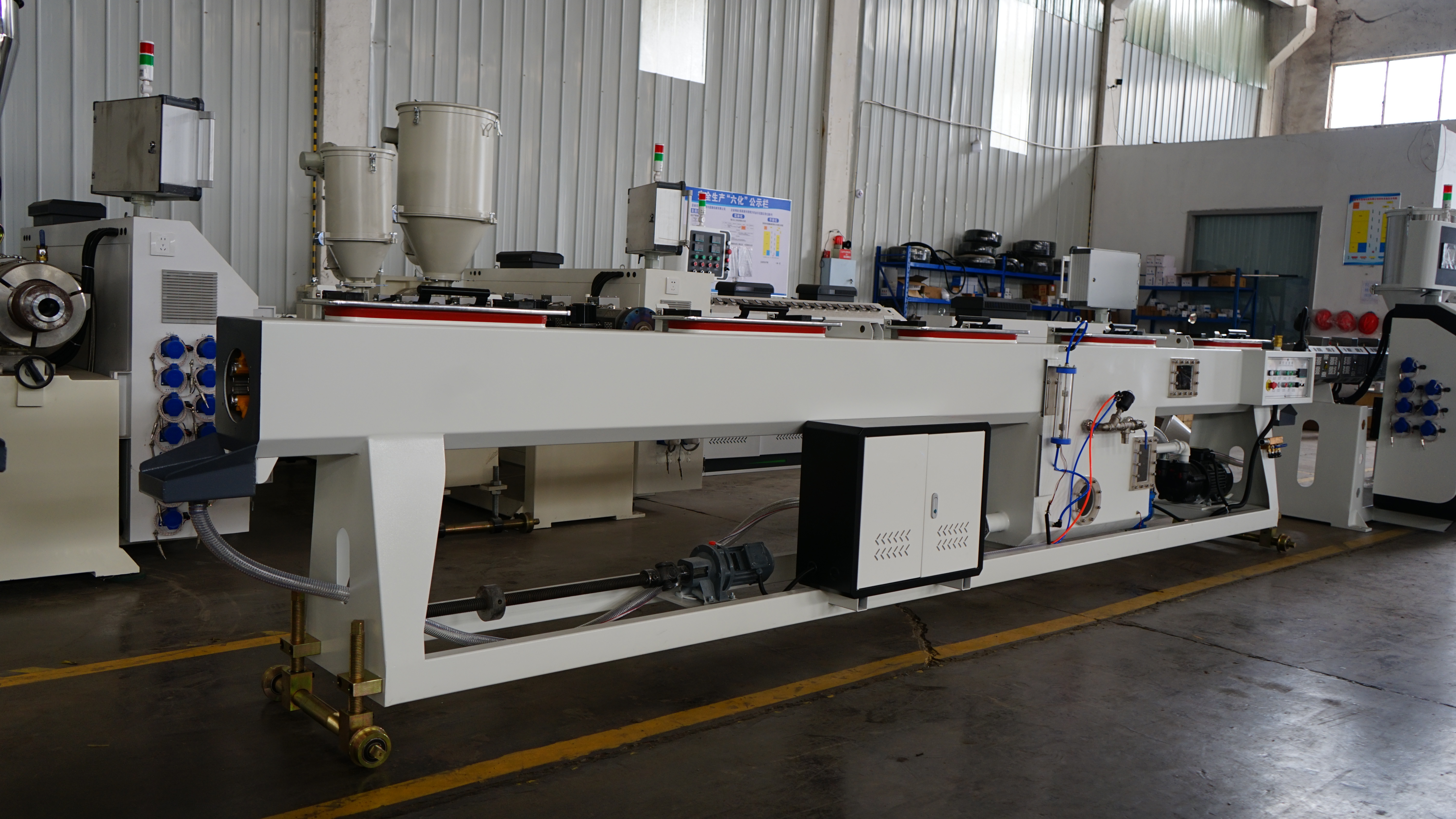

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

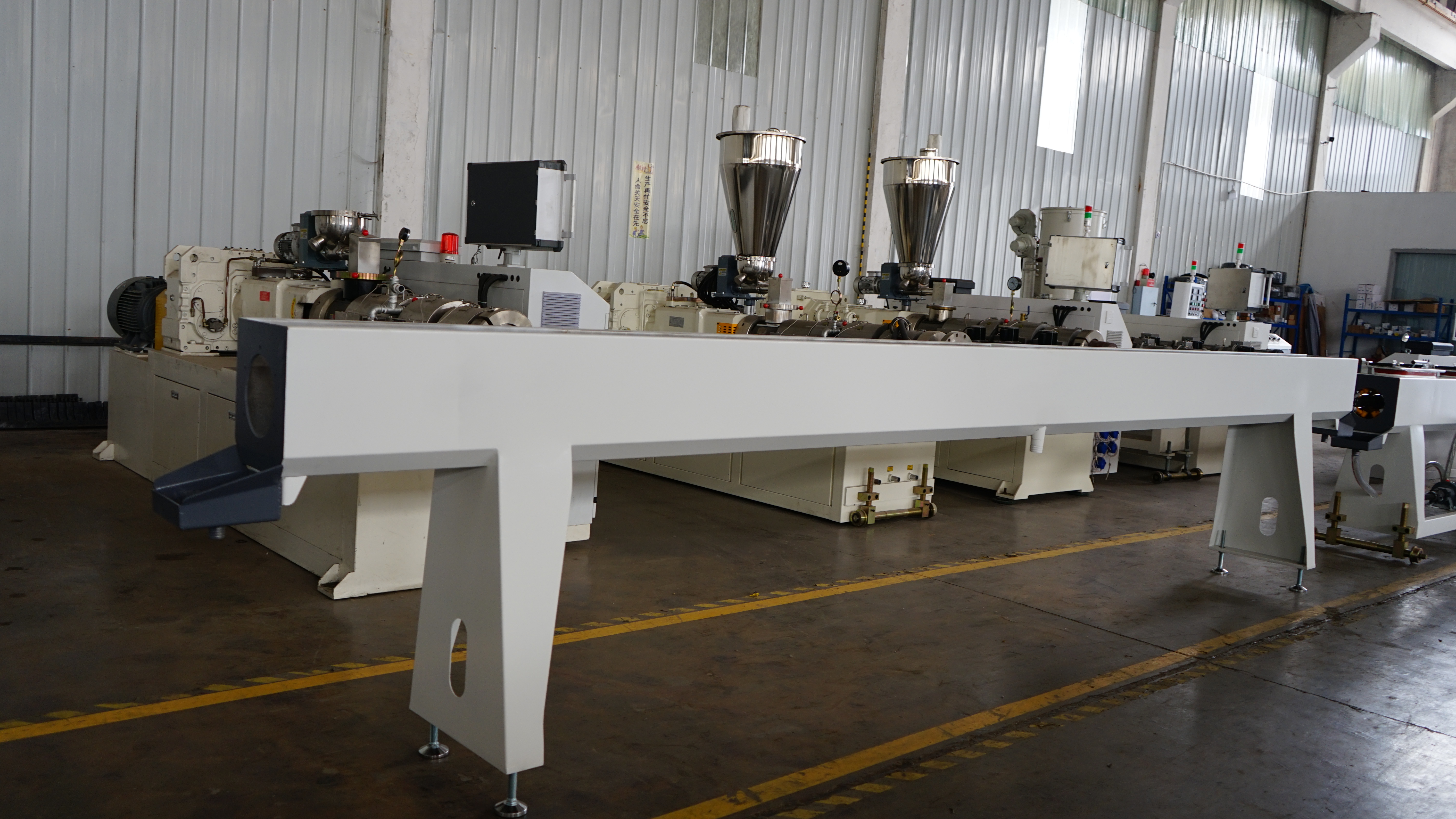

SPRAY COOLING TANK

The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.

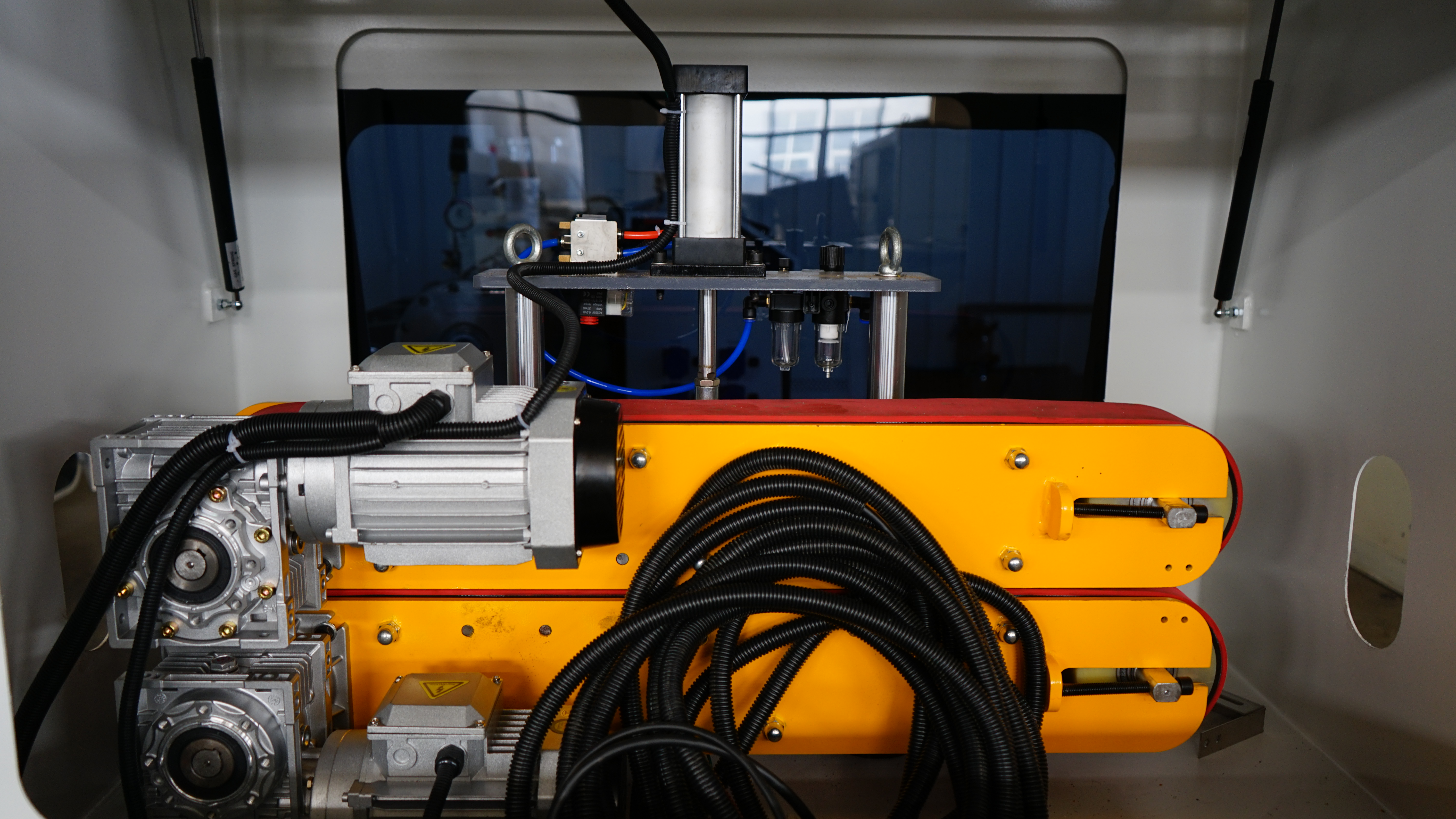

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.

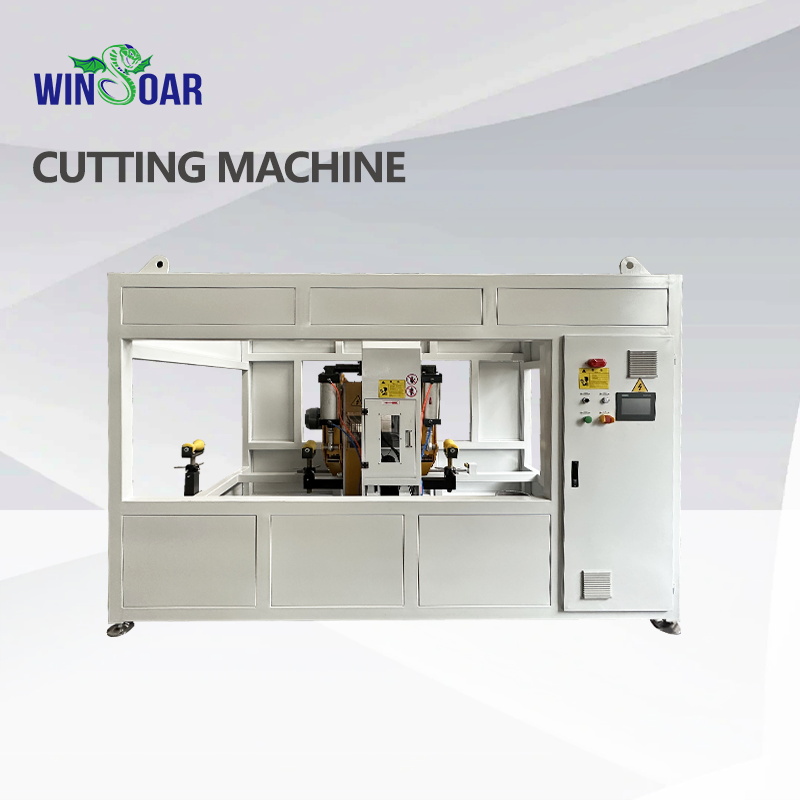

CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

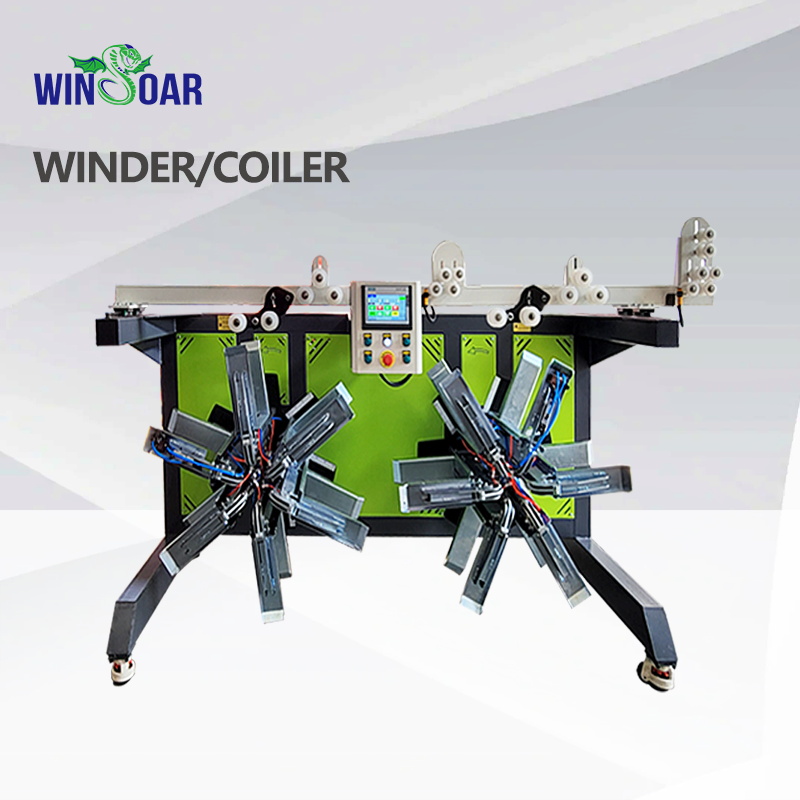

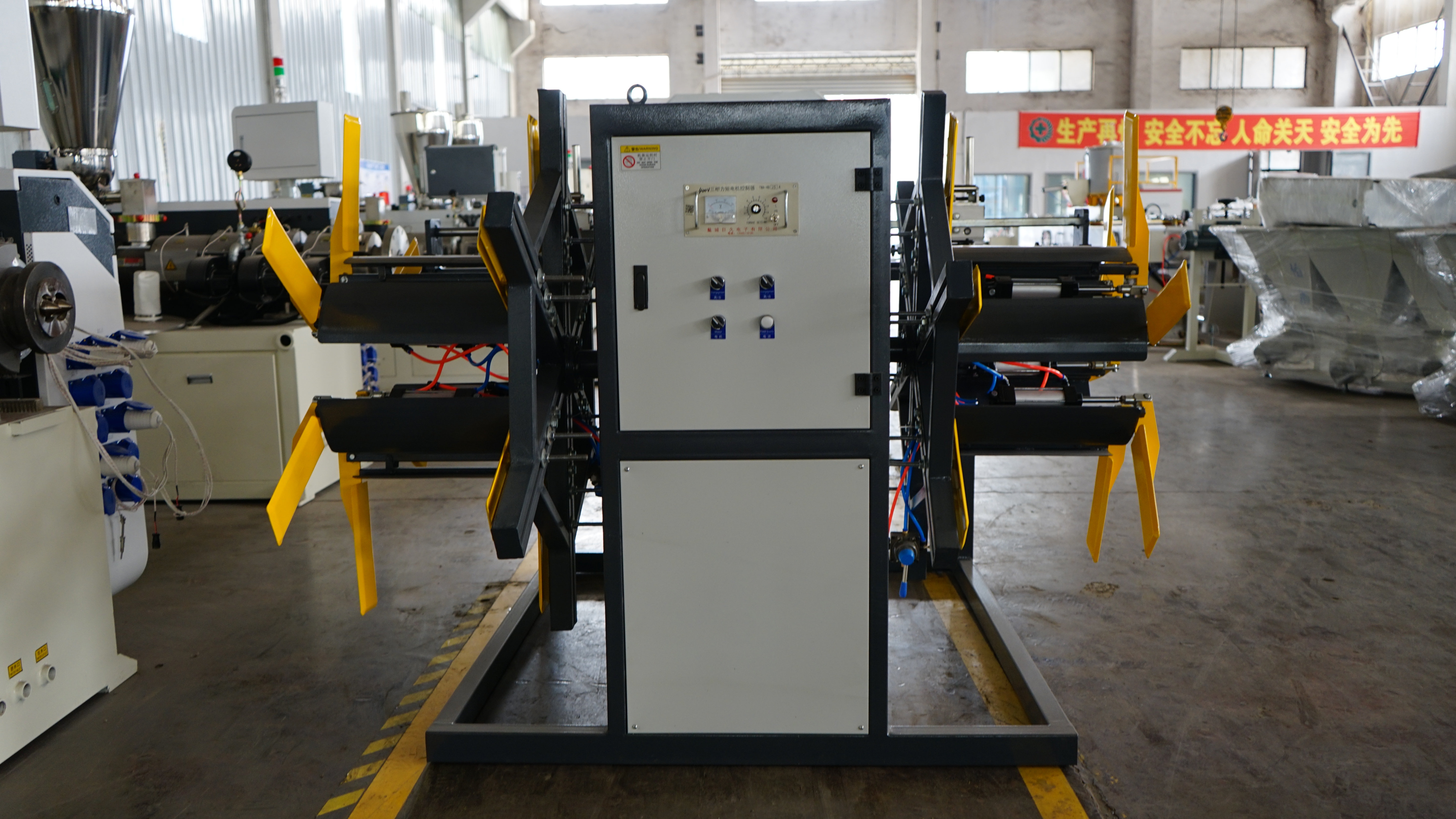

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)

This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging,automatic rewinding, and easy operation.

TURNOVER RACK (OPTIONAL ON REQUEST)

Accept finished products and automatically turn over.
