Adjustable Length Stable Quality Ceiling/Wall Panel Production Line For Home

5 0 Reviews
PVC window profile extrusion line consist of twin screw extruder, vacuum shaping table, drawing machine, plastic cutter and pilling frame, and also coordinated with different profile break-section and mould to produce PVC door and window profiles, foamed special shaped materials, decoration panel material, profile and multi-hole wire plastic products.

Availability:
Quantity:

Product Description

PVC window profile extrusion line consist of twin screw extruder, vacuum shaping table, drawing machine, plastic cutter and pilling frame, and also coordinated with different profile break-section and mould to produce PVC door and window profiles, foamed special shaped materials, decoration panel material, profile and multi-hole wire plastic products.

The door and windows profile is made of PVC powder. It is widely used as window and door profile, as well as decorative material. With modern technology and optimized design, it has the property of high output capacity, long life and plastic evently.

This PVC window profile extrusion line is designed for extrusion of PVC plastic door's and window's profiles and cross-section communication cable pipes, Aluminum-plastic composite profiles, etc. It has stable plastification, high output, low sheering force, long life service and other advantages. PVC profiles can be used in the building industry and home or office.

Features

The specially designed screws ensure a high plastification rate

A special T-type die ensures precise control of the thickness of the plastic sheet/board!

Precise temperature control can precisely control the plastification process and ensure the precise thickness and flatness of the products

The thickness of the sheet is precisely adjusted by adjusting the screws and oil pressure wheels

The calendar can freely rise and fall

The unattached roll temperature control system can precisely control the temperature of the roll

The cutting machine can precisely control the cutting length

The winder can automatically adjust the speed and tension and set the width of needed products freely

The machine equipped with a meter counter can set the length of the product

This production line is suitable for PP, PS, PE, ABS, and other materials.

If exchanging the machine model head, PP, PE, PVC, ABS, PET, PMMA, and PC plate material can also be processed.

If adding a drying device, PET sheet material is also able to be processed.

Main Parameter

Model

Width

Extruder model

Motor power

Output

WS-600

400-600mm

65/132

37kw

220kg/h

WS-1200

600-1200mm

80/156

55kw

400kg/h


Pictures for Reference

PVC-board_01

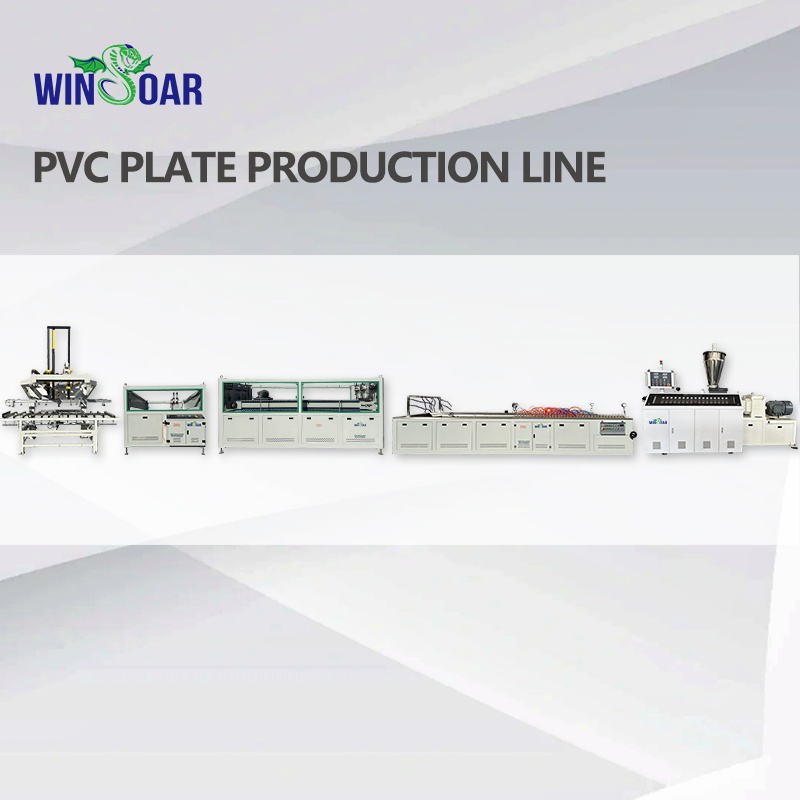

PVC PIATE PRODUCTION LINE

The production line adopts automatic control,with high degree of automation, stable equipment easy operation and high production efficiency.


p2PVC-board_04

PVC-board_05

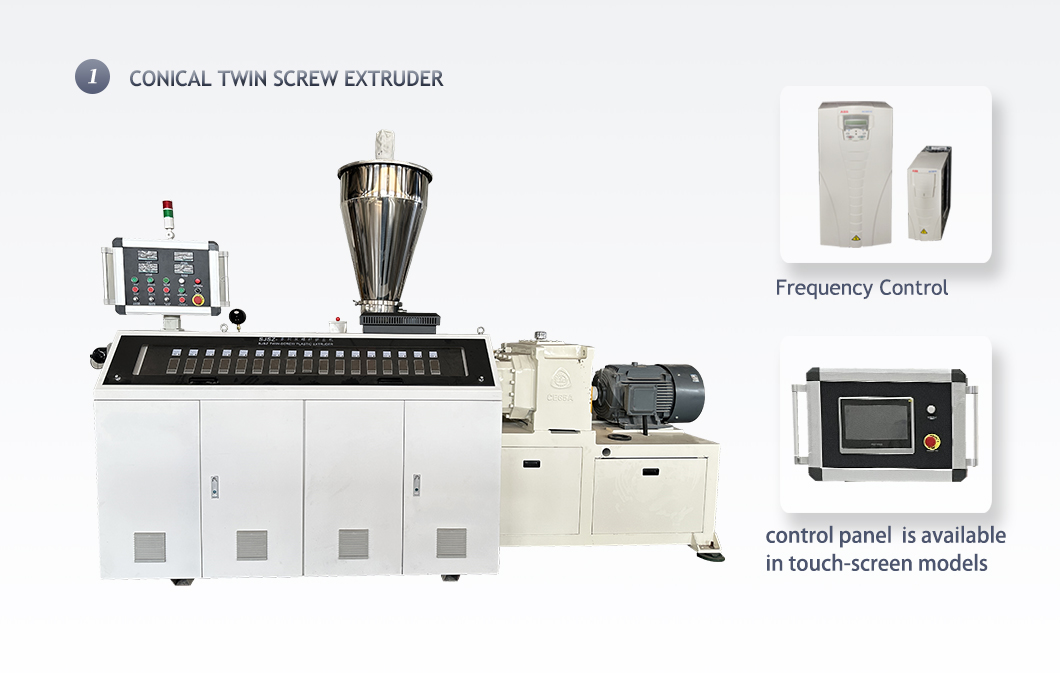

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-board_06

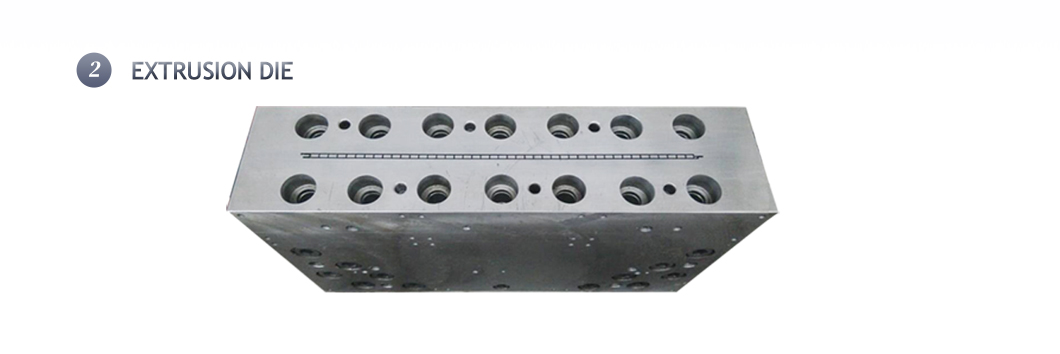

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.


PVC-board_07

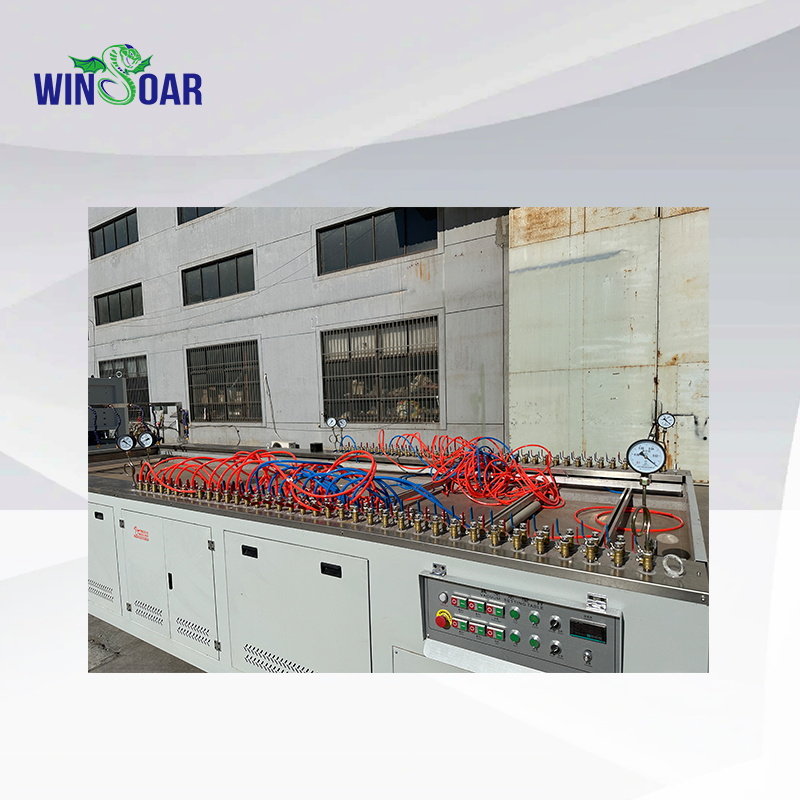

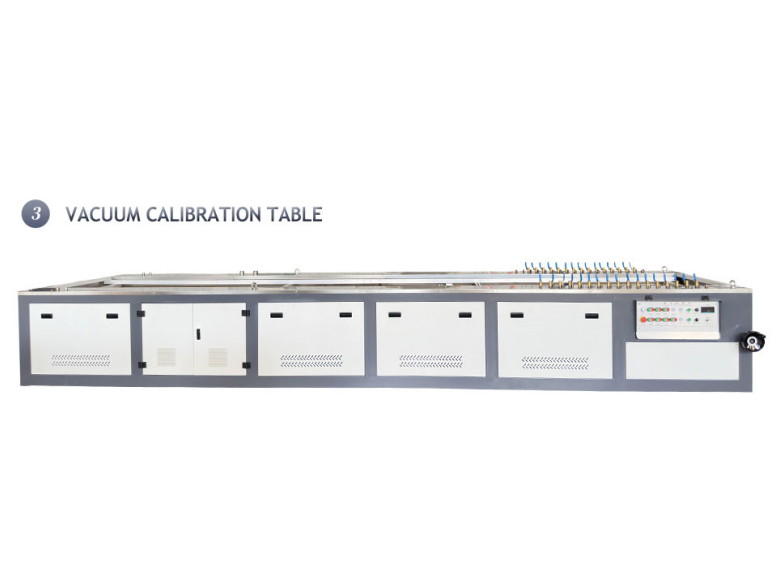

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.


PVC-board_08

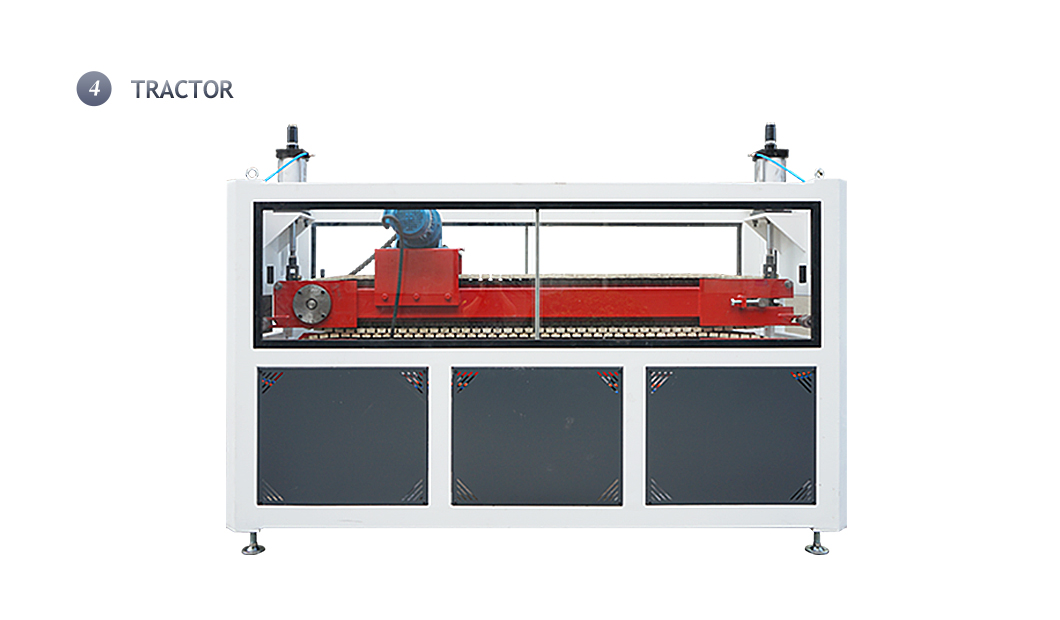

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.


PVC-board_09

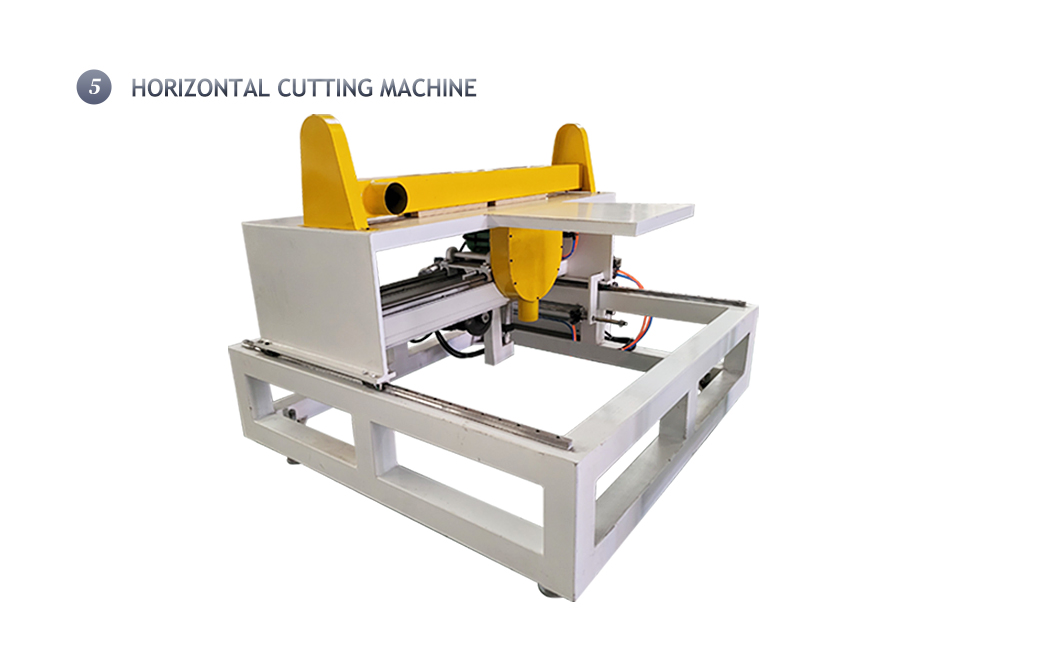

HORIZONTAL CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Automatic pressing, sawing, hidden saw blade, low noise and high safety.


PVC-board_10

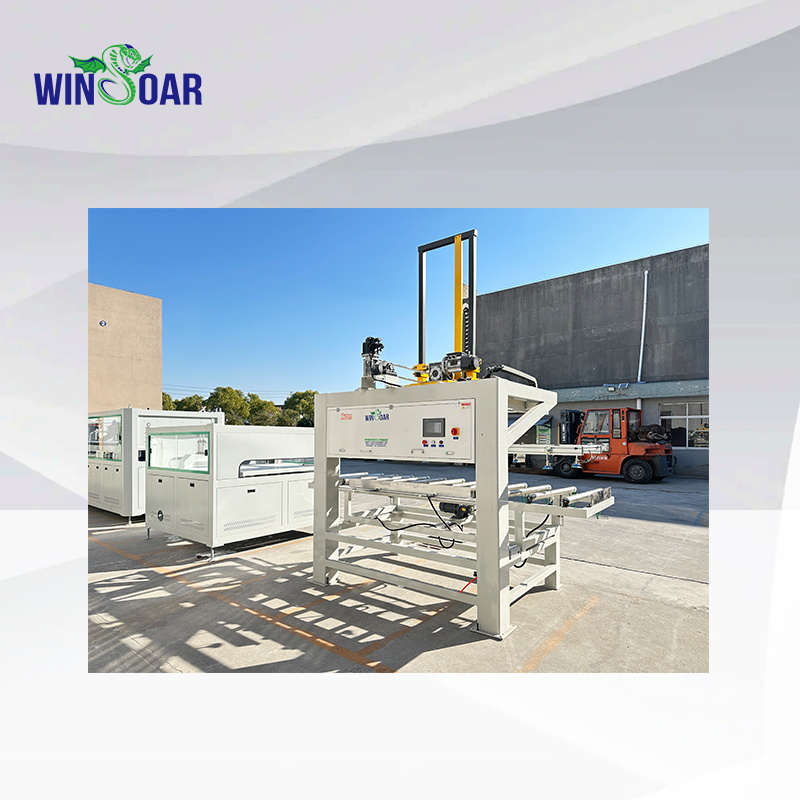

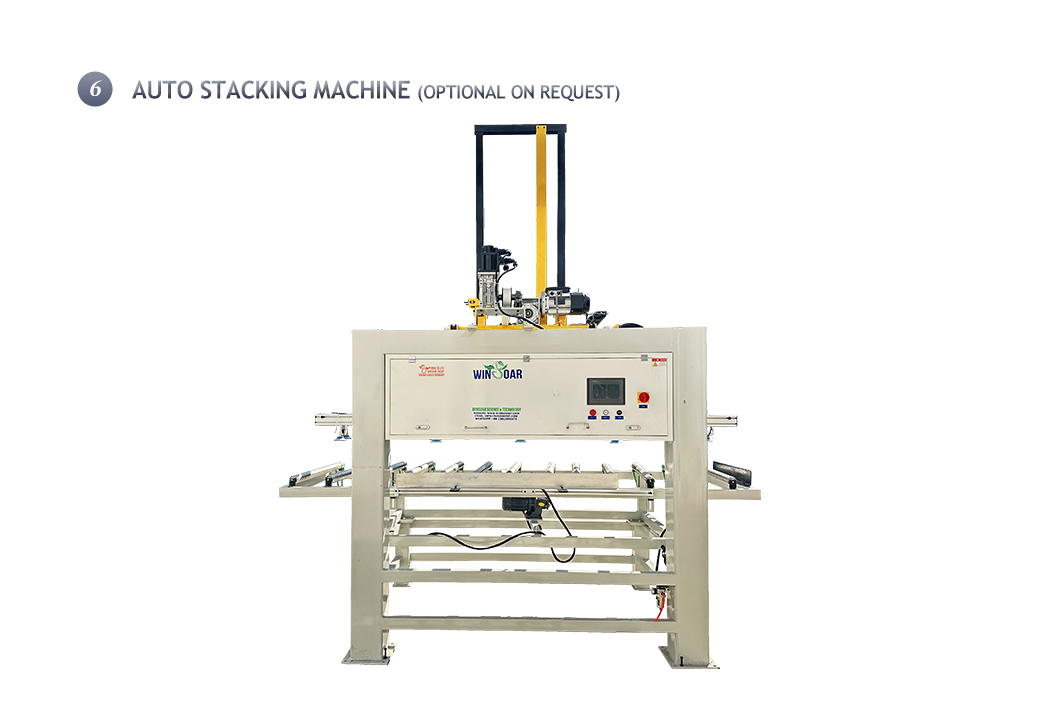

AUTO STACKING MACHINE (OPTIONAL ON REQUEST)

It can automatically receive and stack plates, saving personnel time for plate placement.


PVC-board_11


PLATE STACKER (OPTIONAL ON REQUEST)

Receive finished product and unload.


p12p13p14
