This PVC/WPC profile plastic making machine adopts conical twin screw especially used for the extruder,matching with different standard of profile die and auxiliary device, it is used to extrude PVC ceiling panel , PVC wall panel, PVC trunking profile and other PVC profile. It adopts vacuum calibrating, online film transferring machine, auto haul-off and cutting device,and material discharge. Features of the production line, automatic temperature controlling, stable performance,and easy operation.
This production line is suitable to produce the PP, PE, PVC + wood composite products, the WPC products are strong and durable, both have the advantages of plastic and wood products, at the same time, they overcomes the shortages of plastic products that is easily got deformed, and the wood products can easily get corrosion, damaged by worms, short service life, etc. They are popularly used as packing case and wood-polymer tray; flooring panel, indoor and outdoor decoration, plank flooring, pavilion and chair in park, etc. The amount of wood power or fibers can reach to 50-70%.
Features
1. Capacity of main frame can be optionally chosen from 60-700 kg/hour.
2. With different molds, it can products different kinds of profiles.
3. The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large.
4. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.
5. Movement speed and drawing speed of cutting machine keep synchronous.

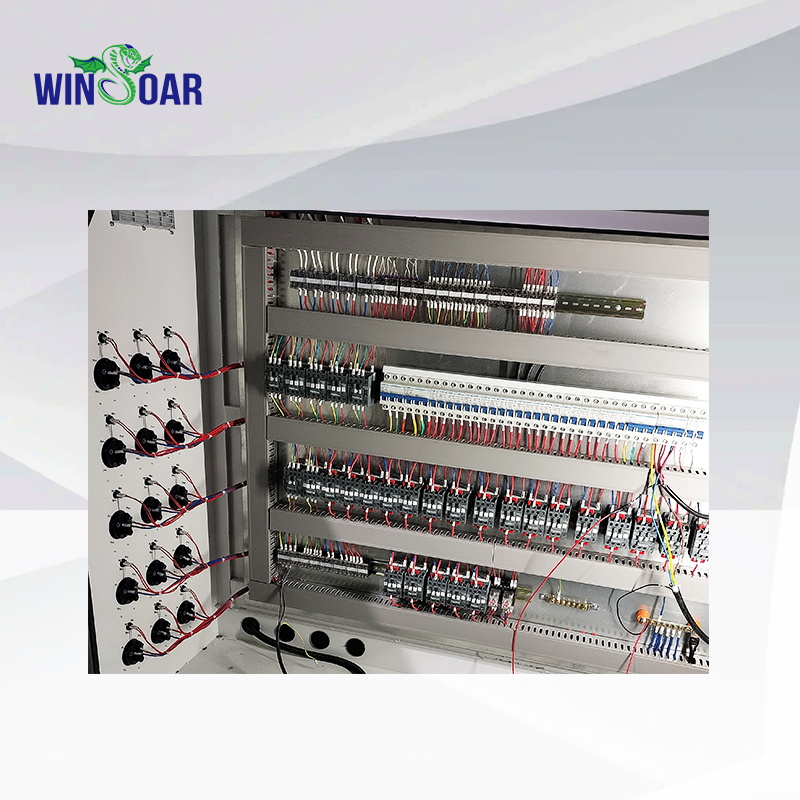

6. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.
7. Powder & dust suction device can be provided.
8. The stacker platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc.
9. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.
Main Parameter:
Model | Profile Width | Extruder model | Motor power | Max.extrusion capacity | Calibrating platform length |
WS-200 | 200mm | 51/105 | 22kw | 100-120kg/h | 4000mm |
WS-300 | 300mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
WS-400 | 400mm | 65/132 | 37kw | 150-180kg/h | 6000mm |
WS-300 | 600mm | 65/132 | 37kw | 150-180kg/h | 8000mm |
WS-600 | 600mm | 65/13 or 80/156 | 37 or 75kw | 150-350kg/h | 6000mm |
Pictures for reference:

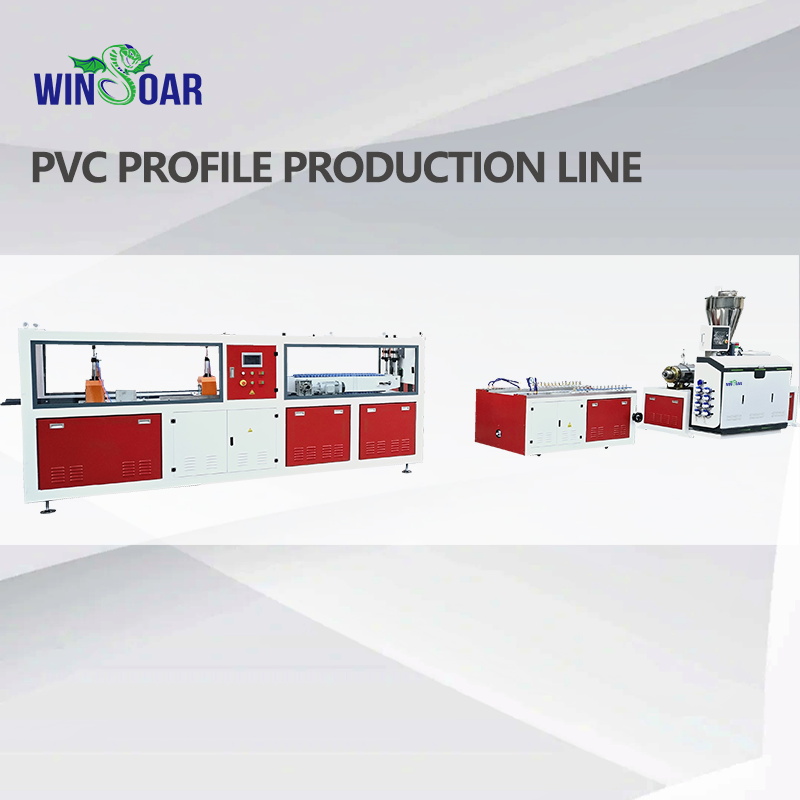

PVC PROFILE PRODUCTION LINE
PVC profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different mould, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on.

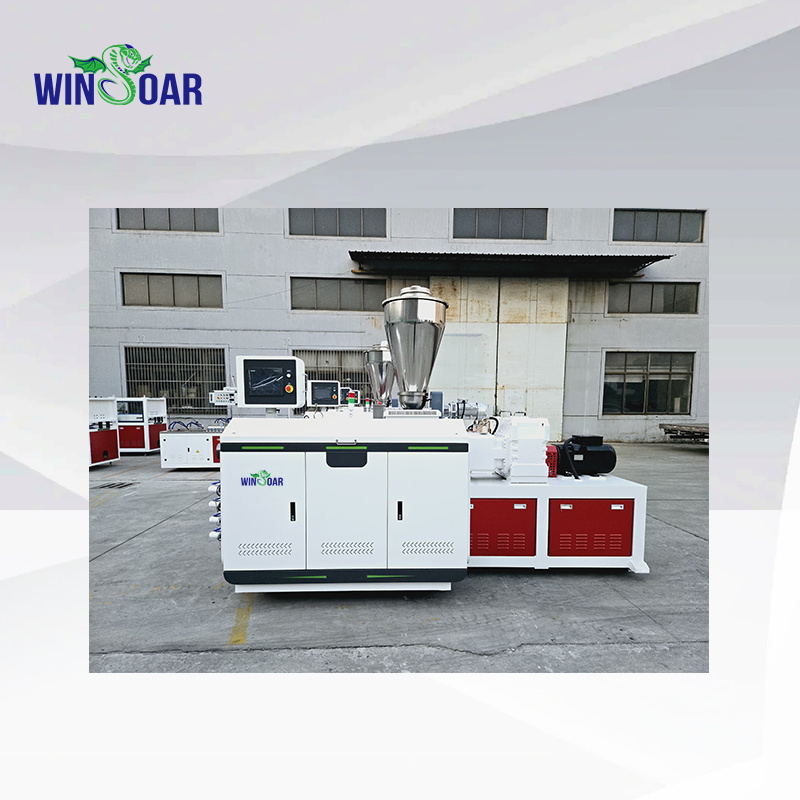

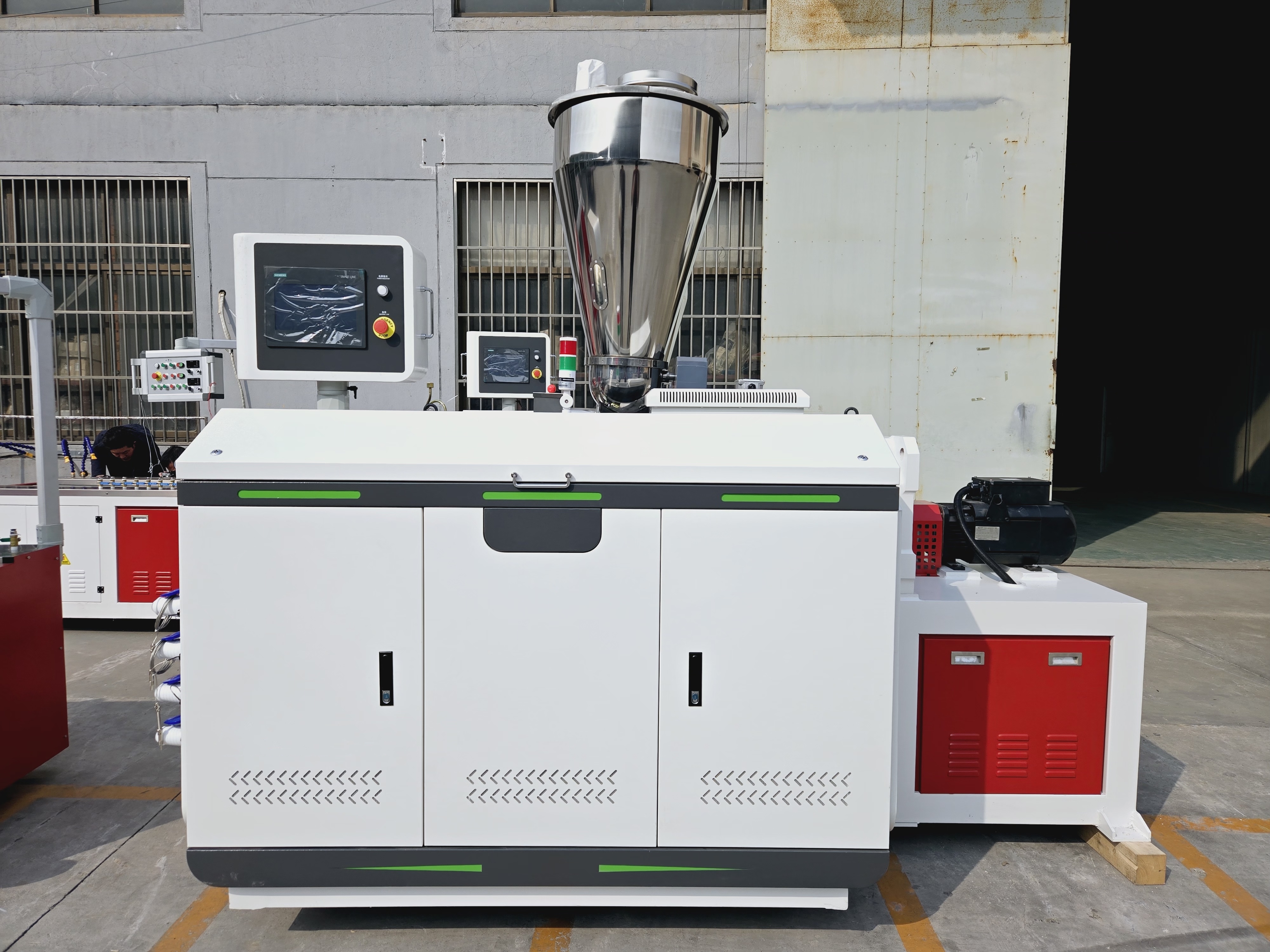

CONICAL TWIN SCREW EXTRUDER
This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

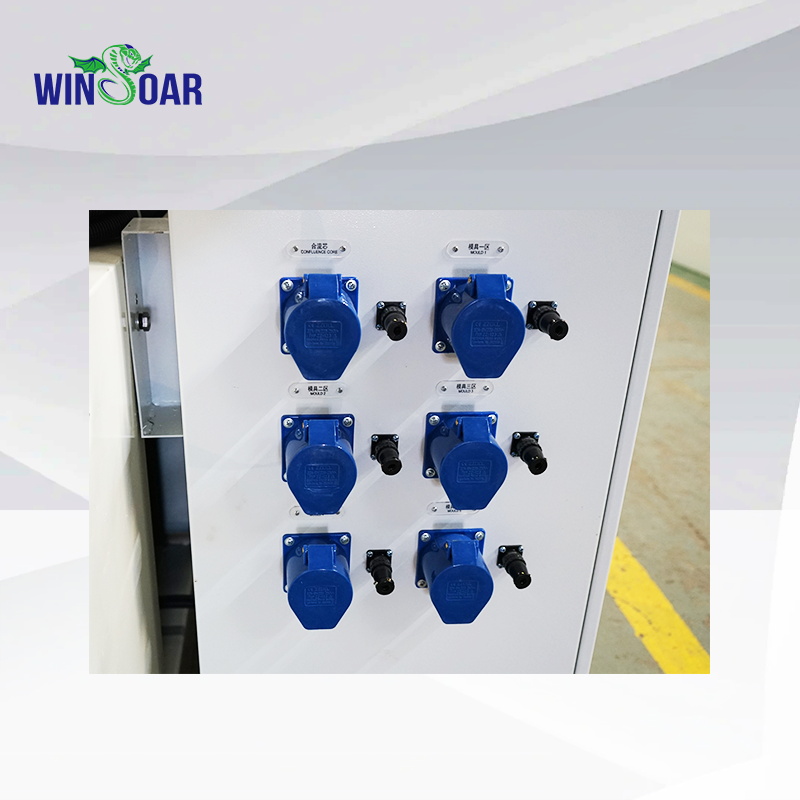

EXTRUSION DIE
After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.

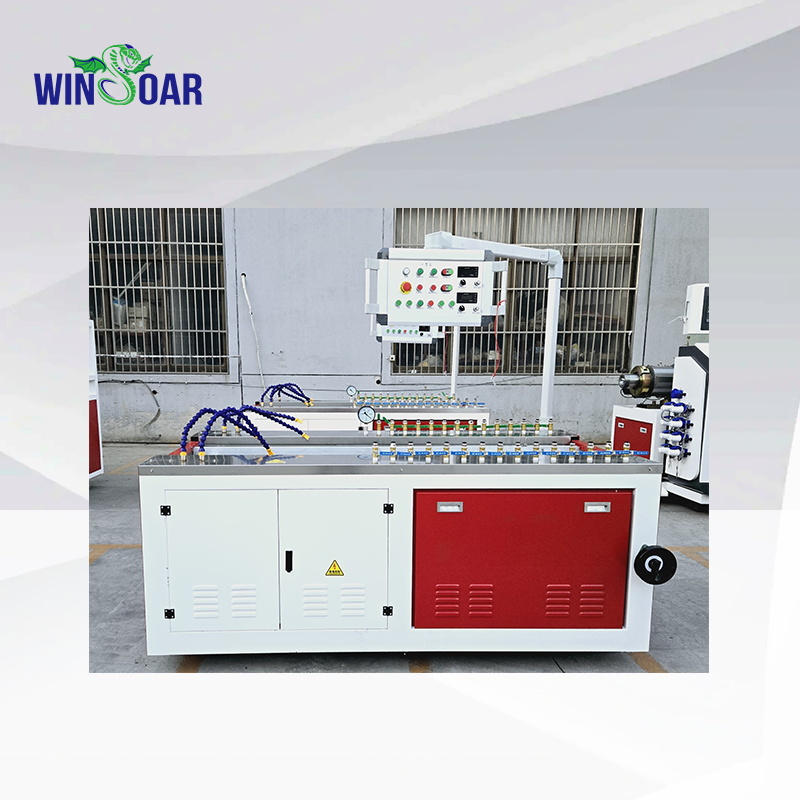

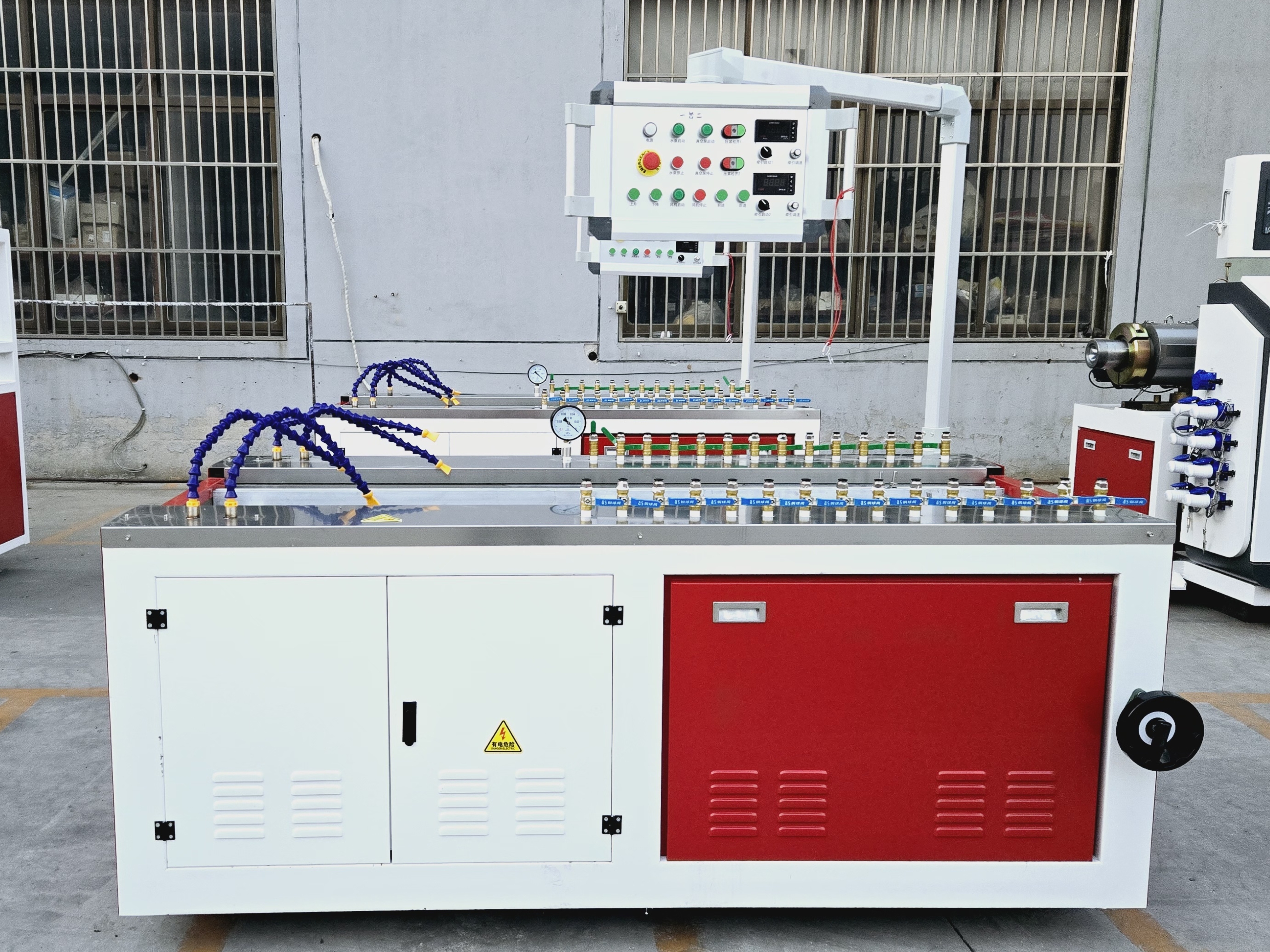

VACUUM CALIBRATION TABLE
Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.

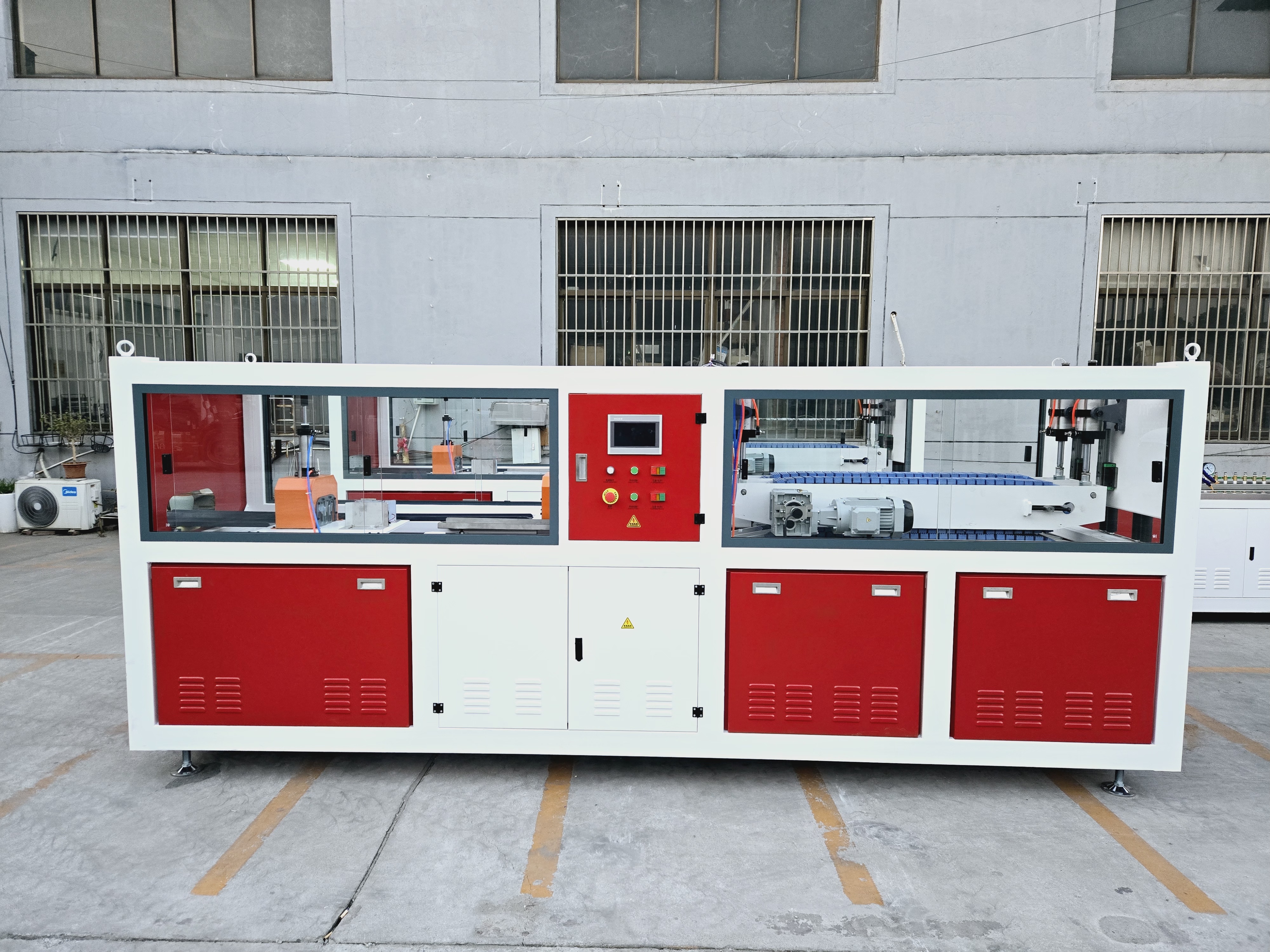

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.
CUTTING MACHINE
After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.
Accept finished products and automatically turn over.
