Low Consumption Hard PVC Pipe Production Line For Drainage

This machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PVC pipe making machine adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production. Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.

Our PVC pipe production line adopts advanced technology from Australia and Taiwan. We can customize various PVC pipe production lines according to the pipe standards of various countries in the world. Our pipe diameter range is: 12mm-1200mm, from large water supply pipes to small cables We can customize the tube. Our PVC pipe production lines are spread all over the world and have a large customer base. We will provide all customers with on-site installation, commissioning, training, etc.

1. The extruder combination of spiral feeding barrel and separate screw design, it guarantees a high plasticizing rate and excellent melt uniformity. We use water-cooled air conditioner, it ensure electric components work in constant temperature and humidity, which makes them more stable and get longer life time

2. This pipe production line is composed by Twin screw extruder, Died head, Vacuum calibration tank ,Cooling tank, Haul-off machine ,Cutter and stacker.

3. The whole production line is controlled by Siemens PLC control system, which can observe the status of all equipment on the display or control the equipment separately

4. Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;

5. Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;

6. U type, R type and Air blow type socket can be provided according to applications;

7. Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.

PVC PIPE PRODUCTION LINE

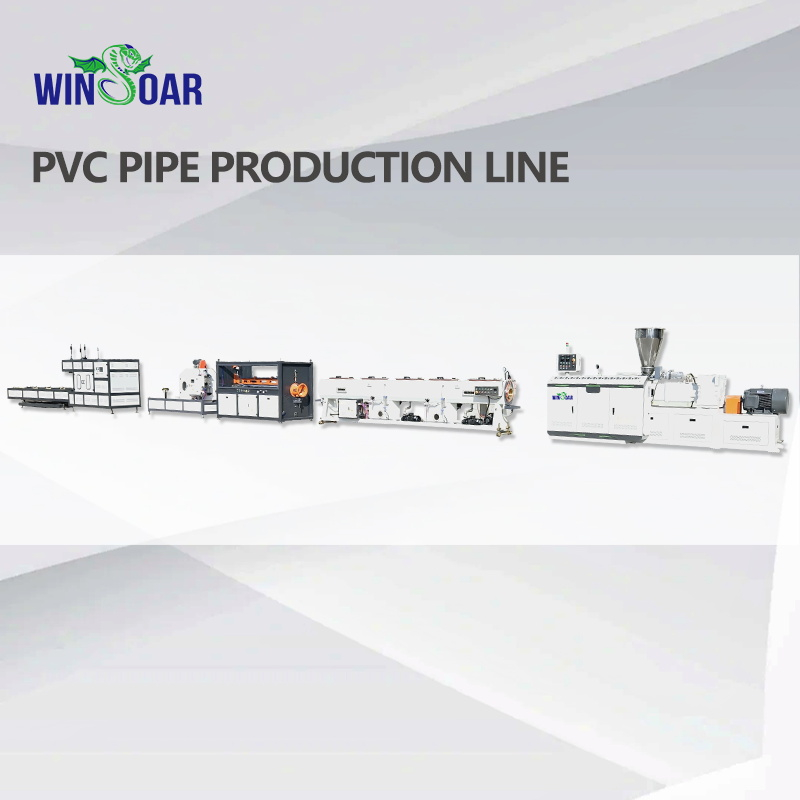

It consists of vacuum calibration tank, tractor, cutting machine,belling machine, etc. The equipment has a high degree of automation and is easy to operate.

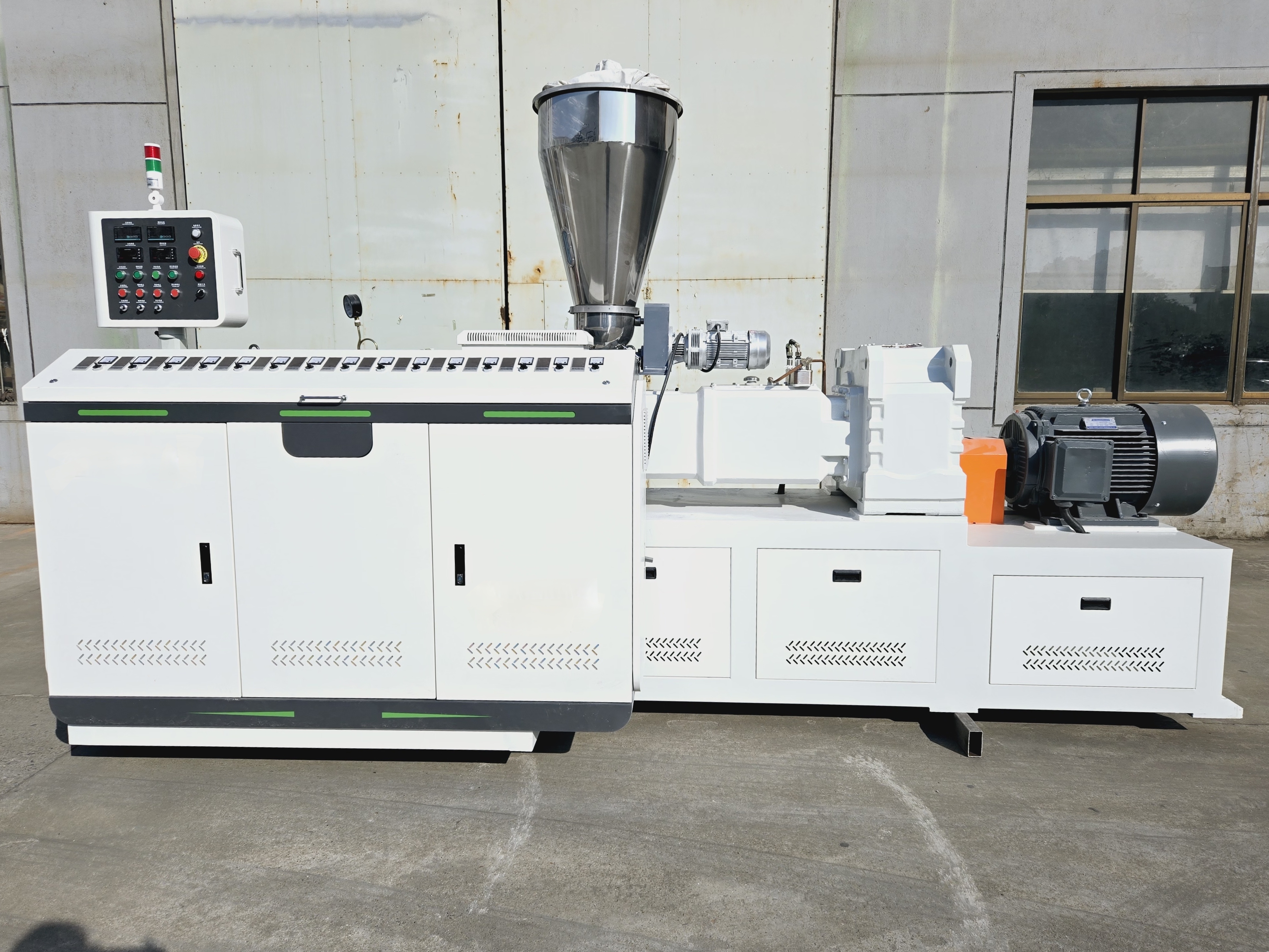

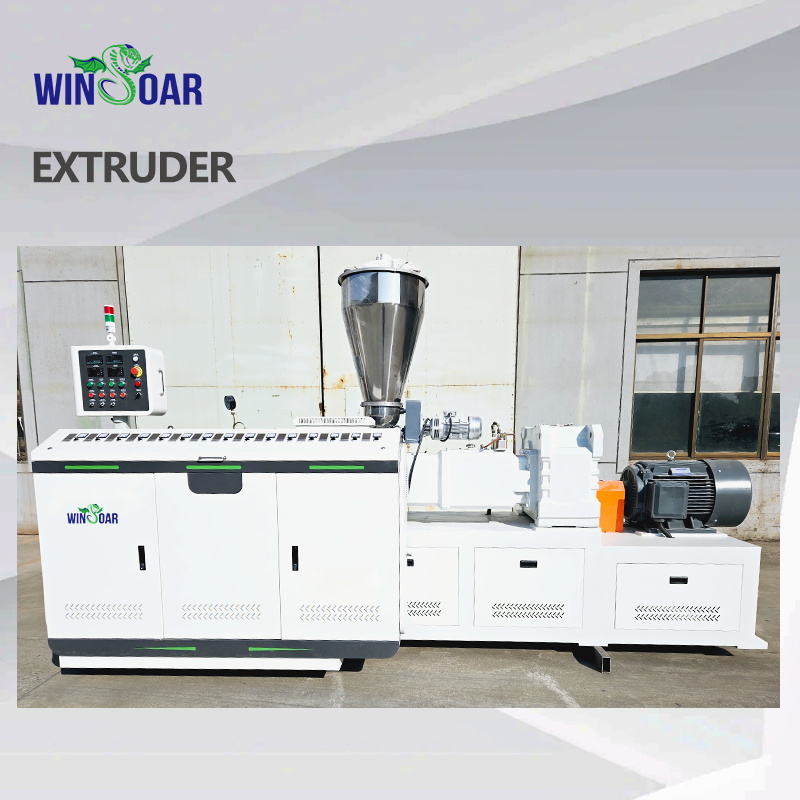

CONICAL TWIN SCREW EXTRUDER

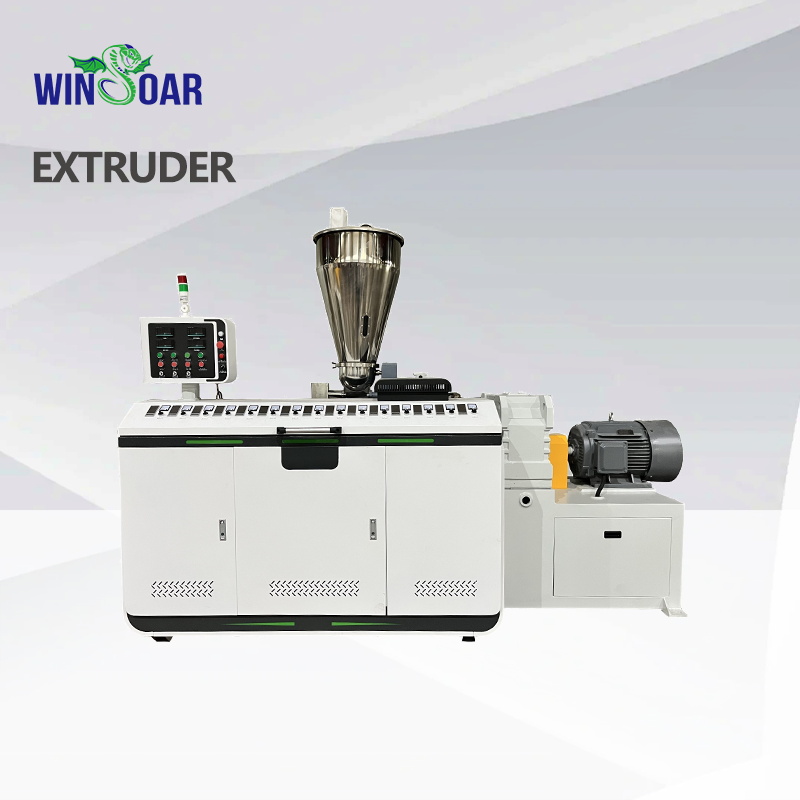

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

EXTRUSION DIE

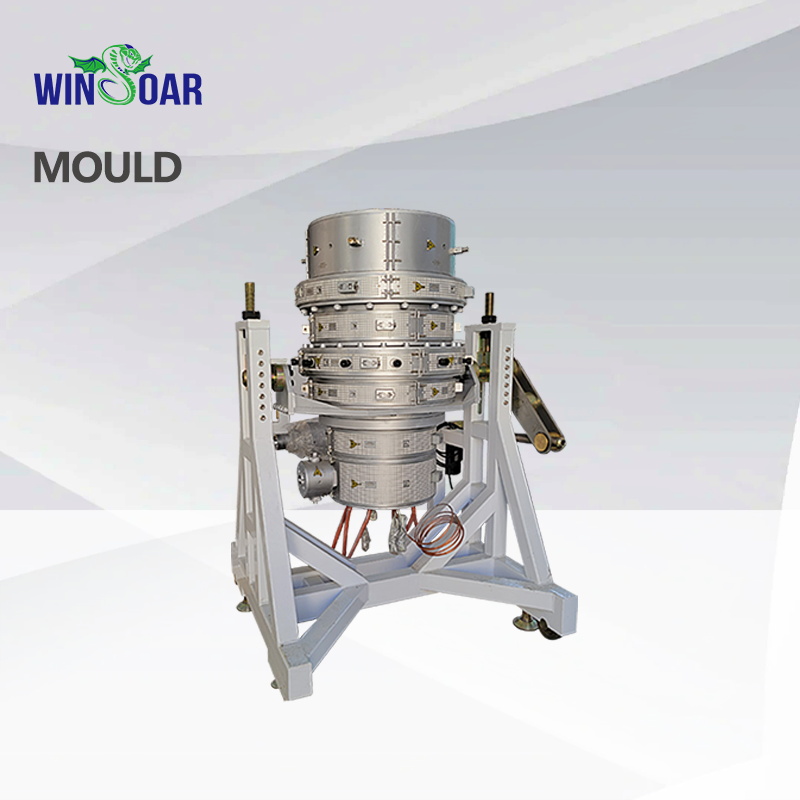

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.

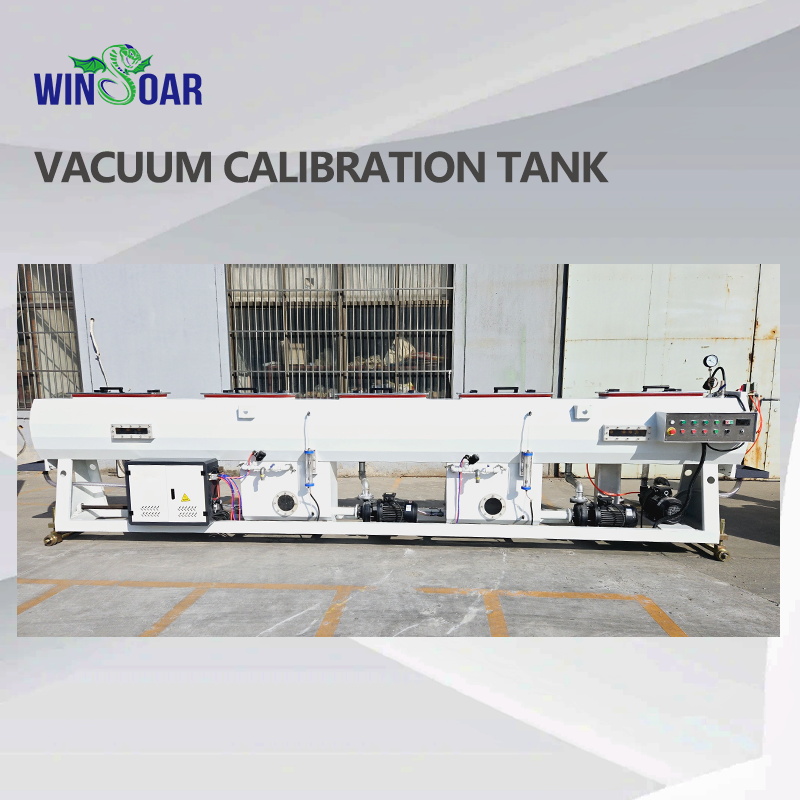

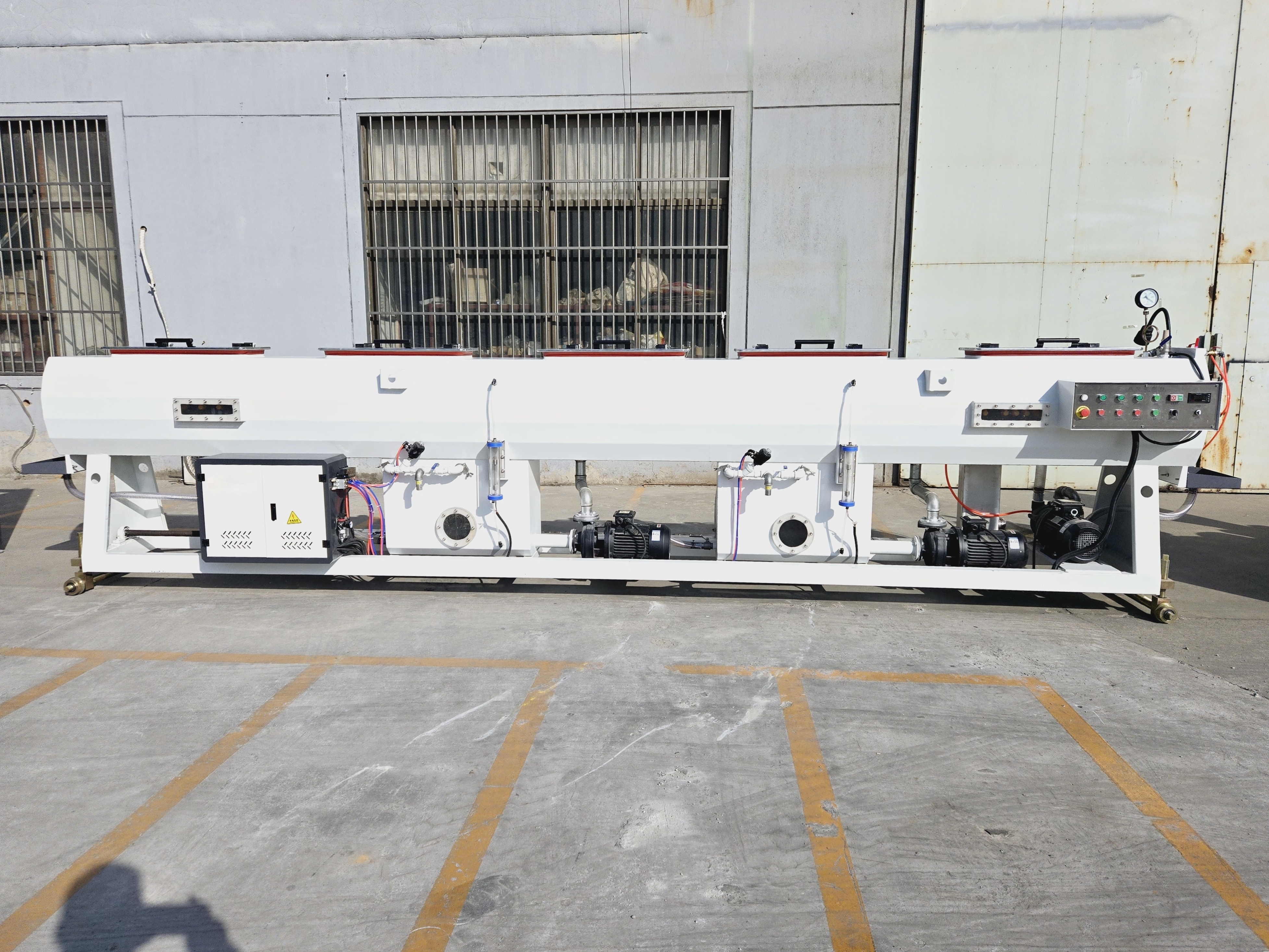

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

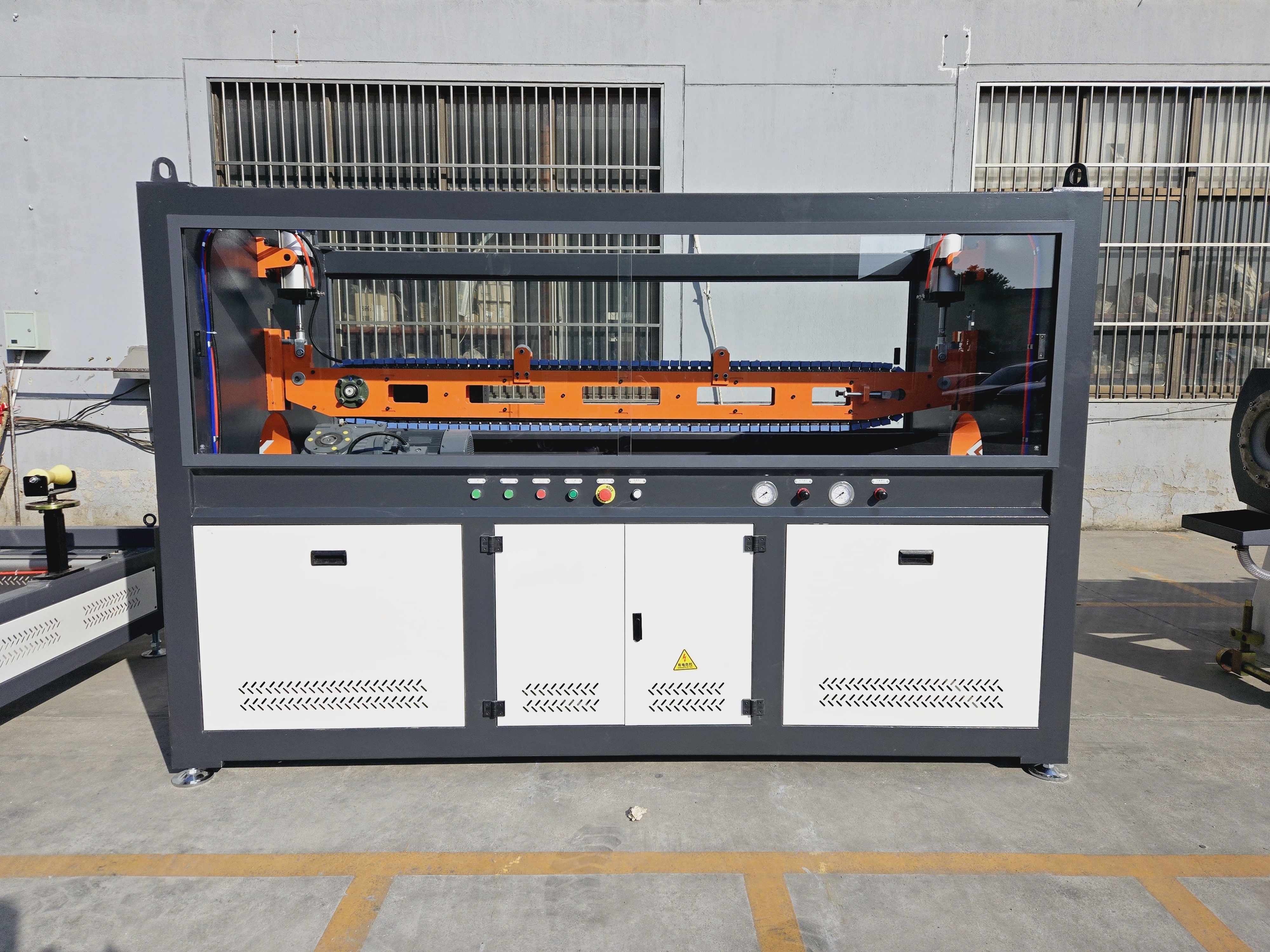

TRACTOR

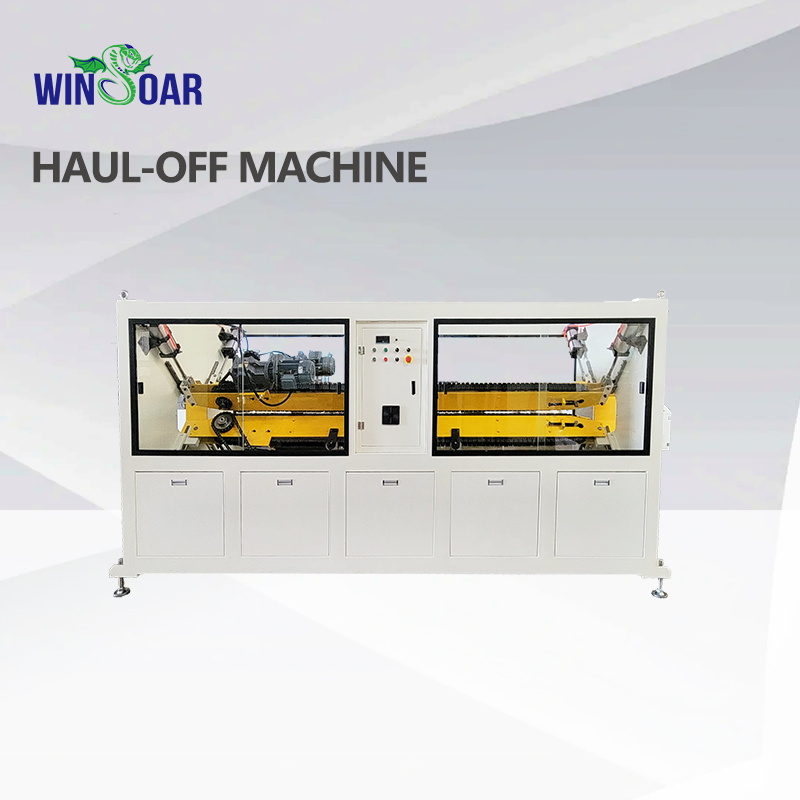

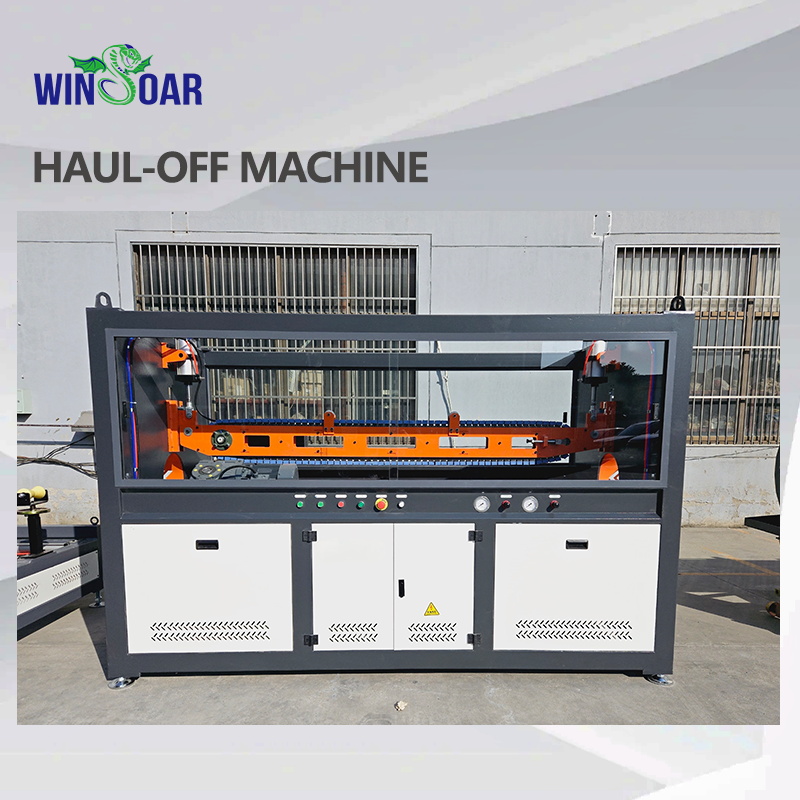

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.

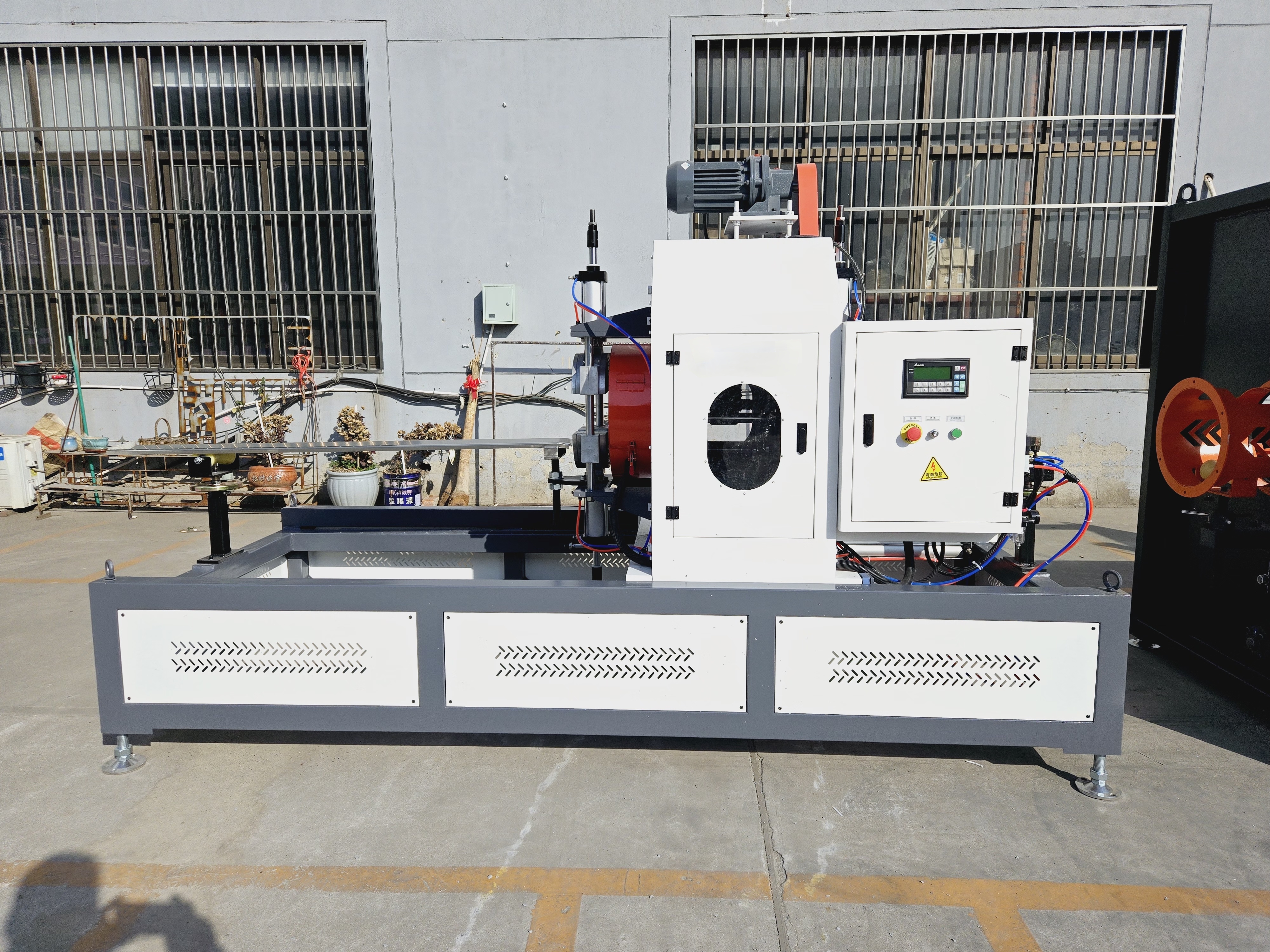

CUTTING MACHINE

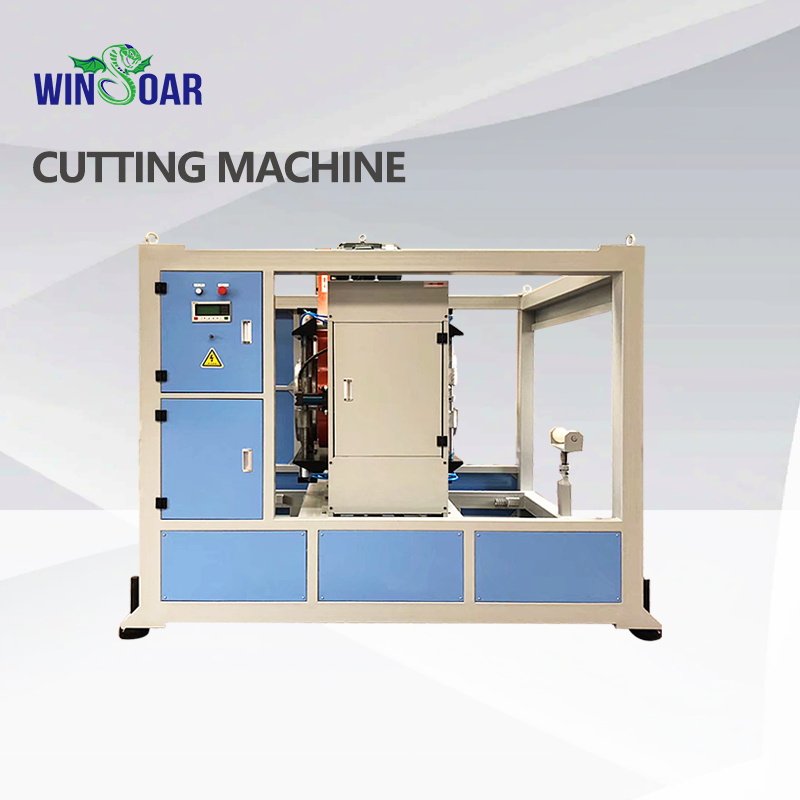

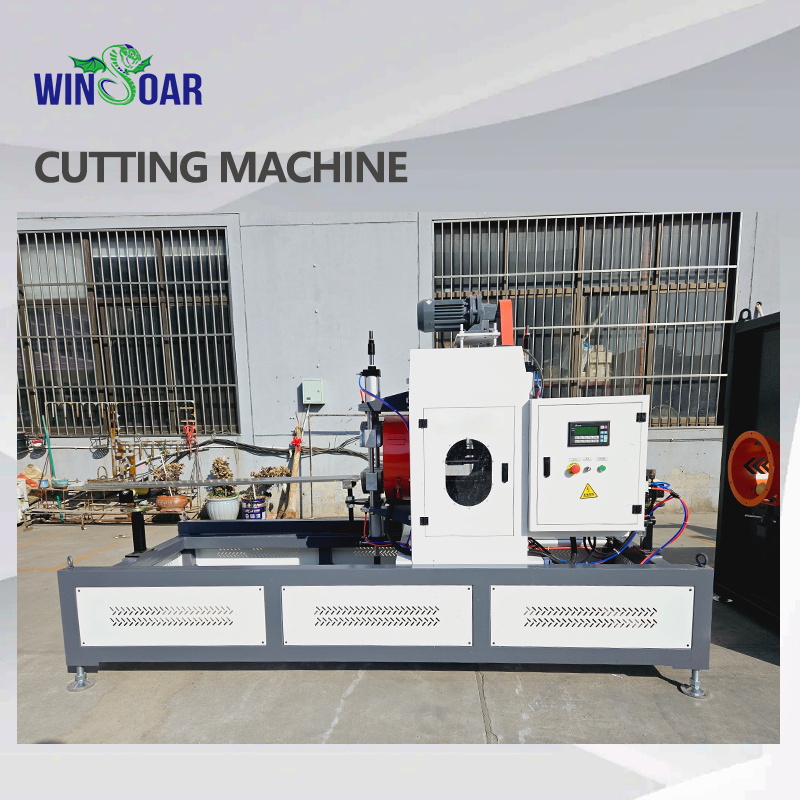

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

TURNOVER RACK (OPTIONAL ON REQUEST)

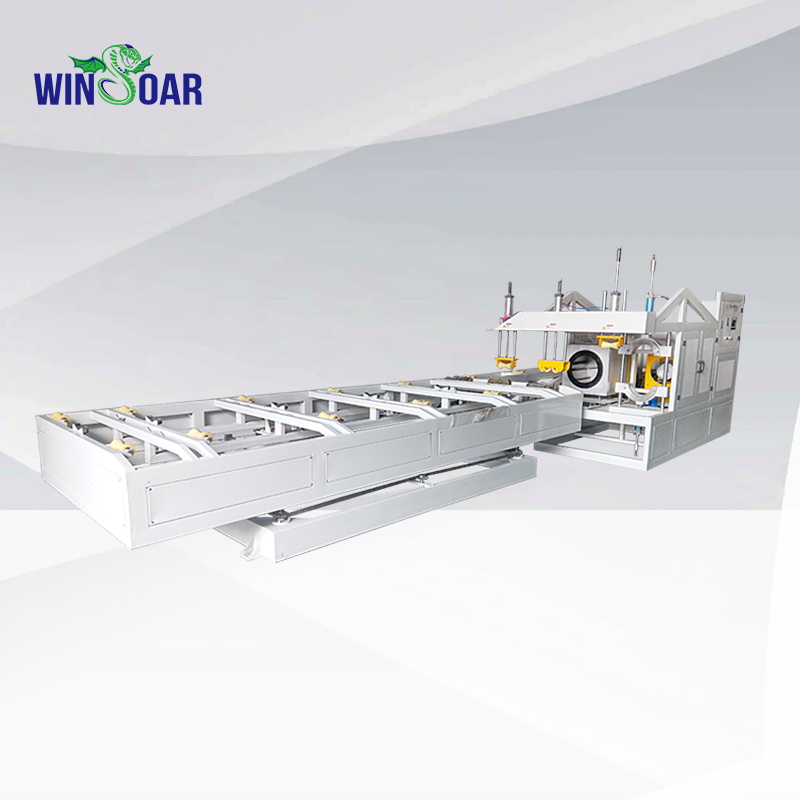

Accept finished products and automatically turn over.

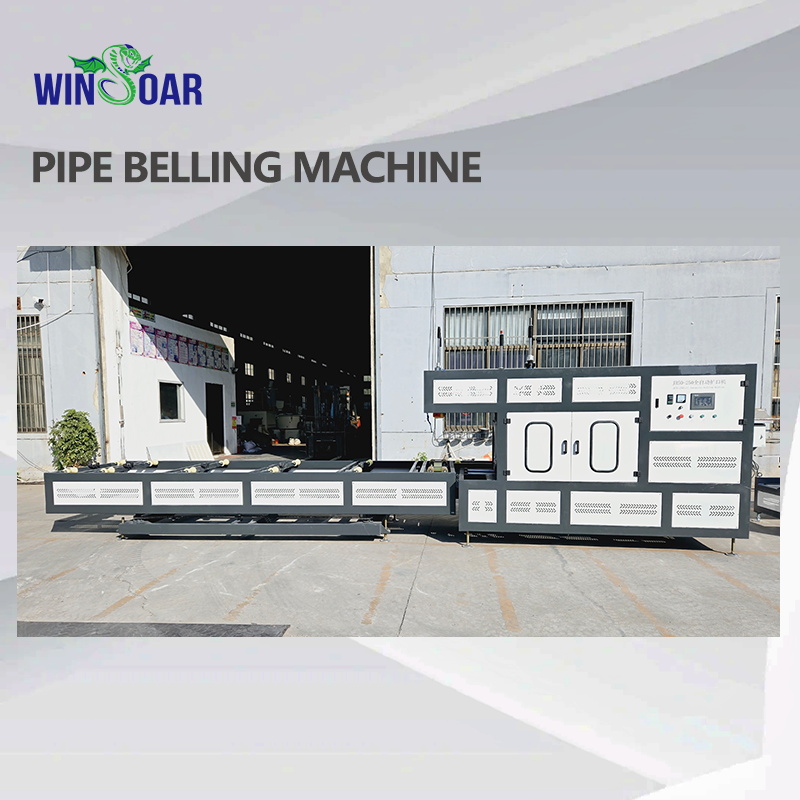

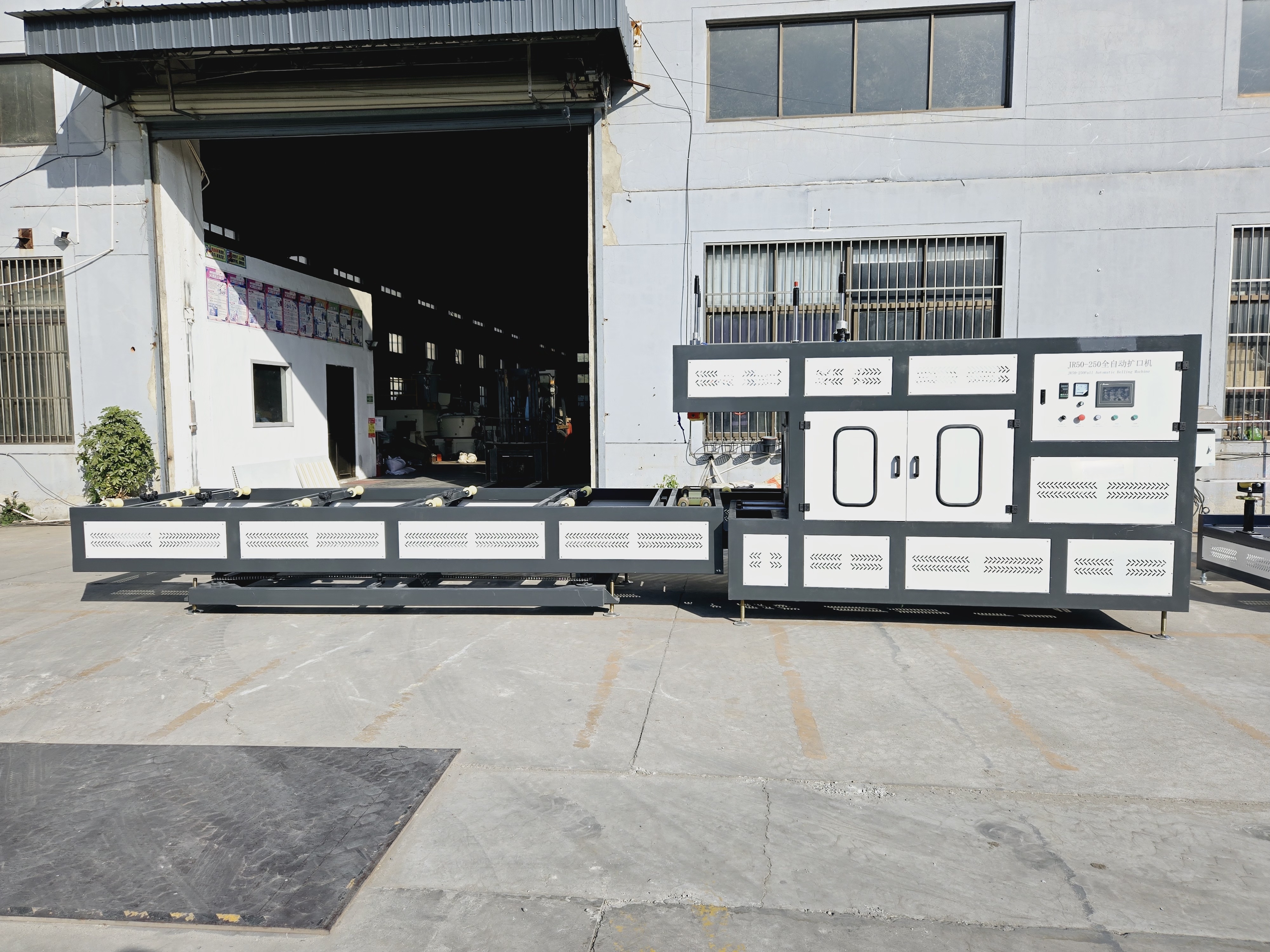

PIPE BELLING MACHINE (OPTIONAL ON REQUEST)

The automatic pipe flaring machine can cooperate with the pipe production line to expand the pipe online or expand the pipe separately.The flaring pipe is heated by an oven,and the Omron temperature control is used for precise temperature control.
