Plastic UPVC/PVC/WPC/PS Window Seal Strip Profile Production Line

5 0 Reviews
This production line is suitable to produce the PP, PE, PVC + wood composite products, the WPC products are strong and durable, both have the advantages of plastic and wood products, at the same time, they overcomes the shortages of plastic products that is easily got deformed, and the wood products can easily get corrosion, damaged by worms, short service life, etc.
Availability:
Quantity:

Product Description

This production line is suitable to produce the PP, PE, PVC + wood composite products, the WPC products are strong and durable, both have the advantages of plastic and wood products, at the same time, they overcomes the shortages of plastic products that is easily got deformed, and the wood products can easily get corrosion, damaged by worms, short service life, etc.

The line adopts special designed barrel and screw, mould and working crafts to produce wood plastic composite products, simplified as WPC products. The extruder is of two steps mixing extruding or make the wood and plastic into pellets first, then use extruder to process; power and space saving, high capacity, stable extruding presser; the pre-heating loader is installed on top of the extruder, it can exhaust the moist remains in the wood power to make sure the extruding section of extruder is full, and guarantee a better plasticizing result.

Features:

1) Mainly contains conical twin-screw extruder, glue extruder, vacuum calibration, hall-off unit, cutter and stacker.

2) It adopts intelligent control system, high automatic system, with feature of stability, easy operating and high efficiency.

3) By changing different types of mold, it can produce all kinds of fast loading wallboard with different types, sizes, shapes, thickness.

4) With rich production experience, Jwell can provide on-site installation and debugging services freely.

5) Used for producing WPC decoration product, which is widely used in house and public decoration field, features non-pollution, high lifetime, heat insulation, anti-fire, easy clean and maintenance, easy change and recyclable.

6) Vacuum calibrating and cooling Table: the table is made by #304 stainless steel, good strength and performance, long life time.
7) Traction machines: Rubber block traction belt, traction speed is adjustable by ABB frequency inverter.
8) Cutting machine: saw blade cutting, low noise, quick cutting performance, with dust collection device.

Main Parameter:

Model

Profile Width

Extruder model

Motor power

Max.extrusion capacity

Calibrating platform length

WS-200

200mm

51/105

22kw

100-120kg/h

4000mm

WS-300

300mm

65/132

37kw

150-180kg/h

6000mm

WS-400

400mm

65/132

37kw

150-180kg/h

6000mm

WS-300

600mm

65/132

37kw

150-180kg/h

8000mm

WS-600

600mm

65/13 or 80/156

37 or 75kw

150-350kg/h

6000mm


Pictures for reference:

新主图_01

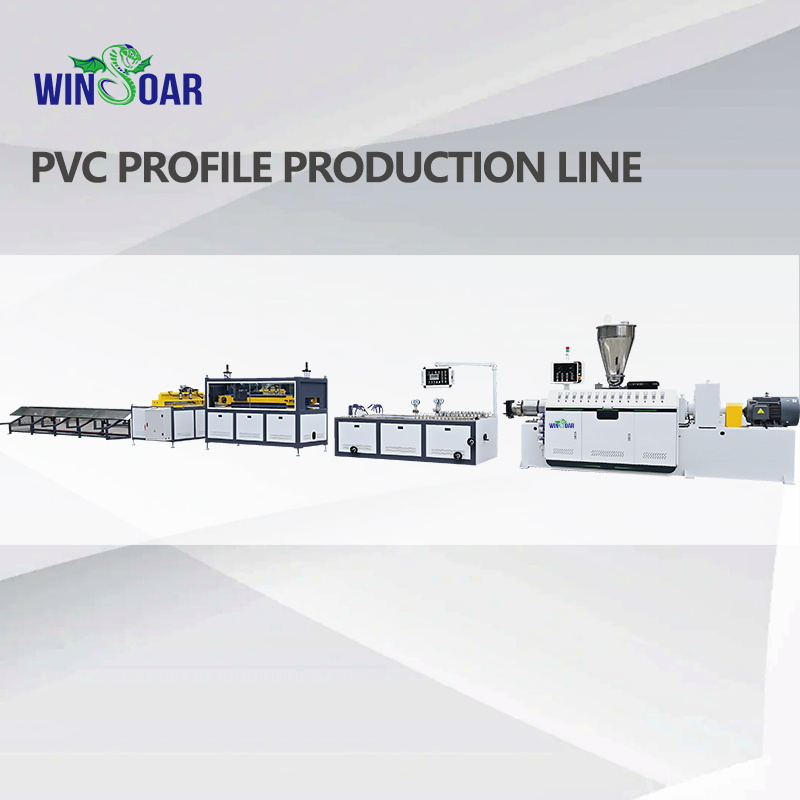

PVC PROFILE PRODUCTION LINE

PVC profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different mould, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on.


p2PVC-WPC_04

PVC-WPC_05

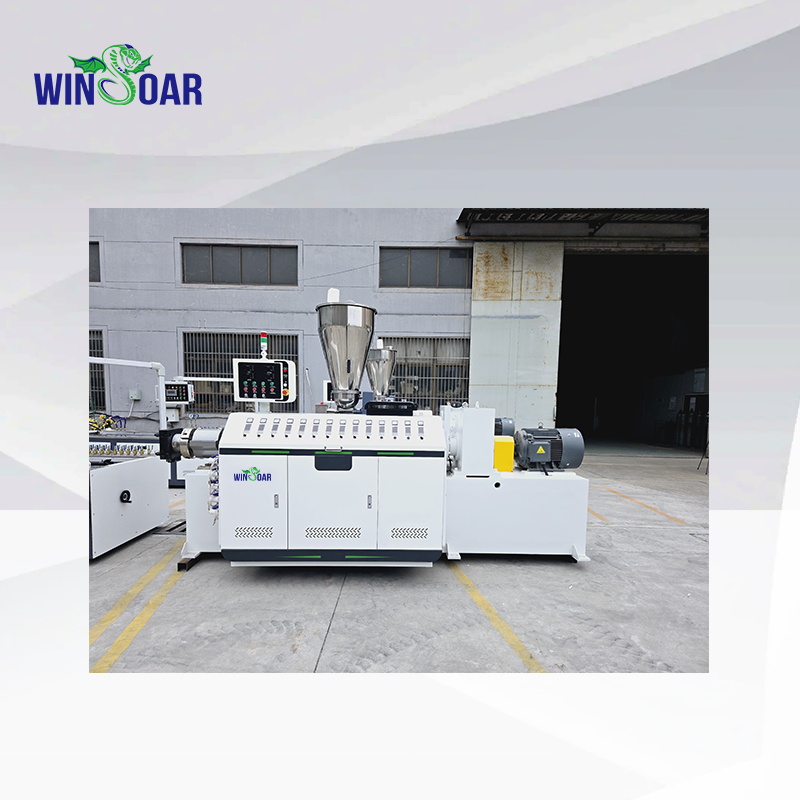

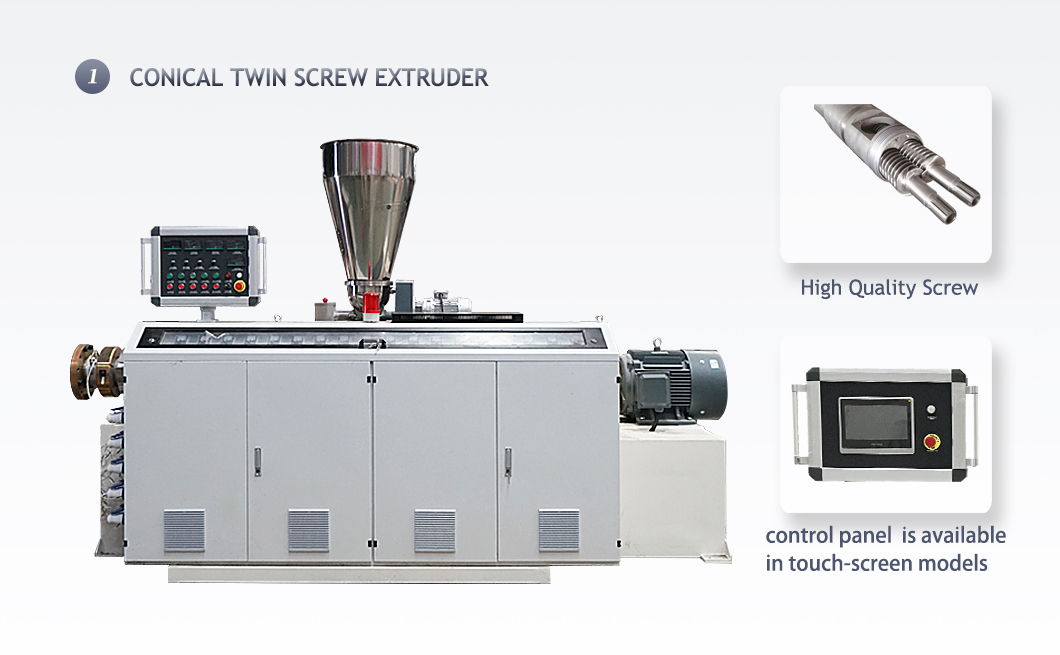

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-WPC_06

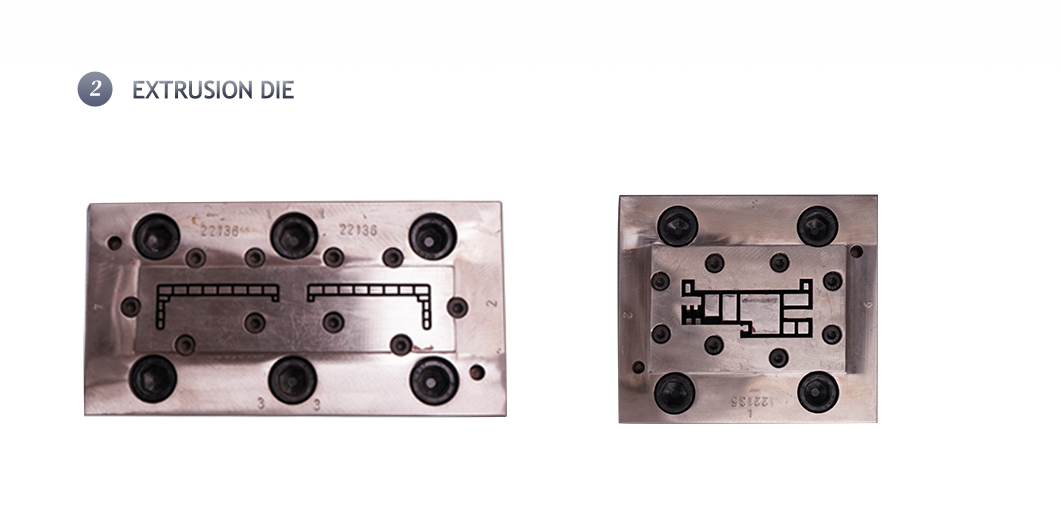

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.


PVC-WPC_07

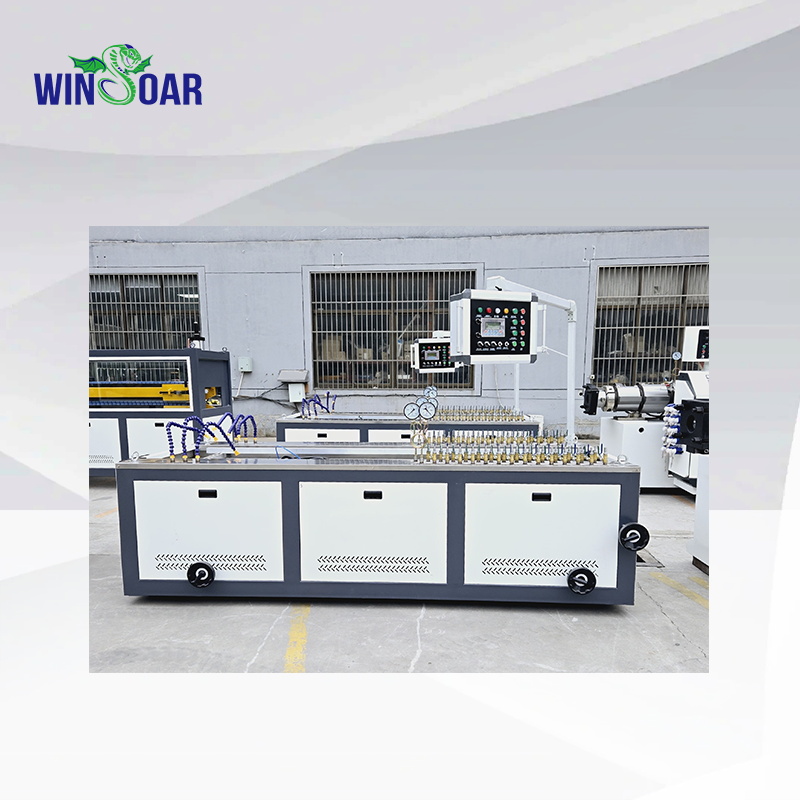

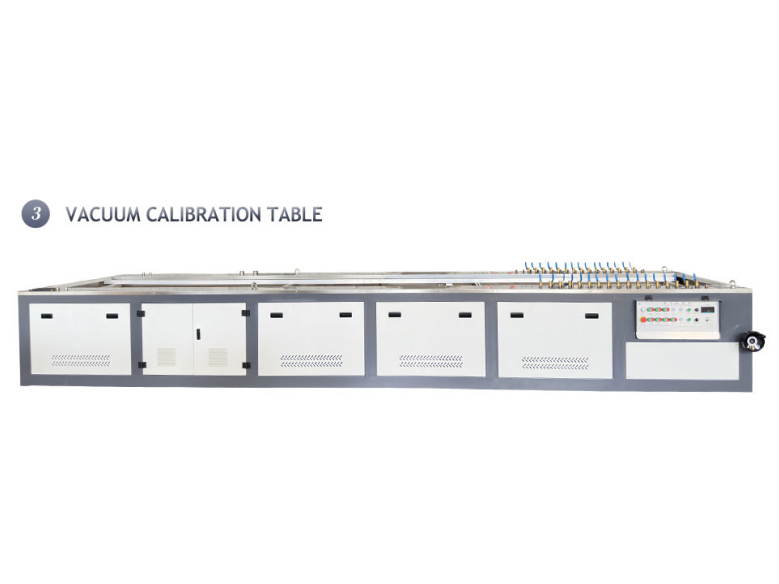

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.

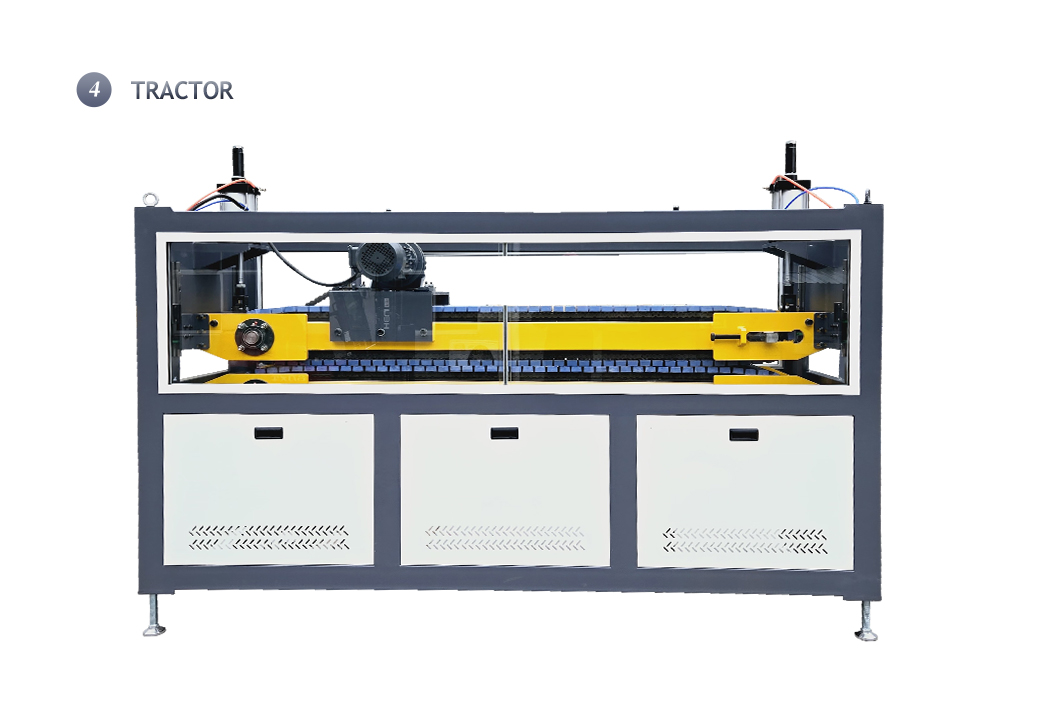

PVC-WPC_08

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.

PVC-WPC_09

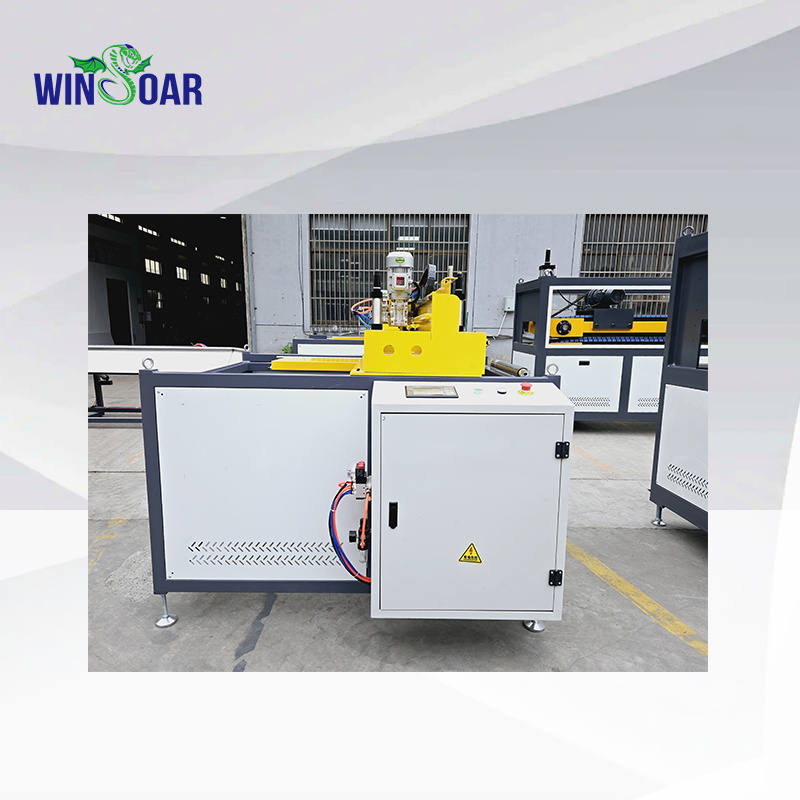

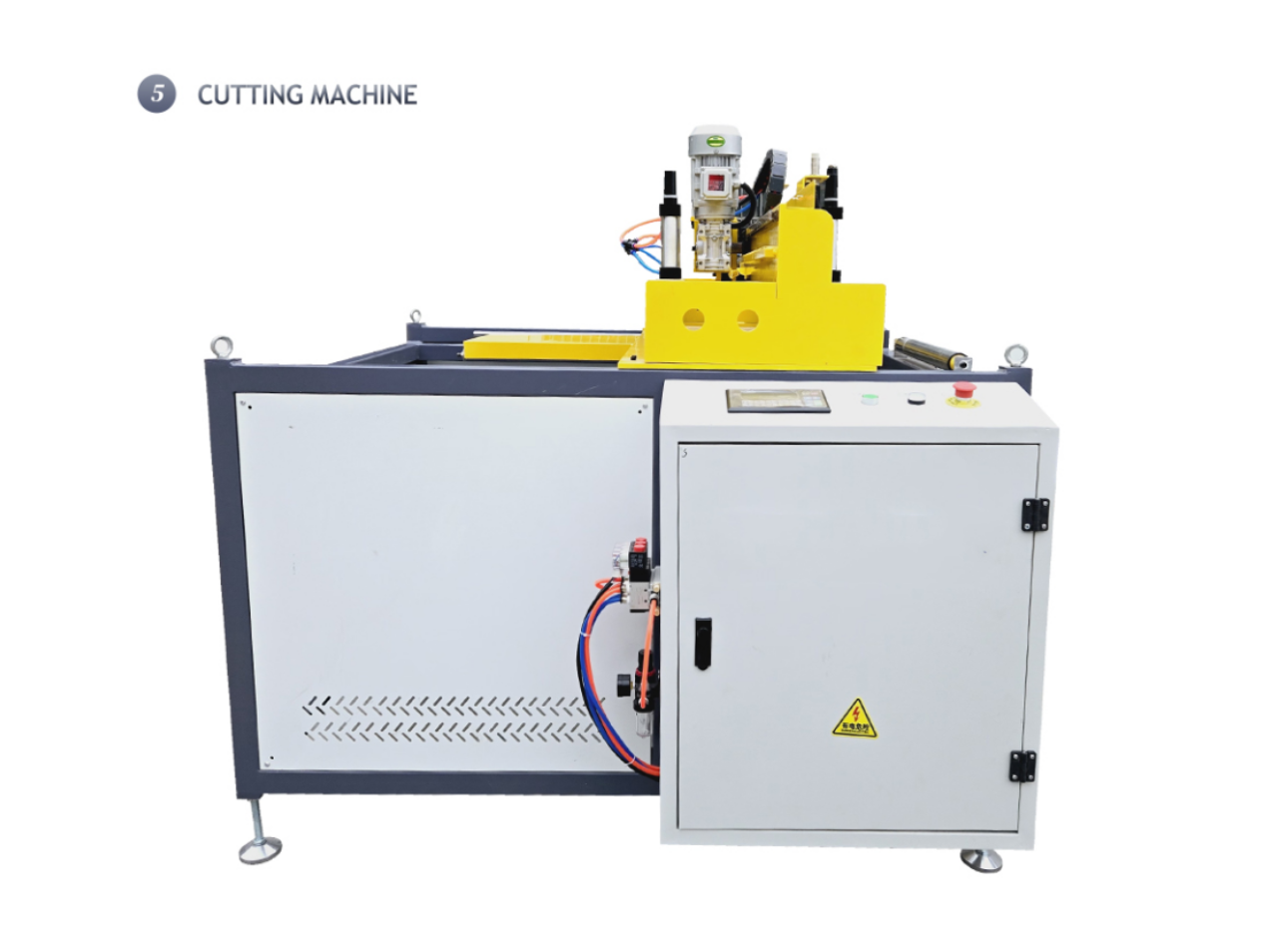

CUTTING MACHINE

After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.


PVC-WPC_10..

Accept finished products and automatically turn over.

p7p8p9
