Anti-aging Hard PPR Pipe Production Line For Water Drainage

5 0 Reviews
PPR pipe production line is mainly used to produce the PPR water supply pipe,
The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Availability:
Quantity:

Product Description

PPR pipe production line is mainly used to produce the PPR water supply pipe,
The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

Production Flow:

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

Features

1. The PPR extruder combination of spiral feeding barrel and separate screw design,it guarantees a high plasticizing rate and excellent melt uniformity.We use water-cooled air conditioner,it ensure electric components work in constant temperature and humidity,which makes them more stable and get longer life time

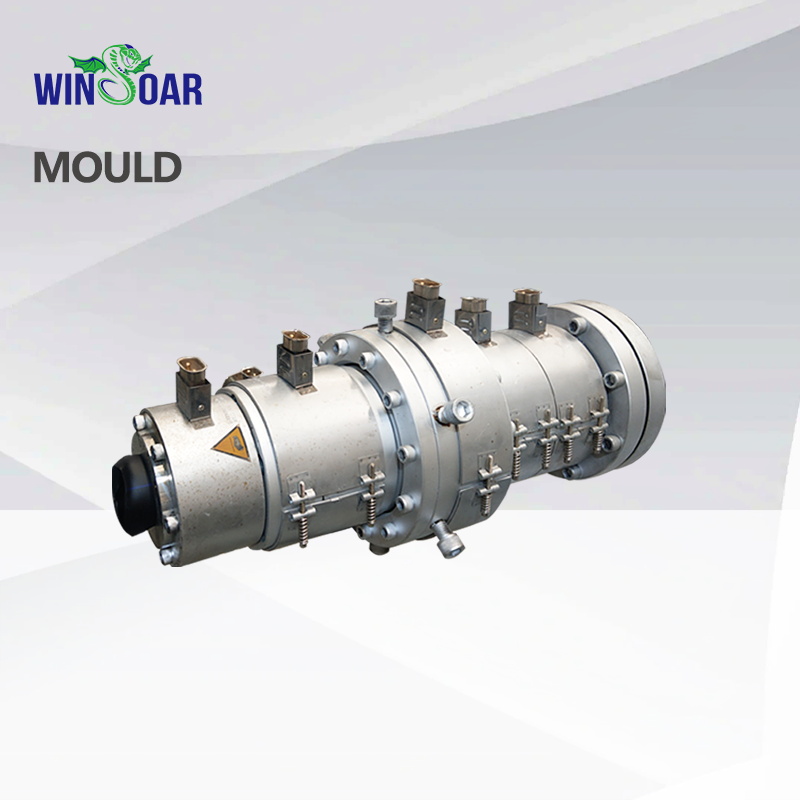

2. This PPR pipe production line is composed by Single screw extruder,Died head,Vacuum calibration tank ,Cooling tank ,Haul-off machine ,Cutter and stacker.

3. The whole production line is controlled by Siemens PLC control system, which can observe the status of all equipment on the display or control the equipment separately

4. Our PPR pipe extrusion line, which the motor speed of extruder and haul-off are measured and feedback y the encoder, ensure the stability of screw speed and traction speed,and die head using Inner pipe cooling system,can improve cooling effect, reduce the length of spray cooling tank and save production costs.

5.The extrusion line can achieve various control of downstream equipment by the extruder and use several international famous brand.

Technical Parameter

Classical Seriers:

Production Line

Diameter Range     (mm)

Extruder Type

Max. Capacity(kg/h)

Max. Haul Off Speed (m/min)

Extrusion Power(KW)

WS-63(single)

Ф20-63

SJ65/33

180

10

55

WS-110(single)

Ф20-110

SJ65/33

180

10

55

WS-160(single)

Ф50-160

SJ75/33

300

6

110

WS-250(single)

Ф90-250

SJ75/33

300

4

110

High Speed Seriers:

Production Line

Diameter Range (mm)

Extruder Type

Max. Capacity       (kg/h)

Max. Haul Off Speed(m/min)

Extrusion Power    (KW)

WS-63(single)

Ф20-63

WSD60/38

280

20

90

WS-63(dual)

Ф20-63

WSD60/38

360

18X2

110

WS-110(single)

Ф20-110

WSD60/38

280

20

90

WS-110(dual)

Ф20-110

WSD75/38

450

18X2

160

WS-160(single)

Ф40-160

WSD60/38

360

12

110

WS-250(single)

Ф50-250

WSD75/38

450

10

160


Pictures for Reference

p1

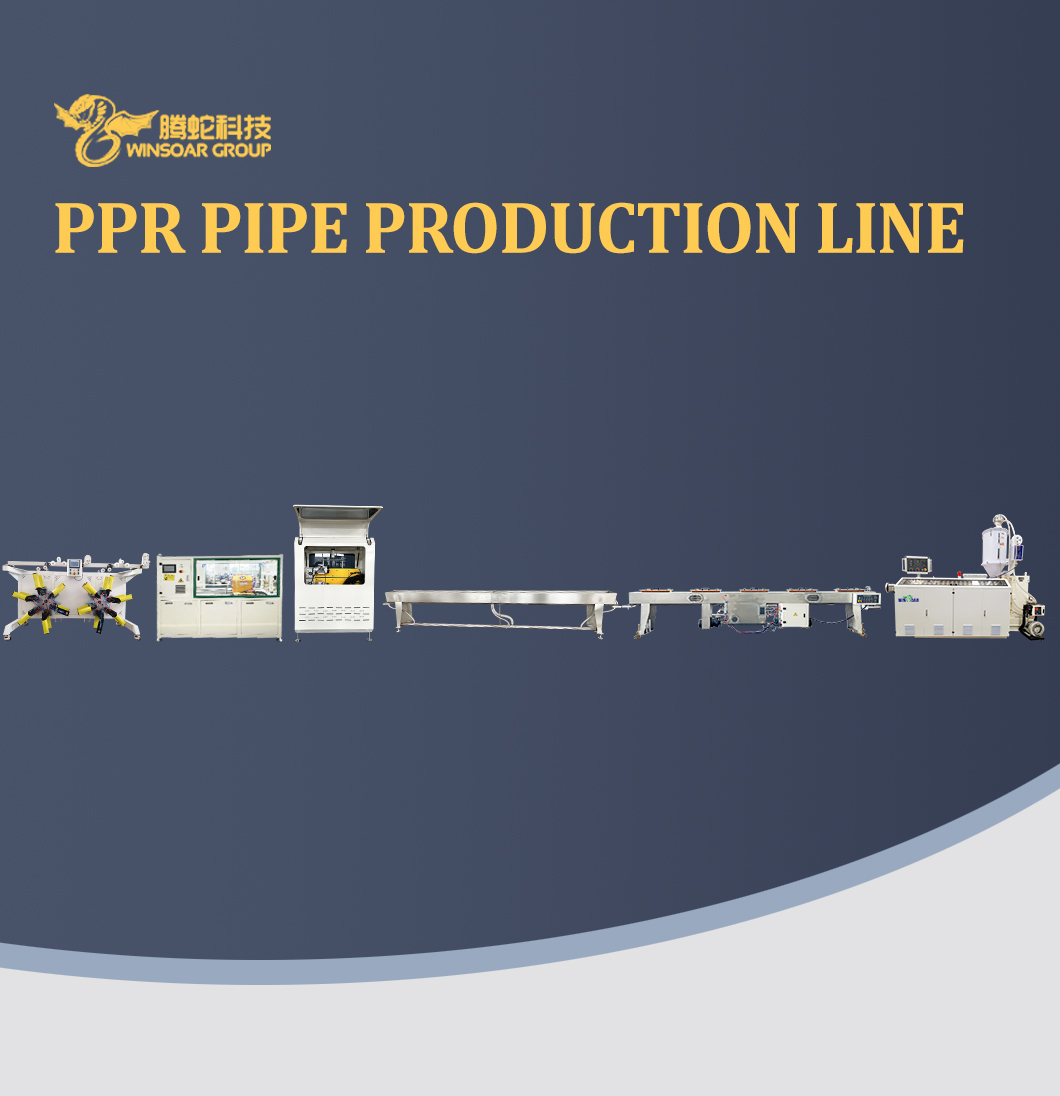

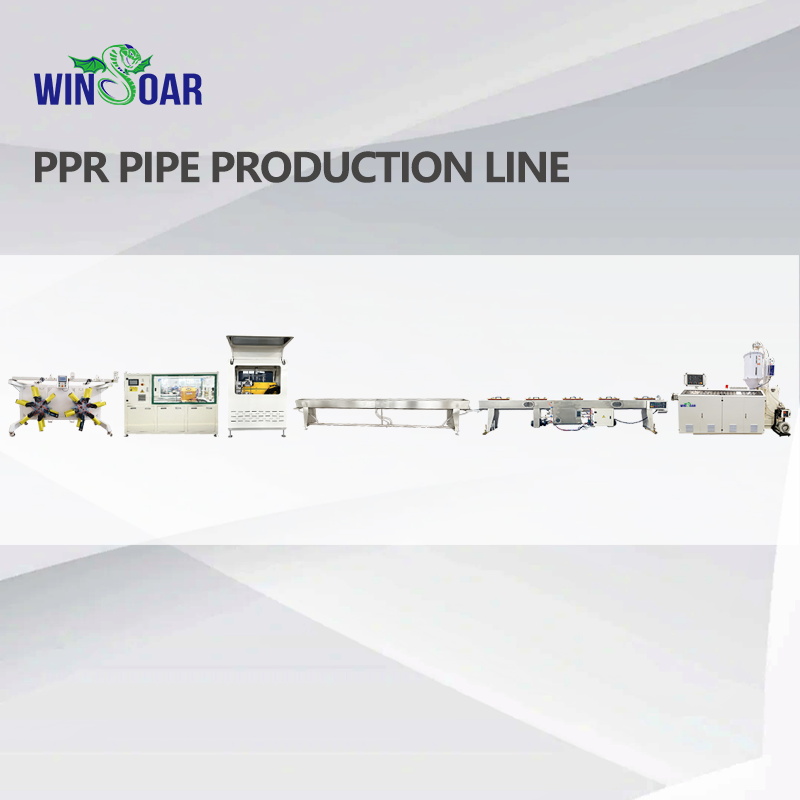

PPR PIPE PRODUCTION LINE

It is mainly used to produce PPR pipes for hot and cold water. It adopts PLC control system and HMI for whole extrusion line.

p2p3

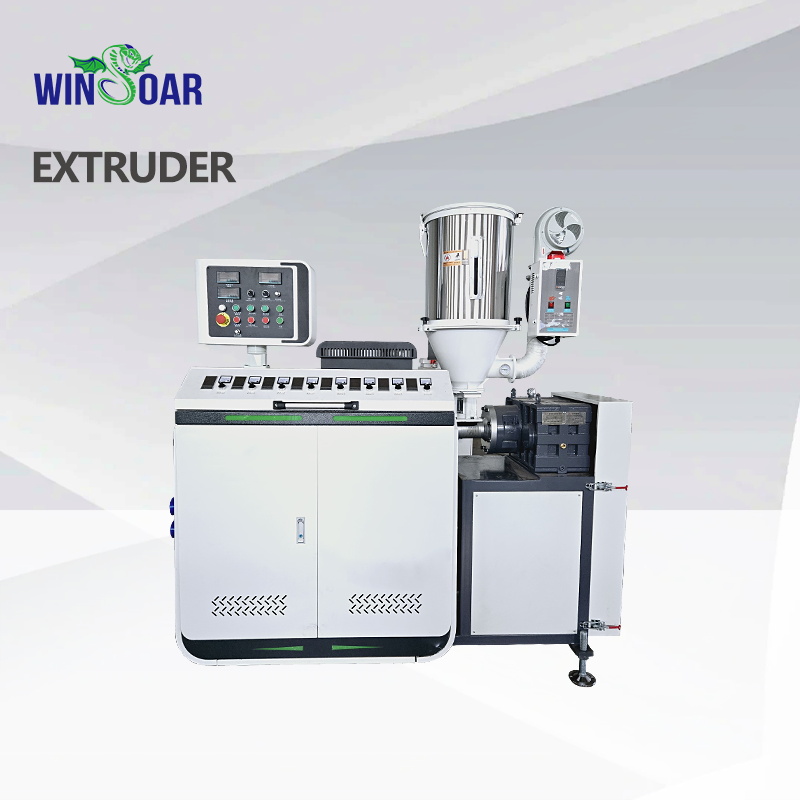

SINGLE SCREW EXTRUDER

The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.

p4

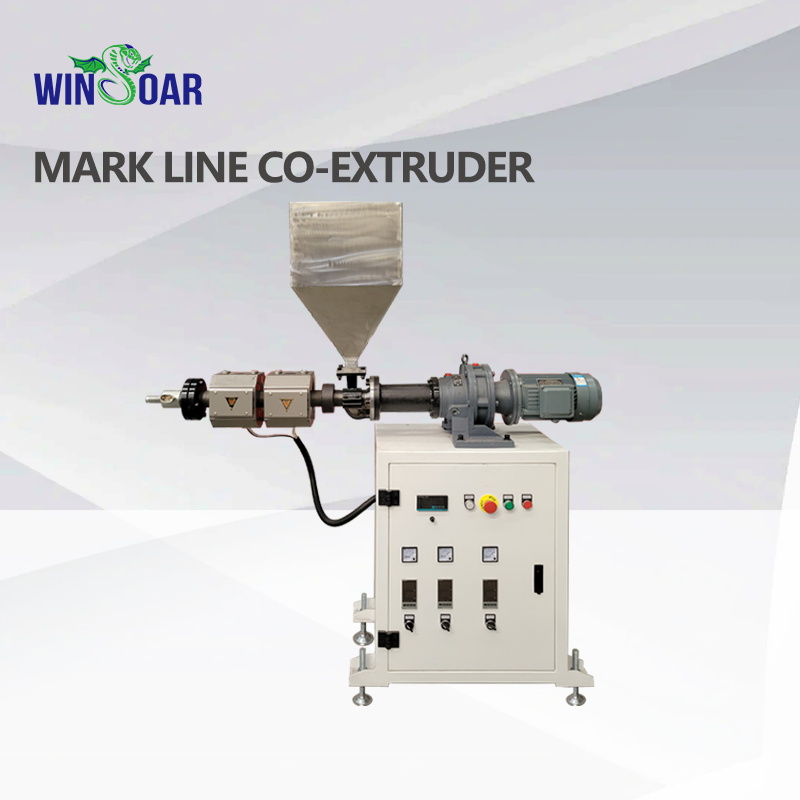

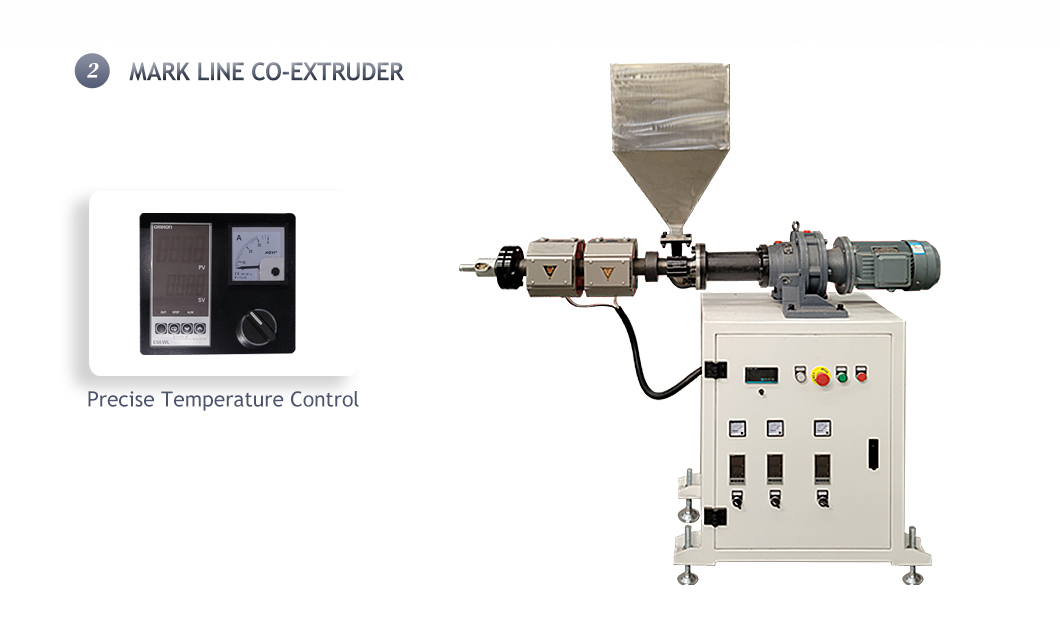

MARK LINE CO-EXTRUDER

The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.

p5

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

P6

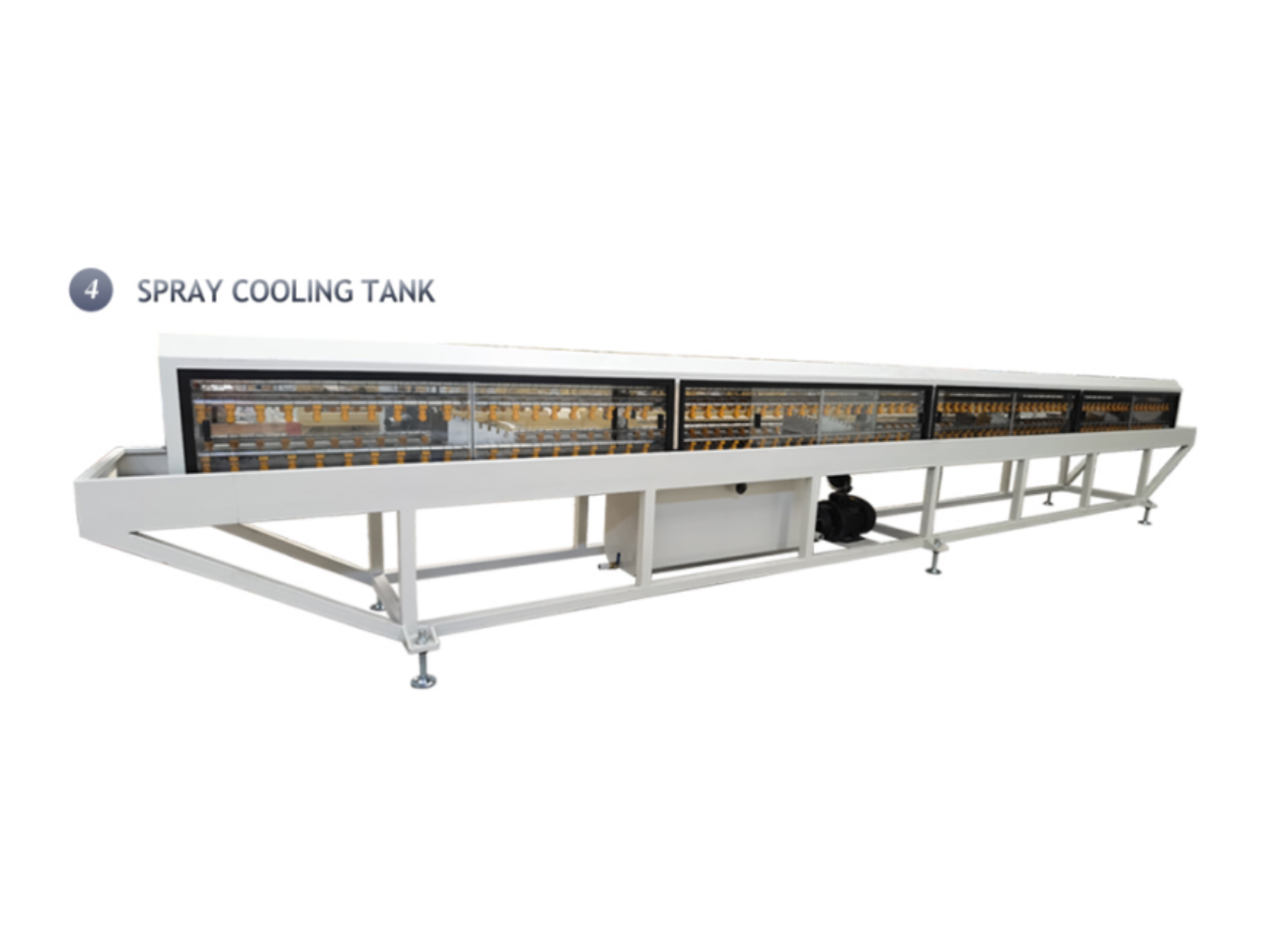

SPRAY COOLING TANK

The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.

P7

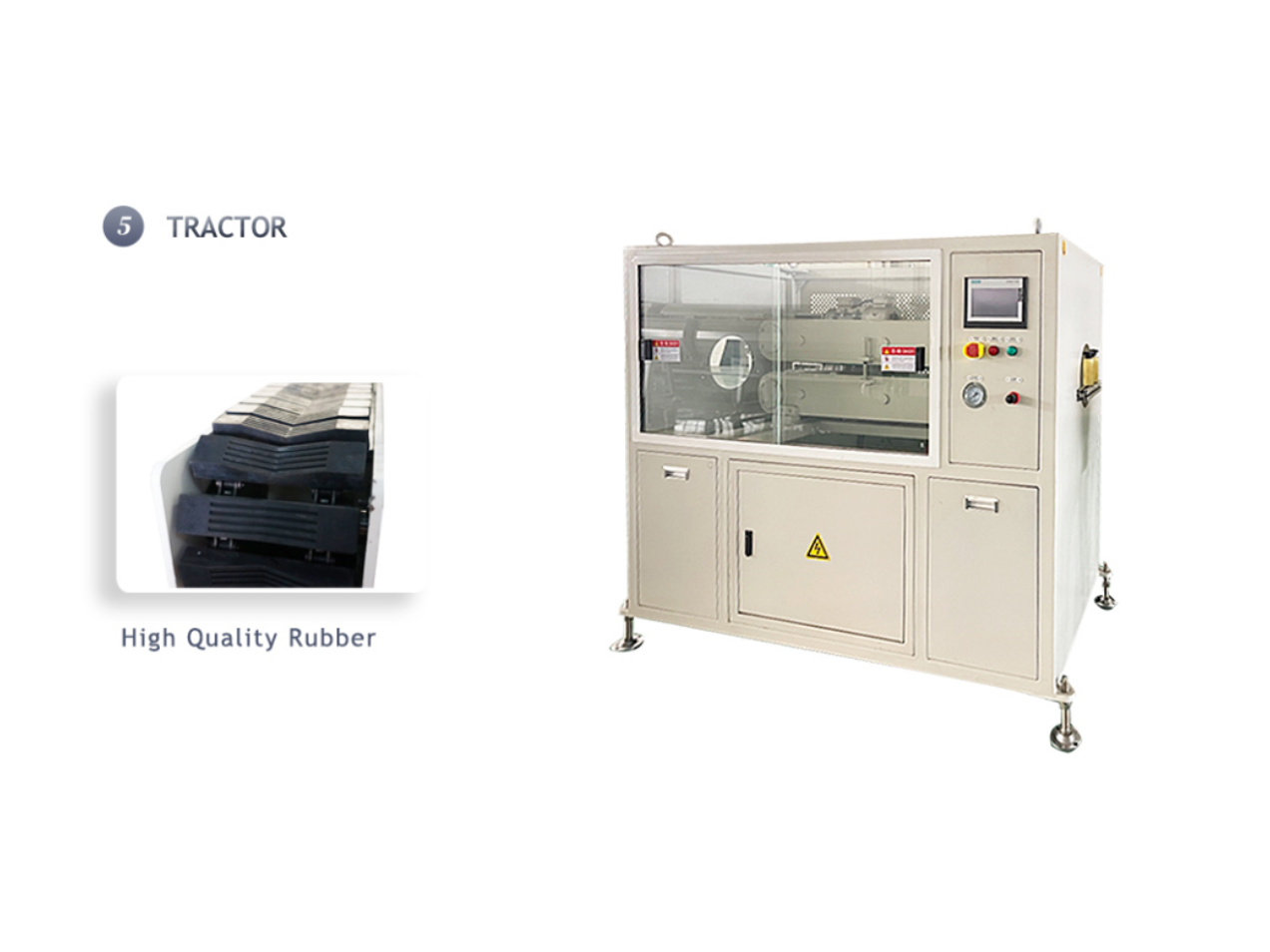

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.

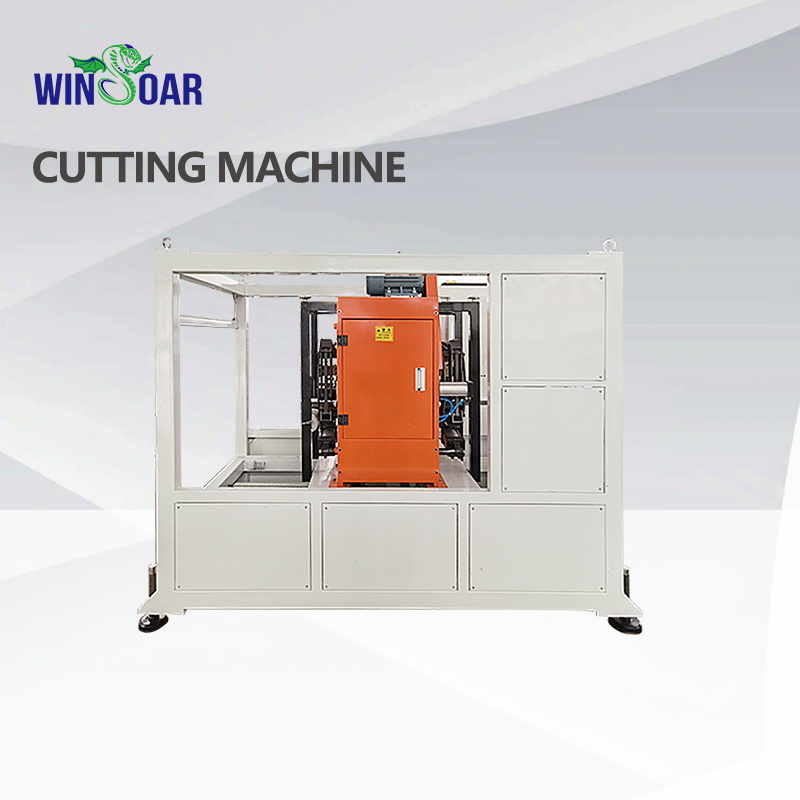

PPR管材线CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

p9

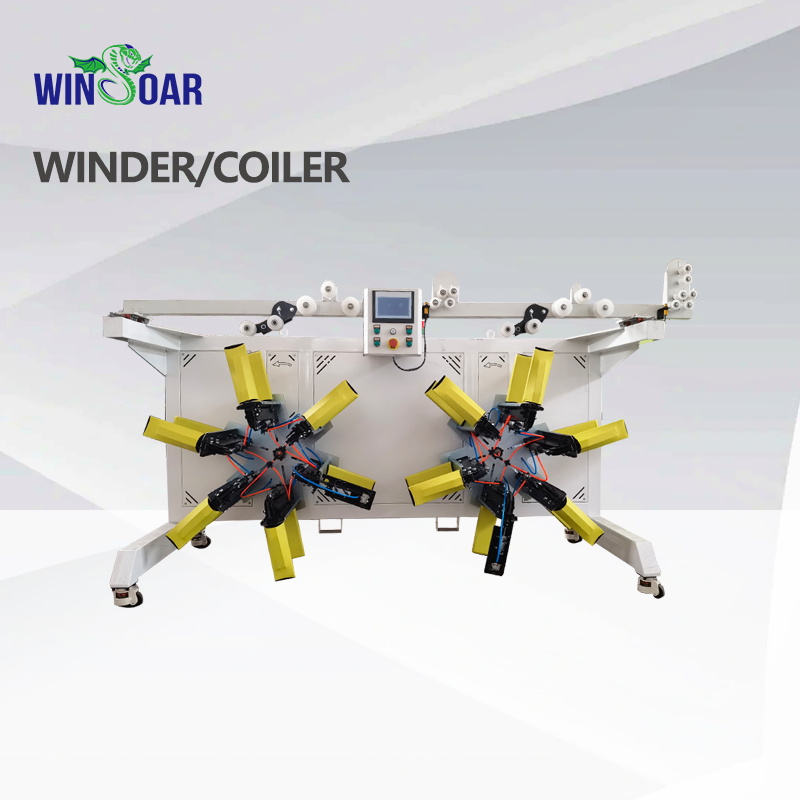

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)

This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging,automatic rewinding, and easy operation.

p10

TURNOVER RACK (OPTIONAL ON REQUEST)

Accept finished products and automatically turn over.

p12p13p14p15
