Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing, cable laying etc. This line is composed of conical twin screw extruder, Vacuum calibration tank, haul off, motors, cutter and stacker etc. The extruder and haul off methods are two-claw, three-claw four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is addition attached with length counter and intensifying device. This line with reliable performance and high production efficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your requirements.
Features
1.Extrusion Equipment of PVC pipe making machine :Twin screw extruder takes the new and efficient Screw, and has the higher screw speed, yield and plasticizing capacity...nose or spiral-flow nose, with a uniform material, convenient adjustment to eliminate extrusion fusion line and so on.
2.Vacuum shaping devices of PVC pipe making machine :vacuum spray tank, spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material.
3.Traction machine of PVC pipe making machine :two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements..
4.Cutting machine of plastic pipe making machine :No dust rotating knife.
5.Stacking devices of PVC pipe making machine :automatic turn plate or roller-type stacking devices, small-diameter pipe can be configured duplex winder according to customer requirements duplex winder.
6.Electrical control system for a variety of options (eg: PLC automatic control system),good production speed, stability, and the control system is simple and easy to operate.
Technical Parameter
Diameter Range (mm) | Extruder Type | Extrusion Power(KW) | Max. Capacity (kg/h) | Max. Haul Off Speed(m/min) |
Ф16-40 Dual | SJZ51/105 | 18.5 AC | 120 | 10 |
Ф20-63 Dual | SJZ65/132 | 37 AC | 250 | 15 |
Ф20-63 | SJZ51/105 | 18.5 AC | 120 | 15 |
Ф50-160 | SJZ65/132 | 37 AC | 250 | 8 |
Ф75-160 Dual | SJZ80/156 | 55AC | 450 | 6 |
Ф63-200 | SJZ65/132 | 37 AC | 250 | 3.5 |
Ф110-315 | SJZ80/156 | 55 AC | 450 | 3 |
Ф315-630 | SJZ92/188 | 110 AC | 800 | 1.2 |
Ф710-1000 | WSP130/26 | 160 AC | 1100 | 1.3 |
Pictures for Reference

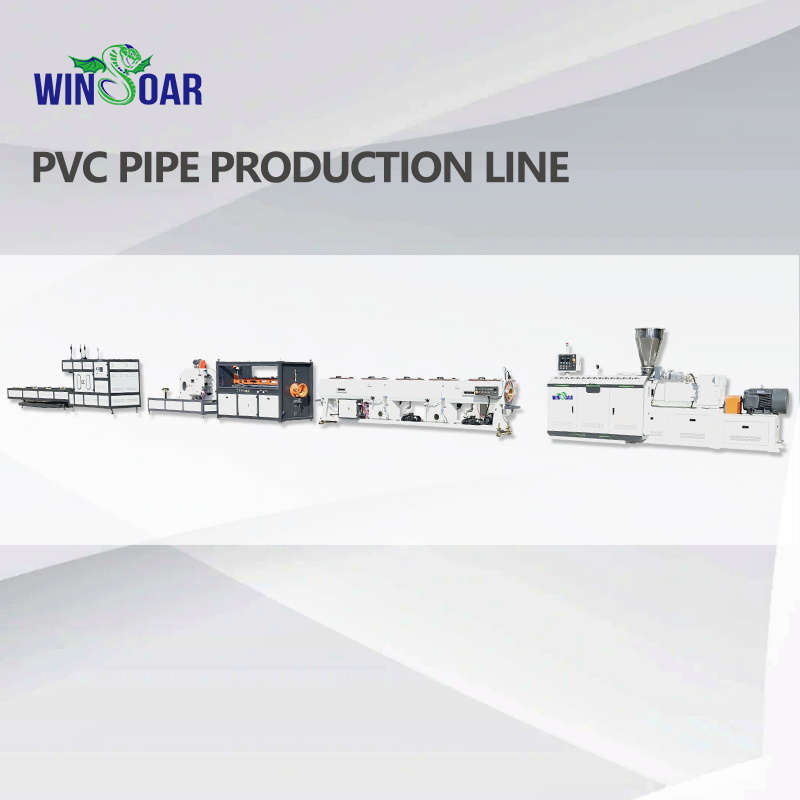

PVC PIPE PRODUCTION LINE
It consists of vacuum calibration tank, tractor, cutting machine,belling machine, etc. The equipment has a high degree of automation and is easy to operate.

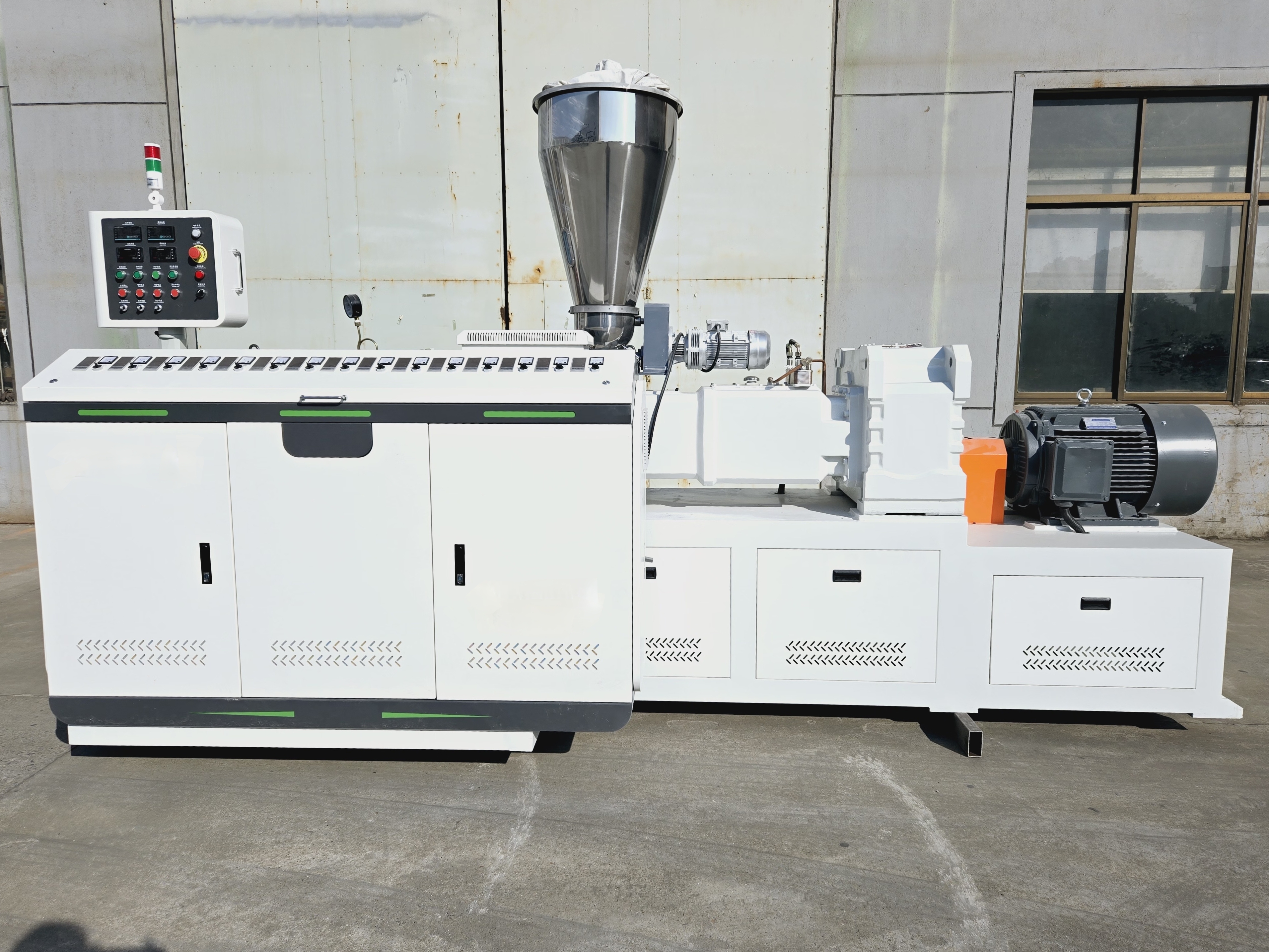

CONICAL TWIN SCREW EXTRUDER
This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.
EXTRUSION DIE
After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.

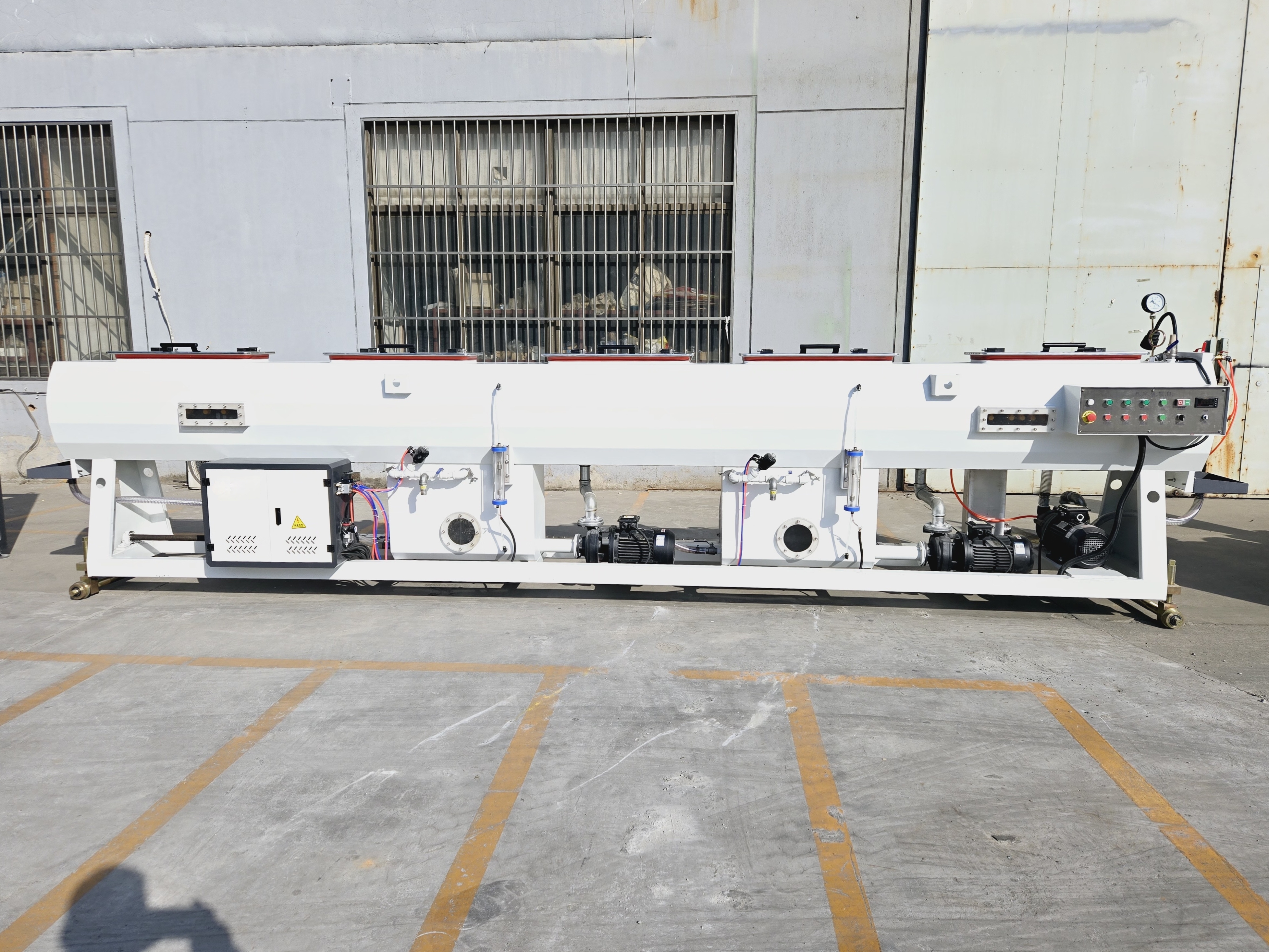

VACUUM CALIBRATION TANK
Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.
TRACTOR
It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.

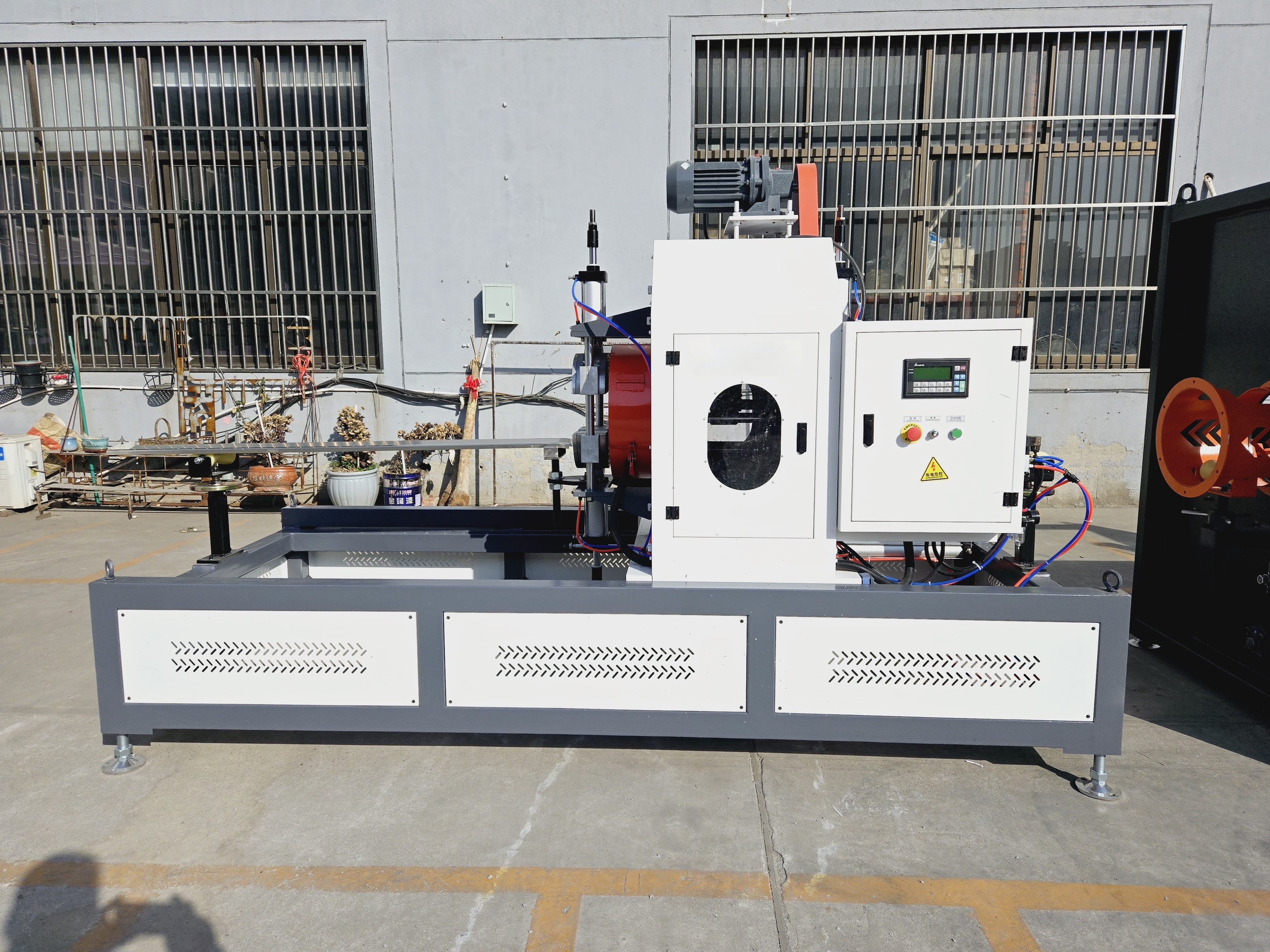

CUTTING MACHINE
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

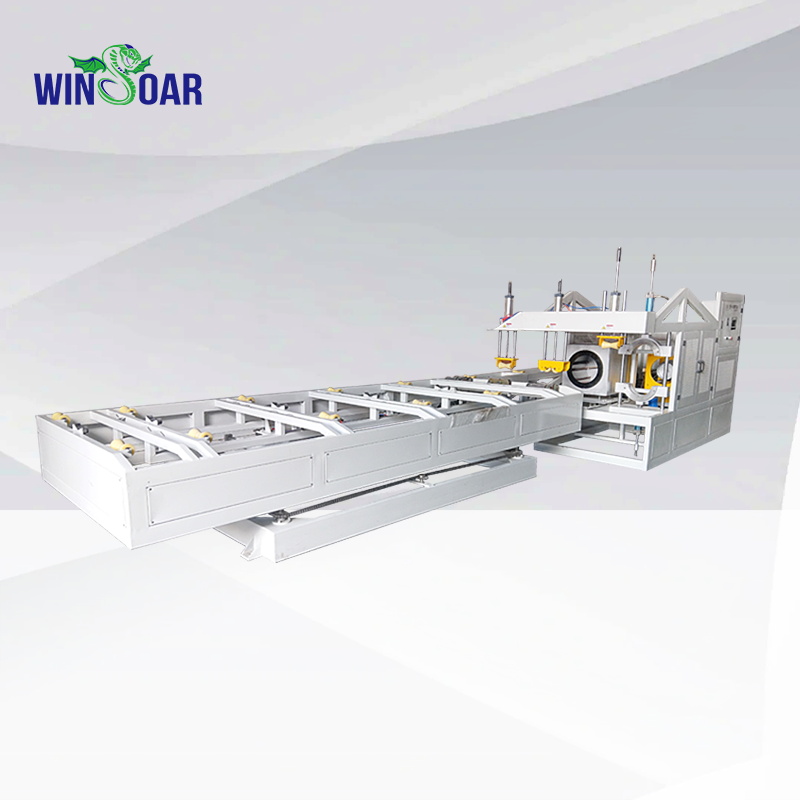

TURNOVER RACK (OPTIONAL ON REQUEST)
Accept finished products and automatically turn over.

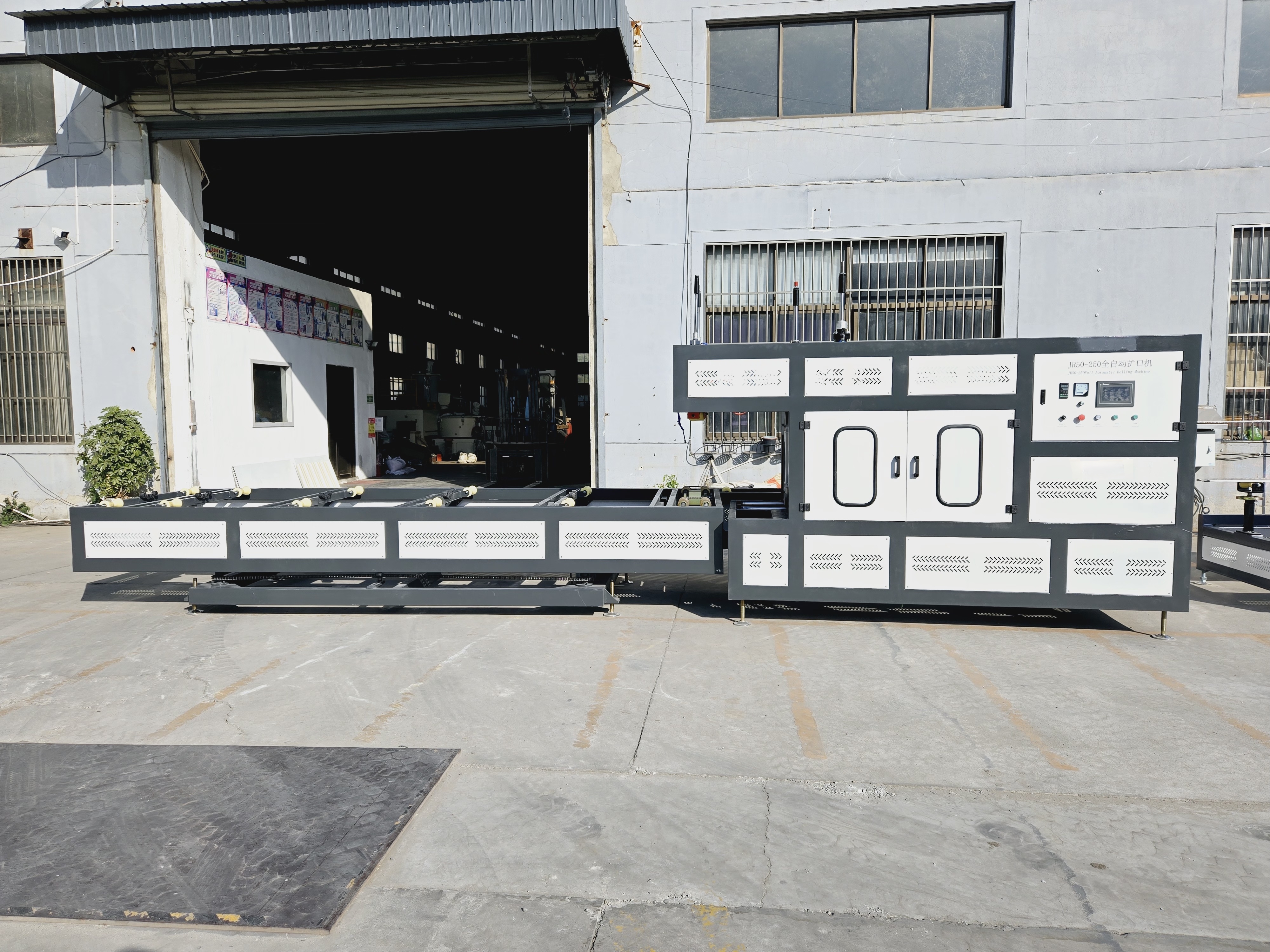

PIPE BELLING MACHINE (OPTIONAL ON REQUEST)
The automatic pipe flaring machine can cooperate with the pipe production line to expand the pipe online or expand the pipe separately.The flaring pipe is heated by an oven,and the Omron temperature control is used for precise temperature control.
