Plastic PPR/PP/PE Pipe Production Line Dia. 16-1200mmis mainly used to produce the PPR/PE water supply pipe,

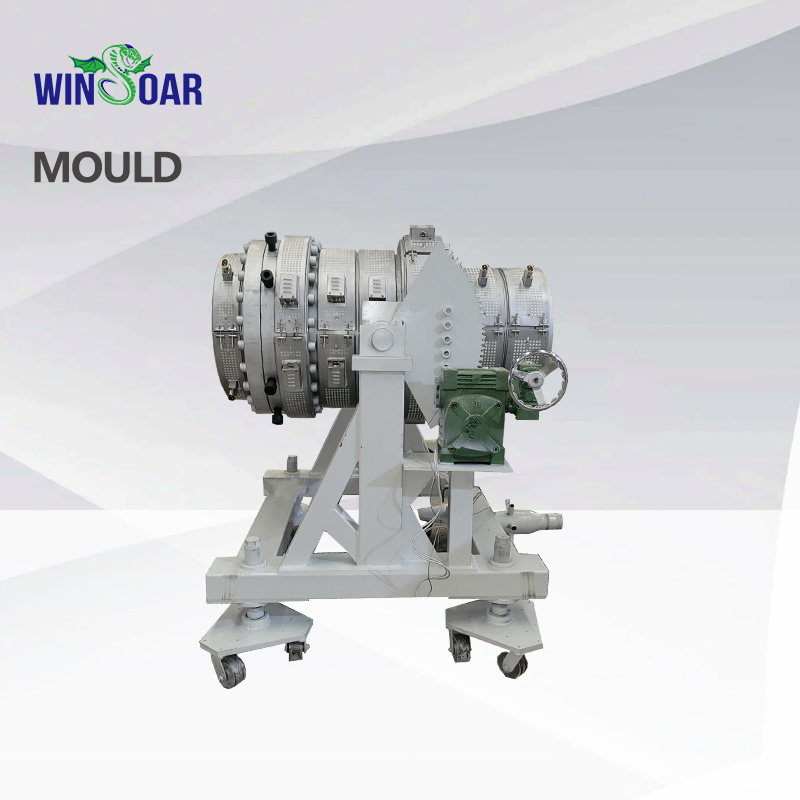

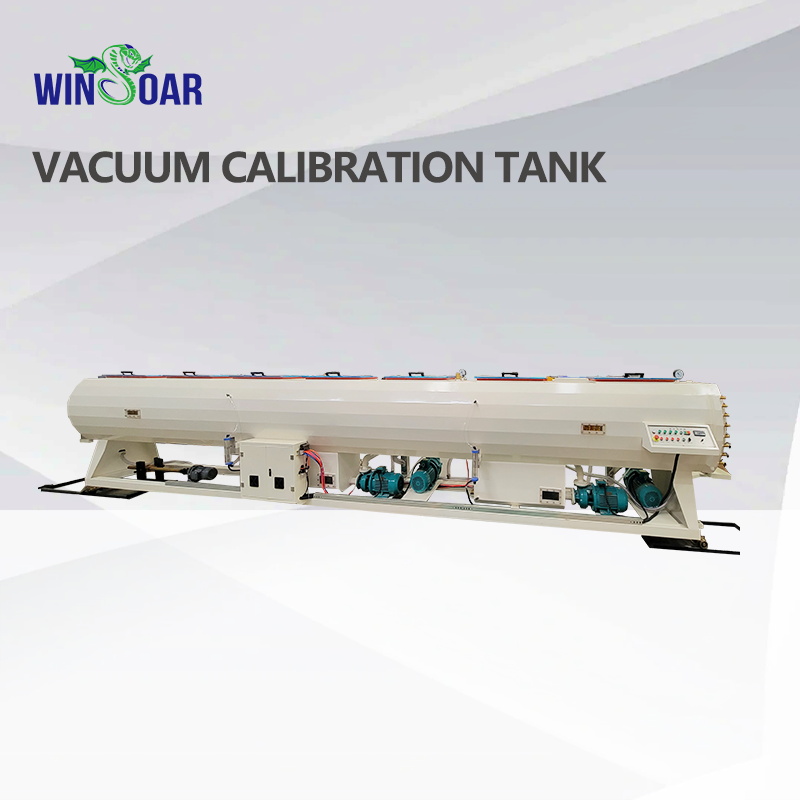

The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
Pipe Application Area:
1. Urban tap water supply, direct drinking water supply and different quality water supply.
2. Coal gas, liquefied gas and natural gas distribution and transportation.
3. Corrosive water drainage.
4. Water conservancy and farm irrigation works.

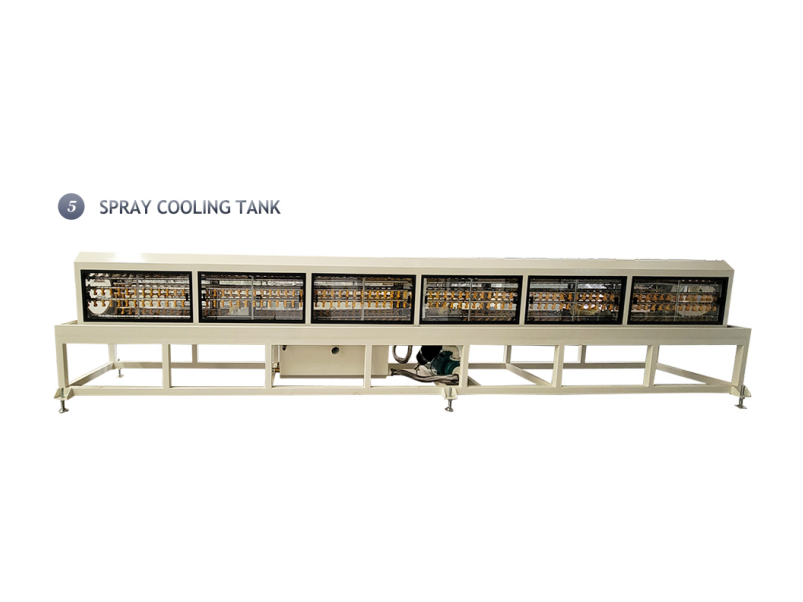

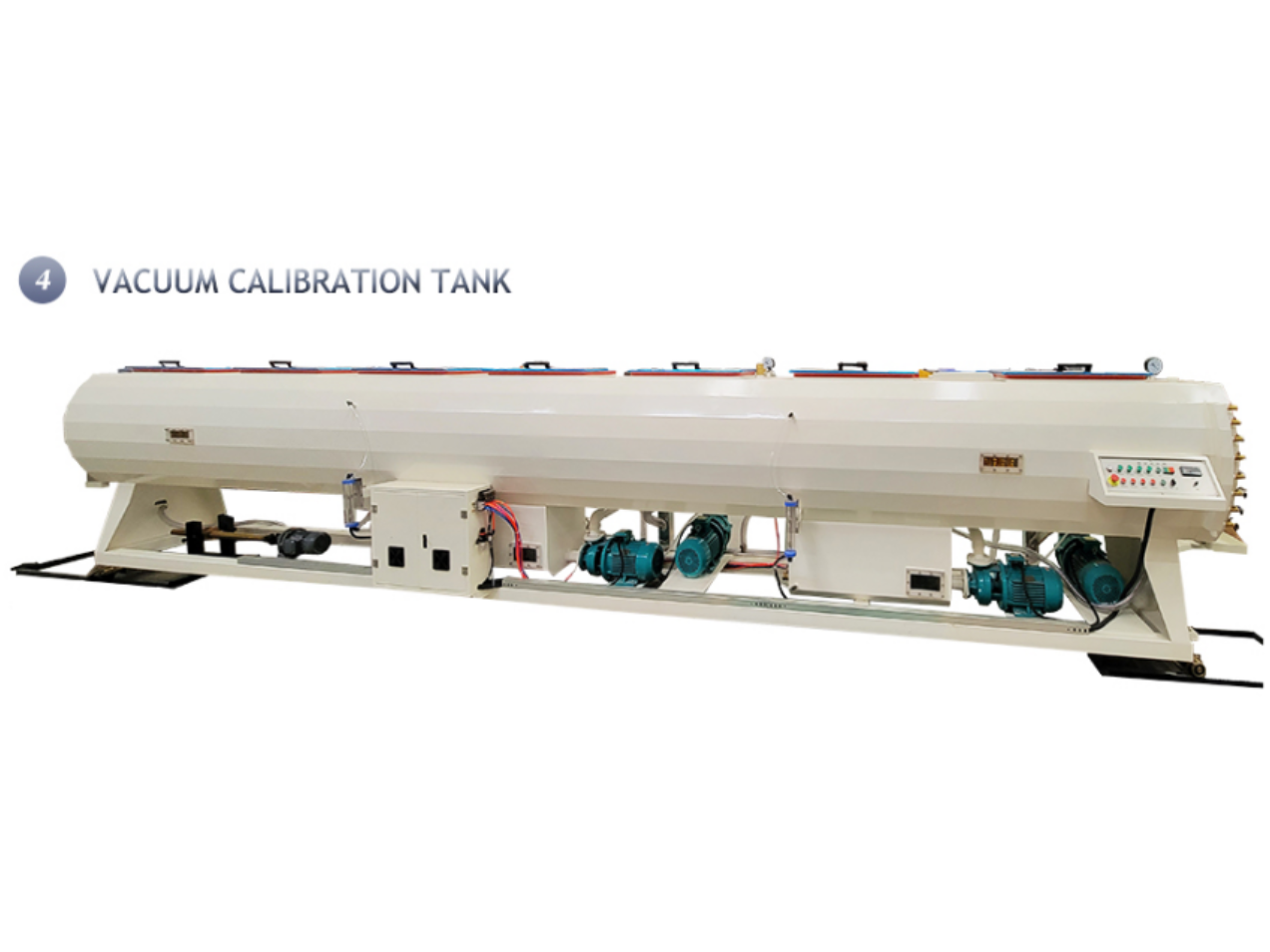

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker

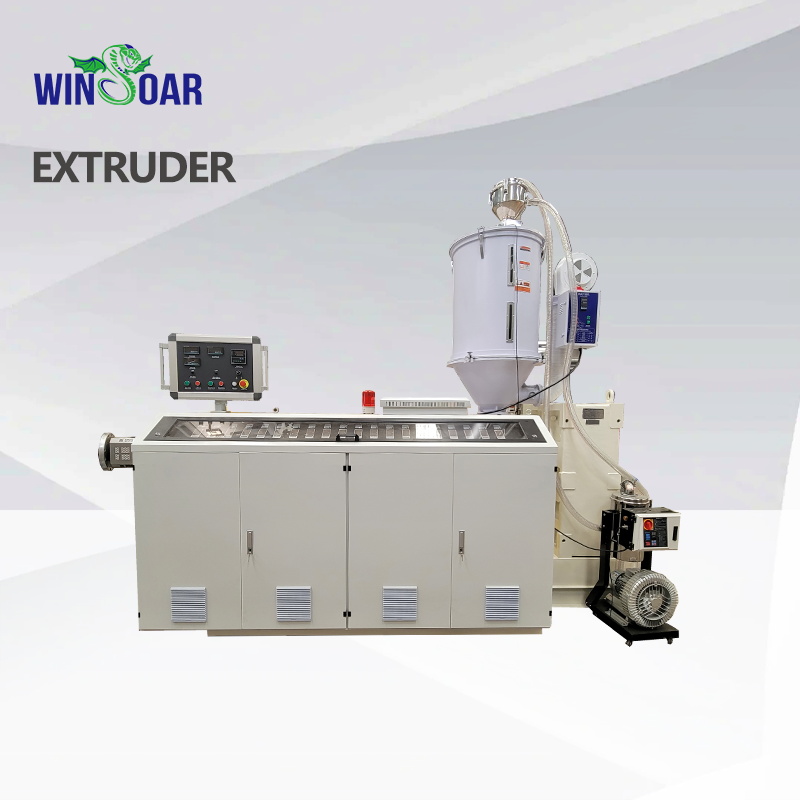

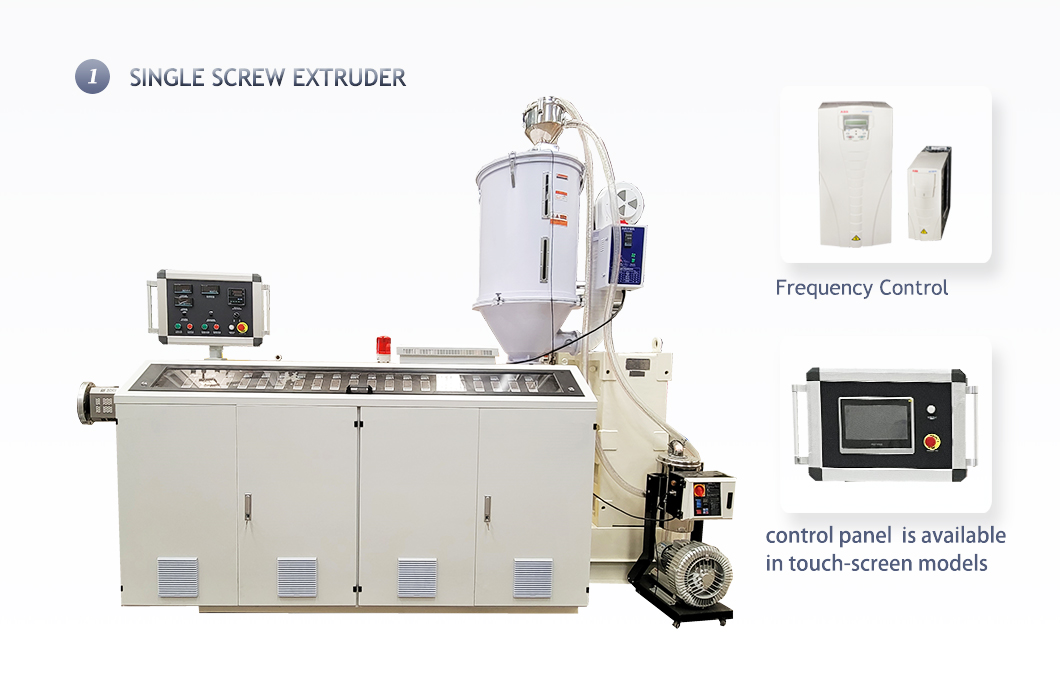

30m/min of maximum lineal extrusion speed For 20mm diameter, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-5 layers.
The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
Material feed via spiral groove, efficient transmission and can effectively reduce back-pressure on extruder.
Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation;
PCA(pipe air cooling system) of die head largely increase the extrusion speed and decrease the cooling length of extrusion line, and improve quality of inner pipe surface;
Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently;

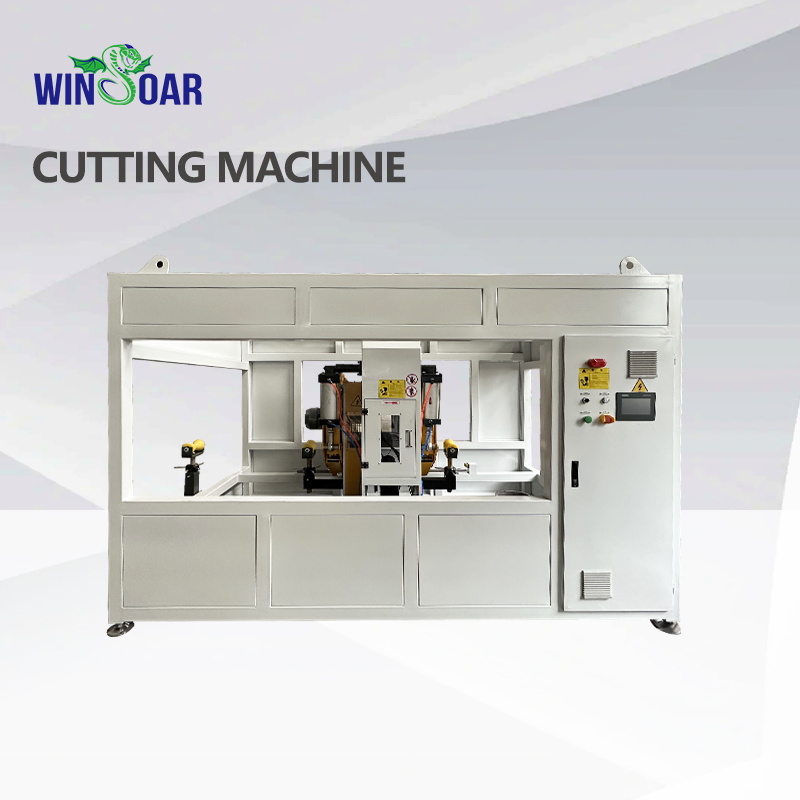

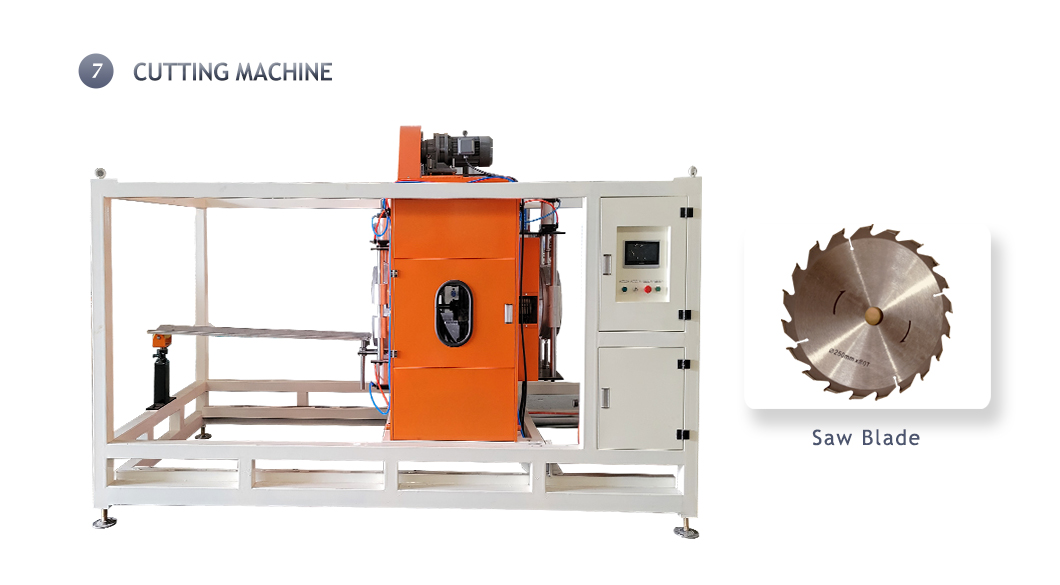

Chip-free cutter ensuing flat and smooth cutting surface of pipe.
Main Technical Parameter
33D Series Classical Production Line：
Max. Haul Off
38D Series High Efficient Production Line：
Max. Haul Off
Pictures for Reference
