China Winsoar PVC Resin / ASA Hollow Corrugated Roof Tile / Single Layer Glazed Roofing Tile Board Sheet / Panel Profile Making Extrusion Extruder Machine

Application & Features:
1. The line mainly used to produce PVC glaze tile which width is 720mm, 930mm, 1100mm, thickness is 2mm, 2.5mm, 3mm

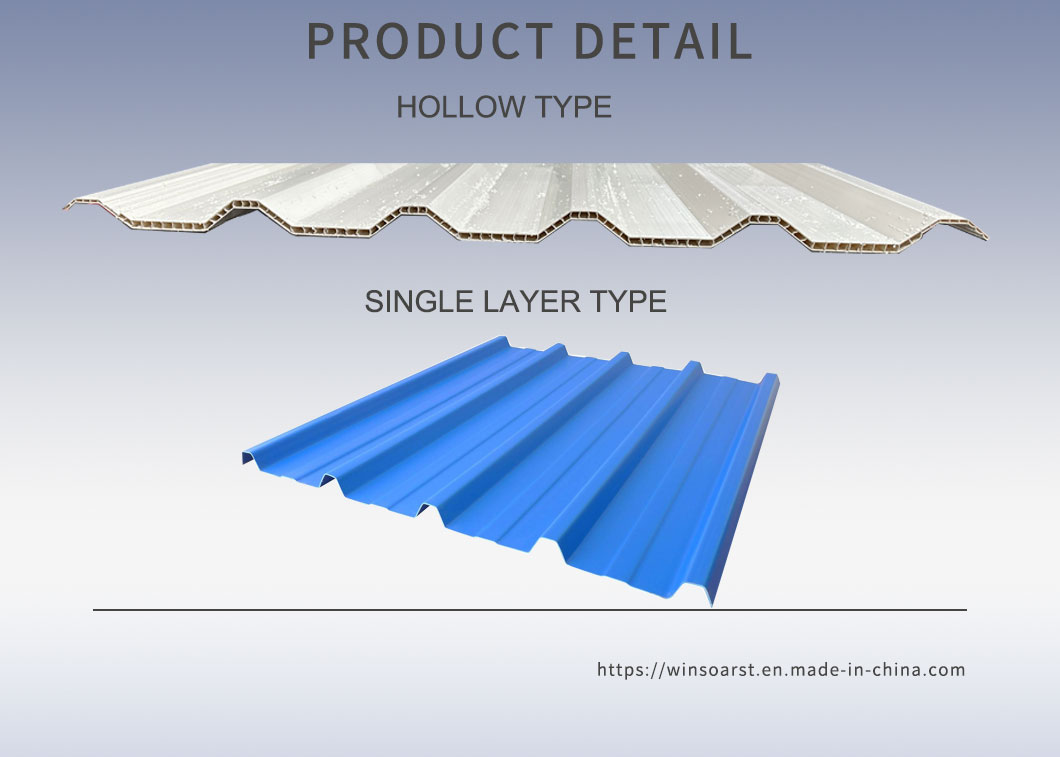

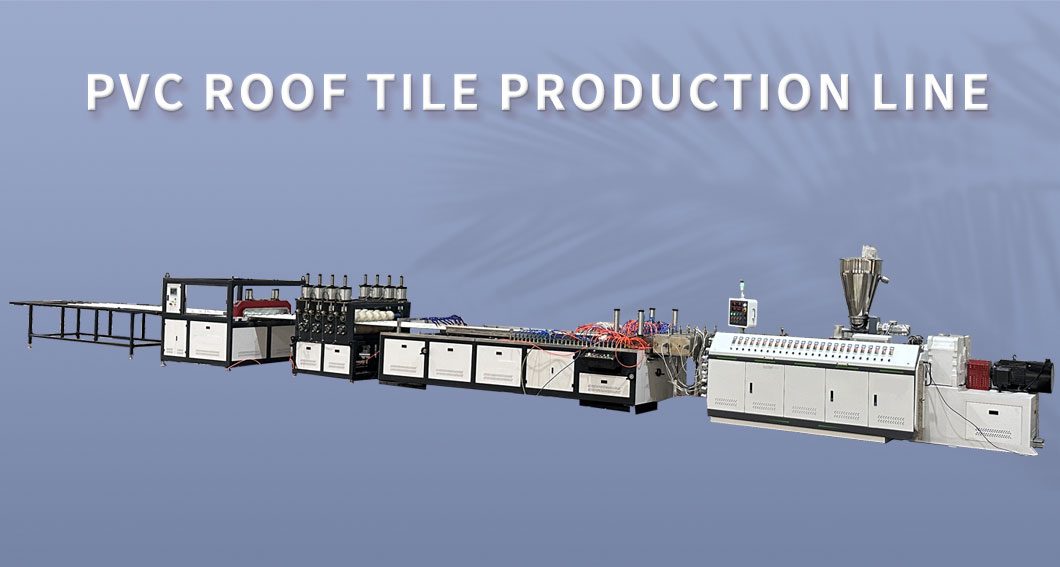

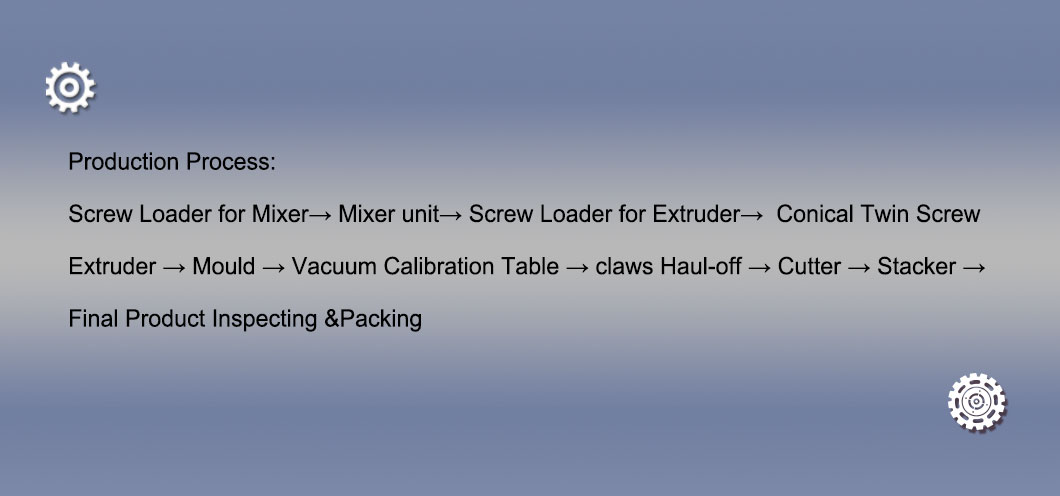

2. This PVC roof tile production line can produce both hollow and single layer type roof tile, it consists of extruder, flat T-die, calibration table, haul-off unit, cutting device and stacker etc.

3. Supply formula guide and staple raw material purchase

4. Professional analyzing and design by considering production cost and tiles's performance.

5. This PVC roof tile making machine owns these features: High production efficiency, reasonable and compact structure, convenient use and maintenance, long life and so on.

6.The PVC roofs are rich in color, beautiful in shape, strong in three-dimensional sense, cheap in quality, green and environmentally friendly, easy to install, and light tenacity, sound insulation, waterproof and corrosion resistance, aseismic and anti-fouling, fire insulation and so on.
Widely used in garden factories, tourist scenic spots, pavilions, hotel villas, exhibition halls, resorts, families and other buildings, and is an ideal roof decoration material.

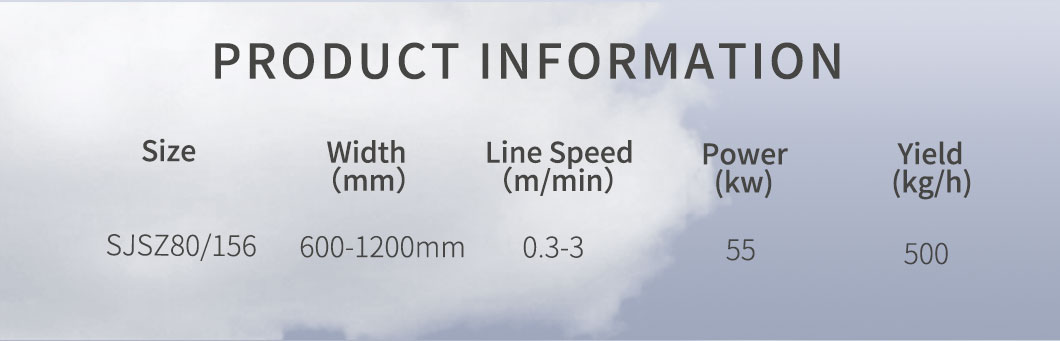

Specifications:

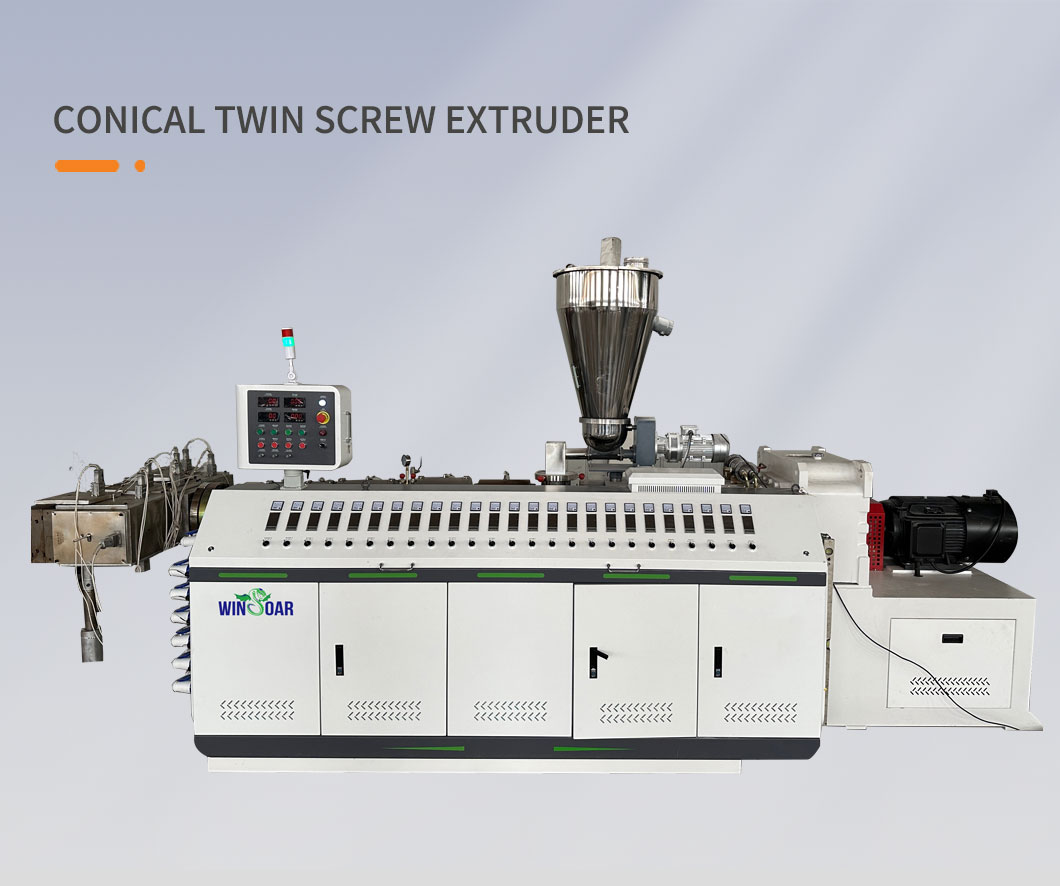

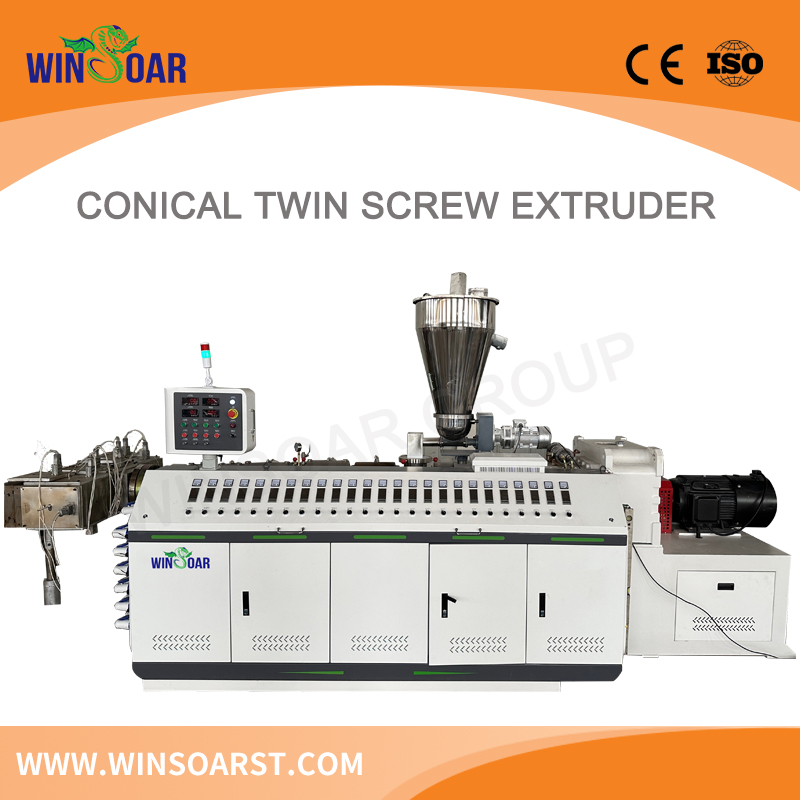

Conical Twin Screw Extruder
Model: SJZ80/156
Motor power: 55kw
Speed control: frequency inverter
This conical twin screw extruder is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

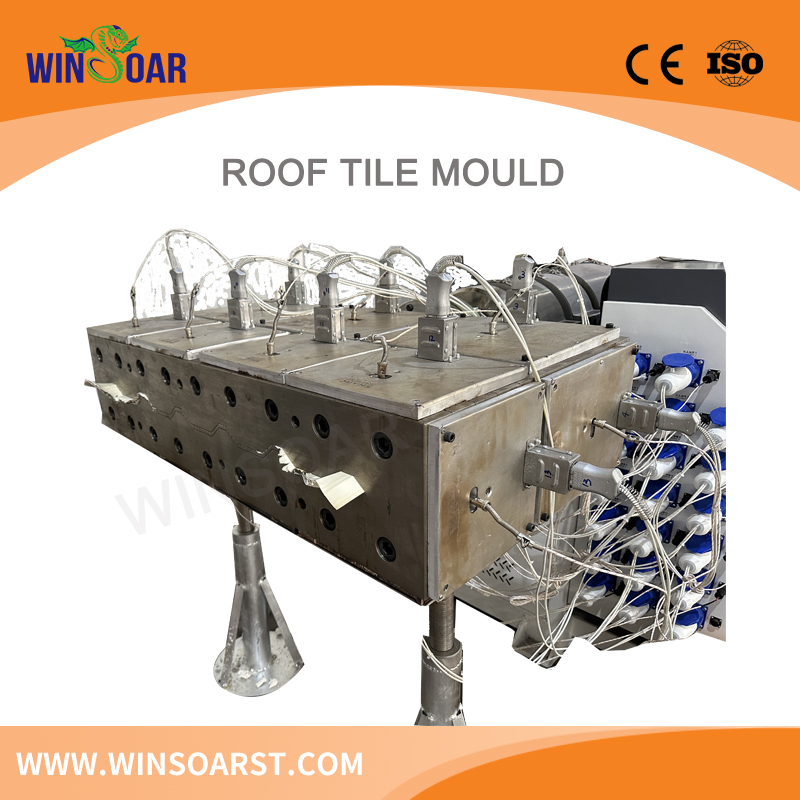

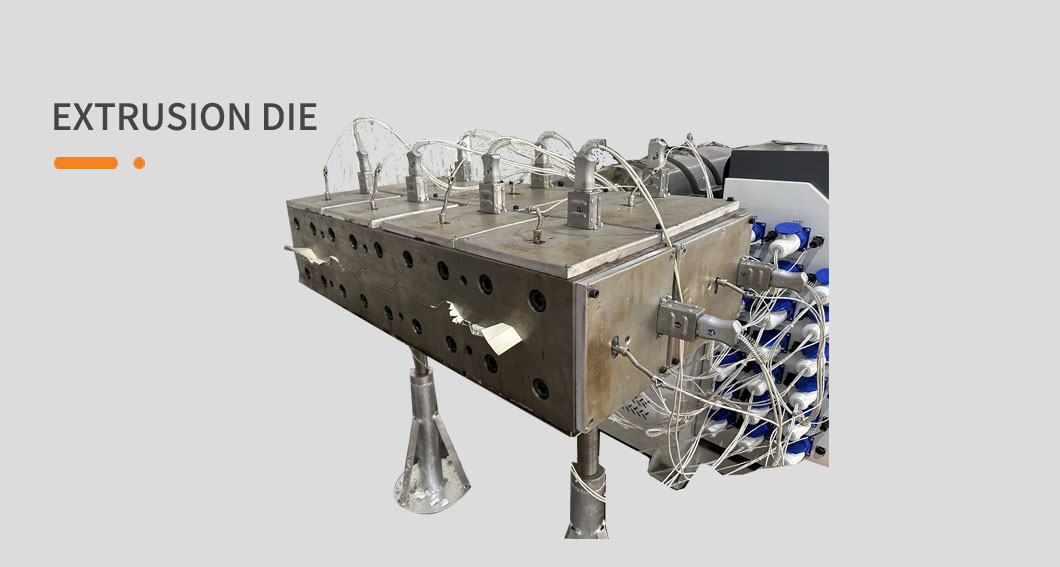

Extrusion Mould
After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of tile forming. The temperature is controlled by PLC or temperature meter.

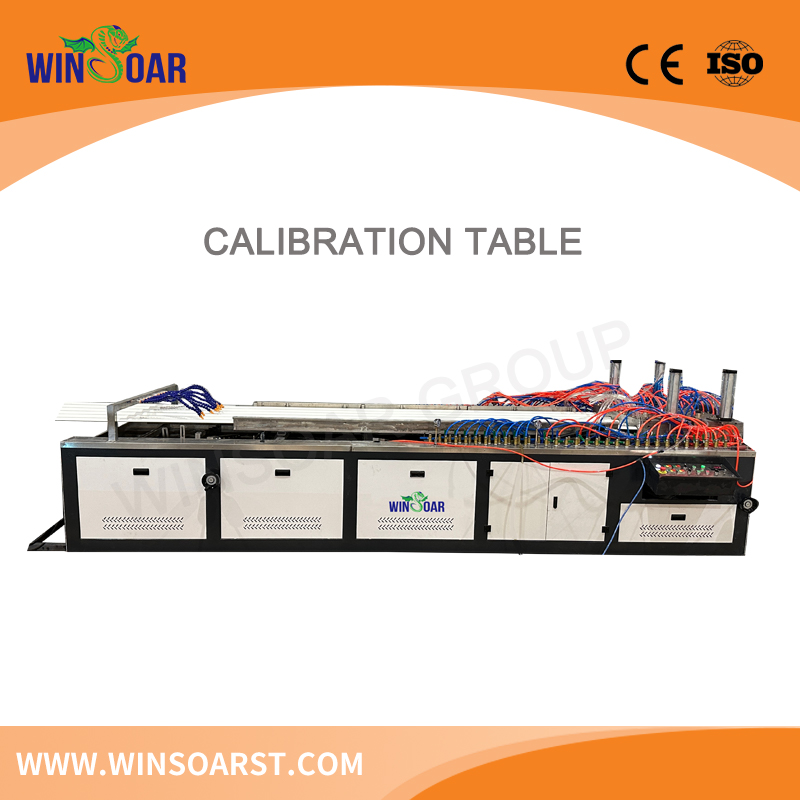

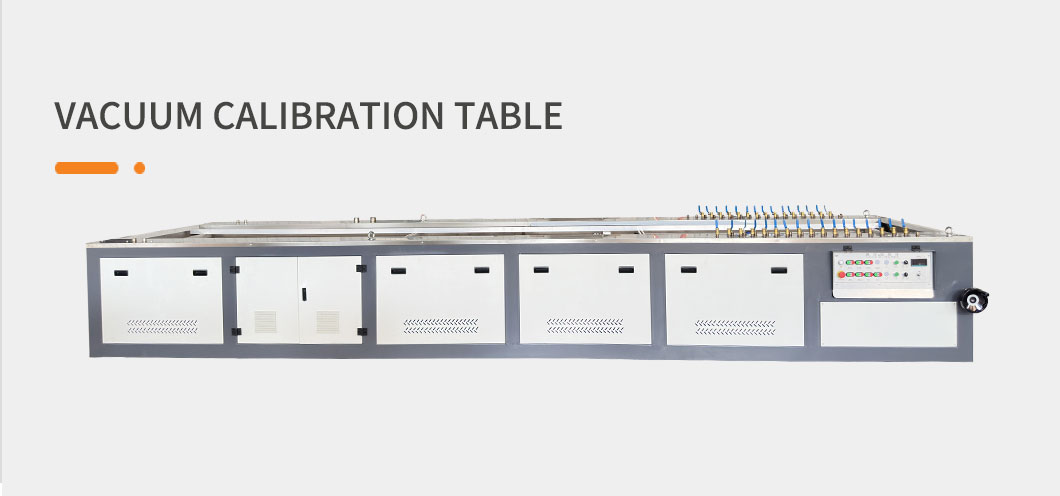

Calibration Cooling Table
Used for shaping and cooling of profiles, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water cooling.

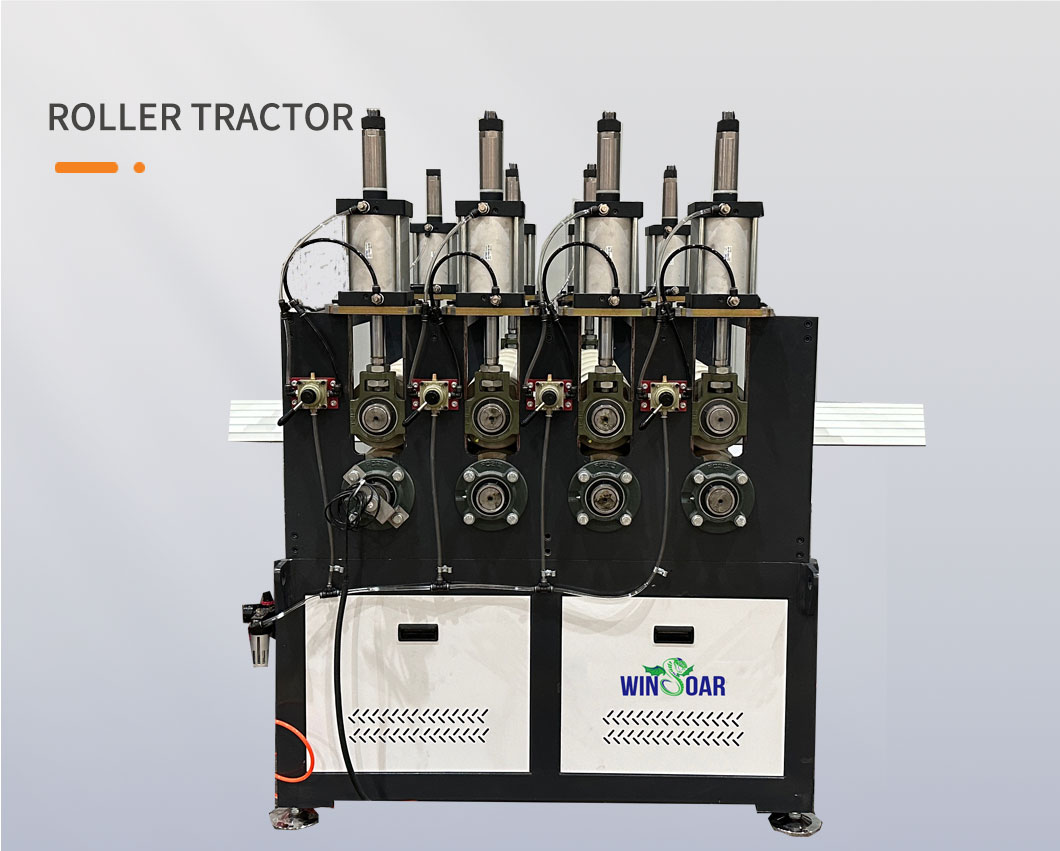

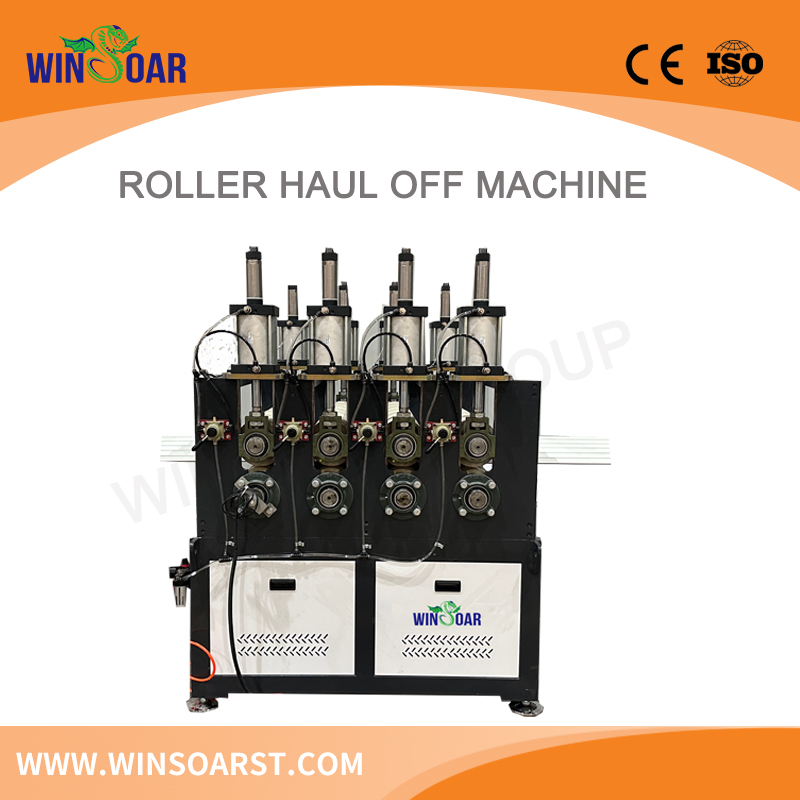

Roller Haul Off Machine
The tractor is roller type, used to continuously and automatically lead the cooled and hardened products from the machine head, and the speed is controlled by frequency inverter.

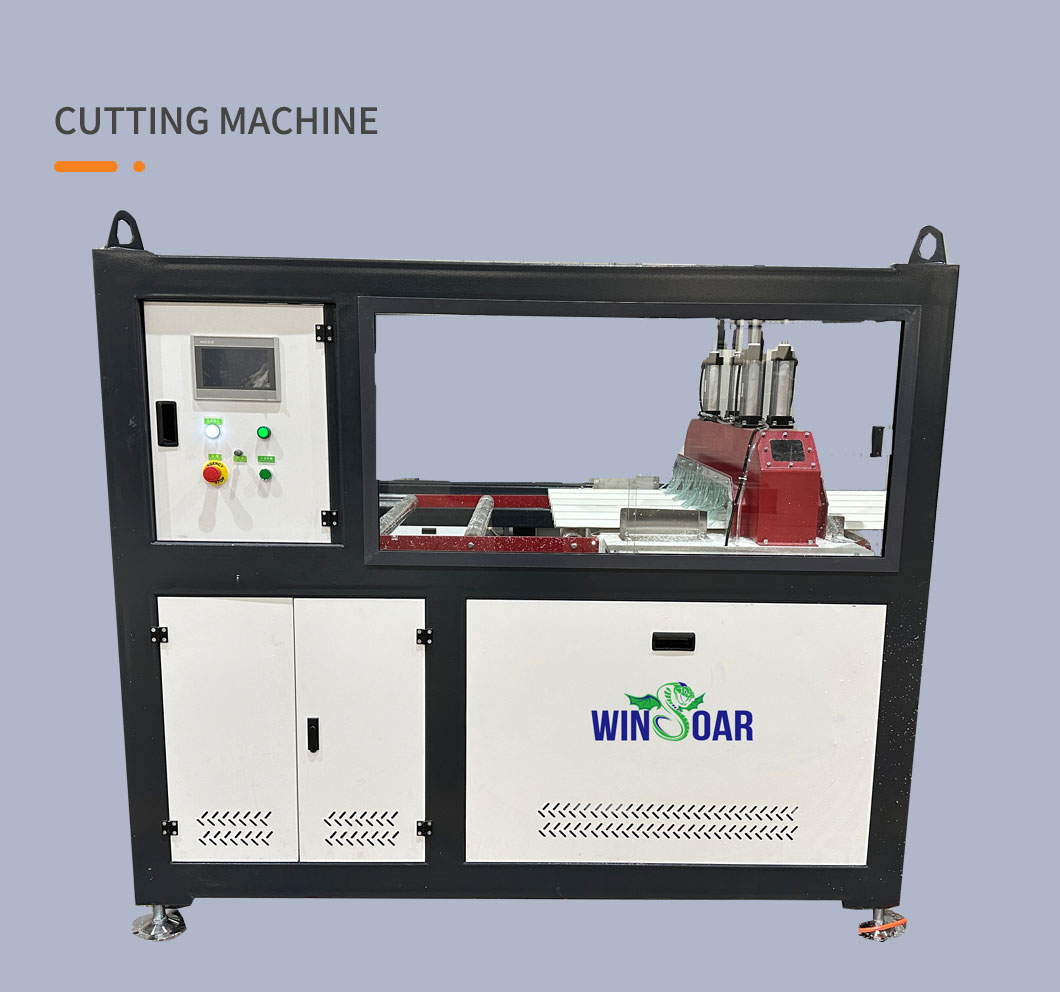

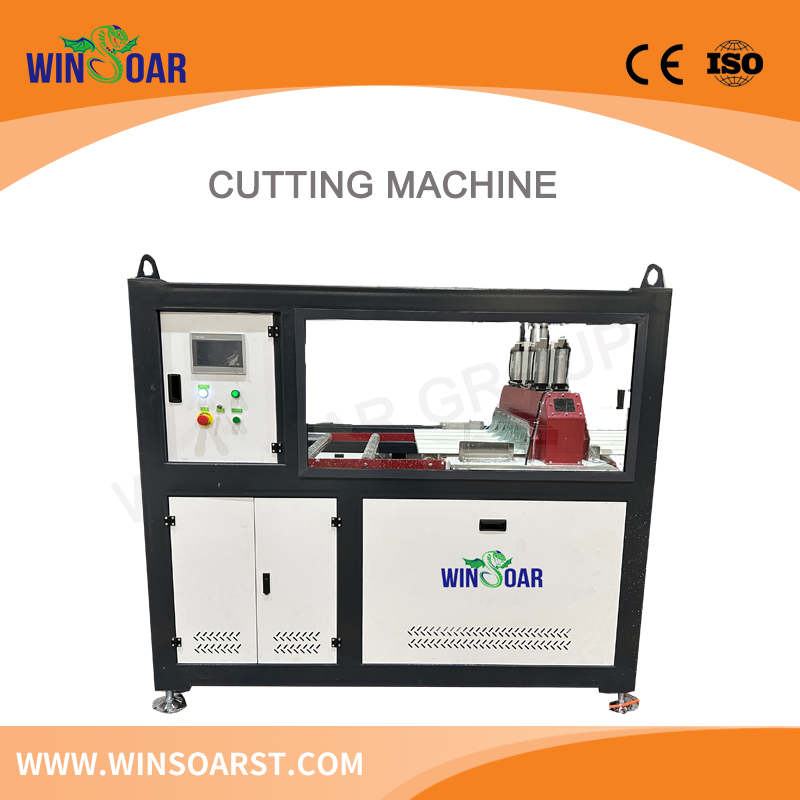

Cutting Machine
After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, products are cut smoothly.

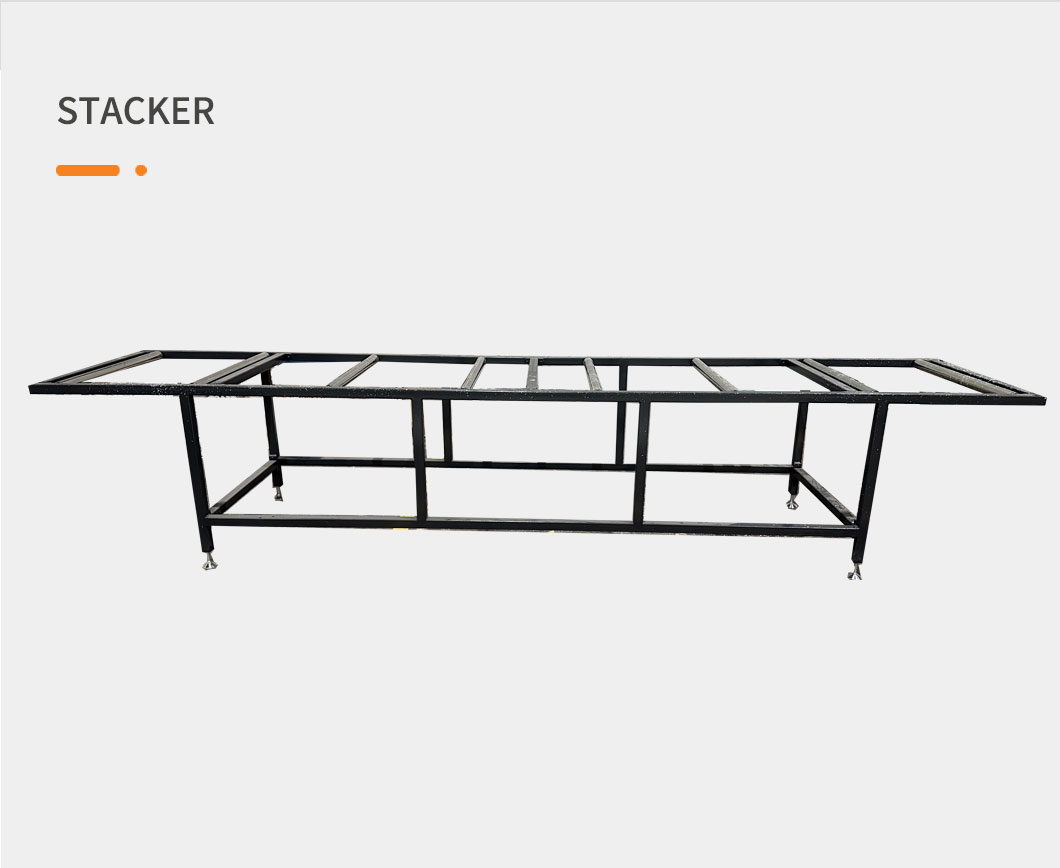

Stacker
Accept finished products and automatically turn over.
