PVC WPC Door Panel Making Machine Plastic PVC WPC Profile Production Line

5 0 Reviews
The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.
Availability:
Quantity:

Product Description

The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.

This line is consisted of conical twin screw extruder, glue extruder, vacuum shaping table, haul-off machine, cutting machine and stacker. This line adopts automatic control, has the features of high automatic, easy operation and stable and effective production. It can also produce different kind of WPC decorating wall panel, WPC wall board, quick installation pane with different size by changing different kind of mould.

It has such characteristics as flame retardant, anti-corrosion, non-slip, resistant to pressure, stable quality, low prices and simple construction, compared with other flooring materials with better performance, better decorative effect, is suitable for the movable plank house, factories, shopping malls, home, office and other occasions.

Features:

1)Extruder screw and barrel with vacuum degassing system can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Vacuum calibrating and cooling Table: the table is made by #304 stainless steel, good strength and performance, long life time.
6) Traction machines: Rubber block traction belt, traction speed is adjustable by ABB frequency inverter.

7) By changing different types of mold, it can produce all kinds of fast loading wallboard with different types, sizes, shapes, thickness.

8) With rich production experience, Jwell can provide on-site installation and debugging services freely.

9) Used for producing WPC decoration product, which is widely used in house and public decoration field, features non-pollution, high lifetime, heat insulation, anti-fire, easy clean and maintenance, easy change and recyclable.

Main Parameter:

Model

Profile Width

Extruder model

Motor power

Max.extrusion capacity

Calibrating platform length

WS-200

200mm

51/105

22kw

100-120kg/h

4000mm

WS-300

300mm

65/132

37kw

150-180kg/h

6000mm

WS-400

400mm

65/132

37kw

150-180kg/h

6000mm

WS-300

600mm

65/132

37kw

150-180kg/h

8000mm

WS-600

600mm

65/13 or 80/156

37 or 75kw

150-350kg/h

6000mm


Pictures for reference:

新主图_01

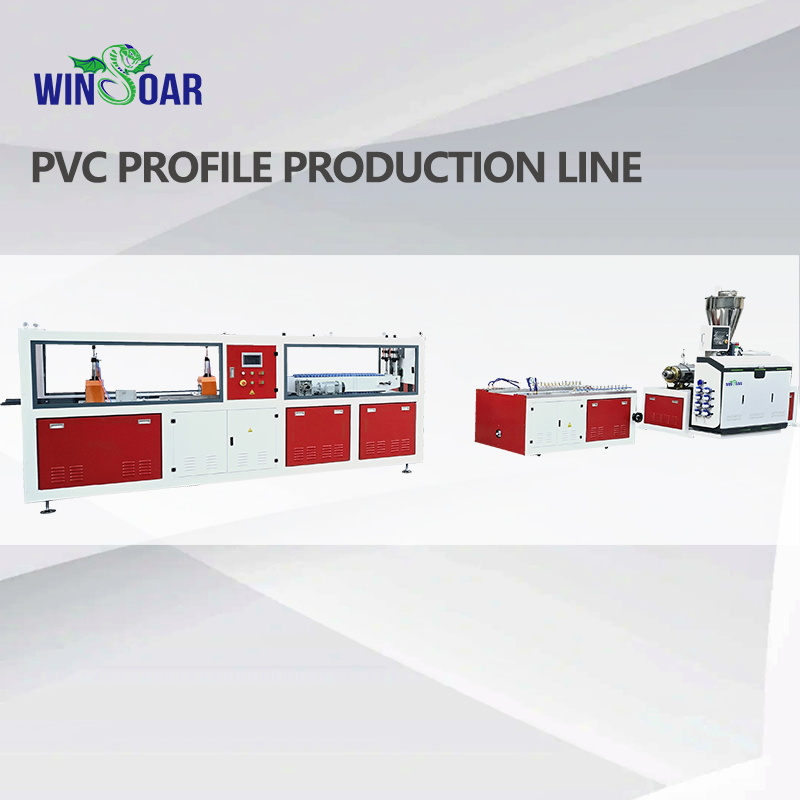

PVC PROFILE PRODUCTION LINE

PVC profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different mould, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on.


p2PVC-WPC_04

PVC-WPC_05

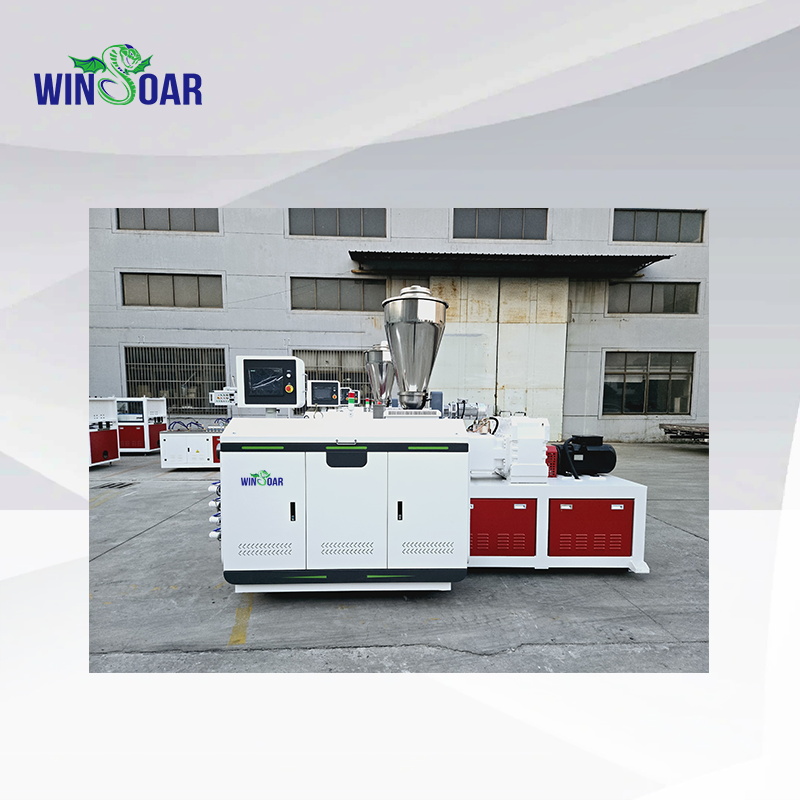

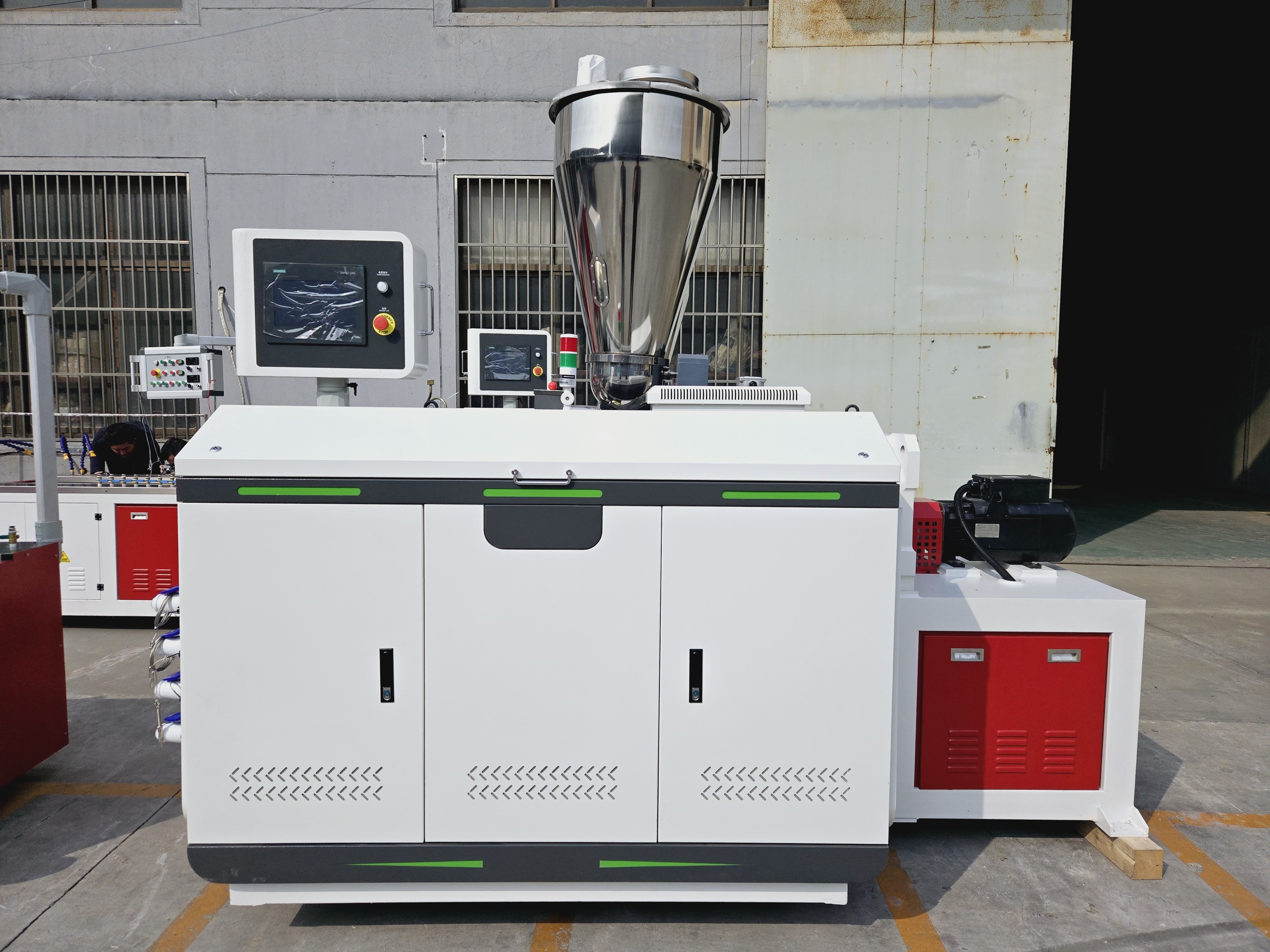

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-WPC_06


EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.


PVC-WPC_07

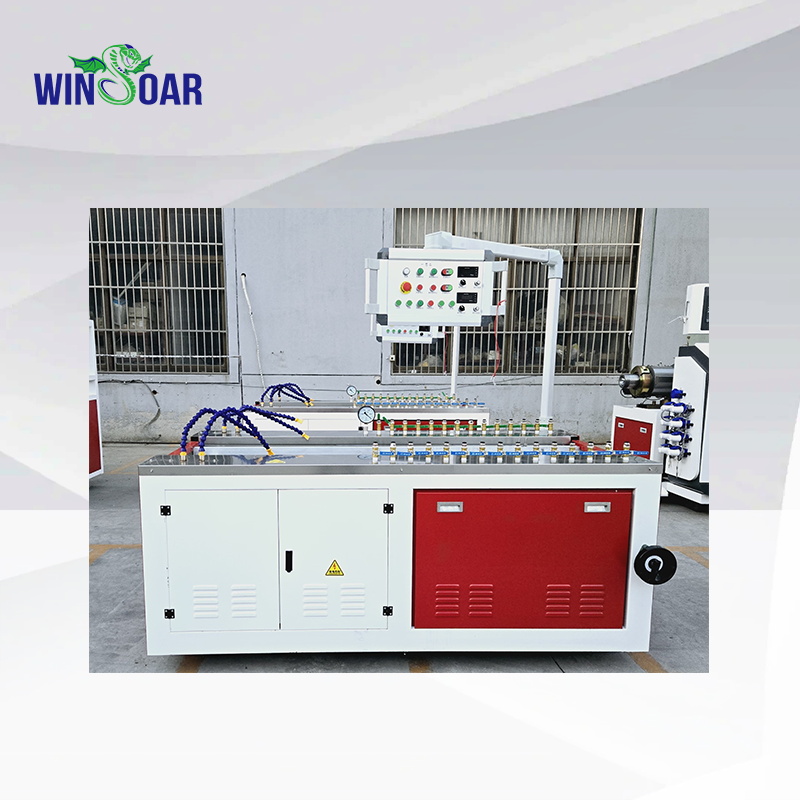

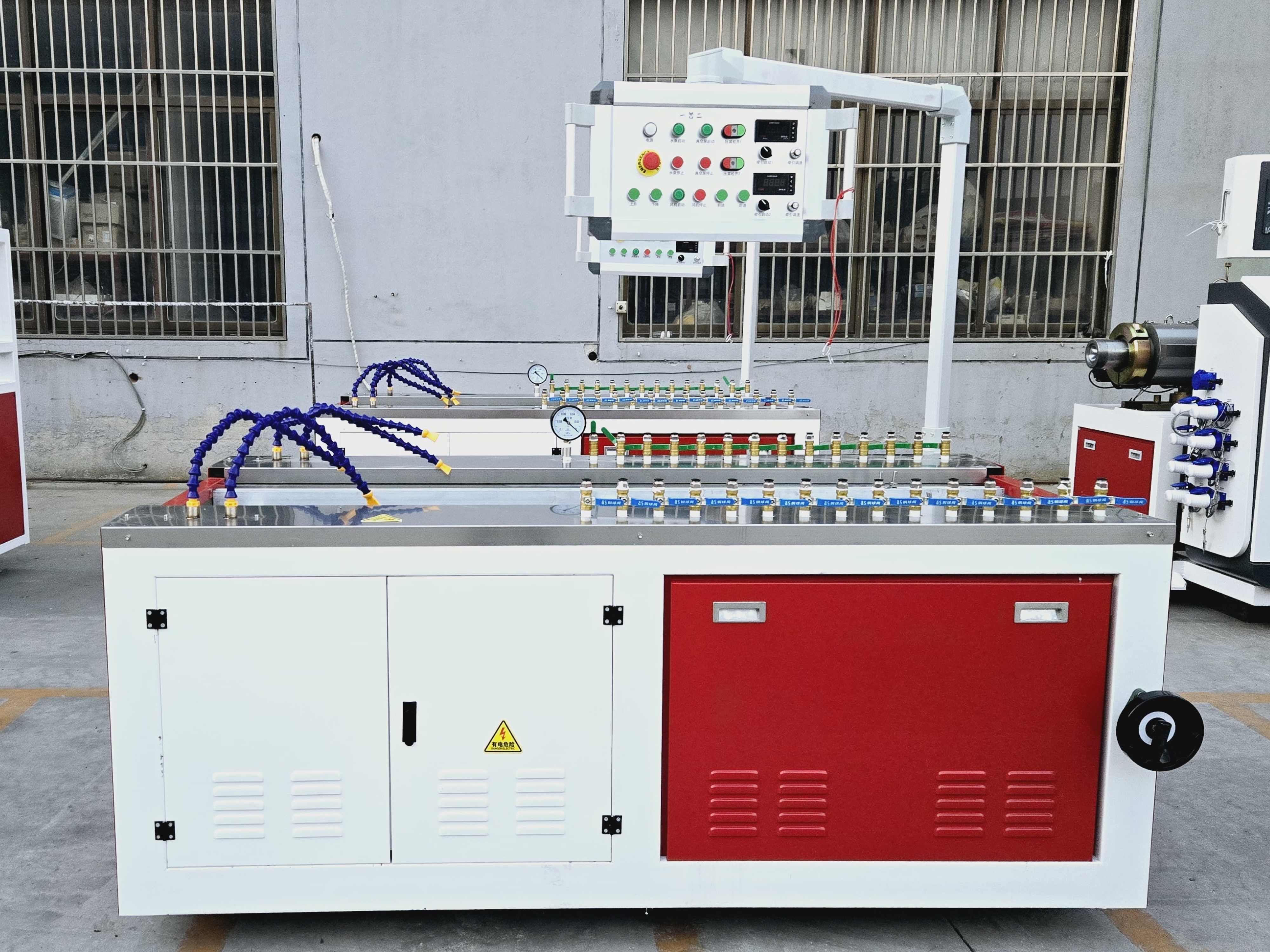

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.


PVC-WPC_08

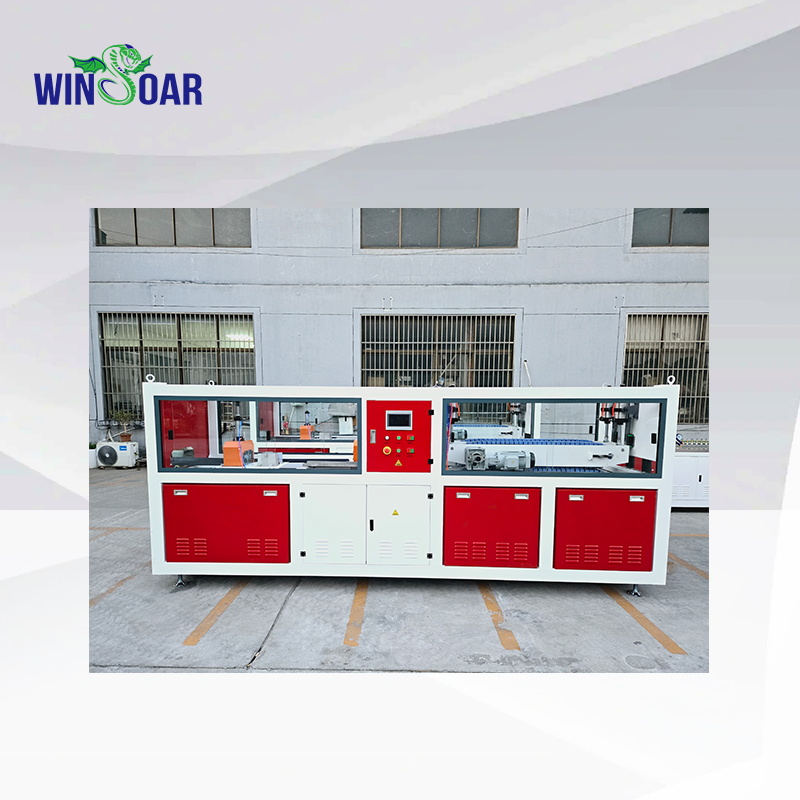

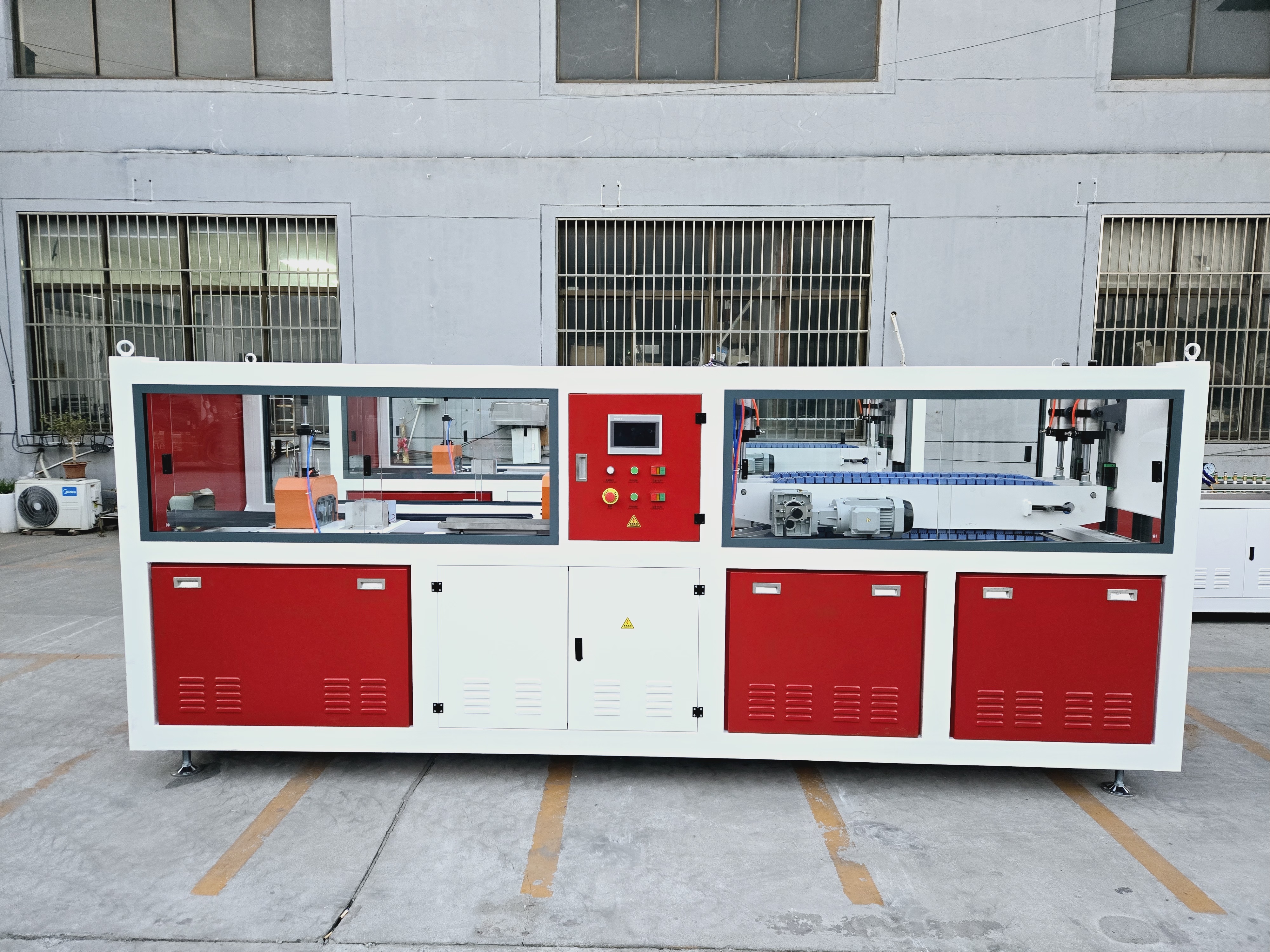

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.

PVC-WPC_09

CUTTING MACHINE

After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.


PVC-WPC_10..

Accept finished products and automatically turn over.

p7p8p9
