Indoor Decoration Fully Automatic Automated Ceiling/Wall Panel Production Line

The plastic ceiling panel production line can produce various kinds of decorative ceiling panel , wall panel and profiles, which are widely used for decorating and protecting the external surface of houses, office buildings, top class villas. It can be laminated with PVC, ASA, PMMA material etc. on the surface. It can be used in hot or cold, dry or wet area, which can bear long period irradiation of ultraviolet radiation and bad weather such as gale and rainstorm, long life and easily to operate. And it also has the advantages of good fireproofing, high capacity, easy installation, low price and long using life.

PVC WPC door board machine production line is mainly used for making WPC door board with different width and thickness. The surface of door board can be treated by printing & coated with glossy oil, heat transfer printing or lamination, which can help the door panel get good decorative effect for house door, kitchen, toilet, balcony and so on.

1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.

3. Gearbox with nice outline, stable running, low noise and long service time.
4. Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
5. Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
6. Vacuum calibrating and cooling Table: the table is made by #304 stainless steel, good strength and performance, long life time.
7. Traction machines: Rubber block traction belt, traction speed is adjustable by ABB frequency inverter.
8. Cutting machine: saw blade cutting, low noise, quick cutting performance, with dust collection device.

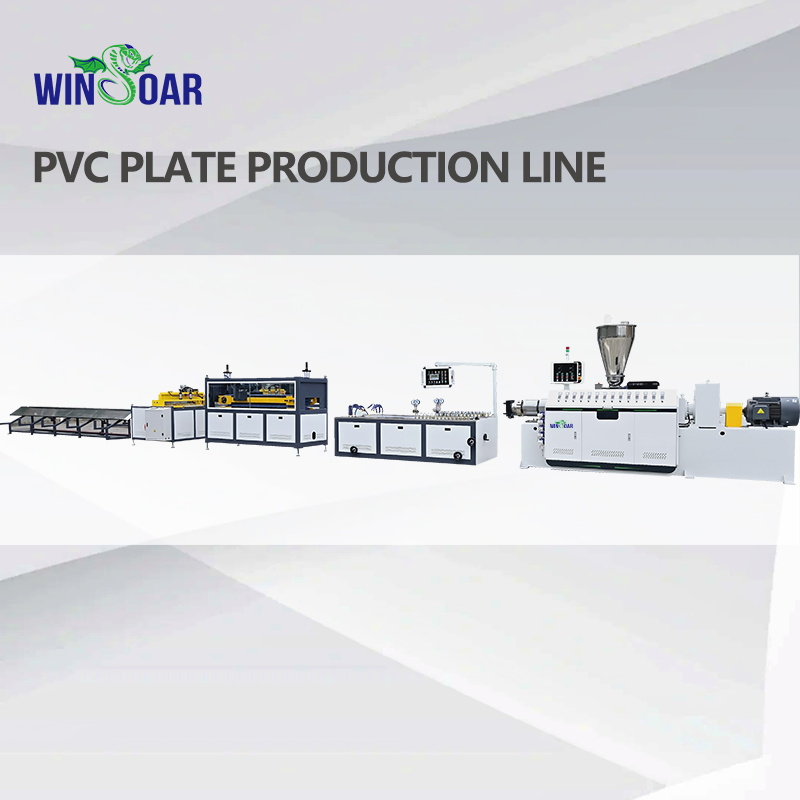

PVC PIATE PRODUCTION LINE

The production line adopts automatic control,with high degree of automation, stable equipment easy operation and high production efficiency.

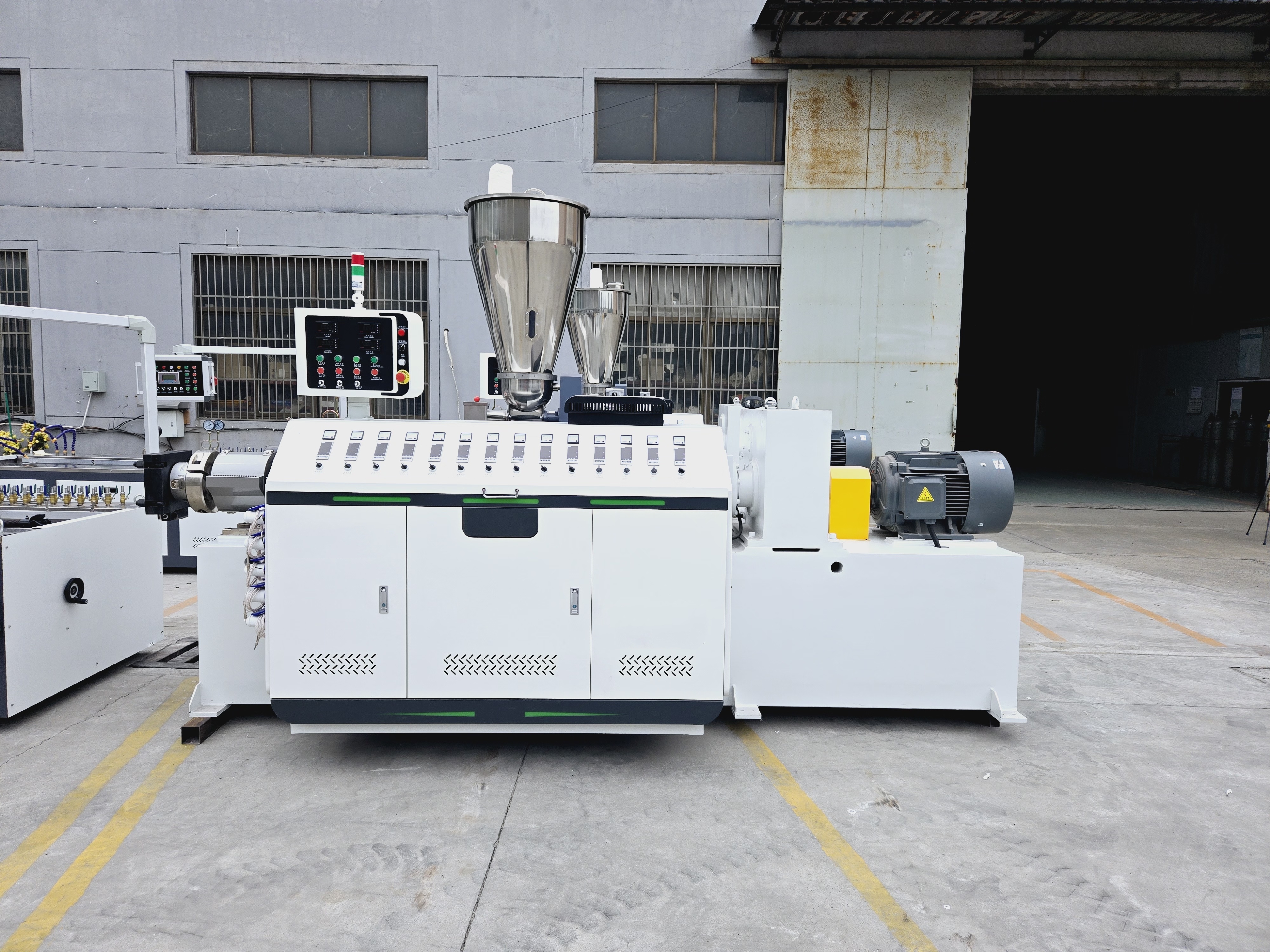

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

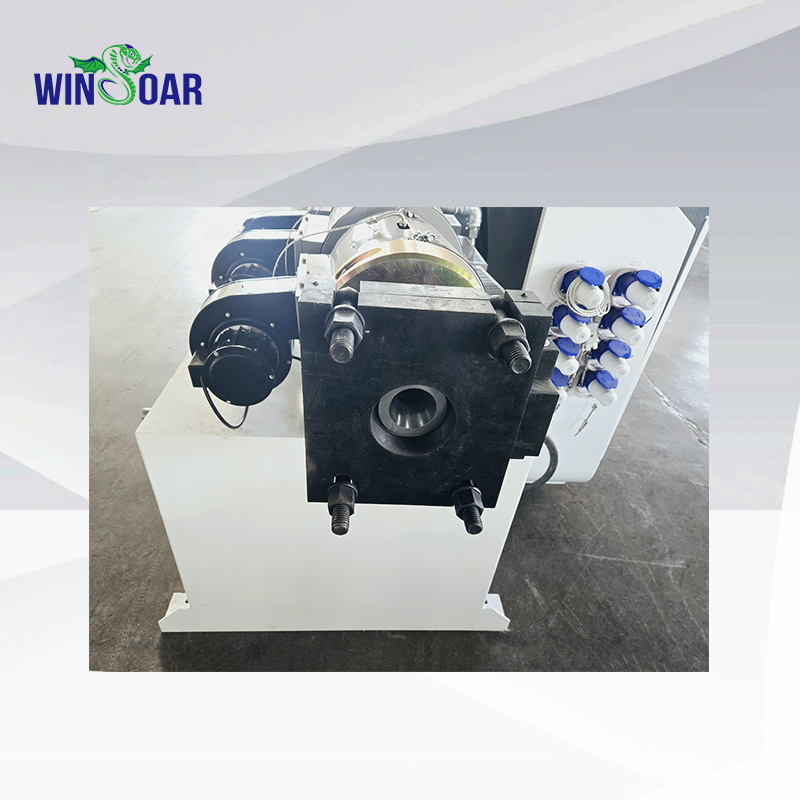

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.

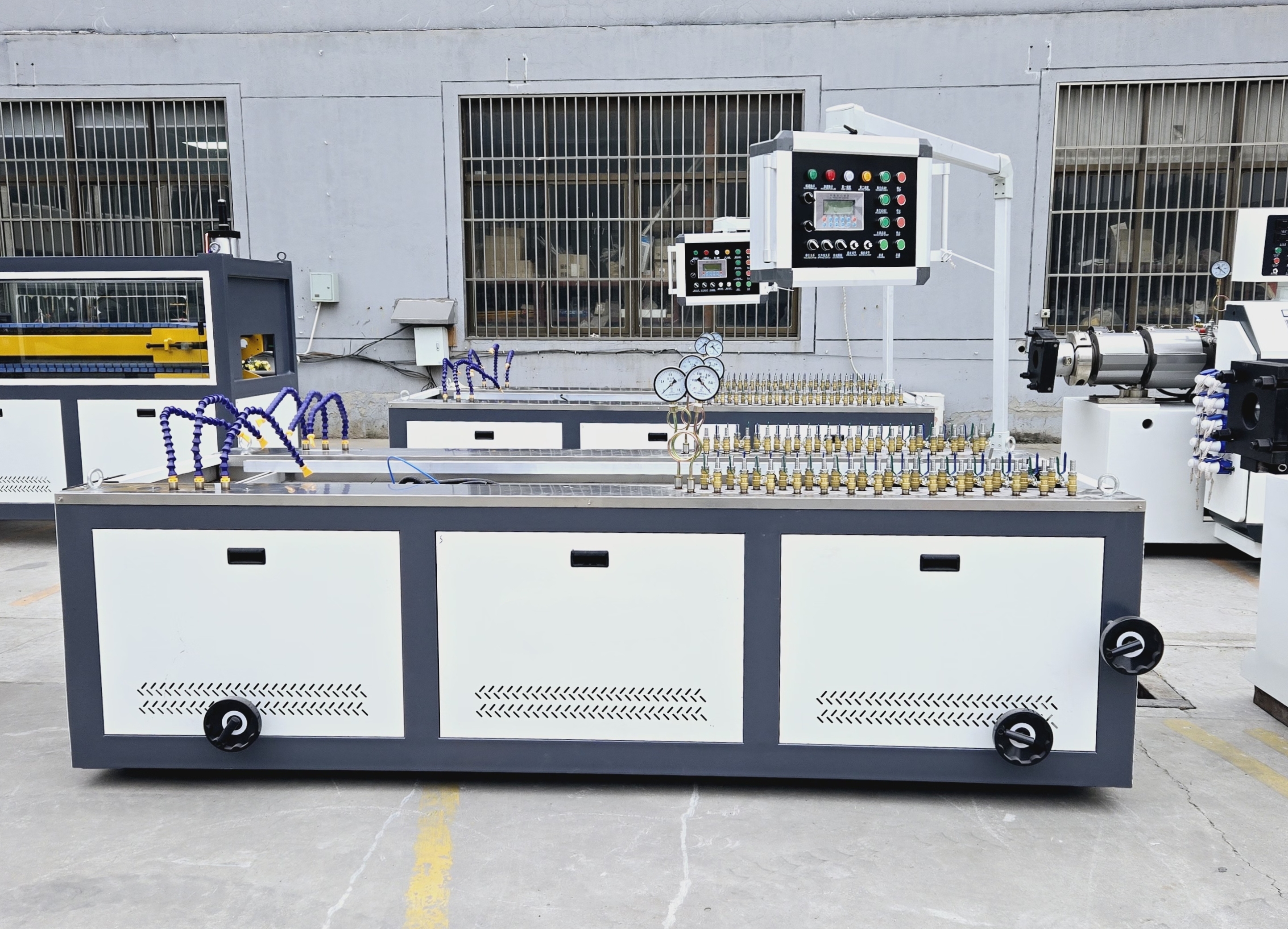

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

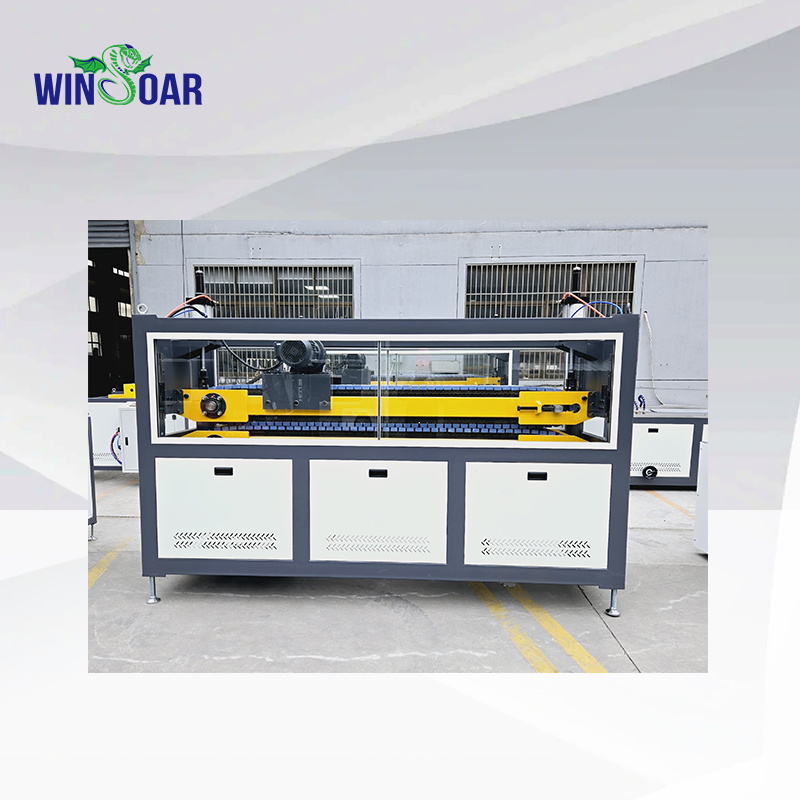

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.

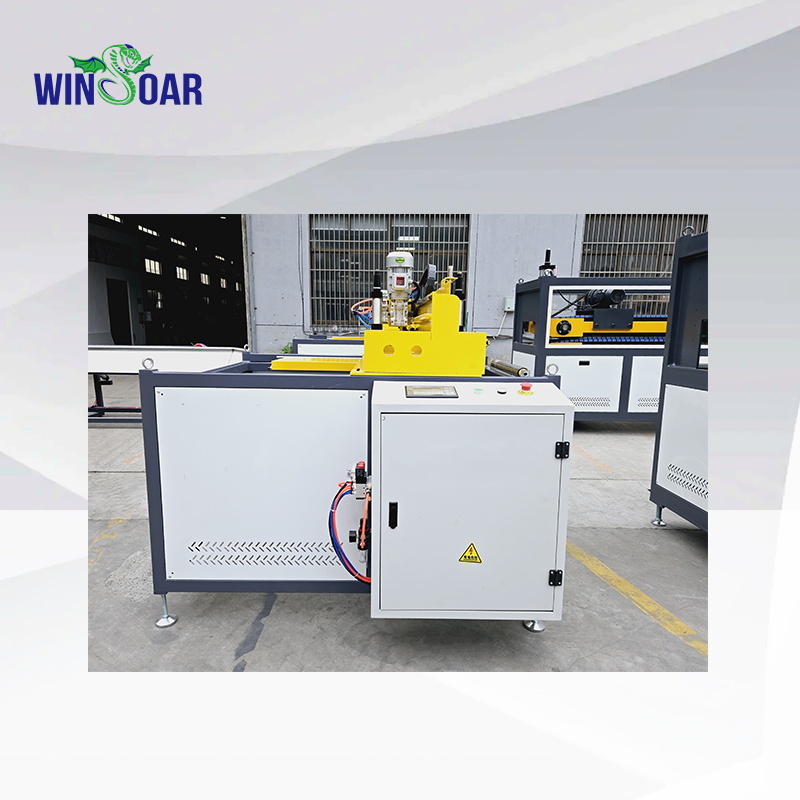

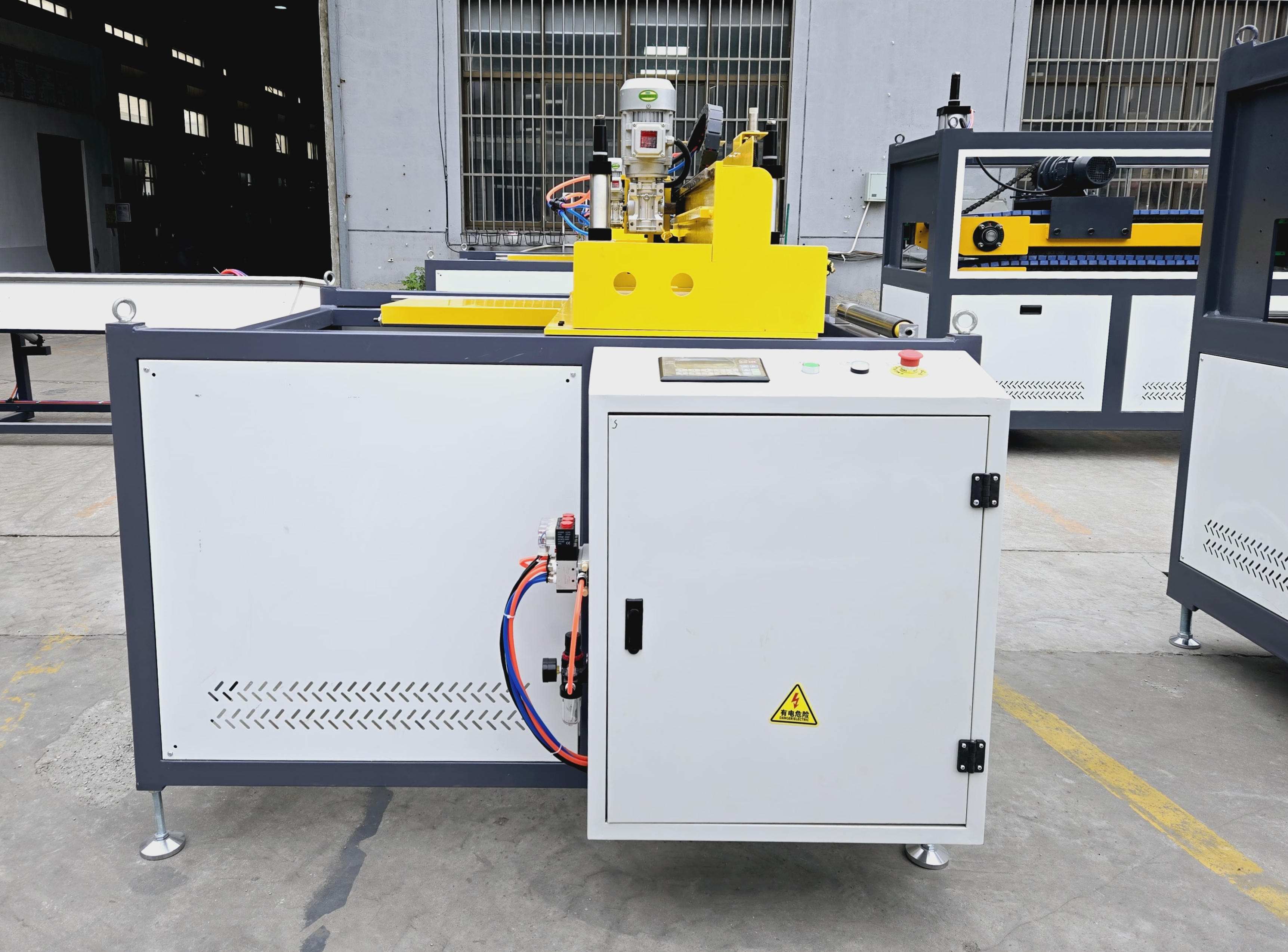

CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

HORIZONTAL CUTTING MACHINE

Automatic pressing, sawing, hidden saw blade, low noise and high safety.

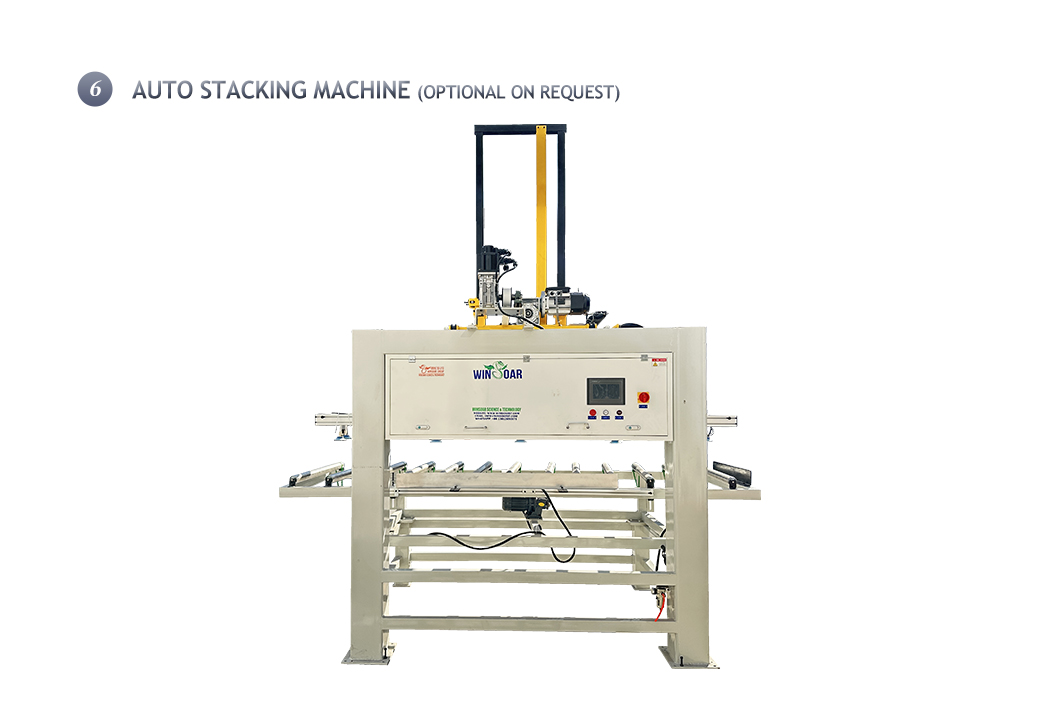

AUTO STACKING MACHINE (OPTIONAL ON REQUEST)

It can automatically receive and stack plates, saving personnel time for plate placement.

PLATE STACKER (OPTIONAL ON REQUEST)

Receive finished product and unload.
