Customized Thickness Matt White and Black PVC Edge Banding Production Line

The PVC edge banding production line is specialized equipment used to manufacture decorative edge materials for furniture, cabinets, doors, and windows.

Main Components of the PVC Edge Production Line

1. Raw Material Preprocessing System

o Mixer: Uniformly blends PVC resin, plasticizers, stabilizers, fillers, and colorants in specified ratios.

2. Extruder

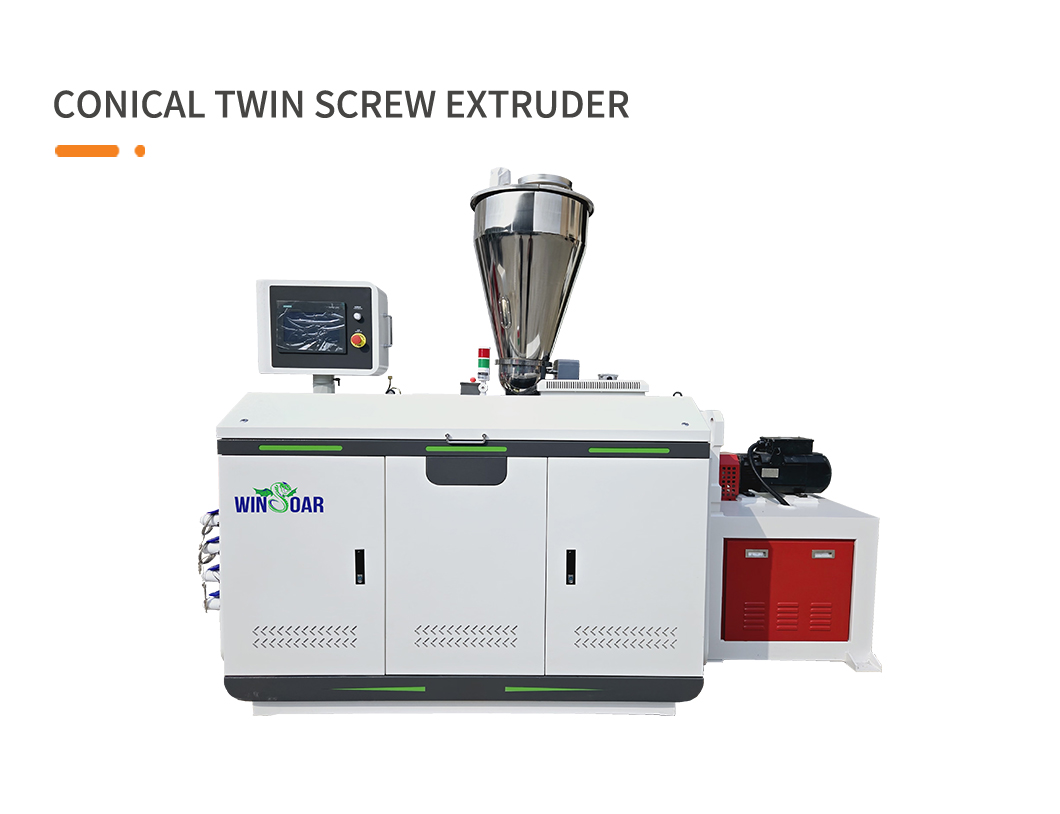

o Double-Screw Extruder: Melts and plasticizes the mixed material, then extrudes it through a die.

o Die (Mold): Determines the cross-sectional shape and dimensions of the edge band (common thickness: 0.3-3mm, width: 10-80mm).

3. Auxiliary Equipment

o Printer (optional): Applies wood grain, stone patterns, or other designs.

o Embossing Unit (optional): Creates textures (e.g., matte effects) via rollers.

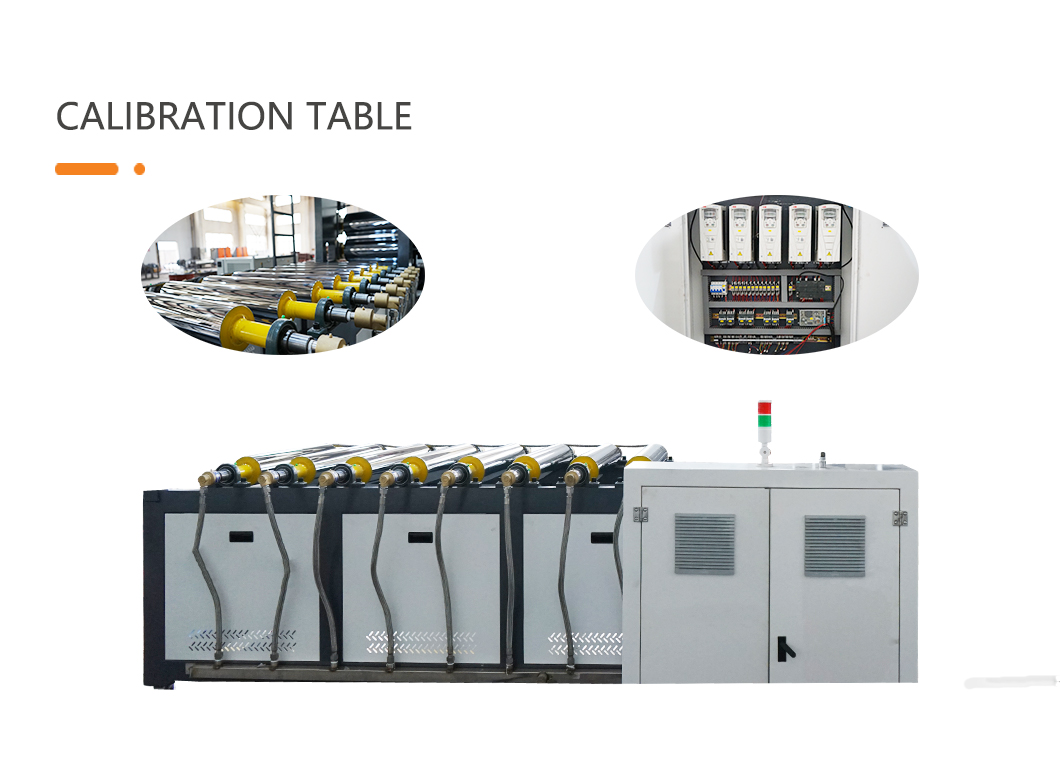

o Cooling Tank: Rapidly cools and solidifies the edge band for dimensional stability.

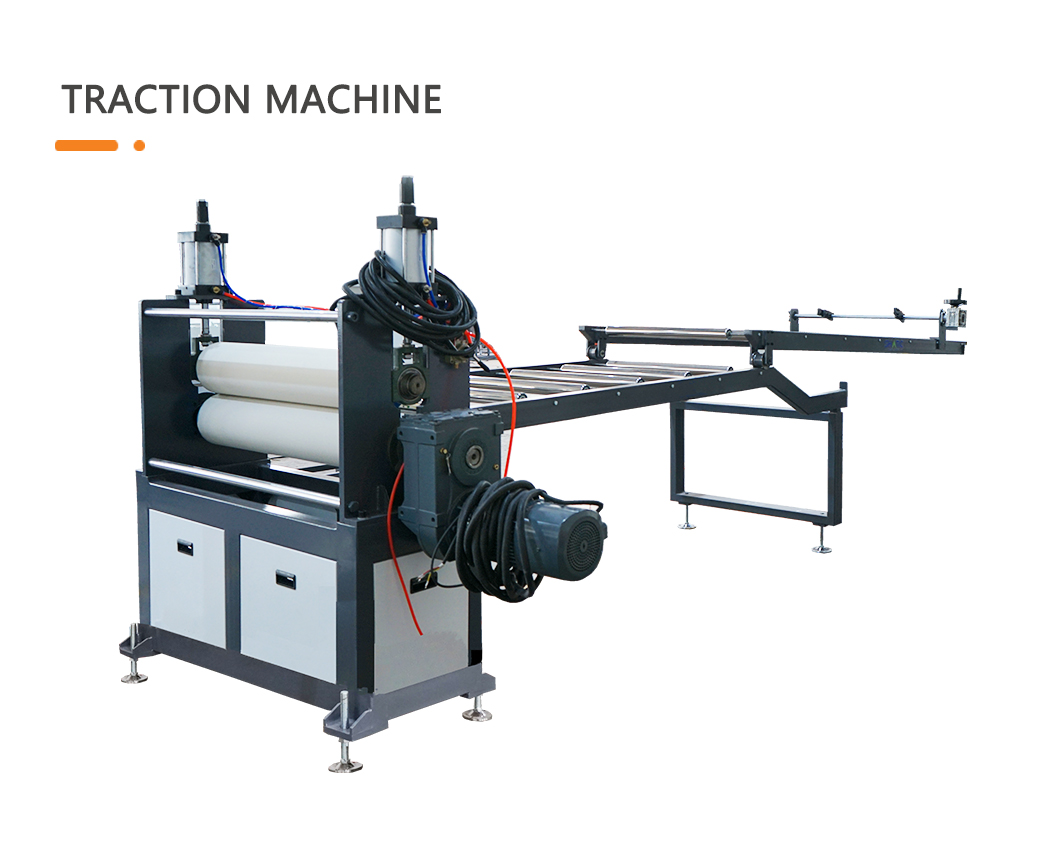

o Puller: Continuously draws the edge band at a consistent speed.

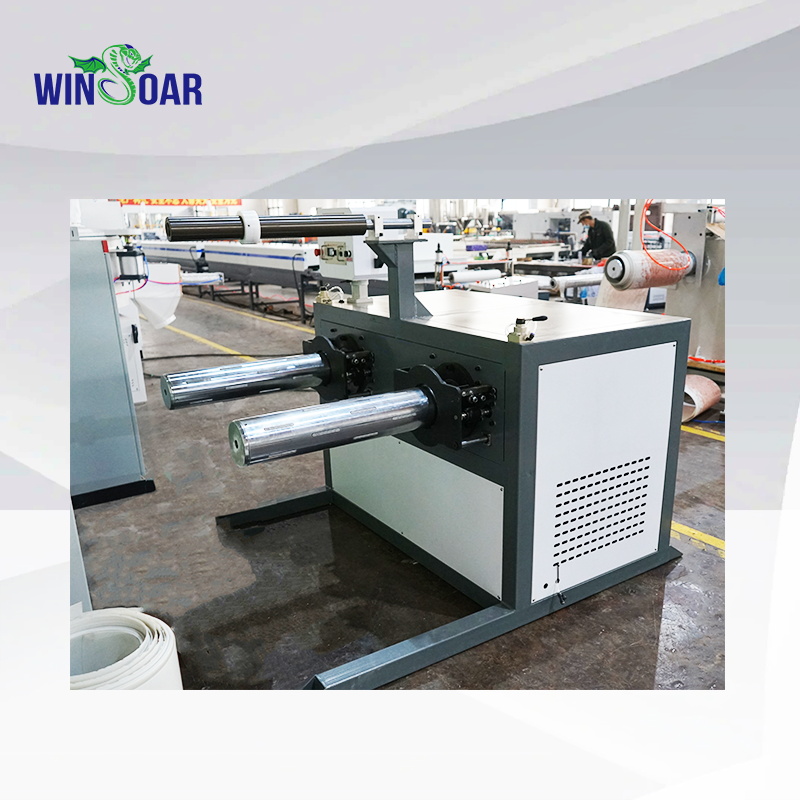

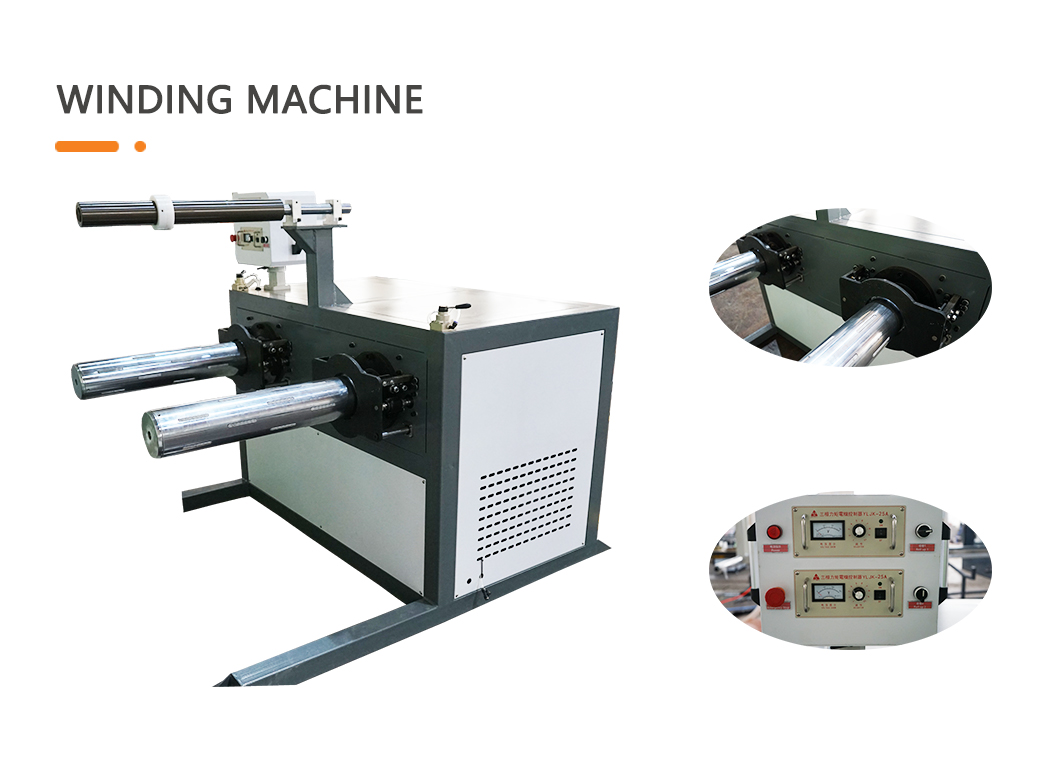

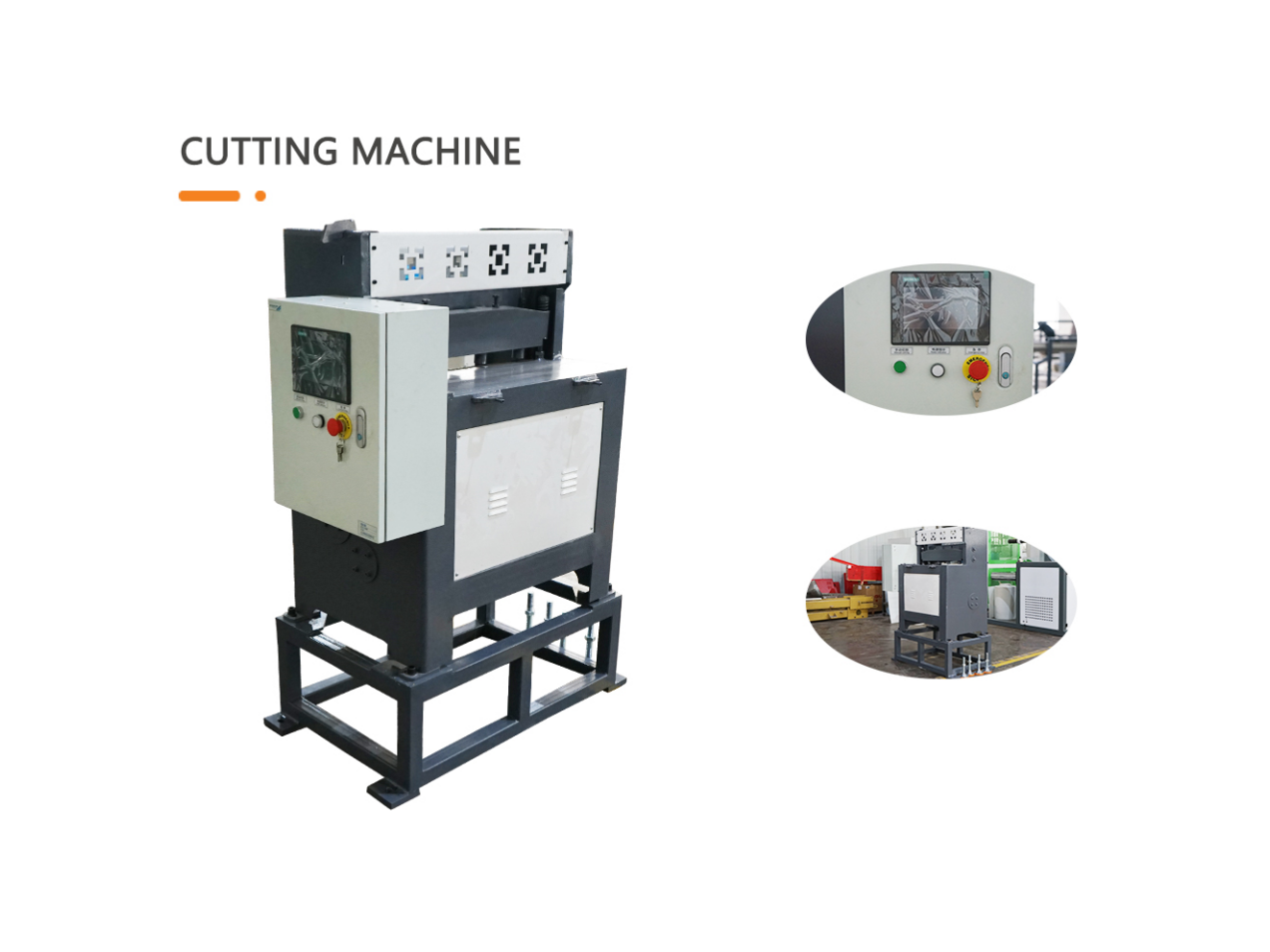

o Cutter: Cuts to specified lengths (straight strips or coiled rolls).

4. Automated Control System

o PLC-controlled adjustments for temperature, speed, and pressure to ensure consistent quality.

PVC (Polyvinyl Chloride) edge banding is widely used in furniture, cabinets, doors, and windows due to its excellent performance and cost-effectiveness. Its key advantages include:

1. High Durability

• Scratch & Wear Resistance: Hard surface resists scratches, ideal for high-traffic furniture edges.

• Moisture Resistance: Waterproof and warp-proof, suitable for humid environments like kitchens and bathrooms.

• Chemical Resistance: Withstands cleaning agents and oils, ensuring long-term use.

2. Aesthetic Versatility

• Rich Colors: Available in solid colors, wood grain, stone patterns, metallic finishes, and more.

• Customizable Textures: Options include matte, glossy, embossed, and 3D textured surfaces.

• High-Precision Printing: Heat transfer or UV printing achieves realistic designs, mimicking wood or natural materials.

3. Easy Processing

• Simple Application: Bonds seamlessly using hot-melt glue or manual adhesives.

• Flexible & Bendable: Adapts well to curved or irregular edges.

• Easy Trimming: Can be smoothly cut and polished with trimming tools for a clean finish.

4. Eco-Friendly & Safe

• Formaldehyde-Free: Complies with E1/E0 standards, safer than some natural wood options.

• Recyclable: PVC material can be recycled, reducing waste.

• Flame Retardant: Some formulations meet fire safety standards.

5. Cost-Effective

• Low Cost: More affordable than wood, metal, or ABS edge banding.

• Low Maintenance: Easy to clean without special care.

6. Wide Applicability

• Compatible with Various Substrates: Works with MDF, particleboard, plywood, etc.

• Diverse Applications: Used in furniture, cabinets, lab countertops, display cases, and more.

Comparison with Other Edge Banding Materials (e.g., ABS, PP, Solid Wood):
