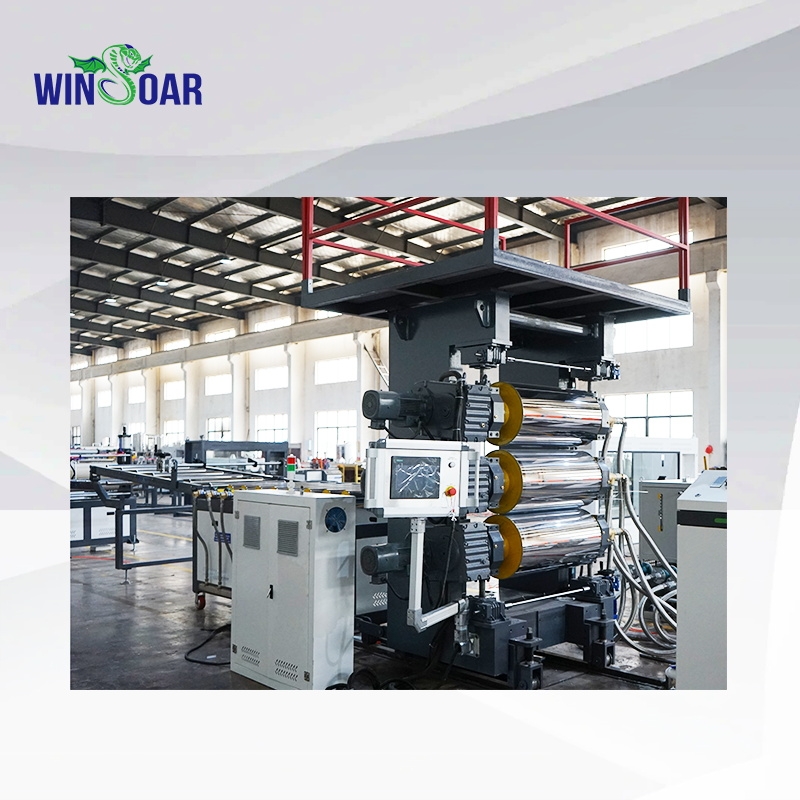

Modern Furniture PVC Edge Woodgrain Plastic Edge Banding Production Line

The PVC edge banding production line is specialized equipment used to manufacture decorative edge materials for furniture, cabinets, doors, and windows.

Main Components of the Production Line

1. Raw Material Preprocessing System

o Mixer: Uniformly blends PVC resin, plasticizers, stabilizers, fillers, and colorants in specified ratios.

2. Extruder

o Double-Screw Extruder: Melts and plasticizes the mixed material, then extrudes it through a die.

o Die (Mold): Determines the cross-sectional shape and dimensions of the edge band (common thickness: 0.3-3mm, width: 10-80mm).

3. Auxiliary Equipment

o Printer (optional): Applies wood grain, stone patterns, or other designs.

o Embossing Unit (optional): Creates textures (e.g., matte effects) via rollers.

o Cooling Tank: Rapidly cools and solidifies the edge band for dimensional stability.

o Puller: Continuously draws the edge band at a consistent speed.

o Cutter: Cuts to specified lengths (straight strips or coiled rolls).

4. Automated Control System

o PLC-controlled adjustments for temperature, speed, and pressure to ensure consistent quality.

PVC (Polyvinyl Chloride) edge banding is widely used in furniture, cabinets, doors, and windows due to its excellent performance and cost-effectiveness. Its key advantages include:

1. High Durability

• Scratch & Wear      Resistance: Hard surface resists      scratches, ideal for high-traffic furniture edges.

• Moisture Resistance: Waterproof and warp-proof, suitable for humid      environments like kitchens and bathrooms.

• Chemical Resistance: Withstands cleaning agents and oils, ensuring      long-term use.

2. Aesthetic Versatility

• Rich Colors: Available in solid colors, wood grain, stone      patterns, metallic finishes, and more.

• Customizable Textures: Options include matte, glossy, embossed, and 3D textured      surfaces.

• High-Precision Printing: Heat transfer or UV printing achieves realistic      designs, mimicking wood or natural materials.

3. Easy Processing

• Simple Application: Bonds seamlessly using hot-melt glue (EVA/PUR) or      manual adhesives.

• Flexible & Bendable: Adapts well to curved or irregular edges.

• Easy Trimming: Can be smoothly cut and polished with trimming      tools for a clean finish.

4. Eco-Friendly & Safe

• Formaldehyde-Free: Complies with E1/E0 standards, safer than some      natural wood options.

• Recyclable: PVC material can be recycled, reducing waste.

• Flame Retardant: Some formulations meet fire safety standards      (e.g., UL94).

5. Cost-Effective

• Low Cost: More affordable than wood, metal, or ABS edge      banding.

• Low Maintenance: Easy to clean without special care.

6. Wide Applicability

• Compatible with Various      Substrates: Works with MDF,      particleboard, plywood, etc.

• Diverse Applications: Used in furniture, cabinets, lab countertops,      display cases, and more.

Comparison with Other Edge Banding Materials (e.g., ABS, PP, Solid Wood):

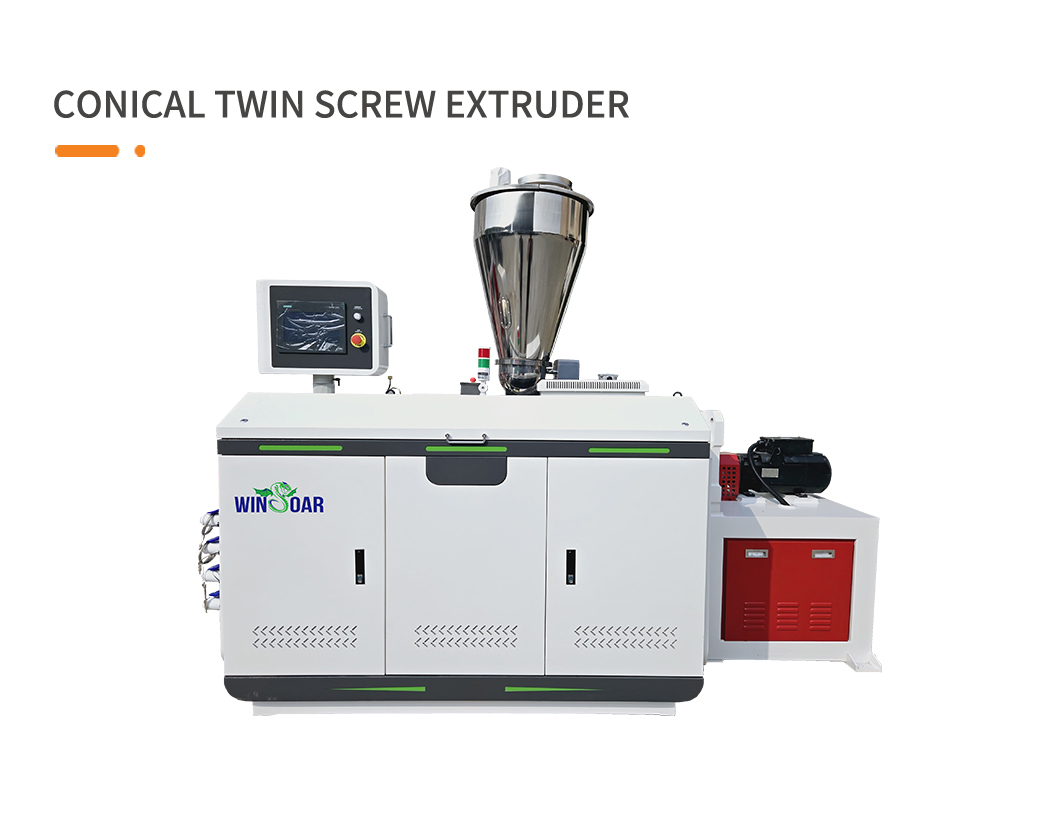

Extruder: Melts and plasticizes the mixed material, then extrudes it through a die.

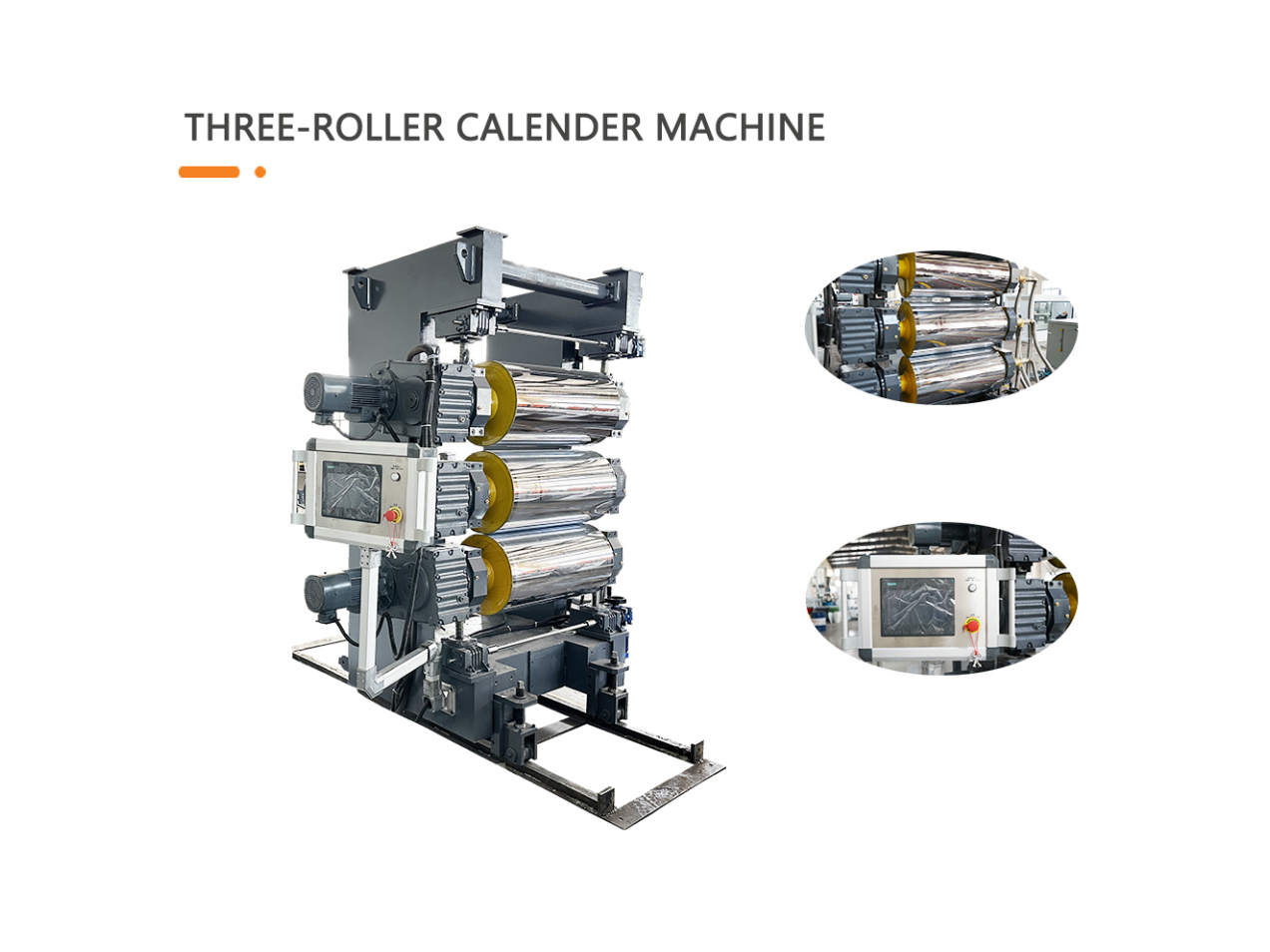

Three-roller calender machine consists of three horizontally or vertically arranged rollers that rotate in opposite directions to smooth, compress, or coat materials passing through them.

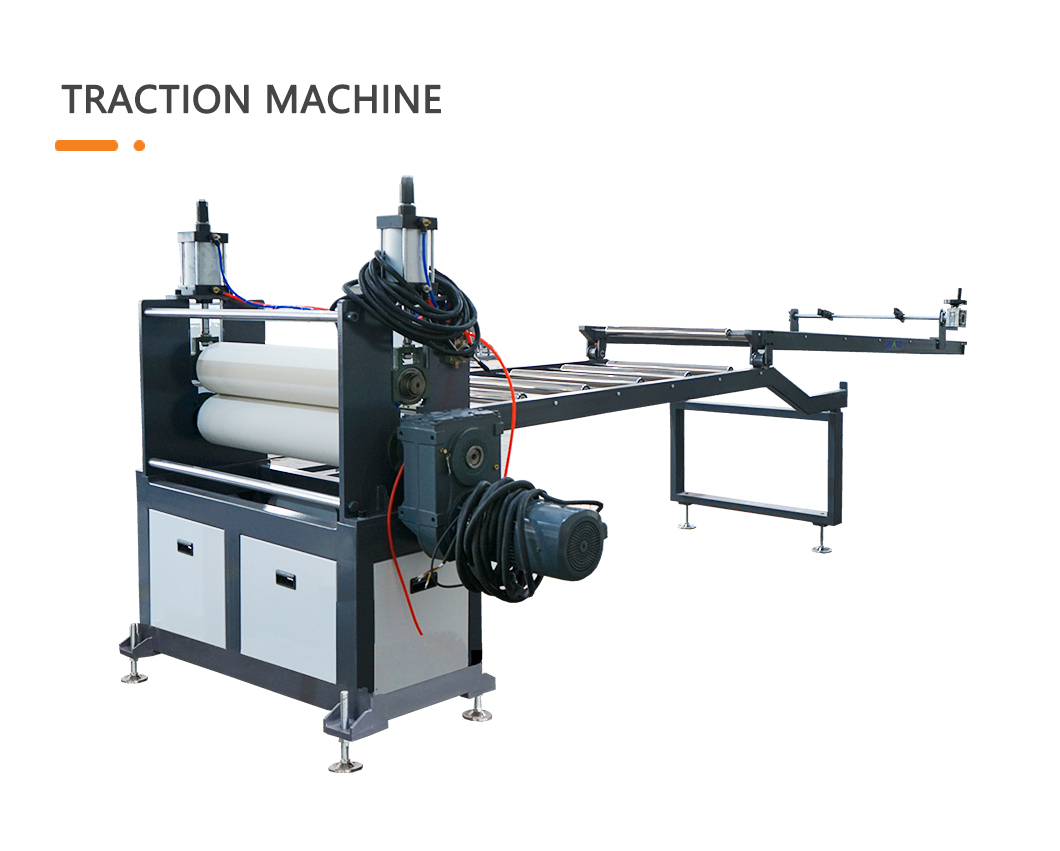

Traction machine: Continuously draws the edge band at a consistent speed.

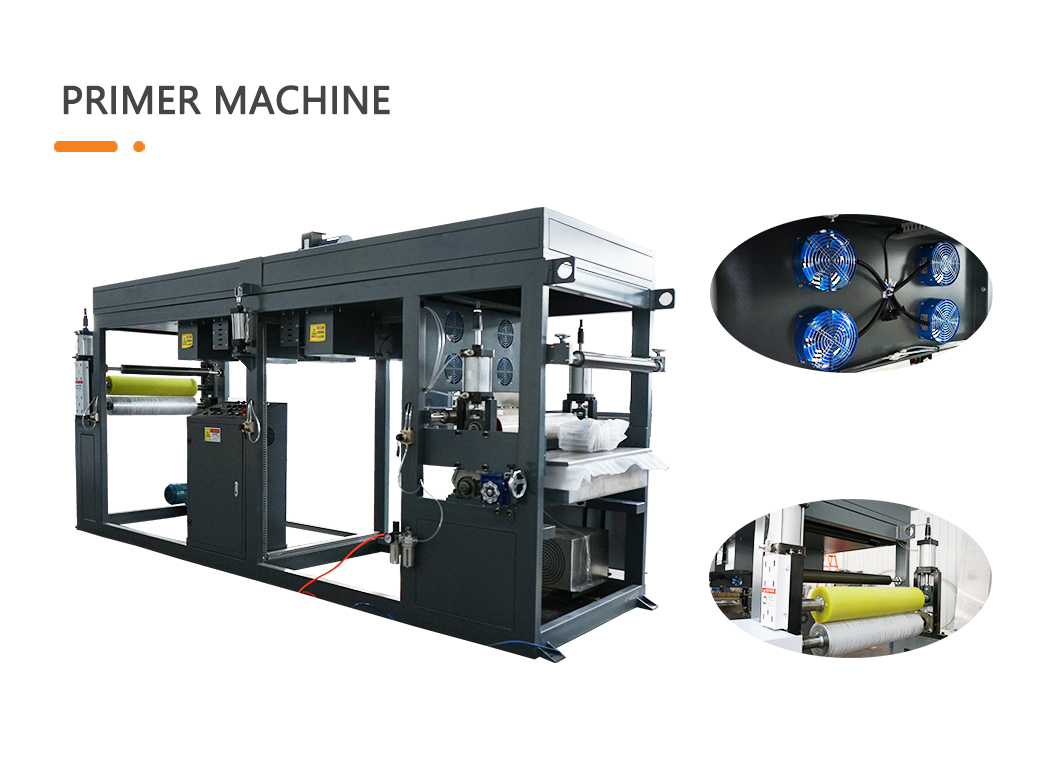

The primer machine is a key piece of equipment used to apply a primer coating on the backside of edge banding materials(such as PVC, ABS,ETC.). Its primary function is to enhance the bonding strength between the edge banding and the substrate(e.g., wood panels), ensuring durability and a strong adhesive bond after application.

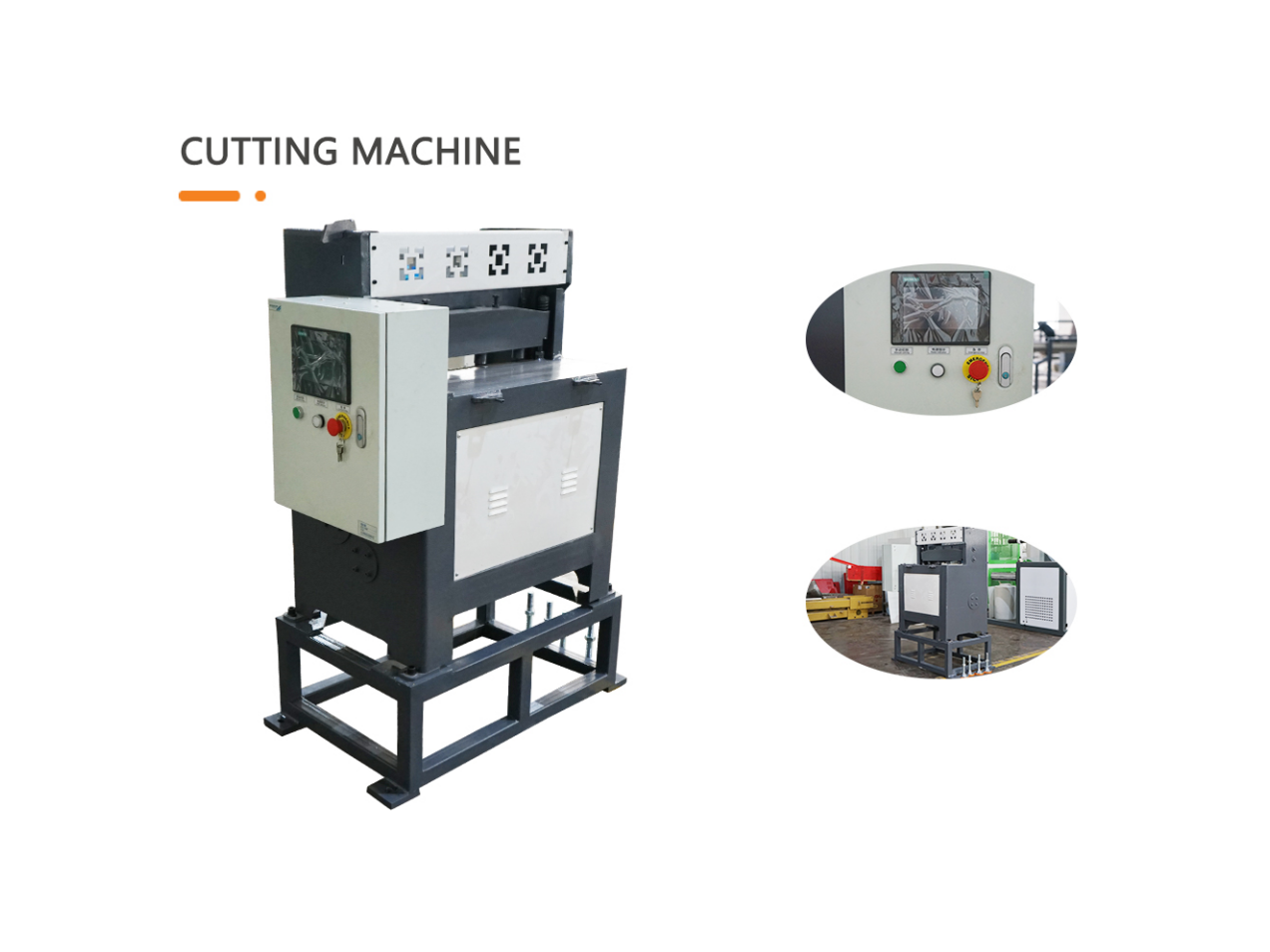

Cutting machine: Cuts to specified lengths.

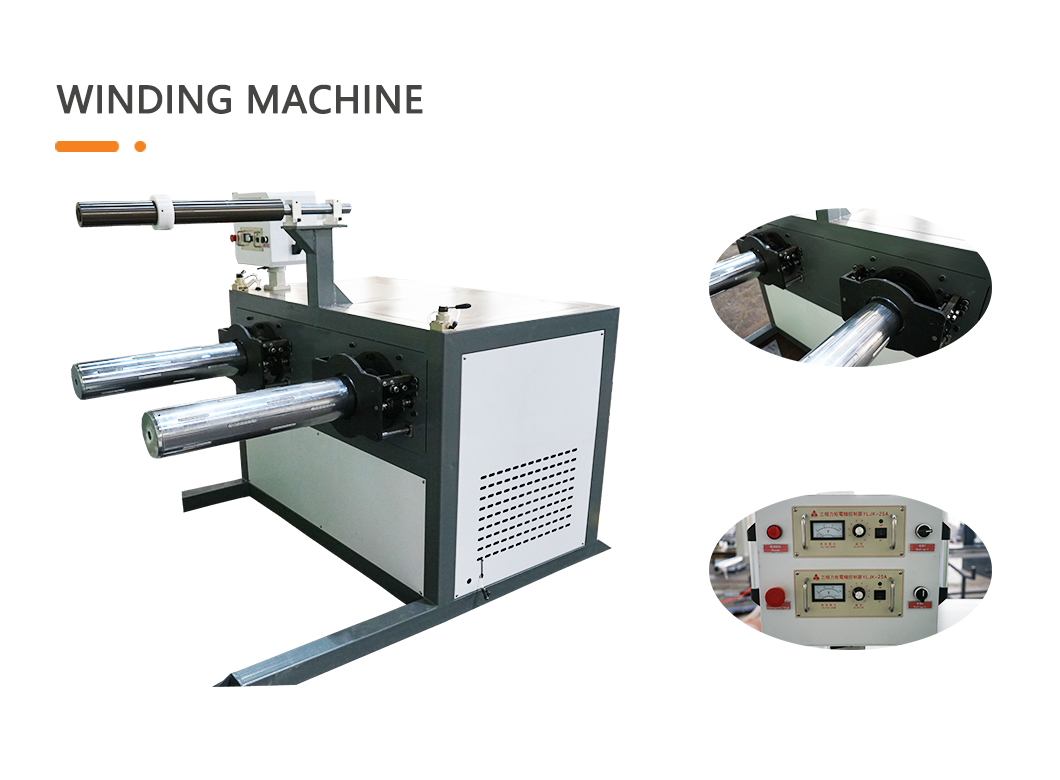

Winding machine can roll up the continuously produced PVC sheets into rolls according to certain specifications and requirements, which is convenient for storage, transportation and subsequent processing.
