High Output PVC Furniture Edge Banding Production Line

5 0 Reviews

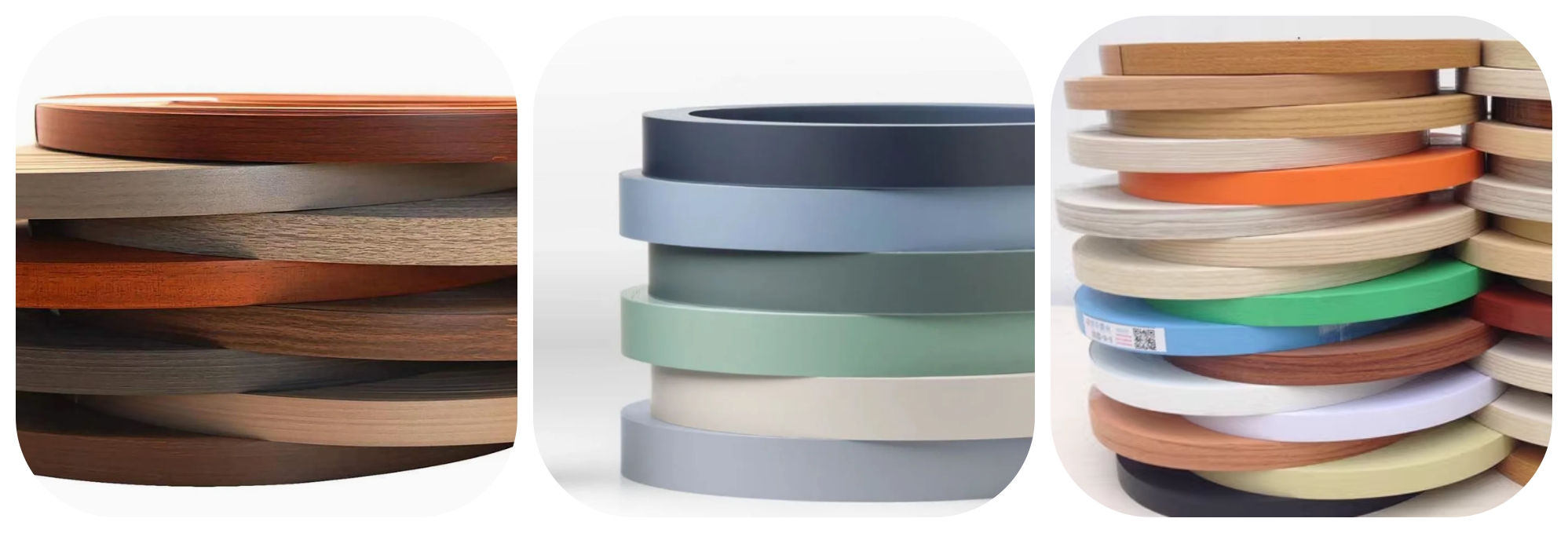

The PVC edge banding production line is specialized equipment used to manufacture decorative edge materials for furniture, cabinets, doors, and windows. The production process mainly includes raw material mixing, extrusion molding, printing (optional), embossing (optional), cooling and shaping, and cutting.

Availability:

Quantity:



Inquire Add to Basket

Product Description

The PVC edge banding production line is specialized equipment used to manufacture decorative edge materials for furniture, cabinets, doors, and windows. The production process mainly includes raw material mixing, extrusion molding, printing (optional), embossing (optional), cooling and shaping, and cutting.

Feature

1、Boasts advanced integrated automation: Seamlessly connects raw material blending, extrusion forming, surface laminating, precision cutting, and automatic winding, minimizing manual involvement to optimize production flow.

2、Excels in production consistency: Leverages sophisticated temperature regulation systems and high-performance screw extrusion technology to achieve uniform PVC melting, ensuring edge banding strips meet strict tolerances for thickness and width.

3、Offers exceptional versatility: Accommodates a wide range of PVC formulations, supporting the manufacturing of edge banding in diverse specifications and various surface finishes.

4、Features energy-efficient and eco-friendly design: Adopts high-efficiency heating components and enhanced thermal insulation to cut down energy consumption; optional exhaust gas recovery modules align with environmental standards.

5、Ensures user-friendly operation and maintenance: Comes with an intelligent control panel for straightforward parameter adjustment, a comprehensive fault diagnosis system, and easily replaceable consumable parts, lowering operational and maintenance costs.

未命名

Key Components

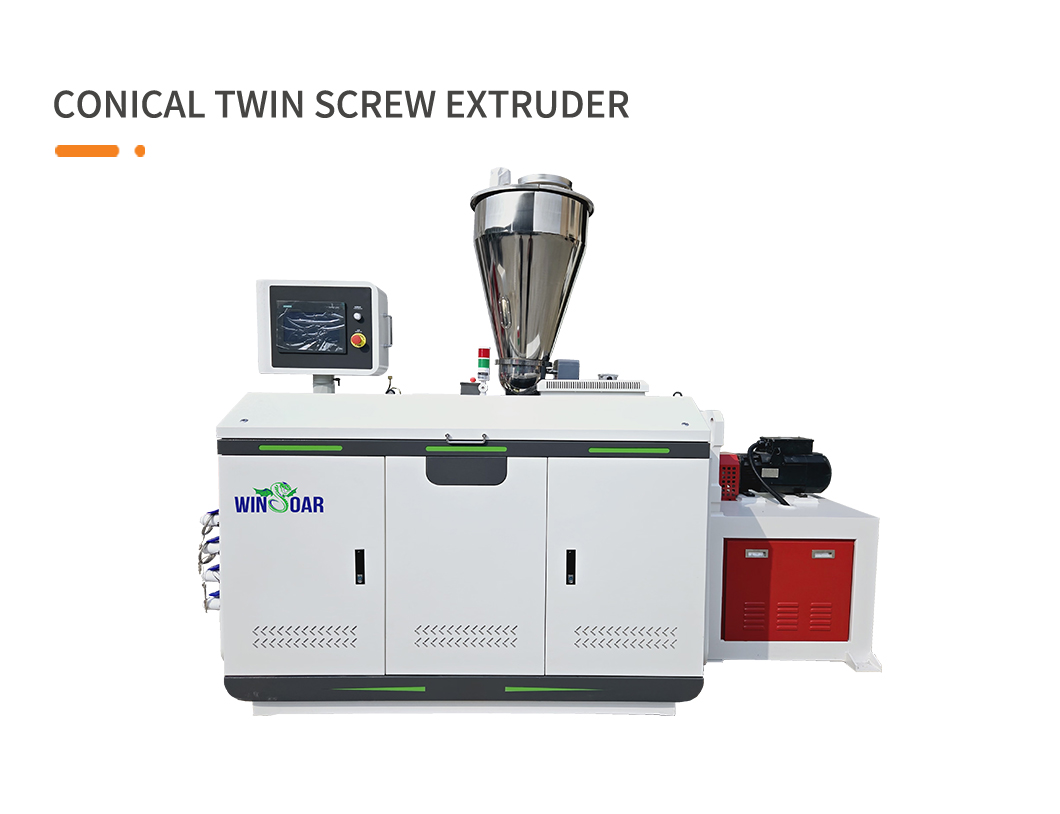

Extruder

The unit adopts specially designed SJZ80 conical twin-screw extruder, DC speed regulation drive, imported brand temperature control instrument, which has the advantages of wide speed regulation range, high temperature control accuracy, convenient and reliable operation, etc.

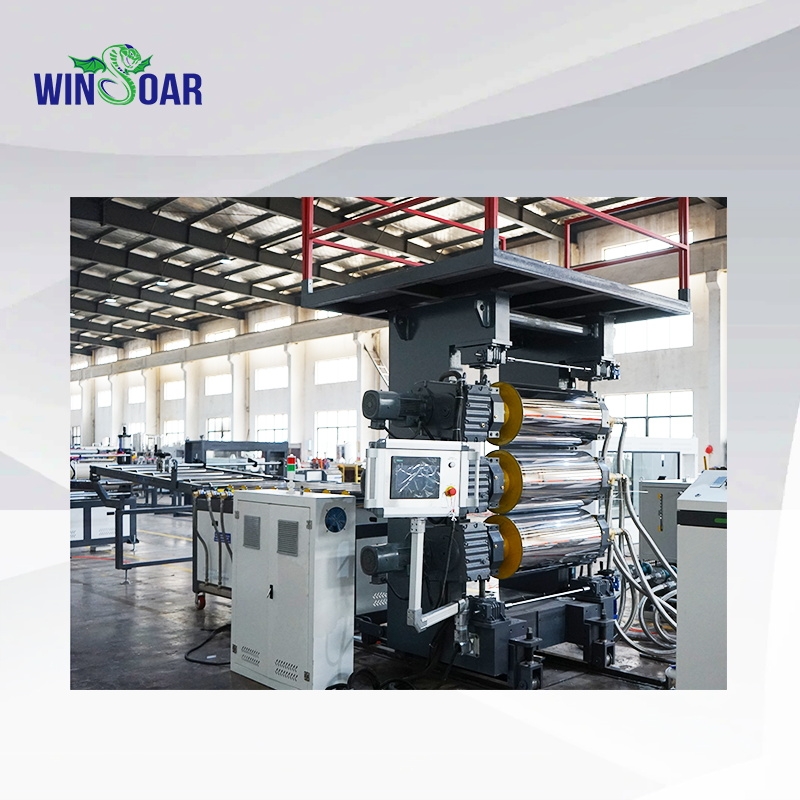

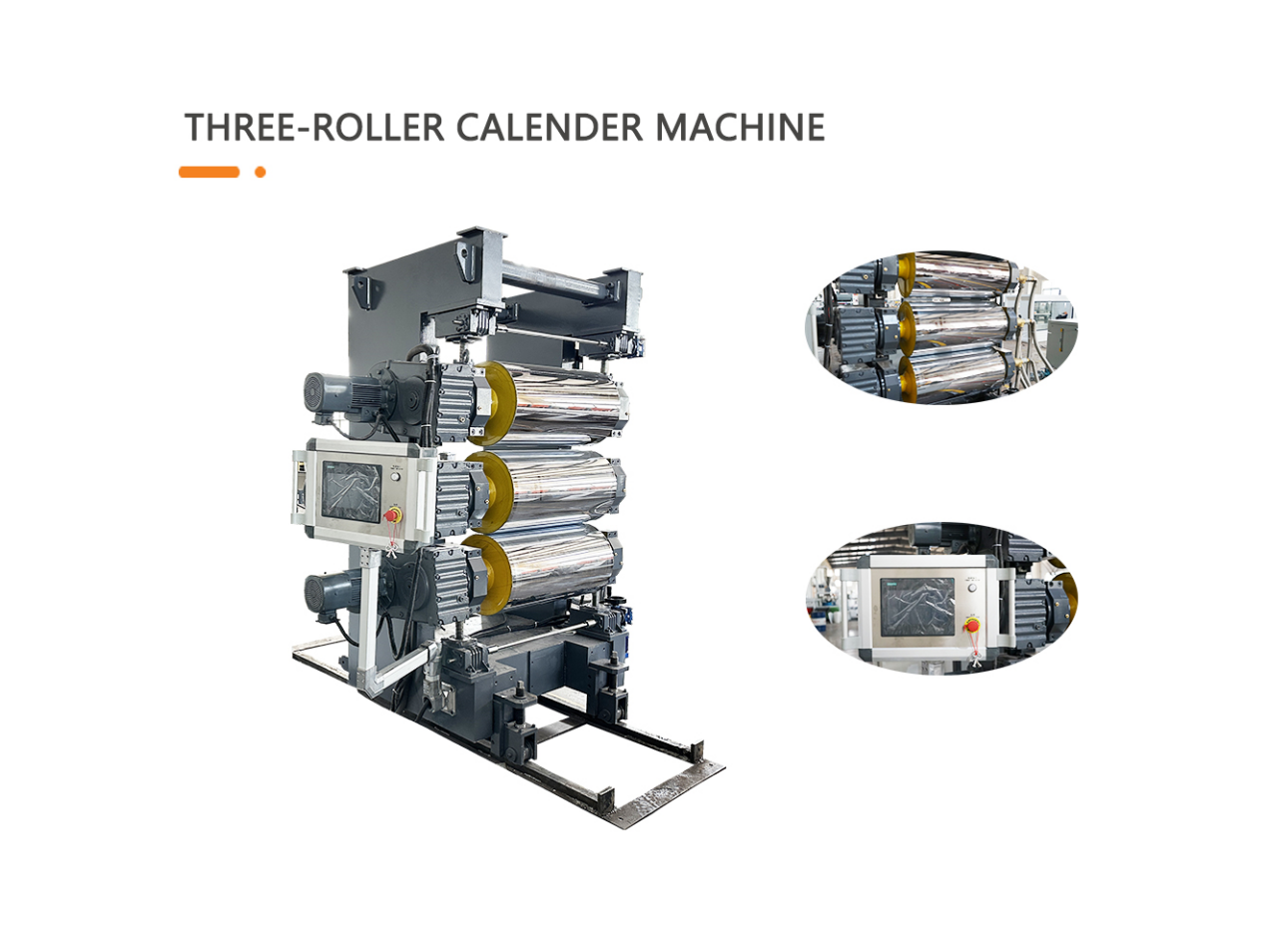

Three-roller calender machine

It consists of three horizontally or vertically arranged rollers that rotate in opposite directions to smooth, compress, or coat materials passing through them.

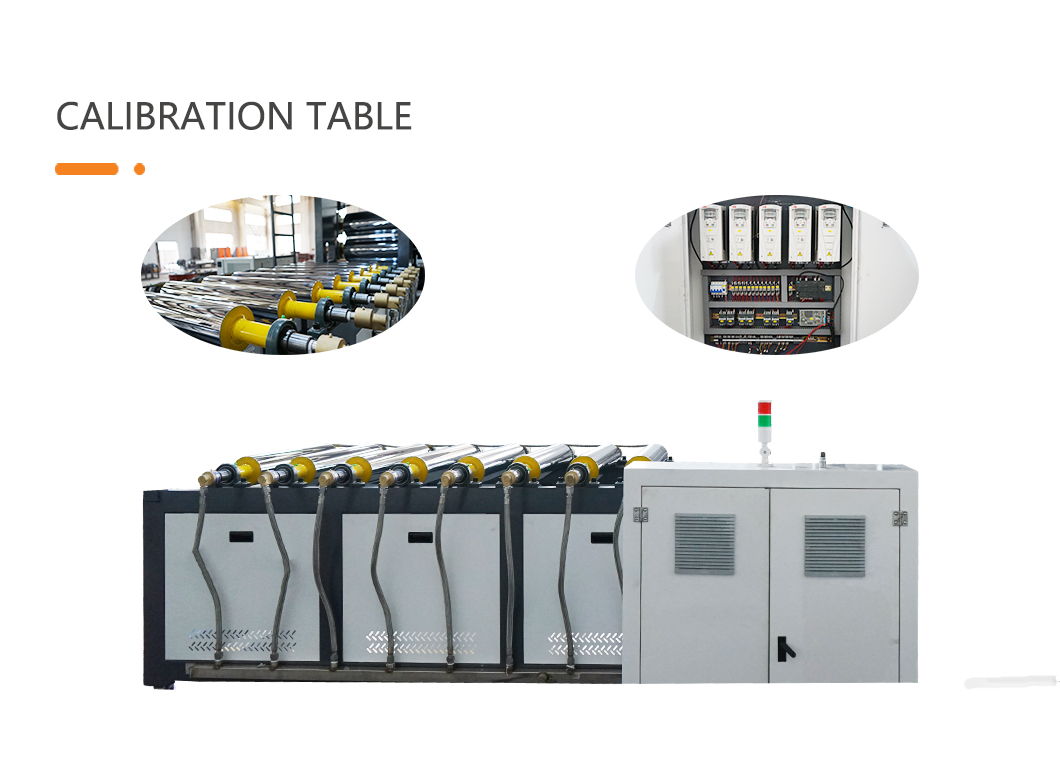

Calibration table

Rapidly cools and solidifies the edge band for dimensional stablilty.

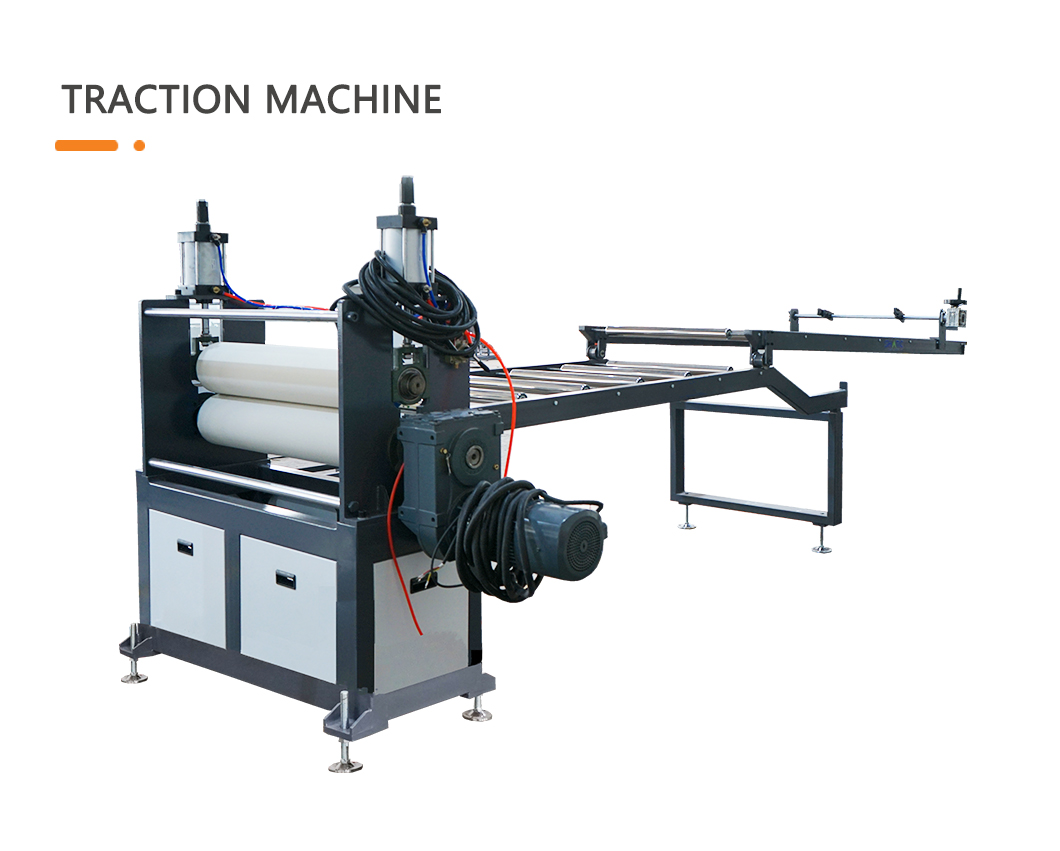

Traction machine

Continuously draws the edge band at a consistent speed.

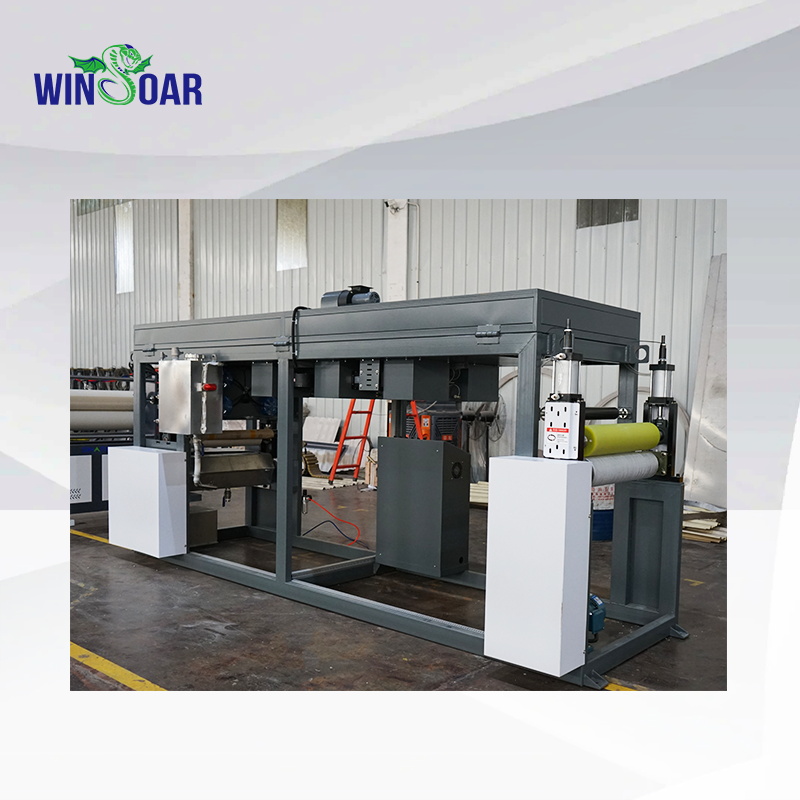

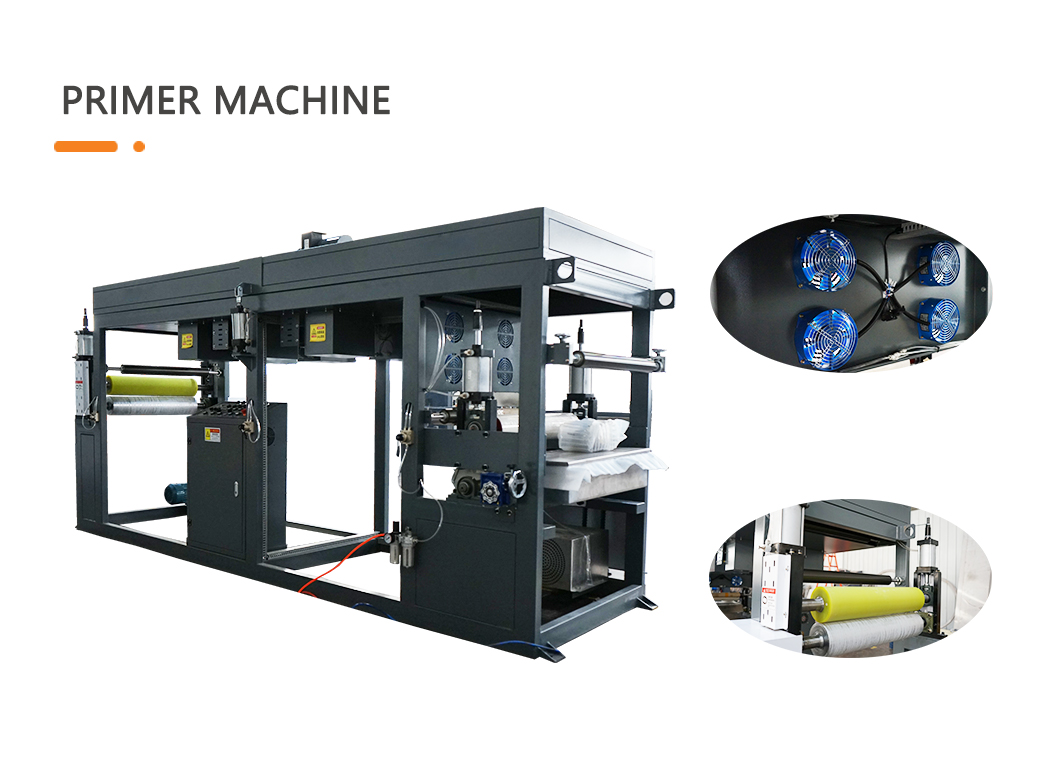

Primer machine

The primer machine is a key piece of equipment used to apply a primer coating on the backside of edge banding materials(such as PVC, ABS,ETC.). Its primary function is to enhance the bonding strength between the edge banding and the substrate(e.g., wood panels), ensuring durability and a strong adhesive bond after application.

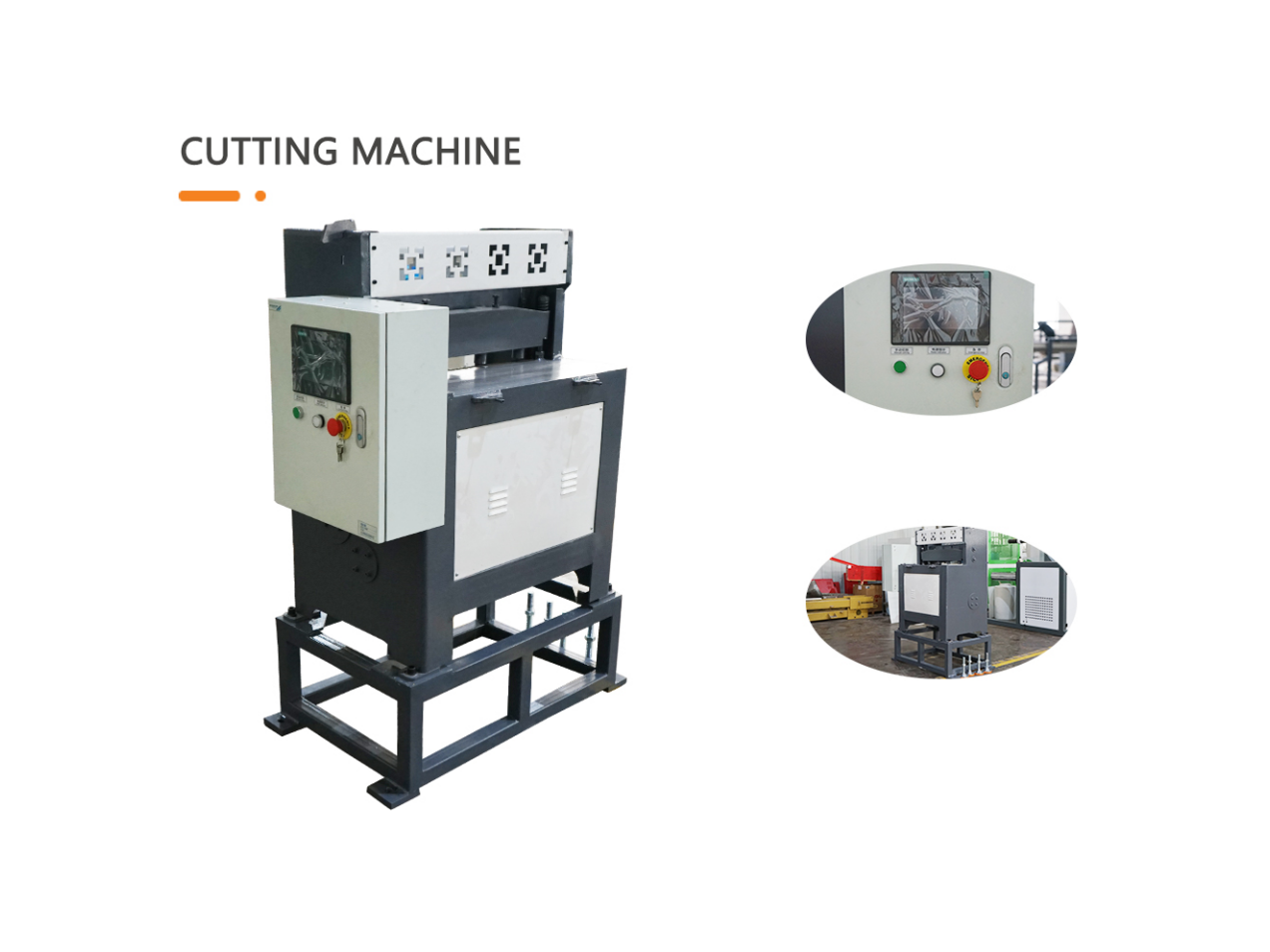

Cutting machine

Cuts to specified lengths.

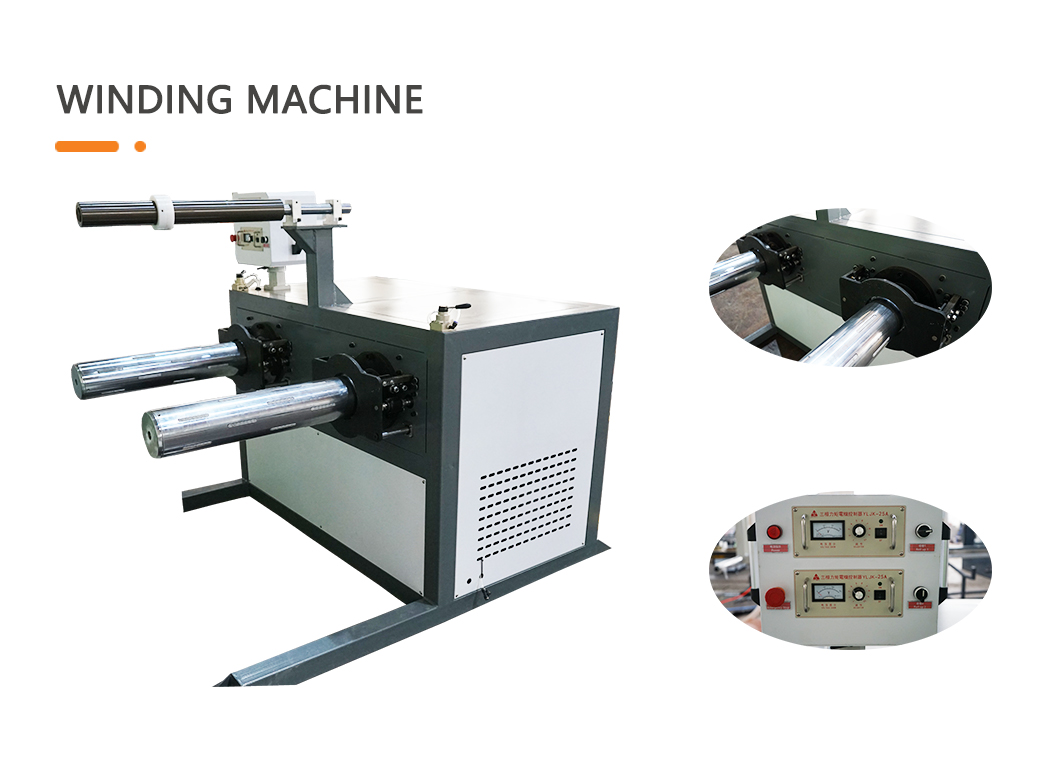

Winding machine

Winding machine can roll up the continuously produced PVC sheets into rolls according to certain specifications and requirements, which is convenient for storage, transportation and subsequent processing.
