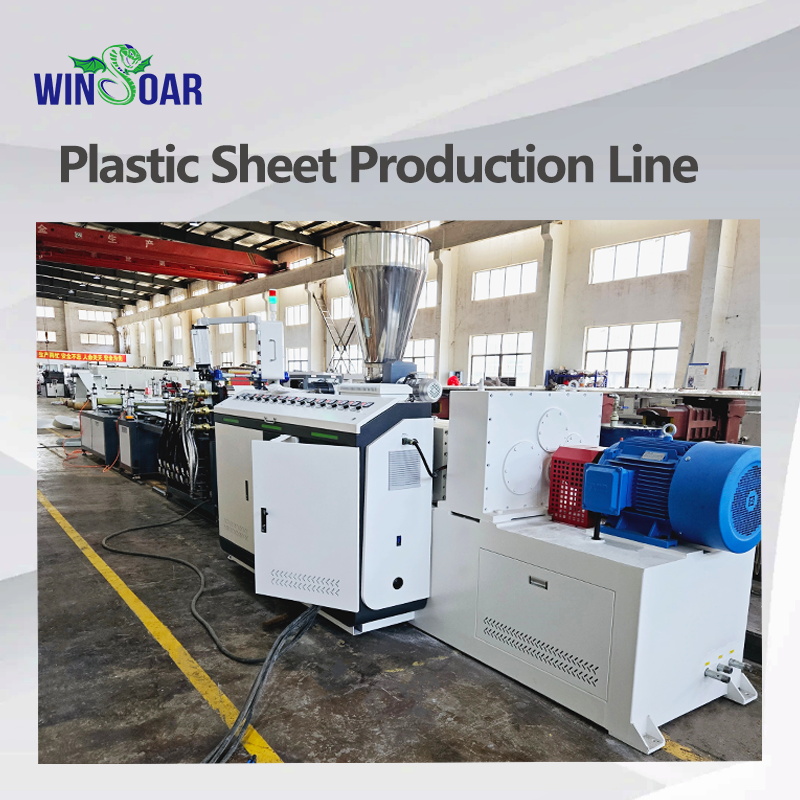

High-Efficiency Plastic Sheet Extrusion Production Line

The production process of a Plastic Sheet Extrusion Production Line involves a series of coordinated steps to transform raw plastic materials into uniform, high-quality sheets. Here's a detailed breakdown:

First, the raw material preparation stage begins with selecting appropriate plastic resins based on the desired sheet properties. If additives like colorants, stabilizers, or fillers are needed to enhance specific characteristics, they are precisely measured and mixed with the resin granules in a mixer.

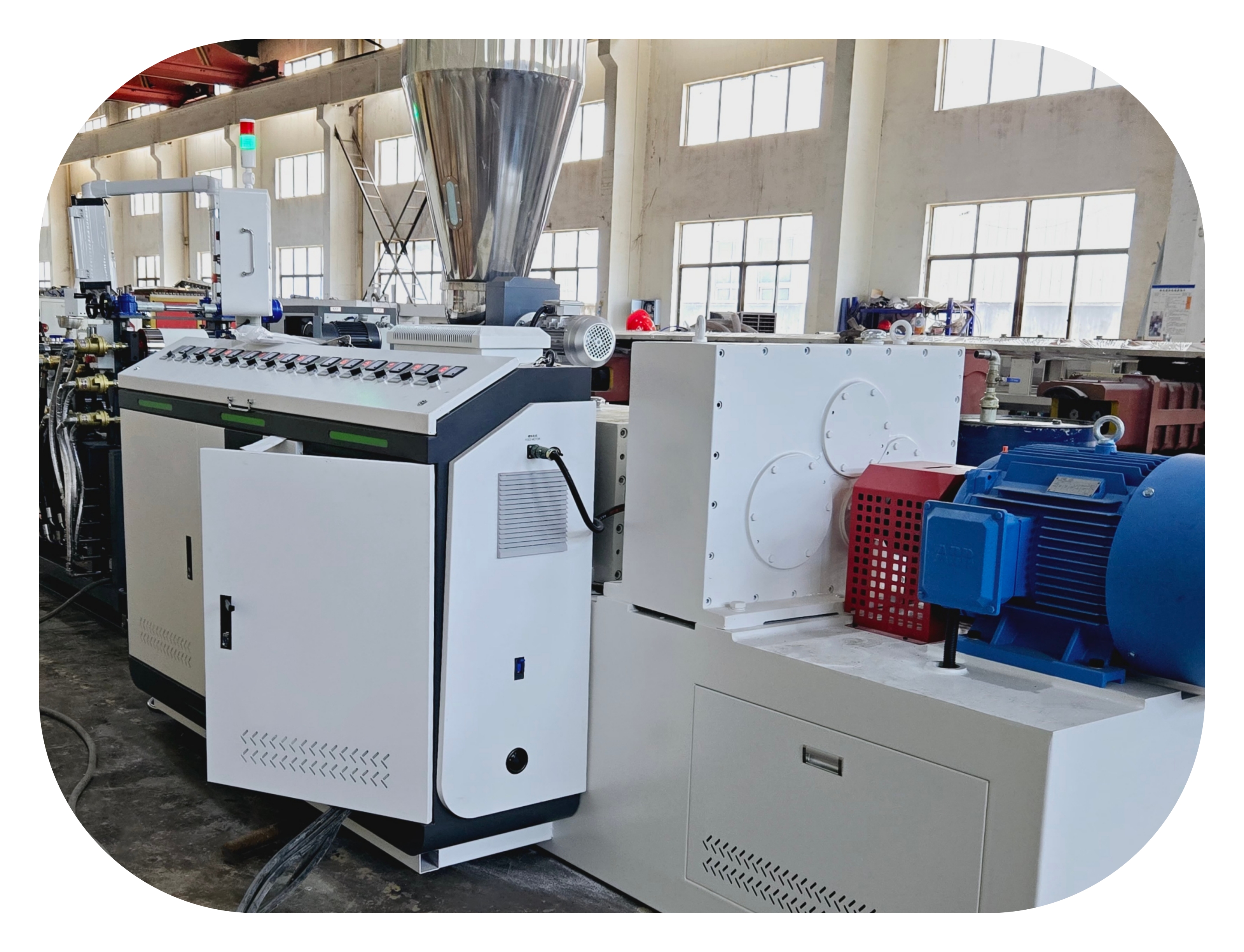

Next, the feeding and melting process takes place in the extruder. The blended material is fed into the extruder’s hopper, from which it enters the barrel. Inside the barrel, a rotating screw conveys the material forward. As the material moves along the screw, it is subjected to high temperatures and mechanical shear from the screw and barrel walls. This combination melts the solid granules into a viscous molten plastic.

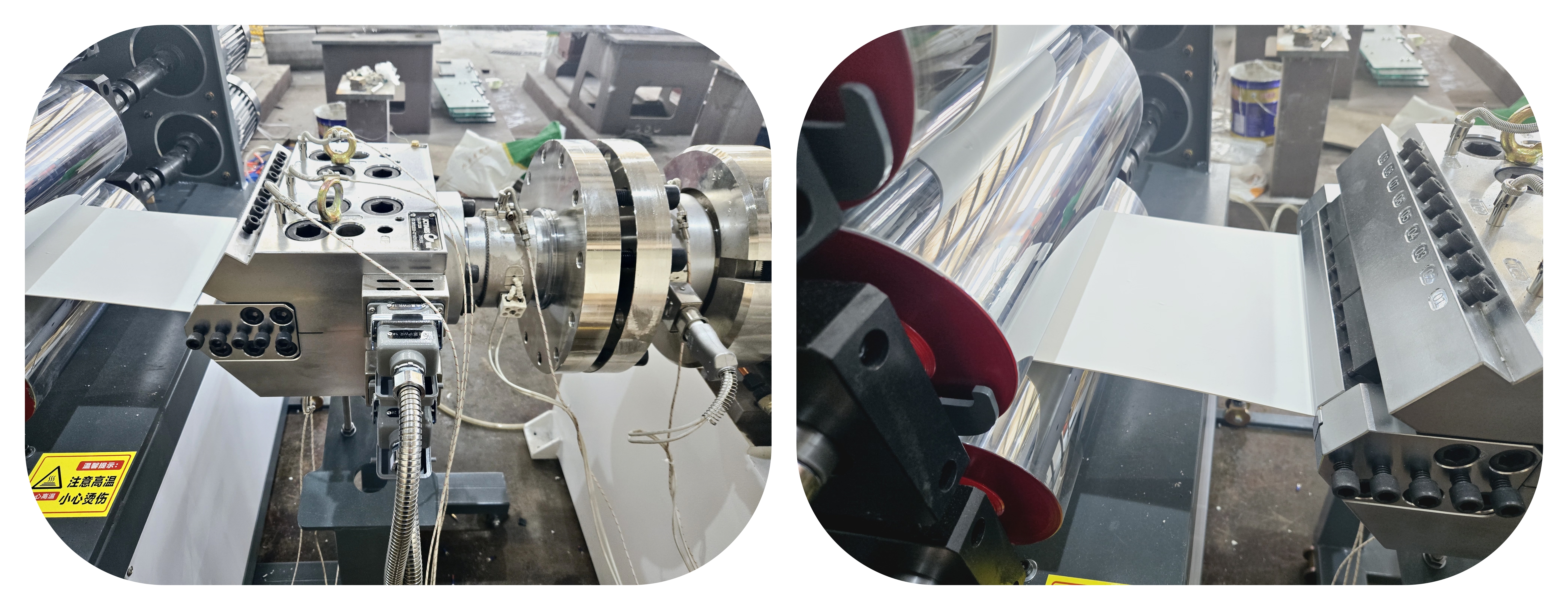

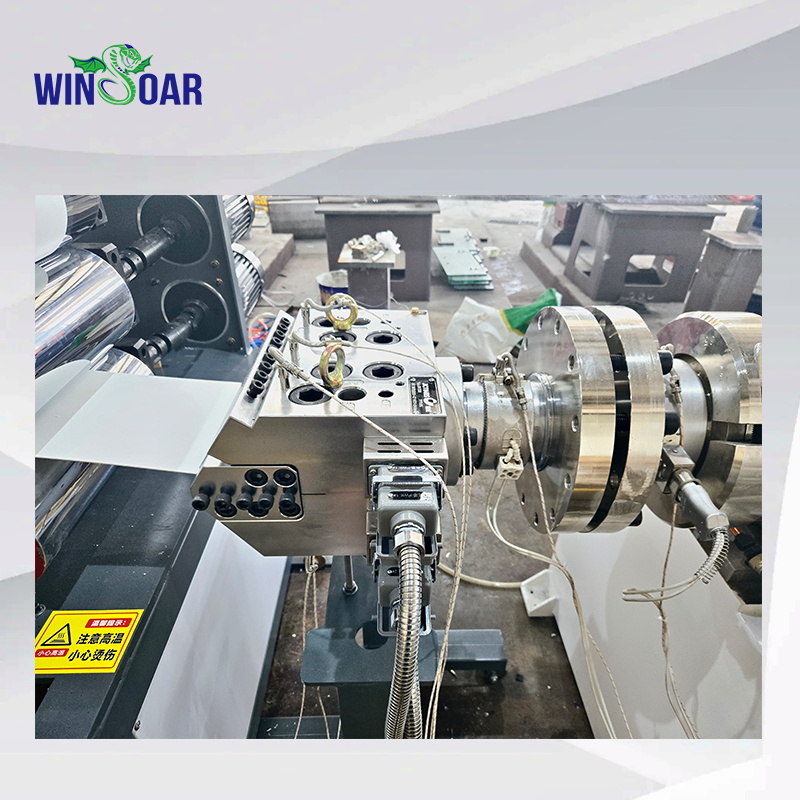

The molten plastic then enters the die, usually a T-shaped die, which shapes the melt into a flat sheet. The die's design—including the width of its opening and the gap at the lip—determines the sheet's width and initial thickness. Adjustments to the die's lip gap and temperature profile are made to ensure even flow across the entire width.

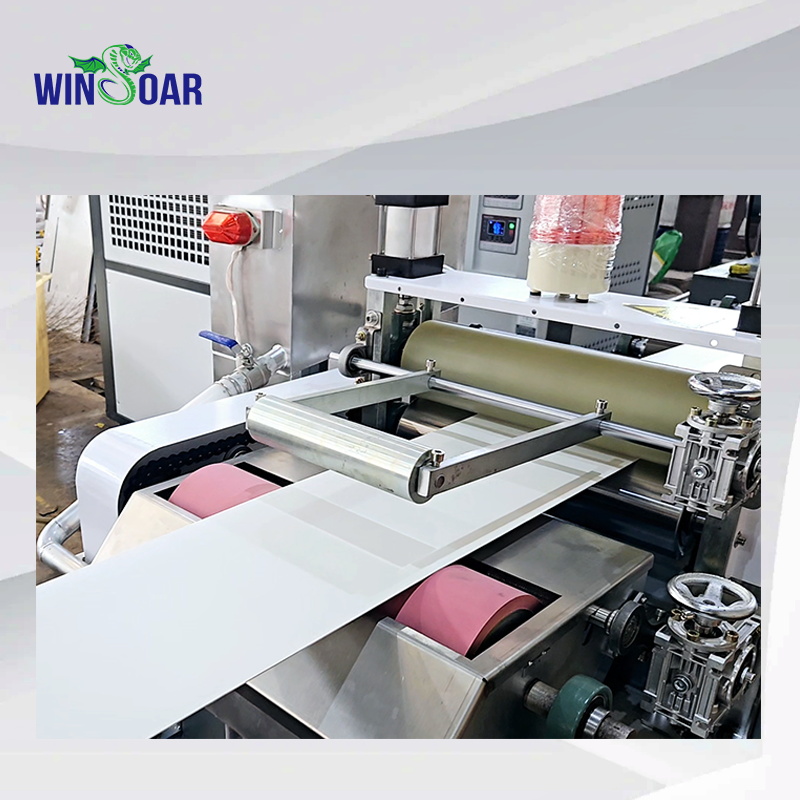

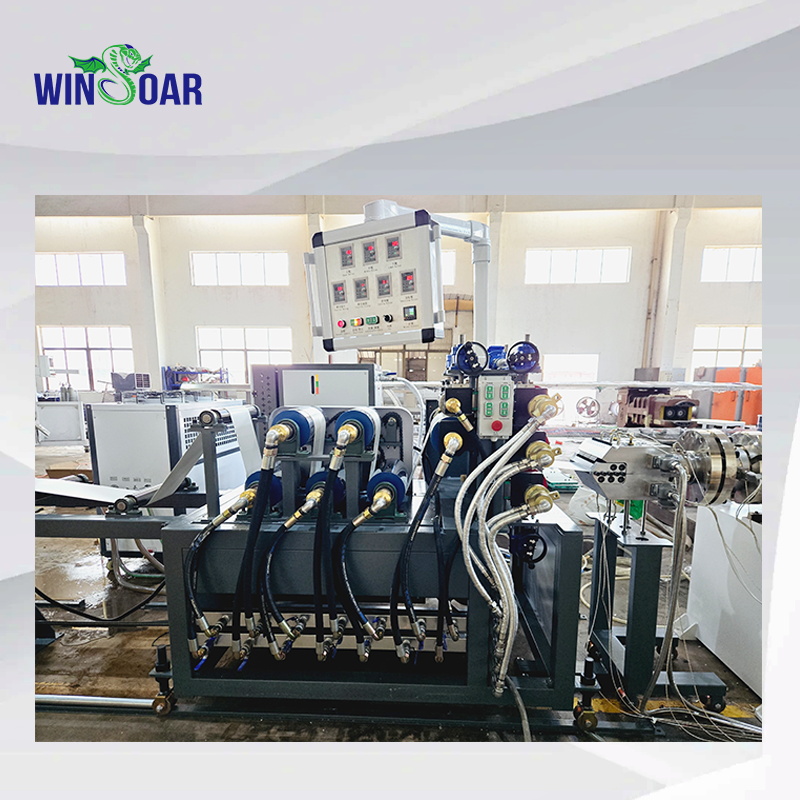

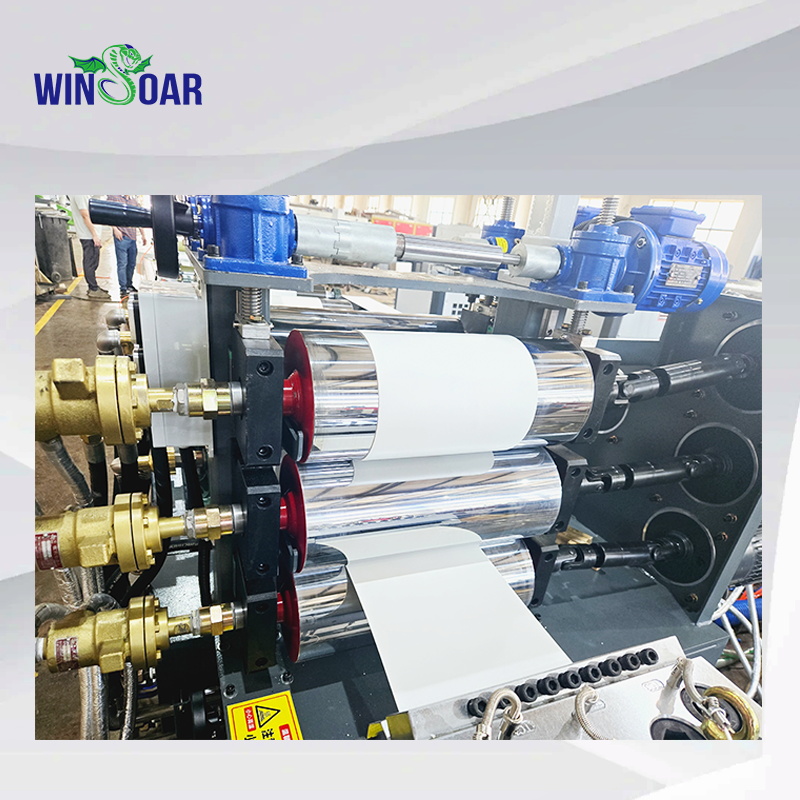

As the sheet exits the die, it moves to the cooling and shaping device, typically a set of polished rolls (three-roll or five-roll calenders). These rolls are temperature-controlled and apply gentle pressure to the sheet, smoothing its surface, refining its thickness, and cooling it to a solid state. The roll speed is synchronized with the extruder's output to avoid stretching or sagging.

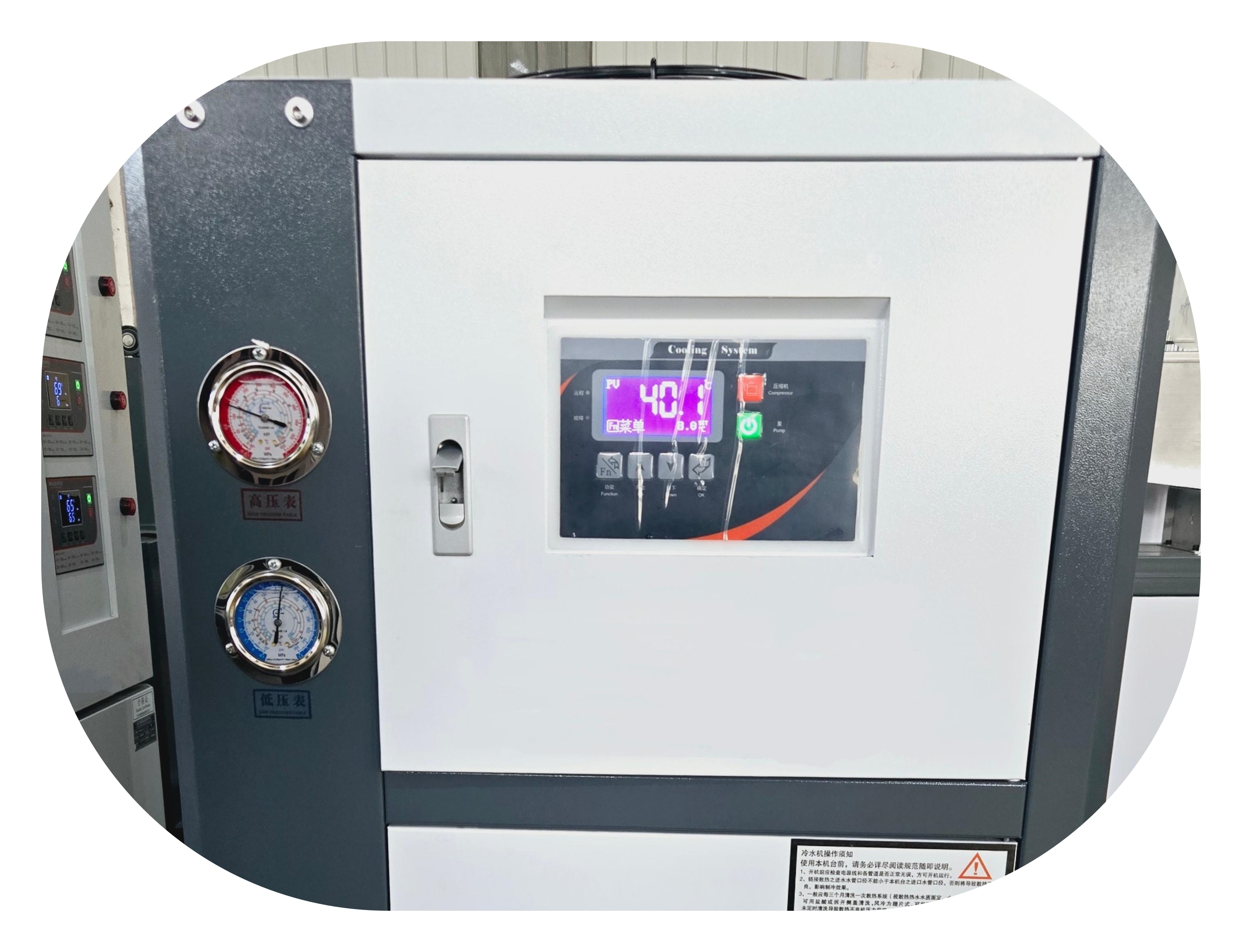

After initial cooling, the sheet may pass through additional cooling system to ensure it is fully solidified and dimensionally stable. This is especially important for thicker sheets, which take longer to cool through their entire cross-section.

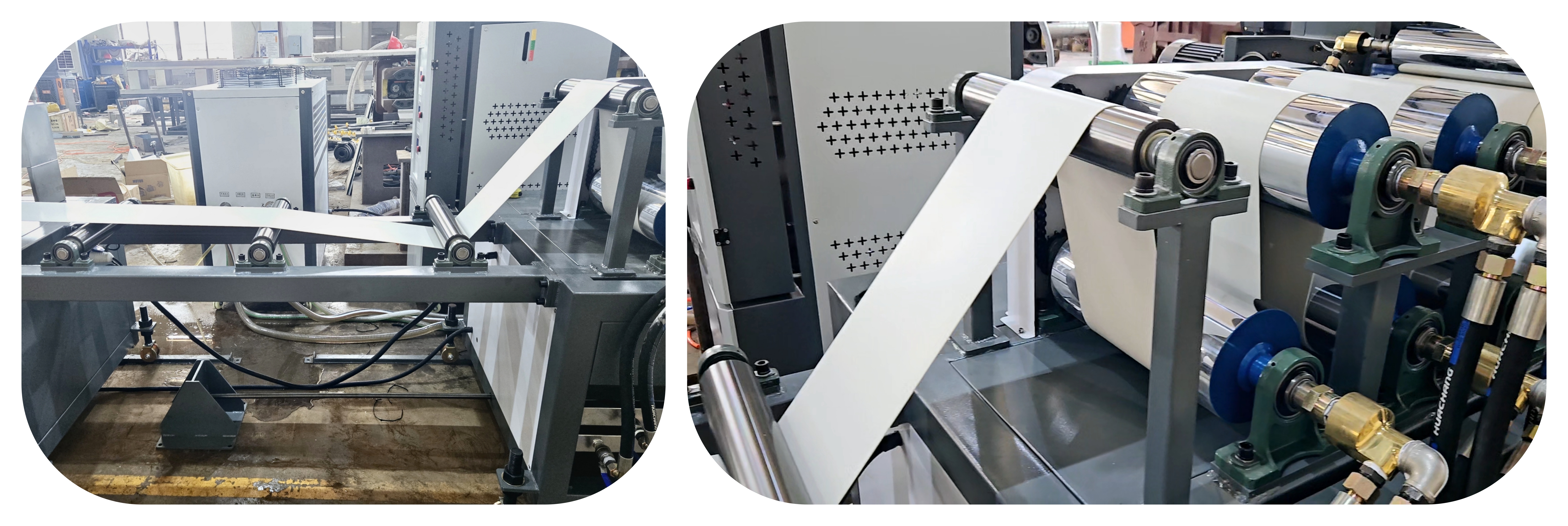

A tractor then pulls the cooled sheet forward at a constant speed, maintaining consistent tension to prevent warping or distortion. The tractor’s speed is carefully matched to the extruder and roll speeds to keep the sheet’s thickness uniform.

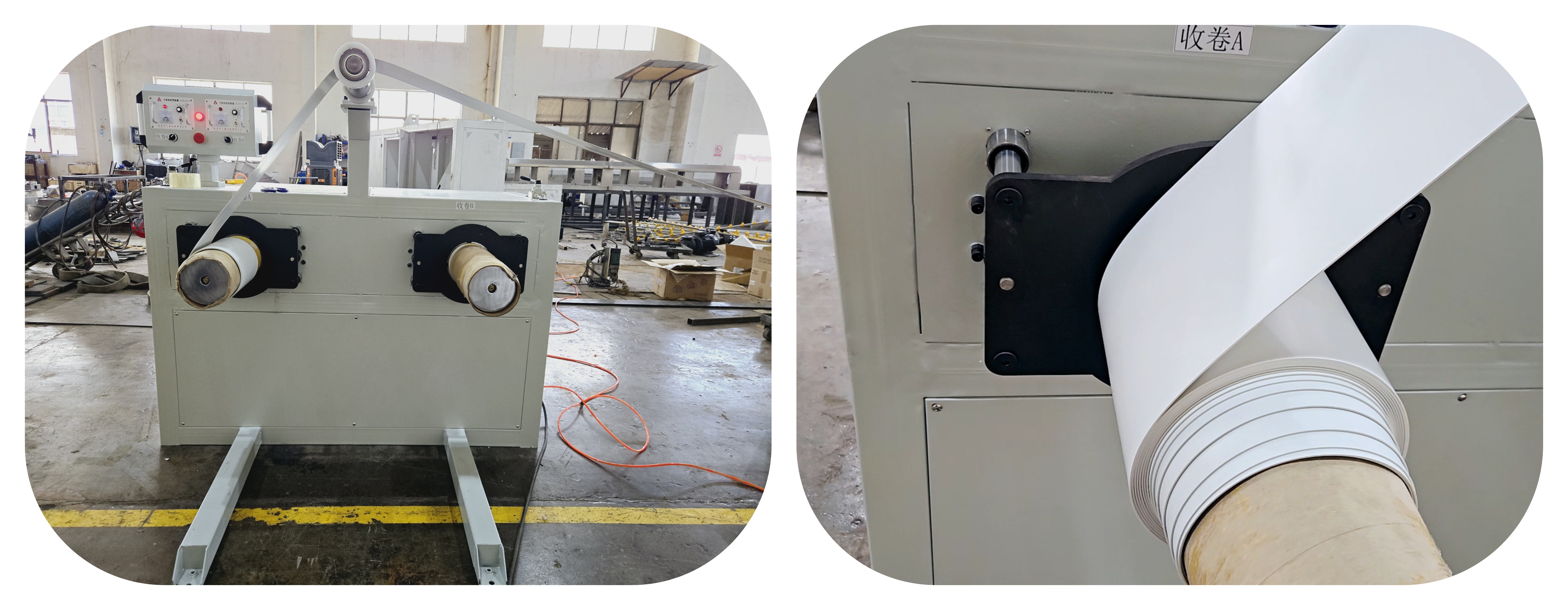

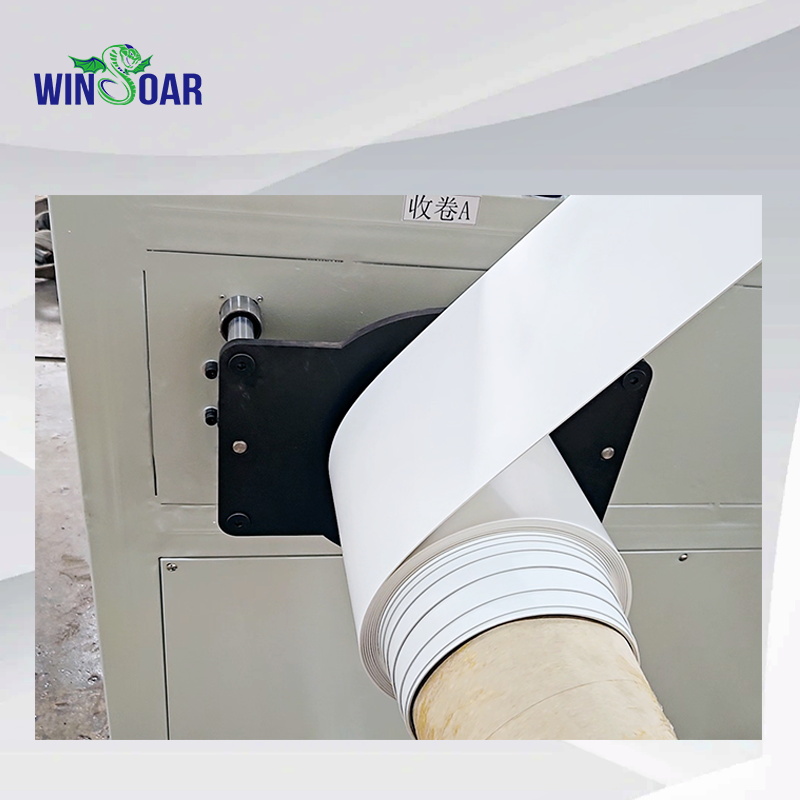

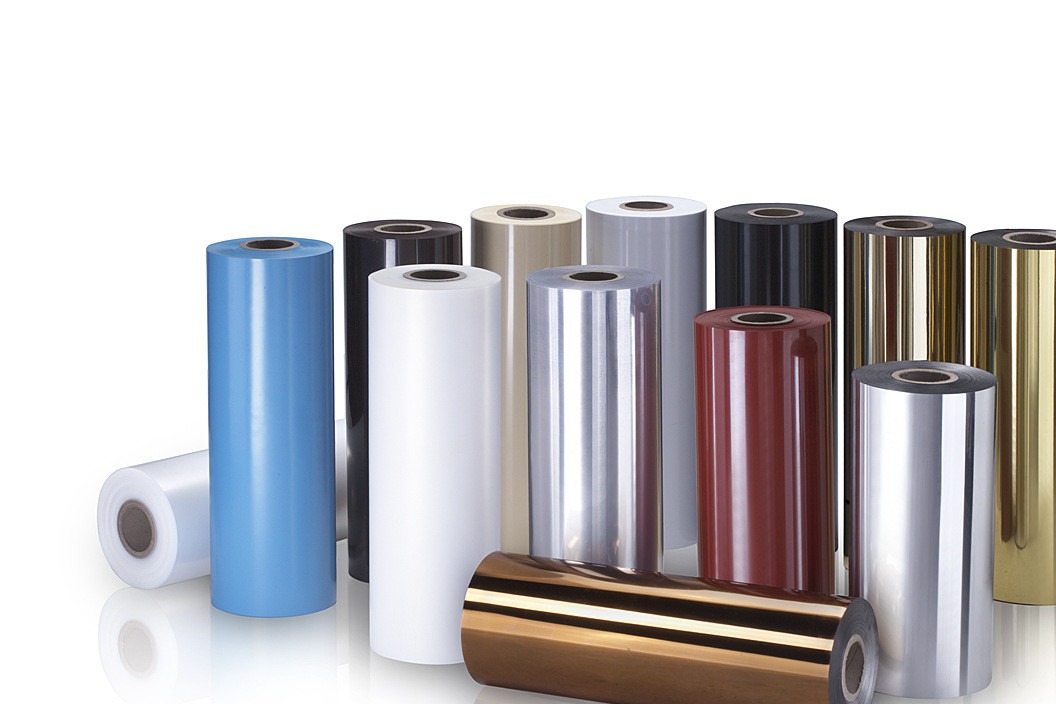

Finally, the sheet is processed into its final form: either cut to specific lengths by a cutter (for rigid sheets) or wound into large rolls by a winder (for flexible or thin sheets). Winders often use tension control systems to ensure tight, even rolls that are easy to handle and store.

Optional: In-line embossing,  coating for enhanced functionality.

Throughout the process, sensors and controls monitor key parameters—such as melt temperature, die pressure, roll speed, and sheet thickness—allowing operators to make real-time adjustments and maintain the desired sheet quality.
