Extrusion Line WPC Profile Extrusion Machine PVC Construction Profile Production Line

5 0 Reviews
The production line is mainly based on various kinds of PVC as raw materials, extrude raw materials with a twin screw extruder, equipped with different sizes and shapes of molds, match with a corresponding calibrating table or cooling tank, hauling machine, cutting machine, and rack, can produce a variety of different plastic profiles. We can customize the production line according to customer samples.
Availability:
Quantity:

Product Description

The production line is mainly based on various kinds of PVC as raw materials, extrude raw materials with a twin screw extruder, equipped with different sizes and shapes of molds, match with a corresponding calibrating table or cooling tank, hauling machine, cutting machine, and rack, can produce a variety of different plastic profiles. We can customize the production line according to customer samples.

The PVC WPC profile extrusion line is suitable for producing hollow or solid PVC WPC foaming profiles. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.

Features:

Extruder screw and barrel with vacuum degassing system can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.

5) The rigid gear surface of the reducer can be operated continuously for a long time without trouble

6) Operation and mold changing are smooth and steady
7) Long usage life
8) Can produce steel plastic profiles by changing the wood imitation foaming profile mold, combines with one set of steel liner conveying devices


Main Parameter:

Model

Profile Width

Extruder model

Motor power

Max.extrusion capacity

Calibrating platform length

WS-200

200mm

51/105

22kw

100-120kg/h

4000mm

WS-300

300mm

65/132

37kw

150-180kg/h

6000mm

WS-400

400mm

65/132

37kw

150-180kg/h

6000mm

WS-300

600mm

65/132

37kw

150-180kg/h

8000mm

WS-600

600mm

65/13 or 80/156

37 or 75kw

150-350kg/h

6000mm


Pictures for reference:

PVC-WPC_01

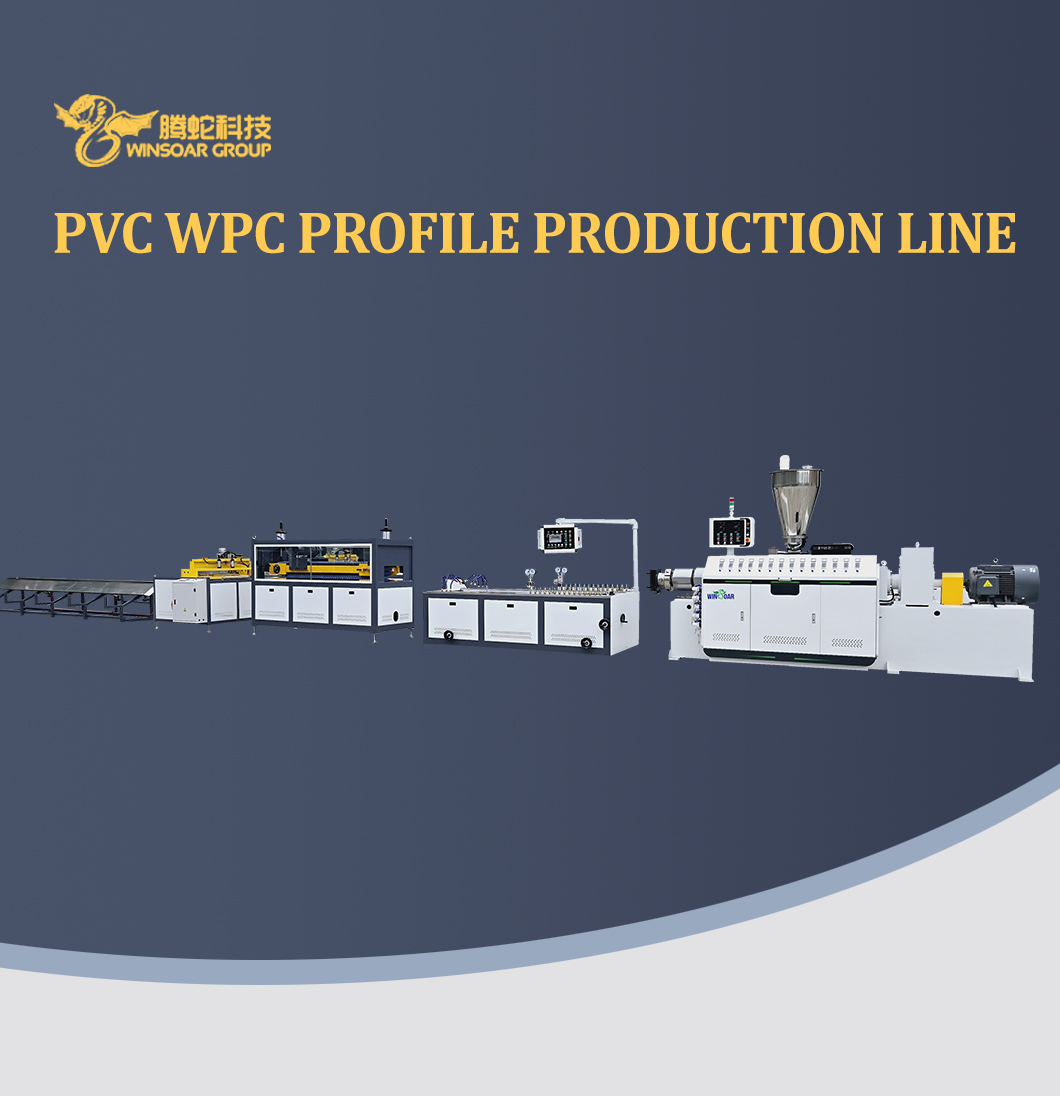

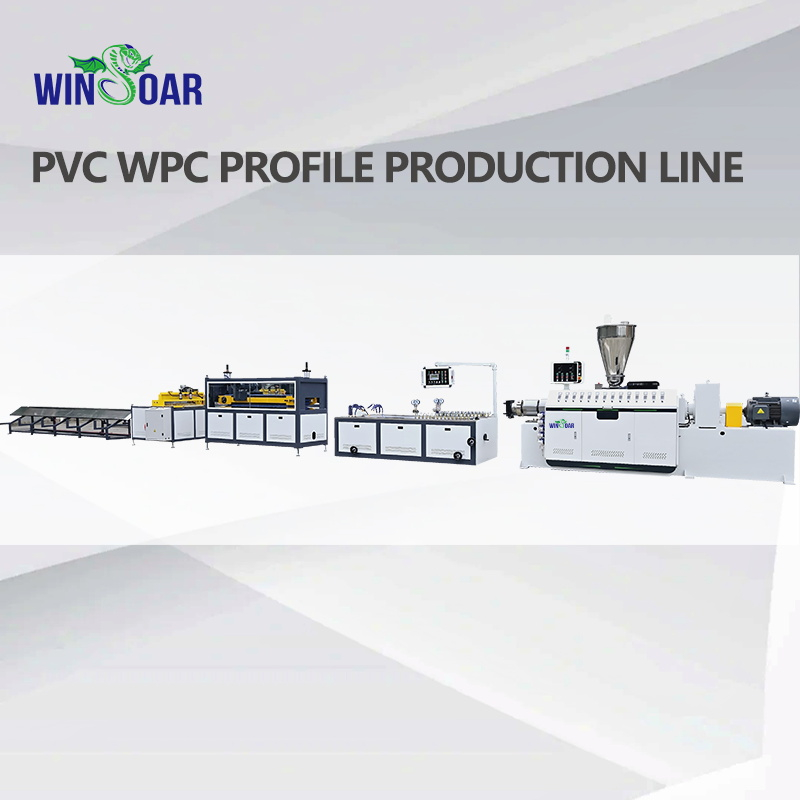

PVC WPC PROFILE PRODUCTION LINE

This production line is mainly used for extrusion production of PVC wood powder composite plastic profiles. It has good stability,high precision and high reliability.


p2PVC-WPC_04

PVC-WPC_05

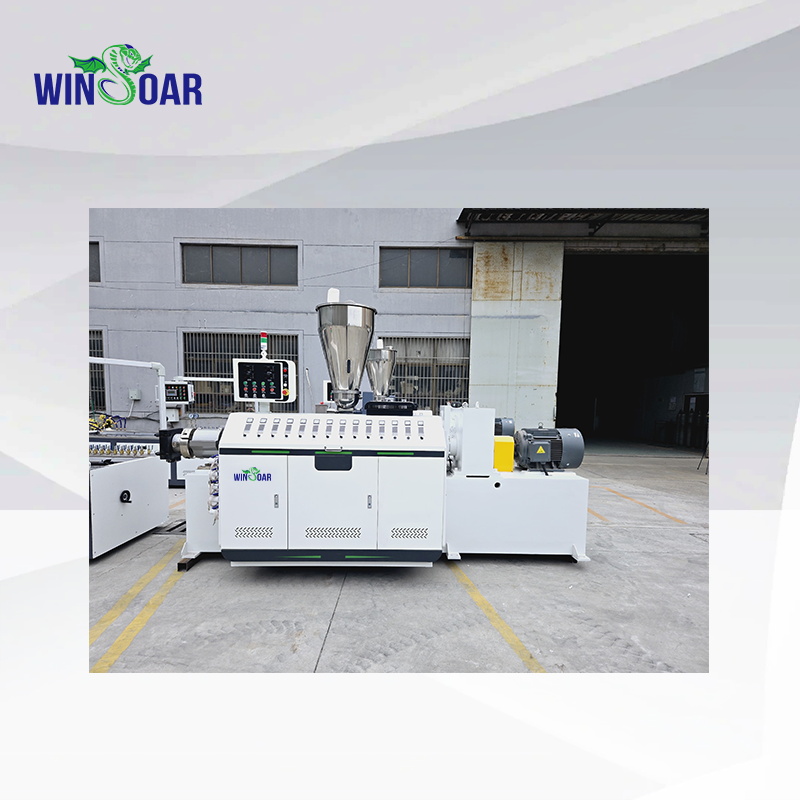

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-WPC_06


EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.


PVC-WPC_07

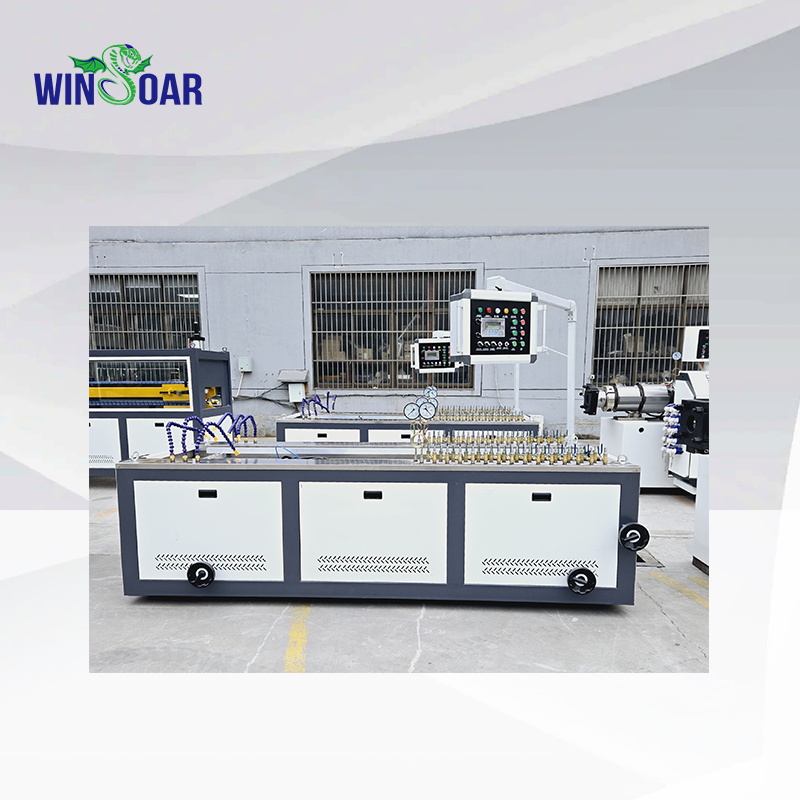

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.


PVC-WPC_08

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.

PVC-WPC_09

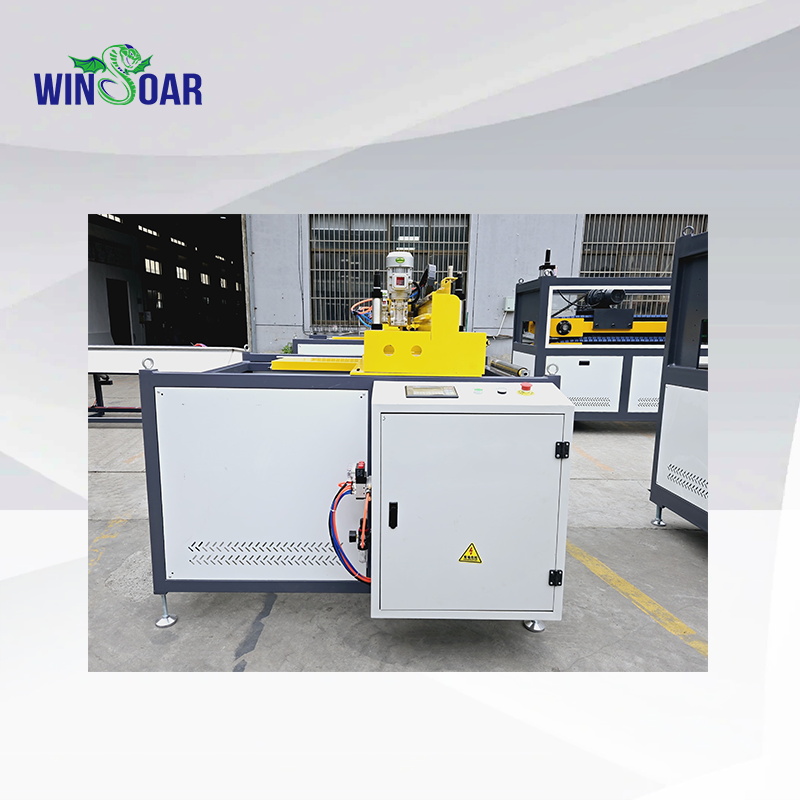

CUTTING MACHINE

After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.


PVC-WPC_10..

Accept finished products and automatically turn over.

p7p8p9
