Heat Resistance Single Screw PE Pipe Production Line For Chemical Industry

Introducing our top-of-the-line HDPE pipe production line, designed to meet the growing demand for high-quality water pipes. Our production line is capable of producing pipes ranging from 16mm up to 2000mm, making it suitable for a wide range of applications including water supply, drainage, irrigation, gas, sewage, and city construction.

Crafted with precision engineering, our HDPE pipe production line is equipped with cutting-edge technology that ensures consistent quality and durability. Our team of experts has meticulously designed each component of the production line to deliver exceptional performance, reliability, and efficiency.

Production Flow:

Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler

High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.

Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

With our HDPE pipe production line, you can rest assured that you are getting a product that meets the highest standards of quality and safety. Our pipes are built to withstand extreme weather conditions and are resistant to corrosion, making them ideal for use in harsh environments.

33D Series Classical Production Line：

38D Series High Efficient Production Line：

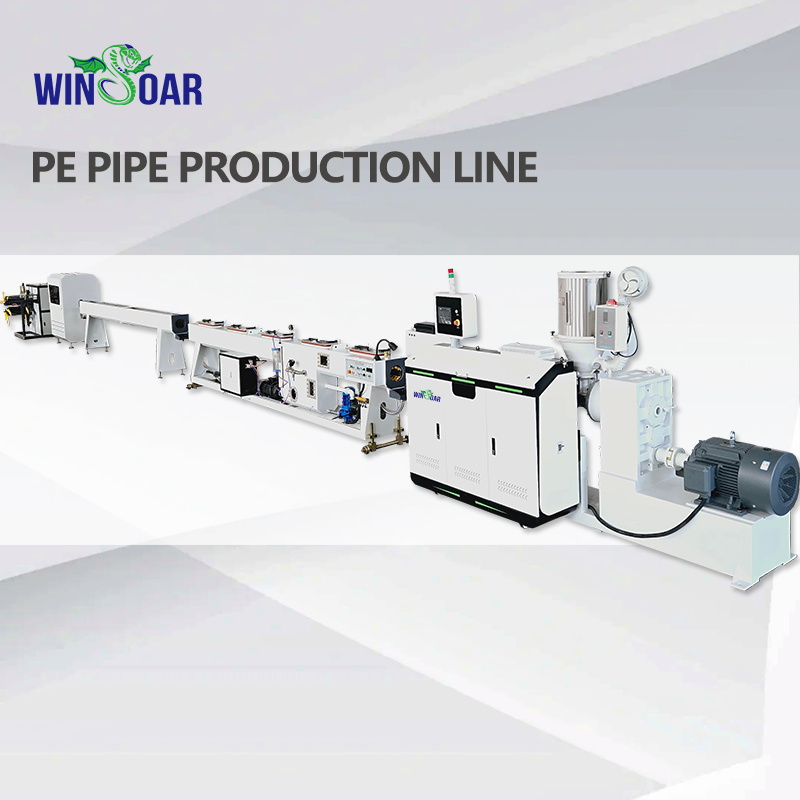

PE PIPE PRODUCTIONLINE

It consists of extruder, mould, vacuum calibration tank, cooling tank, haul-off machine, cutting machine, stacker, etc.

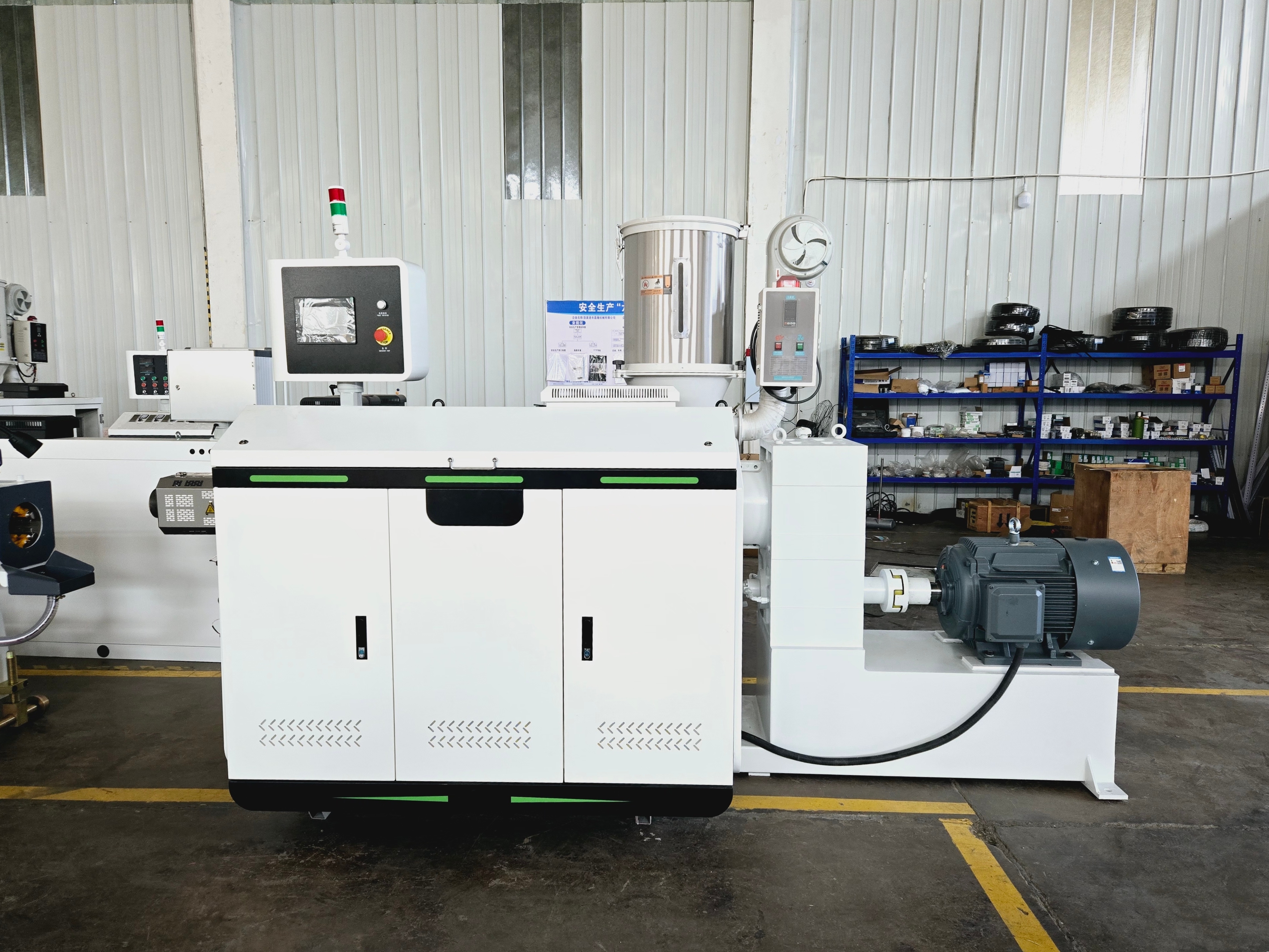

SINGLE SCREW EXTRUDER

The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.

MARK LINE CO-EXTRUDER

The extruder is especially widely used on pipe production line to co-extrude pipe mark line. It is specially designed with lower power consumption and takes smaller space.

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PP the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of tube forming.

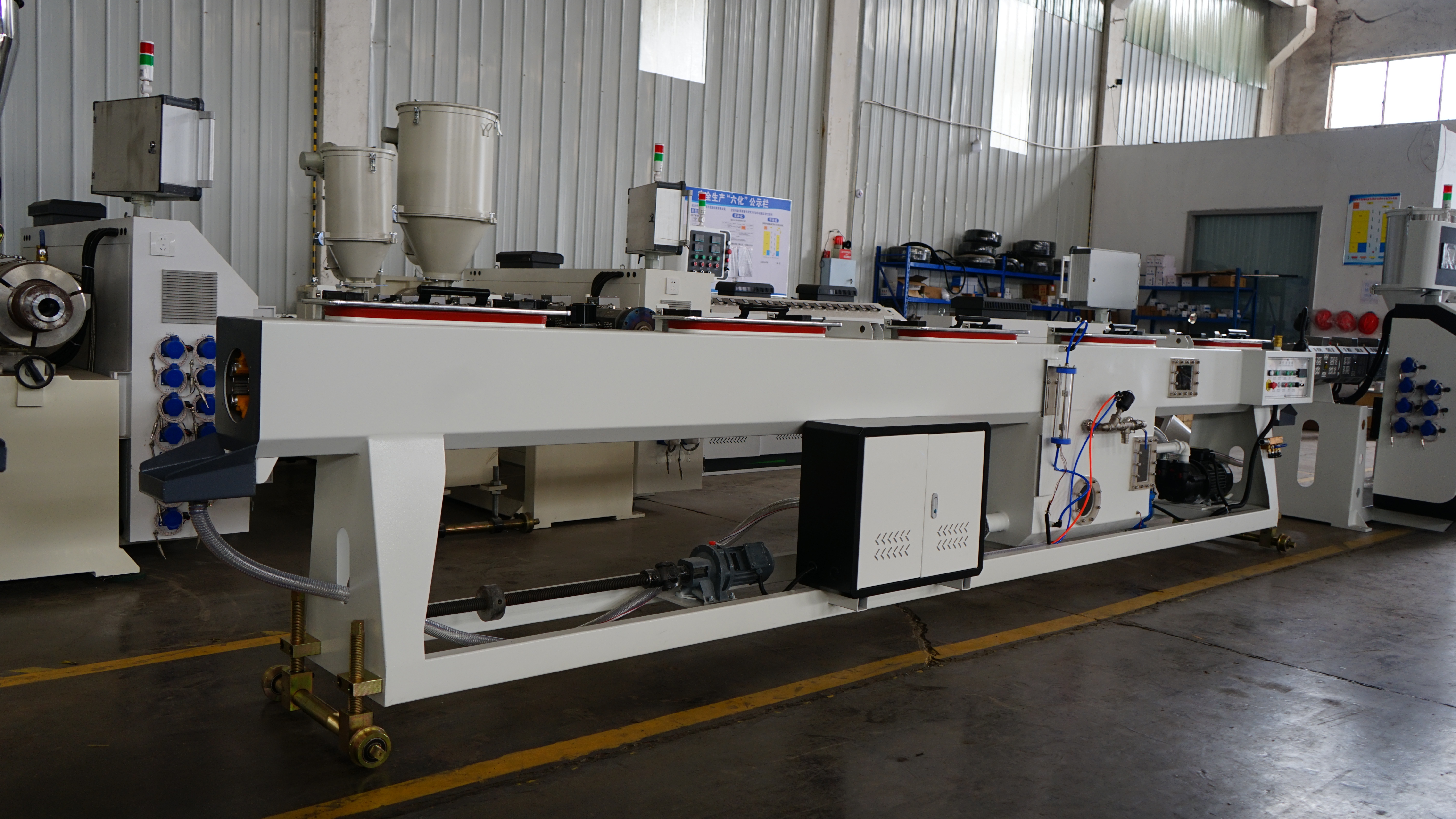

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

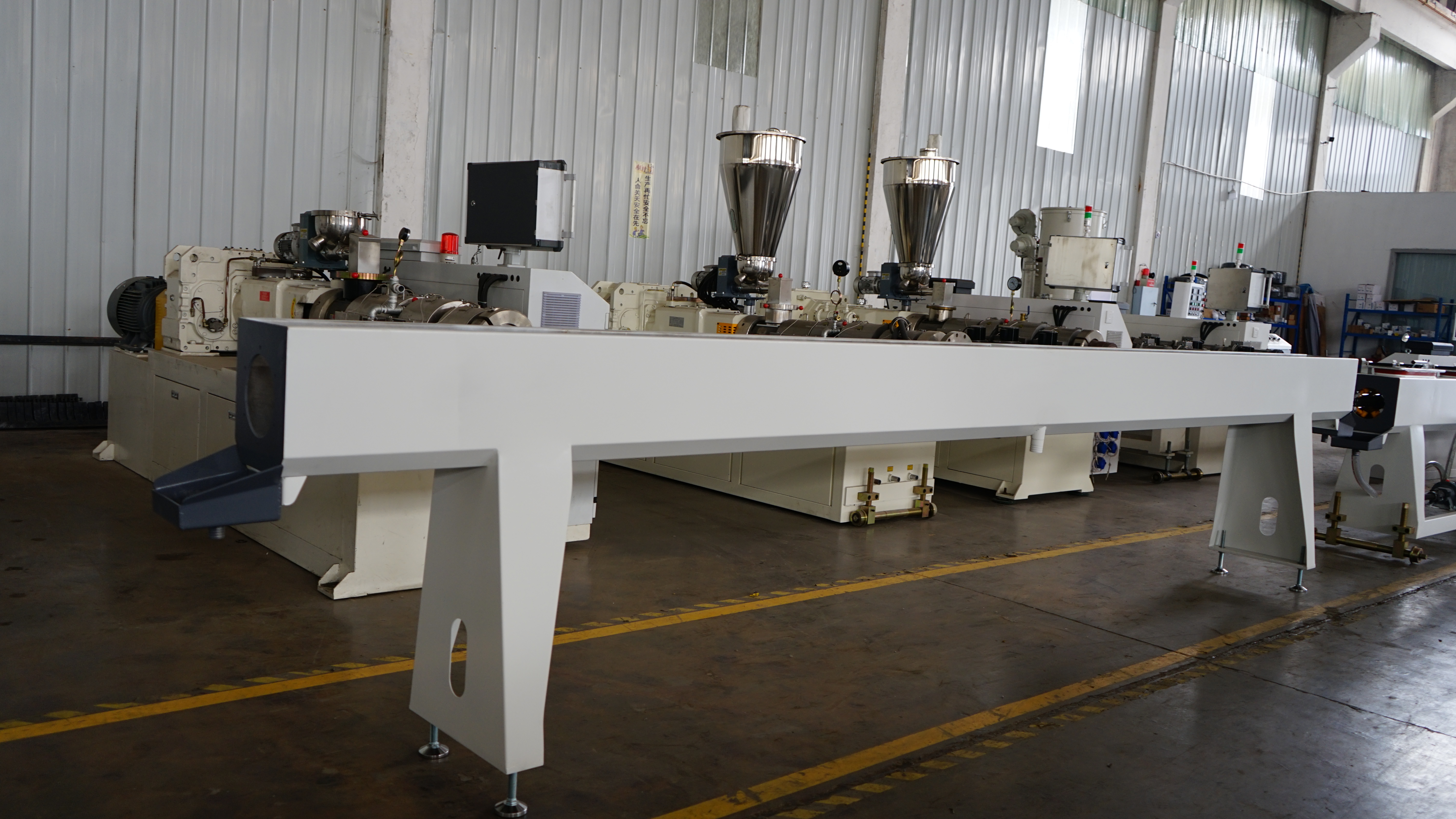

SPRAY COOLING TANK

The cooling water is atomized and sprayed from the special nozzle after being pressed by the water pump, so that the product can be cool to 360 degrees in all directions.

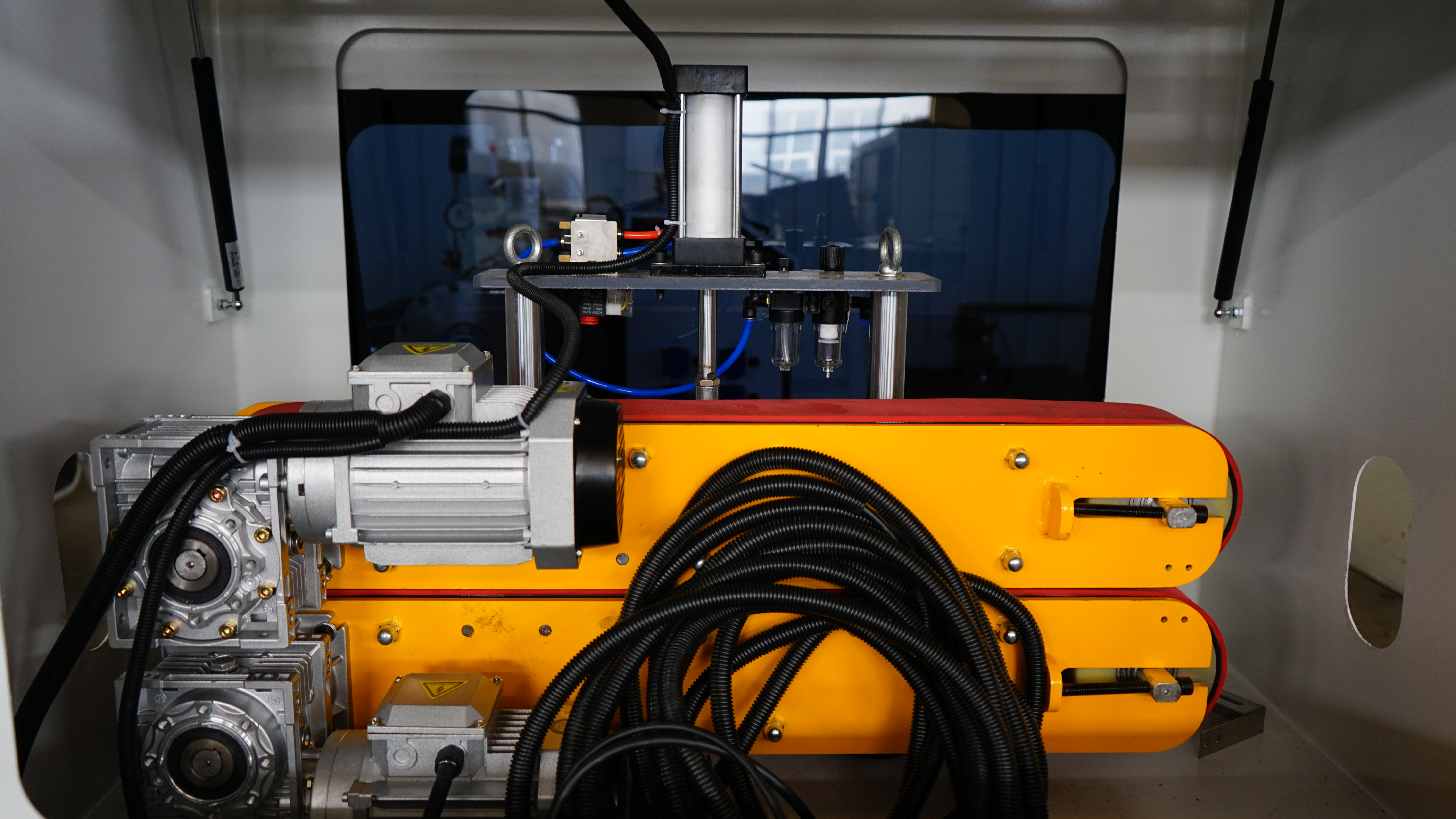

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.

CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

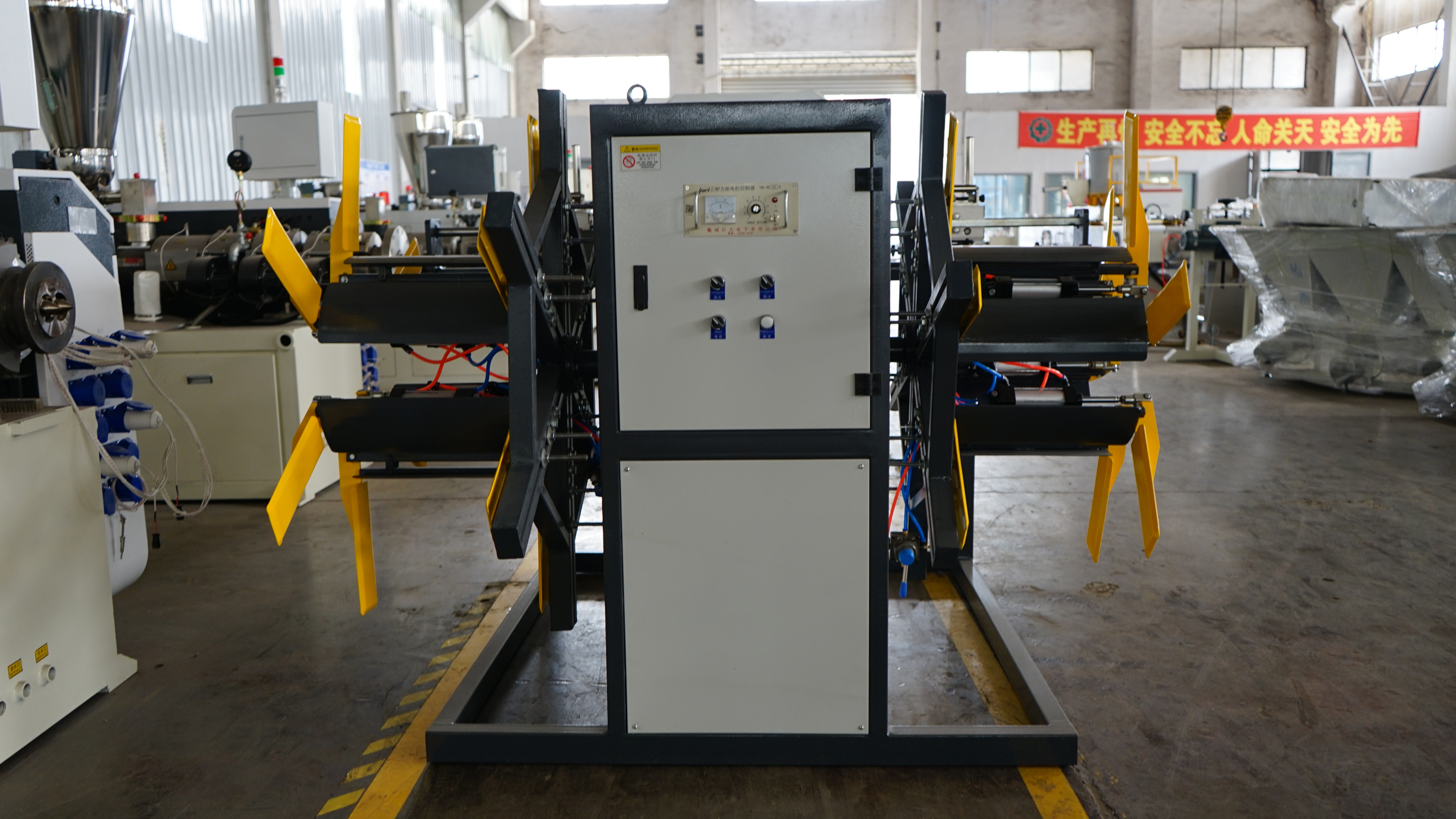

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)

This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging,automatic rewinding, and easy operation.

TURNOVER RACK (OPTIONAL ON REQUEST)

Accept finished products and automatically turn over.
