Low Consumption Cutting PE-RT Pipe Production Line For Business Districts

The pipe made by this line is widely used for water supply and radiate floor heating in houses, shopping mall, hospital, stadium, and countries.
This production line adopts Europe's advanced technology with the feature of unique structure, leading configuration, high automation, and easy operation. The extruder screw adopts high-efficiency type with big output, good plasticizing, nice stability, and excellent reliability.
The main screw adopts high-efficiency type, and the output is fast and plasticized well.
The wall thickness of pipe products is precisely controlled and very less waste of raw materials.
Tubular extrusion special mold, water film high-speed sizing sleeve, equipped with integrated flow control valve with scale. Servo-controlled high-speed double-belt haul-off unit, supporting high-speed chipless cutter and winder, adapt to high-speed production operation. A dual pipe extrusion line can double the output and occupy less factory space.
Pipes produced by this machine has moderate rigidity, and strength, as well as good flexibility anti-rot anti-stress split, and favorable hot melting making this large diameter pipe, considered the preferred product for water and gas transportation system in cities.
This pipe owns even and equal co-extrusion wall thickness, the inner and outer walls made of double-anti material (Anti-flammable, anti-static electricity) the core layer of HDPE wall, reasonably reducing the costs of double-anti material, accordingly reducing the costs of the whole product

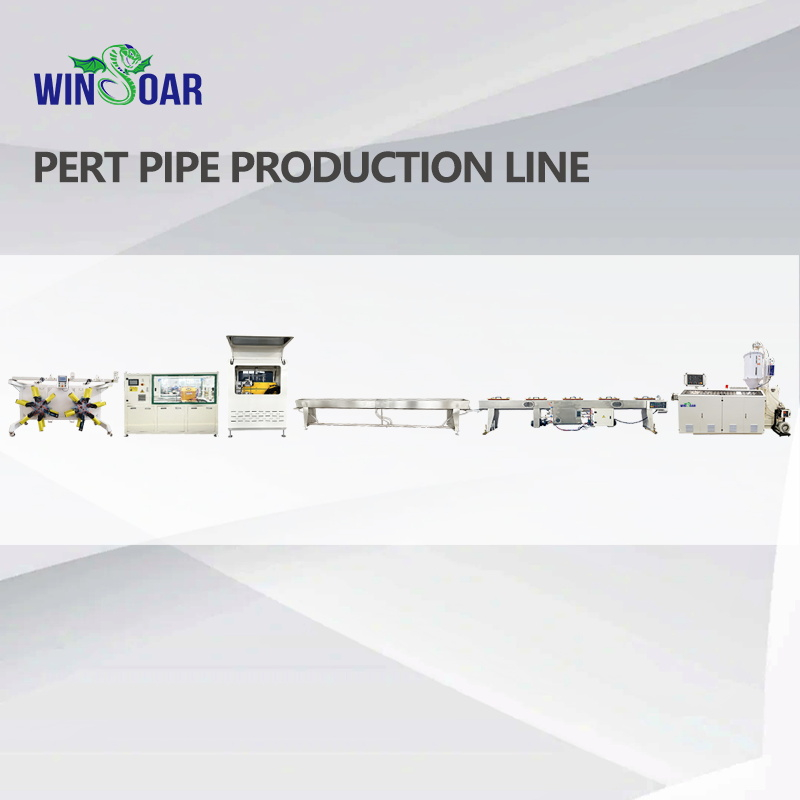

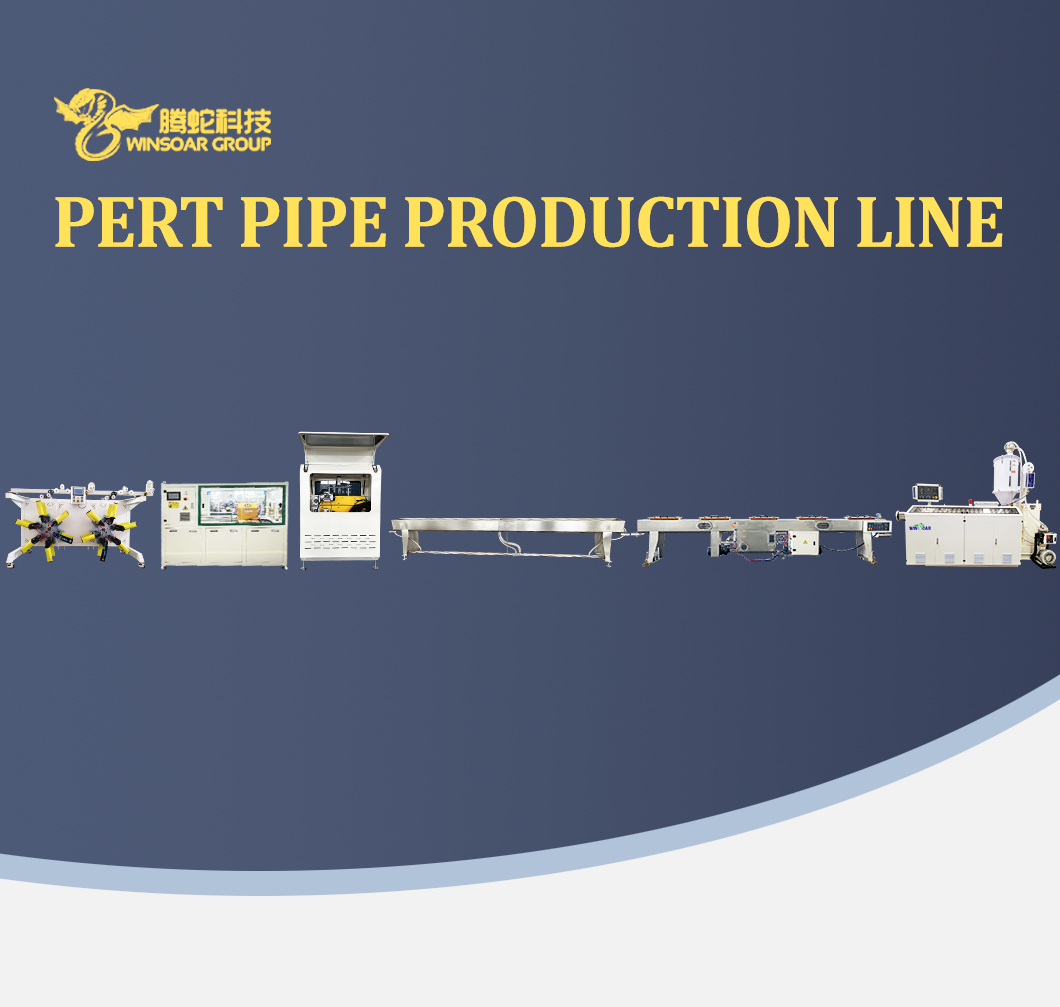

PERT PIPE PRODUCTION LINE

Mainly used in the production Of PERT pipes, used in plumbing heating systems air conditioning piping systems and other industries.

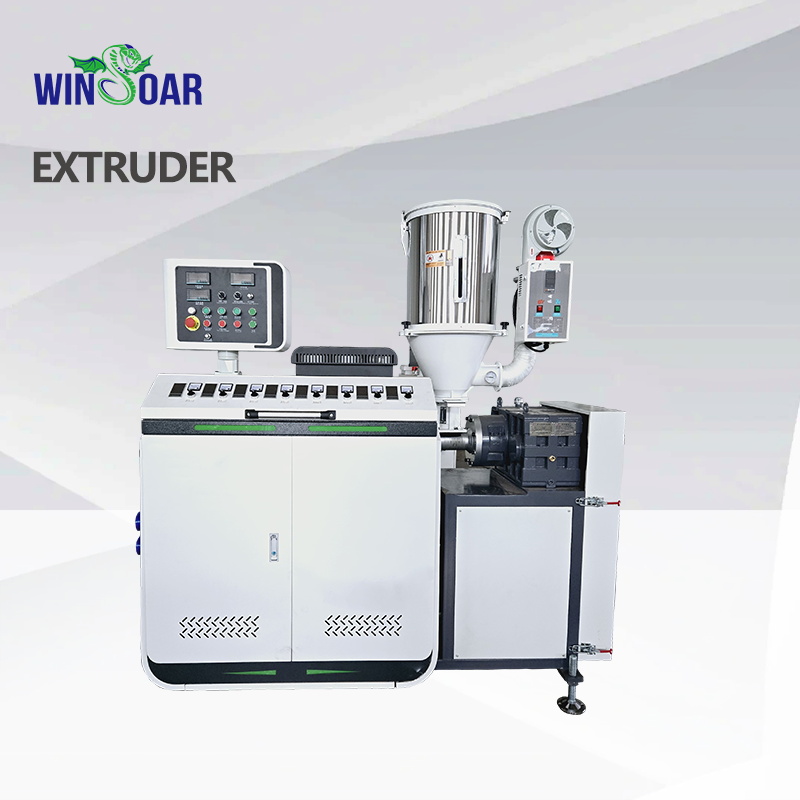

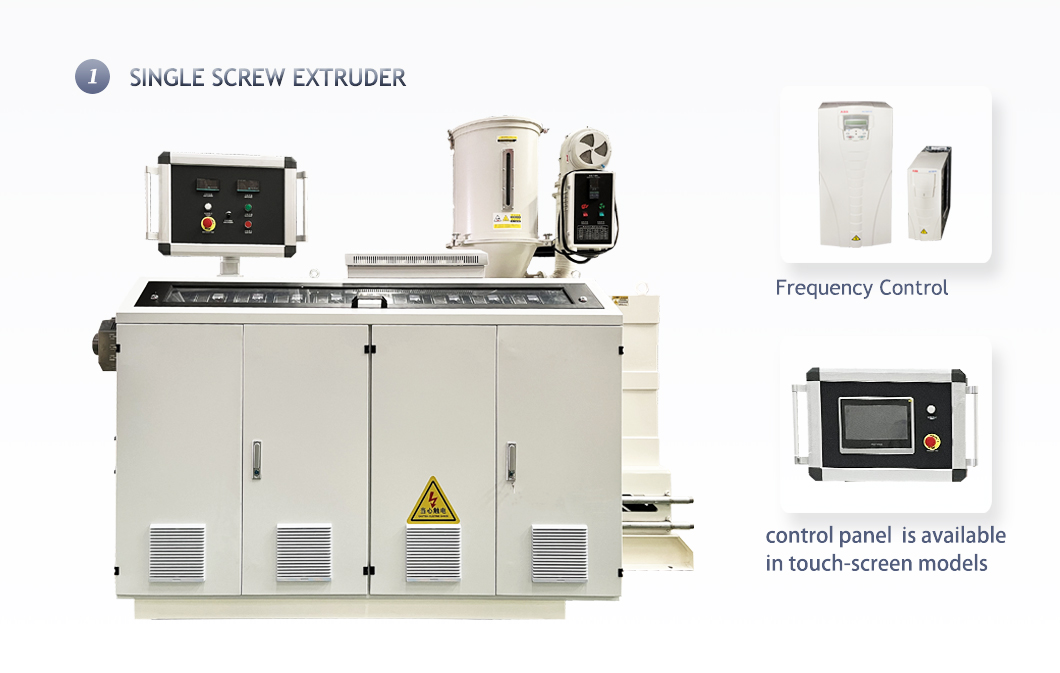

SINGLE SCREW EXTRUDER

The single screw extruder is simple in design and inexpensive, so it is widely used. It is suitable for extrusion production of PE, PPR, PERT plastic pipes, sheets and profiles.

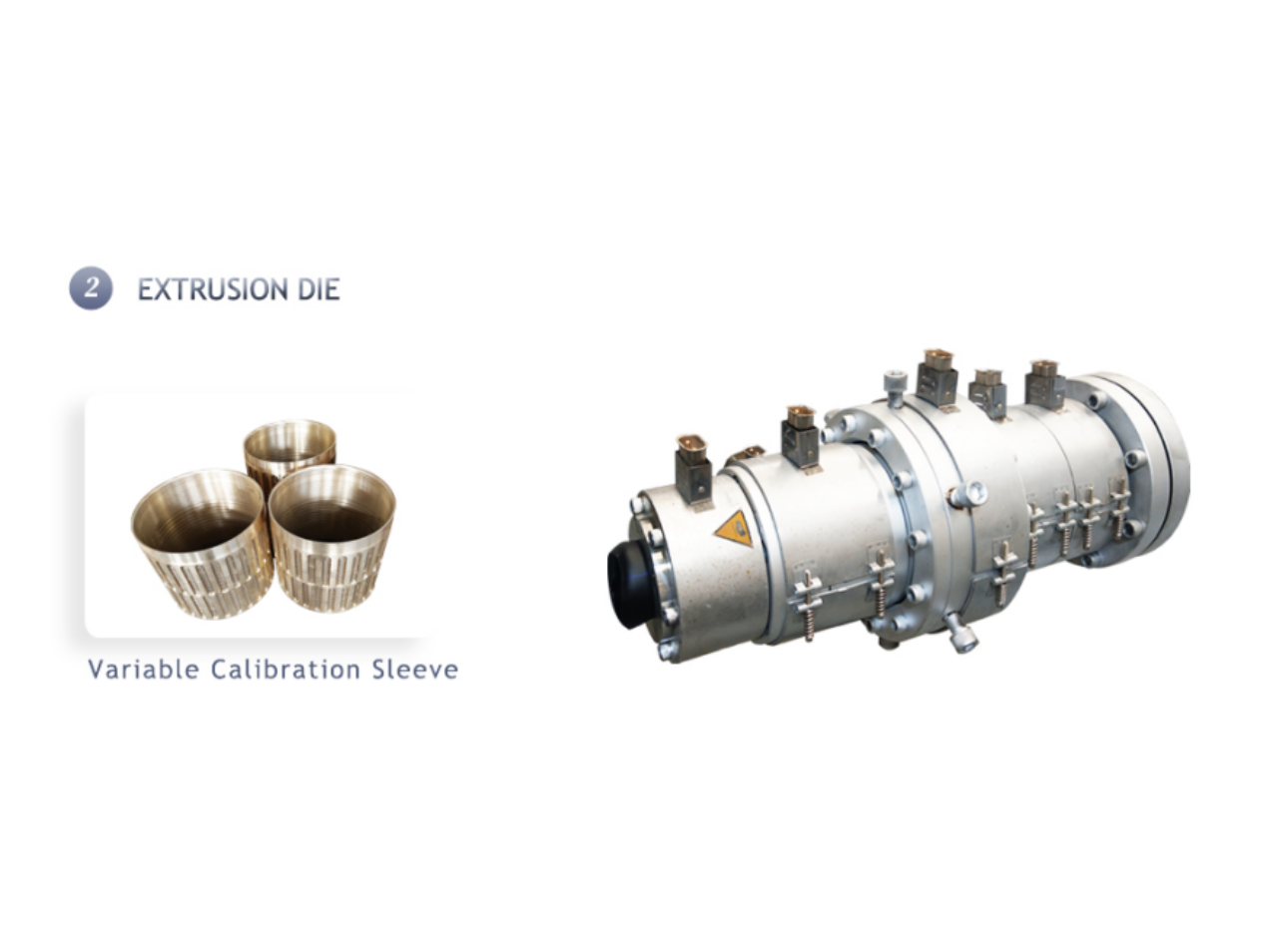

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PP the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of tube forming.

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

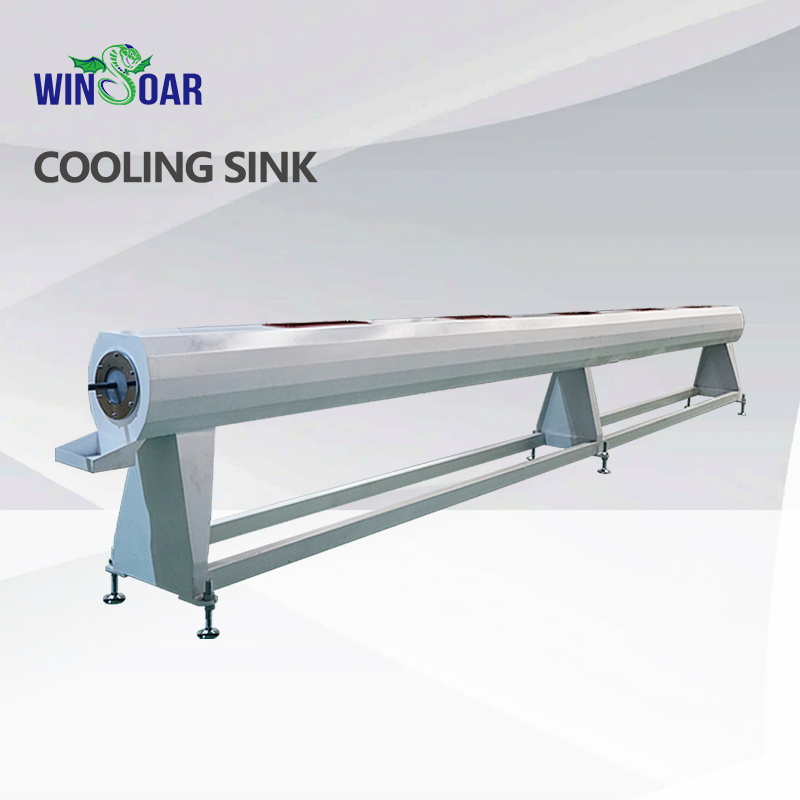

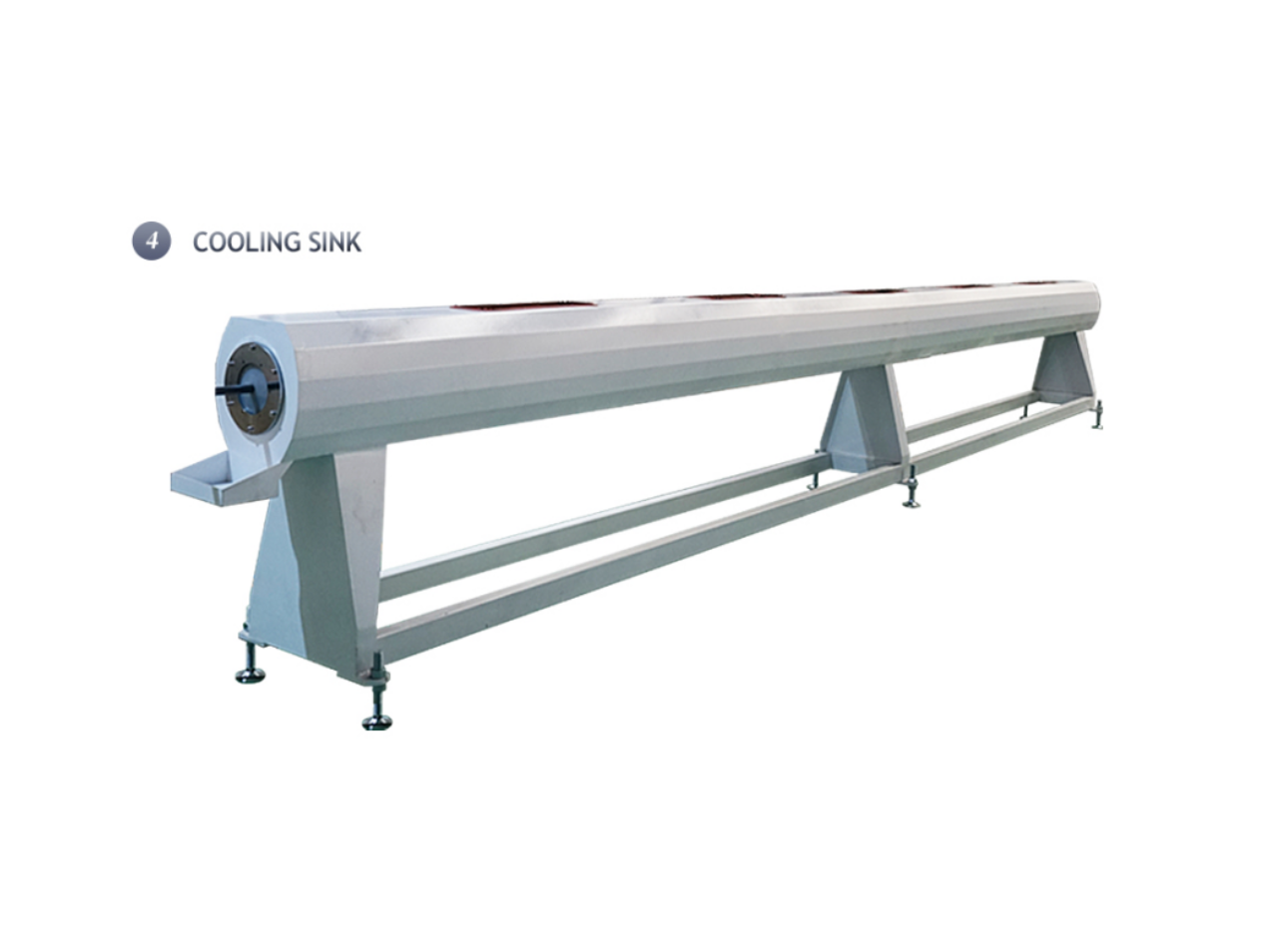

COOLING SINK

It is mainly composed of a sink, a rack, a stainless steel water tank, etc. The cooling water is continuously circulated, so that the product can be cooled 360 degrees in all directions.

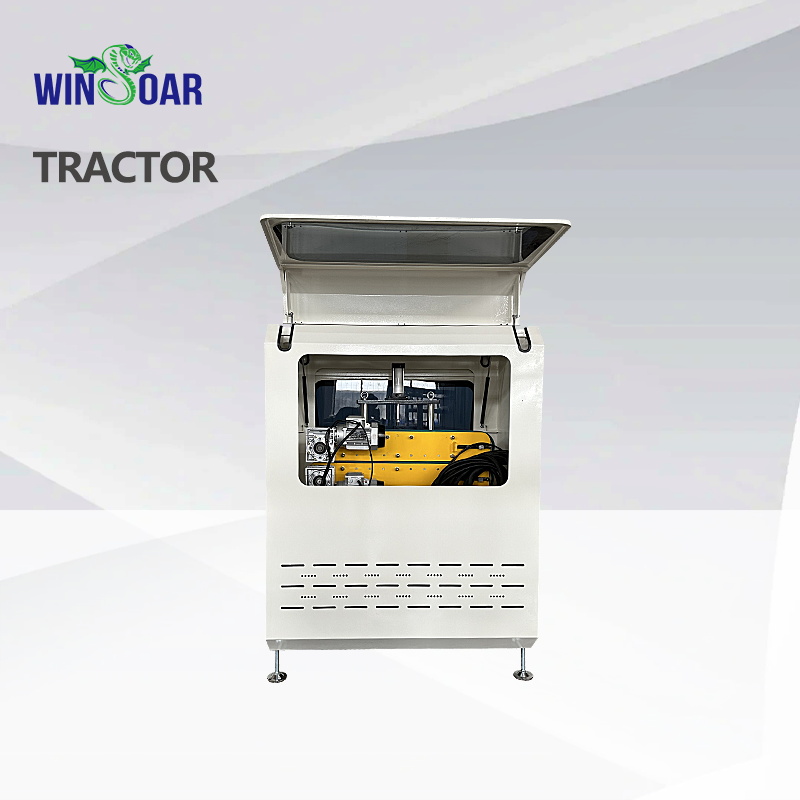

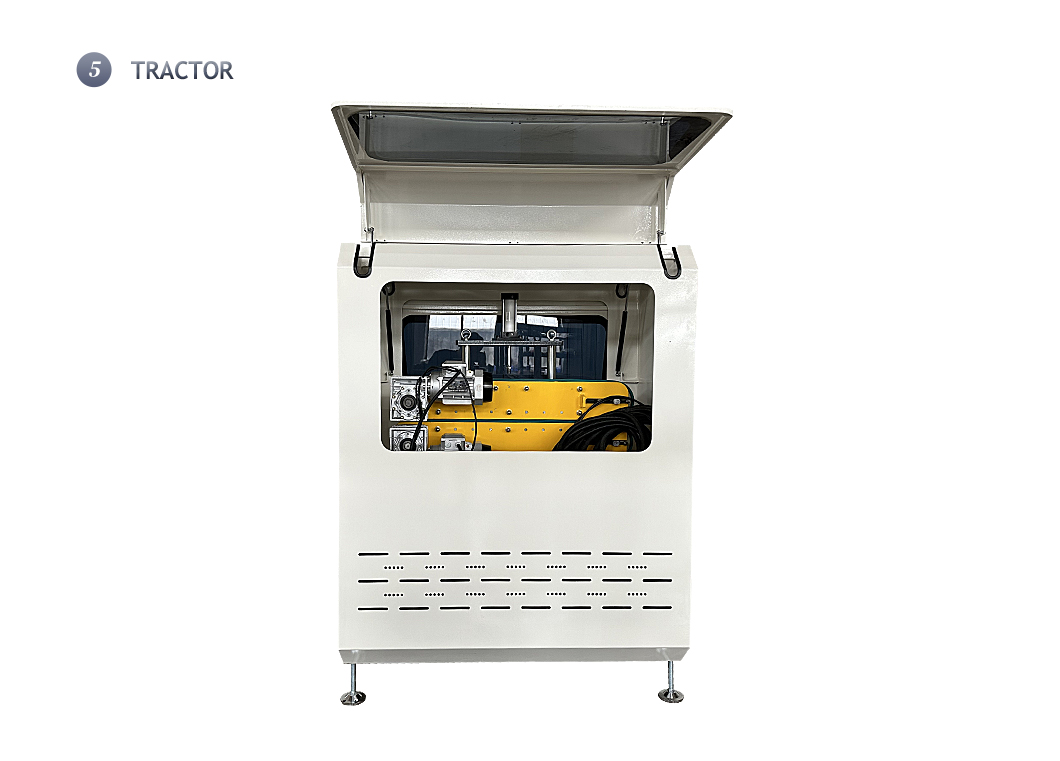

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head, and the speed is controlled by frequency conversion.

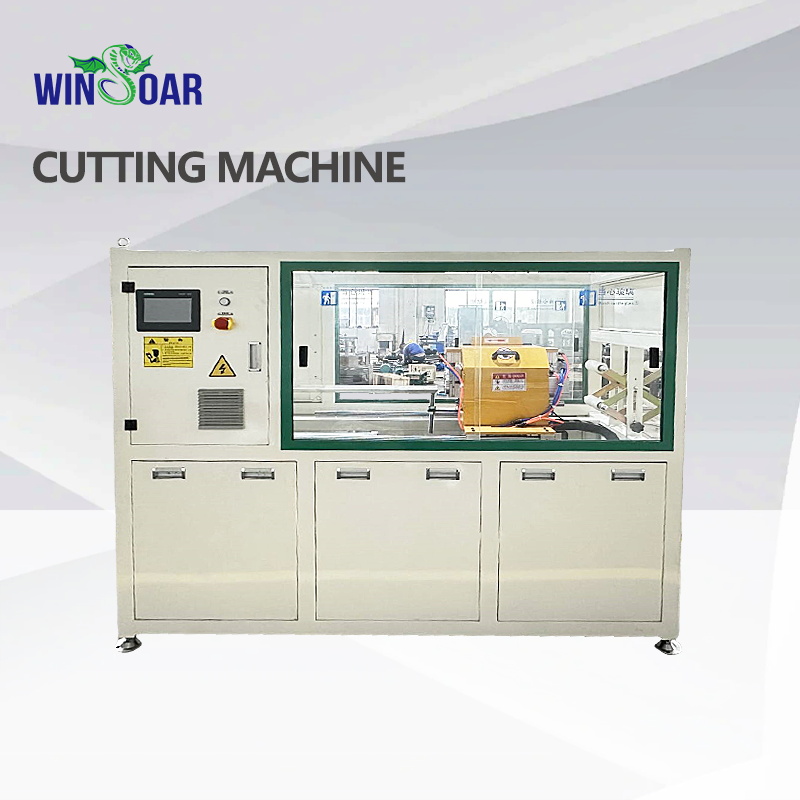

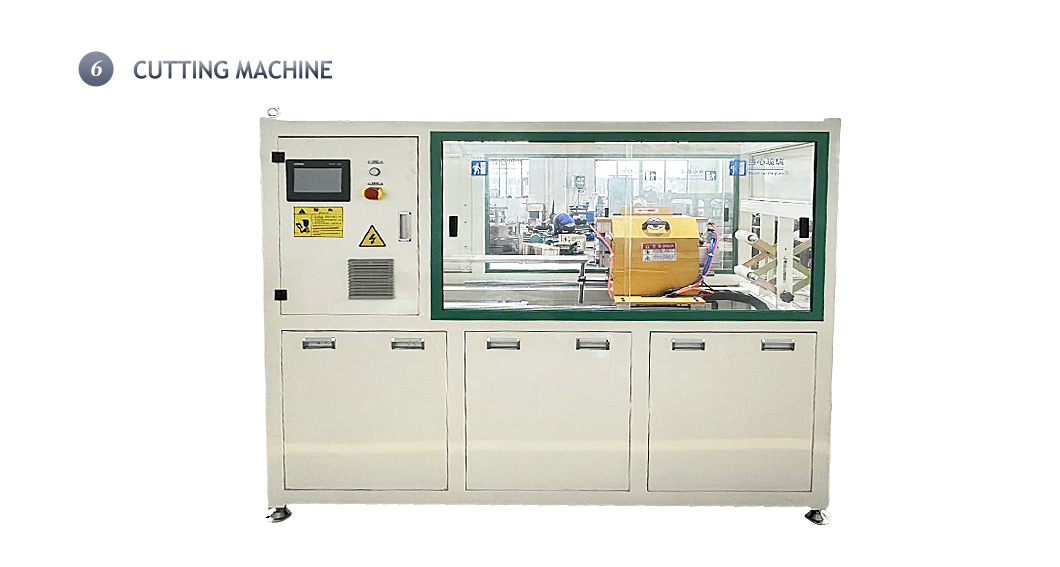

CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

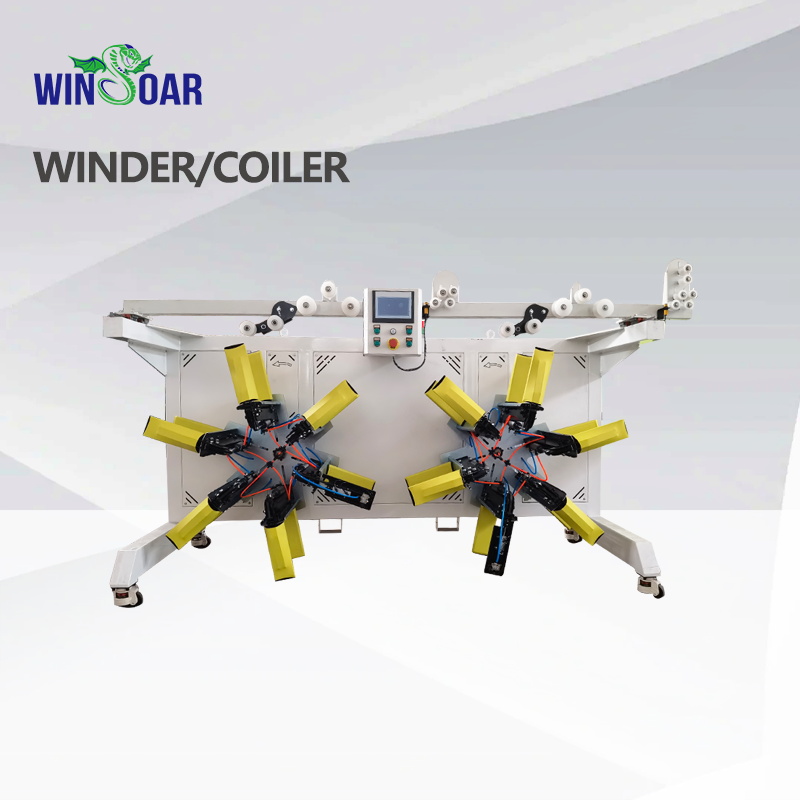

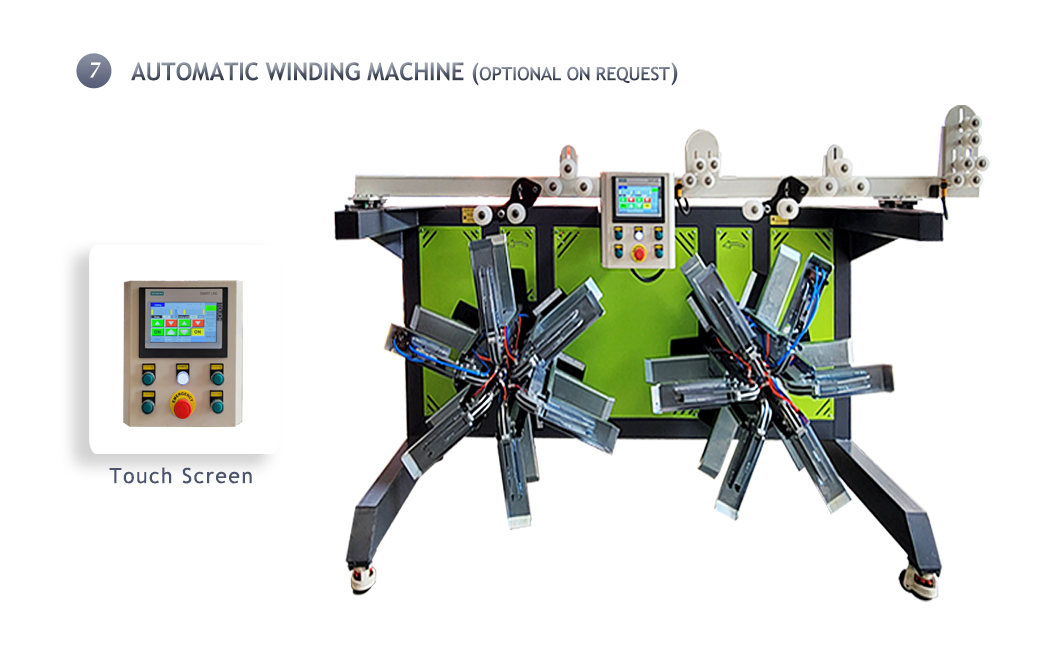

AUTOMATIC WINDING MACHINE (OPTIONAL ON REQUEST)

This machine is equipped with two reels alternately to ensure the continuity of production. It is suitable for plastic rewinding and packaging, automatic arranging, automatic rewinding, and easy operation.
