Fully Automatic High Precision Ceiling/Wall Panel Production Line For Home

5 0 Reviews
Extrusion Line is used to produce PVC/WPC wall panel with different size, such as 300mm, 400mm, 500mm, 600mm wide, etc.
Changing some of parts, this line can also produce wpc profile.
According to the different formula, should mix the PVC powder with additives in a ratio. After mixing, put the raw material into the extruder by screw feeder. By heating and mixing in extruder, the raw material will change to fluid and extruded into mould. Out of mould, wall panel will be shaped and cooling by platform. Through the tractor, cutting machine, finial end on collect platform for packing.

Availability:
Quantity:

Product Description

Extrusion Line is used to produce PVC/WPC wall panel with different size, such as 300mm, 400mm, 500mm, 600mm wide, etc.
Changing some of parts, this line can also produce wpc profile.
According to the different formula, should mix the PVC powder with additives in a ratio. After mixing, put the raw material into the extruder by screw feeder. By heating and mixing in extruder, the raw material will change to fluid and extruded into mould. Out of mould, wall panel will be shaped and cooling by platform. Through the tractor, cutting machine, finial end on collect platform for packing.

This line is consisted of conical twin screw extruder, glue extruder, vacuum shaping table, haul-off machine, cutting machine and stacker. This line adopts automatic control, has the features of high automatic, easy operation and stable and effective production. It can also produce different kind of WPC decorating wall panel, WPC wall board, quick installation pane with different size by changing different kind of mould.

Features

The performance and advantages of PVC bamboo fiber wallboard:

1. Anti-corrosion and durability, high strength, good toughness, light weight, anti-vibration, non-deformation, non-aging, anti-creep, non-corrosive, long service life, one-time decoration, lifelong benefit.

2. Time-saving and labor-saving. In the design, the traditional gusset plate installation method can be directly bent, joined and folded. The rough wall can be directly installed in one step. The installation is no longer cumbersome. The ordinary carpenter can do it. The decoration cycle is too long and troublesome.

3. Super sound insulation effect can reach up to 29 decibels, the room is quiet and comfortable, and the noise will no longer disturb your life.

4. All low-carbon and environmentally friendly surface treatments are made of environmentally friendly materials and do not contain paint components. The decorated rooms have no peculiar smell and no harmful ingredients to the human body. Completely bid farewell to formaldehyde and truly achieve zero carbon and zero emissions.

Main Parameter

Model

Width

Extruder model

Motor power

Output

WS-600

400-600mm

65/132

37kw

220kg/h

WS-1200

600-1200mm

80/156

55kw

400kg/h


Pictures for Reference

PVC-board_01

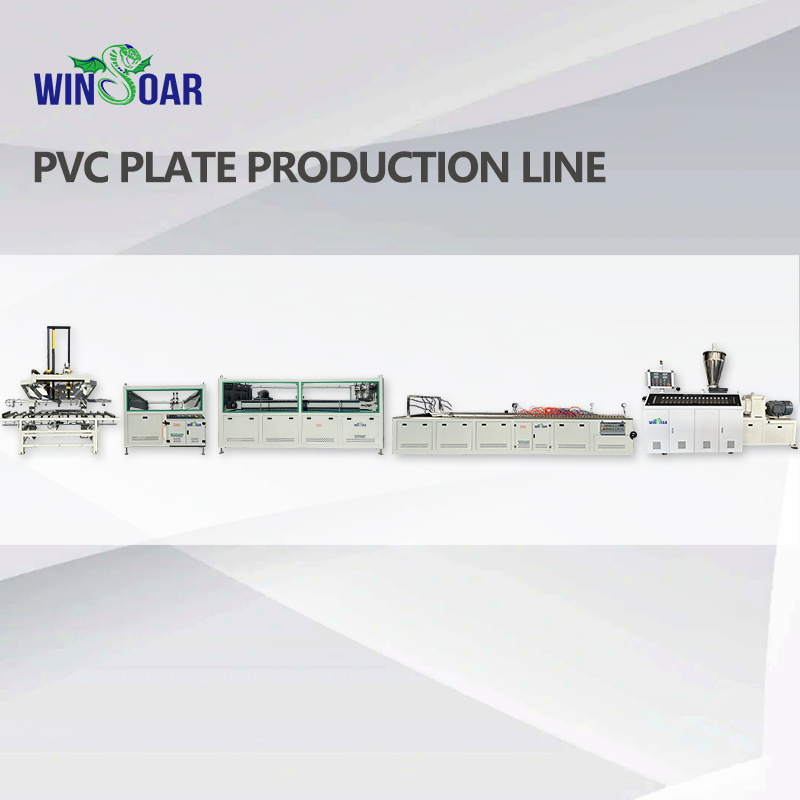

PVC PIATE PRODUCTION LINE

The production line adopts automatic control,with high degree of automation, stable equipment easy operation and high production efficiency.


p2PVC-board_04

PVC-board_05

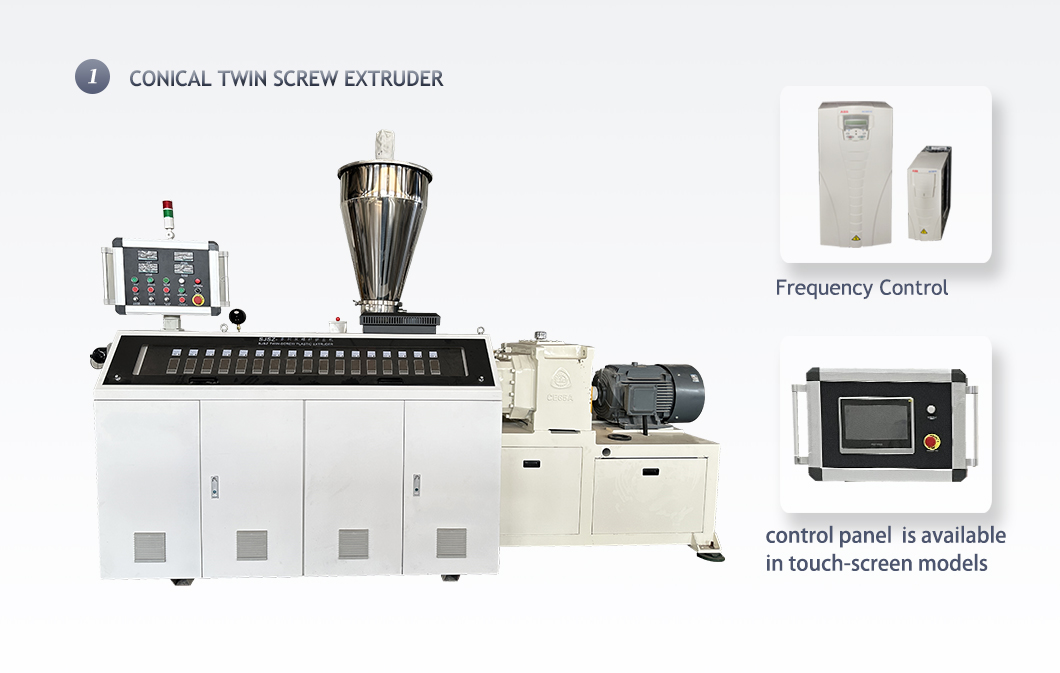

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-board_06

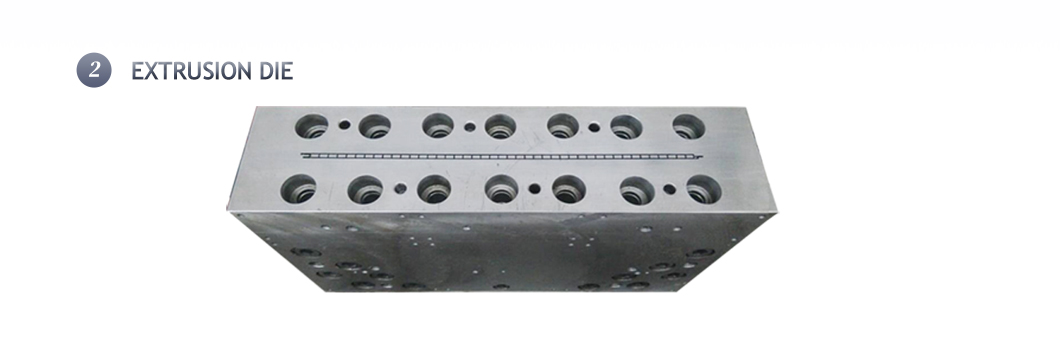

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.


PVC-board_07

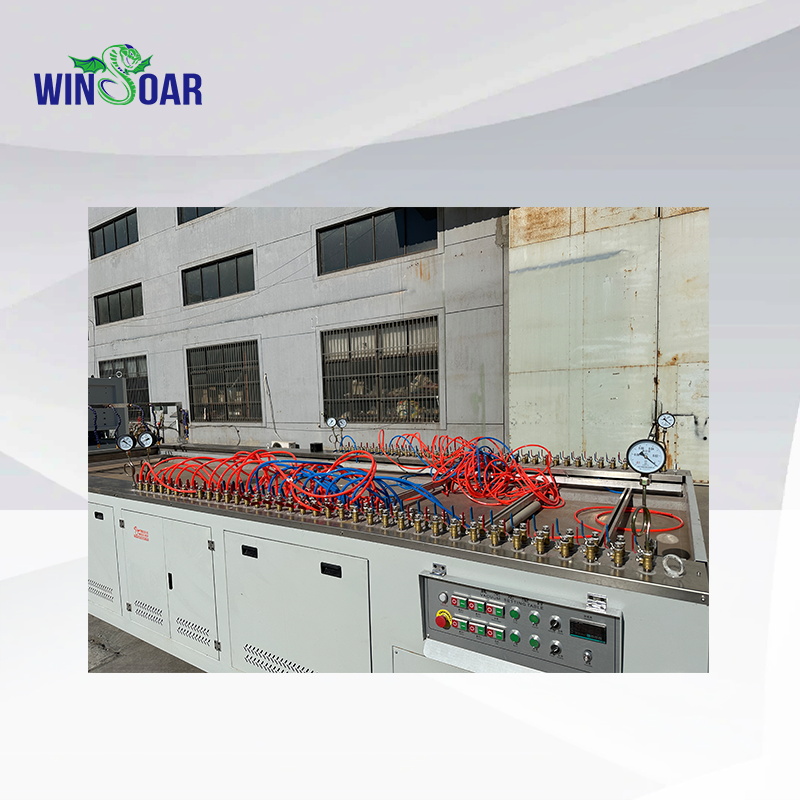

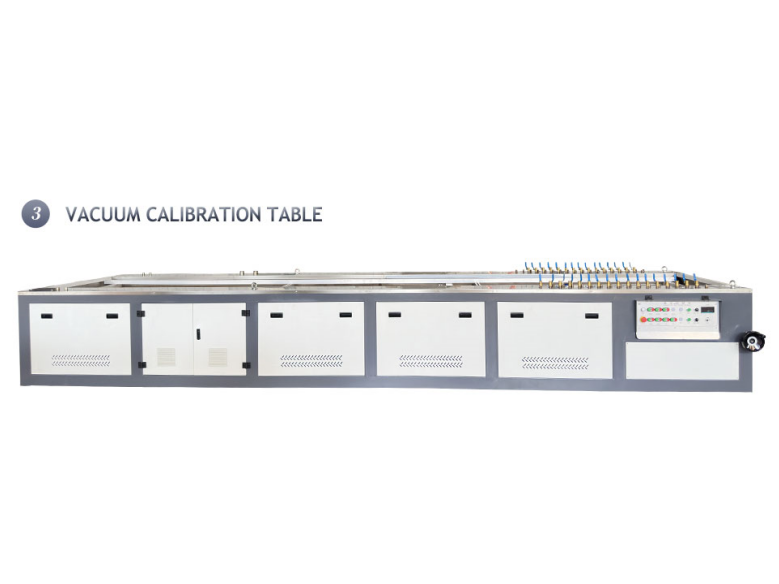

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.


PVC-board_08

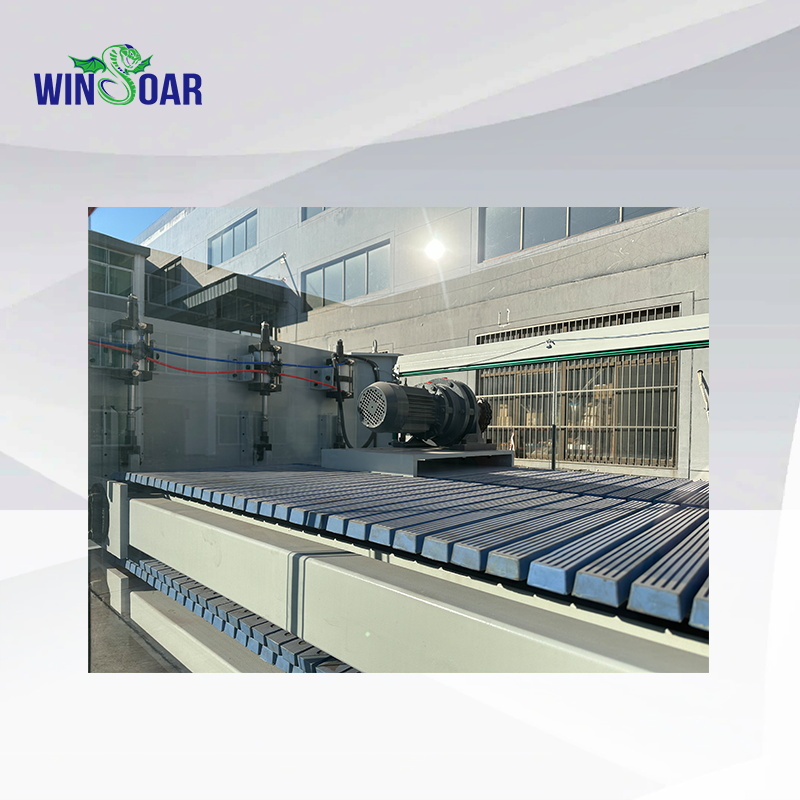

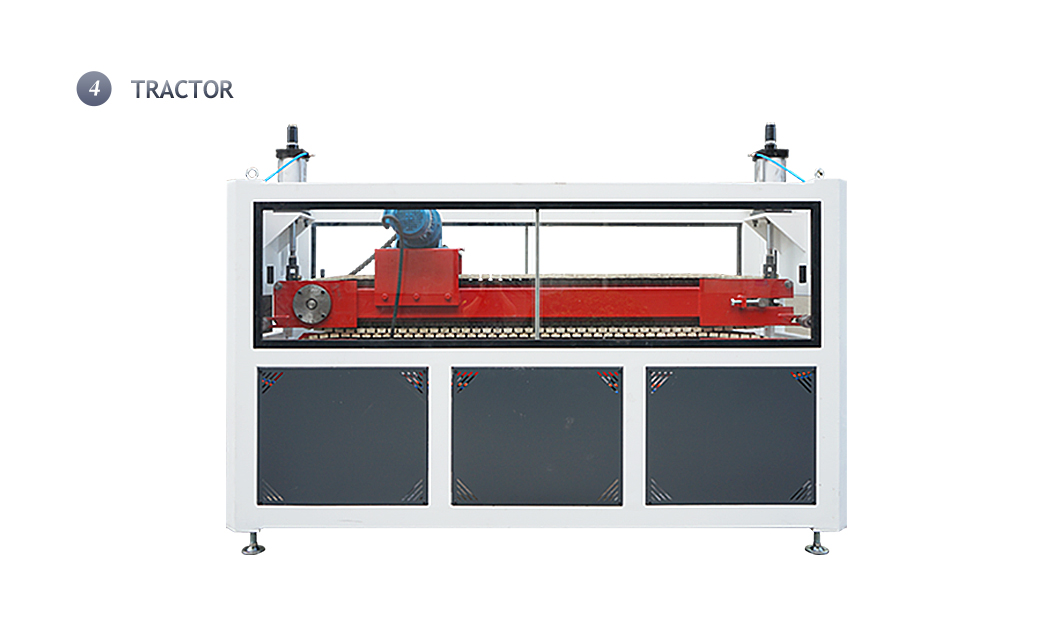

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.


PVC-board_09

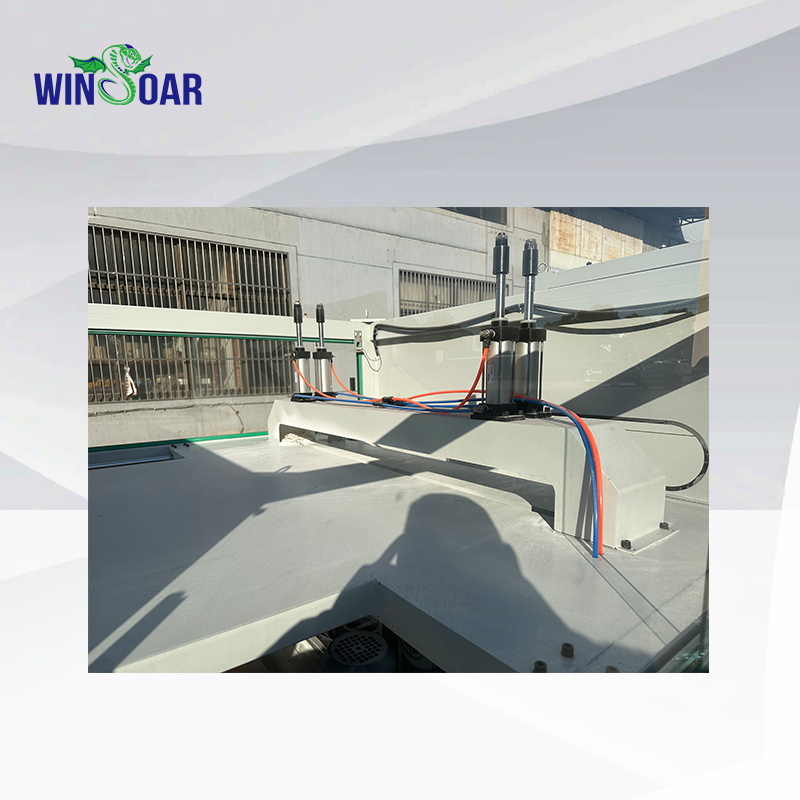

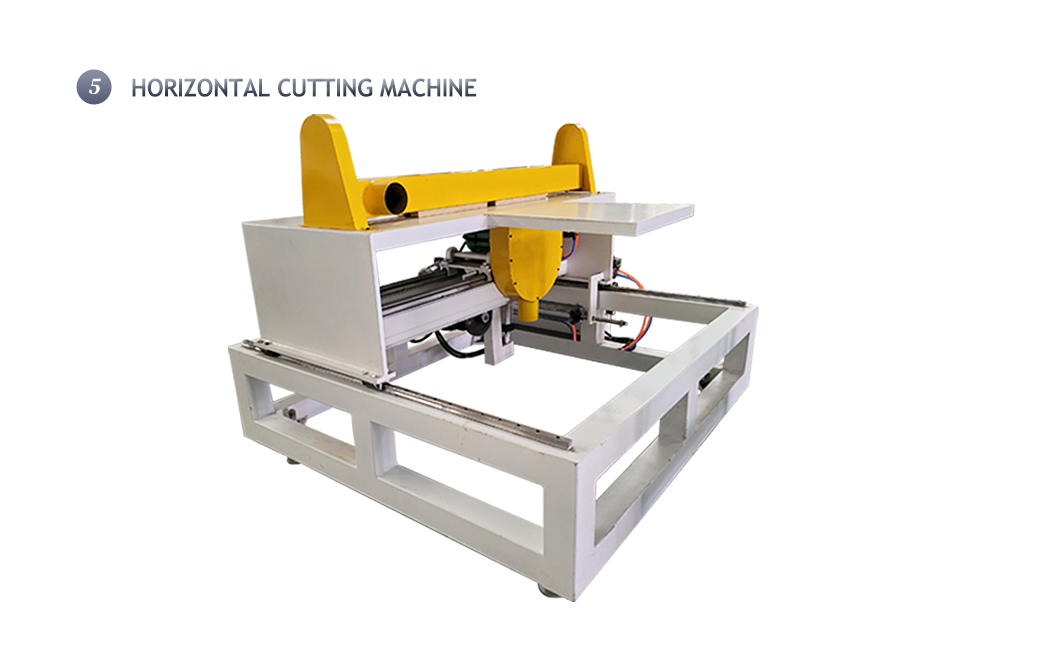

HORIZONTAL CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Automatic pressing, sawing, hidden saw blade, low noise and high safety.


PVC-board_10

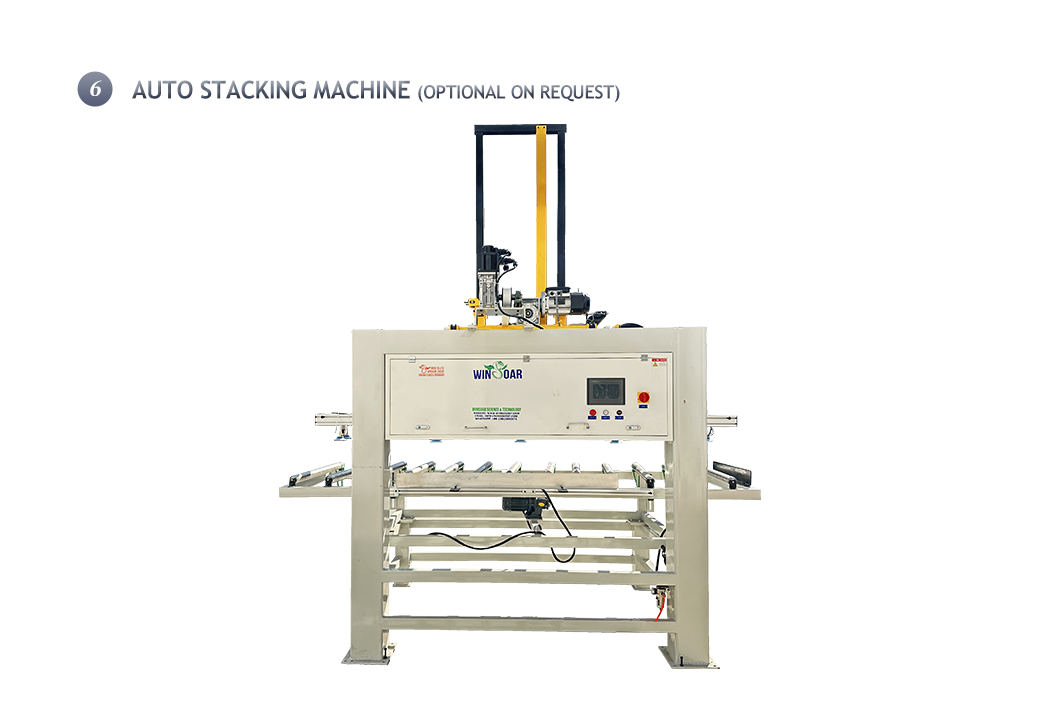

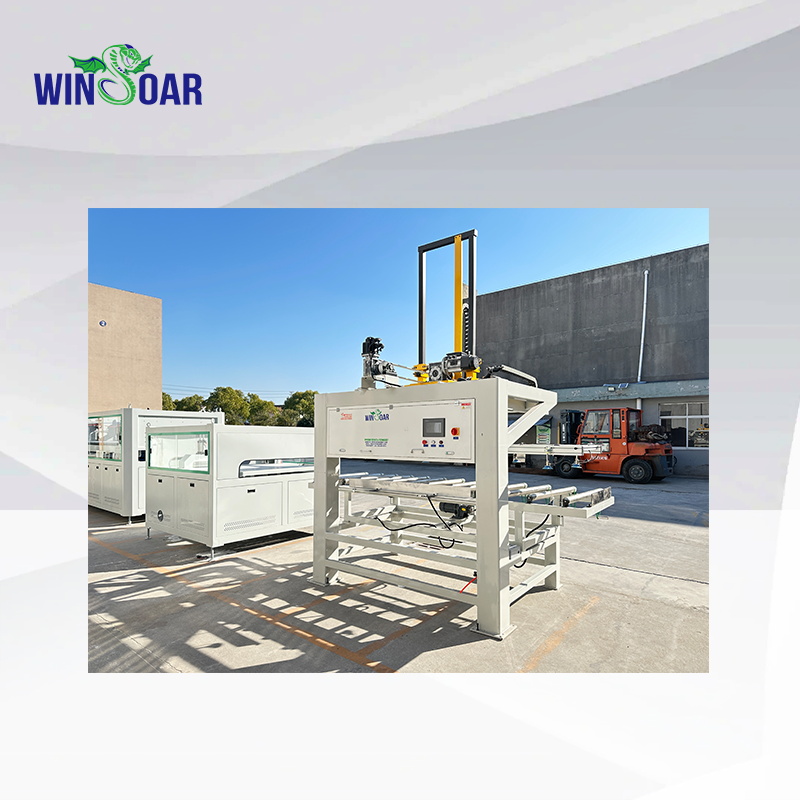

AUTO STACKING MACHINE (OPTIONAL ON REQUEST)

It can automatically receive and stack plates, saving personnel time for plate placement.


PVC-board_11


PLATE STACKER (OPTIONAL ON REQUEST)

Receive finished product and unload.


p12p13p14
