Plastic Profile Windows Frame Louver PVC WPC Corner Edge Bead/Band Strip Guards Turn L Shape Angle Making Machine/ Extrusion Production Line

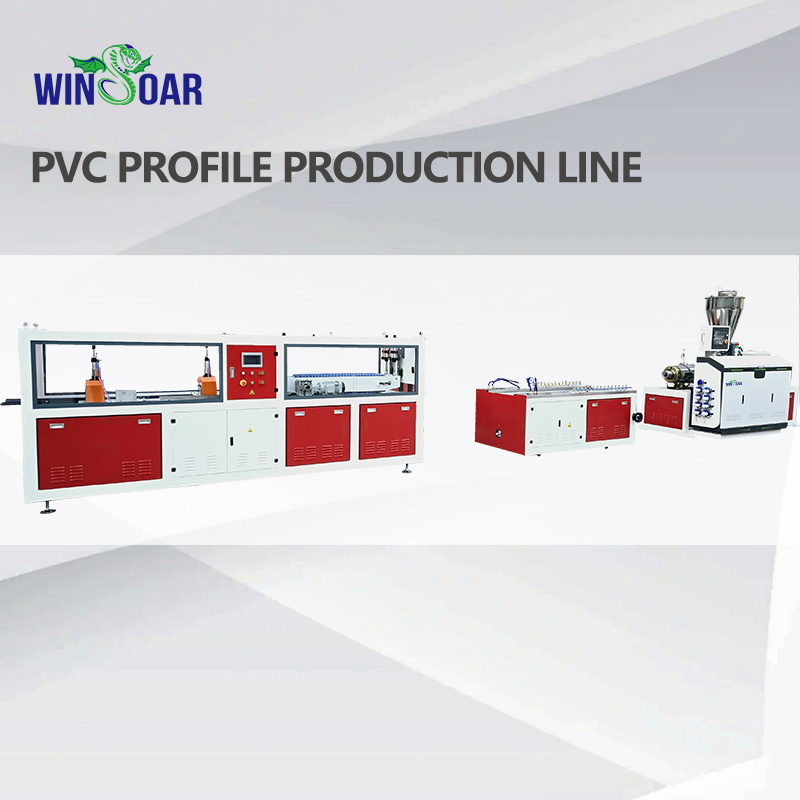

This PVC profile extrusion line is specializing in producing PVC plastic profiles including windows and doors, decorative plates, foam profile etc.

By absorbing advanced technology from abroad, our company developed the plastic profile extrusion line, which is equipped with conical double screw extruder, and it possesses the advantage of high degree automation, stable performance, high output and efficiency, etc.

This line is consisted of conical twin screw extruder, glue extruder, vacuum shaping table, haul-off machine, cutting machine and stacker. This line adopts automatic control, has the features of high automatic, easy operation and stable and effective production. It can also produce different kind of WPC decorating wall panel, WPC wall board, quick installation pane with different size by changing different kind of mould.

1)Mainly used to produce the PVC window profiles, plastic decorative plates and PE foam profiles
2) Use frequency conversion for speed regulation
3) Has super-taper twin-screw extruder with temperature controlling instrument in the screw core
4) Saves power by 30% - 40%
5) The rigid gear surface of the reducer can be operated continuously for a long time without trouble

 6) Traction machines: Rubber block traction belt, traction speed is adjustable by ABB frequency inverter.

7) Cutting machine: saw blade cutting, low noise, quick cutting performance, with dust collection device.

PVC WPC PROFILE PRODUCTION LINE

This production line is mainly used for extrusion production of PVC wood powder composite plastic profiles. It has good stability,high precision and high reliability.

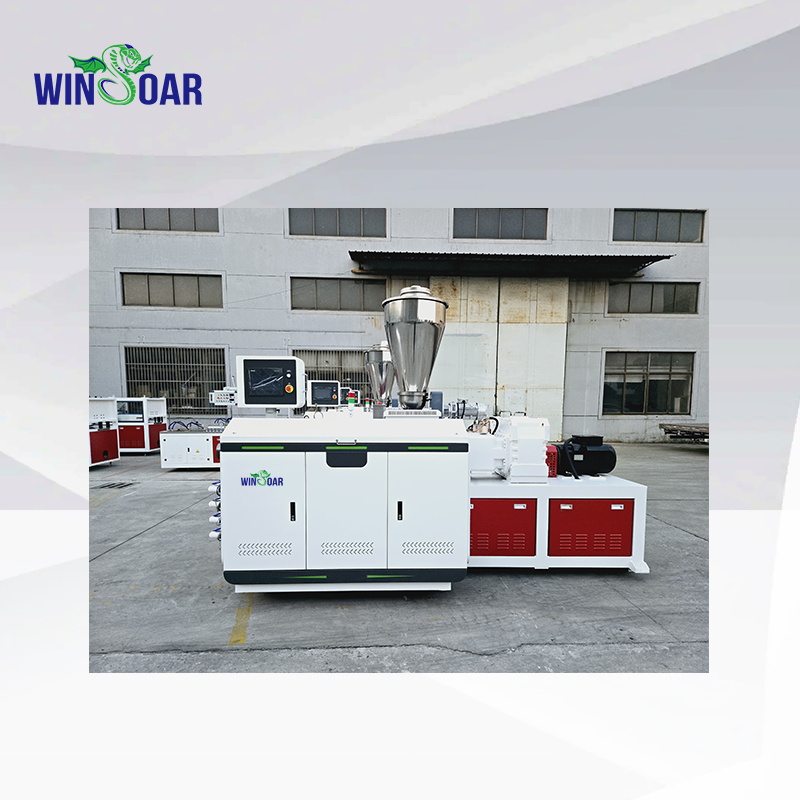

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.

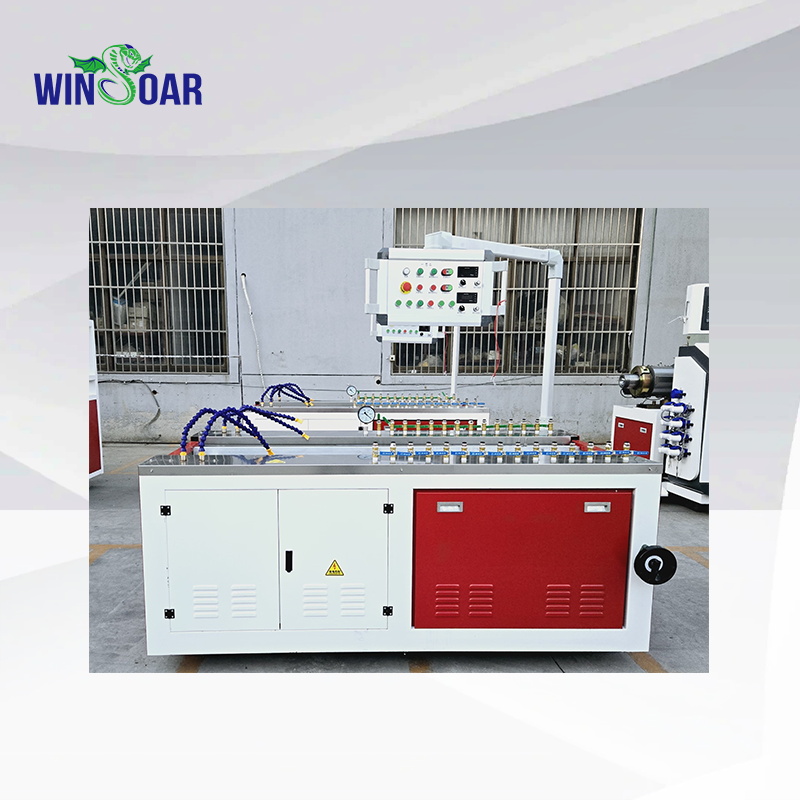

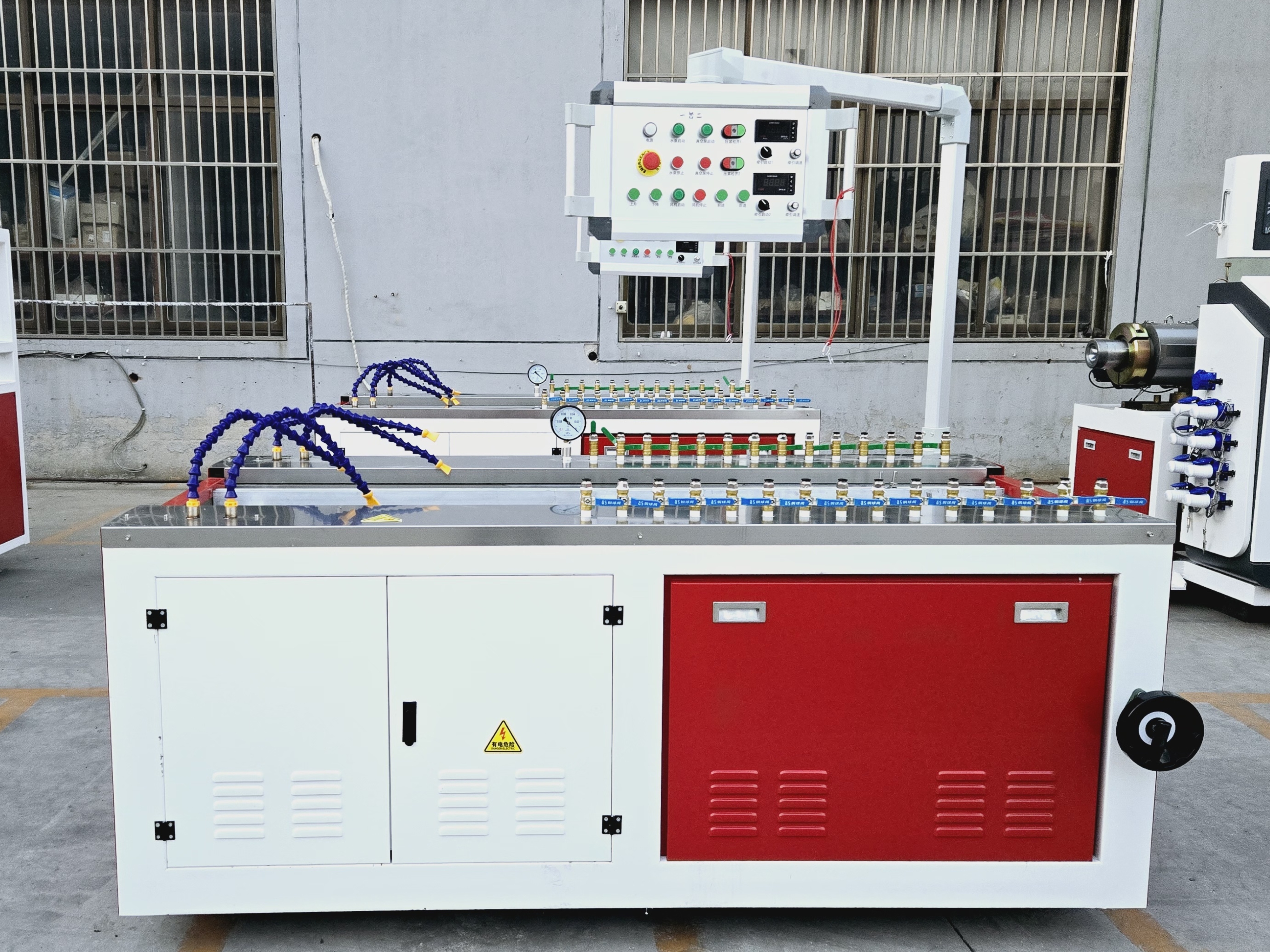

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.

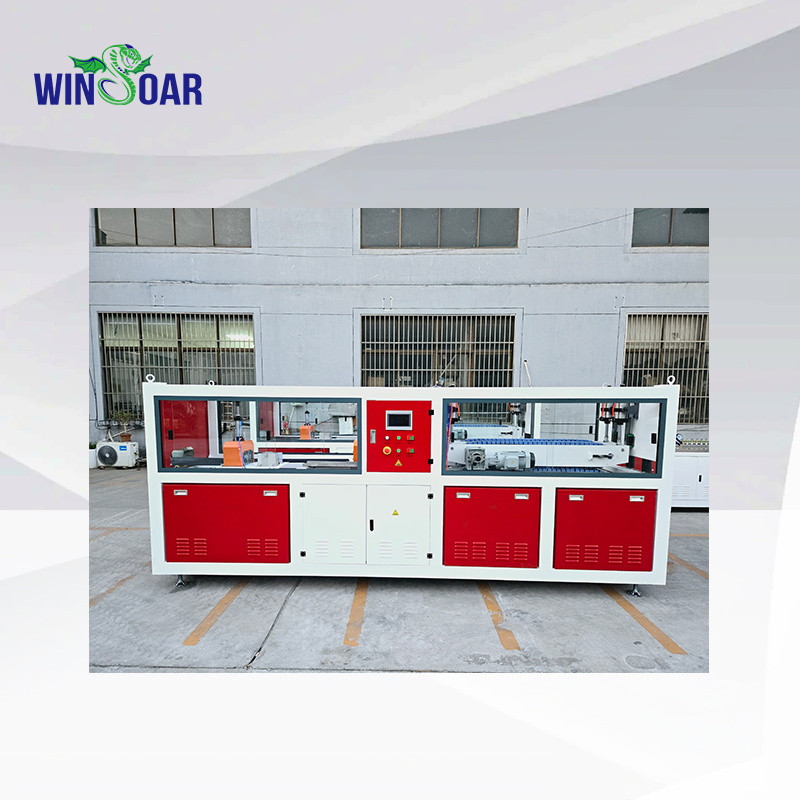

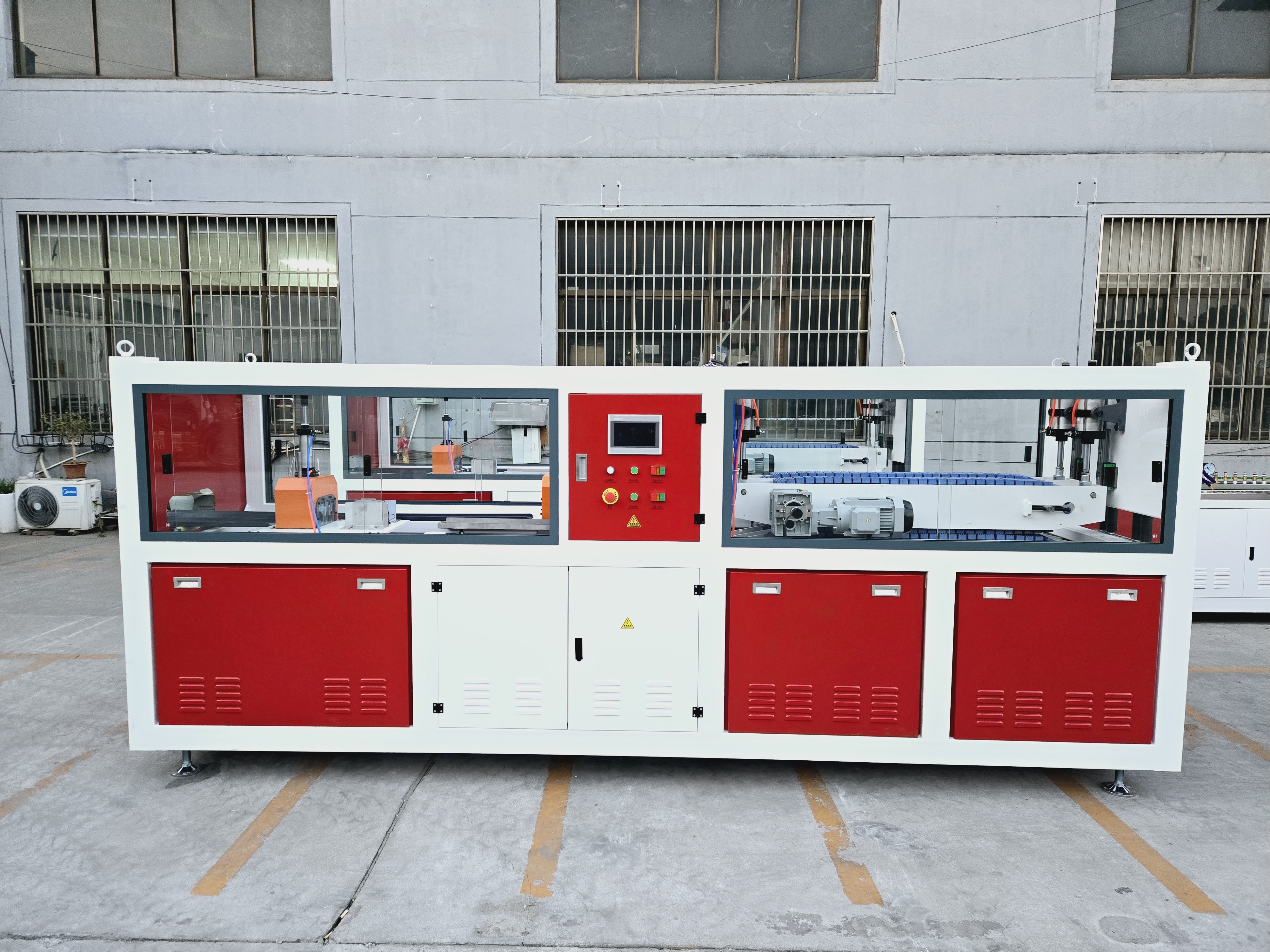

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.

CUTTING MACHINE

After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Accept finished products and automatically turn over.
