Acid-resistant Soft PVC Pipe Production Line For Delivery Heating Liquids

Plastic pipe production line is mainly used in manufacture of the plastic PVC pipes with tube diameters and wall thickness, which are used for water supply and drainage in the field of agriculture and construction.

This PVC pipe making machine adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

This line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter, stacker etc. The extruder and the haul-off adopt the quality AC frequency conversion control device. The vacuum pump and motor adopt the famous brand. The haul-off have two-claw, three-claw, four-claw, six-claw. It may choose the saw blade cutting type or the planet cutting production efficiency.

Clients also can choose double/four PVC pipe extrusion line to make small size PVC pipes.

The main electrics for PVC pipe extrusion machine adopt Siemens motor, ABB inverter, RKC/OMRON temperature controller.

1. Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;

2. The whole production line is controlled by Siemens PLC control system, which can observe the status of all equipment on the display or control the equipment separately

3.The extrusion line can achieve various control of downstream equipment by the extruder and use several international famous brand.

4. Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long use life;

5. Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more efficient cooling;

6. Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;

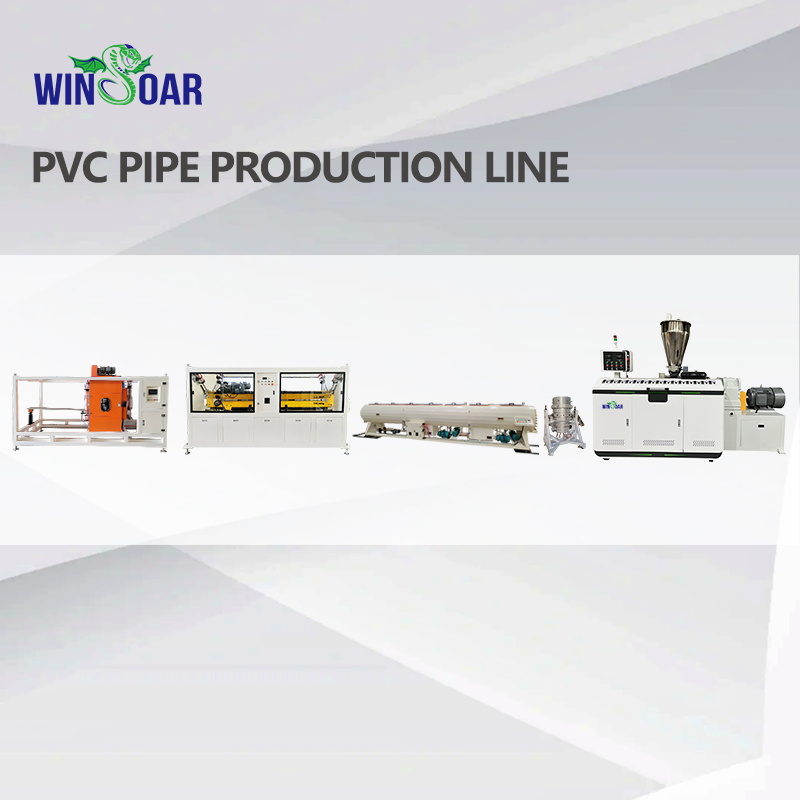

PVC PIPE PRODUCTION LINE

It consists of vacuum calibration tank, tractor, cutting machine,belling machine, etc. The equipment has a high degree of automation and is easy to operate.

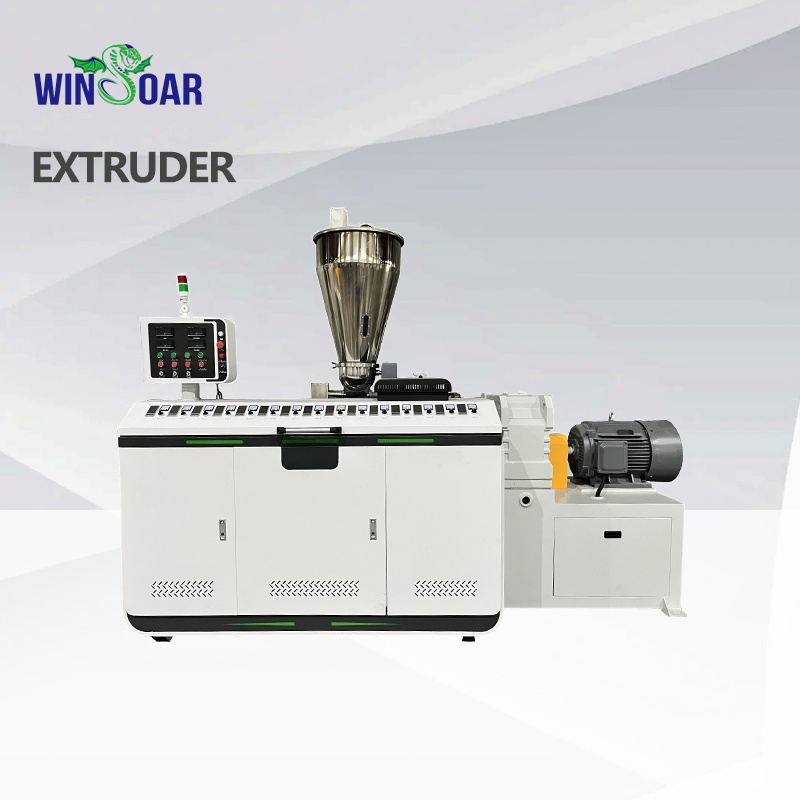

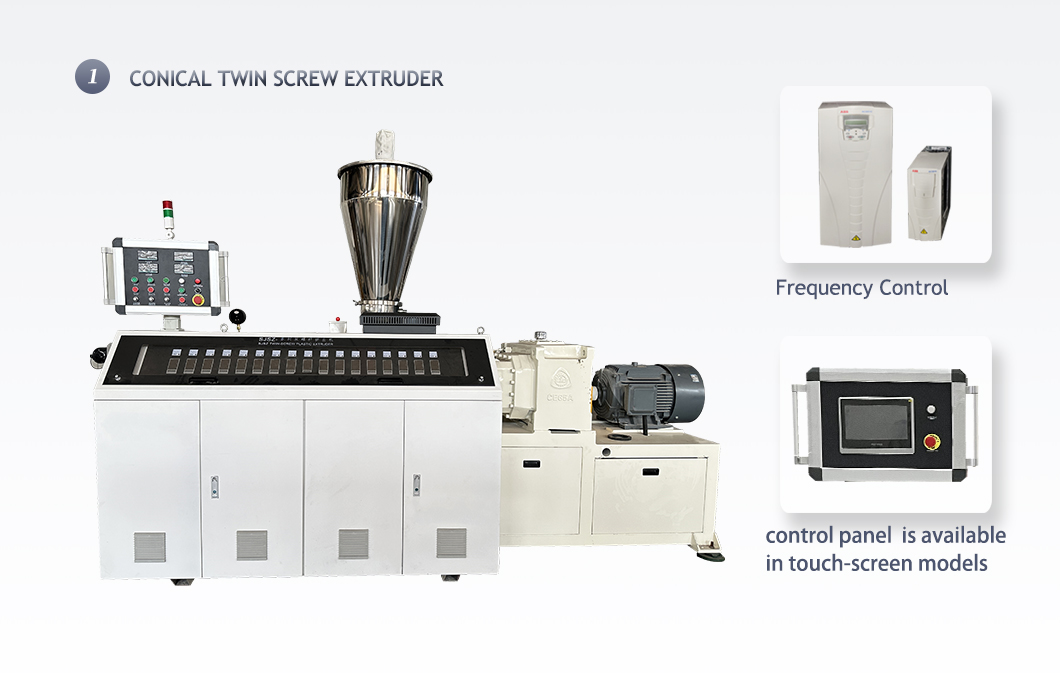

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

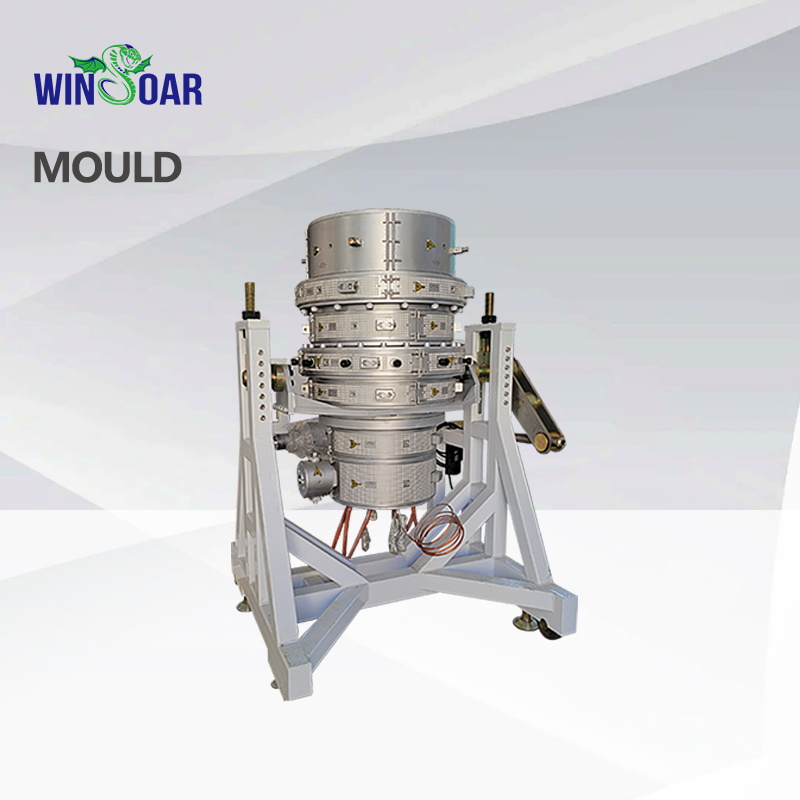

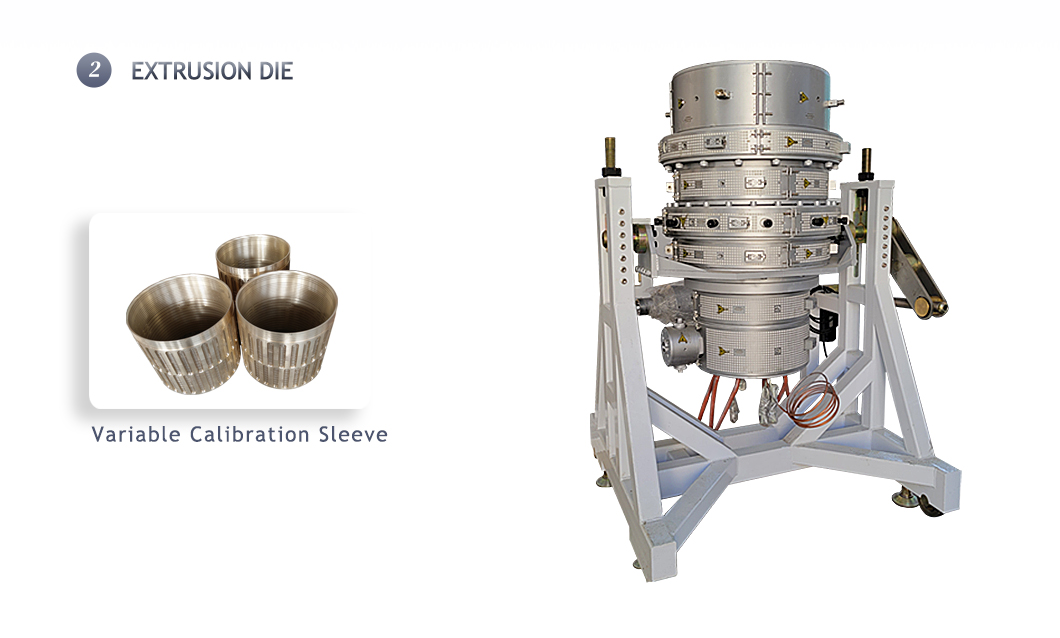

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.

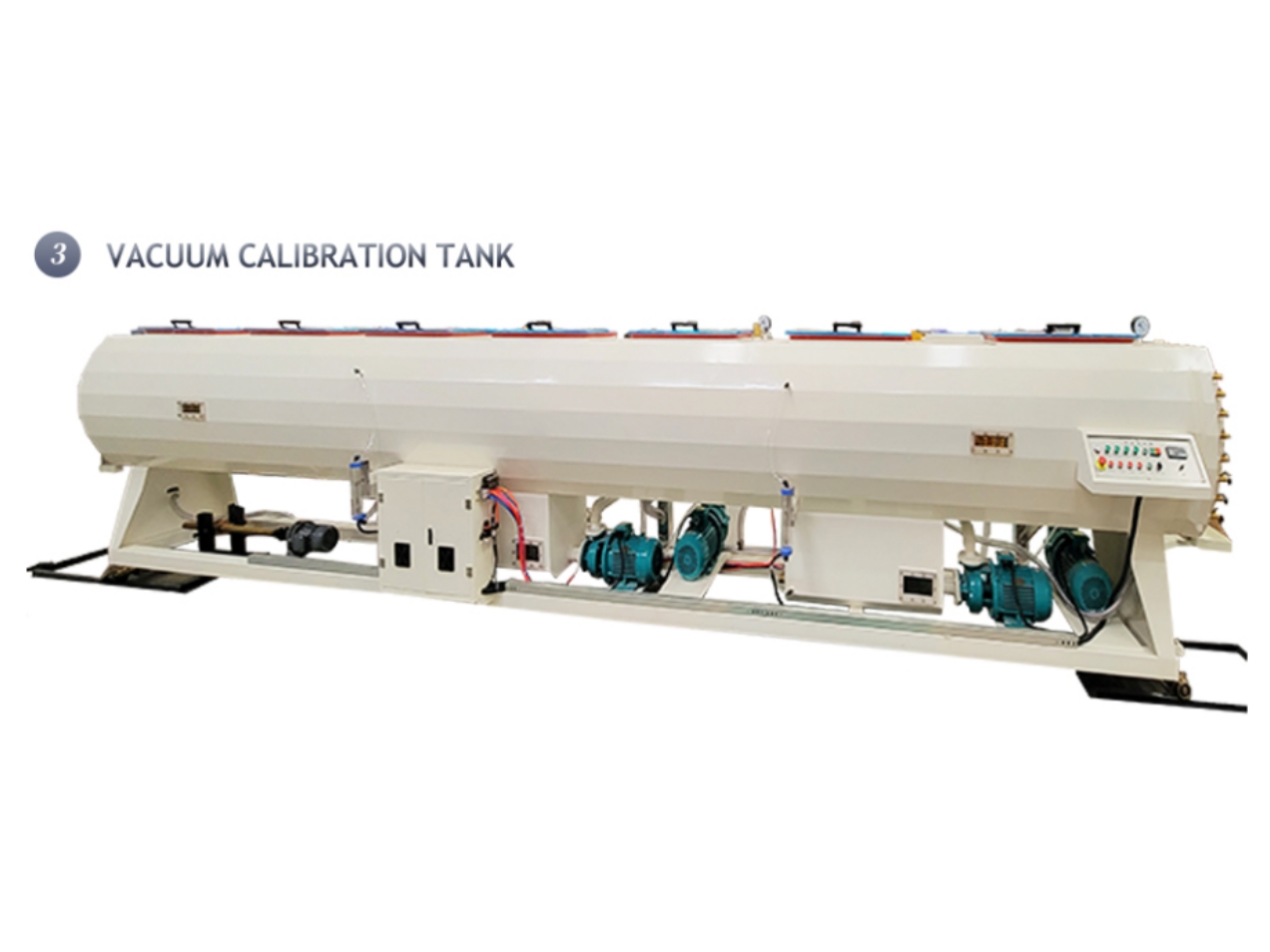

VACUUM CALIBRATION TANK

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.

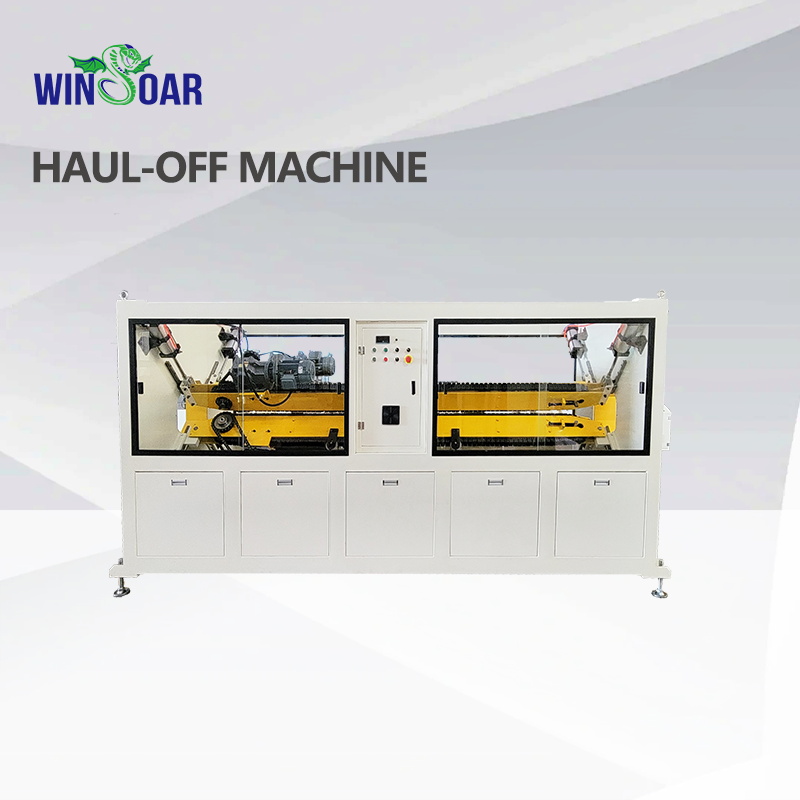

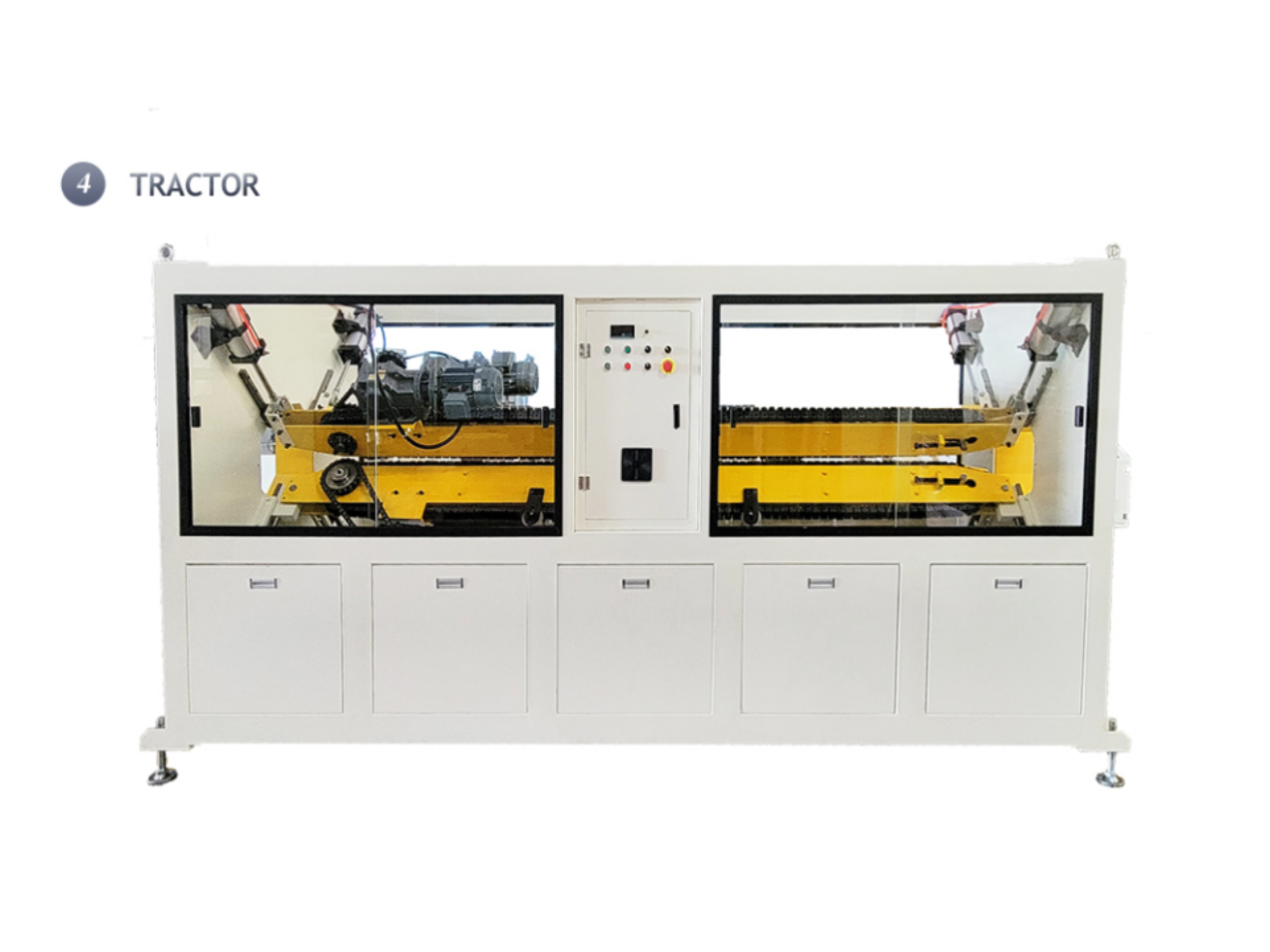

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.

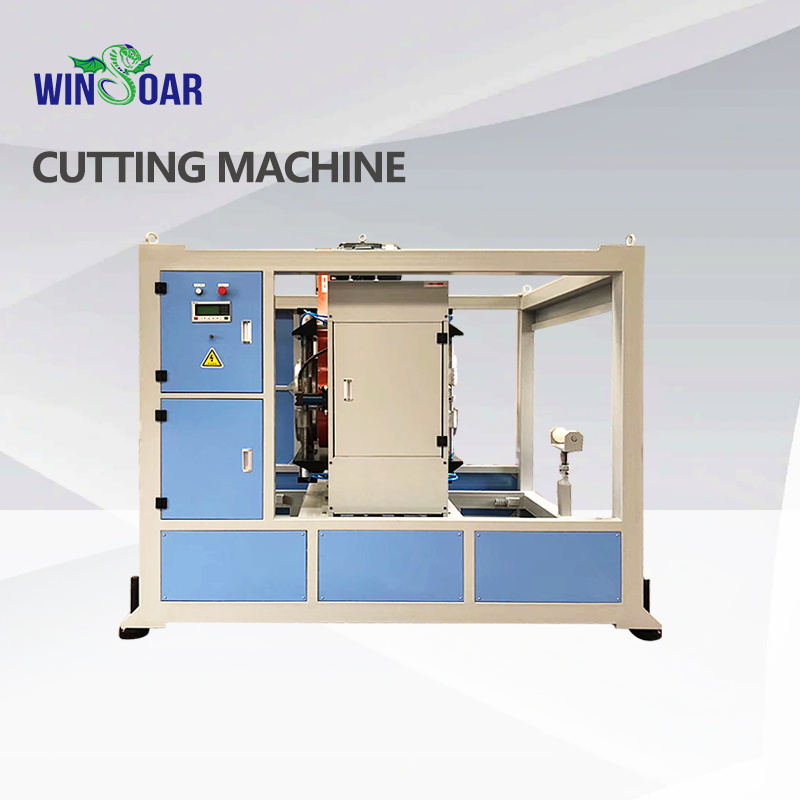

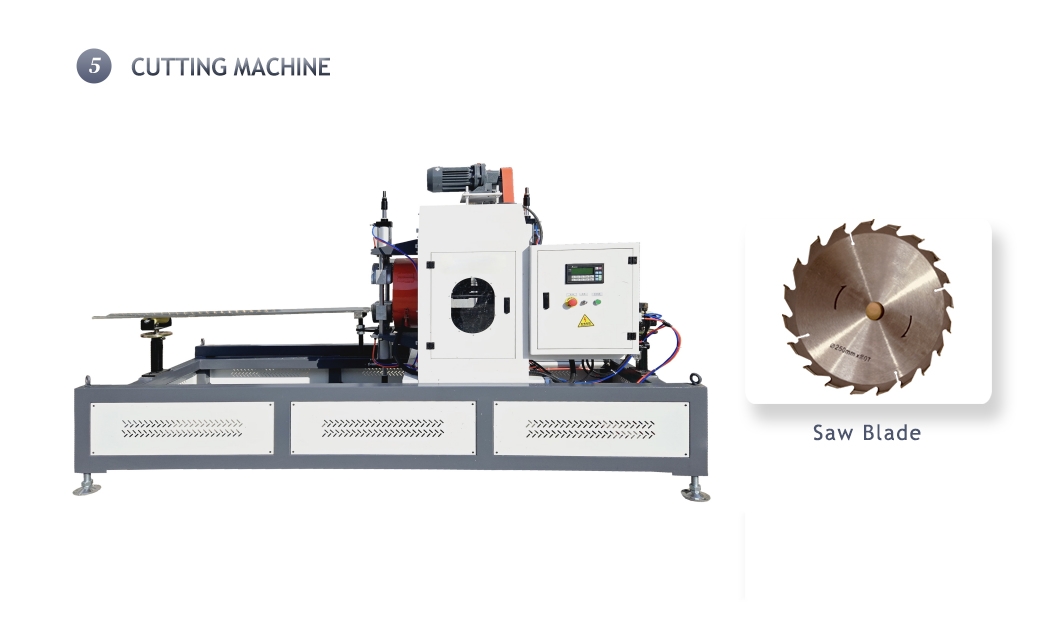

CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

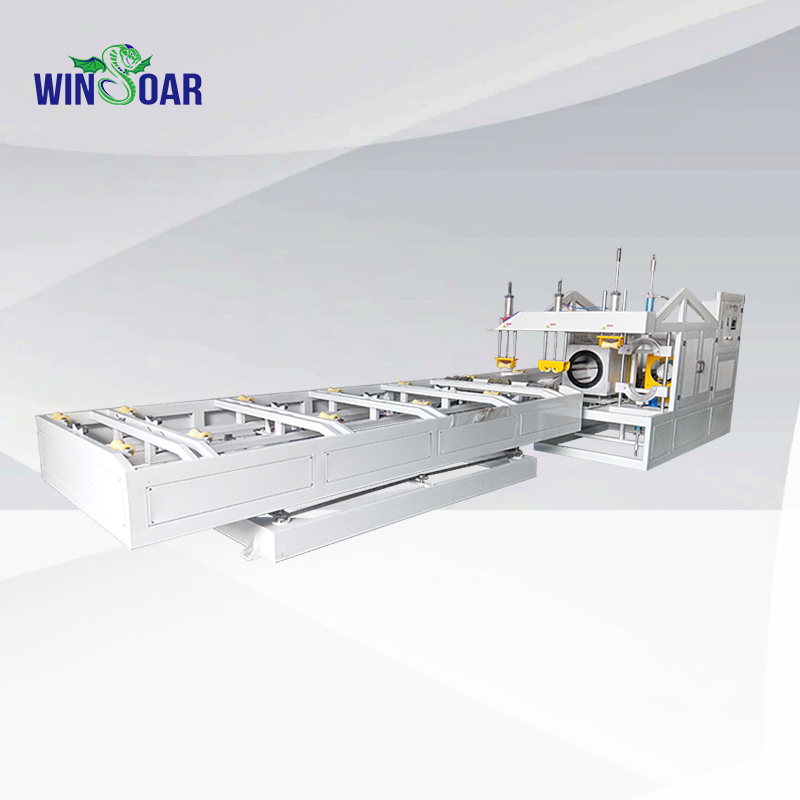

TURNOVER RACK (OPTIONAL ON REQUEST)

Accept finished products and automatically turn over.

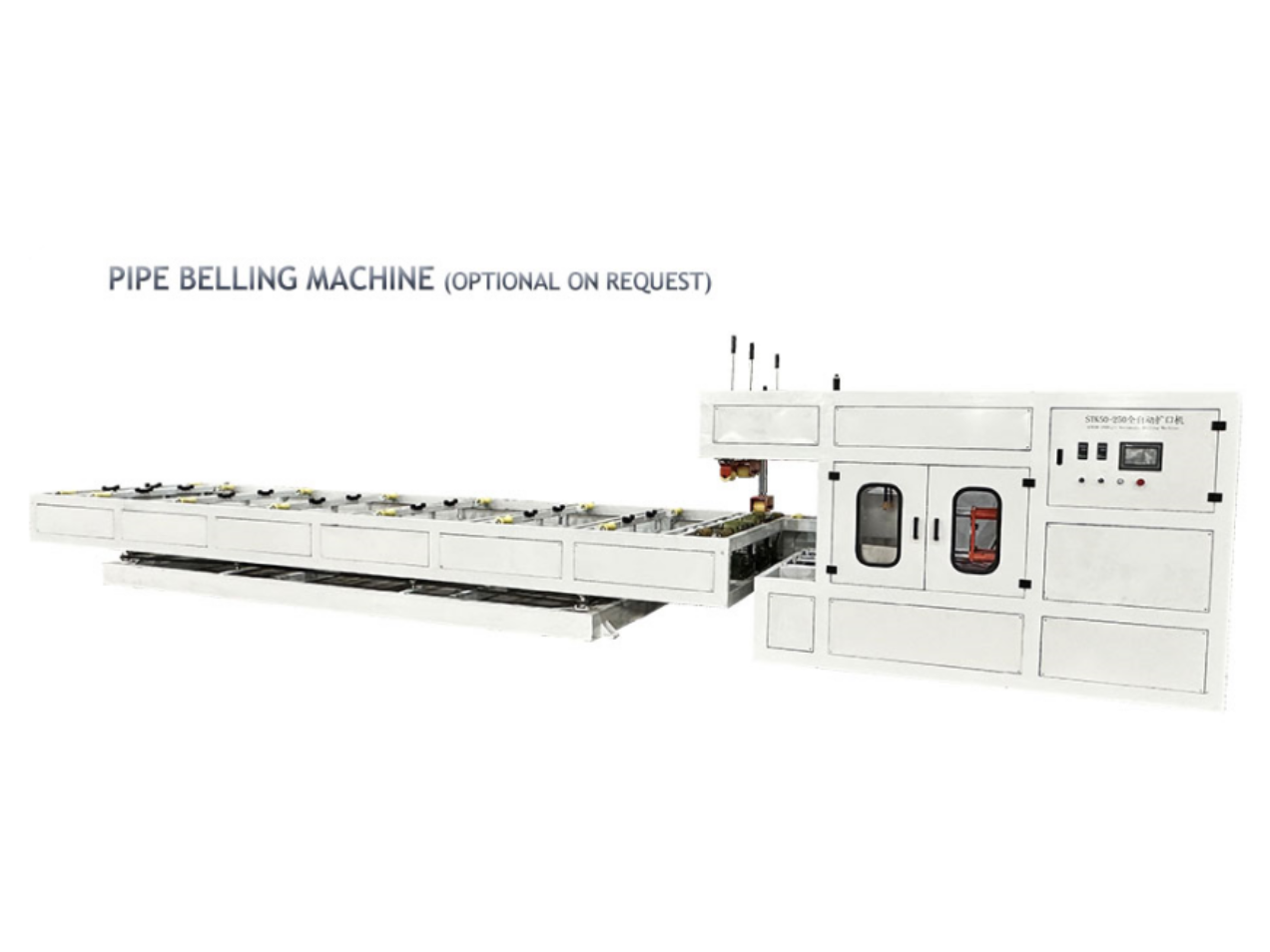

PIPE BELLING MACHINE (OPTIONAL ON REQUEST)

The automatic pipe flaring machine can cooperate with the pipe production line to expand the pipe online or expand the pipe separately.The flaring pipe is heated by an oven,and the Omron temperature control is used for precise temperature control.
