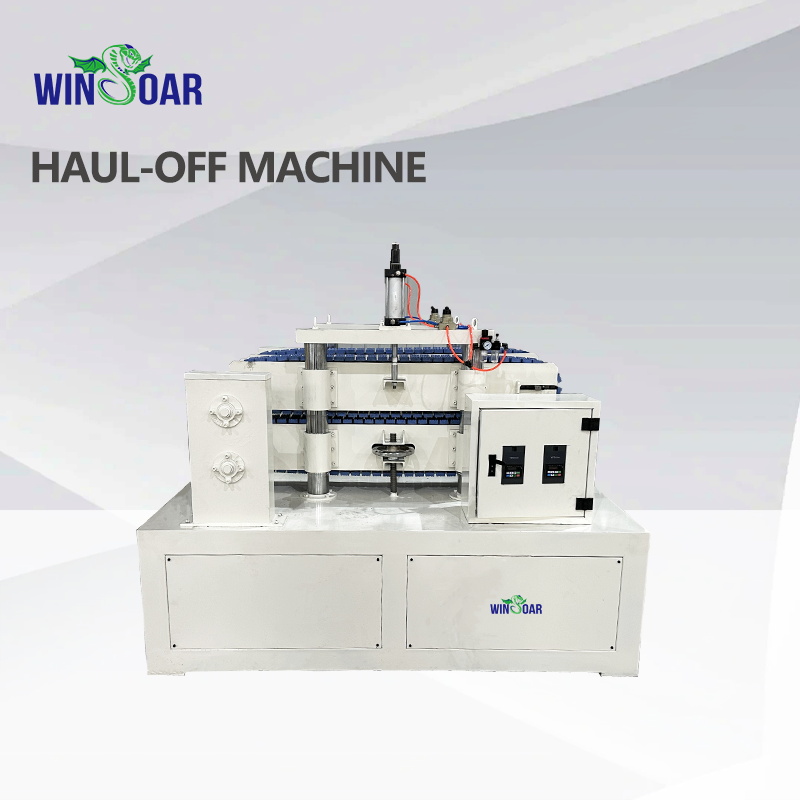

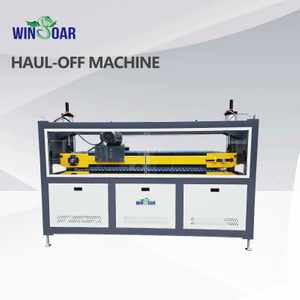

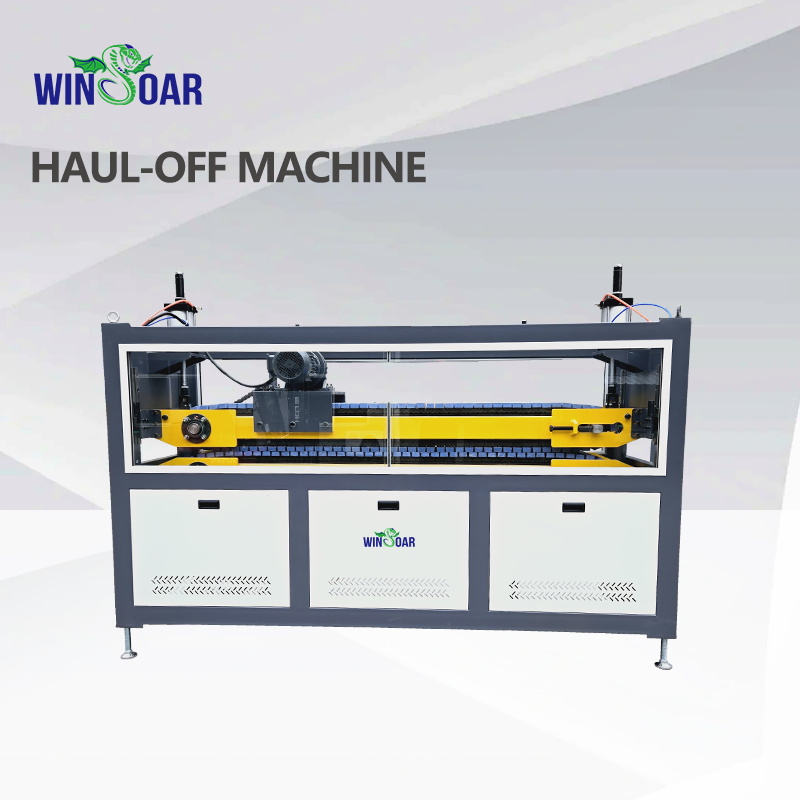

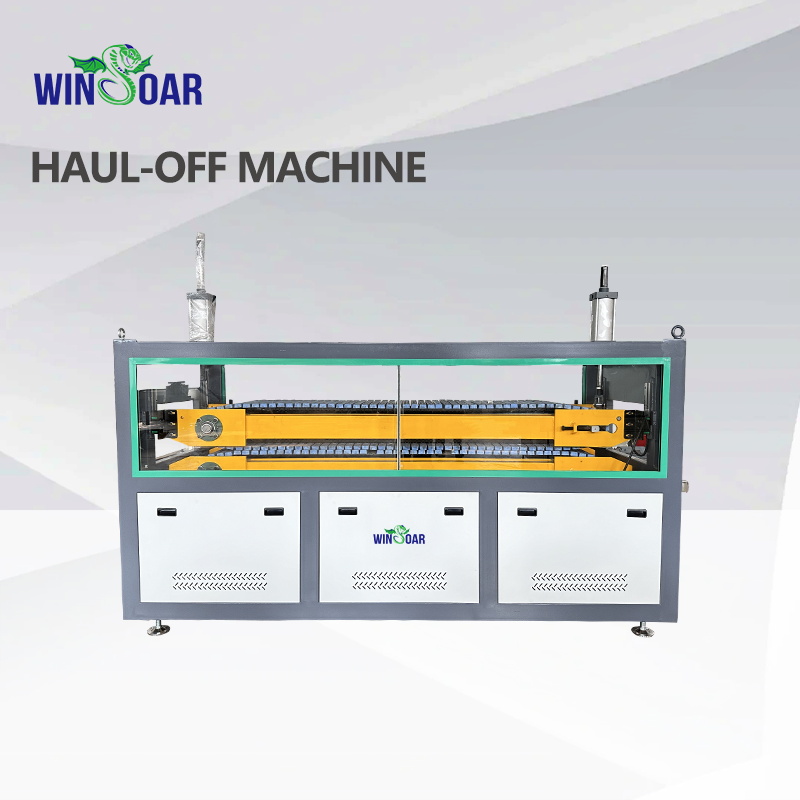

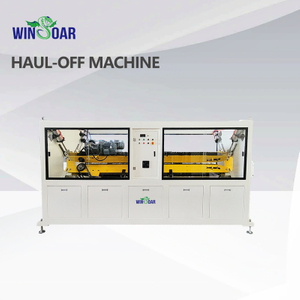

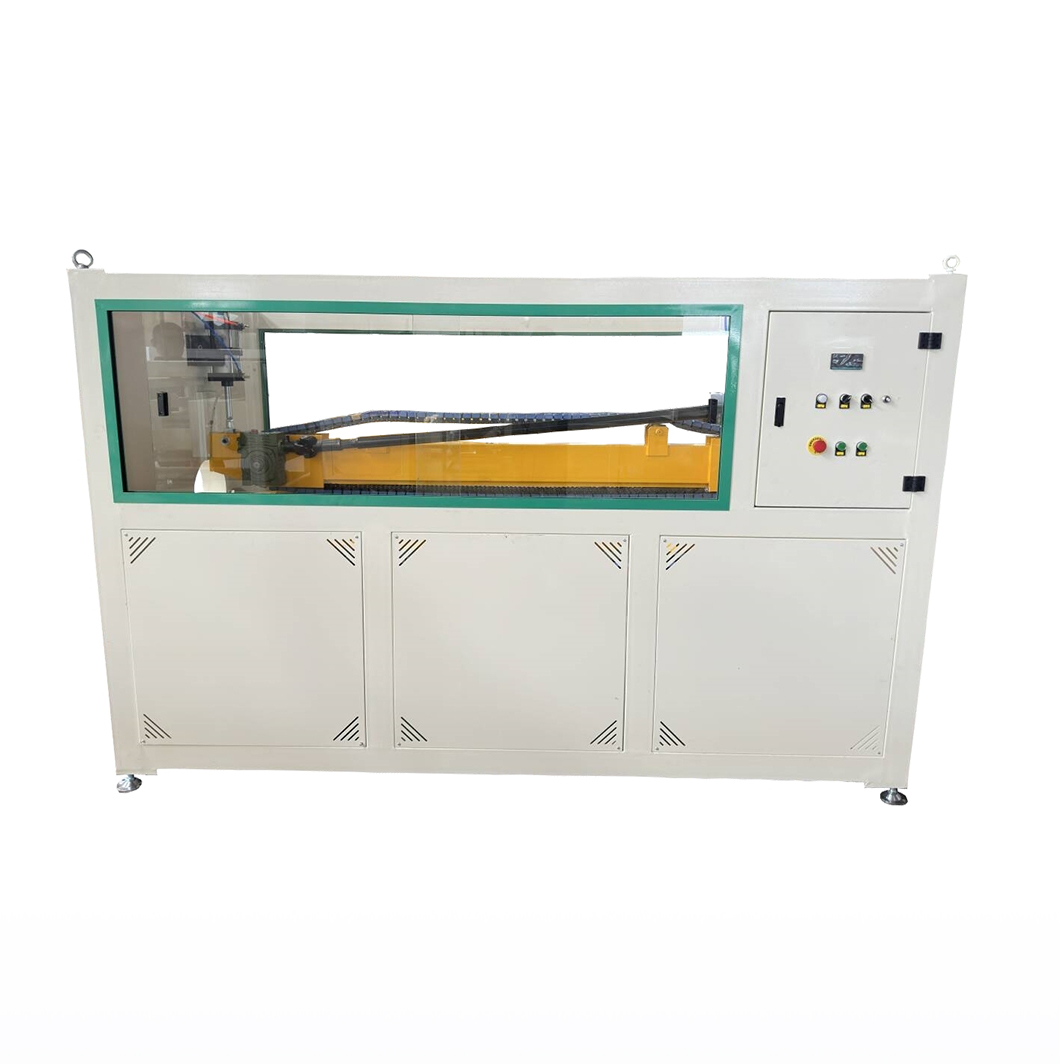

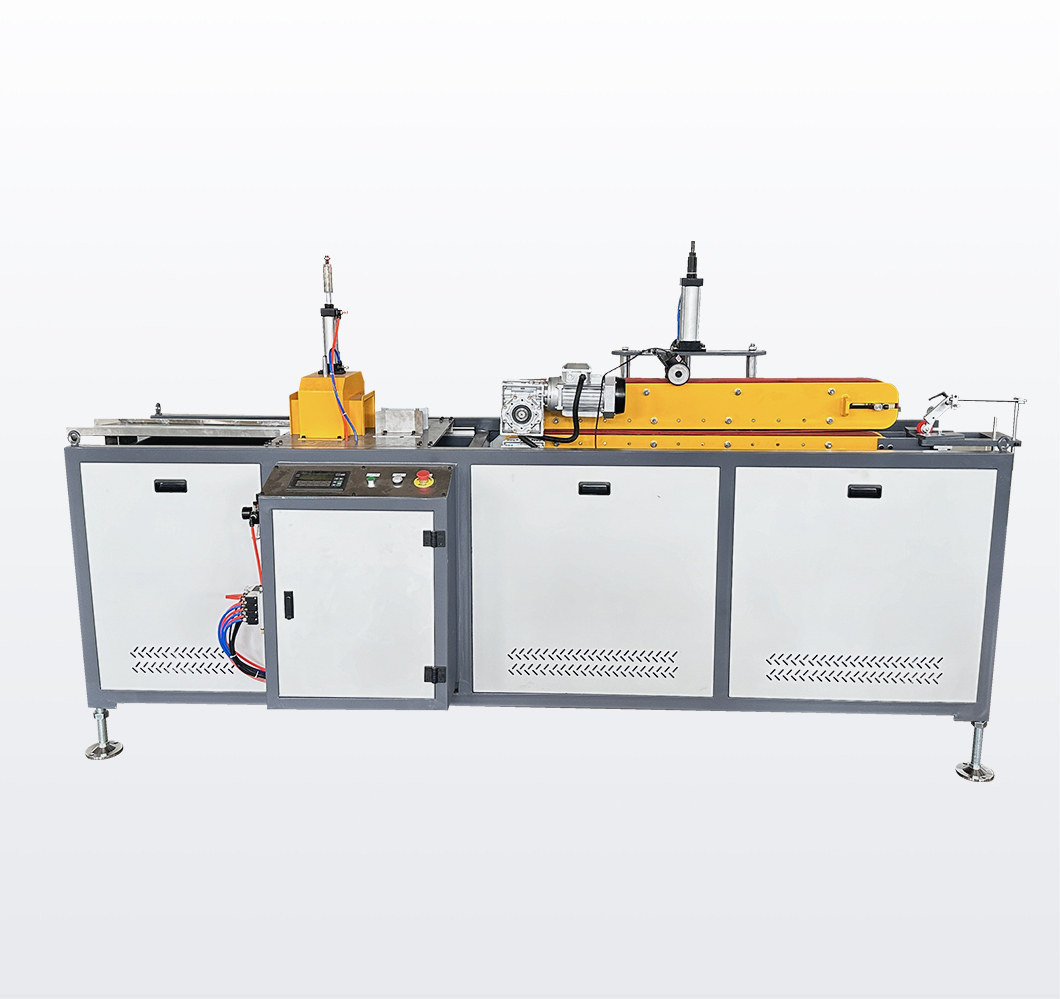

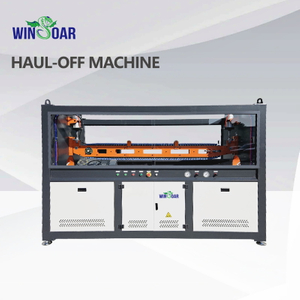

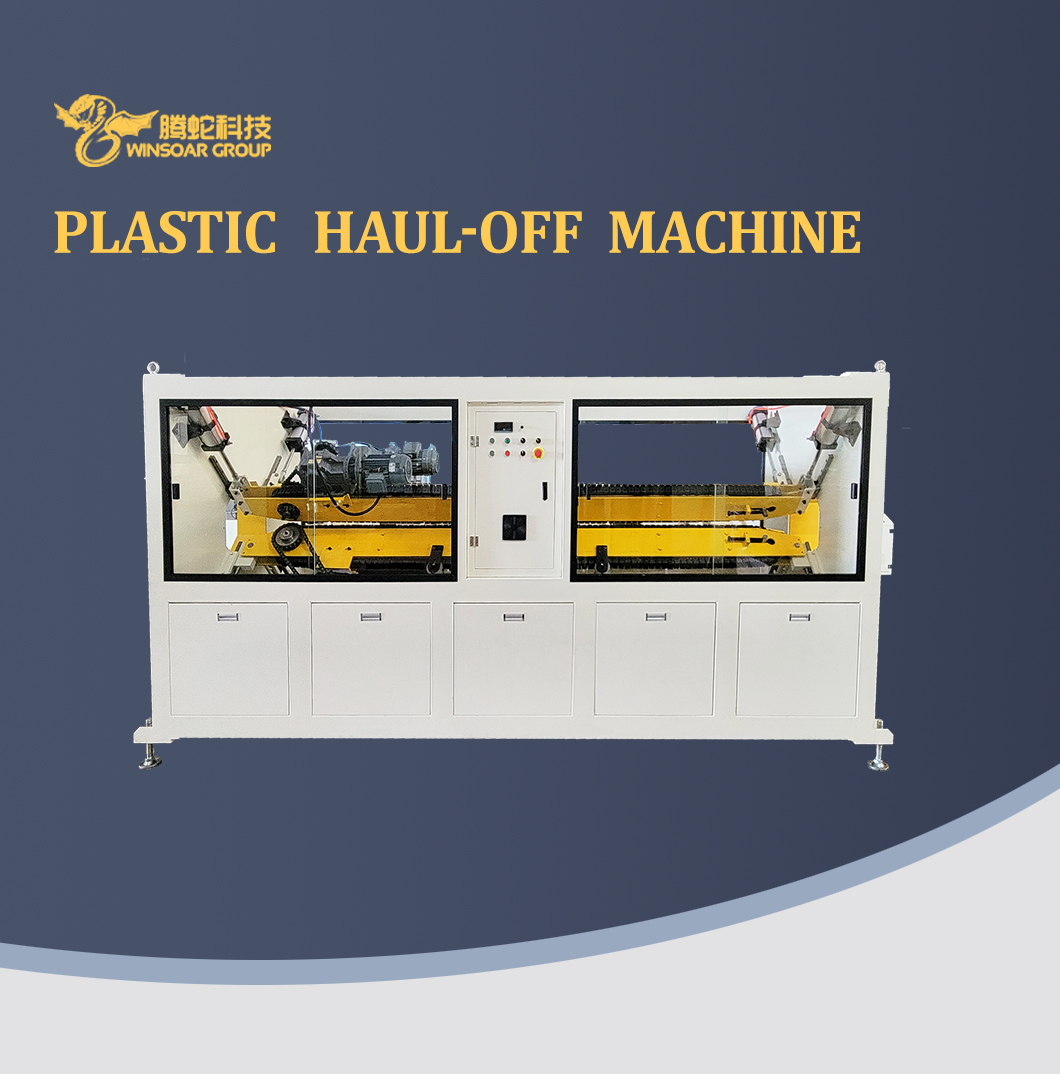

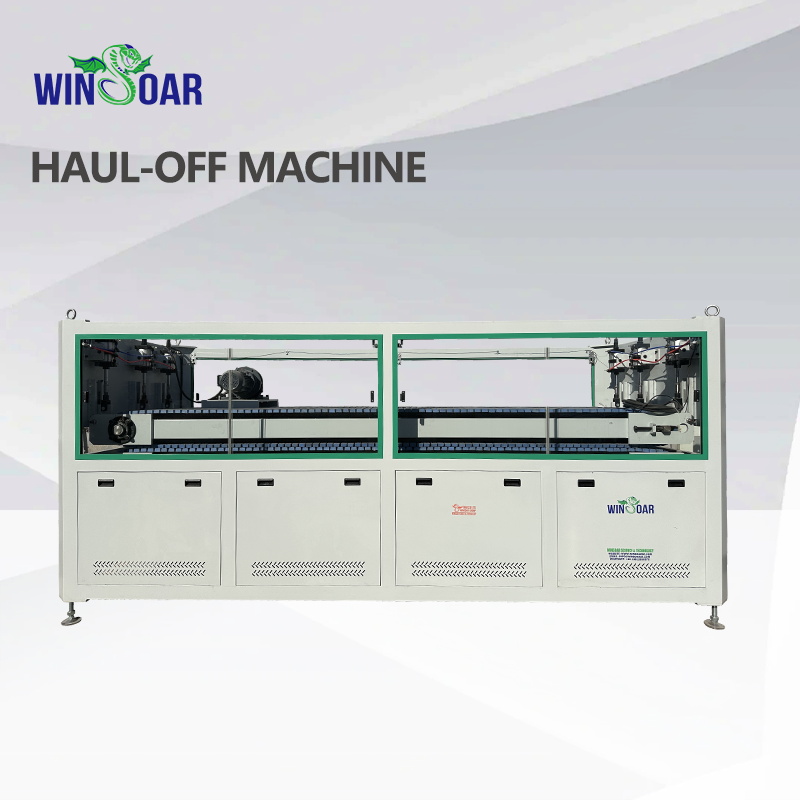

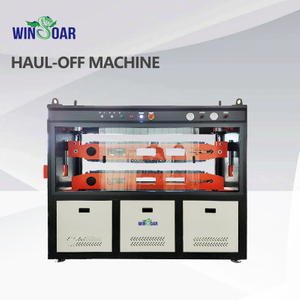

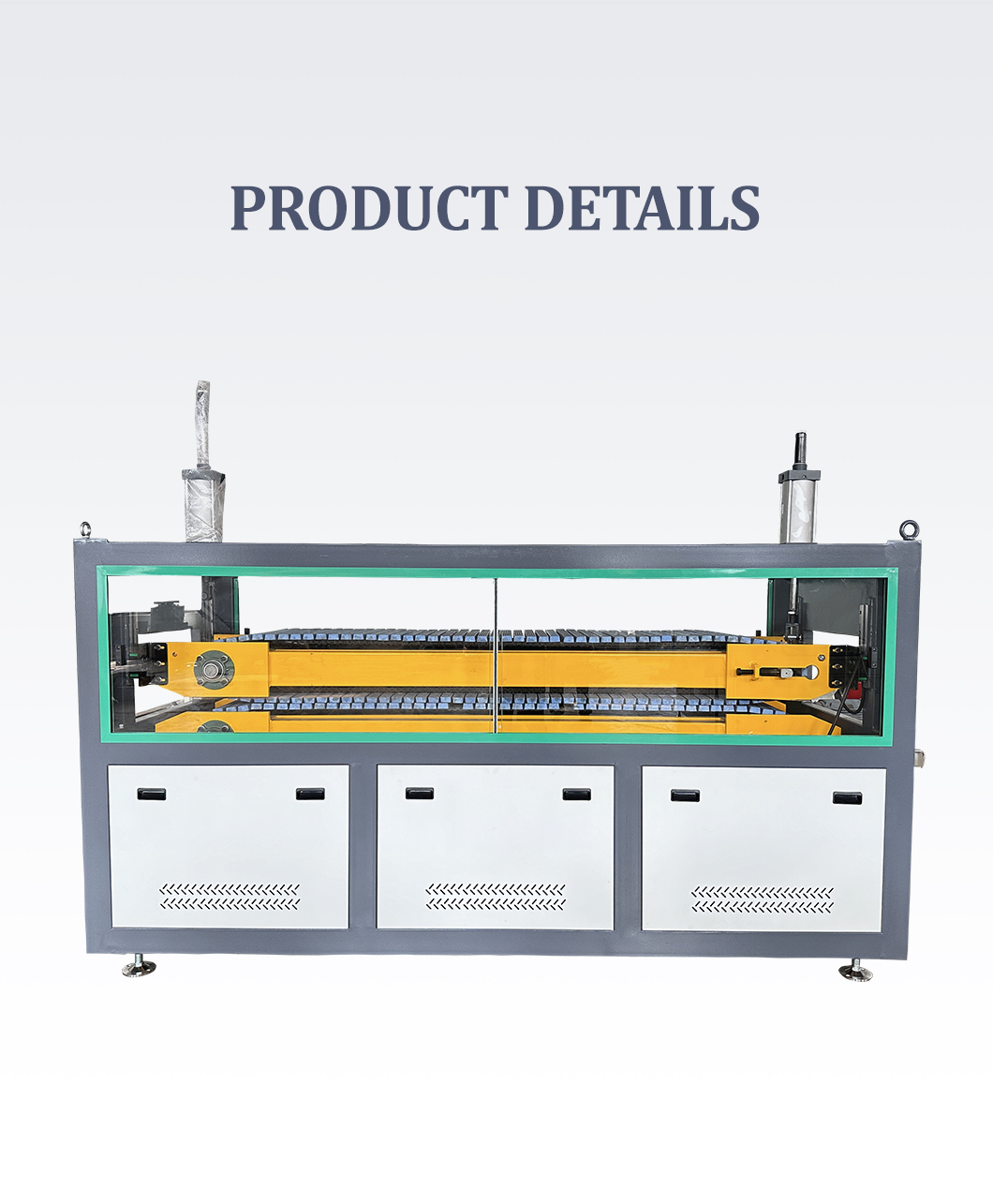

Haul Off Machine

5 0 Reviews
The haul-off machine is mainly used to continuously and automatically pull various plastic pipes, soft pipe and other profile after it is extruded, cooled, dried, printed by the tractor. Use caterpillar rubber block /belt metal fixture block to fit with different pipes of different materials, diameters and wall thickness.
Availability:
Quantity:

Description of Haul-off Machine

The haul-off machine is mainly used to continuously and automatically pull various plastic pipes, soft pipe and other profile after it is extruded, cooled, dried, printed by the tractor. Use caterpillar rubber block /belt metal fixture block to fit with different pipes of different materials, diameters and wall thickness.


Technical Parameters of Haul-off Machine

Model

Belt type

2 claws

3 claws

4 claws

4 claws

Pipe range(mm)

16-63

16-63

32-125

50-250

90-450

Haul-off power (kw)

1*2.2

2*2.2

0.75*3

4*1.1

4*1.1

Effective length of caterpillars(mm)

800

1000

1200

1400

1600


Model

6 claws

8 claws

10 claws

12 claws

16 claws

Pipe range(mm)

250-630

450-800

630-1200

800-1600

1000-2000

Haul-off power (kw)

6*1.1

8*1.1

10*0.75

12*0.75

16*1.1

Effective length of caterpillars(mm)

1600

2000

2400

2600

3000
