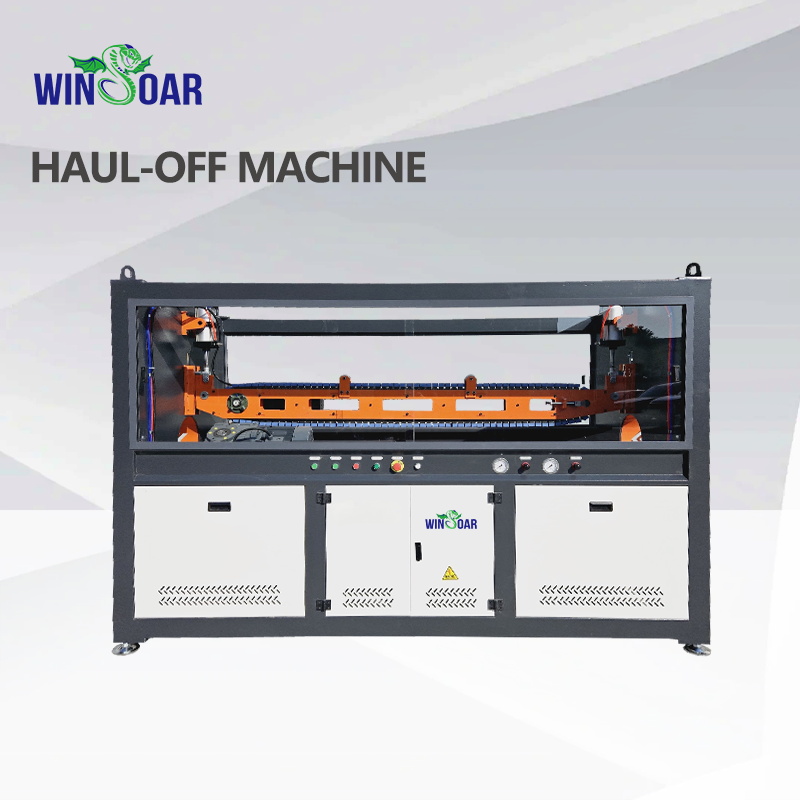

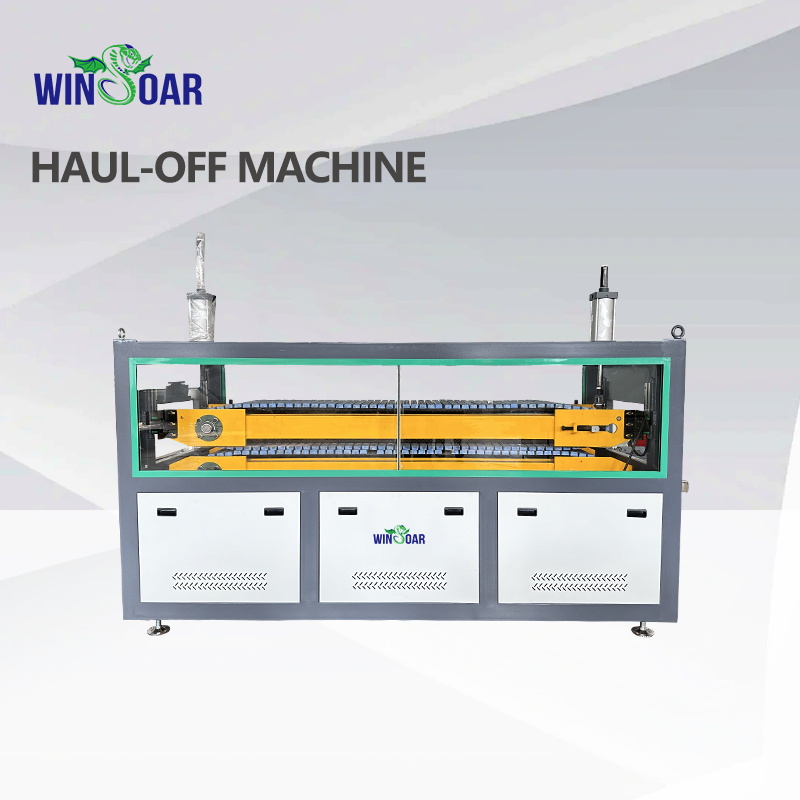

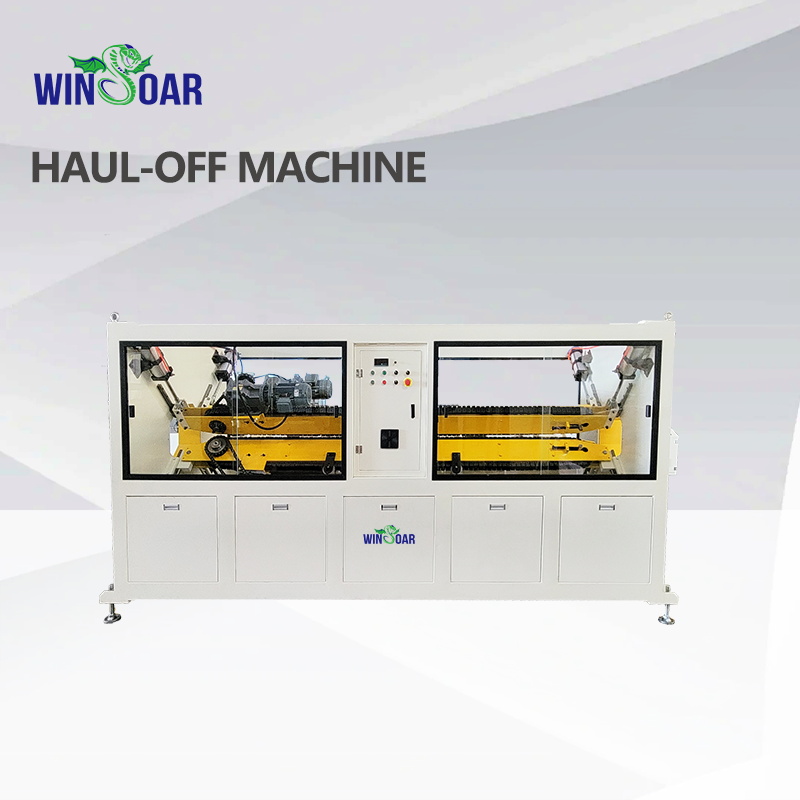

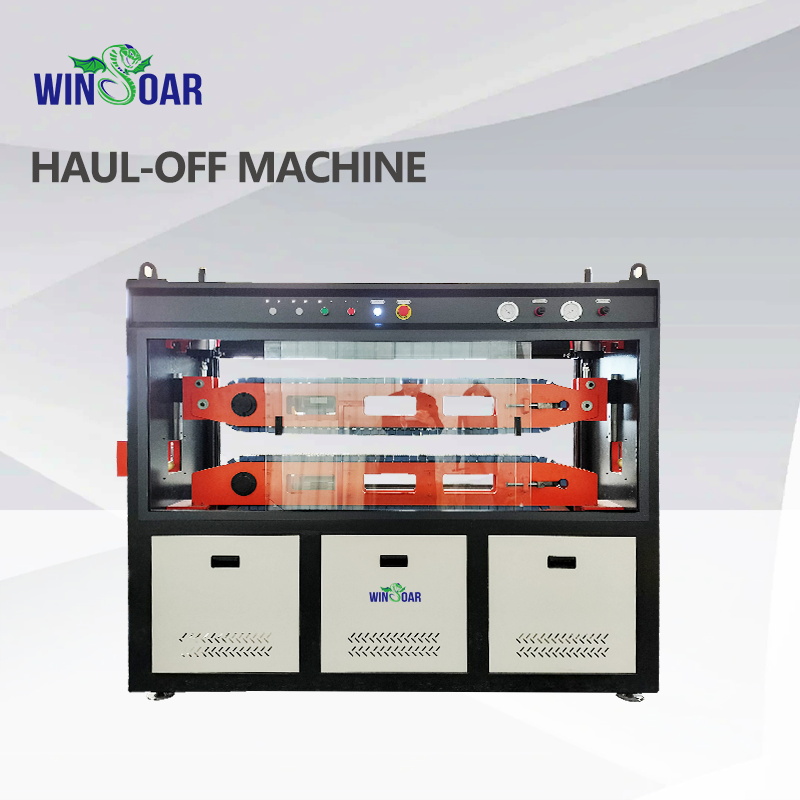

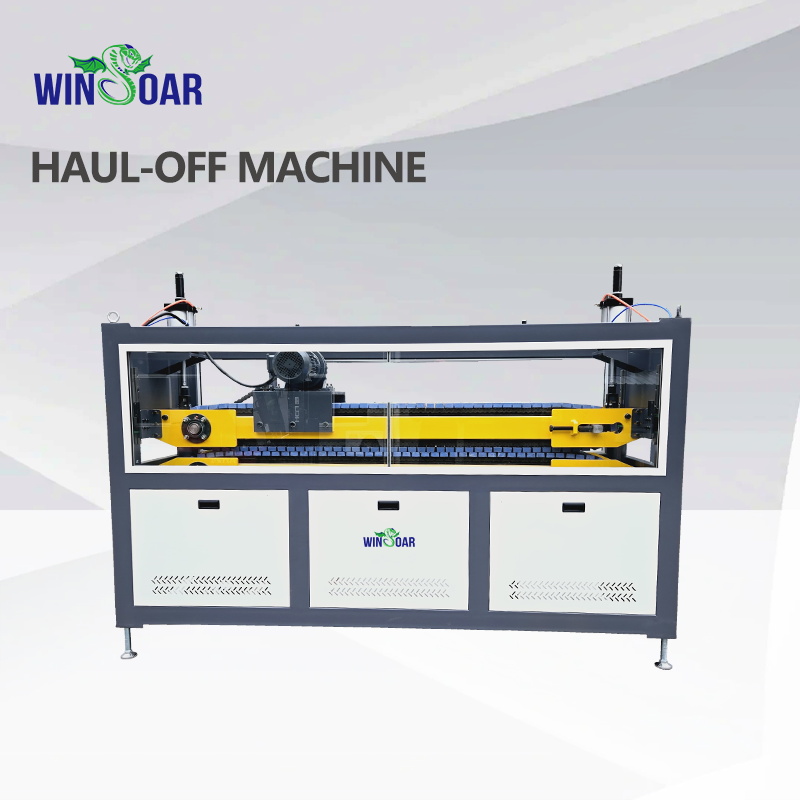

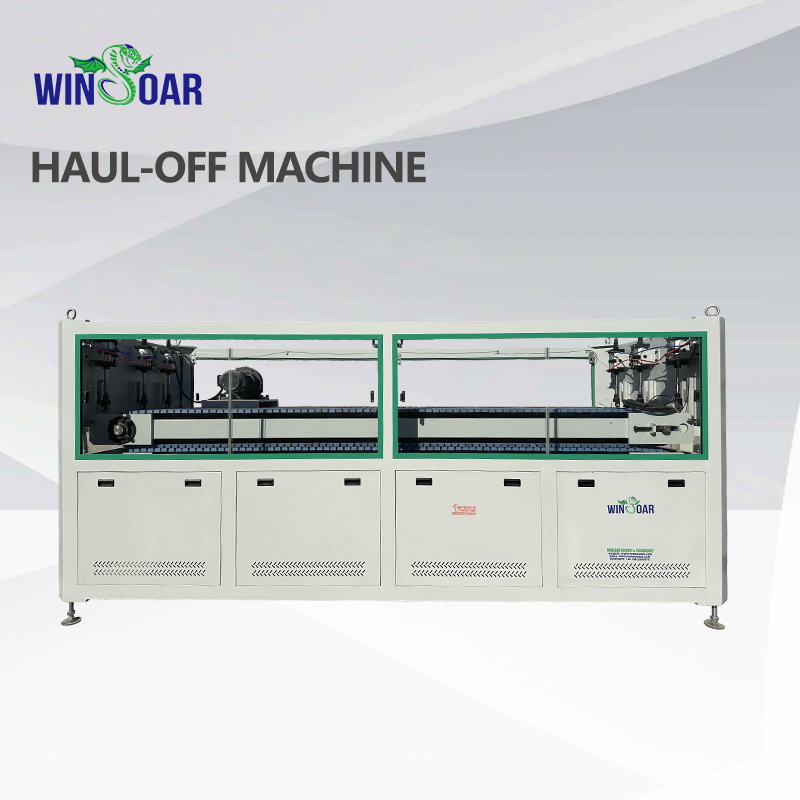

Plastic Door Boards, Sheets, Window Profiles Haul-off Machine

5 0 Reviews

The haul-off machine is mainly used to continuously and automatically pull various plastic pipes, soft pipe and other profile after it is extruded, cooled, dried, printed by the tractor. Use caterpillar rubber block /belt metal fixture block to fit with different pipes of different materials, diameters and wall thickness.

Availability:

Quantity:



Inquire Add to Basket

Description of Haul-off Machine

Character for Profile Haul off Machine:

1、Strong hauling force, especially suitable for profile.

2、The hauling force is well distributed according to the profile.

3、SCR step-less speed regulation, frequency control.

4、It is convenient and widely used, ABB inverter, Siemens PLC program controller controls all mechanical drives.

Technical Parameters of Haul-off Machine

Model	Belt type	2 claws	3 claws	4 claws	4 claws
Pipe range(mm)	16-63	16-63	32-125	50-250	90-450
Haul-off power (kw)	1*2.2	2*2.2	0.75*3	4*1.1	4*1.1
Effective length of caterpillars(mm)	800	1000	1200	1400	1600

Model	6 claws	8 claws	10 claws	12 claws	16 claws
Pipe range(mm)	250-630	450-800	630-1200	800-1600	1000-2000
Haul-off power (kw)	6*1.1	8*1.1	10*0.75	12*0.75	16*1.1
Effective length of caterpillars(mm)	1600	2000	2400	2600	3000
