Stable Quality Single-layer Ceiling/Wall Panel Production Line For Home

5 0 Reviews
PVC panel/profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different moulds, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on. And by changing screw barrel and mould, it can also produce PVC based WPC products, such as: WPC wall panel, WPC window.
Availability:
Quantity:

Product Description

PVC panel/profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different moulds, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on. And by changing screw barrel and mould, it can also produce PVC based WPC products, such as: WPC wall panel, WPC window.

PVC WPC panel/profiles extrusion craft:

pvc powder+wood powder+additives → mixing → extrusion line ( conical twin-screw extruder → profile extrusion die → profile moulds→ vacuum calibration platform →haul-off → cutter →stacker → finished product) → surface finish processing ( like heat transfer,sanding, embossing,etc)

Features

This model of PVC ceiling panel making machine has the characteristics of high output, low sheering force, long life service. Most important of all, after simple changing of the die mold and screw, this machine can also produce the foam profiles. What's more this machine is reliable quality, very cheaper price, complete turnery solution including supplying machine, installation, training supplying raw materials and all others you need!

Main Parameter

Model

Width

Extruder model

Motor power

Output

WS-600

400-600mm

65/132

37kw

220kg/h

WS-1200

600-1200mm

80/156

55kw

400kg/h


Pictures for Reference

PVC-board_01

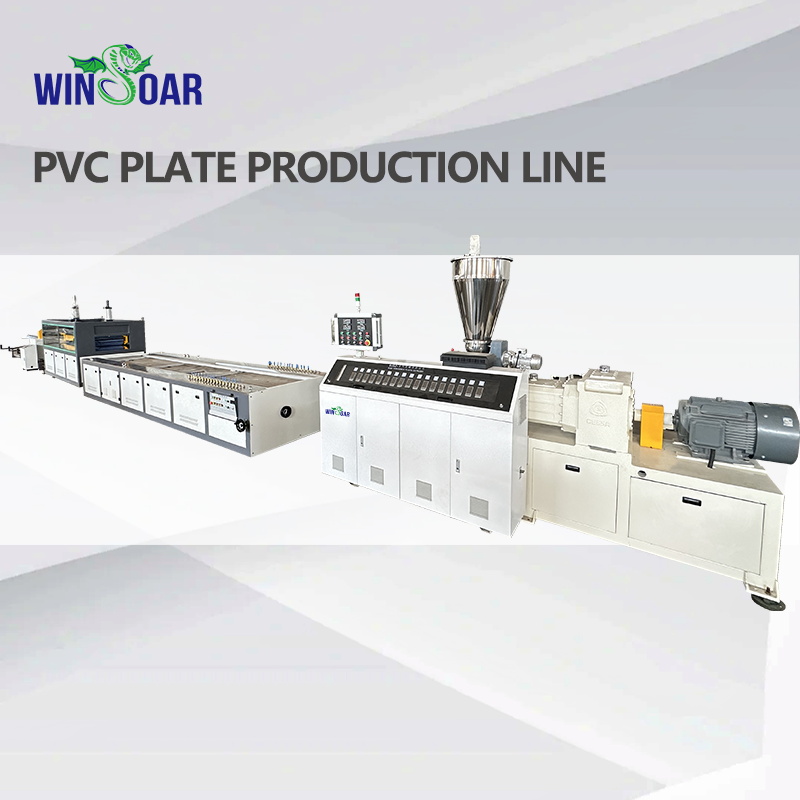

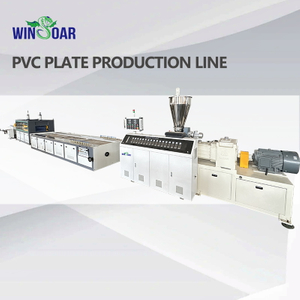

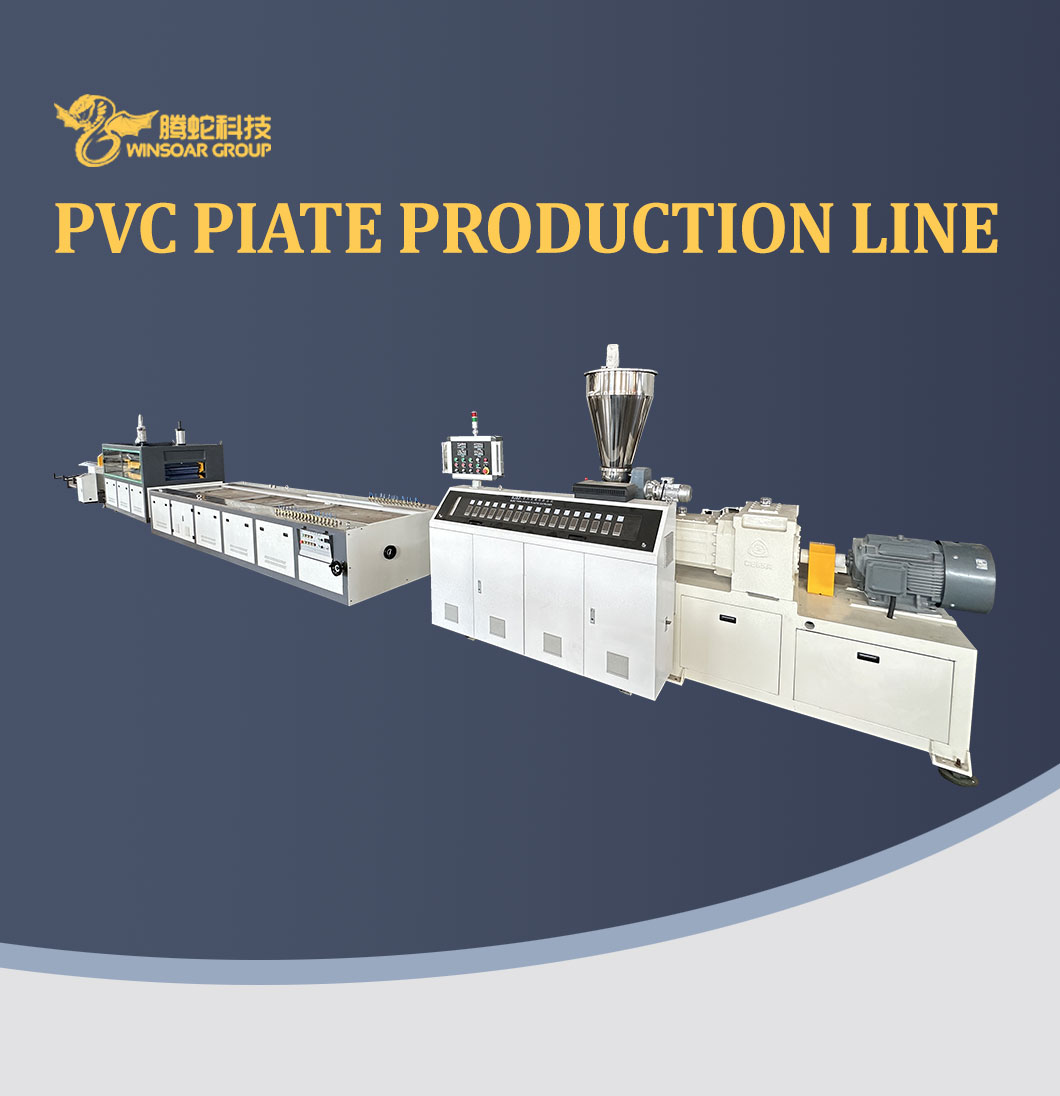

PVC PIATE PRODUCTION LINE

The production line adopts automatic control,with high degree of automation, stable equipment easy operation and high production efficiency.


p2PVC-board_04

PVC-board_05

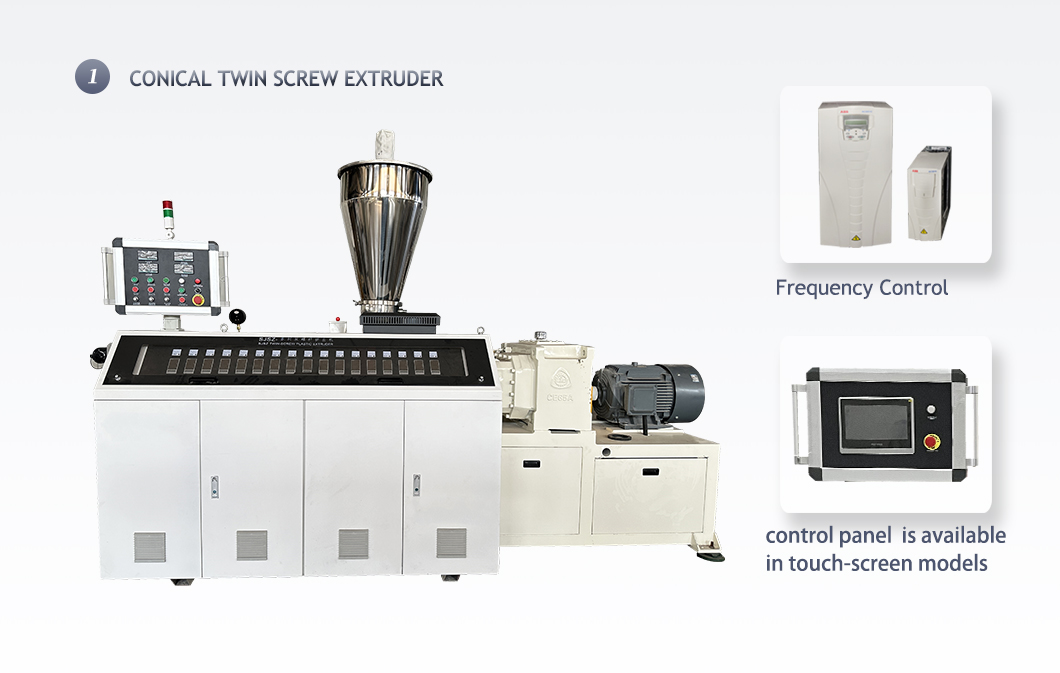

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.


PVC-board_06

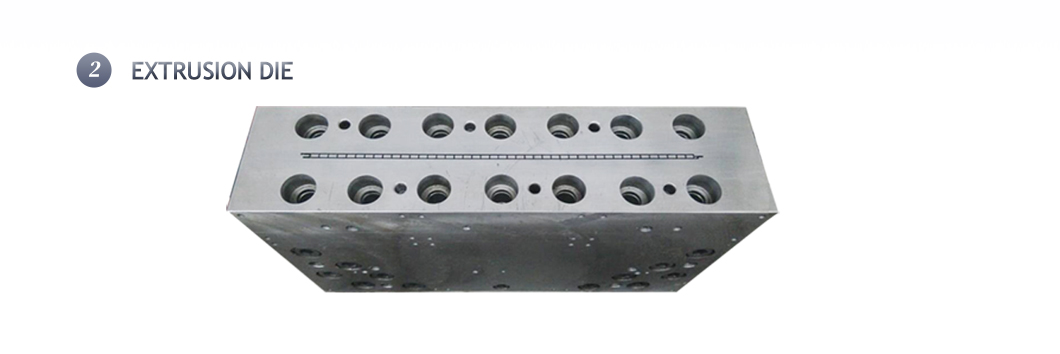

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC the subsequent material is pushed to the die by the screw,The extrusion die is the most important part of tube forming.


PVC-board_07

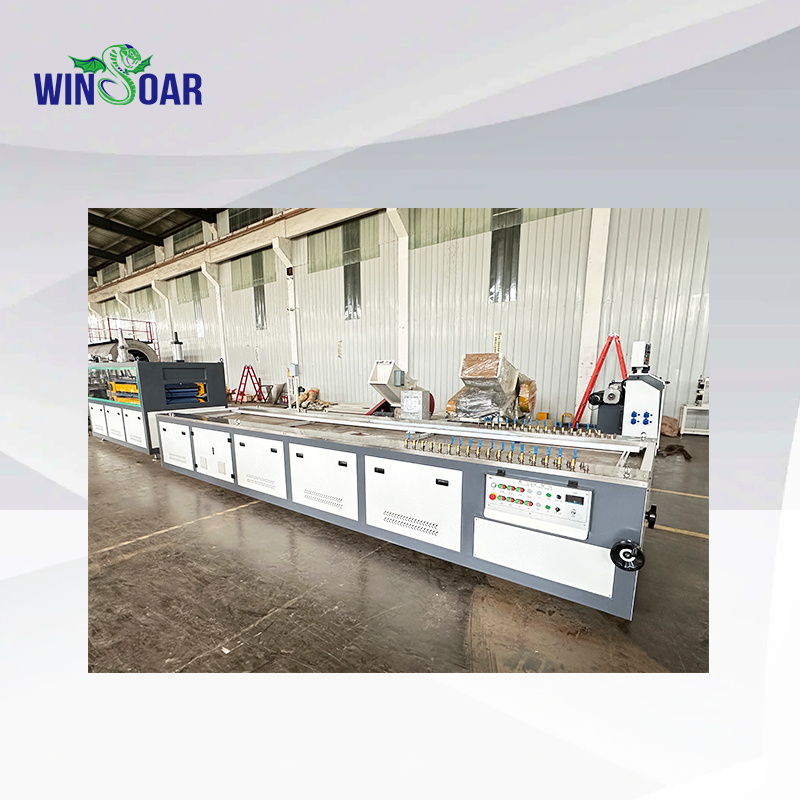

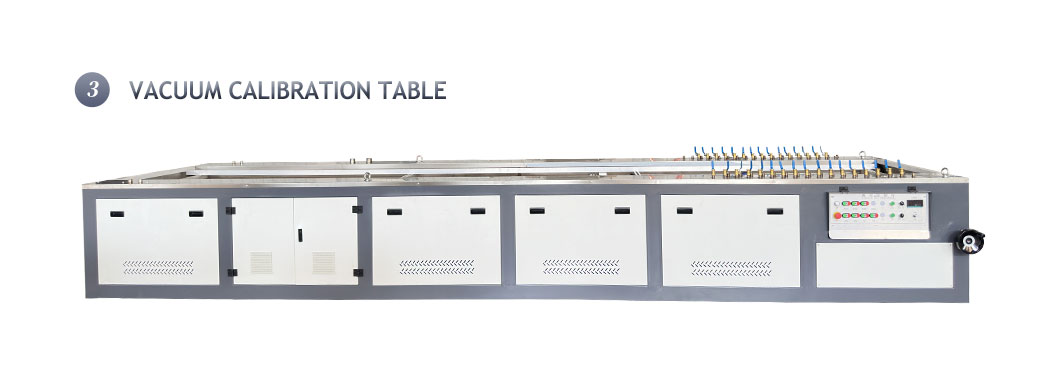

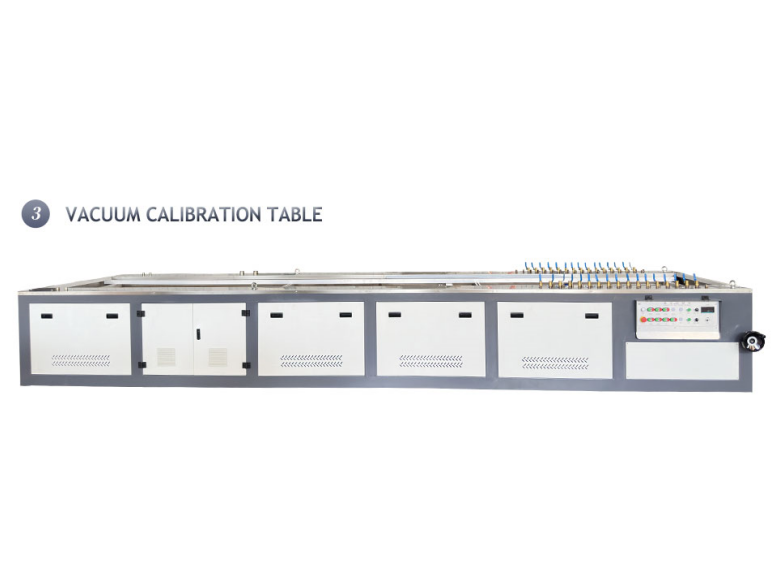

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system,water circulation system, as well as front and rear moving device and left and right, height adjustment manual device, stainless steel box, circulating water spray cooling.


PVC-board_08

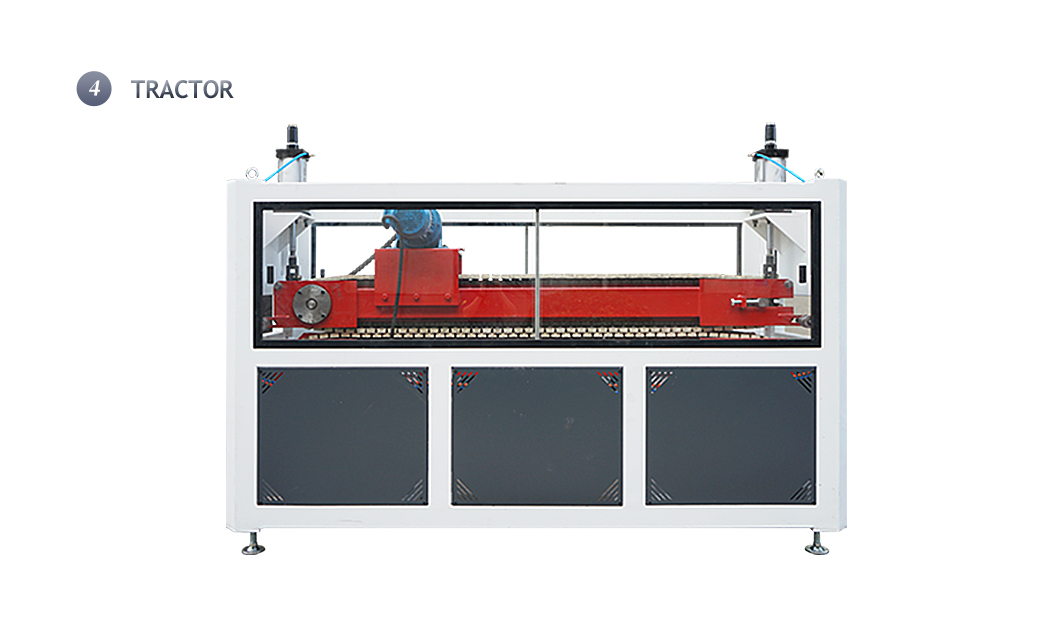

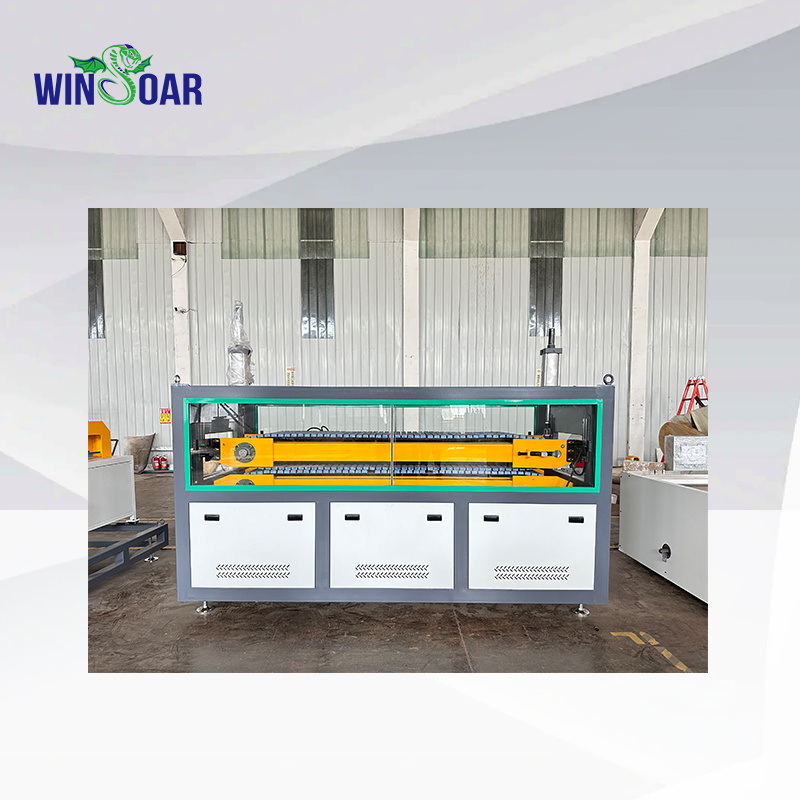

TRACTOR

It is used to continuously and automatically lead out the cooled and hardened pipes from the machine head,and the speed is controlled by frequency conversion.


PVC-board_09

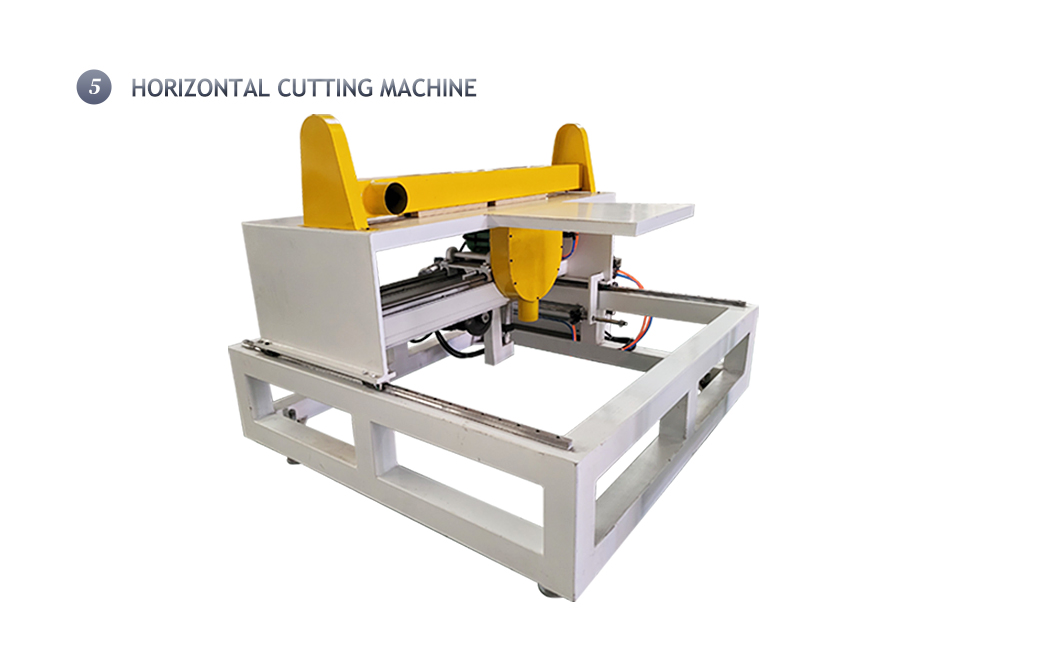

HORIZONTAL CUTTING MACHINE

After being controlled by encoder according to the required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Automatic pressing, sawing, hidden saw blade, low noise and high safety.


PVC-board_10

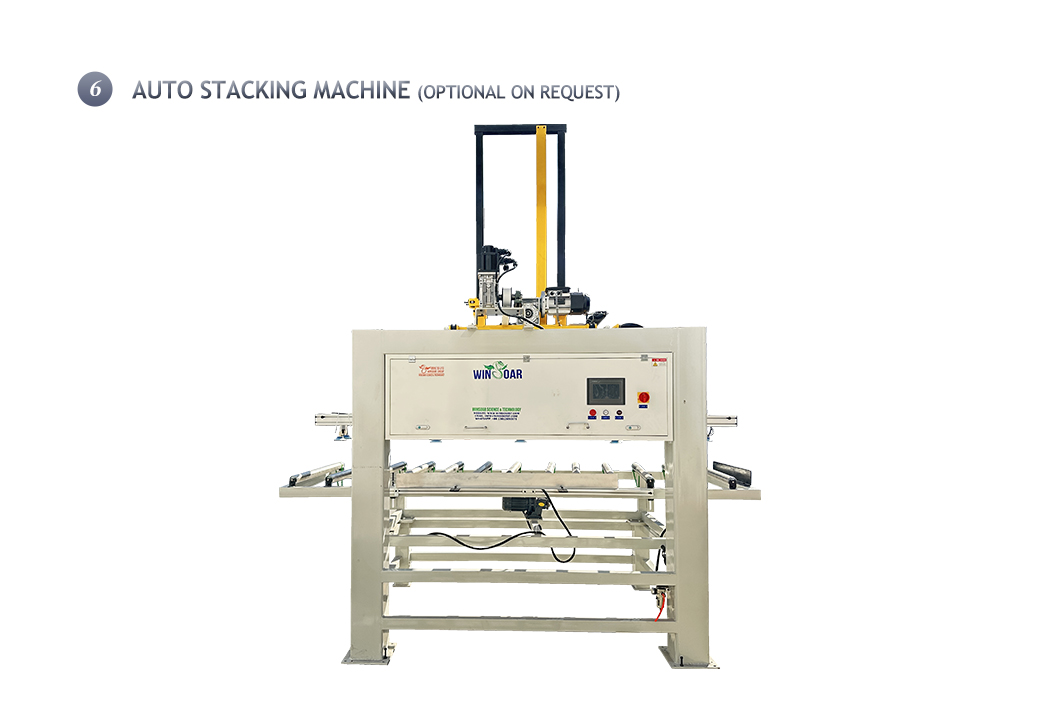

AUTO STACKING MACHINE (OPTIONAL ON REQUEST)

It can automatically receive and stack plates, saving personnel time for plate placement.


PVC-board_11

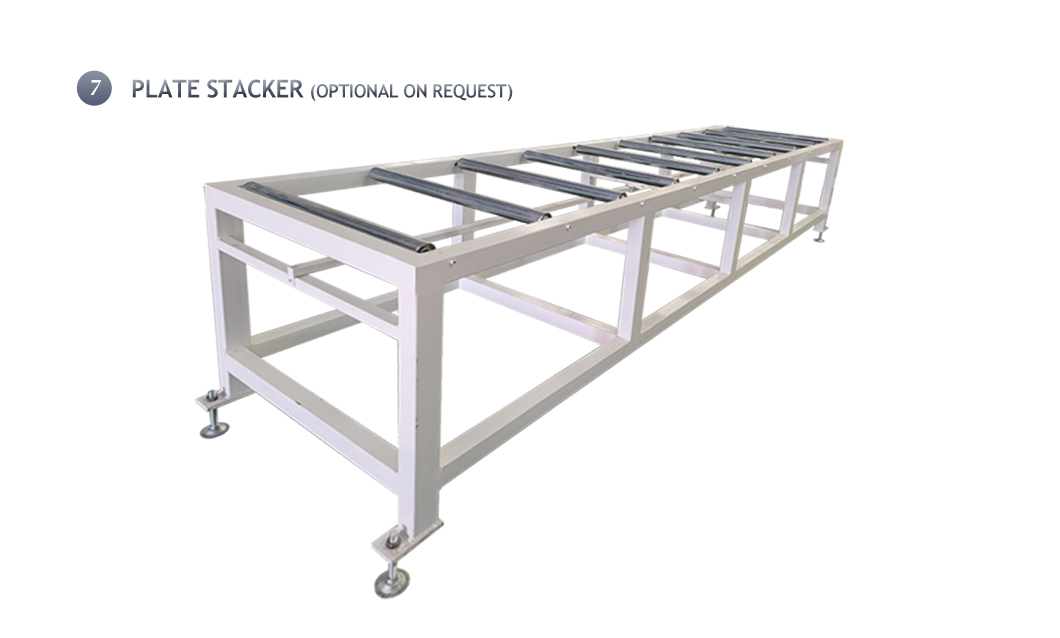

PLATE STACKER (OPTIONAL ON REQUEST)

Receive finished product and unload.


p12p13p14
