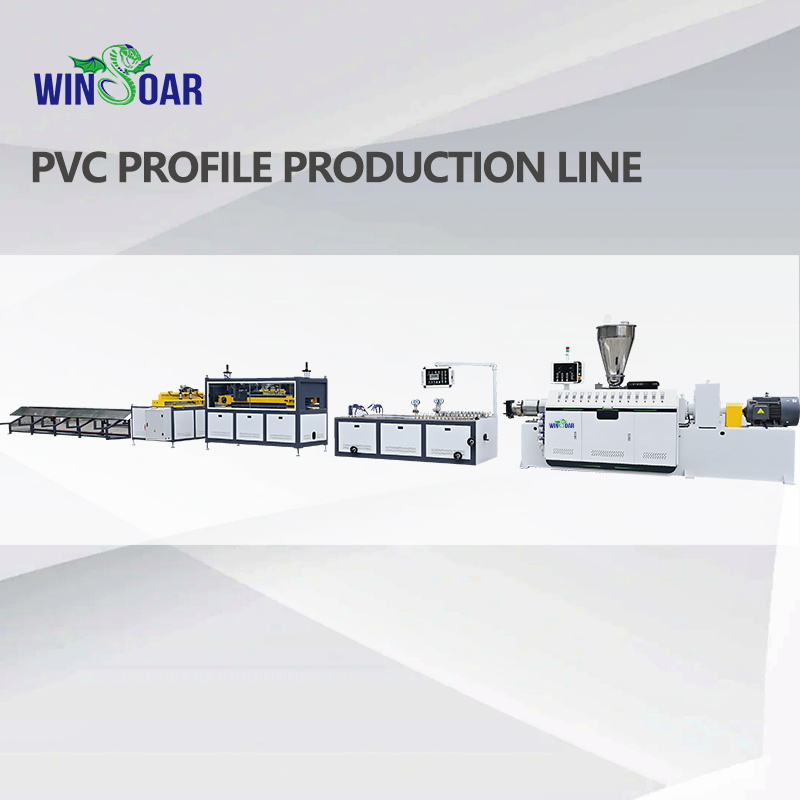

WPC/ PVC Door Window Profile Production Line /PVC Profile Making Machine/Plastic Door Frame Profile

This line is consisted of conical twin screw extruder, glue extruder, vacuum shaping table, haul-off machine, cutting machine and stacker. This line adopts automatic control, has the features of high automatic, easy operation and stable and effective production. It can also produce different kind of WPC decorating wall panel, WPC wall board, quick installation pane with different size by changing different kind of mould.

This production line is suitable to produce the PP, PE, PVC + wood composite products, the WPC products are strong and durable, both have the advantages of plastic and wood products, at the same time, they overcomes the shortages of plastic products that is easily got deformed, and the wood products can easily get corrosion, damaged by worms, short service life, etc. They are popularly used as packing case and wood-polymer tray; flooring panel, indoor and outdoor decoration, plank flooring, pavilion and chair in park, etc. The amount of wood power or fibers can reach to 50-70%.

1. Capacity of main frame can be optionally chosen from 60-700 kg/hour.
2. With different molds, it can products different kinds of profiles.
3. The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large.
4. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.
5. Movement speed and drawing speed of cutting machine keep synchronous.
6. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.
7. Saves power by 30% - 40%
8. The rigid gear surface of the reducer can be operated continuously for a long time without trouble
9. Operation and mold changing are smooth and steady
10. Long usage life
11. Can produce steel plastic profiles by changing the wood imitation foaming profile mold, combines with one set of steel liner conveying devices

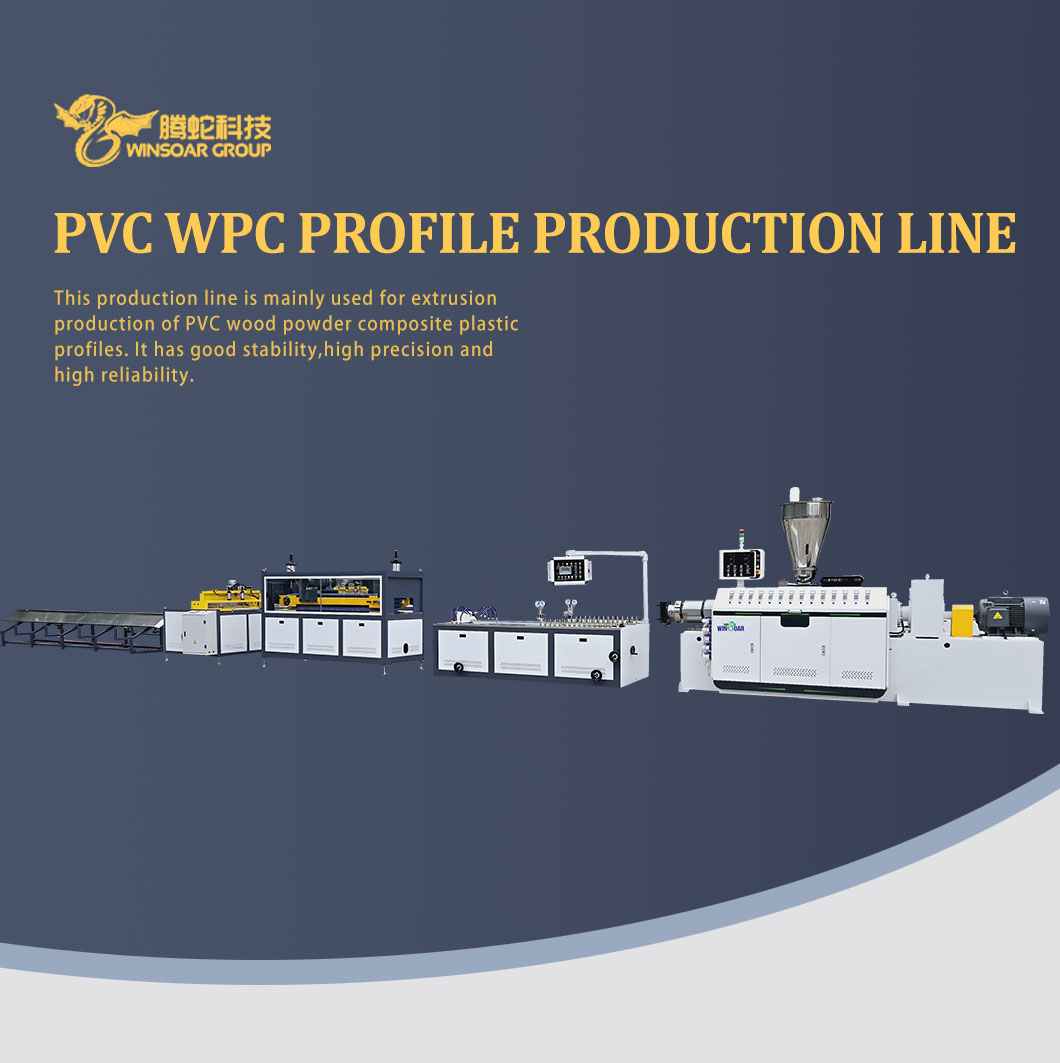

PVC WPC PROFILE PRODUCTION LINE

This production line is mainly used for extrusion production of PVC wood powder composite plastic profiles. It has good stability,high precision and high reliability.

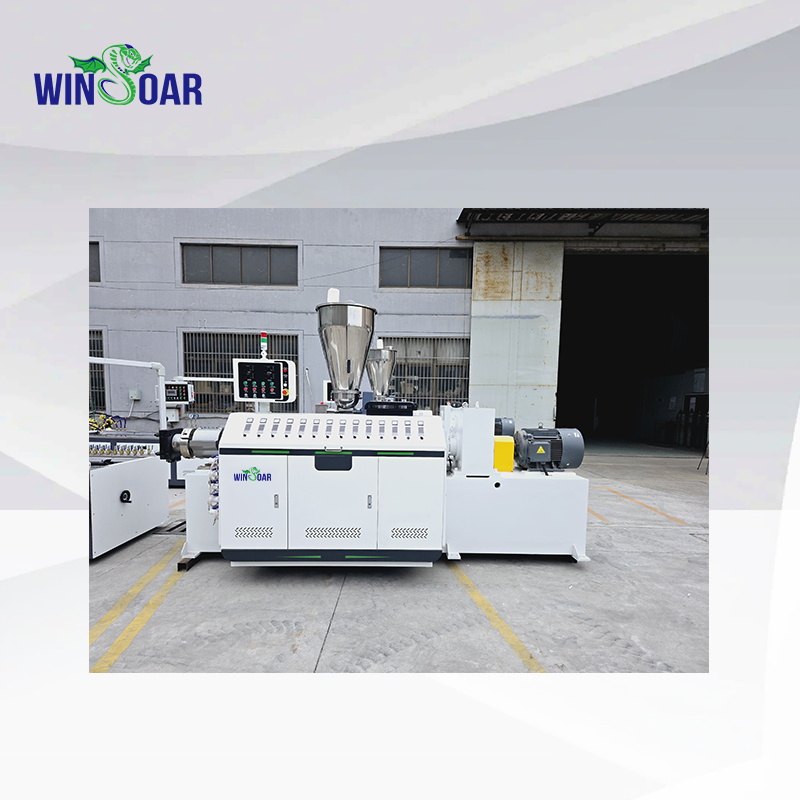

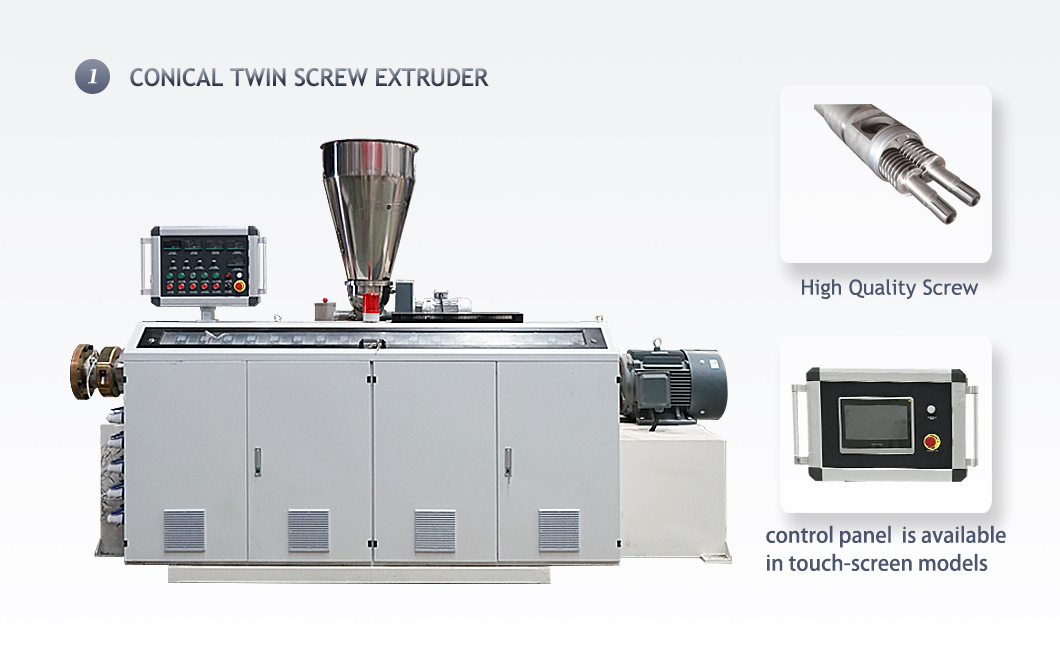

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

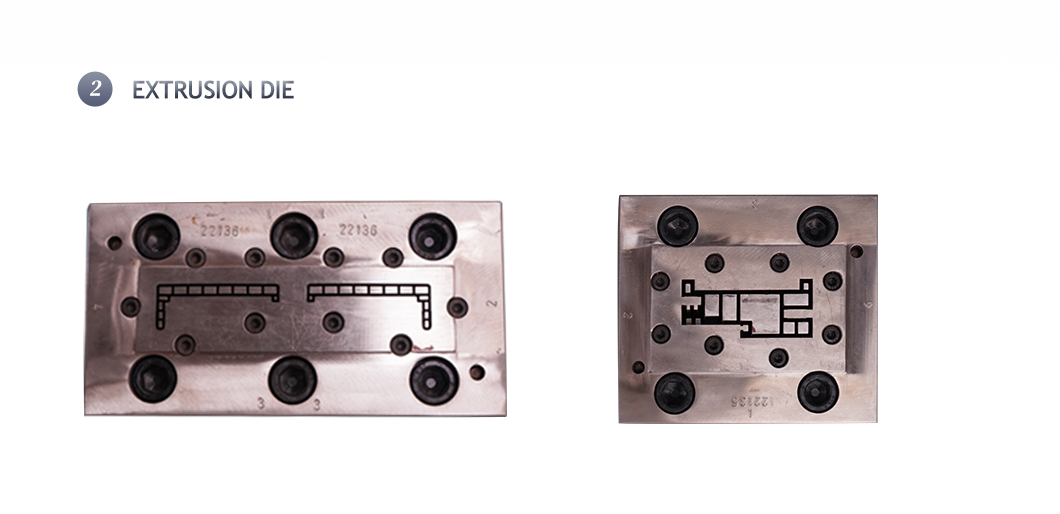

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.

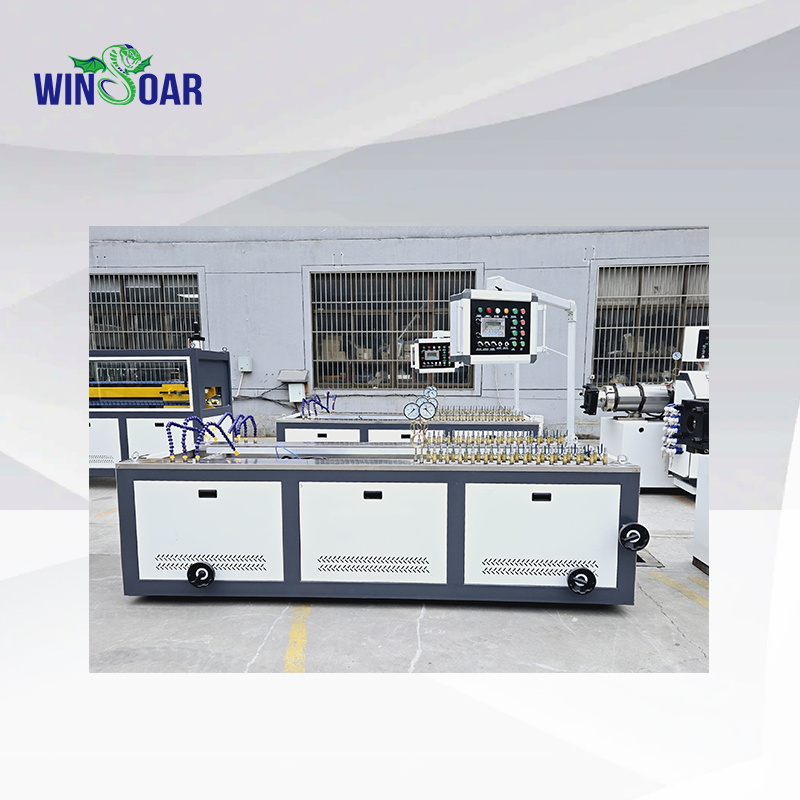

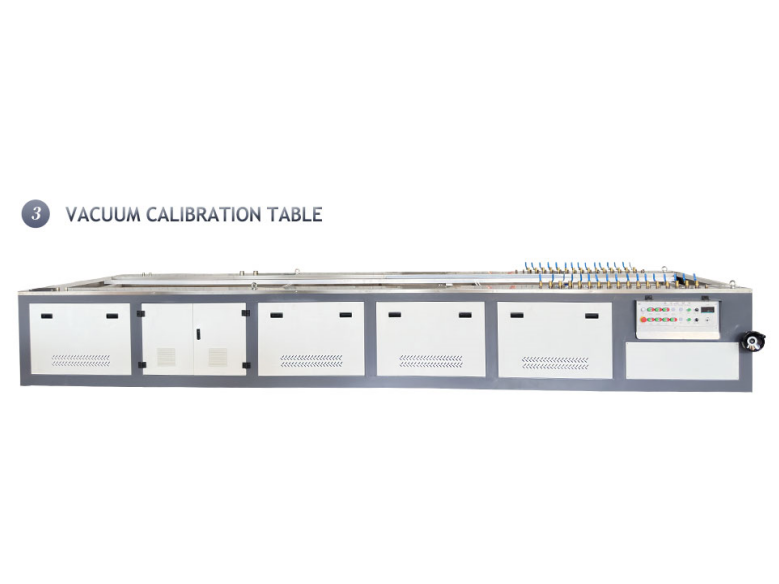

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.

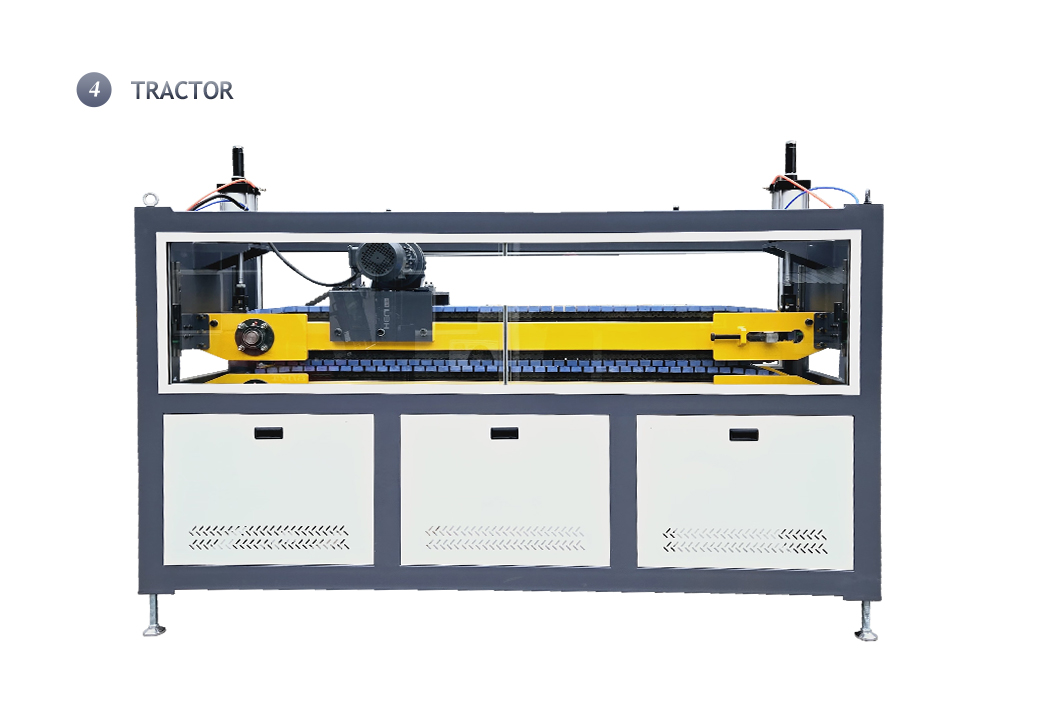

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.

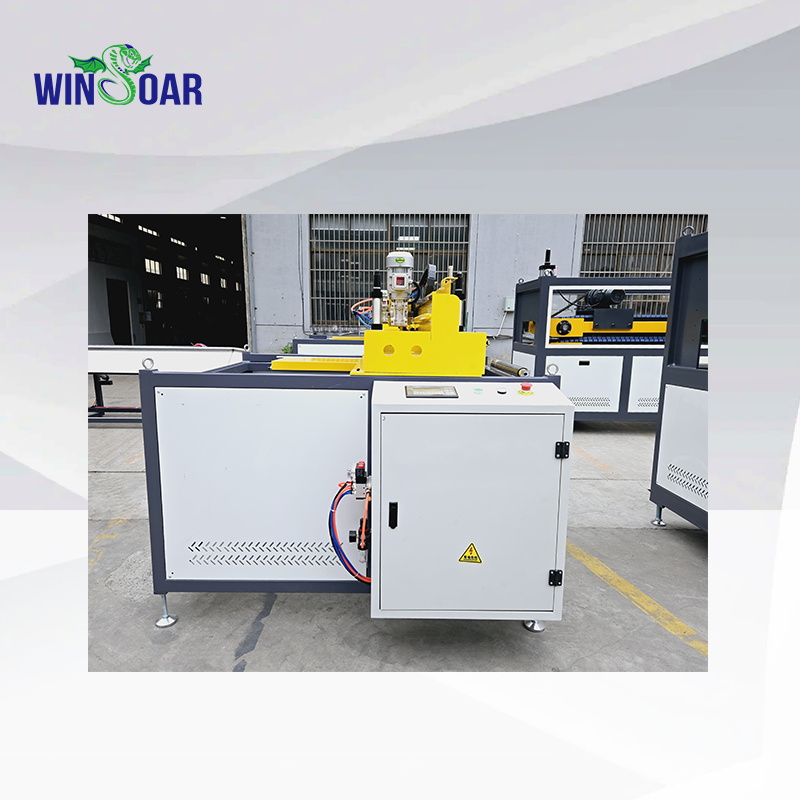

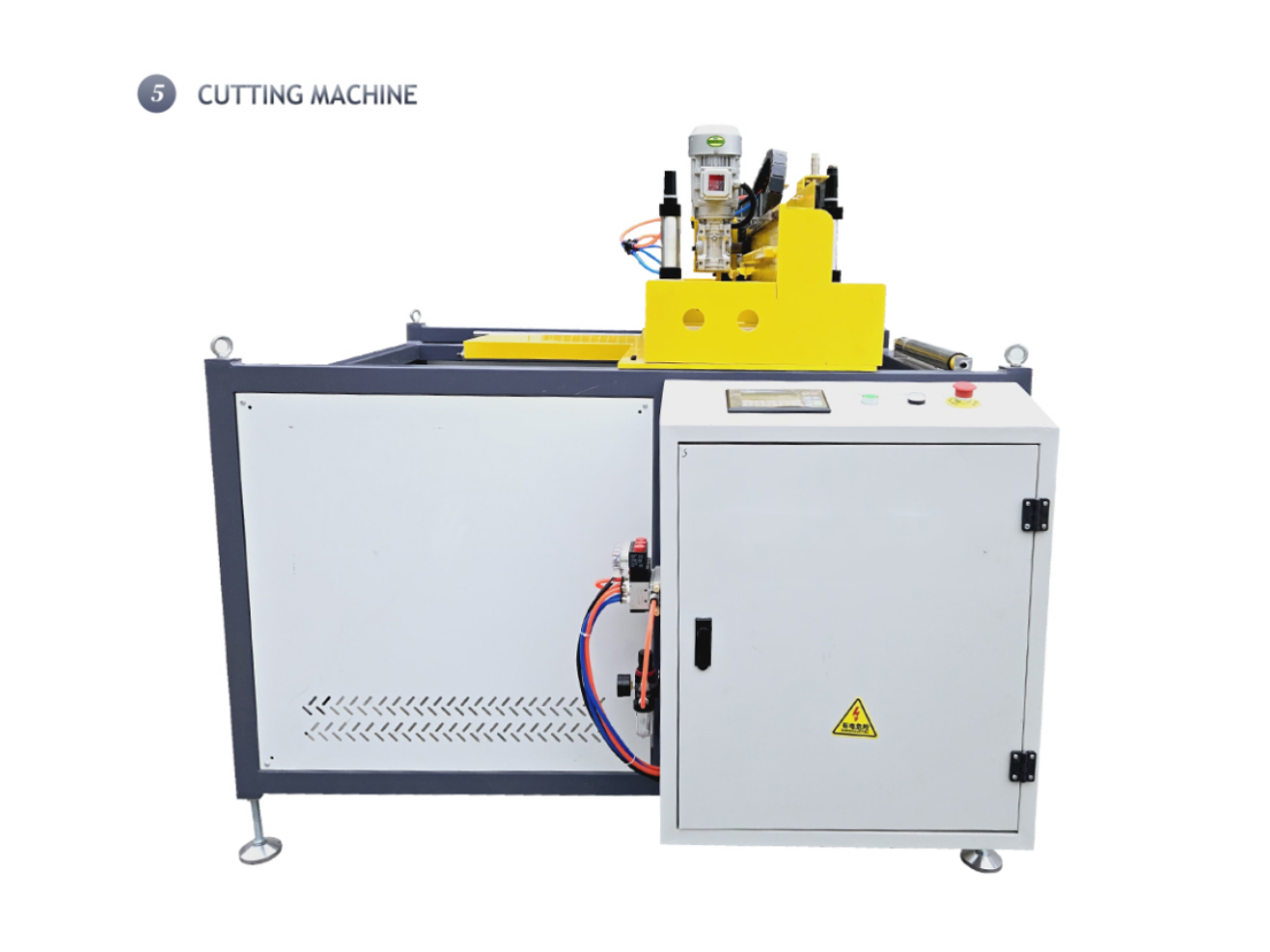

CUTTING MACHINE

After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Accept finished products and automatically turn over.
