Wood Plastic Composite Doors Frame Profile Extrusion Machine PVC Door Profile Making Machine WPC Door Board Production Line

The unit adopts the designed SJSZ51 conical twin-screw extruder, adopts imported frequency converter for speed regulation, and uses RKC temperature control instrument. It has the advantages of wide adjustment range, high temperature control accuracy, convenient and reliable operation. The auxiliary machine consists of a vacuum setting table, a tractor, a cutting machine and a pusher frame.

Equipped with a large forced cooling device to ensure the effect of door panel shaping. The crawler tractor adopts reducer motor and frequency converter, which has the advantages of reasonable structure, large traction and stable traction. The cutting machine has the advantages of reliable and accurate work and high cutting precision. The stacker is equipped with a movable pusher and a special rubber protective layer, which has the advantages of no damage to the material and easy use. The auxiliary machine unit adopts a programmable computer control system, and the control of the whole machine is reliable and stable.

1) Mainly used to produce the PVC window profiles, plastic decorative plates and PE foam profiles
2) Use frequency conversion for speed regulation
3) Has super-taper twin-screw extruder with temperature controlling instrument in the screw core
4) Saves power by 30% - 40%
5) The rigid gear surface of the reducer can be operated continuously for a long time without trouble
6) Operation and mold changing are smooth and steady
7) Long usage life
8) Can produce steel plastic profiles by changing the wood imitation foaming profile mold, combines with one set of steel liner conveying devices

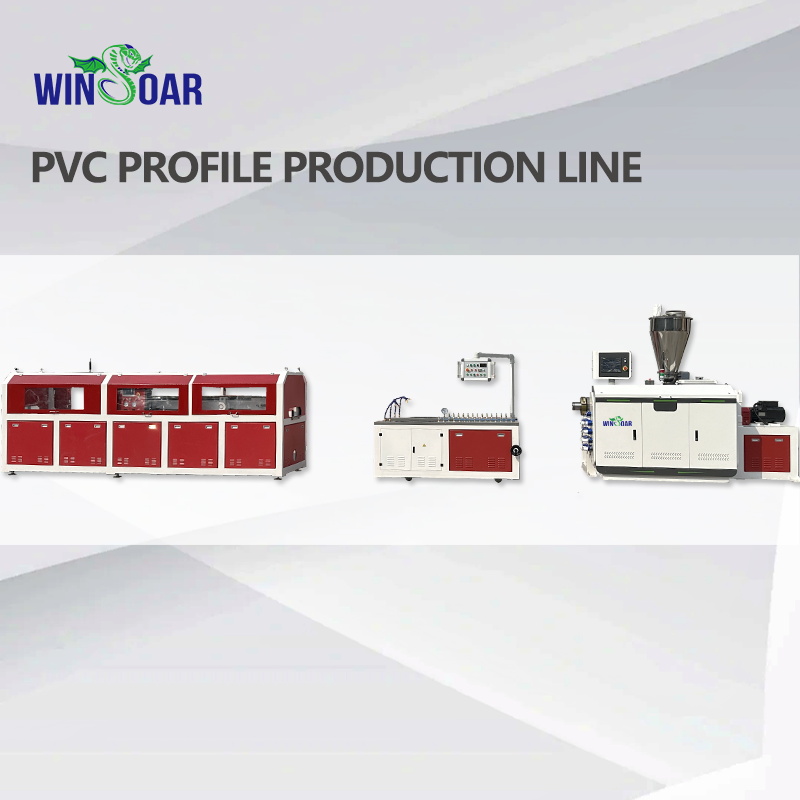

PVC PROFILE PRODUCTION LINE

PVC profile making machine mainly composed by Conical Twin Screw Extruder, Cooling Table, Hauling Machine, Cutting Machine, Stacker. With different mould, it can produce various UPVC profile, such as: PVC window door profile, PVC wall panel, PVC window sill board, cabinet door board, curtain box, PVC trucking, cable duct, PVC skirting, PVC protection corner and so on.

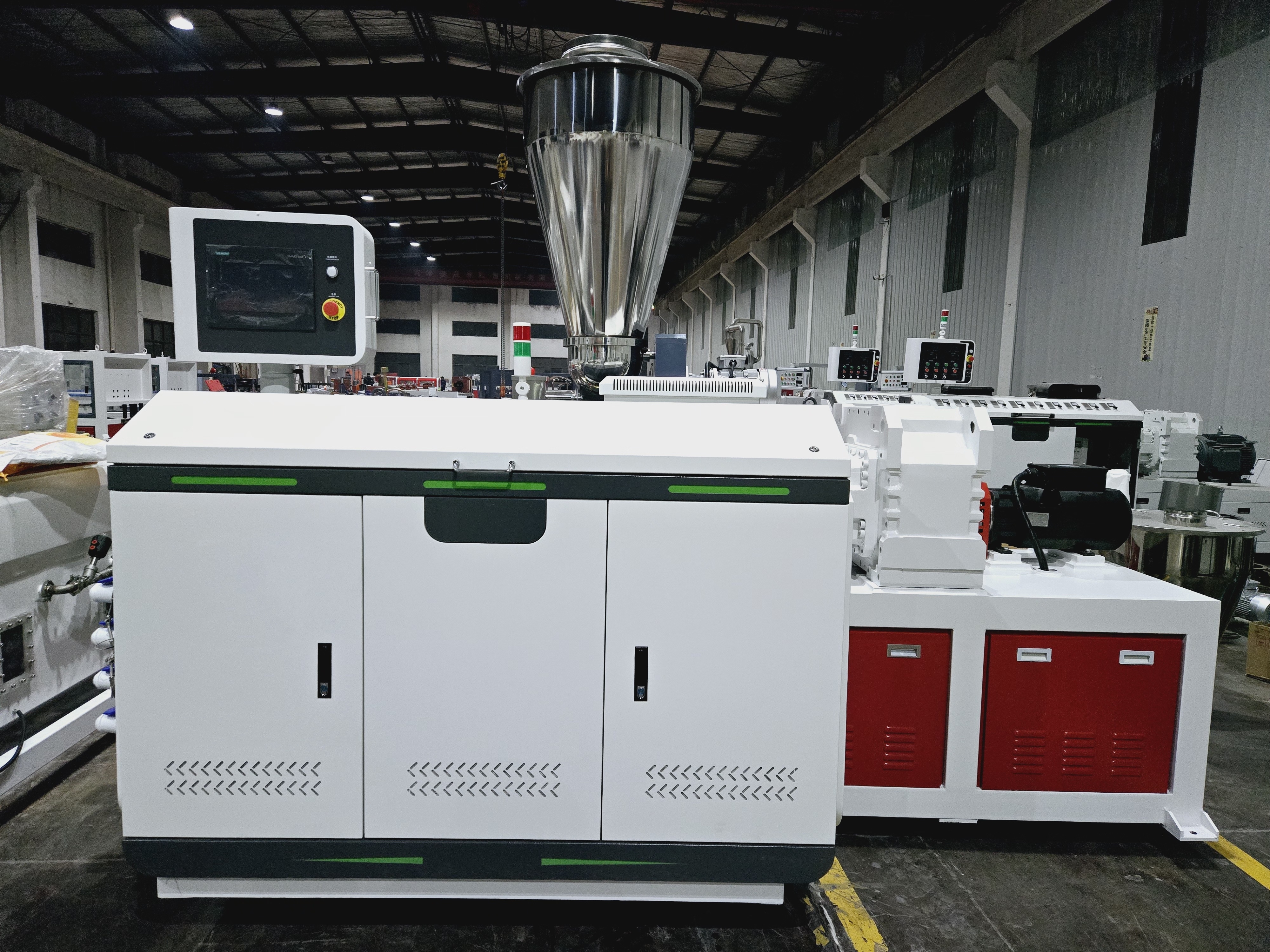

CONICAL TWIN SCREW EXTRUDER

This machine is equipped with a quantitative feeding device, so that the extrusion amount and the feeding amount can be matched to ensure the stable extrusion of the product.

EXTRUSION DIE

After compaction, melting, mixing and homogenization of PVC, the subsequent material is pushed to the die by the screw. The extrusion die is the most important part of profile forming.

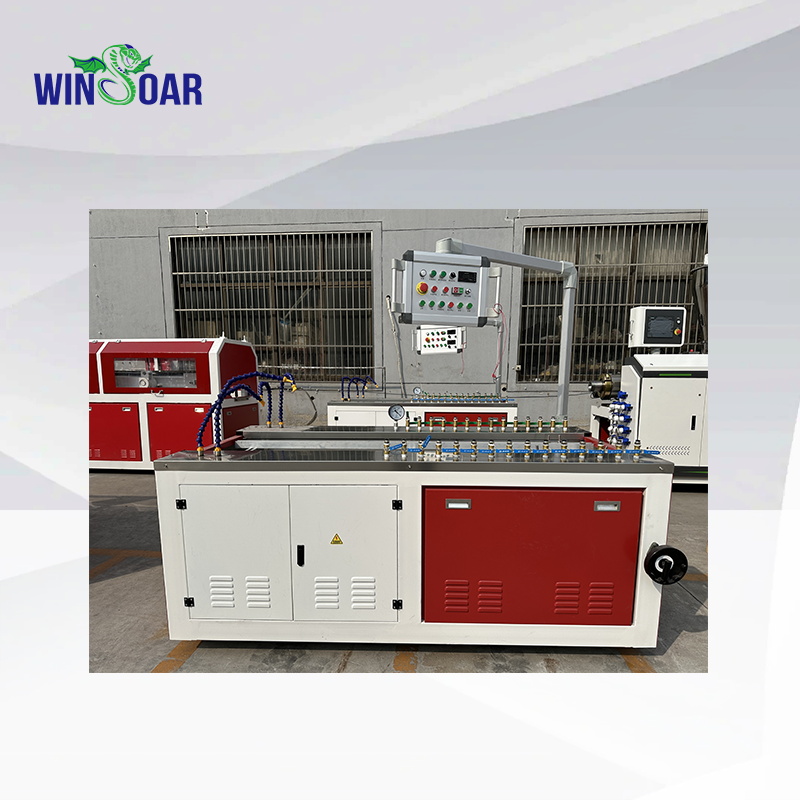

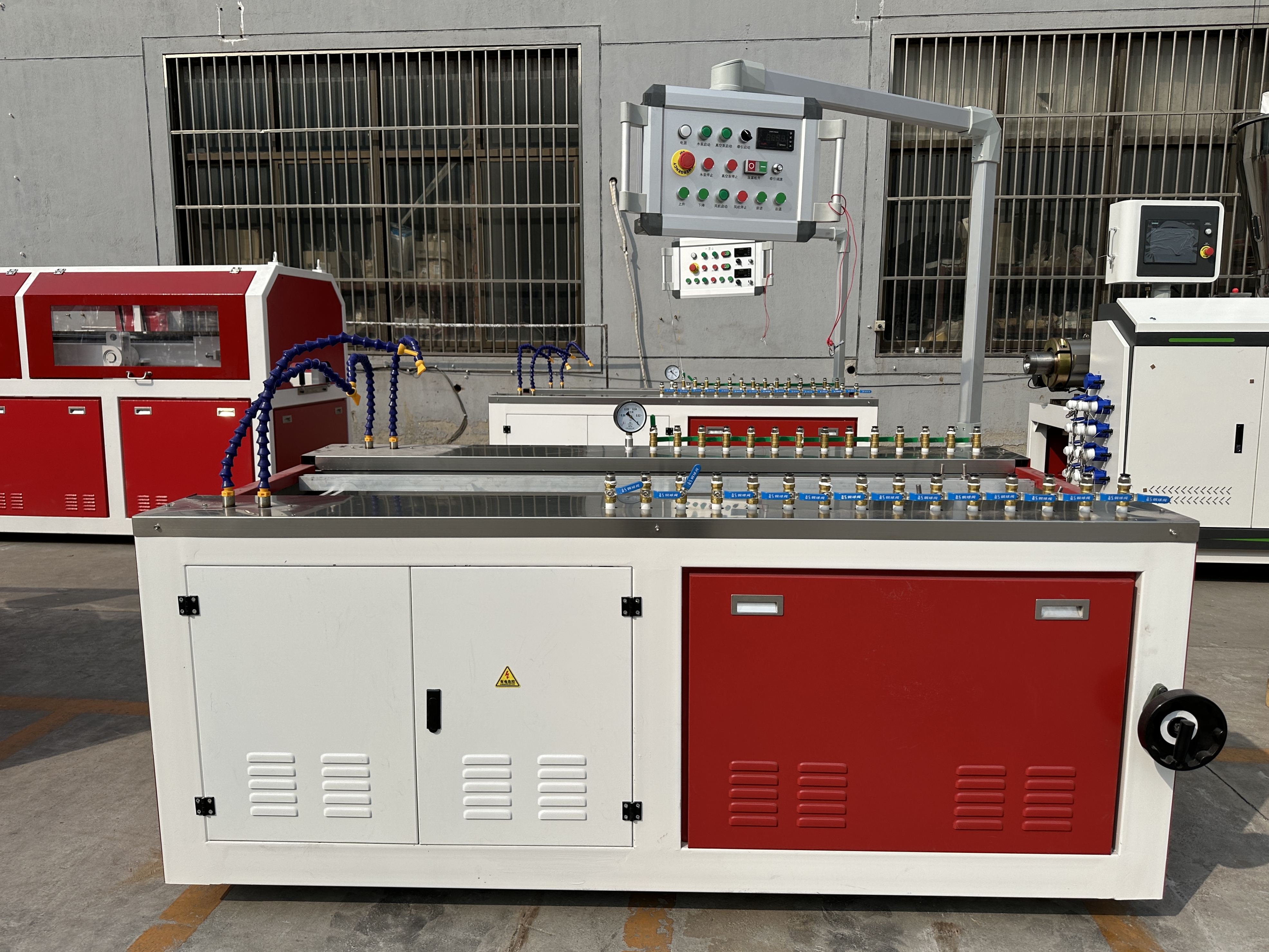

VACUUM CALIBRATION TABLE

Used for shaping and cooling of pipes, it is equipped with a vacuum system, water circulation system, as well as front and rear moving device and left and right,height adjustment manual device,stainless steel box, circulating water spray cooling.

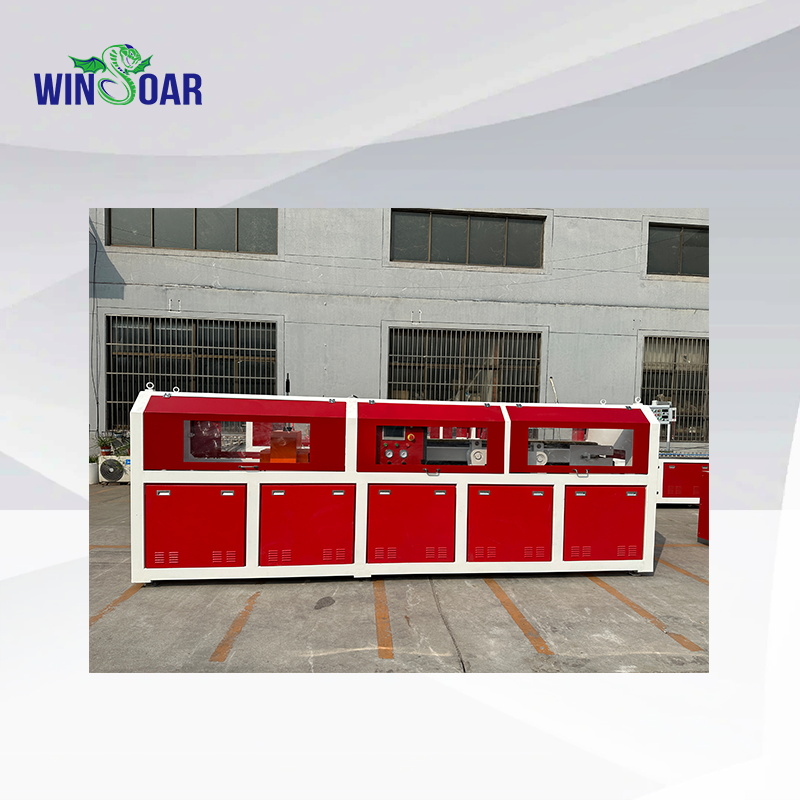

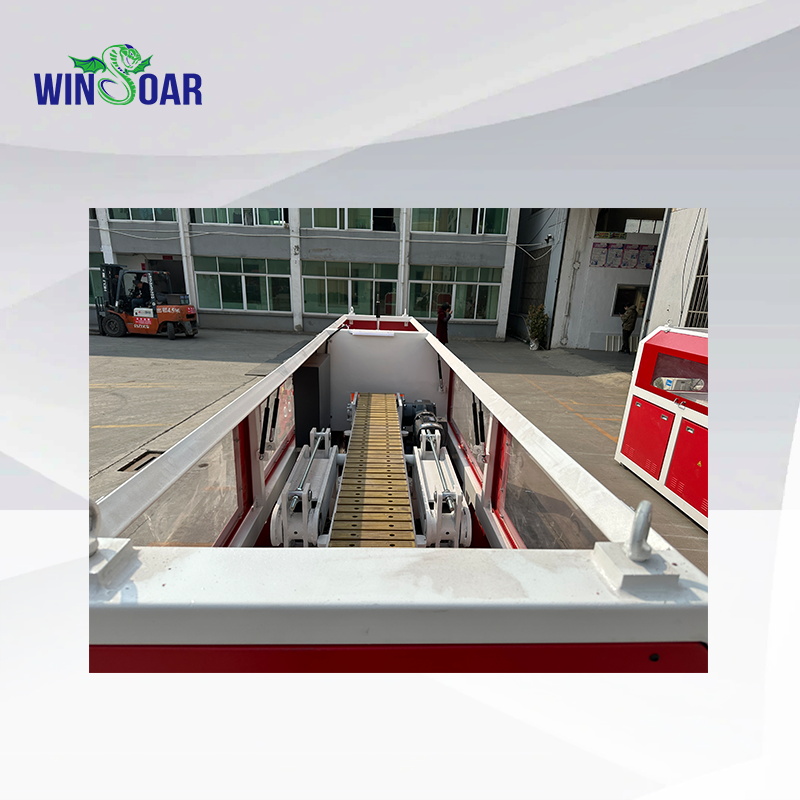

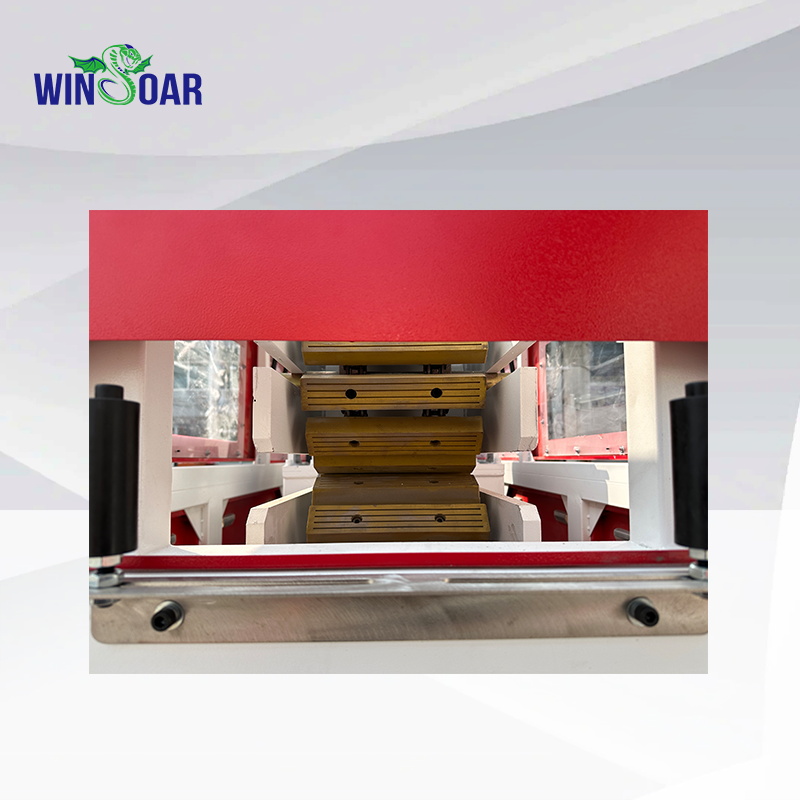

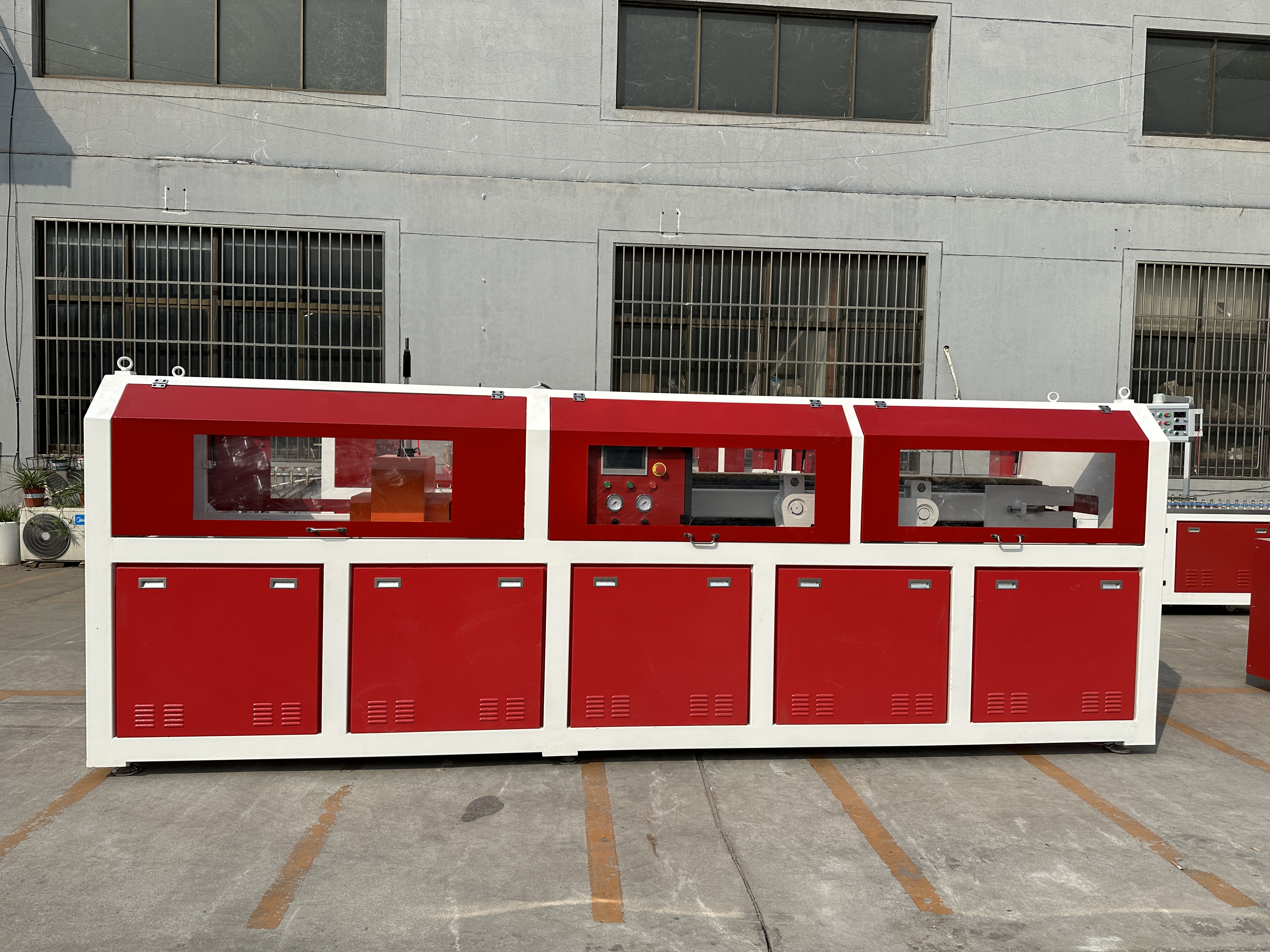

The tractor is used to continuously and automatically lead the cooled and hardened profiles from the machine head, and the speed is controlled by frequency conversion.

CUTTING MACHINE

After being controlled by encoder according tothe required length, automatic cutting is carried out, the stacker is turned over with a delay, pipes are cutted smoothly without scraps and dust.

Accept finished products and automatically turn over.
