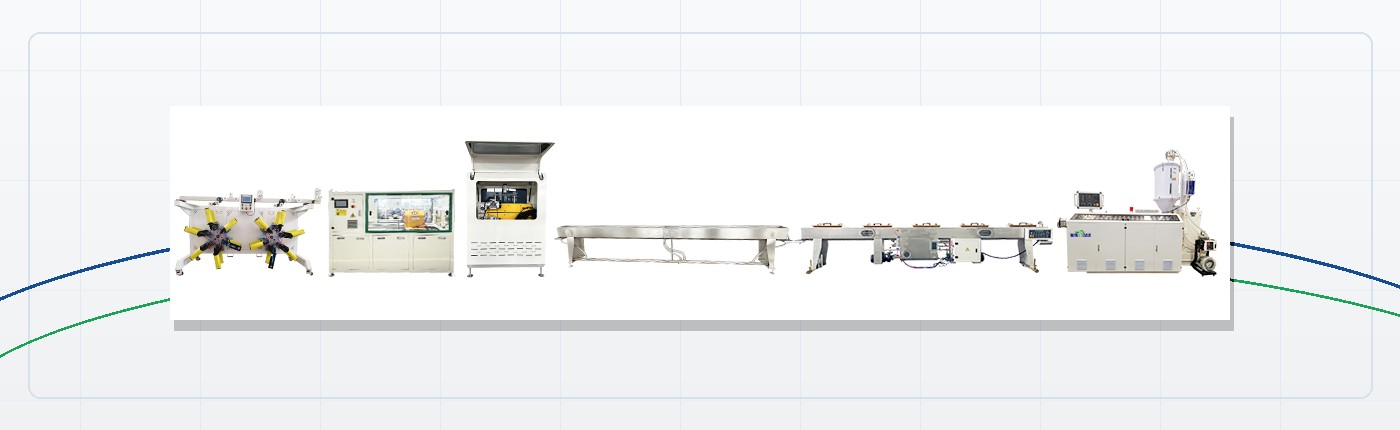

PPR Pipe Production Line Output and Machine Configuration
PPR pipe production line output is not decided by the extruder model alone. Real output depends on pipe diameter, wall thickness, PPR material grade, screw design, die head, cooling length, haul-off stability, cutter or coiler selection and the workshop layout.
Direct answer: For a PPR pipe production line, output should be planned around the full line. A larger extruder cannot reach stable output if the vacuum tank, spray cooling tank, haul-off machine, chipless cutter or coiler cannot match the pipe size and wall thickness.
1. Output Depends on Pipe Diameter and Wall Thickness
Small PPR pipes such as 16mm, 20mm and 25mm can usually run faster than larger pipe sizes, but the final output must still match cooling, traction and coiling. Larger PPR water supply pipes need more cooling capacity and stronger downstream matching.
| Project Range | Typical Focus | Related Page |
|---|---|---|
| 16-63mm PPR pipe | Small hot and cold water pipe, plumbing pipe and coiled pipe production. | Small Diameter PPR Plastic Pipe Production Line |
| 20-110mm PPR pipe | Larger water supply pipe requiring stronger cooling and downstream support. | 20-110mm PPR Water Supply Pipe Production Line |
| General PPR pipe projects | Standard PPR pipe making machine configuration for hot and cold water pipe. | PPR Pipe Production Line |
2. Main Configuration That Affects Output
A practical PPR line should be selected as a balanced system. The extruder must plasticize material steadily, while downstream equipment must keep diameter, wall thickness and surface quality stable at the planned speed.
| Machine Section | Effect on Output | Selection Point |
|---|---|---|
| Single screw extruder | Determines melt stability and basic output capacity. | Match screw design, motor power and output target with PPR material and maximum pipe size. |
| PPR pipe die head | Affects melt distribution and pipe wall thickness control. | Confirm die range, calibration sleeve and wall thickness coverage. |
| Vacuum calibration tank | Controls initial pipe forming and outside diameter. | Vacuum stability and water temperature affect line speed. |
| Spray cooling tank | Limits real output when pipe wall is thick. | Cooling length should support the target speed, not only the smallest pipe size. |
| Haul-off and cutter | Controls traction and fixed-length pipe quality. | Haul-off force and cutter type must match pipe diameter and wall thickness. |
| Coiler | Important for small diameter pipe packaging. | Coiling tension and reel size must match final coil length. |
PPR Line Running Video
Use the running video solution to review the real machine sequence before confirming configuration.
Related video solution: 16-63mm PPR Pipe Production Line Running Video Solution.
3. How to Estimate the Right Configuration
Before asking for quotation, prepare the pipe diameter range, wall thickness, pressure class, target output, cutting length or coil size, workshop space and voltage. Winsoar can then match the line around real production requirements instead of only giving a general extruder model.
- Confirm the maximum pipe diameter and thickest wall.
- Confirm whether the pipe is cut into straight lengths or packed in coils.
- Confirm whether color marking or online printing is required.
- Confirm the available cooling length and workshop layout.
- Confirm the expected stable output, not only peak speed.
4. Related PPR Resources
For selection details, read How to Choose a PPR Pipe Production Line. For product comparison, visit the PPR Pipe Production Line category and compare the Small Diameter PPR Plastic Pipe Production Line, PPR Pipe Production Line and 20-110mm PPR Water Supply Pipe Production Line.
FAQ
Can a PPR pipe line output be increased only by using a larger extruder?
No. A larger extruder helps only when the die, cooling, haul-off, cutter and coiler can match the higher speed and pipe wall thickness.
Why does cooling length affect PPR pipe output?
If cooling is not enough, the pipe may deform after vacuum calibration or during traction. This limits stable line speed.
Which line should I choose for small PPR pipe?
For common small diameter PPR hot and cold water pipe, start with the 16-63mm or small diameter PPR line and confirm whether coiling is required.
