Product Overview & Applications
Winsoar 20-110mm PPR pipe production line is a complete plastic pipe extrusion solution for hot water pipe, cold water pipe, building plumbing pipe and PPR water supply pipe production. It is designed for stable plasticizing, accurate pipe sizing, continuous cooling, synchronized traction, clean cutting and reliable coiling.
PPR pipe is widely used in residential and commercial water supply systems. The production line can be configured according to pipe diameter, wall thickness, material grade, pipe color, output target, cutting length, coil requirement, voltage and workshop layout.
Complete 20-110mm PPR Water Supply Pipe Production Line
This line is suitable for 20-110mm PPR pipe production and can be adjusted for straight pipe cutting or coiled pipe receiving according to the final pipe specification and packaging method.
PPR hot water pipe
PPR cold water pipe
Building plumbing pipe
Water supply pipe
Green or white PPR pipe
Small diameter PPR pipe production
For a practical PPR pipe line proposal, provide target diameter range, wall thickness, pipe standard, application, raw material grade, output requirement, cutting length or coil size, workshop voltage and available installation space.
Video & Technical Parameters
Watch the 20-110mm PPR pipe production line running video to review extrusion, calibration, cooling, haul-off, cutting and coiling operation.
| Item | Reference Configuration |
| Product name | 20-110mm PPR Water Supply Pipe Production Line |
| Typical pipe application | PPR hot water pipe, cold water pipe, building plumbing pipe, water supply pipe |
| Applicable material | PPR / PP-R material, customized according to pipe application |
| Extruder | High-efficiency single screw extruder |
| Forming system | PPR pipe extrusion die head and calibration sleeve |
| Cooling system | Vacuum calibration tank and spray cooling tank |
| Downstream | Haul-off machine, chipless cutter and pipe coiler |
| Customization | Pipe diameter, output, cutting length, coil size, voltage, color stripe and workshop layout |
For this 20-110mm PPR Water Supply Pipe Production Line, compare the matching PPR Pipe Production Line category, related product options and adjacent pipe extrusion categories before confirming configuration.
Use these PPR pipe production line resources to compare hot and cold water pipe machine options, small diameter plumbing pipe lines, multi-layer PPR pipe layouts and related pipe extrusion categories.
Selection guide:
How to Choose a PPR Pipe Production Line - PPR pipe line selection by diameter range, wall thickness, output, cooling and downstream configuration
PPR Pipe Production Line Output and Machine Configuration - PPR pipe output planning by pipe diameter, wall thickness, cooling length and downstream equipment
PPR vs PE-RT Pipe Production Line: How to Choose - comparison between PPR hot and cold water pipe lines and PE-RT floor heating pipe lines
Running video solution:
16-63mm PPR Pipe Production Line Running Video Solution - running video and machine layout notes for small diameter PPR hot and cold water pipe projects
| Product page | Typical project focus |
| 20-110mm PPR Water Supply Pipe Production Line | 20-110mm PPR hot and cold water pipe production for plumbing and building water supply projects |
| Small Diameter PPR Plastic Pipe Production Line | small diameter PPR pipe extrusion where stable sizing, cooling and cutting are important |
| PPR Pipe Production Line | general PPR pipe making machine configuration for polypropylene hot and cold water pipe production |
| High Efficiency Coated PPR Pipe Production Line For Water Supply | coated or multi-layer PPR pipe production for water supply applications |
| Antioxidant Double PPR Pipe Production Line For Cold Water | double-layer PPR pipe extrusion for cold water pipe projects |
| Good Workability Green PPR Pipe Production Line For Water Supply | green PPR water supply pipe production for building plumbing markets |
Related pipe categories: Plastic Pipe Production Line, PE Pipe Production Line, PVC Pipe Production Line, PPR Pipe Production Line, PE-RT Pipe Production Line.
Machine Configuration

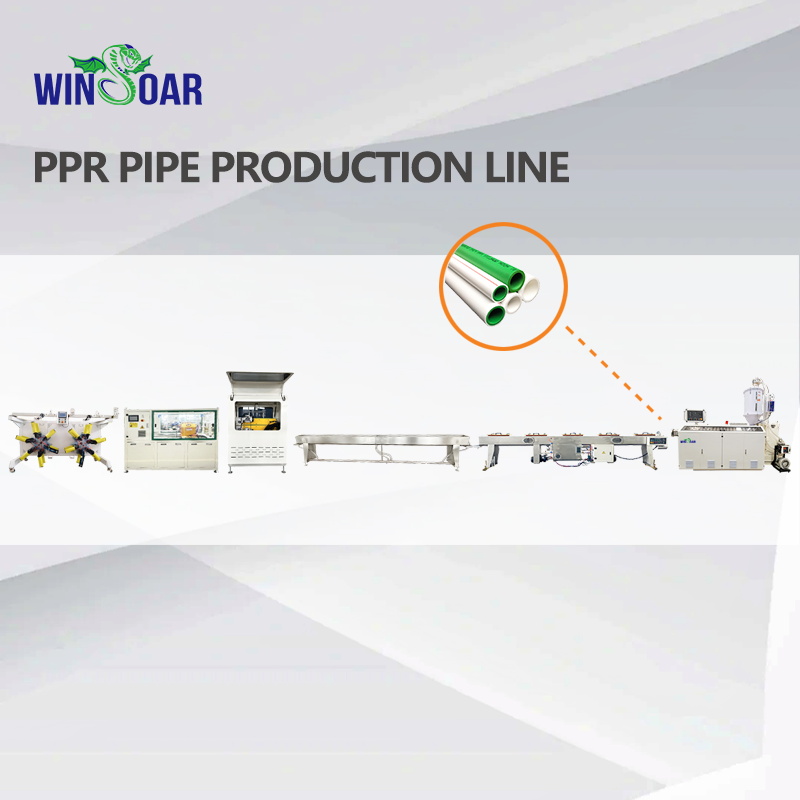

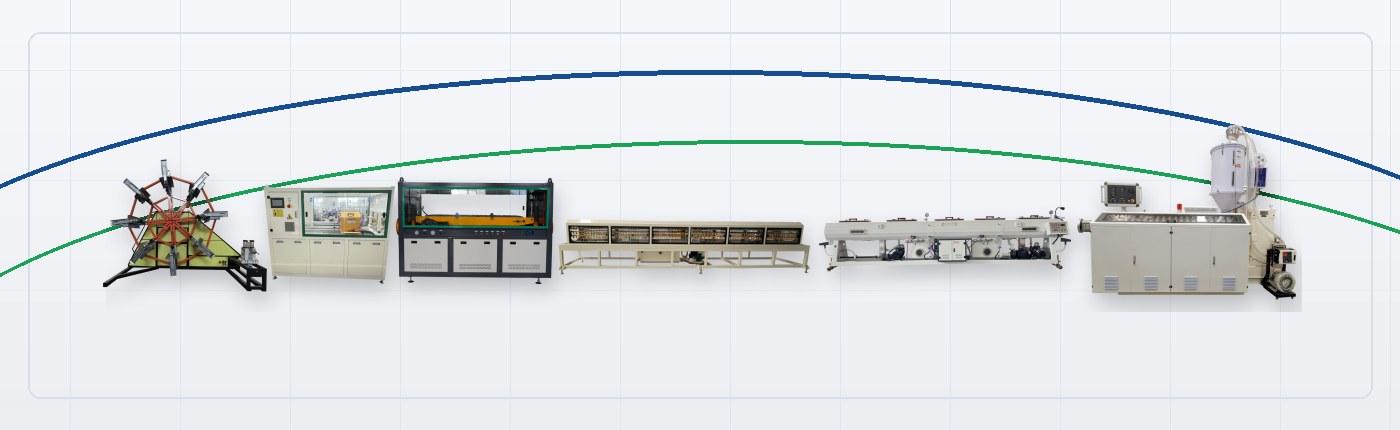

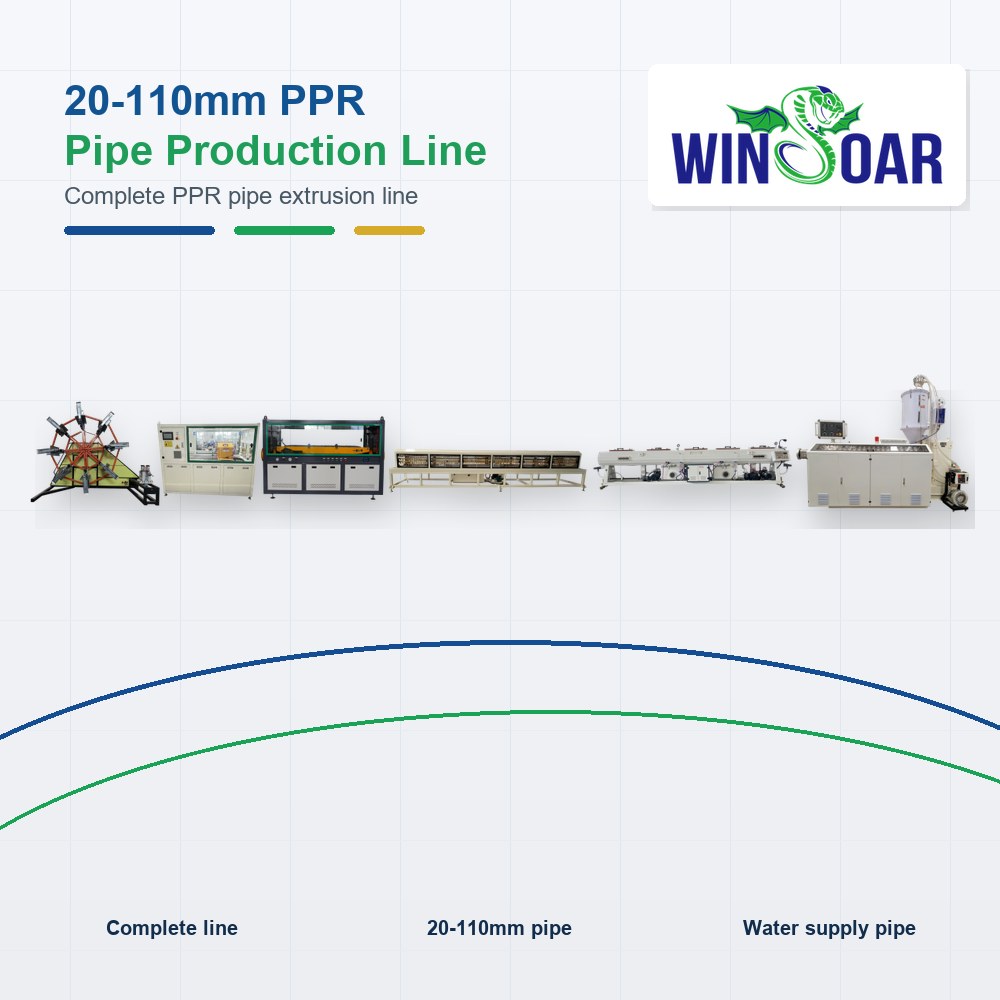

A 20-110mm PPR pipe production line usually includes material feeding, single screw extrusion, pipe die forming, vacuum calibration, spray cooling, haul-off, chipless cutting, coiling, color marking and electrical control. Each section should be matched according to pipe diameter, line speed and final packaging method.

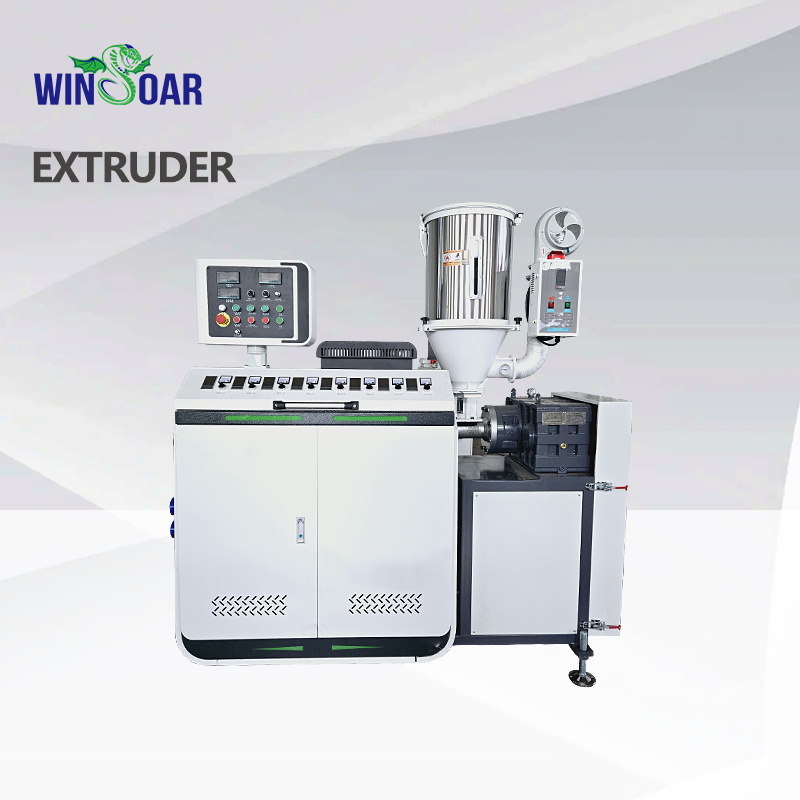

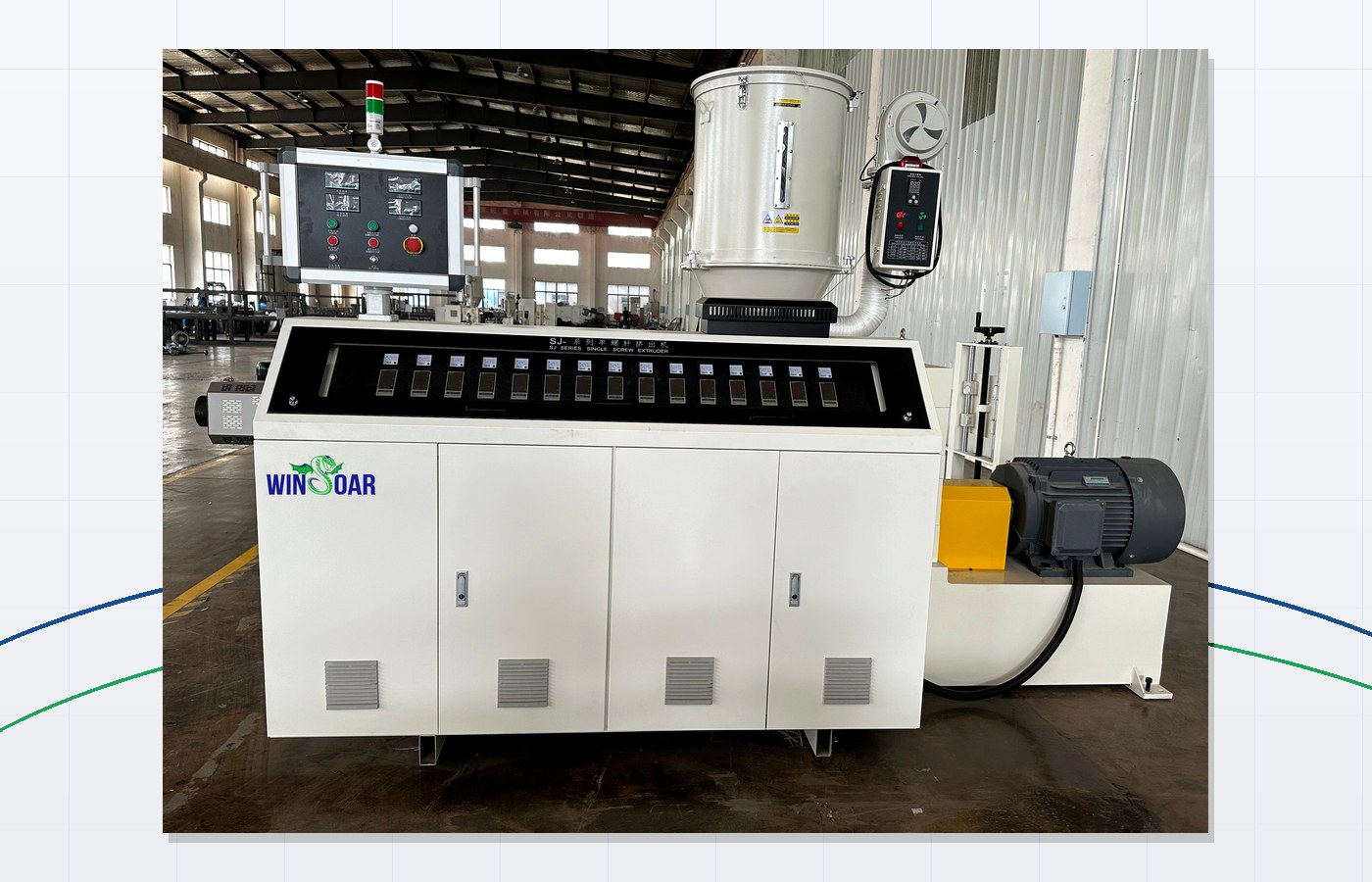

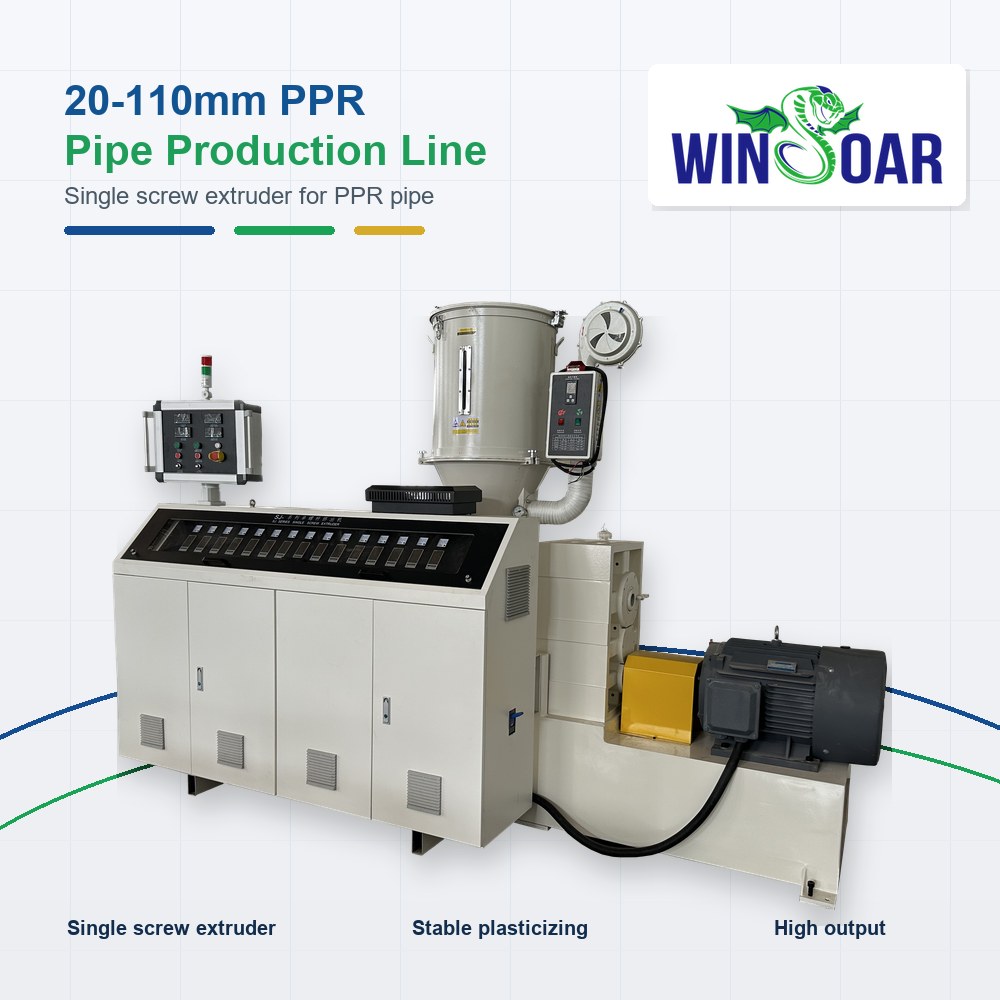

The single screw extruder is used for stable PPR plasticizing and melt delivery. Screw design, motor power and control system can be selected according to required output and pipe size.

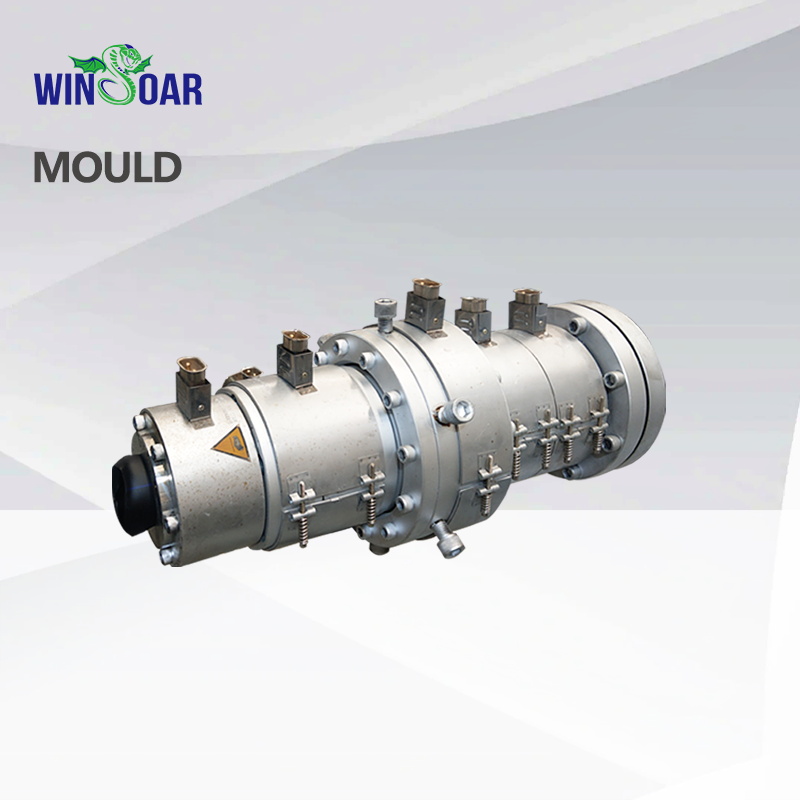

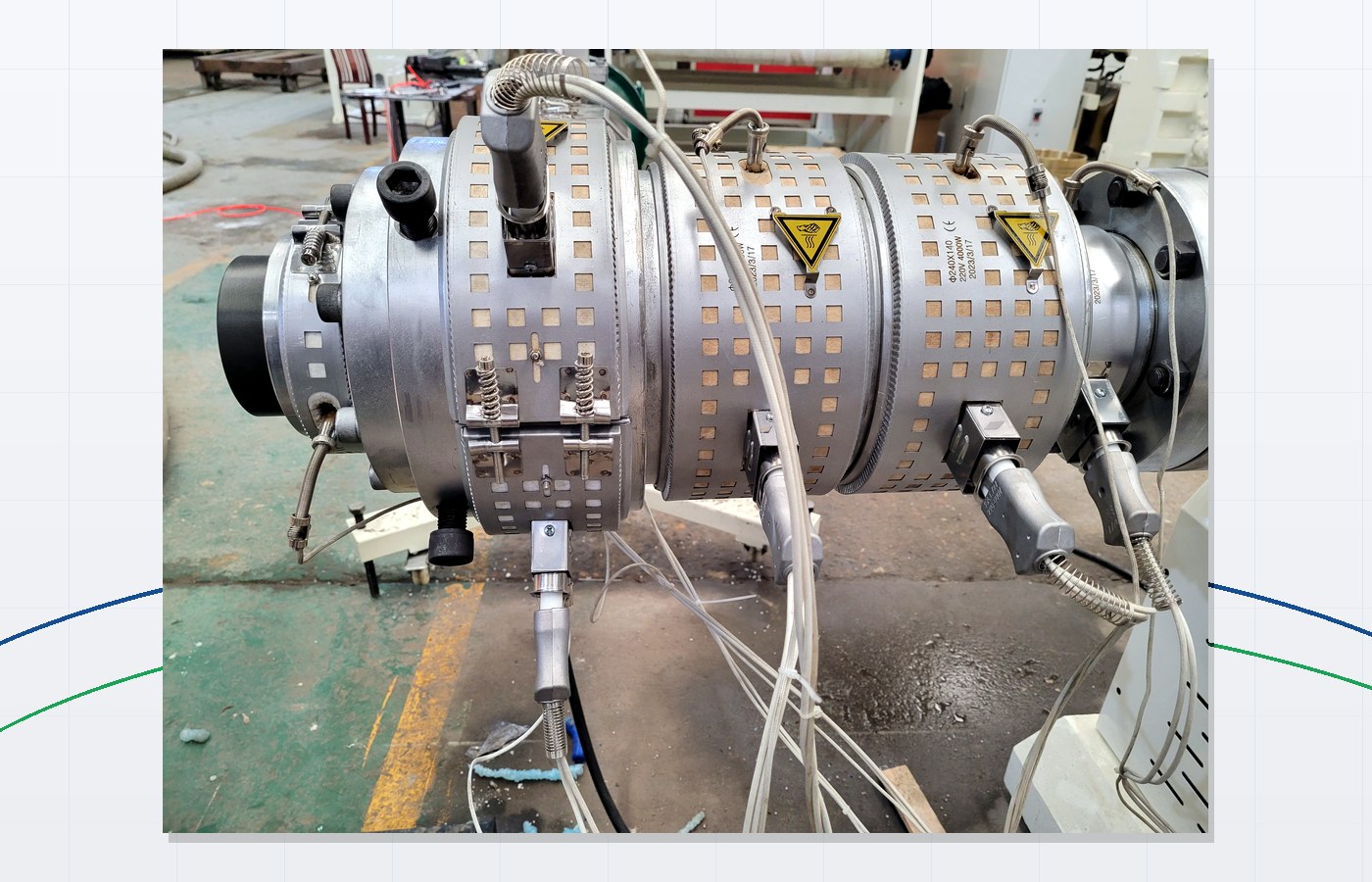

The pipe die head forms the melt into a stable pipe blank before calibration. Die and sizing sleeve are configured for the required PPR pipe diameter and wall thickness.

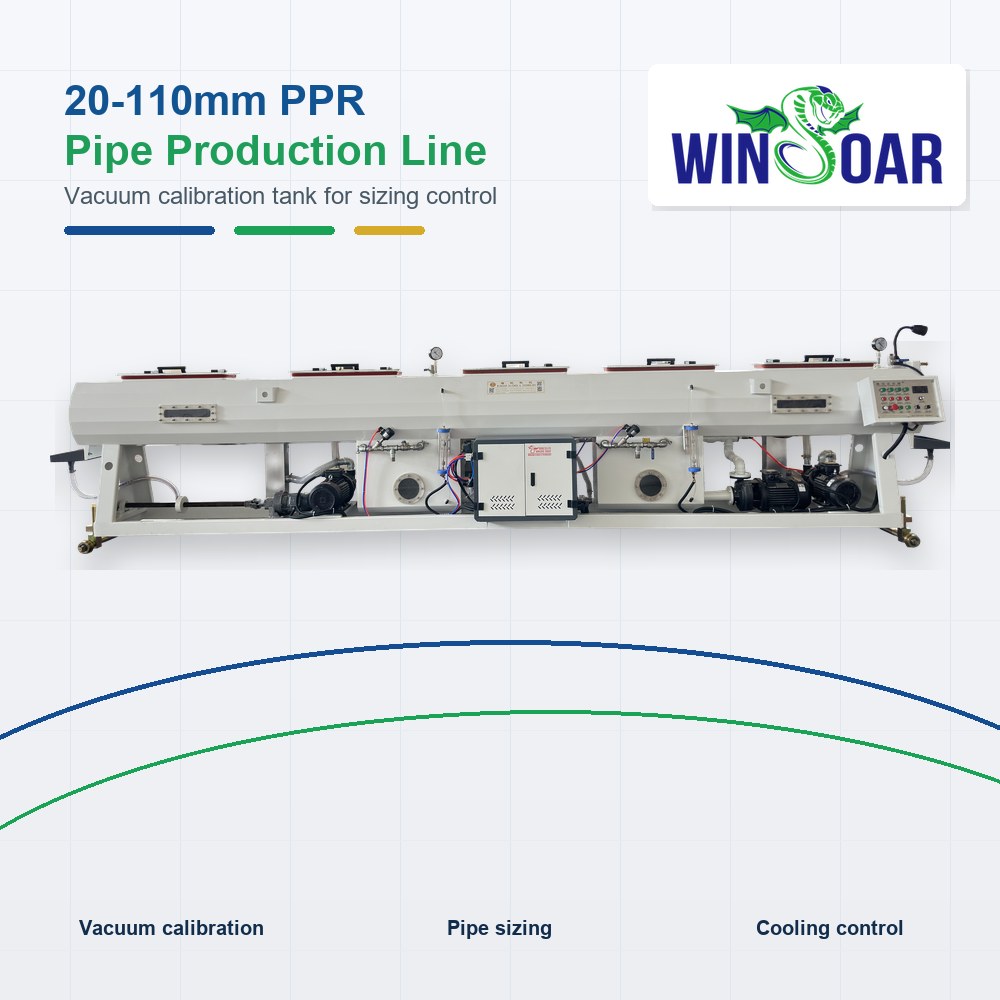

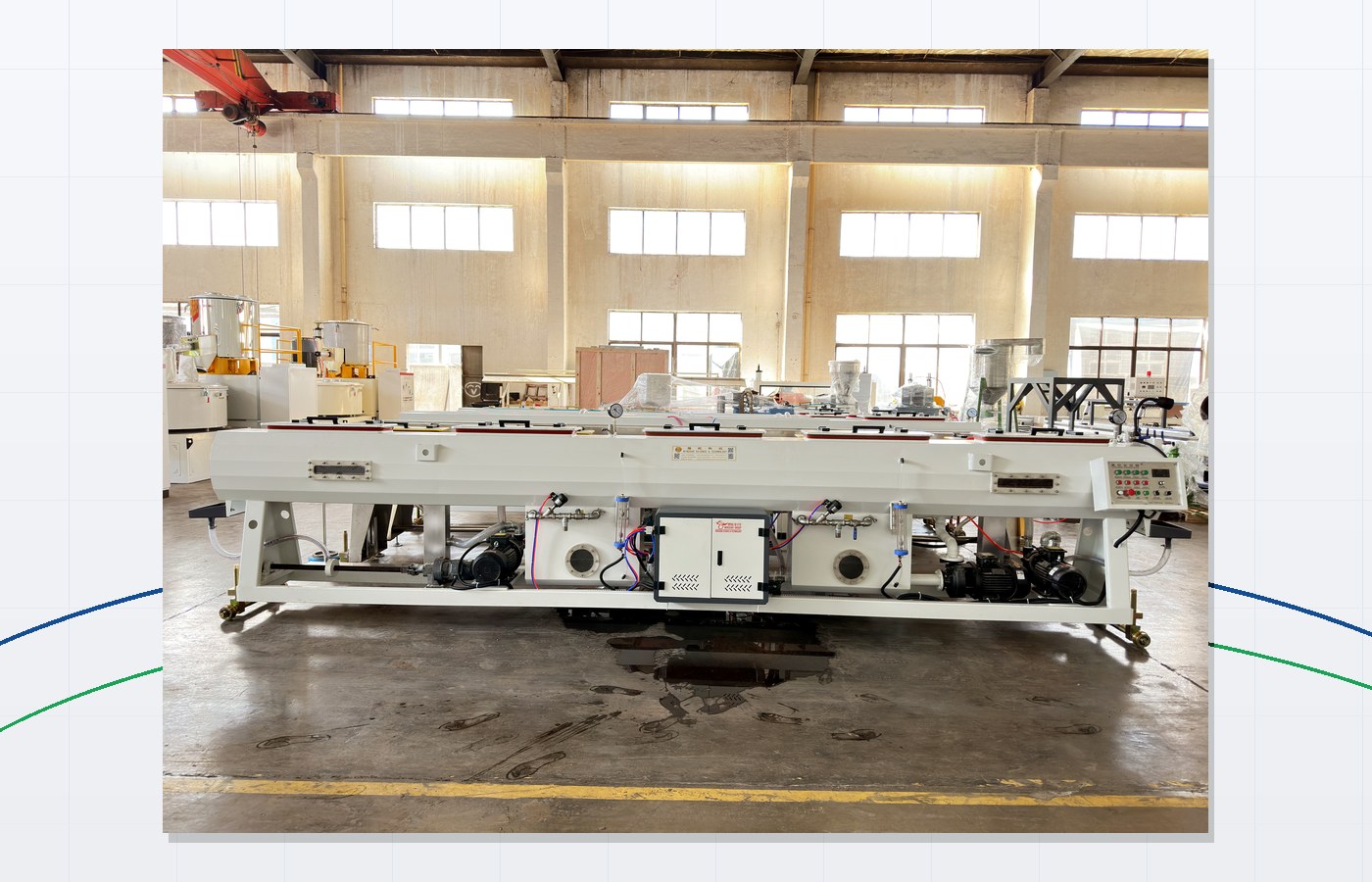

The vacuum calibration tank controls pipe outside diameter and roundness after extrusion. Stable vacuum and water temperature help keep PPR pipe size consistent.

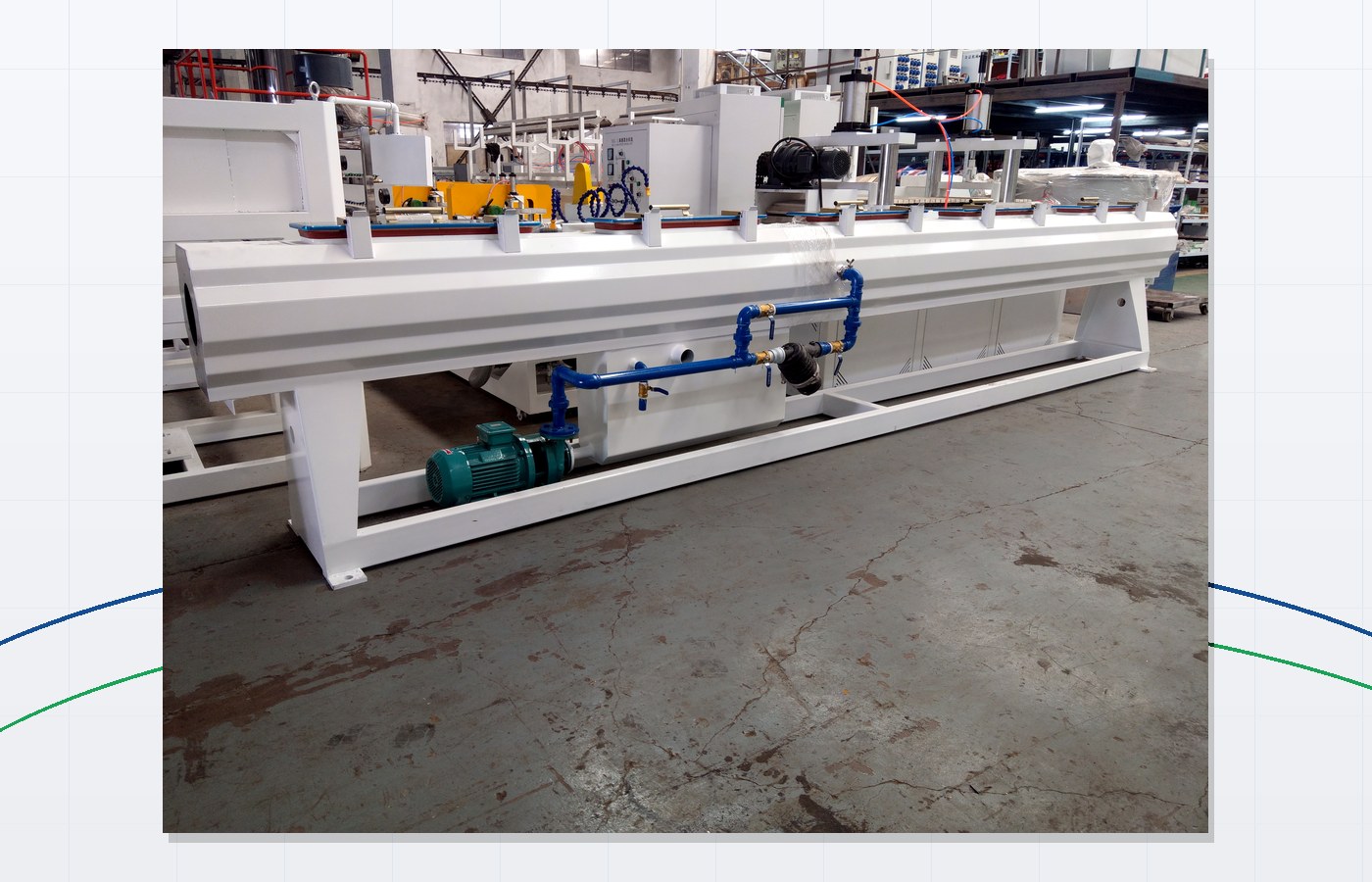

The spray cooling tank continues pipe cooling after calibration. Cooling length and water circulation are selected according to pipe size, output and line speed.

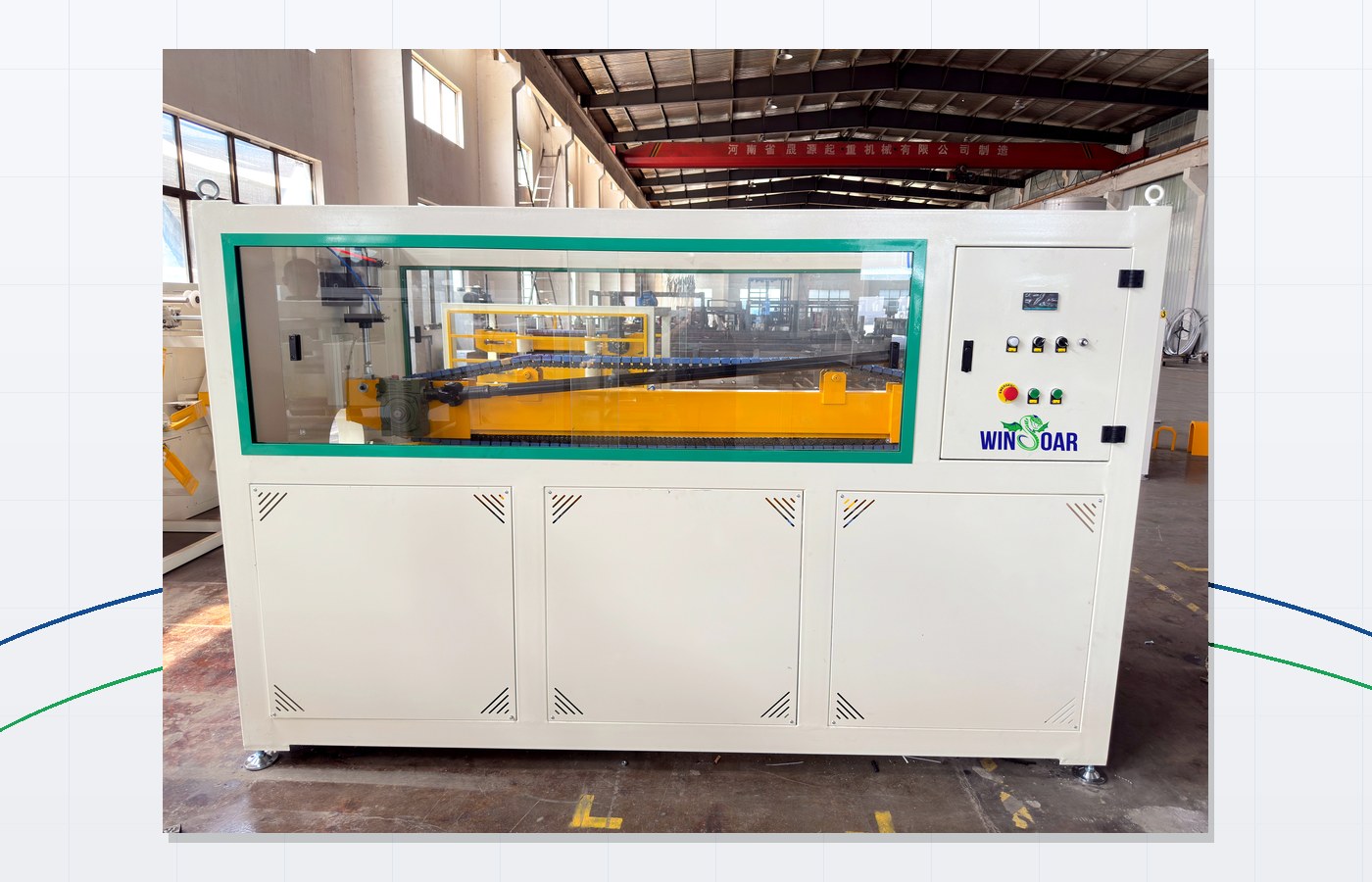

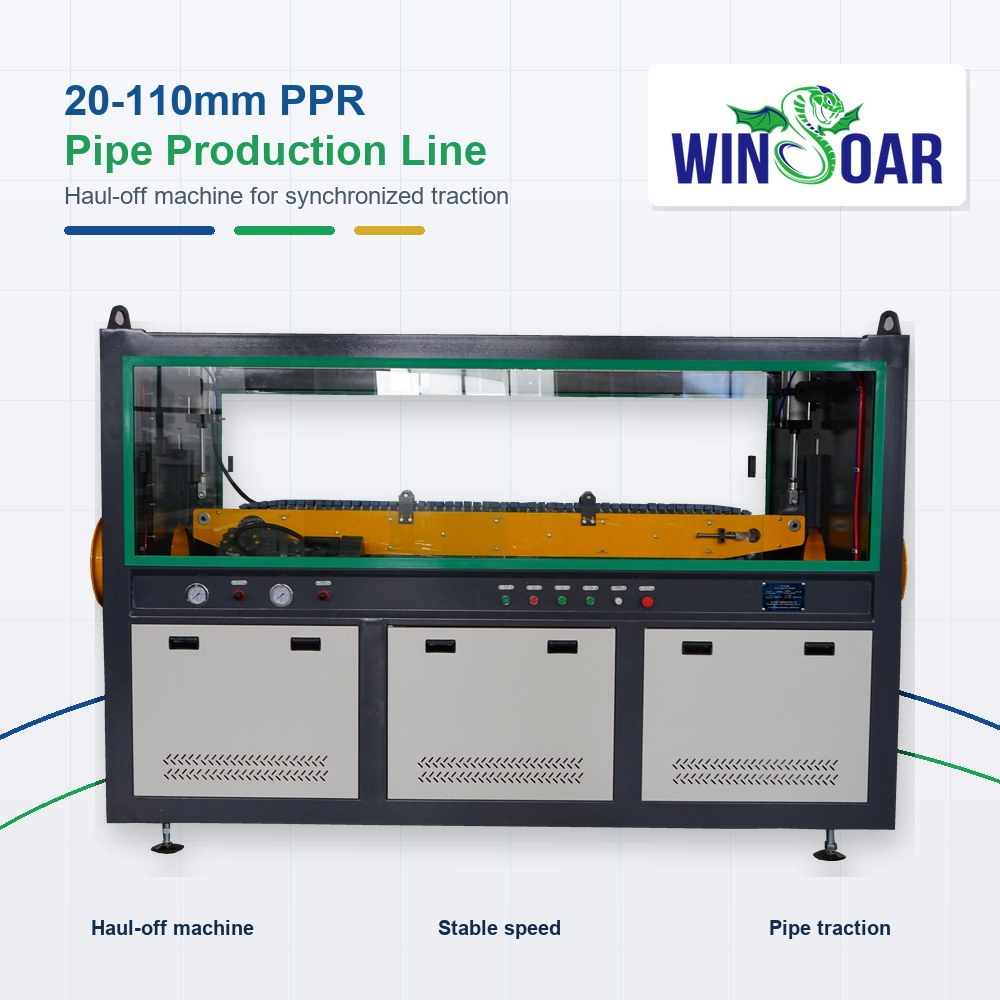

The haul-off machine keeps synchronized traction and helps maintain steady pipe wall thickness. The traction structure is selected according to pipe diameter and line speed.

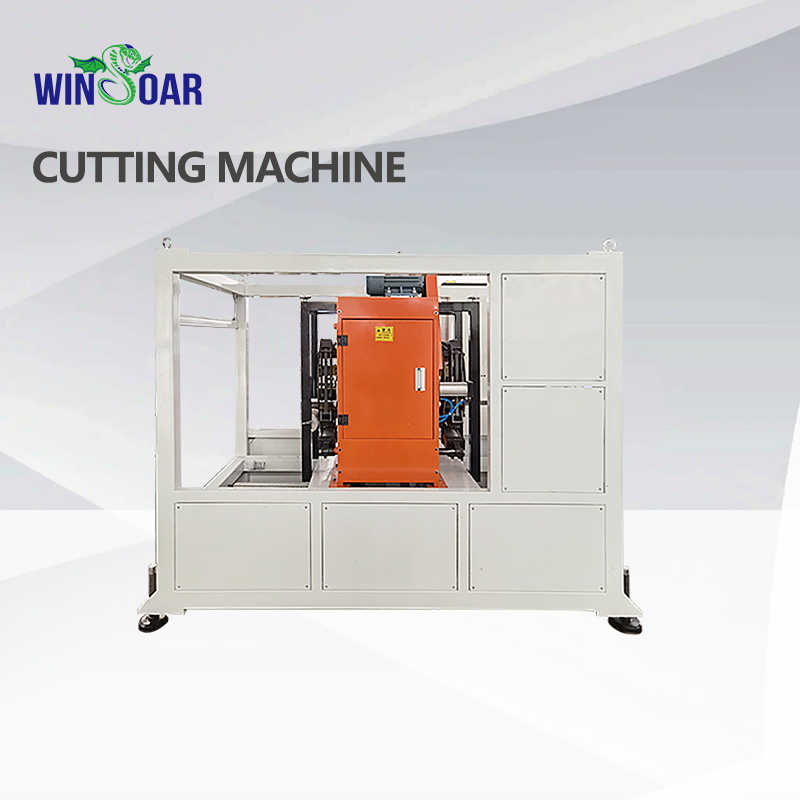

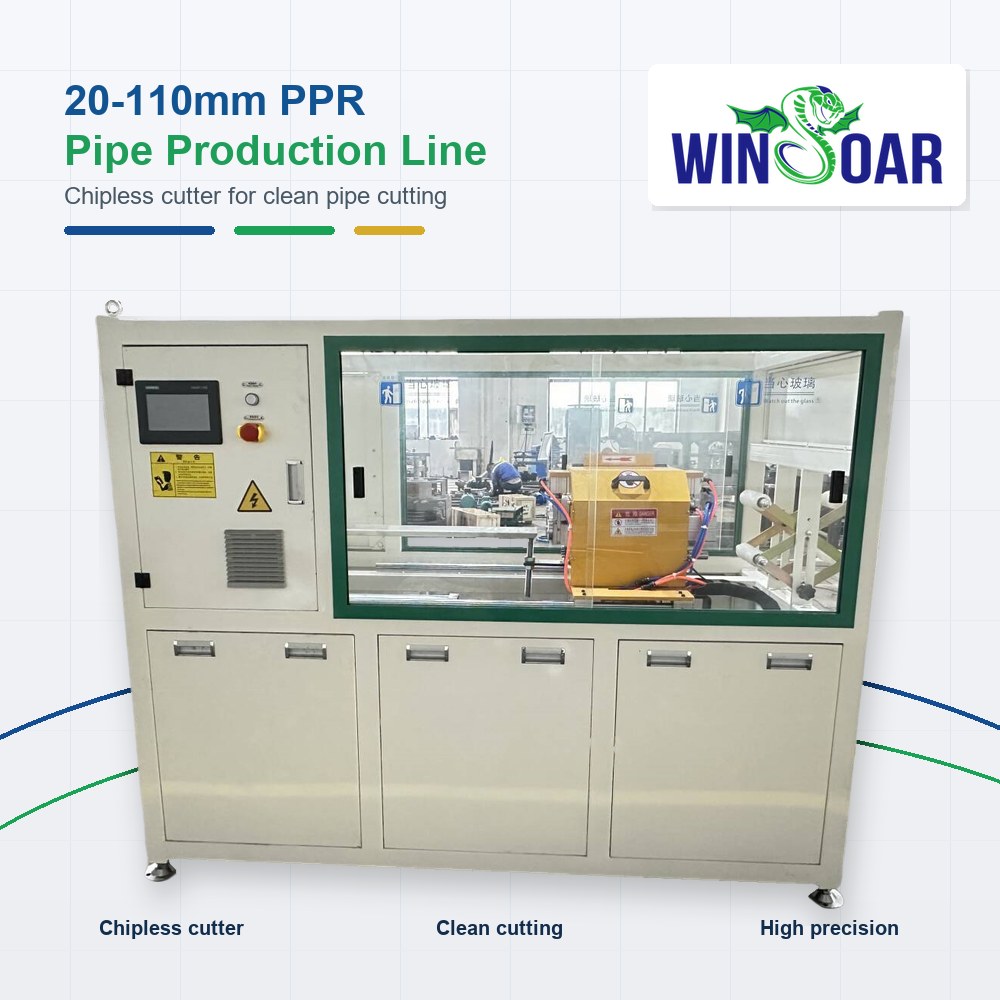

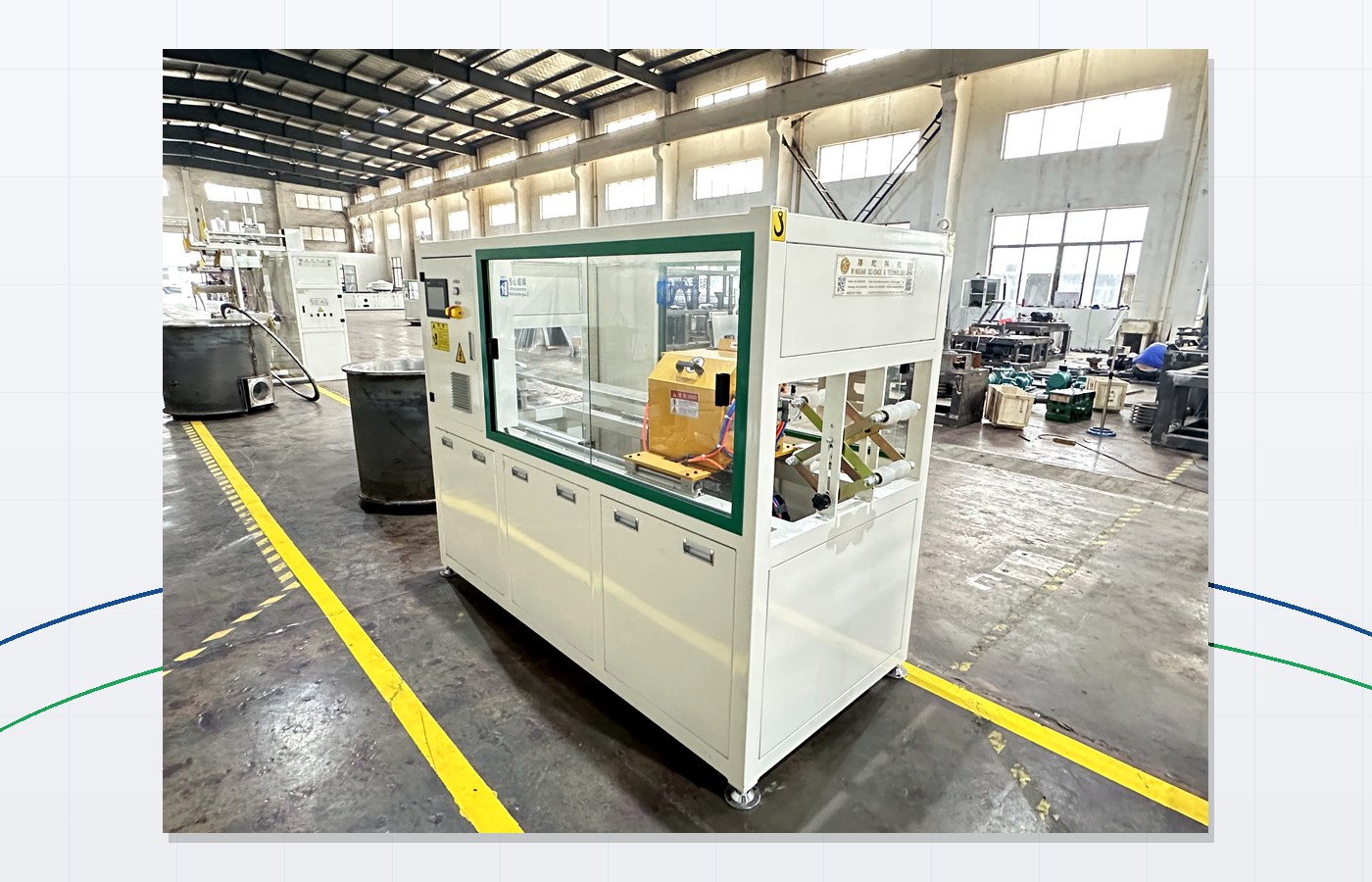

The chipless cutter cuts finished PPR pipe with a clean cutting edge and less pipe dust. Cutting length and control method can be matched with the production requirement.

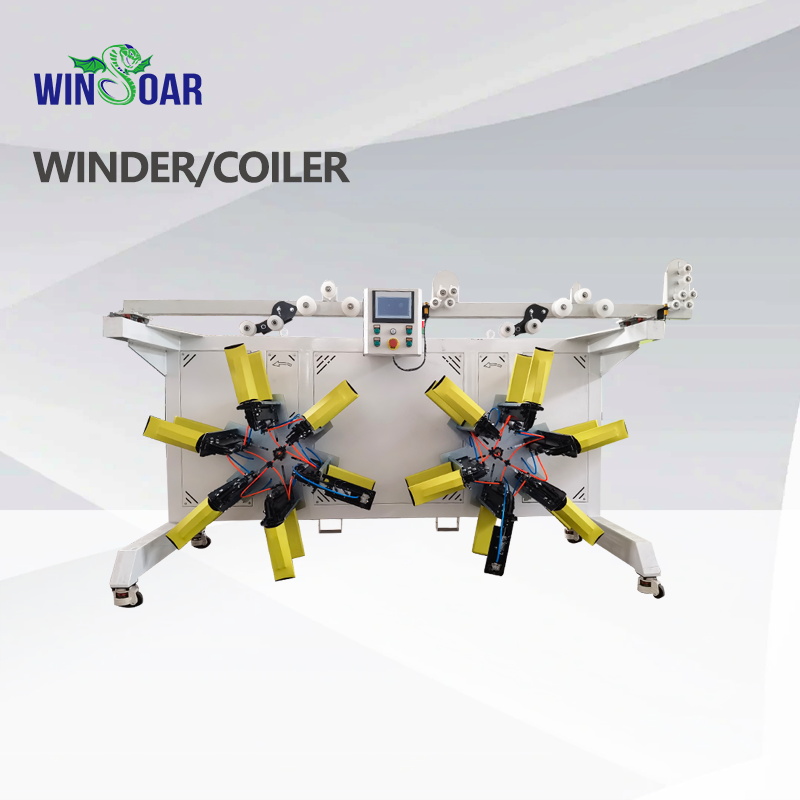

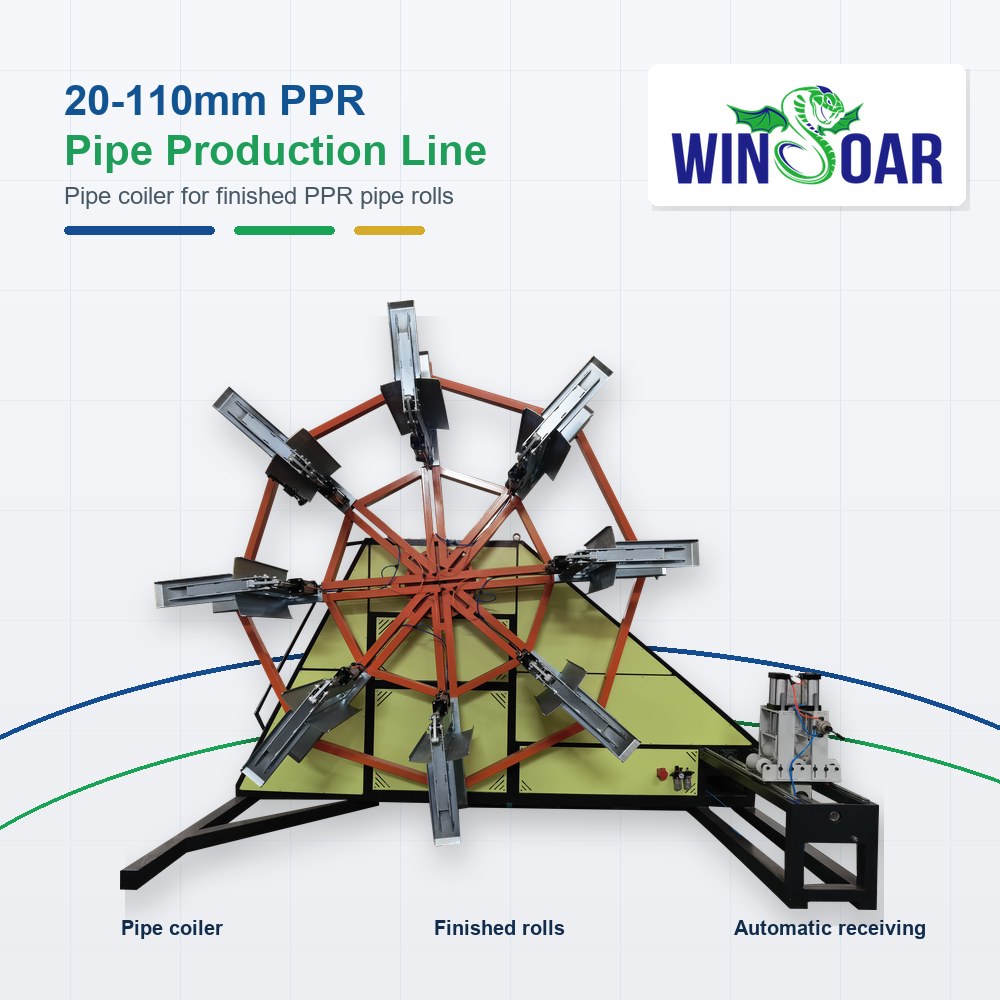

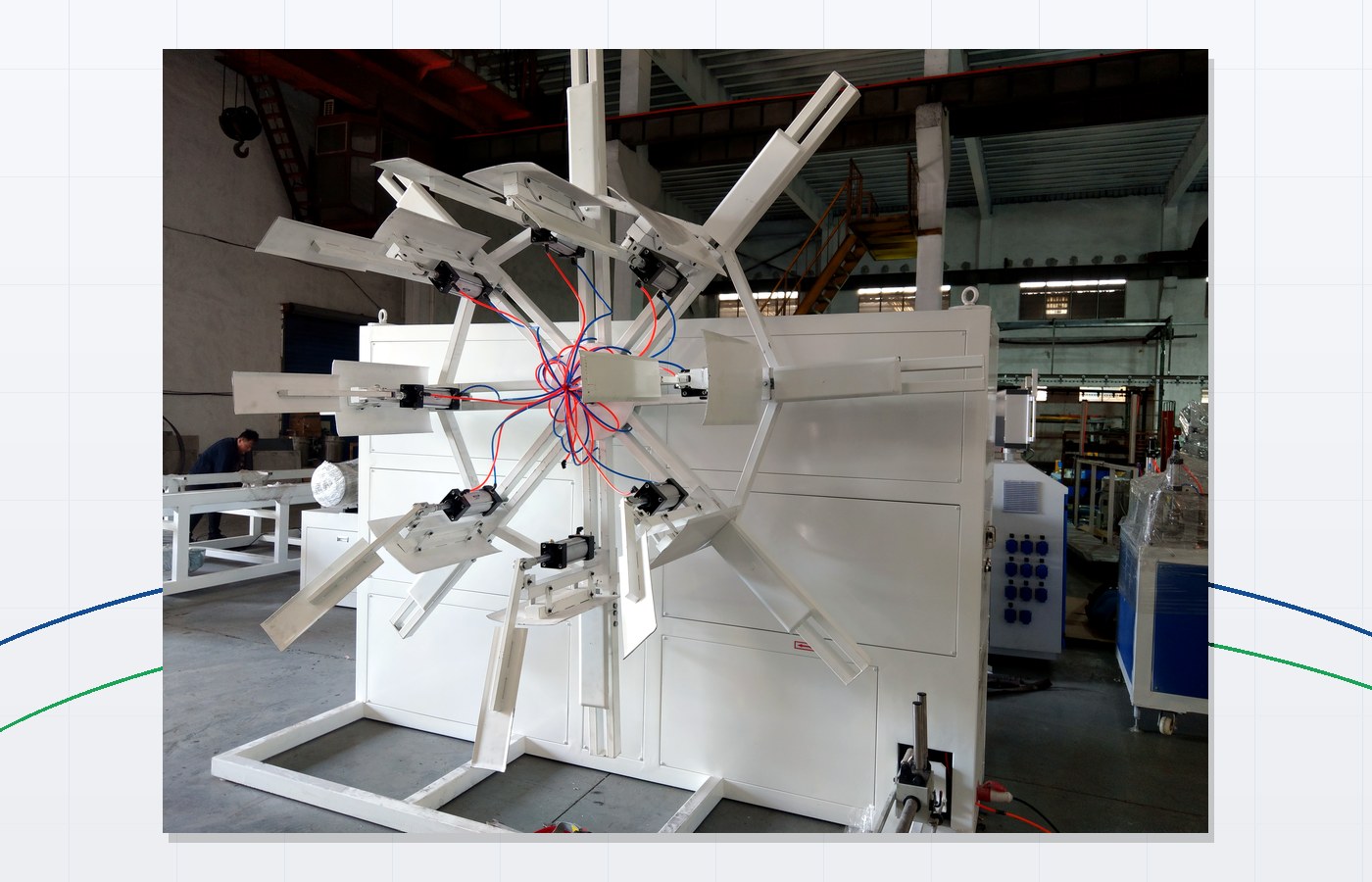

The coiler receives finished small diameter PPR pipe into rolls when the project needs coiled packaging. Coil diameter and winding layout can be matched with the customer's packaging method.

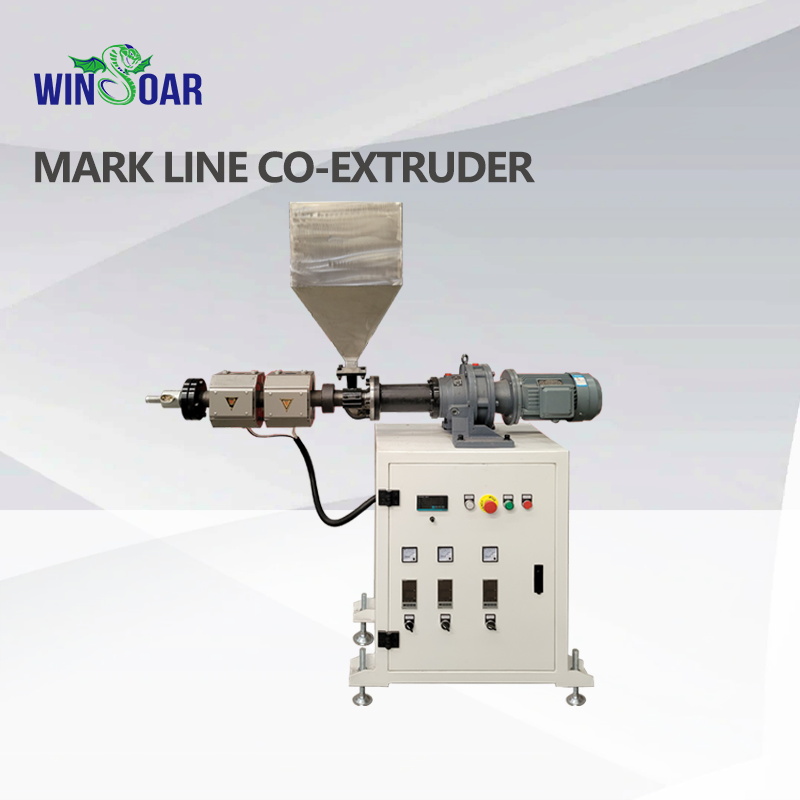

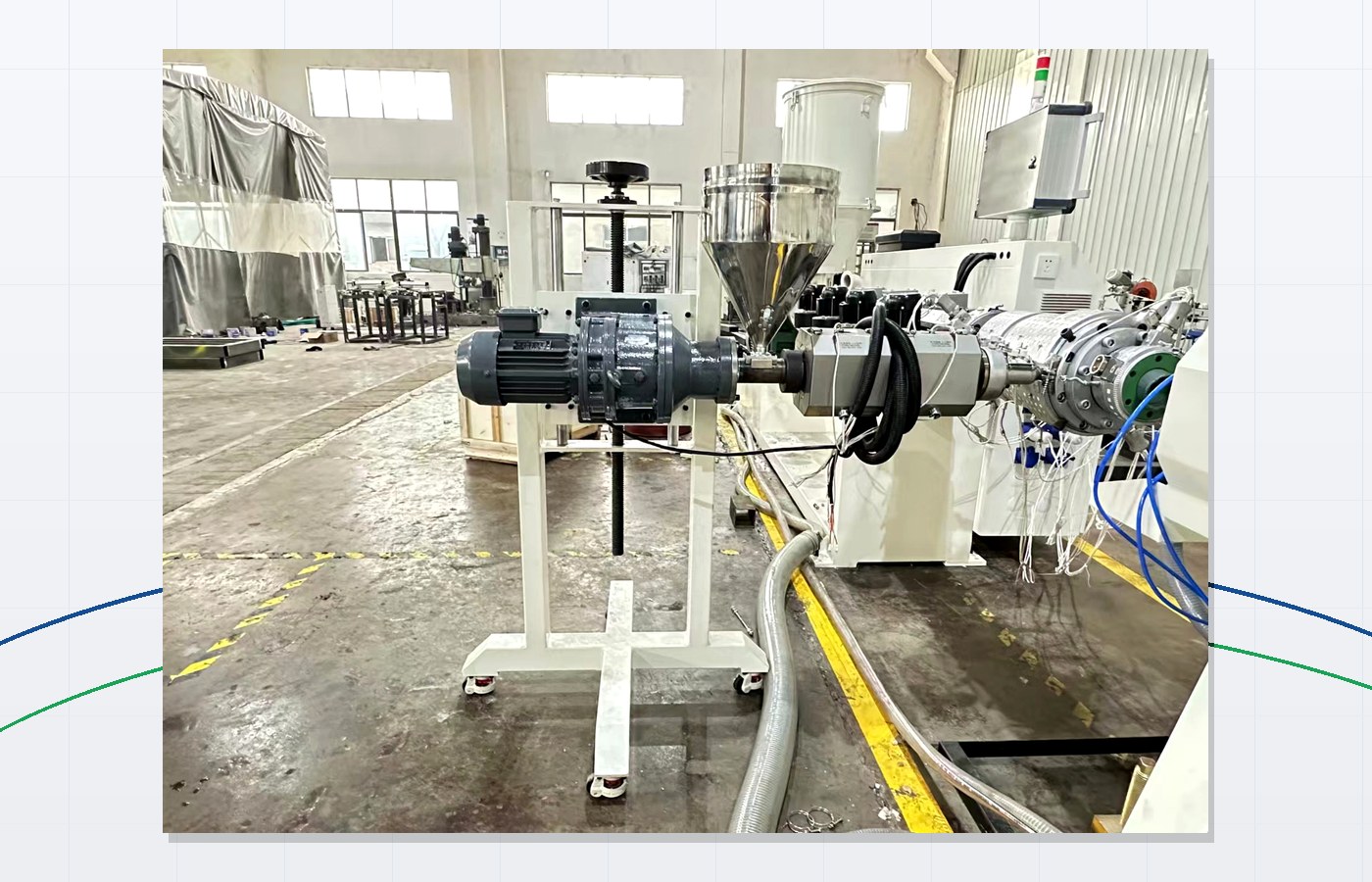

The color marking machine can add pipe color lines or identification marks according to application and local market requirements.
Factory, Packaging & Exhibition
Winsoar supports 20-110mm PPR pipe extrusion projects from configuration discussion to manufacturing, workshop testing, packaging, container loading and shipment coordination. Factory and exhibition communication helps buyers confirm practical equipment layout before production.
Winsoar manufactures plastic extrusion machines according to confirmed pipe diameter, output requirement, voltage and factory layout. The 20-110mm PPR pipe production line configuration can be discussed before production.
Before shipment, machine parts, control cabinet, downstream equipment and auxiliary systems can be checked in the workshop to reduce installation risk.
Winsoar prepares export packaging according to machine size and transportation requirements. Protective wrapping and wooden cases help protect die heads, electrical parts and auxiliary equipment.
Container loading photos help buyers confirm shipment preparation and machine delivery status. Winsoar can arrange loading plans according to equipment dimensions and destination requirements.
Before quotation, buyers can discuss pipe sample, pipe diameter, wall thickness, local standard, output target and factory layout with Winsoar. These details help us recommend a practical PPR pipe extrusion line.
Tell Winsoar your target PPR pipe diameter, wall thickness, water pipe application, material grade, output requirement, cutting or coiling requirement, voltage and workshop layout. We will recommend a suitable 20-110mm PPR pipe production line configuration, including extruder, die head, calibration tank, cooling tank, haul-off, chipless cutter, coiler, packaging plan and shipment support.
