How to Choose a PPR Pipe Production Line
Choosing a PPR pipe production line should start from the real pipe project, not only from the extruder model. Buyers need to confirm pipe diameter range, wall thickness, hot or cold water application, pipe standard, raw material grade, target output, cutting or coiling method, workshop space and local voltage before selecting the complete extrusion line.
Direct answer: To choose a PPR pipe production line, first confirm the PPR pipe diameter range and application. Then match the single screw extruder, pipe die head, vacuum calibration tank, spray cooling tank, haul-off machine, chipless cutter and pipe coiler according to wall thickness, output target, cooling length and final pipe packaging method.
1. Confirm the PPR Pipe Application
PPR pipe is commonly used for hot water pipe, cold water pipe, residential plumbing pipe, commercial building water supply pipe and small diameter water pipe systems. The application affects wall thickness, pressure class, color, pipe marking and final packaging method.
For a general PPR water pipe project, review the PPR Pipe Production Line product page and the PPR Pipe Production Line category page. These pages show the current Winsoar PPR product cluster and related machine options.
2. Choose the Pipe Diameter Range
The pipe diameter range decides extruder output, die tooling, calibration sleeve, cooling length, haul-off structure, cutter type and coiler size. Small PPR pipes often need stable coiling, while larger water supply pipes may use fixed-length cutting and receiving.
| Target Range | Recommended Product Page | Typical Project Focus |
|---|---|---|
| 16-63mm | 16-63mm PPR Pipe Production Line | Small diameter hot and cold water pipe, plumbing pipe and coiled PPR pipe production. |
| Small diameter PPR | Small Diameter PPR Plastic Pipe Production Line | Small PPR pipe extrusion where stable sizing, surface quality and coiling are important. |
| 20-110mm | 20-110mm PPR Water Supply Pipe Production Line | Larger PPR water supply pipe projects that need stronger cooling and downstream matching. |
3. Match the Main Machine Configuration
A practical PPR pipe extrusion line should be selected as a complete system. The extruder must match material plasticizing and output, while the downstream machines must keep pipe diameter, wall thickness, cooling and traction stable during continuous production.
| Machine Section | Function | Selection Point |
|---|---|---|

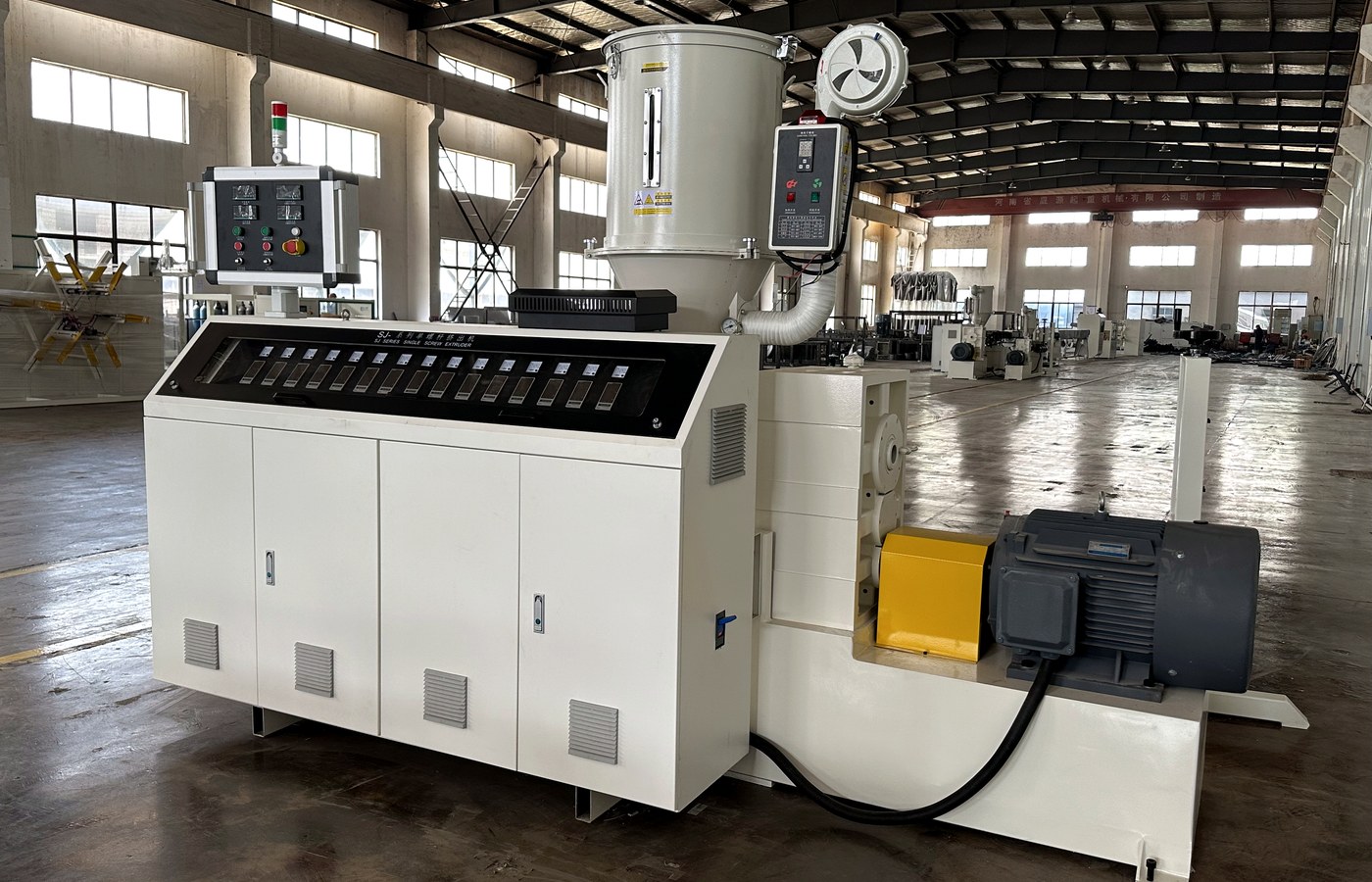

| Single screw extruder | Plasticizes PPR material and provides stable melt pressure. | Match screw design, output and motor power to the pipe range and wall thickness. |
| PPR pipe die head | Forms the pipe melt into the required diameter and wall thickness. | Confirm die range, flow distribution and calibration sleeve design. |
| Vacuum calibration tank | Controls outside diameter and initial pipe forming. | Check vacuum stability, water temperature and sizing accuracy. |
| Spray cooling tank | Cools the pipe before traction and cutting or coiling. | Cooling length should match pipe wall thickness and line speed. |
| Haul-off machine | Pulls the pipe steadily through the downstream line. | Traction speed must synchronize with extruder output to reduce wall thickness fluctuation. |
| Chipless cutter or coiler | Cuts straight pipe or coils small diameter pipe for packaging. | Choose according to finished pipe length, coil size and packaging method. |
4. Check Cooling Length and Workshop Layout
Cooling is a key factor in PPR pipe quality. If the cooling section is too short, the pipe may deform or lose dimensional stability after haul-off. If the workshop layout is too short for the selected diameter range, the final line speed may be limited.
Before quotation, send the available workshop length, width, height and power supply. Winsoar can adjust the vacuum tank, spray cooling tank, haul-off, cutter, coiler and auxiliary equipment layout according to the real factory space.
PPR Pipe Production Line Running Video
The video below shows the current 16-63mm PPR pipe line media used for the updated PPR product pages.
Video link: 16-63mm PPR pipe production line running video
5. Prepare Information Before Asking for Quotation
A clear inquiry helps the manufacturer recommend the right PPR pipe making machine. Instead of asking only for a PPR pipe machine price, prepare the project information below.
- Pipe diameter range, such as 16-63mm or 20-110mm.
- Pipe wall thickness, pressure class or local pipe standard.
- Hot water pipe, cold water pipe, plumbing pipe or water supply pipe application.
- PPR material grade, pipe color and marking requirement.
- Target output per hour and expected production speed.
- Straight pipe cutting length or coil size requirement.
- Workshop dimensions, local voltage and installation conditions.
6. Related PPR and Pipe Production Line Options
For PPR pipe projects, compare the main PPR Pipe Production Line, Small Diameter PPR Plastic Pipe Production Line and 20-110mm PPR Water Supply Pipe Production Line. Other related PPR pages include High Efficiency Coated PPR Pipe Production Line, Antioxidant Double PPR Pipe Production Line and Green PPR Pipe Production Line.
If your factory also plans other plastic pipe production, compare the Plastic Pipe Production Line, PE Pipe Production Line, PVC Pipe Production Line and PE-RT Pipe Production Line categories.
7. FAQ
What machines are included in a PPR pipe production line?
A typical PPR pipe line includes material feeding, single screw extruder, PPR pipe die head, vacuum calibration tank, spray cooling tank, haul-off machine, chipless cutter or pipe coiler, color marking machine and electrical control cabinet.
Can one PPR line make both hot water pipe and cold water pipe?
In many projects, one PPR extrusion line can be configured for related hot and cold water pipe specifications, but the die tooling, cooling length, output and final packaging method must match the actual pipe sizes.
What is the difference between a 16-63mm and 20-110mm PPR line?
A 16-63mm line usually focuses on small diameter pipe production and coiling, while a 20-110mm line needs stronger extrusion, cooling and downstream matching for larger water supply pipe sizes.
Selection note: Do not select a PPR pipe production line by motor power alone. The useful configuration depends on pipe diameter, wall thickness, cooling length, traction stability, cutting or coiling requirement and real workshop layout.
Need a PPR Pipe Production Line Proposal?
Send Winsoar your PPR pipe diameter range, wall thickness, pipe application, material, output target, cutting or coiling requirement, voltage and workshop layout. We will recommend a practical PPR pipe extrusion line configuration for your project.
