Product Overview & Applications
Winsoar 16-63mm PPR pipe production line is a complete plastic pipe extrusion solution for hot water pipe, cold water pipe, building plumbing pipe and PPR water supply pipe production. It is designed for stable plasticizing, accurate pipe sizing, continuous cooling, synchronized traction, clean cutting and reliable coiling.
PPR pipe is widely used in residential and commercial water supply systems. The production line can be configured according to pipe diameter, wall thickness, material grade, pipe color, output target, cutting length, coil requirement, voltage and workshop layout.

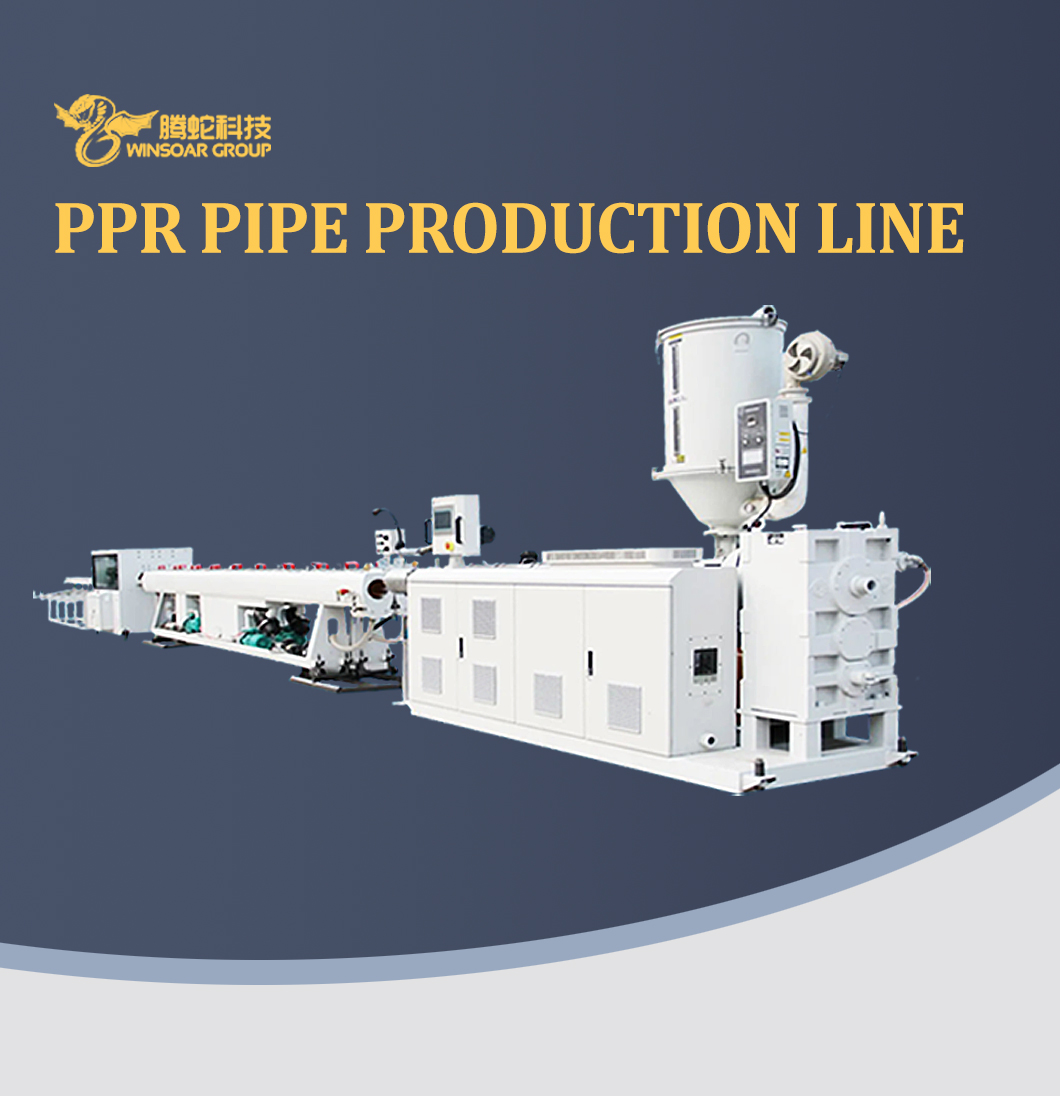

Complete 16-63mm PPR Pipe Production Line
This line is suitable for 16-63mm PPR pipe production and can be adjusted for straight pipe cutting or coiled pipe receiving according to the final pipe specification and packaging method.
PPR hot water pipe
PPR cold water pipe
Building plumbing pipe
Water supply pipe
Green or white PPR pipe
Small diameter PPR pipe production
For a practical PPR pipe line proposal, provide target diameter range, wall thickness, pipe standard, application, raw material grade, output requirement, cutting length or coil size, workshop voltage and available installation space.
PP-R pipe is commonly selected for hot-water, cold-water and building plumbing systems where the project requires a clean inner surface, reliable jointing and stable pressure performance. A 16-63mm PPR pipe production line can be configured for residential plumbing, apartment water supply, commercial buildings, hotel projects, heating-water distribution and general utility piping. The practical line design depends on the PP-R grade, pipe standard, wall thickness, pressure class, production speed and required pipe length.
PPR project | Production focus |
|---|---|
Cold-water supply pipe | Stable diameter, wall thickness, clean surface, marking and pressure-class control. |
Hot-water and heating pipe | PP-R grade, temperature requirement, formula stability and dimensional consistency. |
Building plumbing and apartment projects | Multiple sizes, repeatable changeover, fixed lengths, printing and bundle packing. |
Small utility or irrigation pipe | Material selection, output target, cooling capacity and plain-end handling. |
The nominal size range should be matched with the actual product mix. Die tooling, calibration sleeves, cooling length, haul-off speed and cutting equipment should be selected around the main sizes that will run most often.
16-20mm: often used for branch lines, small hot-water connections and residential plumbing; accurate calibration and stable traction are important.
20-32mm: common for indoor water distribution and heating connections; confirm wall thickness, pressure class and required pipe length.
32-40mm: suitable for larger branch or building distribution pipe; confirm cooling capacity and changeover frequency.
40-63mm: used for larger indoor or utility water lines; stronger haul-off, longer cooling and stable fixed-length cutting may be required.
Multiple sizes: provide the complete tooling list and the most frequently produced diameter so changeover time and quotation scope are realistic.
PP-R resin grade, color masterbatch, stabilizer package and any approved additives affect melting behavior, pressure stability and pipe surface quality. The extruder screw, barrel temperature zones, die head and cooling system should be matched to the selected compound. A stable process helps maintain roundness, wall thickness, surface smoothness and reliable socket-joint performance after installation.
For hot-water or heating applications, the quotation should state the PP-R grade, temperature class, pressure class, applicable standard, color and marking requirements. A general output figure is not a substitute for a material and product specification because different compounds and wall thicknesses change the practical line speed.
Machine section | Role in PPR production |
|---|---|
Single screw extruder | Plasticizes PP-R resin and delivers a stable melt to the pipe die head. |
PPR pipe die head | Forms the pipe section and determines the available diameter and wall-thickness range. |
Vacuum calibration tank | Controls outside diameter and roundness immediately after forming. |
Spray cooling tank | Removes heat progressively and supports dimensional stability before haul-off. |
Haul-off machine | Maintains synchronized traction and helps control wall thickness and line speed. |
Chipless cutter | Produces clean fixed-length cuts without chips for plumbing and building pipe. |
Pipe coiler or receiving table | Selected according to whether the product is flexible, coiled or supplied in straight lengths. |
Color marking or printing unit | Adds product information, identification stripes and customer-specific markings. |
Most rigid PPR plumbing pipe is delivered in straight lengths for transport, installation and heat-fusion jointing. The cutter should be matched to the required length, tolerance, end quality and production speed. If the project requires socketed ends, an optional belling or socket-forming process should be specified together with socket dimensions and cycle time.
Pipe printing can include nominal size, pressure class, material grade, standard, manufacturer and production information. Confirm the printing content, color, position and readability before selecting the marking unit. For multi-size production, the cutter and printer should be planned so changeovers do not create excessive start-up waste.
Measure outside diameter, wall thickness and roundness after cooling.
Monitor melt pressure, temperature zones and haul-off synchronization.
Check surface smoothness, color uniformity and absence of visible lines or bubbles.
Verify pipe length, cut-end quality, marking position and printed information.
Confirm that the selected PP-R compound and pressure class match the intended application.
Keep tooling, process settings and inspection records for repeat production and customer traceability.
Choose a PPR line when the project is for PP-R rigid hot- and cold-water or building plumbing pipe, normally supplied in straight lengths and joined by heat fusion. Choose a PE-RT line when the main product is flexible heating or hot-water pipe supplied in coils. Choose a PE or HDPE line for other water, gas, irrigation, conduit or utility applications. Material, temperature, pressure, installation method and final pipe format should be confirmed before selecting the extrusion platform.
Buyer input | Why it affects the PPR line |
|---|---|
Diameter and wall-thickness range | Determines die tooling, calibration sleeves, cooling and practical line speed. |
PP-R grade and formula | Influences plasticizing, melt pressure, color and surface quality. |
Application and pressure class | Clarifies hot water, cold water, heating, plumbing or utility requirements. |
Pipe length and end format | Determines cutter, receiving table, bundling and optional socket-forming equipment. |
Target output and voltage | Helps match extruder size, motor, cooling capacity and electrical design. |
Printing and packing requirements | Defines marking content, bundle method, labels and export packaging. |
It is used to manufacture PP-R pipe for hot-water, cold-water, heating-water, building plumbing and related water-supply applications.
Yes. The available sizes depend on the die head, calibration sleeves, downstream cooling and the complete tooling set. Provide the main sizes and changeover requirements before quotation.
Most rigid PPR plumbing pipe is produced in straight lengths, so a receiving table and bundling arrangement are often more relevant. A coiler is considered only when the product and material are suitable for coiled delivery.
Output depends on the PP-R compound, extruder, die tooling, wall thickness, melt temperature, cooling capacity, haul-off speed and final quality target.
Send the diameter range, wall thickness, PP-R grade, application, pressure or temperature class, pipe length, output target, marking, packing, voltage and workshop conditions.
List the complete diameter and wall-thickness range.
Identify the main product size and applicable pipe standard.
Provide PP-R grade, color, formula and additive information.
State hot-water, cold-water, heating or plumbing application.
Confirm pressure class, temperature class and target output.
Specify fixed pipe length, cutting tolerance and end format.
Confirm printing, inspection, packing, voltage, cooling water and workshop space.
With these details, Winsoar can match the extruder, die head, calibration, cooling, haul-off, cutter, receiving system and marking equipment to the actual PP-R pipe project.
Most PPR projects are sold as straight-length pipe for heat-fusion installation. The line therefore needs synchronized extrusion, calibration, cooling, haul-off, chipless cutting, printing and receiving or bundling. A quotation should identify the main sizes, wall thickness, pressure class and required pipe length rather than only saying “PPR pipe”.
PP-R product requirement | Equipment or process impact |
|---|---|
Hot-water or heating pipe | Confirm PP-R grade, temperature class, pressure class, wall thickness and formula stability. |
Cold-water plumbing pipe | Confirm dimensions, marking, fixed length, cutting tolerance and bundle method. |
Multi-size building project | List die and calibration tools, changeover frequency and printing data for each size. |
Rigid PP-R pipe is normally not handled like flexible PE-RT coil. The cutter must produce consistent lengths and clean ends, while the receiving table or bundling section must support the pipe without bending or surface damage. If the project needs sockets or a special end format, provide the dimensions and cycle time before adding downstream equipment.
Print nominal size, pressure or temperature class, standard and material grade as required.
Check outside diameter, wall thickness, roundness and cut-length tolerance after cooling.
Monitor melt pressure, temperature zones, haul-off synchronization and color consistency.
Confirm the compound and process window with the intended heat-fusion installation method.
Winsoar can match the single screw extruder, PPR die head, vacuum calibration, spray cooling, haul-off, chipless cutter, printer and straight-length receiving system to the actual plumbing project.
Video & Technical Parameters
Watch the 16-63mm PPR pipe production line running video to review extrusion, calibration, cooling, haul-off, cutting and coiling operation.
| Item | Reference Configuration |
| Product name | 16-63mm PPR Pipe Production Line |
| Typical pipe application | PPR hot water pipe, cold water pipe, building plumbing pipe, water supply pipe |
| Applicable material | PPR / PP-R material, customized according to pipe application |
| Extruder | High-efficiency single screw extruder |
| Forming system | PPR pipe extrusion die head and calibration sleeve |
| Cooling system | Vacuum calibration tank and spray cooling tank |
| Downstream | Haul-off machine, chipless cutter and pipe coiler |
| Customization | Pipe diameter, output, cutting length, coil size, voltage, color stripe and workshop layout |
For this PPR Pipe Production Line, compare the matching PPR Pipe Production Line category, related product options and adjacent pipe extrusion categories before confirming configuration.
Use these PPR pipe production line resources to compare hot and cold water pipe machine options, small diameter plumbing pipe lines, multi-layer PPR pipe layouts and related pipe extrusion categories.
Selection guide:
How to Choose a PPR Pipe Production Line - PPR pipe line selection by diameter range, wall thickness, output, cooling and downstream configuration
PPR Pipe Production Line Output and Machine Configuration - PPR pipe output planning by pipe diameter, wall thickness, cooling length and downstream equipment
PPR vs PE-RT Pipe Production Line: How to Choose - comparison between PPR hot and cold water pipe lines and PE-RT floor heating pipe lines
Running video solution:
16-63mm PPR Pipe Production Line Running Video Solution - running video and machine layout notes for small diameter PPR hot and cold water pipe projects
| Product page | Typical project focus |
| 20-110mm PPR Water Supply Pipe Production Line | 20-110mm PPR hot and cold water pipe production for plumbing and building water supply projects |
| Small Diameter PPR Plastic Pipe Production Line | small diameter PPR pipe extrusion where stable sizing, cooling and cutting are important |
| PPR Pipe Production Line | general PPR pipe making machine configuration for polypropylene hot and cold water pipe production |
| High Efficiency Coated PPR Pipe Production Line For Water Supply | coated or multi-layer PPR pipe production for water supply applications |
| Antioxidant Double PPR Pipe Production Line For Cold Water | double-layer PPR pipe extrusion for cold water pipe projects |
| Good Workability Green PPR Pipe Production Line For Water Supply | green PPR water supply pipe production for building plumbing markets |
Related pipe categories: Plastic Pipe Production Line, PE Pipe Production Line, PVC Pipe Production Line, PPR Pipe Production Line, PE-RT Pipe Production Line.
Related production video: 20-110mm PPR pipe production line video solution shows the larger-diameter line configuration and factory running process.
Machine Configuration

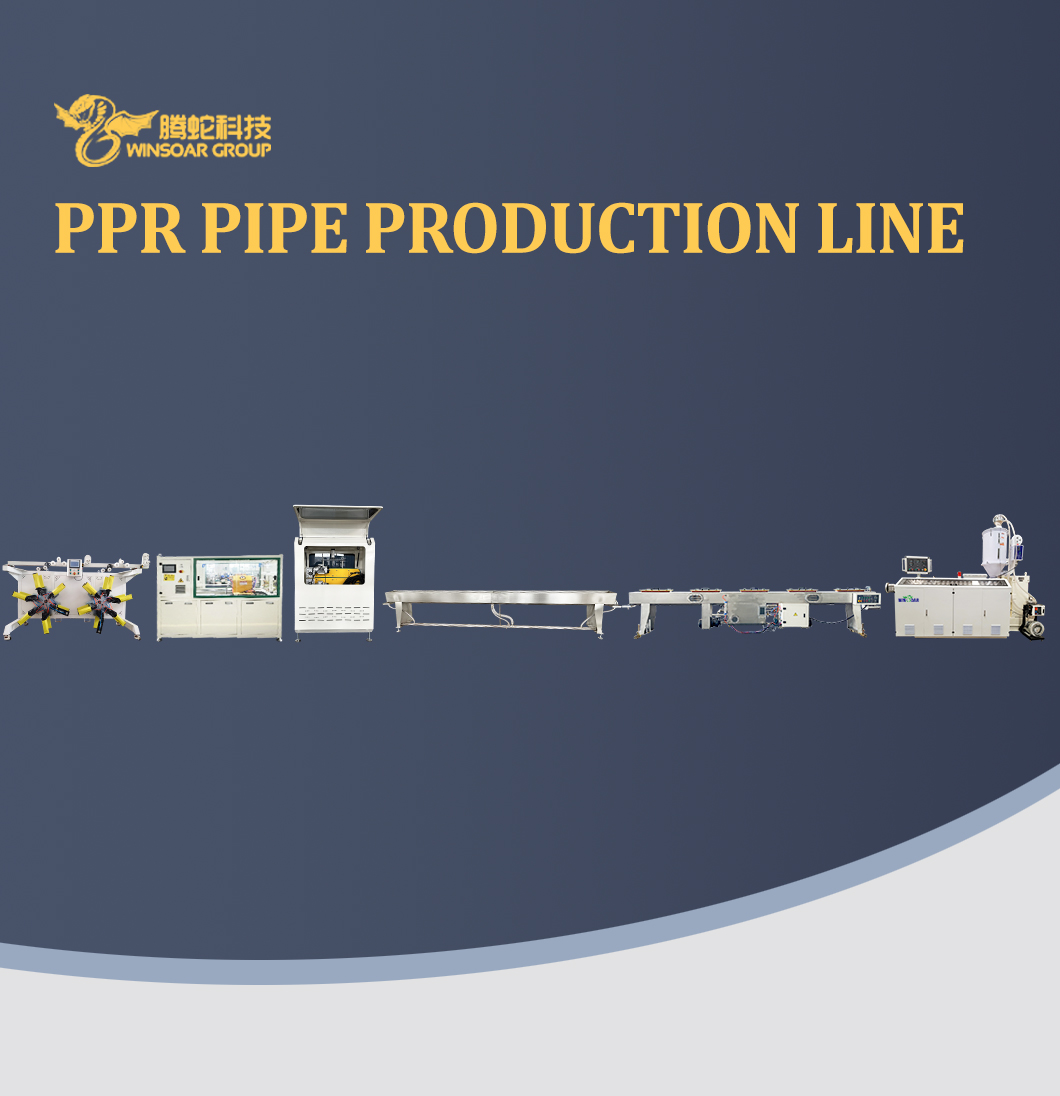

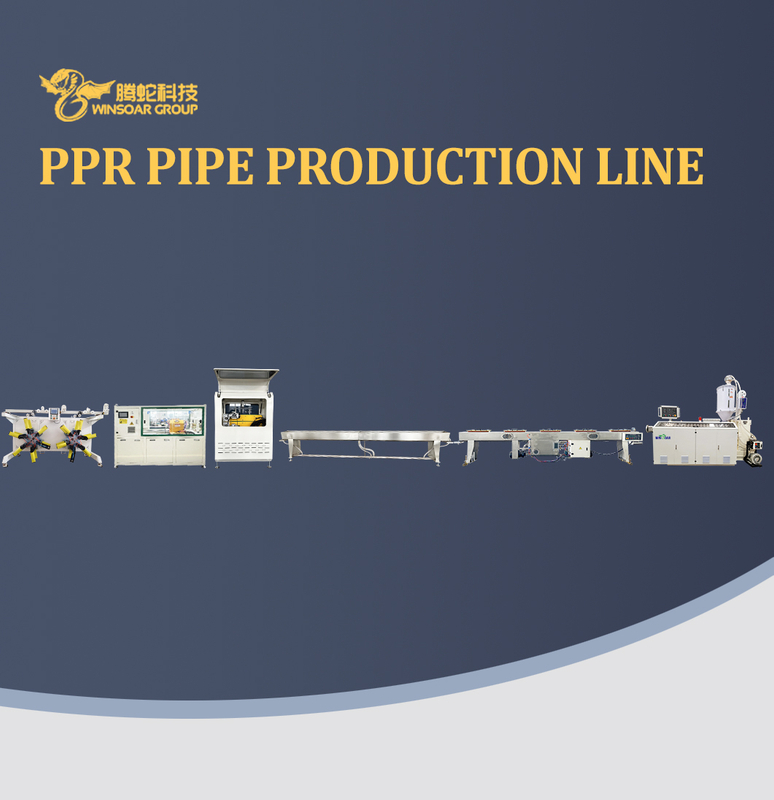

A 16-63mm PPR pipe production line usually includes material feeding, single screw extrusion, pipe die forming, vacuum calibration, spray cooling, haul-off, chipless cutting, coiling, color marking and electrical control. Each section should be matched according to pipe diameter, line speed and final packaging method.

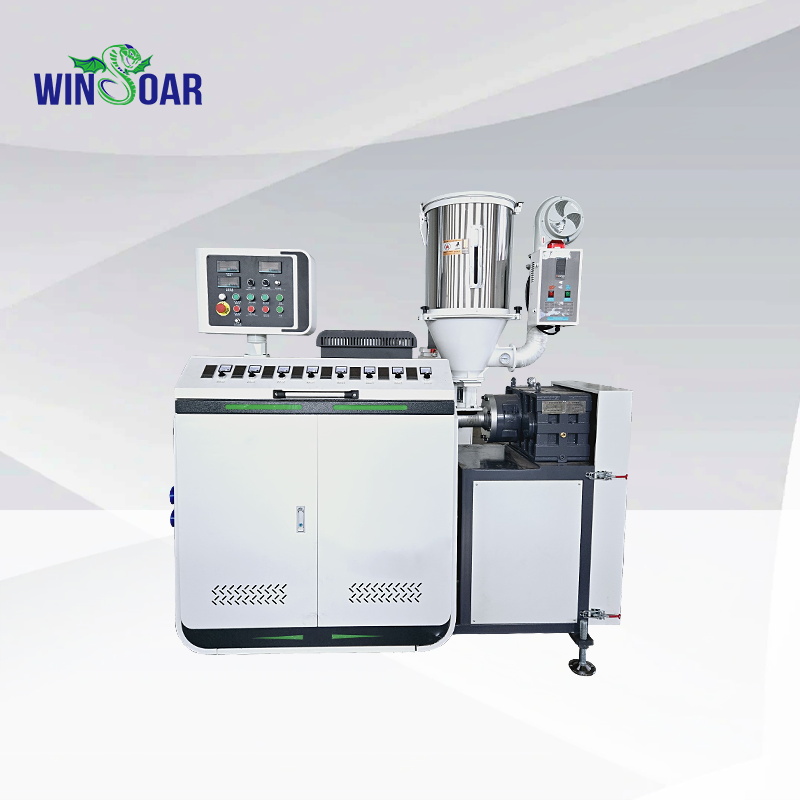

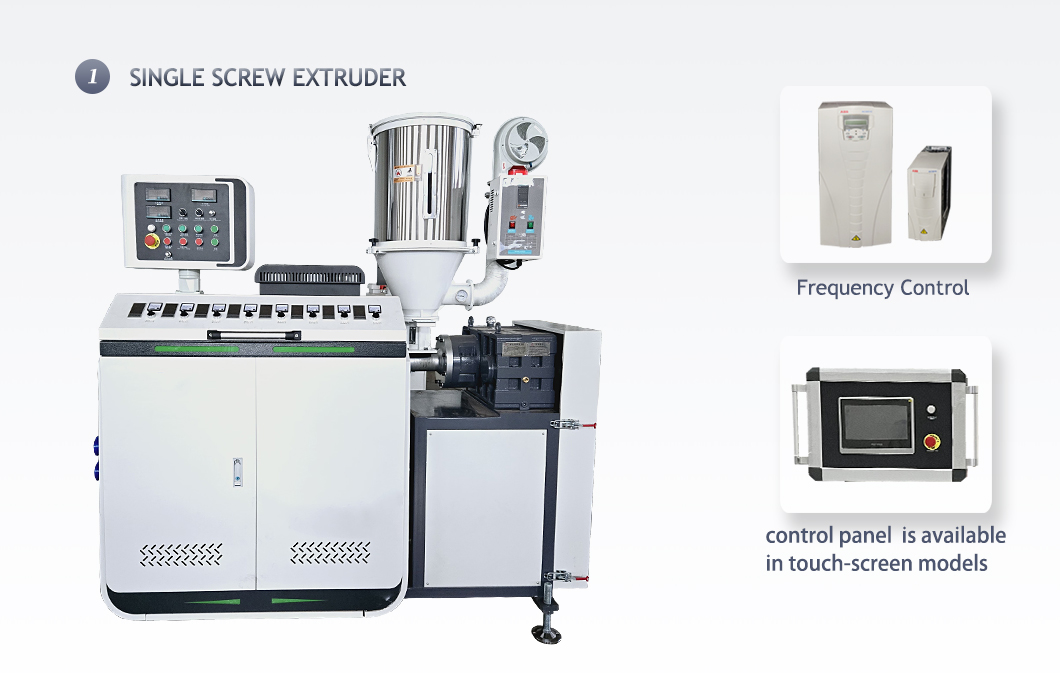

The single screw extruder is used for stable PPR plasticizing and melt delivery. Screw design, motor power and control system can be selected according to required output and pipe size.

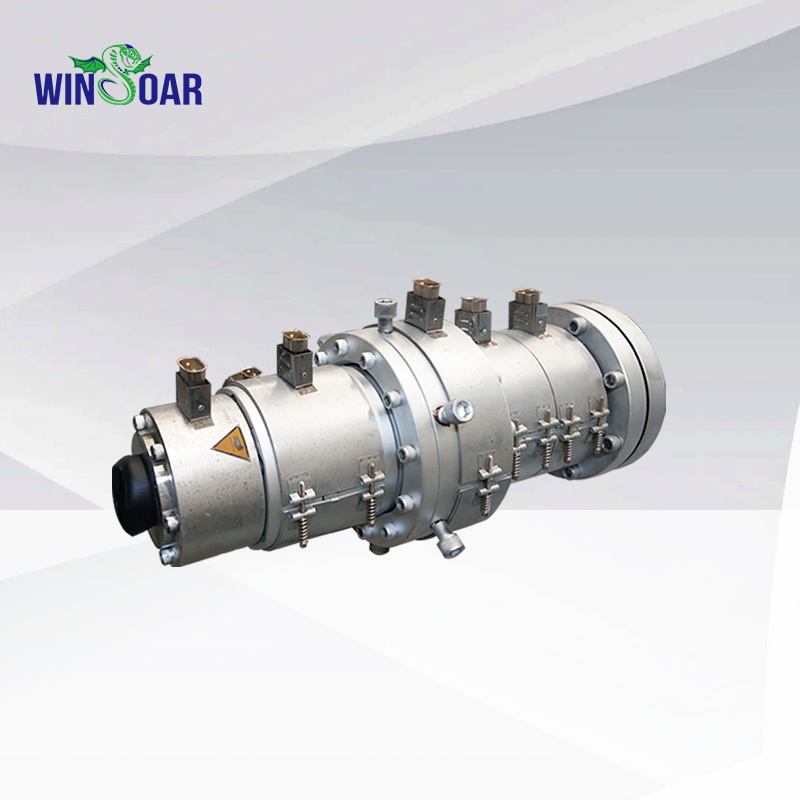

The pipe die head forms the melt into a stable pipe blank before calibration. Die and sizing sleeve are configured for the required PPR pipe diameter and wall thickness.

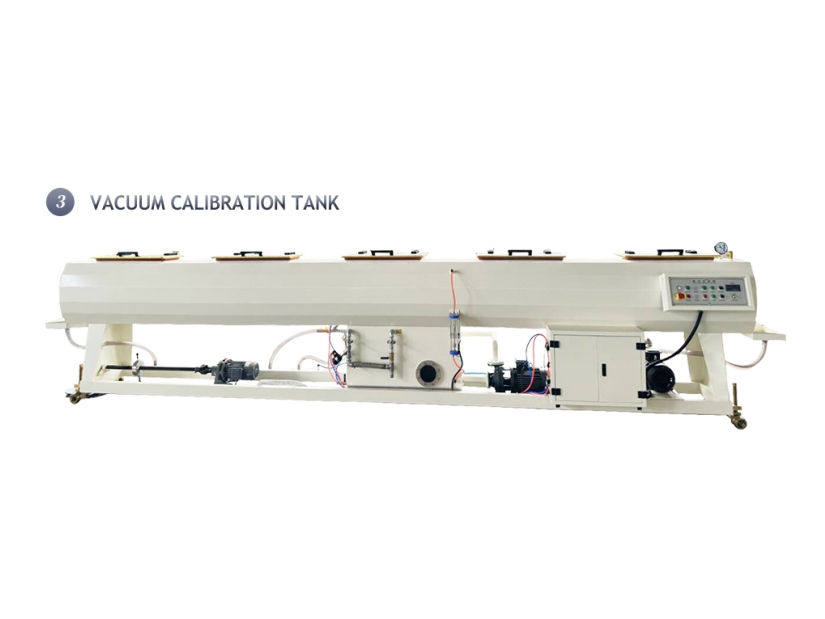

The vacuum calibration tank controls pipe outside diameter and roundness after extrusion. Stable vacuum and water temperature help keep PPR pipe size consistent.

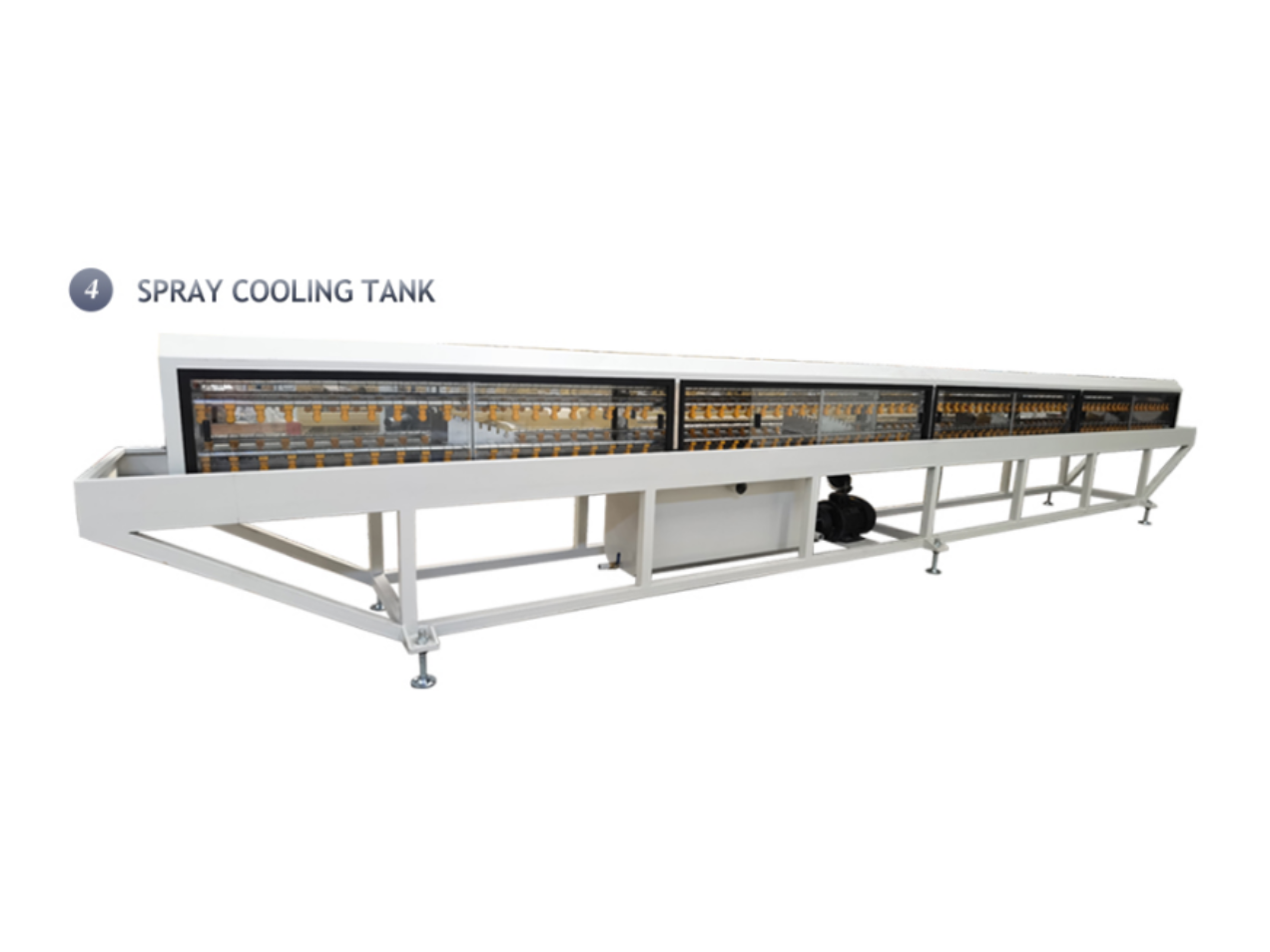

The spray cooling tank continues pipe cooling after calibration. Cooling length and water circulation are selected according to pipe size, output and line speed.

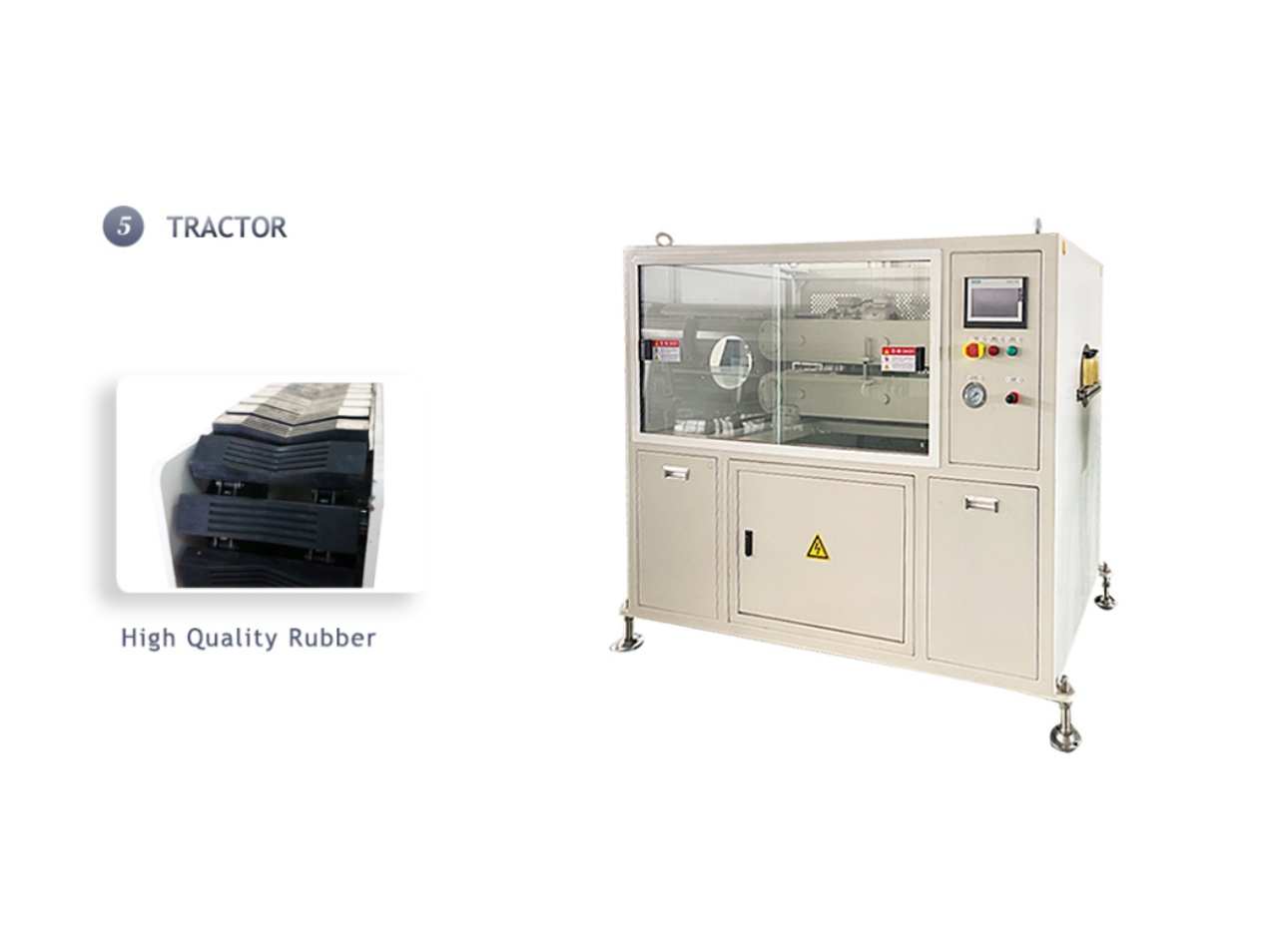

The haul-off machine keeps synchronized traction and helps maintain steady pipe wall thickness. The traction structure is selected according to pipe diameter and line speed.

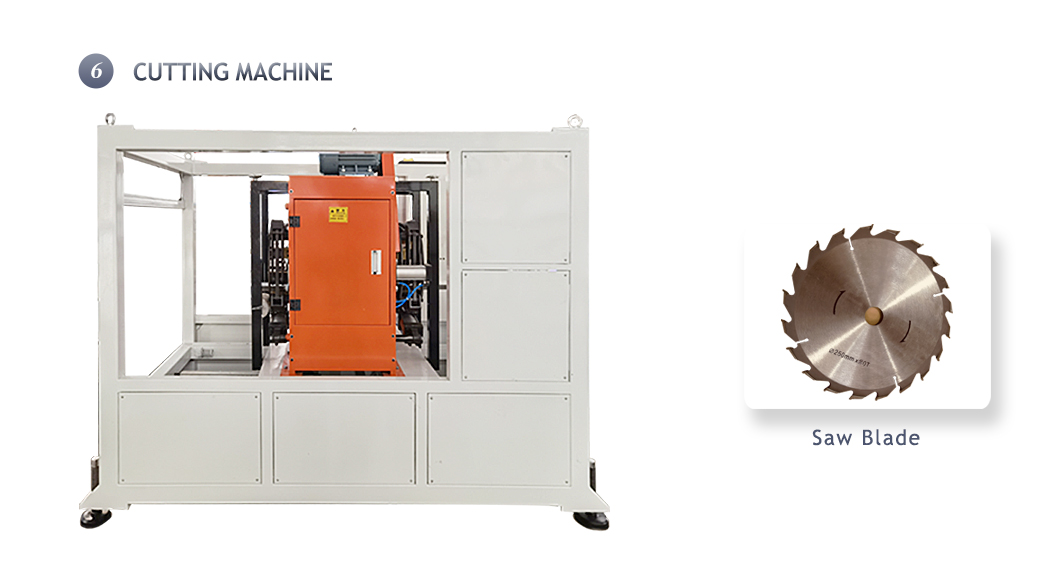

The chipless cutter cuts finished PPR pipe with a clean cutting edge and less pipe dust. Cutting length and control method can be matched with the production requirement.

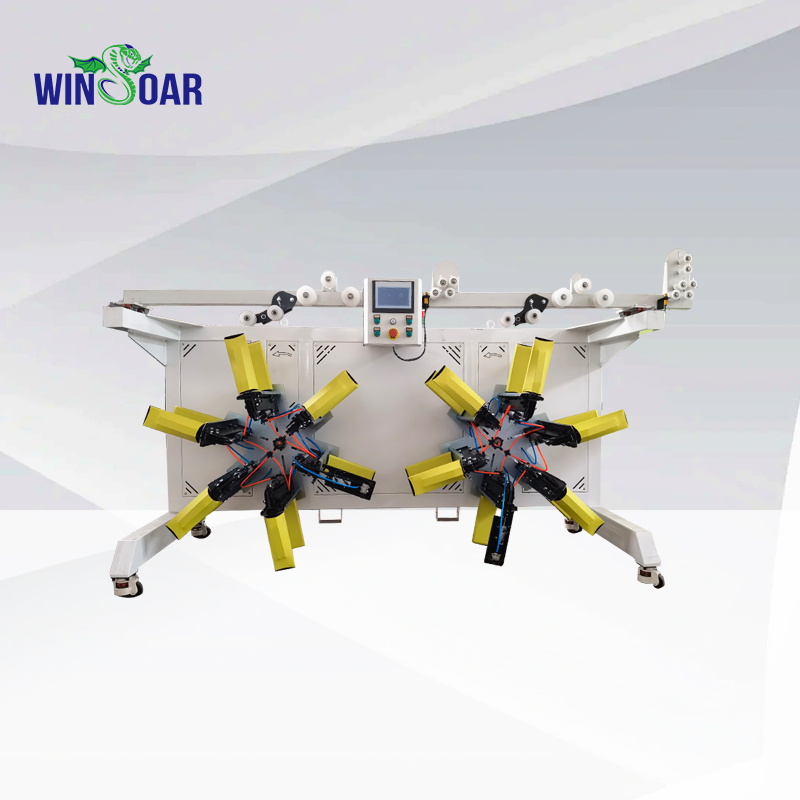

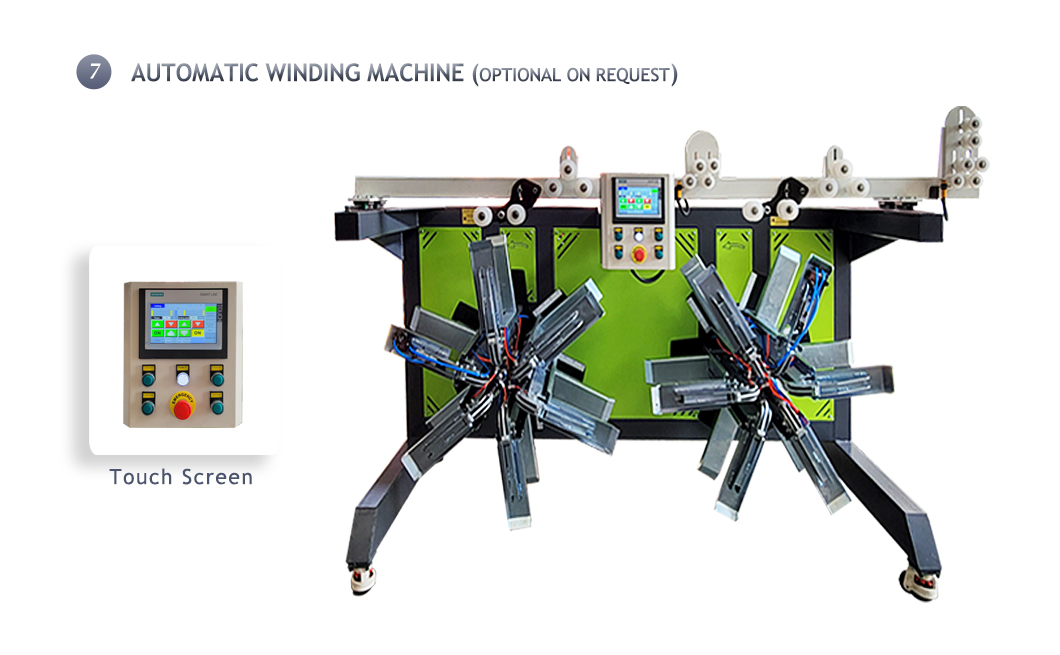

The coiler receives finished small diameter PPR pipe into rolls when the project needs coiled packaging. Coil diameter and winding layout can be matched with the customer's packaging method.

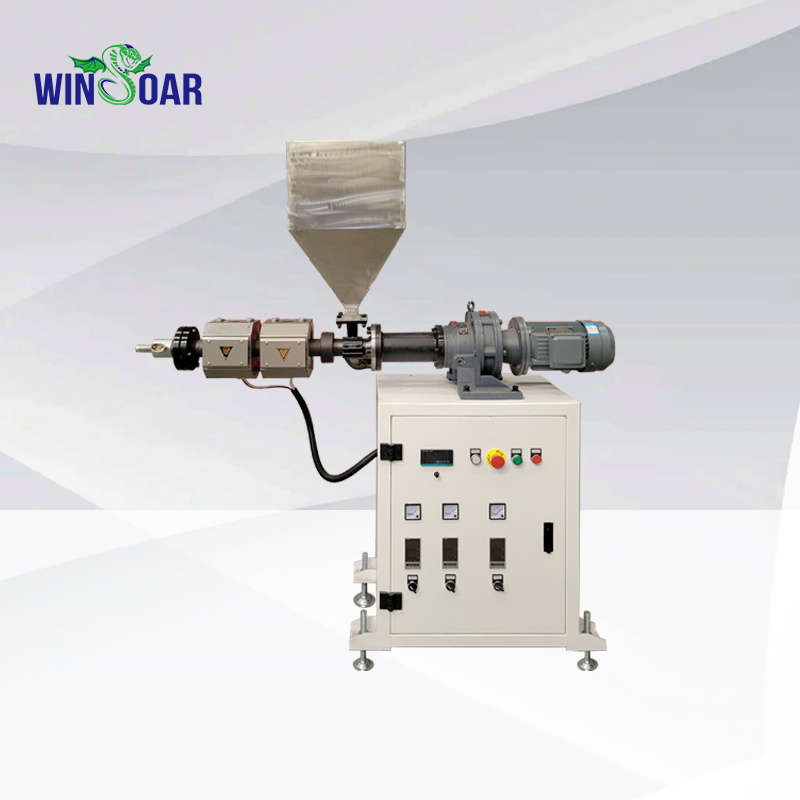

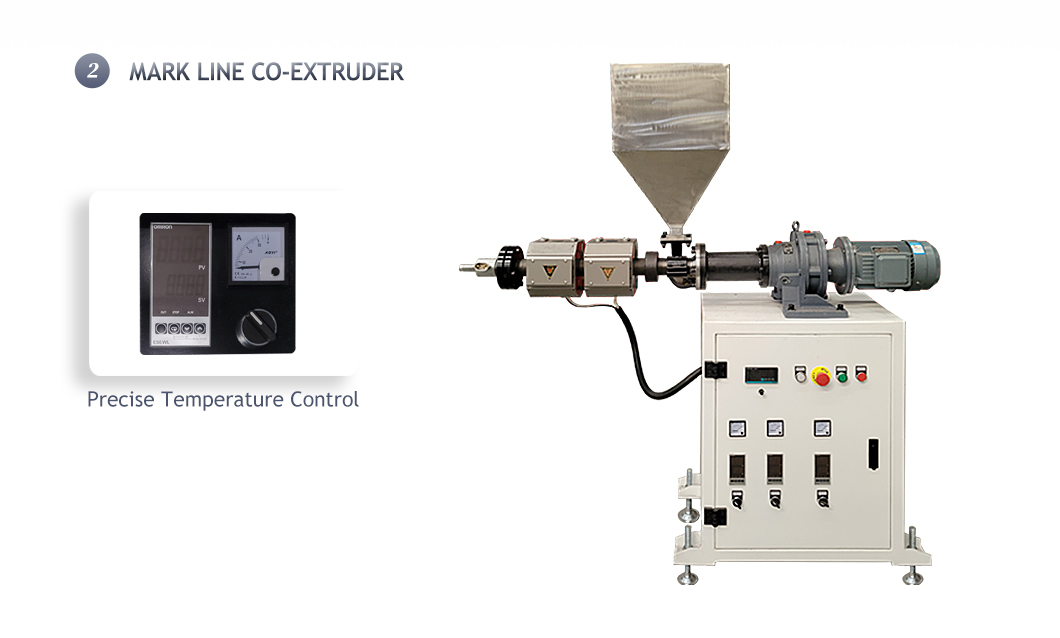

The color marking machine can add pipe color lines or identification marks according to application and local market requirements.
Factory, Packaging & Exhibition
Winsoar supports PPR pipe extrusion projects from configuration discussion to manufacturing, workshop testing, packaging, container loading and shipment coordination. Factory and exhibition communication helps buyers confirm practical equipment layout before production.
Winsoar manufactures plastic extrusion machines according to confirmed pipe diameter, output requirement, voltage and factory layout. The 16-63mm PPR pipe production line configuration can be discussed before production.
Before shipment, machine parts, control cabinet, downstream equipment and auxiliary systems can be checked in the workshop to reduce installation risk.
Winsoar prepares export packaging according to machine size and transportation requirements. Protective wrapping and wooden cases help protect die heads, electrical parts and auxiliary equipment.
Container loading photos help buyers confirm shipment preparation and machine delivery status. Winsoar can arrange loading plans according to equipment dimensions and destination requirements.
Before quotation, buyers can discuss pipe sample, pipe diameter, wall thickness, local standard, output target and factory layout with Winsoar. These details help us recommend a practical PPR pipe extrusion line.
Tell Winsoar your pipe diameter range, wall thickness, water pipe application, material grade, output requirement, cutting or coiling requirement, voltage and workshop layout. We will recommend a suitable PPR pipe production line configuration, including extruder, die head, calibration tank, cooling tank, haul-off, cutter, coiler, packaging plan and shipment support.
